Protein domains on gene models

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.21. Desktop beta builds for Linux and macOS are on the releases page; the Windows build waits on code signing.

A gene model shows where the exons are, and Pfam names the protein domains they encode, such as a kinase or a DNA-binding fold. Domain callers report each domain in residues along the protein, so the domains need placing back on the exons before JBrowse can draw them under the genes. The placement for every transcript shows which exons encode each domain and which isoforms lack one. We work through the honey bee RefSeq annotation and the Su(var)3-9 gene, whose isoforms encode two different proteins. We:

translate the gene models and call Pfam domains on the proteins with hmmscan
place each domain on the exons that encode it with domains2genome
draw each transcript in a separate row of the multi-row feature display, with its domains over its exons colored by Pfam family

Prerequisites

a JBrowse to paste the track into (Web or Desktop), or the honey bee genome on genomes.jbrowse.org
gffread, which translates each transcript's CDS
HMMER (hmmscan, hmmpress), which calls the domains
htslib (bgzip, tabix), which indexes the domain file
node, whose npx runs domains2genome
samtools, for the FASTA index the build script writes

# Debian/Ubuntu
sudo apt install gffread hmmer tabix samtools nodejs
# or conda, which has every tool above
conda install -c bioconda -c conda-forge gffread hmmer htslib samtools \
  nodejs

The data

The figures read the honey bee Amel_HAv3.1 assembly and its NCBI RefSeq annotation from genomes.jbrowse.org, and a Pfam domain file built from that annotation with the commands below. You don't need these files to follow the page, since the track config reads a hosted copy of the domain file; to build your own, run the commands on your genome FASTA and GFF3.

What it is	File
The honey bee genome, which gffread reads the CDS from	GCF_003254395.2_Amel_HAv3.1_genomic.fna.gz
Its RefSeq gene models, which the domains are placed on	GCF_003254395.2_Amel_HAv3.1_genomic.gff.gz
The Pfam HMM library, about 400 MB and 1.5 GB once pressed, which hmmscan searches	Pfam-A.hmm.gz

Calling Pfam domains on the proteins

We'll start from the two files any annotation project has, the genome FASTA and the gene models, and translate every transcript's CDS into a protein FASTA:

# -y writes each protein named by its transcript ID; -S spells a stop codon `*`,
# which HMMER reads and gffread's default `.` is not. gffread wants the FASTA
# uncompressed.
gffread -S -y proteins.fa -g genome.fa genes.gff3

hmmscan searches each protein against every Pfam family and writes one row per domain hit, in residue coordinates along the protein. The library downloads gzipped, and needs unpacking and pressing once:

gzip -d Pfam-A.hmm.gz

hmmpress Pfam-A.hmm

# --cut_ga: each Pfam family's curated gathering threshold, the cutoff InterPro
# uses, in place of one E-value for every family. hmmscan keeps about two cores
# busy whatever --cpu asks for, so the build script splits proteins.fa into
# chunks and scans them at once, about a quarter hour for an insect proteome
# with THREADS=18.
hmmscan --cut_ga --cpu 2 --noali --domtblout pfam.domtblout Pfam-A.hmm proteins.fa >/dev/null

An annotation pipeline that already ran InterProScan 6 has the same calls in its GFF3 output (--formats gff3), named by Pfam's short family names. The next step reads it in place of pfam.domtblout, with --source Pfam to keep only the Pfam rows.

Placing the domains on the exons

domains2genome walks each transcript's CDS in the direction of translation and places each domain on the bases that encode it, on either strand and across introns. With --gff3 it writes each coding transcript as an mRNA with its exons and CDS, and each domain on it as a protein_match child, which bgzip compresses:

# matches each protein to its transcript by transcript ID, CDS protein_id or
# CDS ID, so gffread, NCBI and Ensembl protein names all work. Where HMMER hits
# on one protein overlap by more than half, the lowest E-value is kept.
npx -y 'domains2genome@>=2.4.0' genes.gff3 pfam.domtblout --gff3 | bgzip >pfam.gff3.gz

tabix indexes the GFF3, so JBrowse reads only the region on screen:

tabix -f -C -p gff pfam.gff3.gz

A protein_match's Name is the Pfam family, its source column the analysis and its score the E-value; accession, description, proteinStart and proteinEnd are attributes, and JBrowse shows them on click.
A domain crossing an intron is one protein_match written on a line per exon, the lines sharing an ID.
The mRNA has the annotation's ID and Name, the name the gene track labels the transcript with, and its protein_id and product.
Every coding transcript is written, with or without a domain on it.
Without --gff3, domains2genome writes the domains alone as BED12, one row per domain per transcript, which IGV and the UCSC browser draw too.

Drawing the domains on their transcripts

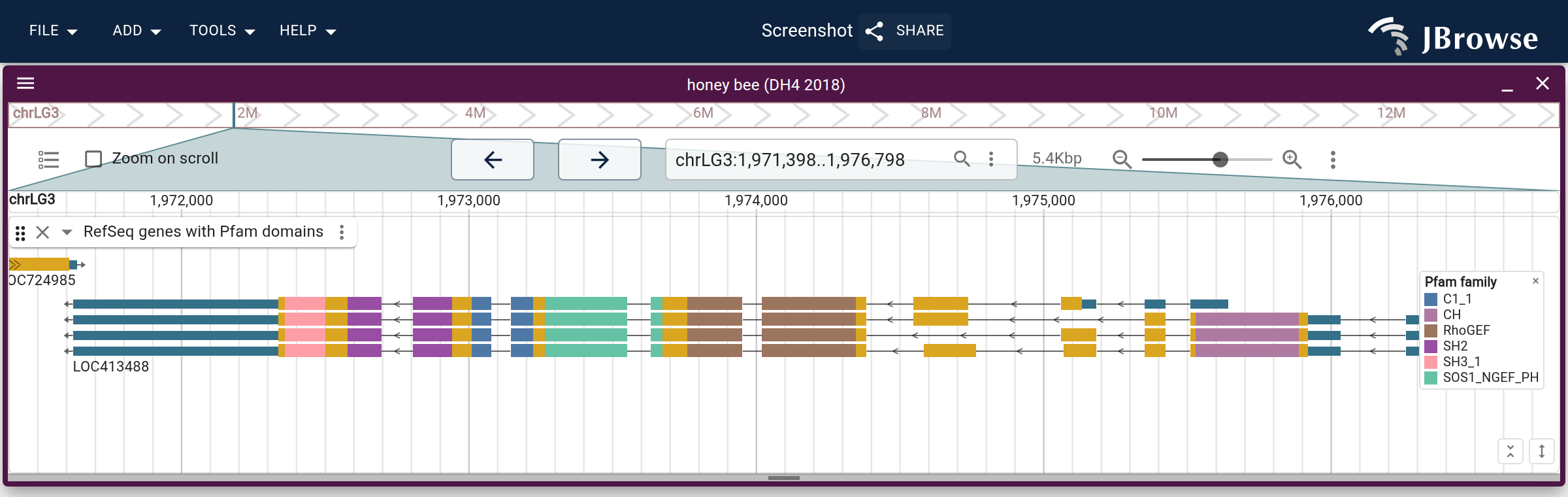

JBrowse loads the file as a track in the multi-row feature display, which gives each transcript a row: its UTR thin and light grey, its coding exons full height and darker, and its domains over them. encoding.color colors each domain by its Pfam family, and the key names both greys and the families on screen.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "FeatureTrack",
  "trackId": "pfam_domains",
  "name": "Pfam domains",
  "assemblyNames": ["GCF_003254395.2"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://jbrowse.org/demos/protein_domains/pfam.gff3.gz",
    "csi": true
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "pfam_domains-LinearMultiRowFeatureDisplay",
      "encoding": {
        "color": { "field": "name", "legend": { "title": "Pfam family" } }
      }
    }
  ]
}

CLI

Edits config.json in the current folder. See JBrowse CLI with Desktop.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "pfam_domains",
  "name": "Pfam domains",
  "assemblyNames": ["GCF_003254395.2"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://jbrowse.org/demos/protein_domains/pfam.gff3.gz",
    "csi": true
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "pfam_domains-LinearMultiRowFeatureDisplay",
      "encoding": {
        "color": { "field": "name", "legend": { "title": "Pfam family" } }
      }
    }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "pfam_domains",
  "name": "Pfam domains",
  "assemblyNames": ["GCF_003254395.2"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://jbrowse.org/demos/protein_domains/pfam.gff3.gz",
    "csi": true
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "pfam_domains-LinearMultiRowFeatureDisplay",
      "encoding": {
        "color": { "field": "name", "legend": { "title": "Pfam family" } }
      }
    }
  ]
}

For your own data, point uri at your pfam.gff3.gz and assemblyNames at your assembly. To follow along on genomes.jbrowse.org, open the honey bee genome, add the track above, and go to NC_037653.1:4,839,300-4,850,050.

Honey bee Su(var)3-9: each RefSeq transcript in a separate row, its UTR and coding exons grey and its Pfam domains over them, colored by family.

The two curated transcripts (NM_) encode different proteins from the same first three exons. NM_001040277.1 goes on into the exon that encodes Chromo, Pre-SET and SET, the Su(var)3-9 histone methyltransferase. NM_001171169.1 skips that exon and joins the exons of eIF2γ, the GTP-binding subunit of translation initiation factor 2, and so has the GTP_EFTU, GTP_EFTU_D2 and eIF2_C domains. XM_006561307.3 and XM_006561308.3, which differ only at their 5′ ends, leave the Su(var)3-9 exon partway through SET and continue into the eIF2γ exons, so each encodes Chromo and Pre-SET and the eIF2γ domains in one protein. The two genes share one transcription unit across the insects that undergo complete metamorphosis (Krauss and Reuter, 2000). XM_001121123.5 is a transcript of the neighboring gene.

Reproduce it end to end

build_protein_domains.sh runs every step above on your own genome FASTA and GFF3. The script:

Translates each transcript's CDS with gffread.
Downloads and presses the Pfam library once, then calls domains with hmmscan, on chunks of the proteins at once.
Places the domains on the exons with domains2genome.
Builds a JBrowse with the genome, the genes and the domain track.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_protein_domains.sh
bash build_protein_domains.sh genome.fa genes.gff3   # builds ./protein_domains_build/jbrowse2
npx --yes serve protein_domains_build/jbrowse2       # then open the printed URL

The script reads genome.fa and genes.gff3 plain or gzipped, and THREADS=32 bash build_protein_domains.sh ... scans more chunks at once.

Citations

Mistry et al. (2021). Pfam: The protein families database in 2021
Eddy (2011). Accelerated profile HMM searches
Krauss and Reuter (2000). Two genes become one: the genes encoding heterochromatin protein Su(var)3-9 and translation initiation factor subunit eIF-2gamma are joined to a dicistronic unit in holometabolic insects
Pertea and Pertea (2020). GFF utilities: GffRead and GffCompare
Wallberg et al. (2019). A hybrid de novo genome assembly of the honeybee, Apis mellifera, with chromosome-length scaffolds
