GPU displays

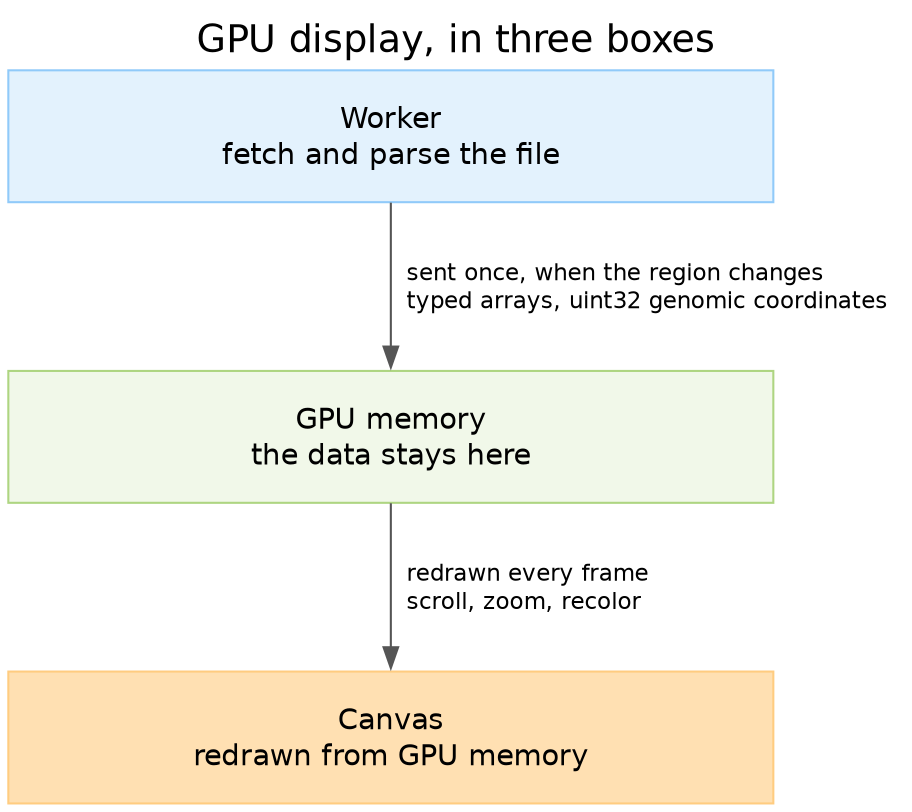

A display declares what it draws as a list of marks. A mark binds a shape to the display's payload and render state. createMarkBackend turns the list into the WebGPU, WebGL2 and Canvas2D backends, and the Canvas2D painter also produces the SVG export. You write a new shape only when no shared shape fits. A shape consists of one .slang, one uniform write, one Canvas2D painter and one hit test, all reading one set of channel arrays. The sections below write one.

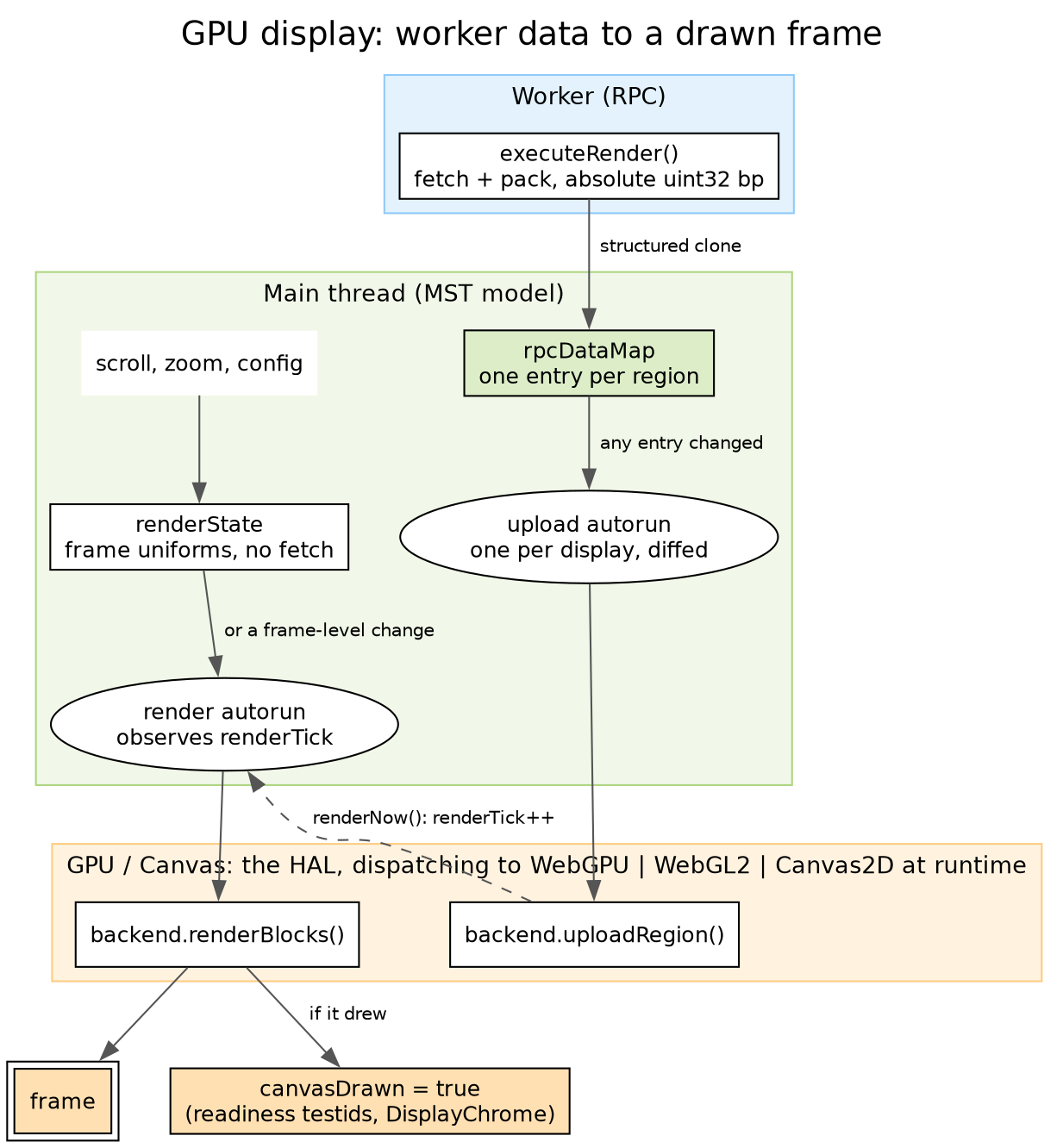

Architecture overview#

The model keeps two autoruns running at all times (owned by RenderLifecycleMixin, installed by installUpload):

• The upload autorun fires when any rpcDataMap entry or the backend changes. It diffs the map against what it last sent and calls backend.upload() only for regions that changed. The diff keeps a streaming whole-genome fetch at O(N) uploads instead of O(N²).
• The render autorun fires when renderTick bumps (after every upload) or when frame-level state like scroll position changes. It calls backend.renderBlocks().

The backend is a HAL (Hardware Abstraction Layer) that dispatches to WebGPU, WebGL2, or Canvas2D at runtime. Your shape talks to the HAL through its mark, never to WebGPU or WebGL2 directly. See the architecture spec for the full lifecycle and packages/render-core/CLAUDE.md for HAL invariants.

Shapes and marks#

A shape (MarkShape<TChannels, TParams>) defines geometry and picking in four members, and all four read the same channel arrays:

• pass — the .slang shader and the packer that fills its instance buffer
• writeUniforms — what reaches the GPU per block
• paintBlock — the Canvas2D painter, which is also the SVG export
• ink — the box each instance paints. render-core turns it into the hit test for hover and click, and the chrome turns it into the hover highlight

A mark (defineMark({ shape, channels, params })) binds a shape to one display. channels names which of the payload's arrays feed which lane, and params names which of the render state's values reach the uniforms. Both functions only select fields and compute nothing.

Two shapes are shared. A display that draws with one of them writes no shader, no painter and no hit test:

• spanMark — a coloured rectangle from x to x2 on the band of row. Features laid into rows, MAF's alignment cells, anything that is a box on a row.
• pointMark — a glyph (disc, triangle, diamond) at x on a linear domain of y, widening to a bar where x2 - x is wider than the glyph. A scatter plot, Manhattan's points, any datum placed by a value.

plugins/gwas/src/LinearManhattanDisplay/manhattanMarks.ts holds all of Manhattan's drawing, over pointMark. The example's score box spans start to end and grows up from the bottom to its value. It is neither a row band nor a glyph, so the example writes a new shape. A shape moves into render-core once two displays share it. Until then it stays beside the display that declares it, so the score shape goes there.

Files to create#

The files are the same example-plugins/score-example/ that the plotting guide builds. Every file serves both backends. The shape and its shader get more detail in the steps below:

src/
  index.ts                       the plugin class; installs the display, the RPC method and the feature panel
  LinearScoreDisplay/
    configSchema.ts              config slots (color, scoreColumn)
    findScoreHit.ts              the display's hit: `nearestMarkHit` asks the mark's `hitNearest`, which its `ink` implies, about every instance under the cursor
    index.ts                     registers the display type; the model and the component both load lazily
    model.ts                     MST model: rpcDataMap, renderState, fetchNeeded, startRenderingBackend, renderSvg
    renderSvg.tsx                SVG export: the mark list painted through renderDisplaySvg
    scoreMark.ts                 the `score` shape: score.slang's pass, its uniform write, and the placement its painter (also the SVG export) and its ink (the hit test and the highlight) both read
    scoreMarks.ts                ScoreRenderState, the mark list (one `score` mark over the RPC payload) and the backend type
    components/
      ScoreDisplayComponent.tsx  React: DisplayChrome wrapping the canvas; builds the backend from the mark list
    shaders/
      score.slang                the `score` shape's shader: one box per feature, compiled by gen:shaders
  ScoreFeaturePanel/
    index.tsx                    adds a panel to the feature details widget
  ScoreRPC/
    GetScoreData.ts              worker: fetch features from the adapter, then encode
    index.ts                     registers the RPC method
    rpcTypes.ts                  ScoreRegionData and the RPC arg types

Step 1: Define data types#

The worker sends one payload per region, and the payload is the encoder's channels. A config-declared mark reads the same arrays, in absolute genomic uint32:

// One region's worth of features as the encoder packs them: parallel typed
// arrays, `x`/`x2` absolute genomic uint32 (never region-relative, so they
// cross the worker boundary without precision loss) and `y` the raw score,
// plus the score extremes. The shape reads the arrays under these names.
export type ScoreRegionData = Encoded<'y'>

The model recomputes the render state cheaply every frame. The model resolves the colour once, to the packed form the shader's uniform takes. A shape takes packed colours and the display resolves them, so the uniform write and the painter receive the same number. The model also computes the domain. The encoder ships each region's score extremes, and the model folds them into the one [min, max] that places every region's boxes:

// Recomputed cheaply every frame without fetching: the canvas dimensions
// (required, to size the backing store) plus what the drawing reads
export interface ScoreRenderState {
  canvasWidth: number
  canvasHeight: number
  // packed ABGR (`cssColorToABGR`), resolved once in the model so both backends
  // are handed the same number
  color: number
  // the score range the boxes are placed through, from the loaded regions'
  // extremes, so a box's height means the same in every region
  domainY: [number, number]
}

Step 2: Write the shader#

Create a .slang file. JBrowse uses a Slang-derived shader language that compiles to both WGSL (WebGPU) and GLSL (WebGL2). Modules are referenced by bare name (import hpmath;), not file path. The shared helpers are in packages/render-core/src/shaders/:

• hpmath for the high-precision genomic→pixel transform
• colorPack for unpacking packed colors
• valueScale for placing a value on a [min, max] domain. The library's point and bar shapes read this scale, and the example combines it with its box's anchor at the canvas bottom

packages/render-core/src/shaders/ also holds the shared shapes (capsule, rowRect, pointGlyph, diagonalGrid). Each carries a mark's geometry together with its antialias contract. The shader shape library lists what each shape draws, who imports it, and which parts are deliberately not shared. The example declares its uniforms inline. If several passes share a struct, put it in a sibling module (scoreUniforms.slang, starting module scoreUniforms; with a public struct).

The shader defines the geometry once: how tall a box is, and how narrow one may paint. //! js-export lifts a function into a TypeScript twin, and //! export-consts lifts a constant. The painter and the hit test in Step 3 import those twins and do not repeat the arithmetic:

// The score shape: one box per instance, spanning x->x2 and grown up from the
// canvas bottom to its score on the shared value scale, every box in the one
// uniform ABGR color. The box height is written here once and lifted into a
// TypeScript twin, which the painter and the hit test read.
//! targets: wgsl, glsl
//! export-consts: MIN_WIDTH_PX
//! js-export: scoreBarHeightPx

import hpmath;
import colorPack;
import valueScale;

public static const uint VERTS_PER_INSTANCE = 6u;

// Narrowest a box paints, in CSS px, so a 1bp feature still shows at
// chromosome zoom. Both backends floor at this constant.
static const float MIN_WIDTH_PX = 1.0;

struct ScoreInstance {
  uint  x  : ATTR0;
  uint  x2 : ATTR1;
  float y  : ATTR2;
};

struct Uniforms {
  // hpmath genomic->clip transform (hi, lo, +/-clippedLengthBp)
  float3 bpRangeX;
  float  zero;
  // CSS px of the block column clip space spans, not the whole canvas
  float  viewportWidth;
  float  canvasHeight;
  // the [min, max] a score is placed through, set by the display from the
  // loaded regions' extremes so every region's boxes share one scale
  float  domainMin;
  float  domainMax;
  uint   color;
};
[[vk::binding(1, 0)]] ConstantBuffer<Uniforms> u;

float bpToClipX(uint bp, Uniforms u) {
  return hpToClipX(hpSplitUint(bp), u.bpRangeX, u.zero);
}

// valueScale's valueToYPx is the scale the library's own `point` and `bar`
// shapes read; the box's anchor — its foot on the canvas bottom — is this
// shape's own.
float scoreBarHeightPx(float score, float domainMin, float domainMax, float canvasHeight) {
  return canvasHeight - valueToYPx(score, domainMin, domainMax, canvasHeight);
}

struct VsOut {
  float4 position : SV_Position;
  float4 color    : COLOR0;
};

[shader("vertex")]
VsOut vs_main(ScoreInstance inst, uint vid : SV_VertexID) {
  // quadLocal maps the 6 vertices to the corners of a unit box: x/y each 0 or 1.
  float2 local = quadLocal(vid);

  float x1 = bpToClipX(inst.x, u);
  float x2 = bpToClipX(inst.x2, u);
  // reversal-safe: it is baked into bpRangeX's negated length, so x2 < x1 on a
  // reversed block and the widening grows the same way
  x2 = extendToMinWidthX(x1, x2, MIN_WIDTH_PX, u.viewportWidth);
  float x = local.x < 0.5 ? x1 : x2;

  float barHeightPx = scoreBarHeightPx(inst.y, u.domainMin, u.domainMax, u.canvasHeight);
  // local.y: 0 = top of the box, 1 = bottom (canvas bottom edge).
  float yPx = (u.canvasHeight - barHeightPx) + local.y * barHeightPx;

  VsOut o;
  o.position = float4(x, yPxToClipY(yPx, u.canvasHeight), 0.0, 1.0);
  o.color = unpackRGBA(u.color);
  return o;
}

[shader("fragment")]
float4 fs_main(VsOut fragIn) : SV_Target {
  return fragIn.color;
}

Run the codegen after every edit. In your own repo:

pnpm add -D @jbrowse/shader-tools
npx jbrowse-build-shaders

jbrowse-build-shaders scans from the project root for *.slang, fetches a pinned slangc on first use, and writes each *.generated.ts next to its source (hpmath / colorPack resolve from your installed @jbrowse/render-core). Inside this repo the same tool is pnpm gen:shaders.

One .slang file with entry points produces up to six modules, and which module you import determines what your users download. A bundler treats a namespace import (import * as shader from './score.generated.ts') as using every export, so it includes or excludes a module whole. If any eager code imports a module, even for one value, the always-loaded chunk carries the whole module.

A display model that reads one threshold should therefore import the .consts. module, not the shader module that re-exports it. The text is the one part no module you import carries: a mark declared at module scope is evaluated when your plugin registers, in the RPC worker too, so the WGSL and GLSL wait behind import() until a display builds a GPU backend with the pass. Import neither yourself.

The table below says what lands in score.generated.ts and what a plugin imports from it. That module re-exports the interface and consts modules, so the table is the union of all three, plus the three strings the text modules hold:

The generator emits only what a given shader needs: no compute entry point for a render-only shader, and an *_OFFSET_* map only for the typed-array views its fields actually take.

Genomic positions travel as absolute uint attributes. Convert them only with the bpToClipX wrapper above. The wrapper hides a bpHi/bpLo split, which is needed because float32 can't represent every base past ~16.7 Mbp, and keeps the split in that one line. In TypeScript outside uniform writes, use plain bp - bpStart.

Step 3: The shape#

A shape takes two inputs. Its channels are parallel typed arrays plus a count, and its params are everything else the drawing needs. A shape names its lanes in the library's vocabulary: x, x2, y or row, color, plus any names specific to the shape. The display's payload can name its arrays differently, because channels on the mark maps one set of names to the other. The file below defines the placement function that two members share, then the four members. A shape has no constructor. It is an object literal, admitted by having a consumer and not by completeness.

import { bpRangeXTuple } from '@jbrowse/render-core/blockClipUtils'
import {
  bpProjection,
  projectBp,
  spanLeft,
} from '@jbrowse/render-core/canvas2dUtils'
import { abgrToCssRgba } from '@jbrowse/render-core/marks/colorFill'
import { slangPass } from '@jbrowse/render-core/slangPass'

import * as shader from './shaders/score.generated.ts'
import { scoreBarHeightPx } from './shaders/score.js.generated.ts'

import type { BpProjection } from '@jbrowse/render-core/canvas2dUtils'
import type { MarkFrame, MarkShape } from '@jbrowse/render-core/marks'
import type { RenderBlock } from '@jbrowse/render-core/renderBlock'

// The shape's lanes, in the shape library's vocabulary (`x`, `x2`, `y`):
// parallel typed arrays plus a count. The encoder's payload carries these
// names, so the mark's channel lens is the identity.
export interface ScoreChannels {
  x: Uint32Array
  x2: Uint32Array
  y: Float32Array
  count: number
}

// Everything else the drawing needs, reaching the GPU as uniforms and the
// painter as arguments
export interface ScoreParams {
  // packed ABGR (`cssColorToABGR`), the form the shader's uniform takes; the
  // painter unpacks it
  color: number
  // the [min, max] a score is placed through
  domain: [number, number]
}

// What one block fixes for every instance, beside the box `placeScore` writes
// for one of them
interface ScoreFrame extends BpProjection {
  canvasHeight: number
  domainMin: number
  domainMax: number
  left: number
  top: number
  width: number
  height: number
}

function scoreFrame(
  block: RenderBlock,
  frame: MarkFrame,
  params: ScoreParams,
): ScoreFrame {
  const { originPx, startBp, spanBp, signedSpanPx } = bpProjection(block)
  return {
    originPx,
    startBp,
    spanBp,
    signedSpanPx,
    canvasHeight: frame.canvasHeight,
    domainMin: params.domain[0],
    domainMax: params.domain[1],
    left: 0,
    top: 0,
    width: 0,
    height: 0,
  }
}

// One box per instance: x..x2 wide, grown up from the canvas bottom to its
// score on the value scale. The painter and the ink both place through here,
// and the shader owns the geometry: its generated twin (`scoreBarHeightPx`)
// and constant (`MIN_WIDTH_PX`), so the three cannot drift.
function placeScore(c: ScoreChannels, g: ScoreFrame, i: number) {
  const xa = projectBp(g, c.x[i]!)
  const xb = projectBp(g, c.x2[i]!)
  const width = Math.max(shader.MIN_WIDTH_PX, Math.abs(xb - xa))
  const height = scoreBarHeightPx(
    c.y[i]!,
    g.domainMin,
    g.domainMax,
    g.canvasHeight,
  )
  g.left = spanLeft(xa, xb, width)
  g.top = g.canvasHeight - height
  g.width = width
  g.height = height
}

export const scoreMark: MarkShape<ScoreChannels, ScoreParams> = {
  id: 'score',
  pass: {
    ...slangPass({ id: 'score', mod: shader }),
    // the generated packInstances interleaves the parallel arrays into the
    // shader's instance layout; the instance count is the buffer's own
    pack: c => shader.packInstances(c, c.count),
  },

  writeUniforms(scratch, clip, block, frame, params) {
    shader.writeUniforms(scratch, {
      // the hp-split genomic->clip transform, negated on a reversed block
      bpRangeX: bpRangeXTuple(clip, block.reversed),
      zero: 0,
      // CSS px, so the min-width floor is a CSS pixel on every DPR
      viewportWidth: clip.scissorW,
      canvasHeight: frame.canvasHeight,
      domainMin: params.domain[0],
      domainMax: params.domain[1],
      color: params.color,
    })
  },

  paintBlock(ctx, channels, block, frame, params) {
    const g = scoreFrame(block, frame, params)
    ctx.fillStyle = abgrToCssRgba(params.color)
    for (let i = 0; i < channels.count; i++) {
      placeScore(channels, g, i)
      ctx.fillRect(g.left, g.top, g.width, g.height)
    }
  },

  // The rect `paintBlock` fills. render-core derives the hit test from it —
  // distance 0 inside the box, the nearest edge outside — and the chrome's
  // highlight lights it for the hovered instance
  ink(channels, block, frame, params, i) {
    const g = scoreFrame(block, frame, params)
    placeScore(channels, g, i)
    return { left: g.left, top: g.top, width: g.width, height: g.height }
  },
}

What each member is held to:

• pass is slangPass over the generated module plus a pack. The instance count comes from the buffer size: a packer that allocates n * INSTANCE_STRIDE_BYTES has stated n. A region with nothing to draw releases its buffer through an empty pack.
• writeUniforms uses the generated packer (shader.writeUniforms), which writes every field. The scratch buffer outlives the frame, so a field left out of a manual offset write would redraw with last frame's value. The bpRangeX triple comes from bpRangeXTuple, never by hand, because it carries the reversed pivot and a hand-written pivot is where the bugs come from. Widths are CSS px (clip.scissorW, the block column), so a min-width floor is one CSS pixel on every DPR.
• placeScore places one instance. The painter and the ink both call it, so the box geometry is written once. It reads the per-block values from a frame. bpProjection(block) and projectBp mirror bp→px on a reversed block the same way the negated bpRangeX does. spanLeft grows a widened span away from its anchor in both orientations.
• paintBlock is the Canvas2D fallback and the SVG export. Both a real 2D context and the SVG context satisfy the context type it takes (MarkContext2D).
• ink returns the rect the painter fills for one instance, or undefined for an instance the painter skips. render-core derives hitNearest from it. inkOnRect reports the point of the box nearest (x, y) and the distance, and nearestInk keeps the closest. Only a strictly nearer candidate replaces the best, so a caller iterating back to front gets the mark on top. The display chooses the candidate set: every instance, or the instances a spatial index returned. A shape declares hitNearest itself when its ink is not a box (a ribbon, an arc), or when its hit rule differs from its box (point, where a cluster of glyphs resolves to the nearest centre).

A shape can also define two optional members. paintsBlock(block, frame, params) is a draw predicate, and both backends and the hit test skip a block when it returns false. Use it for a setting that turns a layer off, or a marker that exists only at a canvas edge. texture on the mark declares a 256-entry colour ramp that the pass samples.

Step 4: The mark list#

// Which of the payload's arrays feed which of the shape's lanes, and which
// render-state values reach its uniforms: two lenses, run once per block per
// frame. The encoder's payload already carries the shape's lane names, so the
// channel lens is the payload itself. Everything that draws comes from the
// shape.
export const SCORE_MARKS = [
  defineMark({
    shape: scoreMark,
    channels: (d: ScoreRegionData) => d,
    params: (s: ScoreRenderState) => ({ color: s.color, domain: s.domainY }),
  }),
]

channels may return undefined for a region where the mark has nothing to draw, so one list can serve a display whose cells are a union. defineMark has three more options, used by shapes in the tree: bufferOf for a mark that draws from another mark's uploaded buffer, texture for the ramp above, and band for a display that stacks strips on one canvas. A first shape needs none of them.

Step 5: The parity gate#

The painter and the ink each describe where an instance paints, and a change to one can leave the other out of date. sweepMarkAgainstHit takes a mark, so the test binds the shape to fixed params with defineMark. The sweep paints a block into a recording context and checks ink against what the painter drew: the painting lies inside the box, and every edge of the box is within a pixel of the painting. It then walks the block in half-pixel steps and checks the hit test against both. A point on a box returns that box, a hit's x/y lies inside the box it names, and no answer is nearer than its painting. Run the sweep in both orientations:

import { defineMark } from '@jbrowse/render-core/marks'
import { sweepMarkAgainstHit } from '@jbrowse/render-core/marks/drawAgainstHit'

import { scoreMark } from './scoreMark.ts'

import type { ScoreChannels } from './scoreMark.ts'

// 1000 bp over 200 px, so the 1 bp box is a fifth of a pixel and takes the
// MIN_WIDTH_PX floor; the first two boxes overlap and the tallest is full
// height, which puts its top on the canvas edge.
const block = {
  displayedRegionIndex: 0,
  start: 0,
  end: 1000,
  screenStartPx: 20,
  screenEndPx: 220,
  reversed: false,
}

const frame = { canvasWidth: 240, canvasHeight: 60 }

const channels: ScoreChannels = {
  x: Uint32Array.from([100, 300, 500, 900]),
  x2: Uint32Array.from([400, 450, 501, 1000]),
  y: Float32Array.from([0.5, 0.25, 1, 0.1]),
  count: 4,
}

// The draw-against-hit gate: every point the painter inked answers the box it
// is on, a hit's ink lies on its box, and no answer is nearer than the box. In
// both orientations, at containment and with a grab radius.
describe('score: every drawn box answers its own hit', () => {
  for (const reversed of [false, true]) {
    for (const maxDistSq of [Number.MIN_VALUE, 16]) {
      test(`reversed ${reversed}, bound ${maxDistSq}`, () => {
        expect(
          sweepMarkAgainstHit(
            defineMark({
              shape: scoreMark,
              channels: (c: ScoreChannels) => c,
              params: () => ({ color: 0xff0000ff, domain: [0, 1] }),
            }),
            channels,
            { ...block, reversed },
            frame,
            { maxDistSq },
          ),
        ).toEqual([])
      })
    }
  }
})

scoreMarks.test.ts beside it is the mark-level suite. It tests which payload array reaches which lane, the uniforms a block writes through MockHal, what the painter draws for one feature, and what the display's hit test returns. The two suites together replace the pixel comparison that a GPU-vs-Canvas2D check would otherwise need.

Step 6: MST model#

Compose MultiRegionDisplayMixin (which includes RenderLifecycleMixin and the fetch autoruns), store the worker output in an rpcDataMap, and wire the render lifecycle with installUpload. This is the per-region streamed upload pattern from the architecture spec's upload patterns, which fits when each region's data is independent (no cross-region layout coupling).

Plotting features, Step 3 builds this model in full (rpcDataMap, rpcProps, renderState, fetchNeeded). The model names no shape and no shader. Its one action that touches the backend is:

// called once by DisplayChrome when the backend is created, and again
// after a context loss. One installer streams each region into the
// backend and draws every frame from renderState; it is the only part of
// the model that knows a backend exists, and it is the same whether that
// backend is the GPU or the Canvas2D one.
startRenderingBackend(backend: ScoreRenderingBackend) {
  installUpload(self, backend, {
    cells: () => self.rpcDataMap,
    render: b =>
      b.renderBlocks(
        self.renderBlocks,
        self.rpcDataMap,
        self.renderState,
      ),
  })
},

installUpload wires the render lifecycle for you. It remembers what it last sent for each key and uploads only what changed, so N regions streaming in cost N uploads rather than N². The key is whatever your map is keyed by. Here it is a displayedRegionIndex. On a canvas several displays share, it is a sibling display's sharedBackendKey. On a display that holds one payload for the whole view, it is a slot name (oneCell('data', payload)). Only displays that lay features into Y-rows across regions (LinearBasicDisplay, alignments) pass a whole-map computed in place of the raw rpcDataMap.

If an encode needs more than the region's data, such as a color scheme or a scale, declare that value as inputs. A change to inputs re-encodes every loaded region. Reading the value inside encode does not work, because the helper invalidates only on inputs and on the region's data.

Three settings buckets (see the rpcProps() / gpuProps() pattern):

• rpcProps() refetches in the worker, so scroll and zoom must stay out of it.
• renderState is recomputed per frame and refetches nothing.
• gpuProps() holds a setting that needs a main-thread buffer re-encode but no refetch, such as a color or a scale.

Step 7: React component#

DisplayChrome creates the backend through useRenderingBackend, calls model.startRenderingBackend(backend) once it is live, and hands back the canvasRef to attach to your <canvas>. The factory it takes is the only import on the mark path that reaches the HAL:

// The only import on the mark path that reaches the HAL. It lives here, on the
// lazily loaded component, and not in the model: a state model is eager, so
// naming the backend there would load the GPU stack at plugin install.
// createMarkBackend tries WebGPU, then WebGL2, then Canvas2D, and every backend
// walks the same mark list.
function createScoreBackend(canvas: HTMLCanvasElement) {
  return createMarkBackend(canvas, SCORE_MARKS)
}

@jbrowse/render-core/marks/backend is a separate subpath from @jbrowse/render-core/marks so that only the component loads the GPU stack. A state model may import a display's declaration, painter and hit test, and a state model loads eagerly. Importing the backend loads the whole GPU stack, so only the lazily loaded component imports it.

On hover, the display asks render-core's nearestMarkHit for the nearest instance. It passes every instance of every block under the cursor to the mark's hitNearest, which render-core derives from ink, and stores the result:

// `nearestMarkHit` walks the blocks under the cursor and asks the mark's
// `hitNearest`, which measures the cursor against the rect its `ink`
// declares. What the display chooses is the candidates: every instance here,
// back to front so a tie goes to the box painted on top, which is enough at a
// few thousand boxes. A display with hundreds of thousands asks the encoder for
// its `index` lane — a Flatbush over (bp, score) — and answers with what that
// finds between the reach's `bpMin`/`valueMin` and `bpMax`/`valueMax` instead
// (`findManhattanHit` in plugins/gwas is the worked form).
export function findScoreHit(
  xPx: number,
  yPx: number,
  blocks: RenderBlock[],
  regions: ReadonlyMap<number, ScoreRegionData>,
  state: ScoreRenderState,
): ScoreHit | undefined {
  const hit = nearestMarkHit(
    SCORE_MARKS,
    blocks,
    index => regions.get(index),
    state,
    xPx,
    yPx,
    {
      radiusPx: HIT_RADIUS_PX,
      candidates: data => backToFront(0, data.count),
    },
  )
  return hit
    ? {
        start: hit.region.x[hit.index]!,
        end: hit.region.x2[hit.index]!,
        score: hit.region.y[hit.index]!,
        x: hit.x,
        y: hit.y,
        regionIndex: hit.block.displayedRegionIndex,
        instance: hit.index,
      }
    : undefined
}

// measured against the chrome container, which the canvas fills, so the
// pointer lands in canvas px with no offset
onPointerPosition={state => {
  model.setHoveredFeature(
    state
      ? findScoreHit(
          state.x,
          state.y,
          model.renderBlocks,
          model.rpcDataMap,
          model.renderState,
        )
      : undefined,
  )
}}

The highlight reuses the hit. A model defines hoverInk by passing the hovered instance through the mark list's ink with inkOfInstances. DisplayChrome then draws a positioned box in the palette's hover shade, and the model places nothing itself:

// the box the hovered bar painted, which DisplayChrome lights: the
// display names the instance and the shape's `ink` says where it is
get hoverInk(): HighlightRect[] {
  const hit = self.hoveredFeature
  return hit
    ? inkOfInstances(
        SCORE_MARKS,
        self.renderBlocks,
        index => self.rpcDataMap.get(index),
        self.renderState,
        index =>
          index === hit.regionIndex
            ? [{ mark: 0, index: hit.instance }]
            : undefined,
      )
    : []
},

Step 8: SVG export#

The mark already provides the export. paintMarkBlocks runs each mark's painter against the SVG context, and renderDisplaySvg handles the readiness gate and the terminal states around it. The whole file:

export async function renderSvg(
  model: ScoreSvgModel,
  opts?: ExportSvgDisplayOptions,
) {
  return renderDisplaySvg(model, opts, ScoreSvgBody)
}

// The same painter the Canvas2D backend runs, handed an SVG context. The
// export's width is the shell's, not the on-screen renderState's, which
// subtracts the track outline the export does not draw. The shell clips the
// body to its box.
function ScoreSvgBody({
  model,
  height,
  canvasWidth,
  renderBlocks,
  opts,
}: LgvSvgBodyProps<ScoreSvgModel>) {
  const state = { ...model.renderState, canvasWidth, canvasHeight: height }
  return (
    <PaintLayer
      width={canvasWidth}
      height={height}
      opts={opts}
      paint={ctx => {
        paintMarkBlocks(ctx, SCORE_MARKS, model.rpcDataMap, renderBlocks, state)
      }}
    />
  )
}

The model's renderSvg action loads it lazily, so the export code is in no eager chunk. SVG export has the pipeline.

Step 9: Register the display#

export default function LinearScoreDisplayF(pluginManager: PluginManager) {
  pluginManager.addDisplayType(() => {
    return new DisplayType({
      name: 'LinearScoreDisplay',
      configSchema,
      // a thunk, so the model and everything it names load when a track first
      // shows this display or a session names it, not at plugin install
      stateModel: () =>
        import('./model.ts').then(m => m.modelFactory(configSchema)),
      displayName: 'Score display (example)',
      trackType: 'FeatureTrack',
      viewType: 'LinearGenomeView',
      ReactComponent: ScoreDisplayComponent,
    })
  })
}

The model and the component both load late. Anything registered at plugin install loads everything it names by value, so a state model passed directly would load eagerly. Passing stateModel as a thunk keeps the display's mixins, its installUpload and their imports out of every host's startup bundle. They load when a track first shows the display or a session names it.

The WebGL2 context ceiling#

Each display has one backend canvas, and WebGL2Hal creates a WebGL2 context per canvas with no pooling. Browsers cap how many contexts a page may hold (16 on Chrome). Past the cap, context eviction and re-acquisition repeat in a cascade and block the main thread. A single ordinary view reaches the cap: 17 GPU tracks on one linear genome view. Budget one context per open GPU track.

Adding chromosomes costs no contexts. A whole-genome view of one track is still one canvas, with one GPU buffer per displayedRegionIndex.

View-level lazy mount and bounded auto-recovery in useRenderingBackend limit the problem. Tracks inside a mounted view are not virtualized, so a view can still reach the cap.

WebGPU has no per-canvas cap, because gpuDevice.ts shares one device across displays. The trade-off is the opposite failure: one device.lost takes down every display at once. If one track broke, suspect WebGL2. If every track broke at once, suspect WebGPU.

Memory and retention lists what each backend refuses to allocate.

Key invariants#

• All worker output uses absolute genomic uint32 coordinates, not region-relative. float32 cannot hold 3 Gbp; use uint32 for positions crossing the worker boundary.
• rpcProps must not contain fetch results. SettingsInvalidate watches rpcProps(); putting derived cell data there creates an infinite fetch loop.
• Shader uniforms use CSS pixels: don't scale canvas_width/canvas_height by devicePixelRatio before writing them.
• Never edit *.generated.ts. Always edit .slang and run pnpm gen:shaders; CI enforces this with git diff --exit-code.
• A shape holds no state. The model's rpcDataMap is the single source of truth and is passed into renderBlocks; installUpload releases each departed key through hal.deleteRegion(key).
• The shape defines geometry and picking. The display holds its data and the mapping from data to channels. The installer handles only the diff. Moving any of these responsibilities into another layer lets the painter and the hit test disagree.
• Render the canvas through DisplayChrome, never by calling useRenderingBackend in your own component, and reach the HAL only through @jbrowse/render-core/marks/backend, only from the component.

The What NOT to do section of the architecture spec is the full quick-scan list.

See also#

• Mark display
• Data flow, end to end
• Optimizations
• Memory and retention
• Data fetching pipeline
• RPC and worker system
• Custom track and display types
• SVG export
• GPU_CONTEXT_BUDGET.md — the WebGL2 context ceiling one display spends against, what reaches it, and the four fixes already measured and eliminated
