Data fetching pipeline

Most linear displays compose MultiRegionDisplayMixin, which installs the autoruns that manage fetch lifecycle, cancellation, and cache invalidation. You override fetchNeeded (usually via fetchEachRegion) and declare rpcProps as the cache key. Understand this chain before writing a display or debugging an unexpected refetch in any display.

Displays whose data isn't partitioned by region compose GlobalFetchMixin instead and install a fetch autorun of their own. See display foundations for which foundation each in-tree display uses.

The fetch autoruns

installPerRegionFetchAutoruns installs four autoruns:

AutorunFires onAction
DisplayedRegionsChangeview.displayedRegions changesclearAllRpcData()
SettingsInvalidatesettingsFetchInputs, the rpcProps() return and the adapter config compared structurallyinvalidateSettings(): supersede the in-flight fetch, clear a blocking error or cancel, drop settings-baked data. loadedRegions stays, so the held data draws under the staleSettingsDrawn scrim until the refetch lands
ClearBlockingStateOnViewportChangeview.visibleRegionsclearAllRpcData() when error or fetchCanceled is set, so the fetch autorun retries. Not regionTooLarge, which is derived and re-measured by the fetch autorun itself
FetchVisibleRegionsthe viewport, fetchGeneration after a fetch ends, or reloadCounter on a user retry (immediate, then debounced 600 ms)fetchNeeded(needed) for the visible blocks loaded data doesn't cover. While regionTooLarge holds it runs that same fetch once per settled viewport — the fetch stops at whichever gate rejected it, and there is no measurement-only path. Skipped while error / fetchCanceled is set, while a fetch is in flight, and while the track is minimized

clearAllRpcData():

  • cancels the in-flight fetch
  • clears error and loadedRegions, which holds each region's payload
  • resets the canvas-drawn flag
  • calls clearDisplaySpecificData(), the hook a display overrides only where it holds something beside the store

Cancelling bumps fetchGeneration. That re-fires FetchVisibleRegions, which starts fresh fetches.

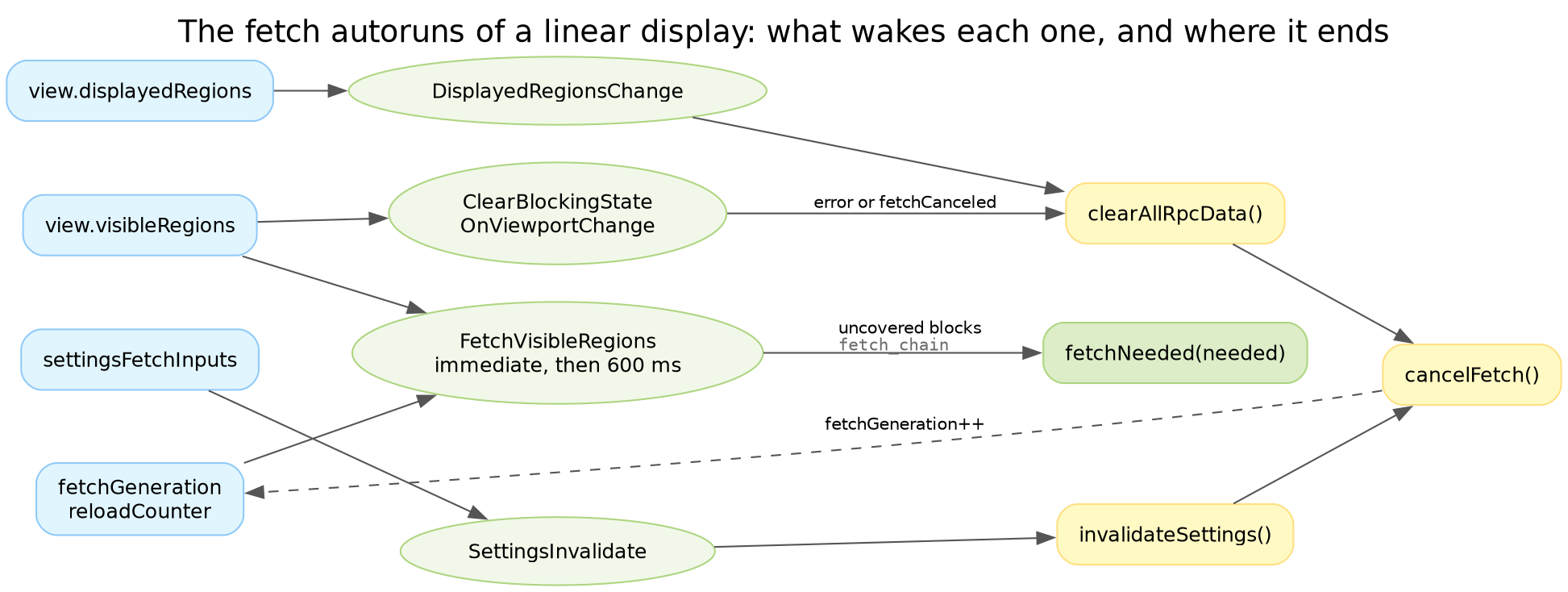

Three of the four autoruns end in the same cancel, by two routes. clearAllRpcData() discards the loaded data, and invalidateSettings() keeps it on screen under the scrim. The cancel bumps fetchGeneration, which triggers FetchVisibleRegions, so to explain an unexpected refetch, find which of the three autoruns ran. The diagram leaves out loaded data because the fetch autorun reads it untracked.

clearAllRpcData() leaves the too-large gate alone. regionTooLarge is derived from the cached byte estimate, and a blocked display re-takes that estimate once per settled viewport. The gate therefore releases itself and needs no imperative clear. Keeping the estimate stops the banner flickering on an ordinary clear.

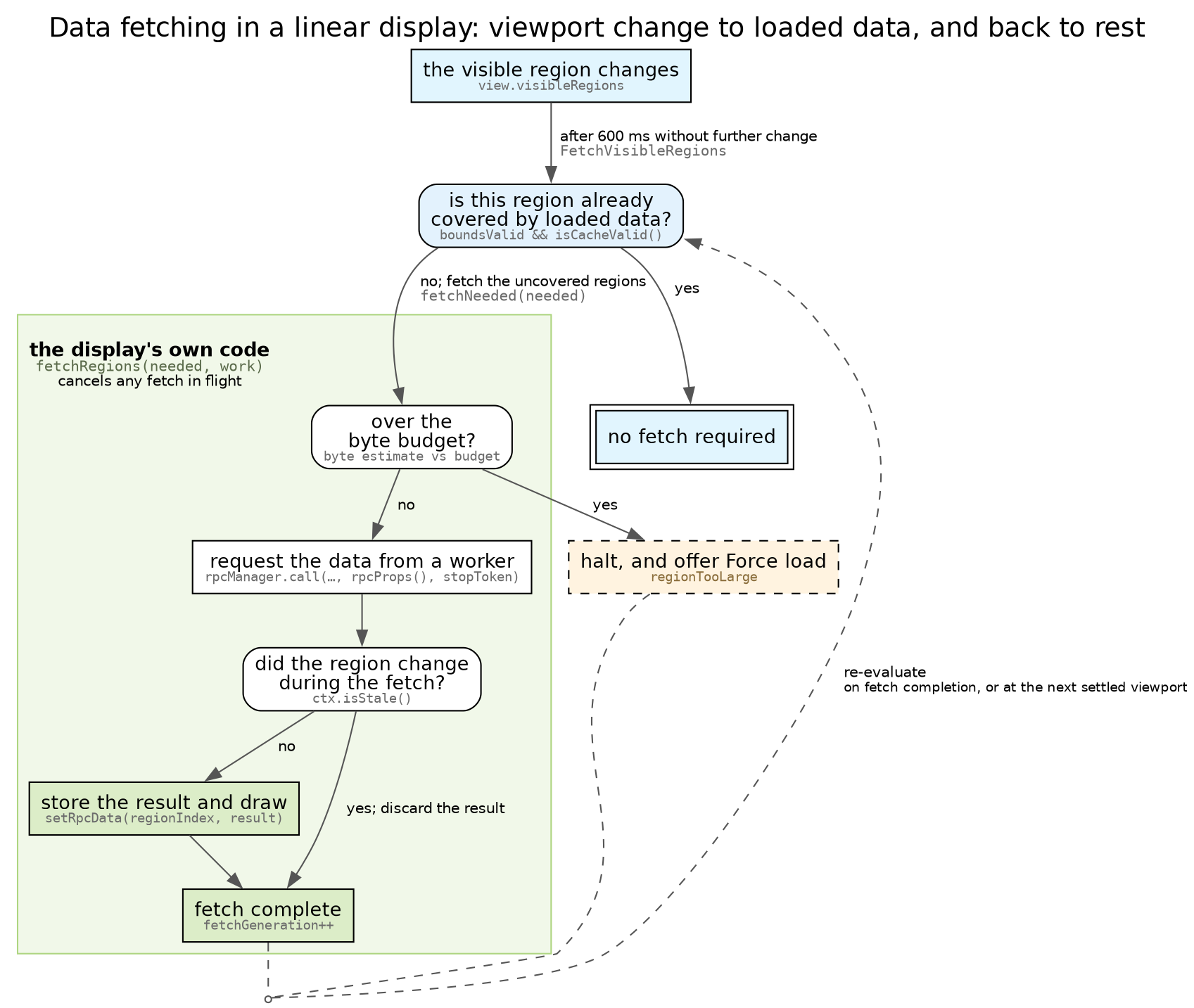

The whole fetch chain

A blocked display re-measures at each settled viewport and fetches once the window is small enough, which clears the banner. The dashed edge carries that re-measurement as the second of its two returns.

isBlockCovered compares the block against the loaded bounds. The loaded bounds extend past the viewport, so after a small pan they still cover the block and nothing is fetched. isCacheValid checks whether the data held for a region is still valid for the current view, by comparing the whole fetch key; a display does not override it. A display whose data goes stale for reasons the bounds can't detect reports that through zoomFetchArgs (the zoom-derived arguments a fetch now would send the worker, which the foundation stamps beside each region) or regionHasData (whether what the last fetch stored still answers at this zoom).

Implementing fetchNeeded

fetchNeeded is the hook you override to make RPC calls. Use fetchEachRegion, which runs one RPC per region in parallel over the fetchRegions(needed, work) primitive. It applies both ctx.isStale() guards for you, and omitting either guard writes stale data. LinearScoreDisplay has a complete fetchNeeded, in an .actions(self => ({ ... })) block:

// called by the fetch autorun for the regions that need loading;
// fetchEachRegion handles cancellation and staleness
fetchNeeded(needed: { region: Region; displayedRegionIndex: number }[]) {
  // no `if (!adapterConfig)` guard: the `adapter` slot is a union of the
  // registered adapter schemas, all of which are creatable from an empty
  // snapshot, so MST always materializes an object there and the guard
  // could never fire
  const { adapterConfig } = self
  return fetchEachRegion(self, needed, {
    // `ctx.callRpc`, never `rpcManager.call`: the context injects this
    // fetch's signal and its status callback, and forgetting either
    // is silent — no cancellation for this display, or no progress. The
    // callback here is this region's own slot in the fan-out, so the N
    // parallel calls aggregate into one bar instead of overwriting each
    // other
    call: (region, ctx) =>
      ctx.callRpc('GetScoreData', {
        adapterConfig,
        region,
        ...self.rpcProps(),
      }),
    // what a region stores; the foundation commits it with the region's
    // span and fetch inputs as one record
    onResult: (_idx, result) => result,
  })
},

call reaches the worker through ctx.callRpc, not rpcManager.call. The context injects this fetch's signal and its status callback, so every RPC a fetch issues is known to the cancel and the progress bar. If you pass them by hand and forget one, nothing reports it: the display loses cancellation or progress. The envelope keeps the literal method name at the call site, so the registry's types for args and return still apply. Each region receives a separate ctx, so every region's progress aggregates into one bar.

Put a batch-wide step that runs after every region has landed in onComplete. It runs once, under the same staleness guard. Both canvas feature displays commit their region-too-large measurements there. Those measurements must be atomic across the batch, even though the payloads are not.

The two batched counterparts

Reach past fetchEachRegion when the worker does not answer one payload per region:

  • fetchAllRegions hands all regions to a single RPC call that returns one result per region, results[i] paired with needed[i]. Use it when the adapter serves the whole set more efficiently in one pass. BigWig, for example, coalesces adjacent on-disk blocks across region boundaries, which N independent calls cannot do.
  • fetchRegionsBatched is for a worker answer that covers every region and cannot be split, such as multi-sample variant's cellData or MAF's per-batch sample union. It makes one call and one commit, and marks every region loaded together. It takes the region list as an argument in place of the plan's needed, because a display using it picks its own set. The variant matrix lays columns out across the whole visible width, so a partial refetch has no meaning there.

MAF shows the second helper in use. Its per-region call, shared with its summary tier, runs a second RPC concurrently under the same signal, and refuses the batch on the first refusal. fetchRegionsBatched then applies one staleness guard around the whole batch:

// The CDS-frame annotation overlay (when configured) fetches in the same
// signal-guarded pass as the main data so the two share staleness
// book-keeping; the two RPCs run concurrently.
//
// Concurrently, and each is itself a per-region fan-out, so they get a
// slot apiece rather than the shared callback: two fan-outs writing one
// status field directly is last-writer-wins between them, and the
// annotation branch's rows are a small fraction of the alignment's.
const slot = createStatusFanOut(ctx.statusCallback)
const scope = refusalScope(ctx)
const [results, frames] = await Promise.all([
  callEachRegion(
    regions,
    { ...scope.ctx, statusCallback: slot() },
    (region, regionCtx, displayedRegionIndex) =>
      scope.guard(() => call(region, regionCtx, displayedRegionIndex)),
  ).then(landed),
  fetchAnnotationData(self, regions, {
    ...scope.ctx,
    statusCallback: slot(),
  }),
])
// The batch's own byte number, whichever way it goes: the budget is what
// one region may cost, so the largest is what was judged and what the
// banner quotes.
const perRegionBytes = results.map(r => measuredBytes(r.result))
const bytes = largestRegionBytes(perRegionBytes)
const kept: MafBatch<R>['results'] = []
let refused = false
for (const { displayedRegionIndex, result } of results) {
  if (isRegionRefused(result)) {
    refused = true
  } else {
    kept.push({
      displayedRegionIndex,
      result,
      frames: frames.byIndex.get(displayedRegionIndex),
    })
  }
}
return refused
  ? { regionTooLarge: true as const, bytes }
  : { results: kept, bytes, framesRefused: frames.refused }

ctx.isStale() returns true if the user panned/zoomed or settings changed while the fetch was in flight. The three helpers differ only in where they place that check. With a check per region, results commit as they arrive. With one check around the batch, as above, a cross-region decision never sees a half-superseded set. fetchRegions is the primitive under all three helpers, and no display calls it directly. A display that did would have to write both guards and the ctx.commitRegion call beside its store by hand, and the helpers prevent the bugs that come from getting those wrong.

rpcProps: the cache key

SettingsInvalidate watches the settings tier of fetchInputs, which is the return value of rpcProps() plus the adapter config, held in a structural computed. When that value changes, every loaded region's fetchInputs stamp is stale, and the autorun calls invalidateSettings(). That call supersedes the in-flight fetch and clears a blocking error. The display also drops any data it cannot correctly draw under the new setting (clearSettingsBakedData). The fetch cycle then restarts while the held data stays on screen under the loading scrim. Config changes (color scheme, filter settings, etc.) trigger a full refetch this way.

The autorun watches the method's return value, not the reads inside it. Building the payload usually reads far more observables than it returns, such as a whole config snapshot or a value that was itself fetched, and tracking the call would refetch whenever any of them changed. That has two consequences:

  • Only fields that reach the return are cache keys. A value merely consulted while building the payload invalidates nothing.
  • The comparison is structural, so an undefined field and a class instance with no own fields are distinct states.

rpcProps goes in a .views() block and returns only the settings the worker reads:

// fetch inputs watched by SettingsInvalidate; any change refetches. Put
// settings that change what the worker computes here; never scroll/zoom
// (those change every frame) or the fetch results themselves.
rpcProps() {
  return { scoreColumn: getConf(self, 'scoreColumn') }
},

Do not include values that change every frame (scroll position, zoom level). Those belong in renderState or re-read inside the work callback. Putting them in rpcProps causes a refetch on every pixel of scroll.

Do not include the fetch results themselves. Putting derived cell data or computed arrays in rpcProps creates an infinite fetch loop because storing results triggers another settings change.

To extend a parent class's rpcProps, capture the super version before redefining it, with the same super-capture pattern used for any extended view. Otherwise the override drops the parent's dependencies, and nothing reports it.

Byte estimation and regionTooLarge

Displays that fetch potentially large files can ask the adapter how many bytes a region would download, and hold off the fetch when that is over budget. Opt in with one getter:

/**
 * #getter
 * Opt into RegionTooLargeMixin's byte gate: `fetchNeeded` passes
 * `resolvedByteLimit()` to `RenderAlignmentData`, whose first await is
 * the index estimate — so an over-budget region is refused before a
 * single read is downloaded.
 */
get gateEnabled() {
  return true
},

...and one argument at the fetch: pass byteLimit: self.resolvedByteLimit() in your RPC's args. The worker's first await then reads the adapter's index estimate. When the estimate exceeds the byte limit (the adapter's fetchSizeLimit, else the display config's), the worker returns a RegionTooLargeResult in place of a payload and downloads nothing. The fan-out helpers commit that measurement and skip the store and loadedRegions for the refused region. DisplayChrome then shows the too-large banner with a "Force load" button.

The byte gate has two consequences:

  • regionTooLarge is derived, not a flag. It compares the last measurement against the budget. A blocked display keeps running its fetch once per settled viewport, so the measurement stays current for the region in view. The fetch stops at the measurement, so it costs an index read and downloads nothing. The banner then releases itself on a fresh measurement, with no imperative clear and no flicker while you pan.
  • "Force load" sets one volatile boolean for the whole track (forceLoadTrack). The user approves a track once, with its size shown, and that approval covers every locus. The declarative equivalent is the forceLoad config slot.

The gate judges on two axes, and each stops gating for a different reason:

  • The byte axis drops out when the adapter offers no index estimate. Adapters that summarize at screen resolution (BigWig, HiC, sequence) therefore need no work to support. The byte axis has no span floor. Below AUTO_FORCE_LOAD_BP it keeps gating against a raised budget, so a gene-scale view of deep data loads while a pileup an order of magnitude heavier still asks.
  • The density axis stops below AUTO_FORCE_LOAD_BP (20 kb) outright, because its number is extrapolated from a measurement at a different span.

"Exempt" in this mixin means force-loaded. gateExempt is configForceLoad || forceLoadTrack and lifts both axes. REGION_TOO_LARGE.md is the full account, including the four bugs the predecessor had from an axis name claiming a term it did not have.

No display calls the gate by hand. Both fetch runners call it: the three helpers in fetchEachRegion.ts (fetchEachRegion, fetchAllRegions, fetchRegionsBatched) for this family, and installGlobalFetchAutorun's shared phases for the global family. A display outside the per-region chain therefore opts in with the same getter and nothing else. The commit side is shared too. nextGateState(prev, event) holds the rules about order: which of two measurements wins, what a clear leaves behind, and what a force-load approval outlives. An exhaustive truth table over states cannot express those rules.

FetchMixin: cancellation and staleness

MultiRegionDisplayMixin composes FetchMixin, which owns the abort lifecycle. Each fetchRegions() mints a fresh AbortController, aborts the previous one so in-flight adapter calls abort, and captures fetchGeneration as its staleness epoch.

fetchGeneration bumps when a current fetch ends, on success or error. A superseded run does not bump it on behalf of the run that replaced it. It also bumps on the internal cancelFetch reset. The user-facing cancelFetchByUser does not bump it, so a user's cancel stays in effect. FetchVisibleRegions reads the counter to re-evaluate once the fetch is over. Staleness itself comes from the abort rotation's isCurrent, not from this counter.

isLoading is true while activeSignal is set. The fetch autorun reads it through untracked(() => self.isLoading), so guarding on it doesn't make it a trigger.

FetchMixin also owns reloadCounter, the "go again" signal. reload() bumps it, and every fetch autorun reads it unconditionally, above its bail-outs. After an error the other inputs are unchanged, so without reloadCounter nothing would wake the fetch. FetchMixin holds it because both LGV fetch foundations compose FetchMixin. A display that overrides reload() should still bump it.

Prerequisite fetches

Some displays need one more thing before the viewport fetch can ask for anything, such as the .hic file's binsize list or the sample list a multi-sample VCF draws rows from. That read is per adapter, not per viewport, so it cannot use the autoruns above. Watching fetchGeneration would re-read the header on every pan.

Use installFetch(self, { report, prepare, run, commit, setError, delay, name }) (@jbrowse/core/util/installFetch) for it. Every fetch outside the two display foundations runs on the same skeleton. It enforces the rules below, each of which some hand-rolled display fetch had missed:

  • latest-wins. A reload-overlapped pair of reads must not commit in whatever order they resolve.
  • the error rule. Only a current run's real failure is published, so a superseded run's teardown cannot overwrite the error slot its successor owns.
  • the trigger list. reloadCounter is read unconditionally, above every gate, so Retry re-runs the body even from a state where nothing else moved.
  • the leading edge. First paint waits on this fetch, so it must not spend its whole debounce window on a cold open.

prepare runs synchronously inside the autorun body. What it reads to build the call, the adapter config, is therefore tracked, and a change re-fires the read. run makes the RPC through the same ctx.callRpc envelope and reads nothing tracked. commit runs only while the run is still current. setError clears the error at the start and publishes it on failure, so a display whose failure has a second consequence handles that there. The sample-list scan also raises a session notification, because a list that will not load leaves the band empty, and nothing else on screen shows the failure. Pass no contract. The display's foundation already installed the two display-contract checks, and the check reports a second install as a double-attach.

The viewport fetch declines until the prerequisite lands, and reports that with awaitingPrerequisite. That flag defers the retry verdict to the run after the prerequisite arrives; it does not waive the verdict.

Composing the mixin

Compose it alongside BaseDisplay and TrackHeightMixin, then add the rpcDataMap getter over regionPayloads, the rpcProps view and the fetchNeeded action above. LinearScoreDisplay in Plotting features in a custom display is that model whole and compiling.
