Methylation (bisulfite)

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.20. Desktop beta builds for Linux and macOS are on the releases page; the Windows build waits on code signing.

Whole-genome bisulfite sequencing (WGBS) and enzymatic methyl sequencing (EM-seq) measure DNA methylation with short reads. JBrowse computes each call from the C→T changes in a read against the reference as it draws, so an aligned BAM is all it needs. In plants, gene bodies and transposons differ in which cytosine contexts are methylated. With an Arabidopsis thaliana WGBS run we:

align the reads with bwameth and load the BAM as an alignments track on the TAIR10 hub assembly
load MethylDackel's per-context fractions as a multi-quantitative track
color each read's cytosines with Color by → Bisulfite / EM-seq, one context at a time
pin the CpG, CHG and CHH contexts in three copies of the reads track, beside gene and RepeatMasker tracks, to compare a gene with a transposon

Prerequisites

the NCBI datasets CLI, and wget
Trim Galore (with cutadapt)
bwameth
samtools
node, for the JBrowse CLI
MethylDackel, for the conversion-rate check and the optional aggregate track
UCSC's bedGraphToBigWig, for the optional aggregate track only

# Debian/Ubuntu
sudo apt install samtools tabix nodejs
# or conda, which has every tool above
conda install -c bioconda -c conda-forge samtools htslib nodejs \
  ucsc-bedgraphtobigwig ncbi-datasets-cli
# or Linux x86_64 binaries for the tools apt lacks
wget -P ~/.local/bin \
  https://hgdownload.soe.ucsc.edu/admin/exe/linux.x86_64/bedGraphToBigWig \
  https://ftp.ncbi.nlm.nih.gov/pub/datasets/command-line/v2/linux-amd64/datasets \
  https://ftp.ncbi.nlm.nih.gov/pub/datasets/command-line/v2/linux-amd64/dataformat
chmod +x ~/.local/bin/bedGraphToBigWig ~/.local/bin/datasets ~/.local/bin/dataformat
# any platform
npm install -g @jbrowse/cli@next

The data

TAIR10 (RefSeq GCF_000001735.4) and one wild-type Col-0 WGBS run from the European Nucleotide Archive, DRR029742 (paired-end 150 bp).

The page's commands build local files from these, and the tracks over those read them from disk; every other track reads a hosted copy. The build script fetches everything itself. To produce the BAM, supply your own bisulfite FASTQ and reference.

What it is	File
The TAIR10 reference the reads align to, fetched by accession with the `datasets` CLI	GCF_000001735.4_TAIR10.1/
The WGBS run's paired-end reads	DRR029742/

What bisulfite data looks like

A chemical (sodium bisulfite) or enzymatic (APOBEC, in EM-seq) step converts every unmethylated cytosine to uracil, which reads as T, and a methylated cytosine still reads as C. Comparing each read to the reference recovers the methylation: a C→T change means unmethylated, and a retained C means methylated. JBrowse makes that comparison per read as it draws.

Plants methylate in three sequence contexts: CpG, CHG, and CHH (H is A, C, or T). JBrowse colors the reads by one context at a time.

Producing the BAM

The reproduce script trims the reads of DRR029742 with Trim Galore and aligns them with bwameth, which C→T converts reads and reference in silico and runs bwa mem. The BAM keeps the original read sequences, so the C→T changes are still there for JBrowse to find; Bismark BAMs work the same way. Trimming and alignment, on any pair of WGBS or EM-seq FASTQs:

trim_galore --paired R1.fastq.gz R2.fastq.gz
# index once per reference: bwameth aligns against a C->T copy of it
bwameth.py index tair10.fa
# the BAM keeps the original read sequences for JBrowse to compare
bwameth.py --reference tair10.fa -t 8 R1_val_1.fq.gz R2_val_2.fq.gz \
  | samtools sort -o arabidopsis_wgbs.bam -
samtools index arabidopsis_wgbs.bam

bwameth.py index writes the converted reference beside the original, so that directory has to be writable.

Checking the bisulfite conversion rate

An unconverted cytosine is indistinguishable from a methylated one, so measure the library's conversion rate first. The chloroplast is unmethylated, which makes it the control:

MethylDackel extract --CHH -r NC_000932.1 -o conversion \
  tair10.fa arabidopsis_wgbs.bam

Column 4 of conversion_CHH.bedGraph is the methylated percentage at each cytosine, which on an unmethylated sequence is the fraction the conversion missed. Modern libraries convert above 99%. An organism with no plastid uses the library's spike-in, usually unmethylated lambda or pUC19, added to the reference as an extra contig.

Loading the TAIR10 hub assembly and the WGBS BAM

TAIR10 is a genome hub on genomes.jbrowse.org, whose config.json holds the 2bit sequence, an alias table and the NCBI RefSeq genes. The view loads its assembly and gene track from there, and the BAM and the optional bigWigs go in beside them:

# a GenArk hub's path is its accession cut into threes
curl -fO https://jbrowse.org/hubs/genark/GCF/000/001/735/GCF_000001735.4/config.json

The reproduce script keeps the hub's assembly entry as written, adding tair10 as an alias so a session can still name it that way.

The hub's assembly entry

The excerpt leaves out the entry's UCSC metadata block; the downloaded config.json has it.

{
  "name": "GCF_000001735.4",
  "displayName": "thale cress (tair10.1 Columbia 2018)",
  "aliases": ["tair10"],
  "sequence": {
    "type": "ReferenceSequenceTrack",
    "trackId": "GCF_000001735.4-ReferenceSequenceTrack",
    "adapter": {
      "type": "TwoBitAdapter",
      "uri": "https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/GCF_000001735.4.2bit",
      "chromSizes": "https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/GCF_000001735.4.chrom.sizes.txt"
    }
  },
  "refNameAliases": {
    "adapter": {
      "type": "RefNameAliasAdapter",
      "refNameColumnHeaderName": "ucsc",
      "uri": "https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/GCF_000001735.4.chromAlias.txt"
    }
  },
  "geneticCodes": { "NC_000932.1": 11 }
}

The 2bit is the same TAIR10.1 sequence the reads were aligned to, and JBrowse reads each cytosine's context off it. The alias table maps NC_003070.9, 1, Chr1 and chr1 to one chromosome, so the BAM keeps the RefSeq names bwameth wrote, and refNameColumnHeaderName makes chr1 the name the view shows.

The BAM goes in beside the hub assembly:

jbrowse add-track arabidopsis_wgbs.bam --assemblyNames GCF_000001735.4 \
  --name "Arabidopsis WGBS (bwameth)" --load copy

The displayDefaults in the alignments track config set the context the track opens on, and the track menu switches it afterwards:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "arabidopsis_wgbs",
  "name": "Arabidopsis WGBS (bwameth)",
  "uri": "arabidopsis_wgbs.bam",
  "assemblyNames": ["GCF_000001735.4"],
  "displayDefaults": {
    "pileup": {
      "bases": {
        "show": true,
        "encoding": { "color": "bisulfite" },
        "filter": [{ "field": "context", "oneOf": ["CG"] }]
      }
    }
  }
}

CLI (add-track)

jbrowse add-track arabidopsis_wgbs.bam \
  --trackId arabidopsis_wgbs \
  --name "Arabidopsis WGBS (bwameth)" \
  --assemblyNames GCF_000001735.4 \
  --displayDefaults '{"pileup":{"bases":{"show":true,"encoding":{"color":"bisulfite"},"filter":[{"field":"context","oneOf":["CG"]}]}}}' \
  --load copy

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "trackId": "arabidopsis_wgbs",
  "name": "Arabidopsis WGBS (bwameth)",
  "uri": "arabidopsis_wgbs.bam",
  "assemblyNames": ["GCF_000001735.4"],
  "displayDefaults": {
    "pileup": {
      "bases": {
        "show": true,
        "encoding": { "color": "bisulfite" },
        "filter": [{ "field": "context", "oneOf": ["CG"] }]
      }
    }
  }
}

arabidopsis_wgbs.bam is relative to a config.json. Replace it with its URL or its path on this computer.

In grammar-of-graphics terms, pileup.bases is a color channel for each base, here set from the bisulfite field. The context entry in its filter takes CG, CHG or CHH, and { "field": "context" } paints every context.

Aggregate methylation per context with MethylDackel

Beside the reads, a per-position fraction summarizes all the reads at each site, and a bigWig of it draws at any zoom. The track is optional, and the reproduce script leaves it out. MethylDackel calls that fraction in all three plant contexts, one bedGraph each, which becomes a bigWig once the header line is dropped and the percentage column kept:

# CpG is emitted always; --CHG --CHH add the two plant contexts.
# -o fixes the output prefix, which the loop below reads back.
MethylDackel extract --CHG --CHH -o arabidopsis_wgbs \
  tair10.fa arabidopsis_wgbs.bam
samtools faidx tair10.fa
cut -f1,2 tair10.fa.fai > tair10.chrom.sizes  # two columns, not the .fai itself
for ctx in CpG CHG CHH; do
  # tail drops MethylDackel's track line; cut keeps the percentage column
  tail -n +2 arabidopsis_wgbs_${ctx}.bedGraph | cut -f1-4 |
    sort -k1,1 -k2,2n > ${ctx}.bg
  bedGraphToBigWig ${ctx}.bg tair10.chrom.sizes arabidopsis_wgbs_${ctx}.bw
done

A MultiQuantitativeTrack with a subadapter per context draws the three bigWigs as labeled rows, the Aggregate methylation track in the figure below.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "MultiQuantitativeTrack",
  "trackId": "arabidopsis_wgbs_methyldackel",
  "name": "Aggregate methylation (MethylDackel)",
  "assemblyNames": ["GCF_000001735.4"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "CpG",
        "color": "#d62728",
        "uri": "arabidopsis_wgbs_CpG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHG",
        "color": "#ff7f0e",
        "uri": "arabidopsis_wgbs_CHG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHH",
        "color": "#1f77b4",
        "uri": "arabidopsis_wgbs_CHH.bw"
      }
    ]
  },
  "displayDefaults": {
    "mark": "bar",
    "encoding": {
      "y": {
        "scale": { "domainMin": 0, "domainMax": 100 },
        "axis": { "title": "% methylated" }
      }
    }
  }
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "MultiQuantitativeTrack",
  "trackId": "arabidopsis_wgbs_methyldackel",
  "name": "Aggregate methylation (MethylDackel)",
  "assemblyNames": ["GCF_000001735.4"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "CpG",
        "color": "#d62728",
        "uri": "arabidopsis_wgbs_CpG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHG",
        "color": "#ff7f0e",
        "uri": "arabidopsis_wgbs_CHG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHH",
        "color": "#1f77b4",
        "uri": "arabidopsis_wgbs_CHH.bw"
      }
    ]
  },
  "displayDefaults": {
    "mark": "bar",
    "encoding": {
      "y": {
        "scale": { "domainMin": 0, "domainMax": 100 },
        "axis": { "title": "% methylated" }
      }
    }
  }
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "arabidopsis_wgbs_methyldackel",
  "name": "Aggregate methylation (MethylDackel)",
  "assemblyNames": ["GCF_000001735.4"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "CpG",
        "color": "#d62728",
        "uri": "arabidopsis_wgbs_CpG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHG",
        "color": "#ff7f0e",
        "uri": "arabidopsis_wgbs_CHG.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CHH",
        "color": "#1f77b4",
        "uri": "arabidopsis_wgbs_CHH.bw"
      }
    ]
  },
  "displayDefaults": {
    "mark": "bar",
    "encoding": {
      "y": {
        "scale": { "domainMin": 0, "domainMax": 100 },
        "axis": { "title": "% methylated" }
      }
    }
  }
}

arabidopsis_wgbs_CpG.bw, arabidopsis_wgbs_CHG.bw, arabidopsis_wgbs_CHH.bw are relative to a config.json. Replace each with its URL or its path on this computer.

Coloring the reads by cytosine context

Color by → Bisulfite / EM-seq in the alignments track menu sets pileup.bases to the bisulfite field, which paints each read's methylated cytosines red. Two more rows refine it:

Color by → Cytosine context picks CpG, CHG, CHH or All cytosines
Color by → Show unmodified in blue also paints converted sites blue, separating an unmethylated cytosine from a position with no cytosine. The figure and clip further down leave it off

Gene body methylation and transposon silencing

Plants run two unrelated methylation programs, and the three contexts distinguish them:

Program	CpG	CHG	CHH	Effect on the locus
Gene body methylation (gbM)	yes	no	no	None obvious, the gene stays transcribed. Depleted at both gene ends
Transposon and repeat silencing	yes	yes	yes	Heterochromatin, transcriptionally off

Red in the CpG context alone is gene body methylation, and red in all three contexts is silencing.

Type chr1:4,398,000-4,412,000 into the location box for a window containing one of each: the expressed gene AT1G12930 on the left, and a transposon on the right.

To identify the element on the right, add the RepeatMasker track from the TAIR10 genome hub. It labels the element META1_LTR#LTR/Copia, an LTR retrotransposon. No RefSeq transcript overlaps it:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "FeatureTrack",
  "trackId": "tair10_repeatmasker",
  "name": "RepeatMasker",
  "assemblyNames": ["GCF_000001735.4"],
  "adapter": {
    "type": "BigBedAdapter",
    "uri": "https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/bbi/GCF_000001735.4_TAIR10.1.rmsk.bb"
  }
}

CLI (add-track)

jbrowse add-track https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/bbi/GCF_000001735.4_TAIR10.1.rmsk.bb \
  --trackId tair10_repeatmasker \
  --name RepeatMasker \
  --assemblyNames GCF_000001735.4

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track... and, in Add a track from file or URL, enter:

Main file: https://hgdownload.soe.ucsc.edu/hubs/GCF/000/001/735/GCF_000001735.4/bbi/GCF_000001735.4_TAIR10.1.rmsk.bb

Click Next. JBrowse reads the adapter and track type off the file name. Then fill in:

Track name: RepeatMasker
Assembly: GCF_000001735.4

Click Add.

Filter by... in the RepeatMasker track menu takes a filter. Enter jexl:feature.end-feature.start>1000 to keep repeats longer than 1 kb. The short simple repeats in the window drop out and the LTR element stays.

The figure below shows the three contexts side by side as three tracks that share one file and differ in trackId and in the context their displayDefaults pin. The CHG copy looks like this; the CpG and CHH copies change the trackId, the name and the context entry:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "arabidopsis_wgbs_chg",
  "name": "Per-read WGBS, CHG context",
  "uri": "https://jbrowse.org/demos/bisulfite/arabidopsis_wgbs_bisulfite.cram",
  "assemblyNames": ["GCF_000001735.4"],
  "displayDefaults": {
    "pileup": {
      "bases": {
        "show": true,
        "encoding": { "color": "bisulfite" },
        "filter": [{ "field": "context", "oneOf": ["CHG"] }]
      }
    },
    "coverage": { "show": false }
  }
}

CLI (add-track)

jbrowse add-track https://jbrowse.org/demos/bisulfite/arabidopsis_wgbs_bisulfite.cram \
  --trackId arabidopsis_wgbs_chg \
  --name "Per-read WGBS, CHG context" \
  --assemblyNames GCF_000001735.4 \
  --displayDefaults '{"pileup":{"bases":{"show":true,"encoding":{"color":"bisulfite"},"filter":[{"field":"context","oneOf":["CHG"]}]}},"coverage":{"show":false}}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "trackId": "arabidopsis_wgbs_chg",
  "name": "Per-read WGBS, CHG context",
  "uri": "https://jbrowse.org/demos/bisulfite/arabidopsis_wgbs_bisulfite.cram",
  "assemblyNames": ["GCF_000001735.4"],
  "displayDefaults": {
    "pileup": {
      "bases": {
        "show": true,
        "encoding": { "color": "bisulfite" },
        "filter": [{ "field": "context", "oneOf": ["CHG"] }]
      }
    },
    "coverage": { "show": false }
  }
}

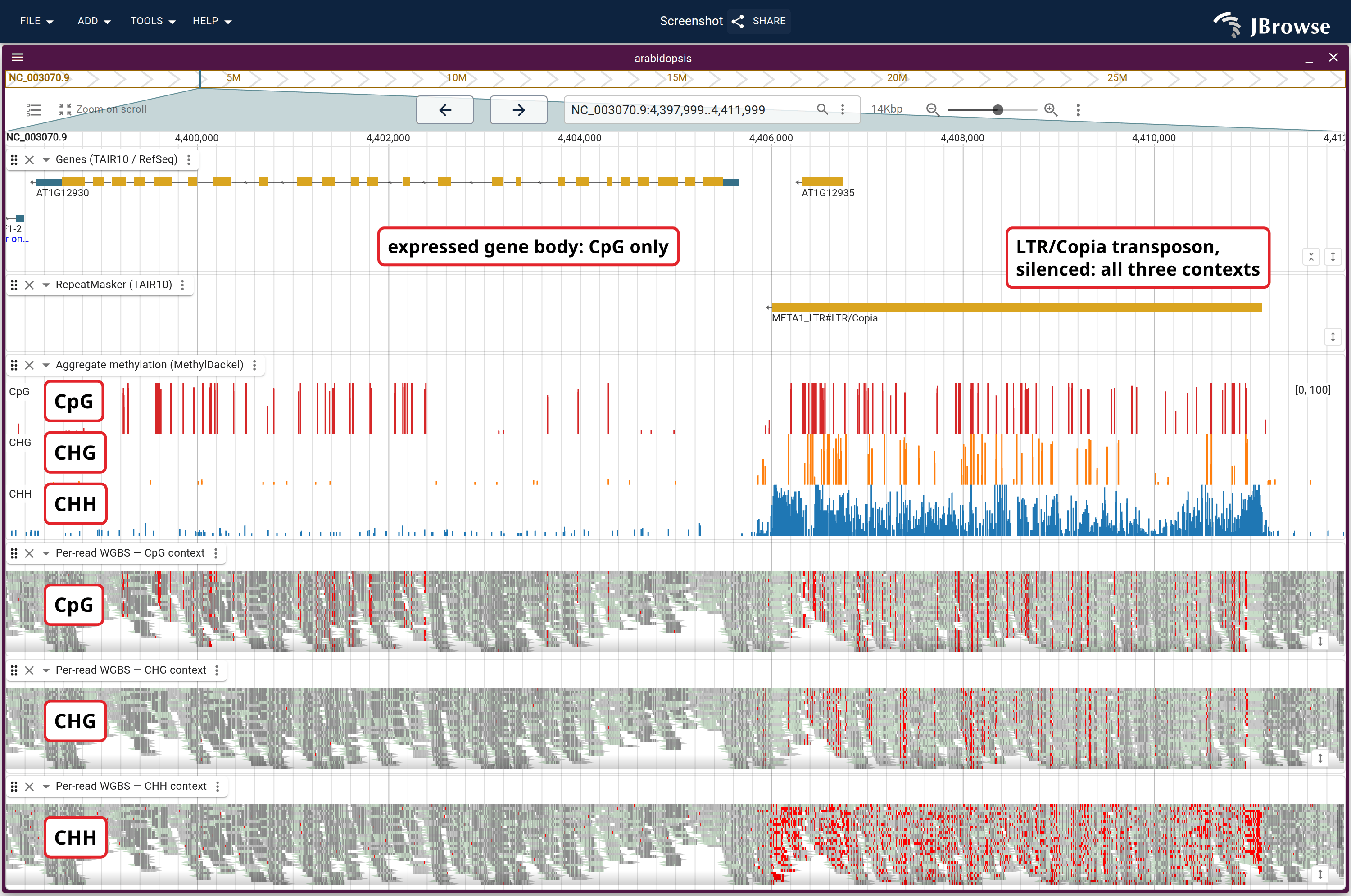

RefSeq genes, RepeatMasker, the aggregate MethylDackel track and three copies of one WGBS pileup colored by CpG, CHG and CHH.

One WGBS pileup recolored CpG, then CHG, then CHH from the track menu.

Video

Open the session the video starts in ↗, then take the steps it shows:

CpG: methylated, red, over the gene body and the LTR element
Color the reads by the CHG context
Color the reads by the CHH context
Only the LTR stays red in CHG and CHH; the gene body is CpG only

Steps

Open this view in JBrowse Web ↗ ·

Open in JBrowse Desktop ↗

Needs JBrowse Desktop 5.0 or newer. If nothing opens, copy the link and paste it into Desktop's Open JBrowse Web link..., on the start screen or under File → Session.

https://jbrowse.org/code/jb2/main/?config=test_data%2Farabidopsis_methylation%2Fconfig_emseq_bisulfite.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22GCF_000001735.4%22%2C%22loc%22%3A%22chr1%3A4%2C398%2C000-4%2C412%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22GCF_000001735.4-ncbiRefSeq%22%7D%2C%7B%22trackId%22%3A%22GCF_000001735.4-repeatMasker%22%2C%22filter%22%3A%5B%22jexl%3Afeature.end-feature.start%3E1000%22%5D%2C%22height%22%3A50%7D%2C%7B%22trackId%22%3A%22arabidopsis_methyldackel%22%2C%22mark%22%3A%22bar%22%2C%22encoding%22%3A%7B%22y%22%3A%7B%22scale%22%3A%7B%22domainMin%22%3A0%2C%22domainMax%22%3A100%7D%2C%22axis%22%3A%7B%22title%22%3A%22%25+methylated%22%7D%7D%7D%2C%22height%22%3A170%7D%2C%7B%22trackId%22%3A%22arabidopsis_wgbs%22%2C%22coverage%22%3A%7B%22show%22%3Afalse%7D%2C%22pileup%22%3A%7B%22mark%22%3A%7B%22height%22%3A5%7D%2C%22bases%22%3A%7B%22show%22%3Atrue%2C%22encoding%22%3A%7B%22color%22%3A%22bisulfite%22%7D%7D%7D%2C%22heightMode%22%3A%22fixed%22%2C%22height%22%3A200%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+epigenomics%2Fbisulfite_contexts

Quickest: open the view, then File → Open track... for your files.

From scratch:

Open your genome: Open new genome in JBrowse Desktop, or jbrowse add-assembly for JBrowse Web.This figure uses GCF_000001735.4, loaded from a .2bit genome.
Add your track: File → Open track..., or check it in the track selector. Needs a BigBed file (.bb).This figure uses “NCBI RefSeq - RefSeq All”.
Add the next track the same way. Needs a BigBed file (.bb).This figure uses “RepeatMasker”.
1. Track menu → Filter by → add the expressionThis figure filters on feature.end-feature.start>1000.
Add the next track the same way. Needs one BigWig file (.bw) per row.This figure uses “Aggregate methylation (MethylDackel)”.
1. Track menu → Plot type → Bar plot
2. Track menu → Y axis... → RangePins the axis: Min 0 and Max 100. A field left empty follows the data in view.
Add the next track the same way. Needs a CRAM file (.cram + .crai).This figure uses “Arabidopsis WGBS (Col-0, DRR029742)”.
1. Track menu → Show → Coverage (unchecked)
2. Track menu → Read height → Custom... → 5px
3. Track menu → Color by → Bisulfite / EM-seq
4. Track menu → Advanced → Track height → Fixed
Go to your region in the location box.This figure is at chr1:4,398,000-4,412,000.

Agent

Paste into a coding agent, with your goal on the first line.

My goal: [write yours, e.g. this view of my own files, or these track settings in my config.json]

Start from this JBrowse view.
- Config it loads: https://jbrowse.org/code/jb2/main/test_data/arabidopsis_methylation/config_emseq_bisulfite.json
- Tracks:
  - NCBI RefSeq - RefSeq All (GCF_000001735.4-ncbiRefSeq), FeatureTrack, a BigBed file (.bb), drawn as LinearBasicDisplay
  - RepeatMasker (GCF_000001735.4-repeatMasker), FeatureTrack, a BigBed file (.bb), drawn as LinearBasicDisplay
  - Aggregate methylation (MethylDackel) (arabidopsis_methyldackel), MultiQuantitativeTrack, one BigWig file (.bw) per row, drawn as LinearWiggleDisplay
  - Arabidopsis WGBS (Col-0, DRR029742) (arabidopsis_wgbs), AlignmentsTrack, a CRAM file (.cram + .crai), drawn as LinearAlignmentsDisplay

Docs: https://jbrowse.org/jb2/docs/agents_authoring/ (writing a config), https://jbrowse.org/jb2/docs/agents/ (driving a running JBrowse). Use the jbrowse-authoring, jbrowse-hosted-data and jbrowse-capture skills if you have them. Check any config with `npx @jbrowse/cli validate`, then render it and look: a config that loads is not yet a track that drew.

The session spec that draws the view:
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "GCF_000001735.4",
      "loc": "chr1:4,398,000-4,412,000",
      "tracks": [
        {
          "trackId": "GCF_000001735.4-ncbiRefSeq"
        },
        {
          "trackId": "GCF_000001735.4-repeatMasker",
          "filter": [
            "jexl:feature.end-feature.start>1000"
          ],
          "height": 50
        },
        {
          "trackId": "arabidopsis_methyldackel",
          "mark": "bar",
          "encoding": {
            "y": {
              "scale": {
                "domainMin": 0,
                "domainMax": 100
              },
              "axis": {
                "title": "% methylated"
              }
            }
          },
          "height": 170
        },
        {
          "trackId": "arabidopsis_wgbs",
          "coverage": {
            "show": false
          },
          "pileup": {
            "mark": {
              "height": 5
            },
            "bases": {
              "show": true,
              "encoding": {
                "color": "bisulfite"
              }
            }
          },
          "heightMode": "fixed",
          "height": 200
        }
      ]
    }
  ]
}

Redraw the figure headlessly

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "GCF_000001735.4",
      "loc": "chr1:4,398,000-4,412,000",
      "tracks": [
        {
          "trackId": "GCF_000001735.4-ncbiRefSeq"
        },
        {
          "trackId": "GCF_000001735.4-repeatMasker",
          "filter": [
            "jexl:feature.end-feature.start>1000"
          ],
          "height": 50
        },
        {
          "trackId": "arabidopsis_methyldackel",
          "mark": "bar",
          "encoding": {
            "y": {
              "scale": {
                "domainMin": 0,
                "domainMax": 100
              },
              "axis": {
                "title": "% methylated"
              }
            }
          },
          "height": 170
        },
        {
          "trackId": "arabidopsis_wgbs",
          "coverage": {
            "show": false
          },
          "pileup": {
            "mark": {
              "height": 5
            },
            "bases": {
              "show": true,
              "encoding": {
                "color": "bisulfite"
              }
            }
          },
          "heightMode": "fixed",
          "height": 200
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/arabidopsis_methylation/config_emseq_bisulfite.json \
  --width 1920 --height 970 \
  --spec session.json -o figure.png

More: Using JBrowse with AI agents.

CLI

Adds these tracks to your config.json, styled as in the figure. Point each uri at your file (replace YOUR_FILE).

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "GCF_000001735.4-repeatMasker",
  "name": "RepeatMasker",
  "assemblyNames": [
    "GCF_000001735.4"
  ],
  "adapter": {
    "type": "BigBedAdapter",
    "uri": "YOUR_FILE"
  },
  "displayDefaults": {
    "filter": [
      "jexl:feature.end-feature.start>1000"
    ],
    "height": 50
  }
}'

jbrowse add-track-json '{
  "type": "MultiQuantitativeTrack",
  "trackId": "arabidopsis_methyldackel",
  "name": "Aggregate methylation (MethylDackel)",
  "assemblyNames": [
    "GCF_000001735.4"
  ],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "bigWigs": [
      "YOUR_FILE_1",
      "YOUR_FILE_2"
    ]
  },
  "displayDefaults": {
    "mark": "bar",
    "encoding": {
      "y": {
        "scale": {
          "domainMin": 0,
          "domainMax": 100
        },
        "axis": {
          "title": "% methylated"
        }
      }
    },
    "height": 170
  }
}'

jbrowse add-track-json '{
  "type": "AlignmentsTrack",
  "trackId": "arabidopsis_wgbs",
  "name": "Arabidopsis WGBS (Col-0, DRR029742)",
  "assemblyNames": [
    "GCF_000001735.4"
  ],
  "adapter": {
    "type": "CramAdapter",
    "uri": "YOUR_FILE"
  },
  "displayDefaults": {
    "coverage": {
      "show": false
    },
    "pileup": {
      "mark": {
        "height": 5
      },
      "bases": {
        "show": true,
        "encoding": {
          "color": "bisulfite"
        }
      }
    },
    "heightMode": "fixed",
    "height": 200
  }
}'

Run beside config.json, or add --out <dir>. Needs GCF_000001735.4 in the config (jbrowse add-assembly).

Notebook

This view in a notebook, with jbrowse-anywidget. Swap a track's uri for your file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/arabidopsis_methylation/config_emseq_bisulfite.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []),
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "GCF_000001735.4",
            "loc": "chr1:4,398,000-4,412,000",
            "tracks": [
                {
                    "trackId": "GCF_000001735.4-ncbiRefSeq"
                },
                {
                    "trackId": "GCF_000001735.4-repeatMasker",
                    "filter": [
                        "jexl:feature.end-feature.start>1000"
                    ],
                    "height": 50
                },
                {
                    "trackId": "arabidopsis_methyldackel",
                    "mark": "bar",
                    "encoding": {
                        "y": {
                            "scale": {
                                "domainMin": 0,
                                "domainMax": 100
                            },
                            "axis": {
                                "title": "% methylated"
                            }
                        }
                    },
                    "height": 170
                },
                {
                    "trackId": "arabidopsis_wgbs",
                    "coverage": {
                        "show": False
                    },
                    "pileup": {
                        "mark": {
                            "height": 5
                        },
                        "bases": {
                            "show": True,
                            "encoding": {
                                "color": "bisulfite"
                            }
                        }
                    },
                    "heightMode": "fixed",
                    "height": 200
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws this view as an SVG, no browser needed. Swap --config or a track for your own.

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/arabidopsis_methylation/config_emseq_bisulfite.json \
  --assembly GCF_000001735.4 --loc chr1:4,398,000-4,412,000 \
  --track GCF_000001735.4-ncbiRefSeq \
  --track GCF_000001735.4-repeatMasker '{"filter":["jexl:feature.end-feature.start>1000"],"height":50}' \
  --track arabidopsis_methyldackel '{"mark":"bar","encoding":{"y":{"scale":{"domainMin":0,"domainMax":100},"axis":{"title":"% methylated"}}},"height":170}' \
  --track arabidopsis_wgbs '{"coverage":{"show":false},"pileup":{"mark":{"height":5},"bases":{"show":true,"encoding":{"color":"bisulfite"}}},"heightMode":"fixed","height":200}' \
  --width 1920 --out figure.svg

For a PNG, --out figure.png (needs rsvg-convert: apt install librsvg2-bin, brew install librsvg).

Session

The session spec behind the figure, over this config.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "GCF_000001735.4",
      "loc": "chr1:4,398,000-4,412,000",
      "tracks": [
        {
          "trackId": "GCF_000001735.4-ncbiRefSeq"
        },
        {
          "trackId": "GCF_000001735.4-repeatMasker",
          "filter": [
            "jexl:feature.end-feature.start>1000"
          ],
          "height": 50
        },
        {
          "trackId": "arabidopsis_methyldackel",
          "mark": "bar",
          "encoding": {
            "y": {
              "scale": {
                "domainMin": 0,
                "domainMax": 100
              },
              "axis": {
                "title": "% methylated"
              }
            }
          },
          "height": 170
        },
        {
          "trackId": "arabidopsis_wgbs",
          "coverage": {
            "show": false
          },
          "pileup": {
            "mark": {
              "height": 5
            },
            "bases": {
              "show": true,
              "encoding": {
                "color": "bisulfite"
              }
            }
          },
          "heightMode": "fixed",
          "height": 200
        }
      ]
    }
  ]
}

Reproduce it end to end

The whole pipeline is wrapped in one script, build_arabidopsis_wgbs.sh. It:

downloads the TAIR10 reference and the DRR029742 WGBS run, then trims and aligns them with bwameth
downloads JBrowse and writes a config.json with the hub's TAIR10 assembly and RefSeq genes and the pileup pre-colored Bisulfite / CpG, opening on the window above
with MethylDackel on PATH, prints the conversion rate and the per-context fractions (the aggregate bigWig track is left out either way)

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_arabidopsis_wgbs.sh
bash build_arabidopsis_wgbs.sh          # builds ./arabidopsis_wgbs_build/jbrowse2
npx --yes serve arabidopsis_wgbs_build/jbrowse2 # then open the printed URL

On Debian/Ubuntu, apt install wget curl samtools covers several prerequisites; the rest install from the pages linked there. The alignment step downloads a full WGBS run, so allow time and disk.

External links

Methylation (bisulfite) in R, the same analysis written for ggjbrowse

Feedback on this tutorial is welcome: contact us.

Methylation (bisulfite)

Prerequisites#

The data#

What bisulfite data looks like#

Producing the BAM#

Checking the bisulfite conversion rate#

Loading the TAIR10 hub assembly and the WGBS BAM#

Aggregate methylation per context with MethylDackel#

Coloring the reads by cytosine context#

Gene body methylation and transposon silencing#

Reproduce it end to end#

See also#

External links#

Prerequisites

The data

What bisulfite data looks like

Producing the BAM

Checking the bisulfite conversion rate

Loading the TAIR10 hub assembly and the WGBS BAM

Aggregate methylation per context with MethylDackel

Coloring the reads by cytosine context

Gene body methylation and transposon silencing

Reproduce it end to end

See also

External links
