Mark display

LinearMarkDisplay is a grammar of graphics over a track, in the sense of Vega-Lite or ggplot: a picture is declared as marks, encodings and transforms rather than drawn by code. It goes on a FeatureTrack, an AlignmentsTrack, a VariantTrack, a QuantitativeTrack or a MultiQuantitativeTrack, and draws a bar, point, rule, line, span, text or link per marks entry, each with an encoding naming the fields that feed it, a transform list that can bin, count, pack or measure coverage, and a zoom range it draws in.

Reach for it when a field is the picture: a BED score, a segment's log ratio, a peak's signal and q-value, a read's MAPQ, a variant's QUAL. The format-typed displays still cover mismatches, genotypes and isoform tiering, which are not fields.

A worked example#

Bars from a BED score column, colored by strand, with the color key on screen:

{
  "type": "FeatureTrack",
  "trackId": "scores",
  "name": "Scores",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": {
            "y": "score",
            "color": { "field": "strand", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "scores",
  "name": "Scores",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": {
            "y": "score",
            "color": { "field": "strand", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "scores",
  "name": "Scores",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": {
            "y": "score",
            "color": { "field": "strand", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}

The track opens with the display listed first. Every other slot has a default: x is start, x2 is end, bars grow from an origin of 0, and the axis autoscales to what is on screen.

The vocabulary, for a ggplot2 or Vega-Lite reader#

A reader who knows ggplot2 or Vega-Lite can read a marks config through the names those libraries use. Each row is one idea; the last column gives this display's spelling, and the sections below cover each in turn. GenomeSpy shares Vega-Lite's names and adds the genomic transforms, so it appears where it adds one.

Two names mean something else here. Vega-Lite's row is a facet channel; on this display encoding.row is the band a feature stands in, the integer a pileup step writes, and the facet is the display's facet. A positional channel is a bare field here, where Vega-Lite's has a scale, because the y scale is the display's encoding.y and every mark reads one axis. The display has no stacked bar and no opacity channel; every bar rises from the baseline. A point's diameter is encoding.size, and a rule's, line's or link's stroke is encoding.strokeWidth, Vega-Lite's word: a number of px, or on a link a field mapped to a width.

The encoding#

Each mark's encoding maps feature fields to the channels its type reads:

A field name is read directly from the feature (score, strand, or any column a BED columnNames or a GFF attribute names). A jexl: expression over feature is accepted wherever a field name is, for a derived channel:

{ "y": "jexl:-log10(feature.pvalue)" }

A jexl y is evaluated once per feature and costs about half again as much as a field read, so reach for it where no field holds the value you want to plot.

The value scale#

A mark's y names a field; the scale it is read through belongs to the display, which declares it once as encoding.y:

"displays": [
  {
    "type": "LinearMarkDisplay",
    "encoding": { "y": { "scale": { "type": "log", "domainMin": 1, "domainMax": 1000 } } },
    "marks": [{ "mark": "bar", "encoding": { "y": "score" } }]
  }
]

scale.type is linear (the default), log or symlog, which reads like log away from zero and stays linear through it, so values reaching or crossing 0 keep their place; scale.constant sets how wide that linear region is. An end left unset autoscales over the loaded regions, and scale.fenceQuantile fences its outliers. The axis, its ticks, its grid lines and the bars read this one declaration, and so does the Y axis... panel.

Every mark drawing at the current zoom folds into that one domain, the way a grammar of graphics gives one scale per aesthetic. With a multiscale pair (below) only one mark draws, so the axis is that mark's.

scale.group shares the axis across tracks: every track in the view naming the same group autoscales over all of their data, so a plot and a wiggle or coverage track stay comparable as the view moves. An end pinned on one track applies to that track alone. Share axis with in the Y axis... panel writes it.

Reference lines and the axis title#

encoding.y also holds the two guides a reader checks a plot against: rules, horizontal lines at chosen values, and axis.title, the caption beside the axis.

{
  "type": "FeatureTrack",
  "trackId": "association",
  "name": "Association",
  "uri": "https://example.com/association.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "association-LinearMarkDisplay",
      "encoding": {
        "y": {
          "axis": { "title": "-log10 p" },
          "rules": [{ "value": 7.3, "color": "red", "label": "p = 5e-8" }, 5]
        }
      },
      "marks": [{ "mark": "point", "encoding": { "y": "score" } }]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "association",
  "name": "Association",
  "uri": "https://example.com/association.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "association-LinearMarkDisplay",
      "encoding": {
        "y": {
          "axis": { "title": "-log10 p" },
          "rules": [{ "value": 7.3, "color": "red", "label": "p = 5e-8" }, 5]
        }
      },
      "marks": [{ "mark": "point", "encoding": { "y": "score" } }]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "association",
  "name": "Association",
  "uri": "https://example.com/association.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "association-LinearMarkDisplay",
      "encoding": {
        "y": {
          "axis": { "title": "-log10 p" },
          "rules": [{ "value": 7.3, "color": "red", "label": "p = 5e-8" }, 5]
        }
      },
      "marks": [{ "mark": "point", "encoding": { "y": "score" } }]
    }
  ]
}

Each entry of rules is { value, color, label }, and a bare number is a grey unlabelled rule — a significance threshold, a zero line under a log ratio, an allele-frequency cut. An autoscaled end widens to keep every rule on the axis; a pinned end that excludes one drops it. A rule belongs to the scale, so it draws in every band of a faceted plot and at every zoom, including over the other half of a multiscale pair.

title is optional: unset, the axis has no caption. A plot banded by facet or rows has the one caption beside its bands.

One quantity per category#

A count per bin per strand, or a depth per haplotype, is one bar per category at each position, and drawn from the origin at one x they cover each other. Give each category a separate place instead. Two categories mirror across the axis, one drawn upward and one down through a formula negating its value:

"marks": [
  {
    "mark": "bar",
    "transform": [
      { "type": "filter", "expr": "jexl:feature.strand == 1" },
      { "type": "coverage" }
    ],
    "encoding": { "color": { "value": "tomato" } }
  },
  {
    "mark": "bar",
    "transform": [
      { "type": "filter", "expr": "jexl:feature.strand == -1" },
      { "type": "coverage" },
      { "type": "formula", "expr": "jexl:-feature.coverage", "as": "down" }
    ],
    "encoding": { "y": "down", "color": { "value": "steelblue" } }
  }
]

Several categories take a row each, the multi-row form, with rows on the display and the same coverage in the mark; the sections keep the value they were split on, so a color over it names each row:

{
  "transform": [
    { "type": "formula", "expr": "jexl:getTag(feature,'HP')", "as": "hp" }
  ],
  "rows": "hp",
  "marks": [
    {
      "mark": "bar",
      "transform": [{ "type": "coverage" }],
      "encoding": { "color": "hp" }
    }
  ]
}

facet in place of rows gives each category a labelled section with a chip to hide it by. Every row and section reads the display's one encoding.y, so the heights compare.

Two quantities#

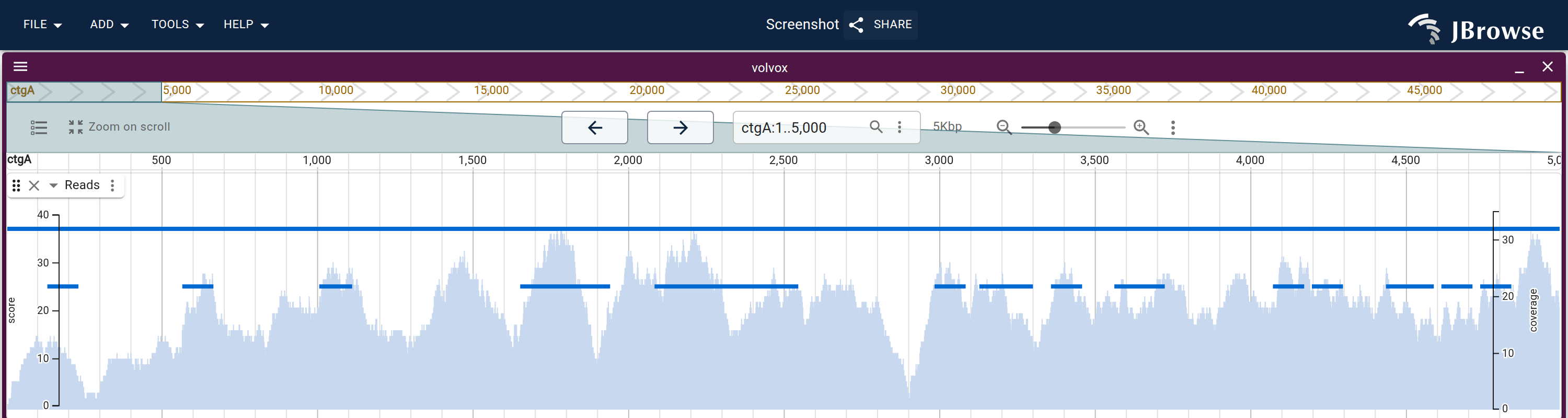

A coverage run in the hundreds and a per-read mapping quality in the tens cannot be read off one axis, and the display draws only one. Write them as two tracks, one display and one encoding.y per track, so each axis has the field it measures and the reader can stack the tracks in whatever order the comparison needs.

Where the two quantities answer the same question at different zooms, one track still does it: give each mark a zoom range and they never draw together.

"marks": [
  {
    "mark": "bar",
    "transform": [{ "type": "coverage" }],
    "encoding": { "color": { "value": "#c8d8ee" } },
    "minBpPerPx": 20
  },
  { "mark": "point", "encoding": { "y": "score" }, "maxBpPerPx": 20 }
]

The coverage draws zoomed out and the per-read value zoomed in, and the axis at each zoom is the drawing mark's. v5.0.0 withdrew the right-hand second axis, because with two axes each bar could belong to either set of numbers.

Color scales#

color as a bare string names a field, and as an object binds that field to a scale, so the legend reads the same table the colors came from. A constant is { "value": "steelblue" }, or a value holding a jexl callback that answers a color per feature; a color name written bare is reported as a field no feature holds. With scale unset, score runs through a linear ramp and any other field is categorical, a color per distinct value, so a numeric field such as RepeatMasker's milliDiv needs "scale": { "type": "linear" } written. A color written with an alpha, rgba() or #rrggbbaa, paints at that opacity, as a constant or as an entry of a scale.range, which is how a dense scatter or overlapping spans stay readable.

• ordinal — { "field": "strand", "scale": { "type": "ordinal", "range": ["#1f77b4", "#ff7f0e"] } }

  scale.domain lists values in legend order and takes scale.range entries from the first; values it leaves out follow, sorted. Each value it leaves out takes a distinct color the first time the track shows it, and keeps that color as other regions load; a value that no other value competes with paints the color derived from the value. scale.unknown, d3's name, paints every value the domain leaves out one color instead, and the key names them one row, Other. A feature with no value paints the no-value grey, or the scale.invalid color where one is set. One row per color, so two values painted alike share a row, and a no-value color matching unknown's joins Other. A key of one color, or over 20 rows, is not drawn.

• linear, log or symlog — { "field": "signal", "scale": { "type": "linear", "domainMin": 0, "domainMax": 50, "range": ["white", "red"] } }

  symlog runs logarithmic away from 0 and linear through it, so a signed fold change ramps on both sides. scale.scheme names a ramp in place of scale.range, and scale.reverse turns either round. An end left off spans every loaded region and moves as you pan, so pin both for a figure and one for a floor or a ceiling. scale.domainMid places the middle stop, which is how a diverging ramp centres on zero inside an asymmetric domain.

• threshold — { "field": "signal", "scale": { "type": "threshold", "domain": [10, 50], "range": ["#eee", "#f90", "#c00"] } }

  Each cut in scale.domain opens an interval, so scale.range has one color more. The key lists a row per interval, and a grey one for features with no value.

The display paints every color from the data it already loaded, so a change to a constant color, a palette, a domain, a threshold's cuts or a ramp's ends redraws without fetching again. A change to what is read from each feature does fetch again: a field named or dropped, a switch between categories and numbers, or a jexl: color.

legend.title heads the key and has three states: unset reads the field name, text is that text, "" draws no heading. Marks share one key only under one title, and share a ramp only with both ends pinned.

Three more legend members shape the key and paint nothing. values lists the values it names, in that order, and every value still takes its color. descending lists a threshold's intervals from the highest down. missingLabel names the grey row for features with nothing in the field.

Shape scales#

Other channels take a scale too. shape takes the same categorical form, { "field": "svType", "scale": { "type": "ordinal" } }, where scale.range lists the shapes to hand out as a color scale's lists colors (circle, triangle-down, diamond in that order when left off, square only where listed, since a circle 3 px across draws as one) and scale.domain lists the values in legend order. The legend then has a second key whose swatches are the shapes themselves:

{
  "mark": "point",
  "encoding": {
    "y": "score",
    "color": { "field": "strand", "scale": { "type": "ordinal" } },
    "shape": {
      "field": "svType",
      "scale": {
        "type": "ordinal",
        "domain": ["INS", "DEL"],
        "range": ["triangle-down", "diamond"]
      }
    }
  }
}

A scale is a lookup from the field's value into scale.domain and scale.range, so it costs a fraction of the per-feature jexl callback it replaces. With three shapes to hand out, two unlisted values often derive the same one; the corner notice names them, and Pin distinct shapes writes the key's values into scale.domain.

Several marks#

The display draws marks in order, a later entry over an earlier one, all over one score axis and one fetch per region. Points over bars from the same file, with the points' color a callback:

"marks": [
  { "mark": "bar", "encoding": { "y": "score" } },
  {
    "mark": "point",
    "encoding": {
      "y": "score",
      "color": { "value": "jexl:feature.name=='EDEN.1' ? 'red' : 'blue'" }
    }
  }
]

A point stands at the middle of its x to x2, encoding.size px across. A rule is the line from x to x2 at y, encoding.strokeWidth px thick, for a value that belongs to an interval — a window's Fst, a segment's copy number:

{ "mark": "rule", "encoding": { "y": "score", "strokeWidth": 3 } }

A line strokes through consecutive values on a row. Its mark object's interpolate: "step", the default, holds each value across its span and steps to the next where two spans abut, dropping to origin across a gap, so a bedGraph or a BigWig tier draws the values as stored; "linear" runs from one span's centre to the next, which is smoother where the spans are few. encoding.strokeWidth is the width in px, 1 unset. A color scale over the field y plots colors the stroke by the value under each pixel, so a threshold at 0 with two colors paints a rise across zero in both, changing at the axis.

{
  "mark": { "type": "line", "interpolate": "linear" },
  "encoding": { "y": "score", "strokeWidth": 2 }
}

A span has no y: it paints a band from x to x2 in its color, for an interval whose extent is the point. With no row every span shares one band; with one, { "mark": "span", "encoding": { "row": "sampleIndex" } }, the plot divides into as many bands as the highest row on screen needs. A color scale over a field makes the span a heatmap: { "mark": "span", "encoding": { "color": { "field": "score", "scale": { "type": "linear", "range": ["white", "red"] } } } } paints each interval by its value, and a diverging scale.range with scale.domainMid fades through the middle color at that value, which is how a signed signal reads white at zero.

"mark": { "type": "span", "height": { "band": 0.8 } } fills that fraction of its band, centred, where an unwritten band fills all of it. It sits on the mark, so two spans over the same rows can differ, one drawn thick at 0.8 and one thin at 0.3.

Labels#

A text mark prints a field at each feature: over the middle of its x to x2, just above its y where the mark names one, at the apex of the curve a link mark draws between the same two ends (see Links), and in the middle of its row band otherwise. Bars with each feature's name over them:

{
  "type": "FeatureTrack",
  "trackId": "labelled_scores",
  "name": "Scores with labels",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "labelled_scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": { "y": "score", "color": { "value": "#c8d8ee" } }
        },
        {
          "mark": "text",
          "encoding": { "y": "score", "text": "name" },
          "maxBpPerPx": 50
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "labelled_scores",
  "name": "Scores with labels",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "labelled_scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": { "y": "score", "color": { "value": "#c8d8ee" } }
        },
        {
          "mark": "text",
          "encoding": { "y": "score", "text": "name" },
          "maxBpPerPx": 50
        }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "labelled_scores",
  "name": "Scores with labels",
  "uri": "https://example.com/scores.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "labelled_scores-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": { "y": "score", "color": { "value": "#c8d8ee" } }
        },
        {
          "mark": "text",
          "encoding": { "y": "score", "text": "name" },
          "maxBpPerPx": 50
        }
      ]
    }
  ]
}

The display places labels left to right and omits a label that overlaps one already placed or runs off the edge, as ggplot2's check_overlap does. A label too near the top of its band goes under the value instead. The text takes the mark's color, or the theme's, with a halo so it stays legible over the bars, and shows no hover; the mark it labels does.

Every feature whose middle is in view is a candidate before the culling, so a text mark needs a maxBpPerPx that stops it once there are more features than labels fit. On the circular view the labels appear on the linear track only.

Links#

A link mark draws a curve from x up and over to x2. Over a BED with start-end pairs, x to x2 is the feature's two ends, and encoding.strokeWidth strokes each curve by a field through a linear or log scale into a pixel range. Splice junctions from a STAR file, stroked by read support and labelled with it:

{
  "type": "FeatureTrack",
  "trackId": "junctions",
  "name": "Splice junctions",
  "uri": "https://example.com/junctions.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "junctions-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": {
            "strokeWidth": {
              "field": "score",
              "scale": { "type": "log", "range": [1, 8] }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "score" }, "maxBpPerPx": 50 }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "junctions",
  "name": "Splice junctions",
  "uri": "https://example.com/junctions.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "junctions-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": {
            "strokeWidth": {
              "field": "score",
              "scale": { "type": "log", "range": [1, 8] }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "score" }, "maxBpPerPx": 50 }
      ]
    }
  ]
}'

{
  "type": "FeatureTrack",
  "trackId": "junctions",
  "name": "Splice junctions",
  "uri": "https://example.com/junctions.bed.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "junctions-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": {
            "strokeWidth": {
              "field": "score",
              "scale": { "type": "log", "range": [1, 8] }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "score" }, "maxBpPerPx": 50 }
      ]
    }
  ]
}

A paired record names its other end elsewhere: a BEDPE or STAR-Fusion adapter fills a mate field, a VCF states each end in an ALT, and a paired read has its mate's position as next_ref and next_pos. The mate step reads any of them into mate.refName, mate.start and mate.end, one feature per end and a read pair once, with svType beside a variant's; x2 then names those as a locus, so a mate on another chromosome draws wherever the view shows it. Over a BAM that is the read-pair arcs of the alignments track's band, one curve per pair, colored by whatever field the reads have:

{
  "mark": "link",
  "transform": [{ "type": "mate" }],
  "encoding": { "color": "pair_orientation" }
}

A track whose records name a mate draws the links with no configuration: pick Marks from the track menu's display types over a BEDPE, a STAR-Fusion file or an SV VCF and the display writes the mark and the step below. Write them out to add more: a color by type, a stroke by score, a shape:

{
  "type": "VariantTrack",
  "trackId": "sv_calls",
  "name": "SV calls",
  "uri": "https://example.com/sv.vcf.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "sv_calls-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": { "color": "svType", "strokeWidth": 2 },
          "transform": [{ "type": "mate" }]
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "sv_calls",
  "name": "SV calls",
  "uri": "https://example.com/sv.vcf.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "sv_calls-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": { "color": "svType", "strokeWidth": 2 },
          "transform": [{ "type": "mate" }]
        }
      ]
    }
  ]
}'

{
  "type": "VariantTrack",
  "trackId": "sv_calls",
  "name": "SV calls",
  "uri": "https://example.com/sv.vcf.gz",
  "assemblyNames": ["hg38"],
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "sv_calls-LinearMarkDisplay",
      "marks": [
        {
          "mark": "link",
          "encoding": { "color": "svType", "strokeWidth": 2 },
          "transform": [{ "type": "mate" }]
        }
      ]
    }
  ]
}

The apex of a link is its half-width, clamped to the band under "mark": { "type": "link", "interpolate": "dome" } (the default) and a true semicircle under "arc"; a y puts it at a value on the display's axis instead, so a link plotted by its score rises to it. "linear" draws a straight segment between the two ends, on the baseline or at the y value. A pair wider than three screens straightens into a leg rising from each end, and a mate the view does not show draws a short stem at the end it does. Where the mate step read a direction for an end, as it does from a breakend ALT, the link draws a short foot there, lying over the side of the junction the rearranged sequence keeps. A link answers a hover and a click along its stroke, and the SVG export writes it as a path.

A text mark naming no y labels the link on its two ends: each label sits just inside the apex of its curve, or just over it where the curve is too small to hold it. A pair wide enough to straighten into legs has no apex on the band and prints no label.

Facets#

The display's facet gives each value of a field a separate band of rows, named by a chip a reader can hide the section from. The facet splits the features first and runs the facet's transform over each section alone. Every mark then runs its steps over each section, so a pileup in the facet's transform packs each section into separate rows with every mark standing in them, and a coverage in a mark's counts each section's depth:

"displays": [
  {
    "type": "LinearMarkDisplay",
    "facet": { "field": "sample", "transform": [{ "type": "pileup" }] },
    "marks": [{ "mark": "span" }]
  }
]

A pileup in the display's transform runs before the split, so it packs across every section and leaves each section the rows the others fill; the facet's is the one that packs per section.

A section's rows keep the facet's value through a coverage or an aggregate, the way a ggplot2 stat keeps its facet variable, so a color over the field the plot is split on paints the depth in each section with that section's color:

{
  "facet": "strand",
  "marks": [
    {
      "mark": "bar",
      "transform": [{ "type": "coverage" }],
      "encoding": { "color": "strand" }
    }
  ]
}

The field is read the way a channel reads one: a name, a dotted path (INFO.SVTYPE), or a jexl: expression. Where the value has to be computed first, the display's transform runs before the split:

Sections order a name holding a number by that number, so chr2 before chr10, and the rest by code point. sort sets the order: listed values first, the rest sorted after. A sort orders the sections and leaves the set of sections unchanged.

When a reader drags a section's chip onto another section, the display writes the drawn order back as the facet's sort, and Show... → Reset section order clears it. A hidden section leaves the legend and the value axis along with the plot.

Haplotagged reads split by their HP tag, the tag lifted into a field by a formula so the chips and the key name it HP:

"displays": [
  {
    "type": "LinearMarkDisplay",
    "transform": [{ "type": "formula", "expr": "jexl:getTag(feature,'HP')", "as": "HP" }],
    "facet": "HP",
    "marks": [
      {
        "mark": "span",
        "transform": [{ "type": "pileup" }],
        "encoding": {
          "color": {
            "field": "HP",
            "scale": { "type": "ordinal" },
            "legend": { "title": "Haplotype" }
          }
        }
      }
    ]
  }
]

✕

Open in JBrowse Web ↗Open in JBrowse Desktop ↗

Open in JBrowse Desktop ↗

Needs JBrowse Desktop 5.0 or newer. If nothing opens, copy the link and paste it into Desktop's Open JBrowse Web link..., on the start screen or under File → Session.

Copy

https://jbrowse.org/code/jb2/main/?config=test_data%2Fconfig_demo.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22AlignmentsTrack%22%2C%22trackId%22%3A%22snrpn_facet%22%2C%22name%22%3A%22HG002+ONT+reads+faceted+by+HP%22%2C%22assemblyNames%22%3A%5B%22hg38%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22BamAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fmethylation%2FHG002_SNRPN_5mC_haplotagged.bam%22%7D%2C%22displays%22%3A%5B%7B%22type%22%3A%22LinearMarkDisplay%22%2C%22displayId%22%3A%22snrpn_facet-LinearMarkDisplay%22%2C%22transform%22%3A%5B%7B%22type%22%3A%22formula%22%2C%22expr%22%3A%22jexl%3AgetTag%28feature%2C%27HP%27%29%22%2C%22as%22%3A%22HP%22%7D%5D%2C%22facet%22%3A%22HP%22%2C%22marks%22%3A%5B%7B%22mark%22%3A%22span%22%2C%22transform%22%3A%5B%7B%22type%22%3A%22pileup%22%7D%5D%2C%22encoding%22%3A%7B%22row%22%3A%22row%22%2C%22color%22%3A%7B%22field%22%3A%22HP%22%2C%22scale%22%3A%7B%22type%22%3A%22ordinal%22%7D%2C%22legend%22%3A%7B%22title%22%3A%22Haplotype%22%7D%7D%7D%7D%5D%7D%5D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr15%3A24%2C900%2C000-25%2C000%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22snrpn_facet%22%2C%22height%22%3A400%2C%22forceLoad%22%3Atrue%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+mark_display%2Ffacet

This session loads a large dataset and takes a while to open.

Or rebuild it from your own data:

Steps

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses hg38, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
2. Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file. This one needs a BAM file (.bam + .bai).This figure uses “HG002 ONT reads faceted by HP”.
   1. Click Force load in the track's "Zoom in to see features or force load" message.Loads the region even past the byte-size limit, which can be slow.
3. Type your region of interest into the location box and press Enter.This figure is at chr15:24,900,000-25,000,000.

CLI

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

Copy

jbrowse add-track-json '{
  "type": "AlignmentsTrack",
  "trackId": "snrpn_facet",
  "name": "HG002 ONT reads faceted by HP",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "BamAdapter",
    "uri": "https://jbrowse.org/demos/methylation/HG002_SNRPN_5mC_haplotagged.bam"
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "snrpn_facet-LinearMarkDisplay",
      "transform": [
        {
          "type": "formula",
          "expr": "jexl:getTag(feature,'\''HP'\'')",
          "as": "HP"
        }
      ],
      "facet": "HP",
      "marks": [
        {
          "mark": "span",
          "transform": [
            {
              "type": "pileup"
            }
          ],
          "encoding": {
            "row": "row",
            "color": {
              "field": "HP",
              "scale": {
                "type": "ordinal"
              },
              "legend": {
                "title": "Haplotype"
              }
            }
          }
        }
      ]
    }
  ]
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs hg38 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Spec tab, or jbrowse set-default-session.

Spec

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/code/jb2/main/test_data/config_demo.json, which is what the Web button above opens.

Copy

{
  "sessionTracks": [
    {
      "type": "AlignmentsTrack",
      "trackId": "snrpn_facet",
      "name": "HG002 ONT reads faceted by HP",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BamAdapter",
        "uri": "https://jbrowse.org/demos/methylation/HG002_SNRPN_5mC_haplotagged.bam"
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "snrpn_facet-LinearMarkDisplay",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:getTag(feature,'HP')",
              "as": "HP"
            }
          ],
          "facet": "HP",
          "marks": [
            {
              "mark": "span",
              "transform": [
                {
                  "type": "pileup"
                }
              ],
              "encoding": {
                "row": "row",
                "color": {
                  "field": "HP",
                  "scale": {
                    "type": "ordinal"
                  },
                  "legend": {
                    "title": "Haplotype"
                  }
                }
              }
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr15:24,900,000-25,000,000",
      "tracks": [
        {
          "trackId": "snrpn_facet",
          "height": 400,
          "forceLoad": true
        }
      ]
    }
  ]
}

Notebook

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

Copy

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/config_demo.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []) + [
        {
            "type": "AlignmentsTrack",
            "trackId": "snrpn_facet",
            "name": "HG002 ONT reads faceted by HP",
            "assemblyNames": [
                "hg38"
            ],
            "adapter": {
                "type": "BamAdapter",
                "uri": "https://jbrowse.org/demos/methylation/HG002_SNRPN_5mC_haplotagged.bam"
            },
            "displays": [
                {
                    "type": "LinearMarkDisplay",
                    "displayId": "snrpn_facet-LinearMarkDisplay",
                    "transform": [
                        {
                            "type": "formula",
                            "expr": "jexl:getTag(feature,'HP')",
                            "as": "HP"
                        }
                    ],
                    "facet": "HP",
                    "marks": [
                        {
                            "mark": "span",
                            "transform": [
                                {
                                    "type": "pileup"
                                }
                            ],
                            "encoding": {
                                "row": "row",
                                "color": {
                                    "field": "HP",
                                    "scale": {
                                        "type": "ordinal"
                                    },
                                    "legend": {
                                        "title": "Haplotype"
                                    }
                                }
                            }
                        }
                    ]
                }
            ]
        }
    ],
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "hg38",
            "loc": "chr15:24,900,000-25,000,000",
            "tracks": [
                {
                    "trackId": "snrpn_facet",
                    "height": 400,
                    "forceLoad": True
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file: a data file opens as the track its name says.

Copy

cat > tracks.json <<'JSON'
[
  {
    "type": "AlignmentsTrack",
    "trackId": "snrpn_facet",
    "name": "HG002 ONT reads faceted by HP",
    "assemblyNames": [
      "hg38"
    ],
    "adapter": {
      "type": "BamAdapter",
      "uri": "https://jbrowse.org/demos/methylation/HG002_SNRPN_5mC_haplotagged.bam"
    },
    "displays": [
      {
        "type": "LinearMarkDisplay",
        "displayId": "snrpn_facet-LinearMarkDisplay",
        "transform": [
          {
            "type": "formula",
            "expr": "jexl:getTag(feature,'HP')",
            "as": "HP"
          }
        ],
        "facet": "HP",
        "marks": [
          {
            "mark": "span",
            "transform": [
              {
                "type": "pileup"
              }
            ],
            "encoding": {
              "row": "row",
              "color": {
                "field": "HP",
                "scale": {
                  "type": "ordinal"
                },
                "legend": {
                  "title": "Haplotype"
                }
              }
            }
          }
        ]
      }
    ]
  }
]
JSON

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/config_demo.json \
  --tracks tracks.json \
  --assembly hg38 --loc chr15:24,900,000-25,000,000 \
  --track snrpn_facet '{"height":400,"forceLoad":true}' \
  --width 1500 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Agent

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

Copy

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "AlignmentsTrack",
      "trackId": "snrpn_facet",
      "name": "HG002 ONT reads faceted by HP",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BamAdapter",
        "uri": "https://jbrowse.org/demos/methylation/HG002_SNRPN_5mC_haplotagged.bam"
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "snrpn_facet-LinearMarkDisplay",
          "transform": [
            {
              "type": "formula",
              "expr": "jexl:getTag(feature,'HP')",
              "as": "HP"
            }
          ],
          "facet": "HP",
          "marks": [
            {
              "mark": "span",
              "transform": [
                {
                  "type": "pileup"
                }
              ],
              "encoding": {
                "row": "row",
                "color": {
                  "field": "HP",
                  "scale": {
                    "type": "ordinal"
                  },
                  "legend": {
                    "title": "Haplotype"
                  }
                }
              }
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr15:24,900,000-25,000,000",
      "tracks": [
        {
          "trackId": "snrpn_facet",
          "height": 400,
          "forceLoad": true
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/config_demo.json \
  --width 1500 --height 610 \
  --timeout 150000 \
  --spec session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

facet and its sort are the same slot and the same ordering rule that the gene, alignments, variant, multiway synteny and multi-row displays each take in a separate form. Grouping and lane order describes the shared mechanism across all of them.

Rows#

The display's rows gives each value of a field one row: over a multi-BigWig, whose features have the file they came from in source, it draws one xyplot per file, the value axis repeated on each row tall enough to hold it.

"displays": [
  {
    "type": "LinearMarkDisplay",
    "rows": "source",
    "marks": [{ "mark": "bar", "encoding": { "y": "score" } }]
  }
]

A label names each row, and the track menu has what the other row displays have: Cluster rows by similarity..., Edit colors/arrangement..., and Sort rows by value here on a right-click. As an object, rows takes the order too, { "field": "source", "sort": ["tumor", "normal"] }, and a reorder, a clustering run or a clade off the tree is written there, so undo, Reset row order and a share link all reach it.

The rows divide the plot between them by default, so every row shows. "rowHeight": 20 pins each row at 20 px instead, and the rows that do not fit scroll: a wheel over the rows or the scrollbar at the right reaches them, and shift+wheel resizes them. 0, the default, fits them to the plot again, and Row height → Squeeze to fit view writes it. The menu's Normal and Compact presets also set every span's mark.height.band, so the rows stand apart.

The display's rowColor paints the bar beside each row's label and leaves the marks' colors unchanged. { "scale": { "domain": ["tumor"], "range": ["#e15759"] } } pairs a row's value with a color, the form Edit colors/arrangement... writes.

facet and rows both split the features on a field, and differ in what a value gets: a facet section is as deep as its packing and has a chip, where a row is one row. Beside a facet, the facet draws: with rows on the same field the facet is the whole picture, and with rows on another field the track shows a warning, because bands of rows are not drawn yet. A mark display picked from the track menu over a multi-BigWig opens with rows: "source", a row per file in the adapter's order, unless the display already names a facet or rows.

A row per species over a MAF is the same rows, once a flatten has fanned each alignment block out. A MAF block is one feature with an alignments record keyed by species, and flatten over a record writes each entry's key to the field key names, so rows: "species" reads one value per species from the features themselves. The adapter lists its species too, so every species has a row whether or not the loaded regions align it, in the guide tree's order with the tree drawn beside the rows, as on the MAF display. Each row keeps its block's reference span and has the species' chr, srcStart, strand, srcSize and seq; a span colored by chr is the MAF display's color by source chromosome:

{
  "type": "MafTrack",
  "trackId": "multiz470way_species",
  "name": "Multiz 470-way, a row per species",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_species-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": { "field": "chr", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "multiz470way_species",
  "name": "Multiz 470-way, a row per species",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_species-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": { "field": "chr", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}'

{
  "type": "MafTrack",
  "trackId": "multiz470way_species",
  "name": "Multiz 470-way, a row per species",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_species-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": { "field": "chr", "scale": { "type": "ordinal" } }
          }
        }
      ]
    }
  ]
}

A cells step behind the flatten replaces each species row with its runs of columns against the reference: one feature per run in one state, match, mismatch or gap, a mismatch run with its base, and one interbase insertion per run of inserted bases, standing at the reference base it precedes with the bases in base. A span colored by state is the MAF display's mismatch view, an insertion painting as a sliver of the display's minWidthPx at its anchor, and a text over base letters each mismatch and each insertion once the zoom shows a base:

{
  "type": "MafTrack",
  "trackId": "multiz470way_cells",
  "name": "Multiz 470-way, cells against the reference",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_cells-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" },
        { "type": "cells" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": {
              "field": "state",
              "scale": {
                "type": "ordinal",
                "domain": ["match", "mismatch", "gap", "insertion"],
                "range": ["#d9d9d9", "#e41a1c", "#404040", "#984ea3"]
              }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "base" }, "maxBpPerPx": 0.5 }
      ]
    }
  ]
}

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "multiz470way_cells",
  "name": "Multiz 470-way, cells against the reference",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_cells-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" },
        { "type": "cells" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": {
              "field": "state",
              "scale": {
                "type": "ordinal",
                "domain": ["match", "mismatch", "gap", "insertion"],
                "range": ["#d9d9d9", "#e41a1c", "#404040", "#984ea3"]
              }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "base" }, "maxBpPerPx": 0.5 }
      ]
    }
  ]
}'

{
  "type": "MafTrack",
  "trackId": "multiz470way_cells",
  "name": "Multiz 470-way, cells against the reference",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BigMafAdapter",
    "bigBedLocation": {
      "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hg38/multiz470way/multiz470way.bigMaf"
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "multiz470way_cells-LinearMarkDisplay",
      "transform": [
        { "type": "flatten", "field": "alignments", "key": "species" },
        { "type": "cells" }
      ],
      "rows": "species",
      "marks": [
        {
          "mark": "span",
          "encoding": {
            "color": {
              "field": "state",
              "scale": {
                "type": "ordinal",
                "domain": ["match", "mismatch", "gap", "insertion"],
                "range": ["#d9d9d9", "#e41a1c", "#404040", "#984ea3"]
              }
            }
          }
        },
        { "mark": "text", "encoding": { "text": "base" }, "maxBpPerPx": 0.5 }
      ]
    }
  ]
}

A VCF's samples fan out the same way, flatten over samples with key: "sample", for rows: "sample" and a color over GT.

Transforms#

A mark's transform is a list of steps over the region's features, run in the worker before the encoding, in order, each reading what the last wrote. The display's transform takes the same steps and runs before every mark's. Each step names its type and takes the settings for that step, which the MarkTransform config reference lists; a key belonging to another step is refused where the config is read:

A field a step reads is a name or a dotted path into a structured field, so a VCF's INFO.DP is the field of a mean and INFO.SVTYPE a groupby. A computed value is a formula's to write, for the steps after it to read.

A bin then an aggregate is a density: one bar per bin, its height the count of features starting in it. The aggregate groups by the edges the bin wrote unless it sets groupby, whether the bin is in the same transform or in the display's.

The aggregate's fields are count and mean_score here, and either can feed y or a color scale. coverage counts how many features overlap each position, for a repeat annotation, a set of peaks or any interval file with no summary track beside it:

{
  "mark": "bar",
  "transform": [{ "type": "coverage" }]
}

A mark that names no y plots what its steps wrote, the way a ggplot2 stat names what its geom draws (after_stat): the depth a coverage writes, or the one summary an aggregate with a single op writes. An aggregate writing two summaries needs y to choose one. A link behind a mate step reaches the other end the step found without naming x2, and a written channel takes precedence.

pileup expresses the packing of a read pileup as a step. It writes the lowest row on which each feature overlaps nothing already there, and a span reading that row draws the packing:

{
  "mark": "span",
  "transform": [{ "type": "pileup", "padding": 10 }],
  "encoding": {
    "row": "row",
    "color": { "field": "strand", "scale": { "type": "ordinal" } }
  }
}

Over an AlignmentsTrack that is a declared pileup, colored by any field a read has. A mark whose encoding.row is empty reads the field the last pileup before it wrote (the mark's, the facet's or the display's), so "encoding": {} draws the packing. The plot takes as many bands as the highest row needs, so rows thin as depth grows and the track keeps its height.

The display's filter expressions run before every mark's steps.

A picture per zoom level#

Each mark can name the zoom range it draws in, in bp per pixel: minBpPerPx draws it only at or above that width, maxBpPerPx only below it, and 0 sets no bound. A density on one mark and the features on another make one track that shows the count per bin zoomed out and each feature's value zoomed in, from one fetch per region:

"marks": [
  {
    "mark": "bar",
    "encoding": { "y": "milliDiv" },
    "maxBpPerPx": 100
  },
  {
    "mark": "bar",
    "transform": [
      { "type": "bin", "step": 10000 },
      { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
    ],
    "minBpPerPx": 100
  }
]

✕

Open in JBrowse Web ↗Open in JBrowse Desktop ↗

Open in JBrowse Desktop ↗

Needs JBrowse Desktop 5.0 or newer. If nothing opens, copy the link and paste it into Desktop's Open JBrowse Web link..., on the start screen or under File → Session.

Copy

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22alu_marks%22%2C%22name%22%3A%22Alu+elements%22%2C%22assemblyNames%22%3A%5B%22hg38%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22BedTabixAdapter%22%2C%22bedGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2FAlu.bed.gz%22%2C%22locationType%22%3A%22UriLocation%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2FAlu.bed.gz.tbi%22%2C%22locationType%22%3A%22UriLocation%22%7D%7D%7D%2C%22displays%22%3A%5B%7B%22type%22%3A%22LinearMarkDisplay%22%2C%22displayId%22%3A%22alu_marks-LinearMarkDisplay%22%2C%22marks%22%3A%5B%7B%22mark%22%3A%22bar%22%2C%22encoding%22%3A%7B%22y%22%3A%22milliDiv%22%7D%2C%22maxBpPerPx%22%3A100%7D%2C%7B%22mark%22%3A%22bar%22%2C%22transform%22%3A%5B%7B%22type%22%3A%22bin%22%2C%22step%22%3A10000%7D%2C%7B%22type%22%3A%22aggregate%22%2C%22groupby%22%3A%5B%22start%22%2C%22end%22%5D%2C%22ops%22%3A%5B%7B%22op%22%3A%22count%22%7D%5D%7D%5D%2C%22encoding%22%3A%7B%22y%22%3A%22count%22%7D%2C%22minBpPerPx%22%3A100%7D%5D%7D%5D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr1%3A150%2C000%2C000-153%2C000%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22alu_marks%22%2C%22height%22%3A160%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+mark_display%2Fmultiscale

Or rebuild it from your own data:

Steps

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses hg38, loaded from a .2bit genome.
2. Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Alu elements”.
3. Type your region of interest into the location box and press Enter.This figure is at chr1:150,000,000-153,000,000.

CLI

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

Copy

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_marks",
  "name": "Alu elements",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
      "locationType": "UriLocation"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
        "locationType": "UriLocation"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_marks-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": {
            "y": "milliDiv"
          },
          "maxBpPerPx": 100
        },
        {
          "mark": "bar",
          "transform": [
            {
              "type": "bin",
              "step": 10000
            },
            {
              "type": "aggregate",
              "groupby": [
                "start",
                "end"
              ],
              "ops": [
                {
                  "op": "count"
                }
              ]
            }
          ],
          "encoding": {
            "y": "count"
          },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs hg38 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Spec tab, or jbrowse set-default-session.

Spec

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/demos/gene_density/config.json, which is what the Web button above opens.

Copy

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "alu_marks",
      "name": "Alu elements",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "bedGzLocation": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
          "locationType": "UriLocation"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
            "locationType": "UriLocation"
          }
        }
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "alu_marks-LinearMarkDisplay",
          "marks": [
            {
              "mark": "bar",
              "encoding": {
                "y": "milliDiv"
              },
              "maxBpPerPx": 100
            },
            {
              "mark": "bar",
              "transform": [
                {
                  "type": "bin",
                  "step": 10000
                },
                {
                  "type": "aggregate",
                  "groupby": [
                    "start",
                    "end"
                  ],
                  "ops": [
                    {
                      "op": "count"
                    }
                  ]
                }
              ],
              "encoding": {
                "y": "count"
              },
              "minBpPerPx": 100
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:150,000,000-153,000,000",
      "tracks": [
        {
          "trackId": "alu_marks",
          "height": 160
        }
      ]
    }
  ]
}

Notebook

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

Copy

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/demos/gene_density/config.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []) + [
        {
            "type": "FeatureTrack",
            "trackId": "alu_marks",
            "name": "Alu elements",
            "assemblyNames": [
                "hg38"
            ],
            "adapter": {
                "type": "BedTabixAdapter",
                "bedGzLocation": {
                    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
                    "locationType": "UriLocation"
                },
                "index": {
                    "location": {
                        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
                        "locationType": "UriLocation"
                    }
                }
            },
            "displays": [
                {
                    "type": "LinearMarkDisplay",
                    "displayId": "alu_marks-LinearMarkDisplay",
                    "marks": [
                        {
                            "mark": "bar",
                            "encoding": {
                                "y": "milliDiv"
                            },
                            "maxBpPerPx": 100
                        },
                        {
                            "mark": "bar",
                            "transform": [
                                {
                                    "type": "bin",
                                    "step": 10000
                                },
                                {
                                    "type": "aggregate",
                                    "groupby": [
                                        "start",
                                        "end"
                                    ],
                                    "ops": [
                                        {
                                            "op": "count"
                                        }
                                    ]
                                }
                            ],
                            "encoding": {
                                "y": "count"
                            },
                            "minBpPerPx": 100
                        }
                    ]
                }
            ]
        }
    ],
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "hg38",
            "loc": "chr1:150,000,000-153,000,000",
            "tracks": [
                {
                    "trackId": "alu_marks",
                    "height": 160
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file: a data file opens as the track its name says.

Copy

cat > tracks.json <<'JSON'
[
  {
    "type": "FeatureTrack",
    "trackId": "alu_marks",
    "name": "Alu elements",
    "assemblyNames": [
      "hg38"
    ],
    "adapter": {
      "type": "BedTabixAdapter",
      "bedGzLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
        "locationType": "UriLocation"
      },
      "index": {
        "location": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
          "locationType": "UriLocation"
        }
      }
    },
    "displays": [
      {
        "type": "LinearMarkDisplay",
        "displayId": "alu_marks-LinearMarkDisplay",
        "marks": [
          {
            "mark": "bar",
            "encoding": {
              "y": "milliDiv"
            },
            "maxBpPerPx": 100
          },
          {
            "mark": "bar",
            "transform": [
              {
                "type": "bin",
                "step": 10000
              },
              {
                "type": "aggregate",
                "groupby": [
                  "start",
                  "end"
                ],
                "ops": [
                  {
                    "op": "count"
                  }
                ]
              }
            ],
            "encoding": {
              "y": "count"
            },
            "minBpPerPx": 100
          }
        ]
      }
    ]
  }
]
JSON

npx @jbrowse/img --config https://jbrowse.org/demos/gene_density/config.json \
  --tracks tracks.json \
  --assembly hg38 --loc chr1:150,000,000-153,000,000 \
  --track alu_marks '{"height":160}' \
  --width 1500 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Agent

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

Copy

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "alu_marks",
      "name": "Alu elements",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "bedGzLocation": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
          "locationType": "UriLocation"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
            "locationType": "UriLocation"
          }
        }
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "alu_marks-LinearMarkDisplay",
          "marks": [
            {
              "mark": "bar",
              "encoding": {
                "y": "milliDiv"
              },
              "maxBpPerPx": 100
            },
            {
              "mark": "bar",
              "transform": [
                {
                  "type": "bin",
                  "step": 10000
                },
                {
                  "type": "aggregate",
                  "groupby": [
                    "start",
                    "end"
                  ],
                  "ops": [
                    {
                      "op": "count"
                    }
                  ]
                }
              ],
              "encoding": {
                "y": "count"
              },
              "minBpPerPx": 100
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:150,000,000-153,000,000",
      "tracks": [
        {
          "trackId": "alu_marks",
          "height": 160
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/gene_density/config.json \
  --width 1500 --height 370 \
  --timeout 90000 \
  --spec session.json -o figure.png

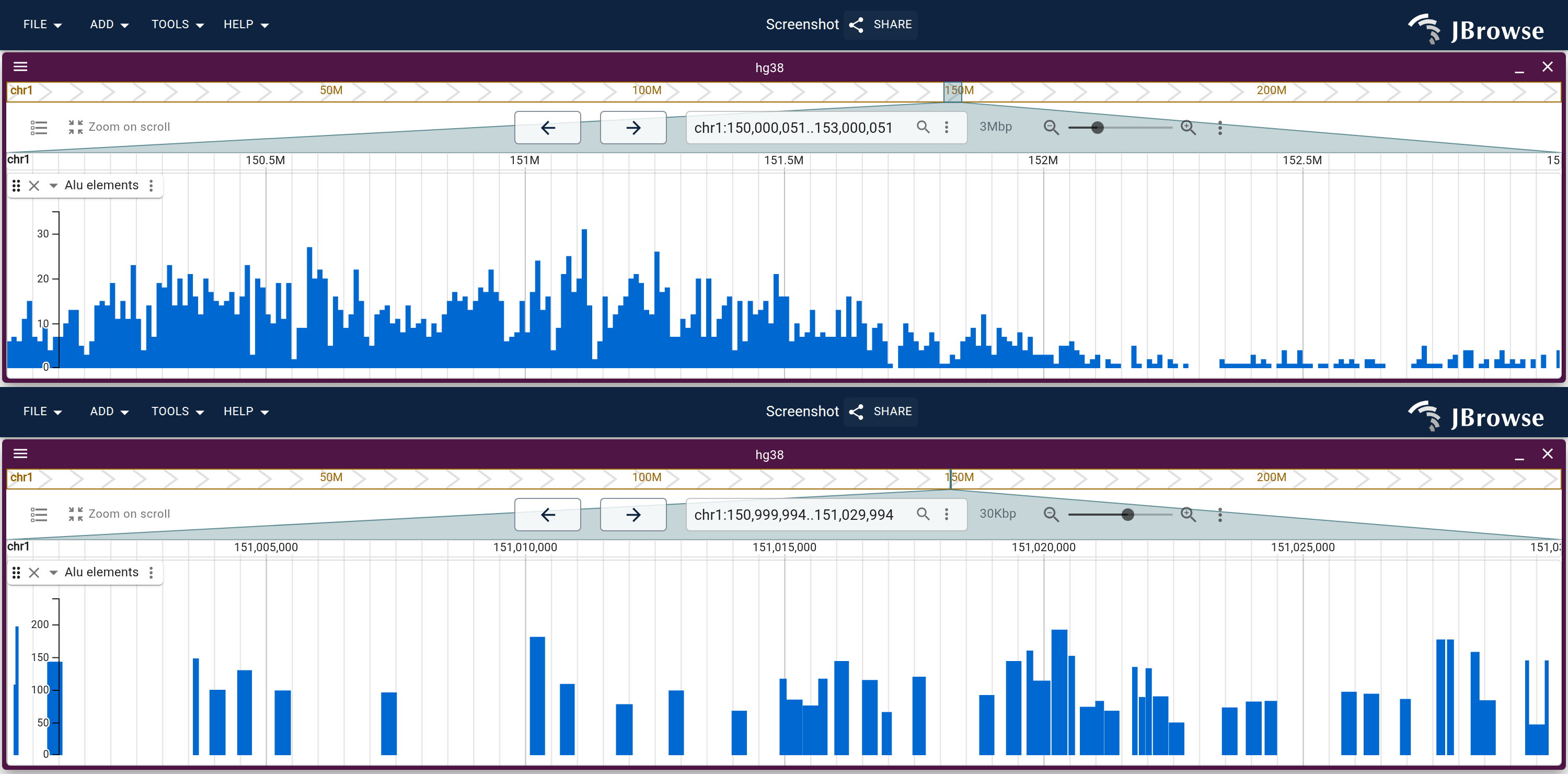

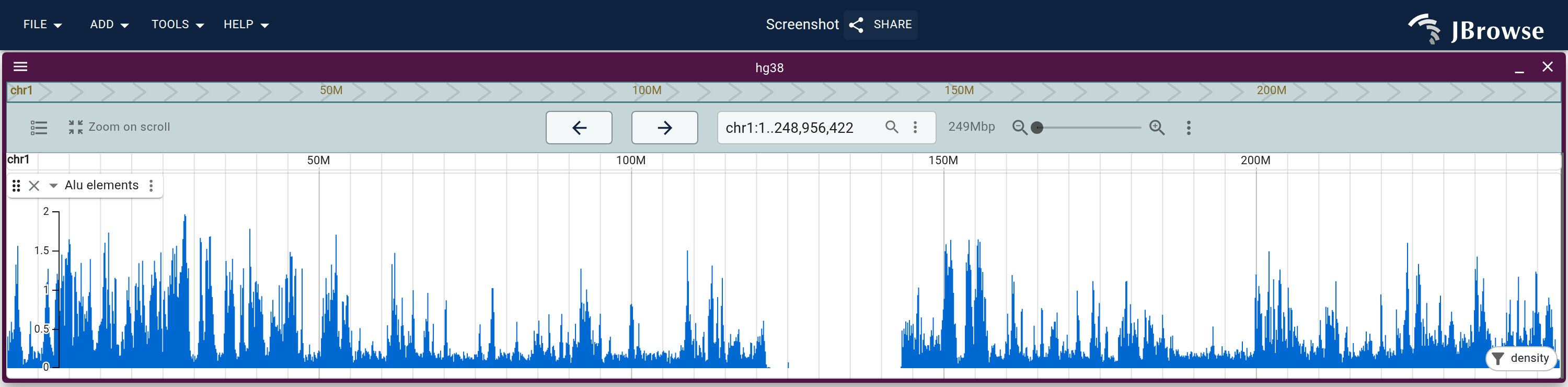

The figure stacks 2 frames of a click-through; this command draws the view it starts from.

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

A mark outside its range is off entirely (not drawn, not hovered, and out of the y-axis, the legend and the row count), so the axis at each zoom is the drawing mark's. encoding.y.axis.title holds at every zoom, so a pair plotting two quantities takes a title covering both, or none.

A bin that follows the zoom#

"step": "auto" picks the width from the view instead: four pixels of screen, snapped up to the next 1, 2 or 5. The bars stay one width however far you zoom out, and one mark replaces the three a config otherwise writes. The width resolves before the fetch and is keyed into it, so zooming within a rung re-uses what is loaded and crossing one re-reads, the way a BigWig picks a summary level.

"transform": [
  { "type": "bin", "step": "auto" },
  { "type": "aggregate", "groupby": ["start", "end"], "ops": [{ "op": "count" }] }
]

When a config cannot draw as written#

A marks list loads whenever its keys and value types are right, and the display draws what it can. Where two slots disagree, the track shows a warning chip in its corner naming the slot, and the mark when the slot is a mark's. A bar, point or rule naming no y draws nothing, and the rest are these, each reported under its id:

jbrowse validate reports the same list over a config file, which has none of the half-written states an editor passes through, at the level the table lists: an error is a mark that draws nothing, never draws, or names a step that cannot run. The display's transform steps are checked the way a mark's are. Each finding names the slot, and the mark when the slot is a mark's, and --json shows the rule's id beside it.

What the track menu offers#

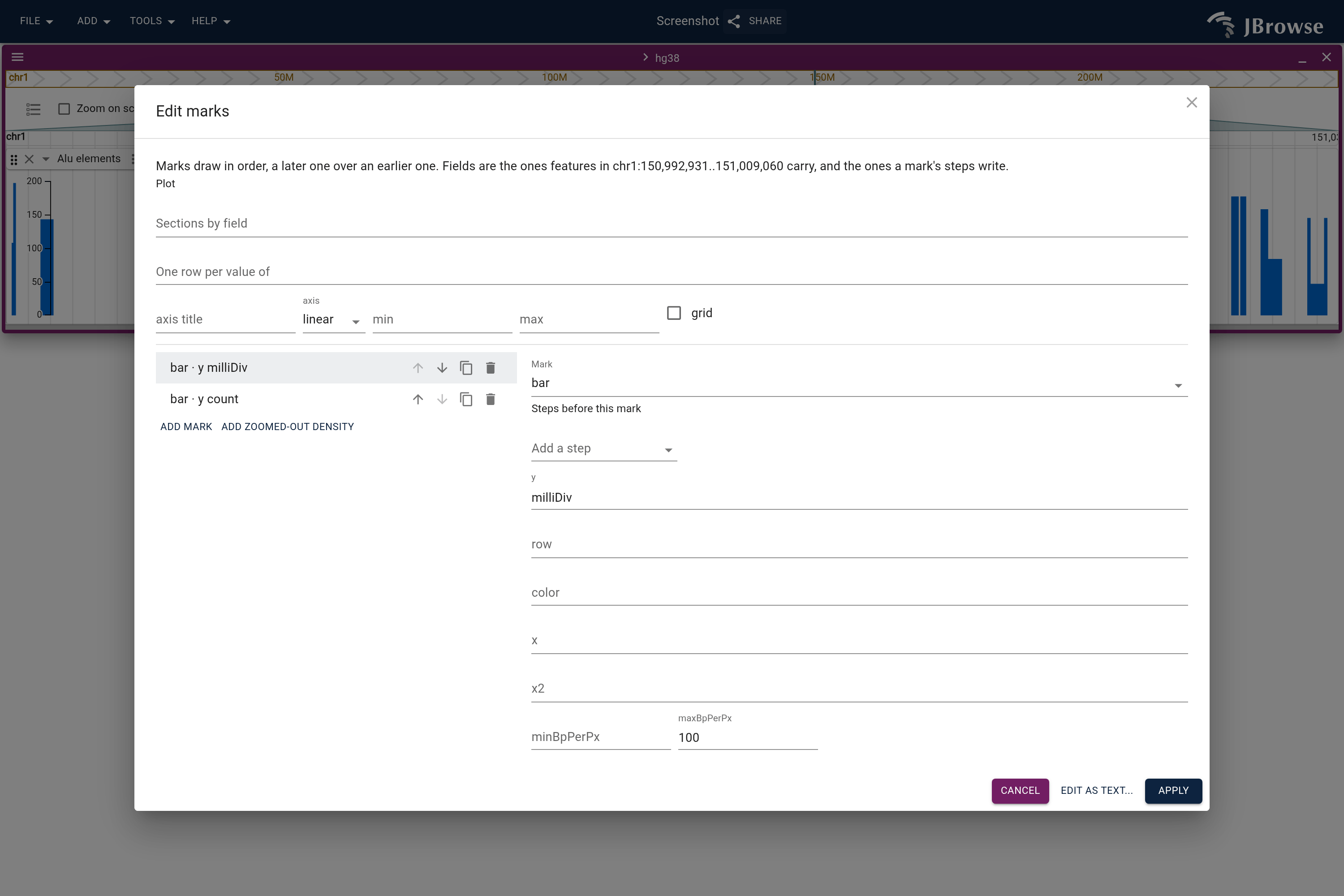

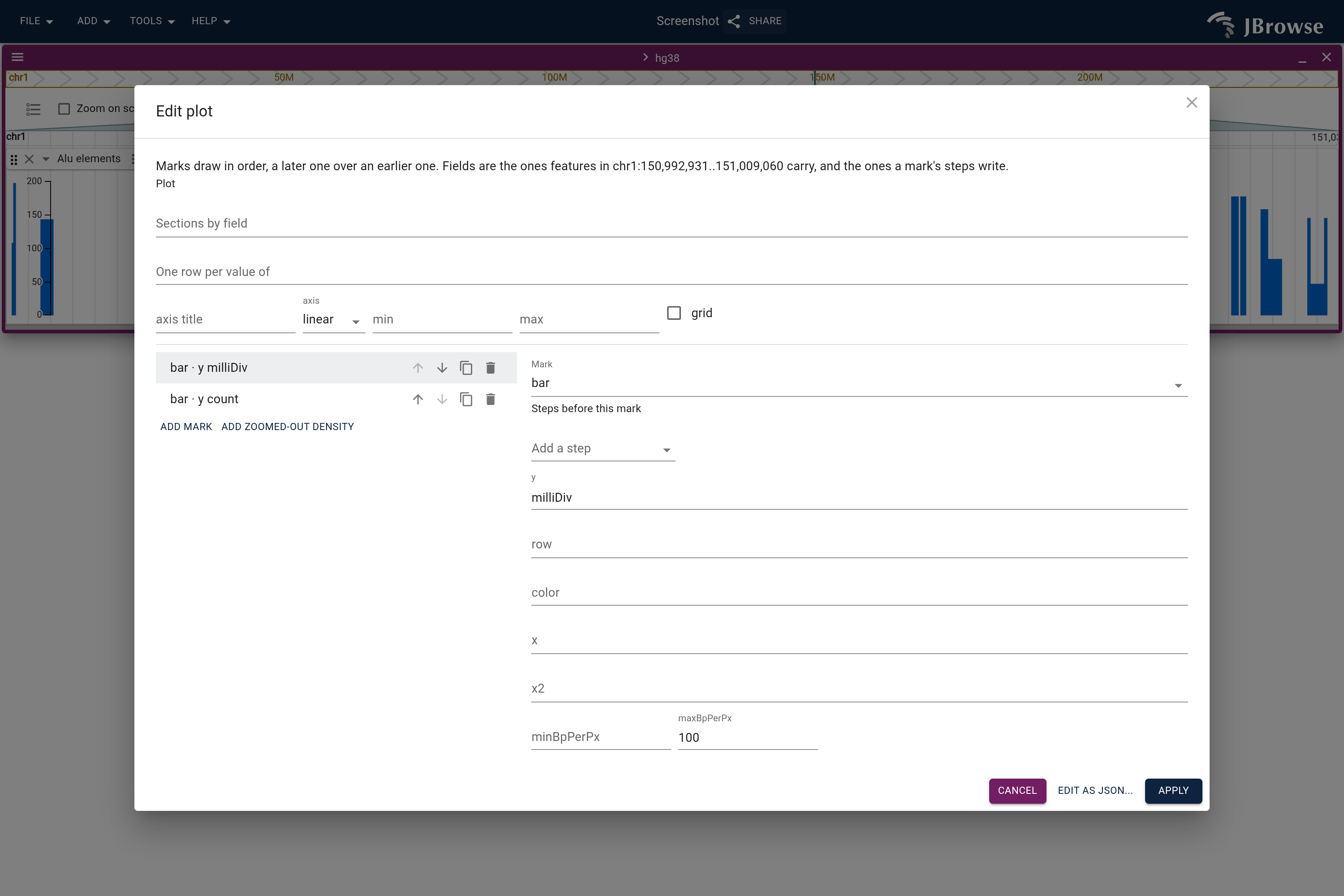

Edit marks... is the whole plot as controls. Above are the settings of the plot as a whole: the field its sections stack by (facet) and the field that gives each value a row (rows), each with the order its values take, and the axis every mark stands on, with its title, type, pinned ends and grid. Below, the marks in paint order on the left, and on the right the selected mark's type, its steps, and a field picker per channel that type reads.

✕

Open in JBrowse Web ↗Open in JBrowse Desktop ↗

Open in JBrowse Desktop ↗

Needs JBrowse Desktop 5.0 or newer. If nothing opens, copy the link and paste it into Desktop's Open JBrowse Web link..., on the start screen or under File → Session.

Copy

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22alu_edit_plot%22%2C%22name%22%3A%22Alu+elements%22%2C%22assemblyNames%22%3A%5B%22hg38%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22BedTabixAdapter%22%2C%22bedGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2FAlu.bed.gz%22%2C%22locationType%22%3A%22UriLocation%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fgene_density%2FAlu.bed.gz.tbi%22%2C%22locationType%22%3A%22UriLocation%22%7D%7D%7D%2C%22displays%22%3A%5B%7B%22type%22%3A%22LinearMarkDisplay%22%2C%22displayId%22%3A%22alu_edit_plot-LinearMarkDisplay%22%2C%22marks%22%3A%5B%7B%22mark%22%3A%22bar%22%2C%22encoding%22%3A%7B%22y%22%3A%22milliDiv%22%7D%2C%22maxBpPerPx%22%3A100%7D%2C%7B%22mark%22%3A%22bar%22%2C%22transform%22%3A%5B%7B%22type%22%3A%22bin%22%2C%22step%22%3A%22auto%22%7D%2C%7B%22type%22%3A%22aggregate%22%2C%22ops%22%3A%5B%7B%22op%22%3A%22count%22%7D%5D%7D%5D%2C%22encoding%22%3A%7B%22y%22%3A%22count%22%7D%2C%22minBpPerPx%22%3A100%7D%5D%7D%5D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr1%3A151%2C000%2C000-151%2C030%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22alu_edit_plot%22%2C%22height%22%3A160%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+mark_display%2Fedit_plot

Or rebuild it from your own data:

Steps

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses hg38, loaded from a .2bit genome.
2. Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “Alu elements”.
3. Type your region of interest into the location box and press Enter.This figure is at chr1:151,000,000-151,030,000.

CLI

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

Copy

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "alu_edit_plot",
  "name": "Alu elements",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "BedTabixAdapter",
    "bedGzLocation": {
      "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
      "locationType": "UriLocation"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
        "locationType": "UriLocation"
      }
    }
  },
  "displays": [
    {
      "type": "LinearMarkDisplay",
      "displayId": "alu_edit_plot-LinearMarkDisplay",
      "marks": [
        {
          "mark": "bar",
          "encoding": {
            "y": "milliDiv"
          },
          "maxBpPerPx": 100
        },
        {
          "mark": "bar",
          "transform": [
            {
              "type": "bin",
              "step": "auto"
            },
            {
              "type": "aggregate",
              "ops": [
                {
                  "op": "count"
                }
              ]
            }
          ],
          "encoding": {
            "y": "count"
          },
          "minBpPerPx": 100
        }
      ]
    }
  ]
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs hg38 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Spec tab, or jbrowse set-default-session.

Spec

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/demos/gene_density/config.json, which is what the Web button above opens.

Copy

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "alu_edit_plot",
      "name": "Alu elements",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "bedGzLocation": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
          "locationType": "UriLocation"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
            "locationType": "UriLocation"
          }
        }
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "alu_edit_plot-LinearMarkDisplay",
          "marks": [
            {
              "mark": "bar",
              "encoding": {
                "y": "milliDiv"
              },
              "maxBpPerPx": 100
            },
            {
              "mark": "bar",
              "transform": [
                {
                  "type": "bin",
                  "step": "auto"
                },
                {
                  "type": "aggregate",
                  "ops": [
                    {
                      "op": "count"
                    }
                  ]
                }
              ],
              "encoding": {
                "y": "count"
              },
              "minBpPerPx": 100
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:151,000,000-151,030,000",
      "tracks": [
        {
          "trackId": "alu_edit_plot",
          "height": 160
        }
      ]
    }
  ]
}

Notebook

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

Copy

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/demos/gene_density/config.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []) + [
        {
            "type": "FeatureTrack",
            "trackId": "alu_edit_plot",
            "name": "Alu elements",
            "assemblyNames": [
                "hg38"
            ],
            "adapter": {
                "type": "BedTabixAdapter",
                "bedGzLocation": {
                    "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
                    "locationType": "UriLocation"
                },
                "index": {
                    "location": {
                        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
                        "locationType": "UriLocation"
                    }
                }
            },
            "displays": [
                {
                    "type": "LinearMarkDisplay",
                    "displayId": "alu_edit_plot-LinearMarkDisplay",
                    "marks": [
                        {
                            "mark": "bar",
                            "encoding": {
                                "y": "milliDiv"
                            },
                            "maxBpPerPx": 100
                        },
                        {
                            "mark": "bar",
                            "transform": [
                                {
                                    "type": "bin",
                                    "step": "auto"
                                },
                                {
                                    "type": "aggregate",
                                    "ops": [
                                        {
                                            "op": "count"
                                        }
                                    ]
                                }
                            ],
                            "encoding": {
                                "y": "count"
                            },
                            "minBpPerPx": 100
                        }
                    ]
                }
            ]
        }
    ],
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "hg38",
            "loc": "chr1:151,000,000-151,030,000",
            "tracks": [
                {
                    "trackId": "alu_edit_plot",
                    "height": 160
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file: a data file opens as the track its name says.

Copy

cat > tracks.json <<'JSON'
[
  {
    "type": "FeatureTrack",
    "trackId": "alu_edit_plot",
    "name": "Alu elements",
    "assemblyNames": [
      "hg38"
    ],
    "adapter": {
      "type": "BedTabixAdapter",
      "bedGzLocation": {
        "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
        "locationType": "UriLocation"
      },
      "index": {
        "location": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
          "locationType": "UriLocation"
        }
      }
    },
    "displays": [
      {
        "type": "LinearMarkDisplay",
        "displayId": "alu_edit_plot-LinearMarkDisplay",
        "marks": [
          {
            "mark": "bar",
            "encoding": {
              "y": "milliDiv"
            },
            "maxBpPerPx": 100
          },
          {
            "mark": "bar",
            "transform": [
              {
                "type": "bin",
                "step": "auto"
              },
              {
                "type": "aggregate",
                "ops": [
                  {
                    "op": "count"
                  }
                ]
              }
            ],
            "encoding": {
              "y": "count"
            },
            "minBpPerPx": 100
          }
        ]
      }
    ]
  }
]
JSON

npx @jbrowse/img --config https://jbrowse.org/demos/gene_density/config.json \
  --tracks tracks.json \
  --assembly hg38 --loc chr1:151,000,000-151,030,000 \
  --track alu_edit_plot '{"height":160}' \
  --width 1500 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Agent

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

Copy

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "alu_edit_plot",
      "name": "Alu elements",
      "assemblyNames": [
        "hg38"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "bedGzLocation": {
          "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz",
          "locationType": "UriLocation"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/gene_density/Alu.bed.gz.tbi",
            "locationType": "UriLocation"
          }
        }
      },
      "displays": [
        {
          "type": "LinearMarkDisplay",
          "displayId": "alu_edit_plot-LinearMarkDisplay",
          "marks": [
            {
              "mark": "bar",
              "encoding": {
                "y": "milliDiv"
              },
              "maxBpPerPx": 100
            },
            {
              "mark": "bar",
              "transform": [
                {
                  "type": "bin",
                  "step": "auto"
                },
                {
                  "type": "aggregate",
                  "ops": [
                    {
                      "op": "count"
                    }
                  ]
                }
              ],
              "encoding": {
                "y": "count"
              },
              "minBpPerPx": 100
            }
          ]
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:151,000,000-151,030,000",
      "tracks": [
        {
          "trackId": "alu_edit_plot",
          "height": 160
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/gene_density/config.json \
  --width 1500 --height 1000 \
  --timeout 90000 \
  --spec session.json -o figure.png

The figure was taken after clicks this command does not make, so its picture can differ.

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

A picker takes free text as well as a scanned field or one the mark's steps write, so INFO.DP, count, a jexl: expression or a constant all go through. Under a field that names a scale, the editor shows the kind of scale and then what that kind reads: a categorical scale's values in order, their colors and their names in the key; a threshold's cut points and a color per interval; a ramp's scale.scheme, its scale.reverse, the ends that pin it, its middle, and whether an open end follows the extremes or a percentile. An end left empty spans the loaded regions, so pinning both fixes a figure's colors. A list is comma-separated. When the kind changes, the editor drops the members the new kind does not paint.

The editor lists a mark's steps, each named by what it writes and shown with its settings in place, with a list of common steps to add: a count per bin, a coverage, a filter. A step that writes a value fills a bar that names no y. Beside Add mark, Add zoomed-out density appends the count per bin that draws from 100 bp per px out and hands the marks above it the closer zooms.

The form shows, without rewriting, a channel the mark's type stopped reading and a far end that names a separate sequence field. The rules run as you type and each finding sits under the control that caused it. The corner notice opens the same dialog.

Edit as text..., inside it, is the same plot as text, which Advanced → Edit plot... in the track menu also opens, and Back to form there returns. A setting left out stays as it is; null clears one. Each editor accepts a plot that the rules report, since the display draws what it can; Apply refuses only what a config file is refused for.

With no marks at all a display plots score as bars, links a record to the other end it names, or opens the dialog where the fields supply neither.

The Y axis... row opens the panel that writes encoding.y as you change it: scale type, min and max, Include 0, outlier clipping, grid lines and reference lines. Beside it, Point size, the legend toggle, and Filter by..., whose jexl runs in the worker before the encoding, so a filtered feature is neither drawn nor in the axis. Hovering a mark shows its location, value and color class; clicking opens the feature, and clicking a binned or coverage bar opens the bin remade over the features under it.

The full slot list is the LinearMarkDisplay config reference; how the encoding is evaluated, and what a jexl: channel measured against a field read, is MARK_ENCODING.md.

On the circular view#

A track with a mark display draws on the circular view as a ring: the display renders its strip as it would in a linear track and the view wraps it around the circle, so a coverage step over a BAM or a binned count over a BED is a Circos-style density ring with the same marks entry. The ring is the canvas, so a text mark's labels stay on the linear track. A variant track keeps its chords unless the session names the mark display for it.

Examples and tutorials#

• Mark display examples is one complete config per idea over a hosted file, each with its picture and a live link: bars, points, ramps, thresholds, bins, pileups, facets, labels, links and rows.
• A grammar of graphics over a BED (RepeatMasker Alu age) plots a BED column as bars colored by another column and counts the rows per zoom-following bin.
• A grammar of graphics over a BAM (NA12878 insert size) plots a BAM's fields: depth as a coverage step, insert size as a point per pair on a separate track, the reads stacked and colored by a ramp, and a derived BED scanning a chromosome.

When a plugin is the next step#

A drawing that is not a bar, a point, a rule, a span or a label needs a new mark type: one shader, one painter and one hit test, declared as a mark over the same worker channels this display reads. See GPU displays to write one. A display that uses a custom feature layout, or that gives a channel a meaning the encoding cannot express, such as Manhattan's color by LD to an index SNP, is the next step after that. See Plotting features in a custom display to compose one.
