Gene track
2 videos in this tutorial
Gene and transcript features (GFF3, GTF, BED12, and similar) render as glyphs with their exons, UTRs, and CDS segments. Beyond that the track can translate the CDS in place (reading frame colors, amino-acid lettering, mature peptides), color each transcript from a value carried in the file, and reshape the view around a gene by collapsing its introns.
Choosing which transcripts to show
The Gene glyph option in the track menu controls how a gene's transcripts are drawn:
- Auto (default) - stacks every transcript zoomed in, collapses each gene to one transcript zoomed out, and keeps only as many isoforms per gene as the track's height has rows for
- All transcripts - every transcript on its own row, whatever the zoom or track height. A stack taller than the track scrolls
- Representative transcript - one isoform per gene
The representative isoform is the one the annotation tags: RefSeq Select or
MANE Select (NCBI), MANE_Select or Ensembl_canonical (Ensembl, GENCODE).
It is also drawn first when a gene is stacked. Without a tag, it is the longest
by protein length, or by genomic span for a gene with no coding isoform. The
canonicalTranscriptField and canonicalTranscriptTags config slots name the
attribute and tags.
A gene drawn with fewer transcripts than it has shows +N more beside its name. Clicking it opens that one gene, and the badge then reads show fewer. The Gene glyph submenu grows a row to re-collapse every gene opened this way. The badge appears wherever the gene is wide enough on screen to hold it.
While the display leaves transcripts out, a chip in the track's bottom-right
corner names the rule: Isoforms trimmed where the track's height is the
constraint, otherwise the tag responsible for most genes on screen
(RefSeq Select, MANE Select, or Longest isoform). Its tooltip counts the
genes under each rule. Clicking it opens the same three modes.

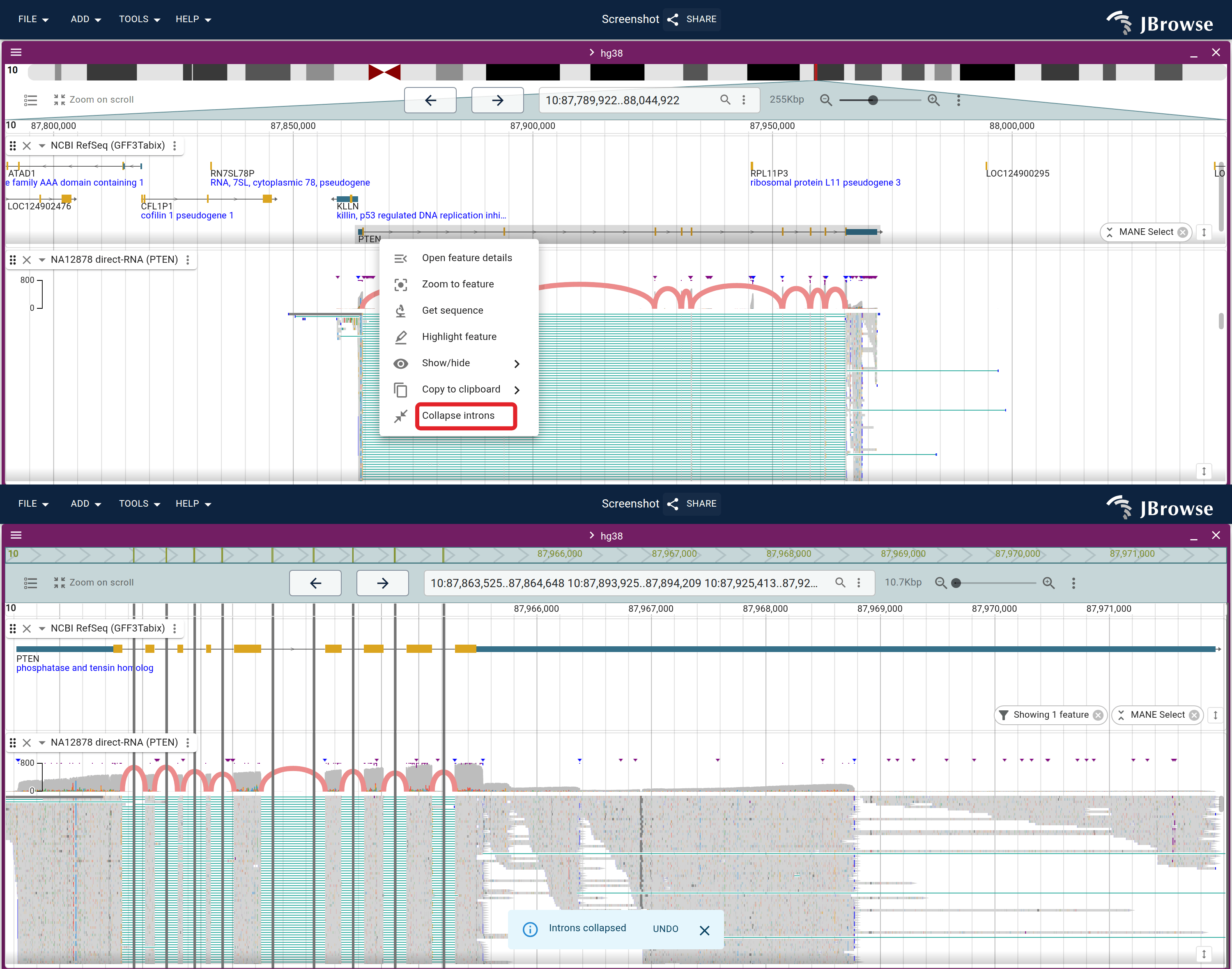

Collapsing introns
Collapse introns, from a gene's right-click menu, replaces the view's displayed regions with that gene's exons side by side. A window-size setting keeps some flanking sequence around each splice boundary. Right-clicking a transcript offers that isoform as well as the whole gene (exons unioned), and the dialog's transcript dropdown reaches an isoform that isn't drawn.
With an RNA-seq track, the spliced reads' sashimi arcs then span directly between adjacent exons.
Display density and labels
Track-menu toggles:
- Display mode - Normal, Compact, or Super-compact feature heights
- Show subfeature labels - each transcript's name on its row
- Show chevrons - strand chevrons along the intron lines (on by default)
- Show only genes - hides non-gene features

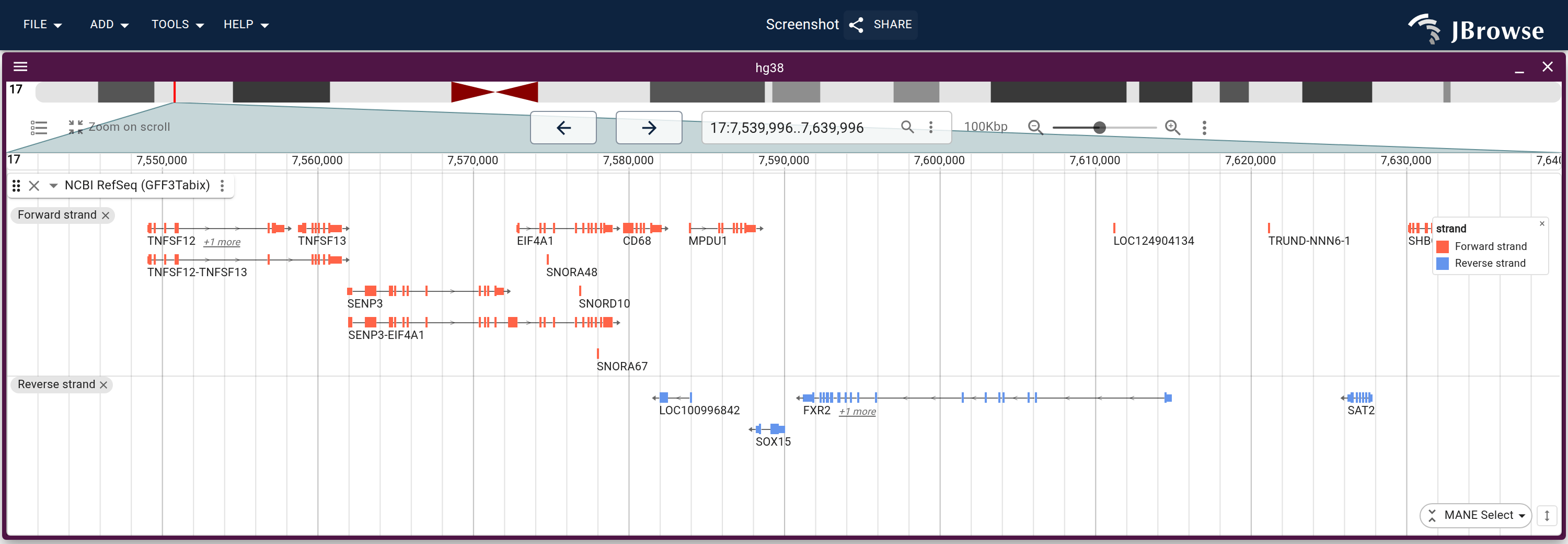

- Group by... - opens a dialog. Strand packs the forward-strand features into
one labelled section above the reverse-strand ones, unstranded features last,
so convergent and divergent neighbours read apart. Attribute takes a feature
attribute,
biotypeorsourcesay, and packs one section per value, with the features carrying none last
Grouping features into sections
Each section carries a chip naming it, and the × on a chip hides that section. The Show N hidden chip at the top of the track, or Show... → Show N hidden groups, puts every hidden section back, and changing the grouping clears them. Sections in the track menu lists the sections drawn, each with Move up, Move down and Hide section, and Reset section order returns them to the sorted order.
The facet setting pre-groups a track, so a shared link opens grouped. As a
string it names the field: a feature attribute, a dotted path into a structured
one such as INFO.SVTYPE, or strand. As an object it adds the section order,
{ "field": …, "domain": [...] }: the values listed stack first, in that order,
and the rest follow sorted. A reorder from the menu writes the same setting, so
what a config author declares and what a reader arranges are one setting:
{
"type": "FeatureTrack",
"trackId": "ncbi_refseq_hg38",
"name": "NCBI RefSeq genes",
"assemblyNames": ["hg38"],
"adapter": {
"type": "Gff3TabixAdapter",
"uri": "https://example.com/GCF_000001405.40.gff.gz"
},
"displayDefaults": {
"facet": {
"field": "gene_biotype",
"domain": ["protein_coding", "lncRNA", "pseudogene"]
}
}
}jbrowse add-track https://example.com/GCF_000001405.40.gff.gz \
--trackId ncbi_refseq_hg38 \
--name "NCBI RefSeq genes" \
--assemblyNames hg38 \
--displayDefaults '{"facet":{"field":"gene_biotype","domain":["protein_coding","lncRNA","pseudogene"]}}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "FeatureTrack",
"trackId": "ncbi_refseq_hg38",
"name": "NCBI RefSeq genes",
"assemblyNames": ["hg38"],
"adapter": {
"type": "Gff3TabixAdapter",
"uri": "https://example.com/GCF_000001405.40.gff.gz"
},
"displayDefaults": {
"facet": {
"field": "gene_biotype",
"domain": ["protein_coding", "lncRNA", "pseudogene"]
}
}
}The dialog's Also color by strand (or by this attribute) colors each section by its value: red and blue by strand, or one color per value, with a key naming them. It starts ticked unless the track already has a color of its own, and unticking it returns the default color.
Writing the grouping as JSON
Edit as JSON..., at the foot of the Group by and Color by attribute dialogs,
opens the track's grouping, color and filter as three channels. facet and
color are the display's two settings of those names, in the shape a config
file takes them: facet stacks a section per value of a field, in the order its
domain lists; color is a CSS color or a jexl expression, or { "field": … }
for one color per value; filter is the list of jexl expressions Filter
by... edits. Applying a spec changes only the channels it names, an object
replaces the setting whole, and null clears one. Each of these pastes as it
is:
{ "facet": "strand" }one section per strand{ "facet": { "field": "gene_biotype", "domain": ["protein_coding", "lncRNA"] } }a section per biotype, these two first{ "color": { "field": "source" } }one color per source{ "color": { "field": "strand" } }forward strand red, reverse blue{ "color": { "field": "gene_biotype", "domain": ["protein_coding", "lncRNA"], "range": ["#1f77b4", "#ff7f0e"] } }those two biotypes blue and orange, and every other its own color{ "color": "#1f77b4" }one color for everything{ "filter": ["feature.type == 'gene'"] }genes only{ "facet": null, "color": null }ungrouped, default color
The dialog lists the same examples. This one groups by biotype in a chosen order, gives each of the four biotypes its own color, and leaves the track's filter alone:
{
"facet": {
"field": "gene_biotype",
"domain": ["protein_coding", "snoRNA", "lncRNA", "pseudogene"]
},
"color": {
"field": "gene_biotype",
"domain": ["protein_coding", "snoRNA", "lncRNA", "pseudogene"]
}
}A color by a field is the color setting's { "field", "domain", "range" }
form, and the track draws a key from the values it painted. Every value keeps a
color derived from itself, so a pan or a reload paints it the same; a domain
spends the range colors on the values it lists, in order, and a value it
leaves out never takes one of their colors. Two unlisted values can share a
color, and Color by... → Pin distinct colors lists every value the key shows
in the color's domain, in its order, so each takes its own. A transcript and
all its parts paint the transcript's value, or its gene's where the transcript
has none. strand is a field too, painting forward tomato and reverse
cornflowerblue unless a domain or range says otherwise. Each channel is the same
setting its menu writes, so the Sections menu reorders a facet written this way.

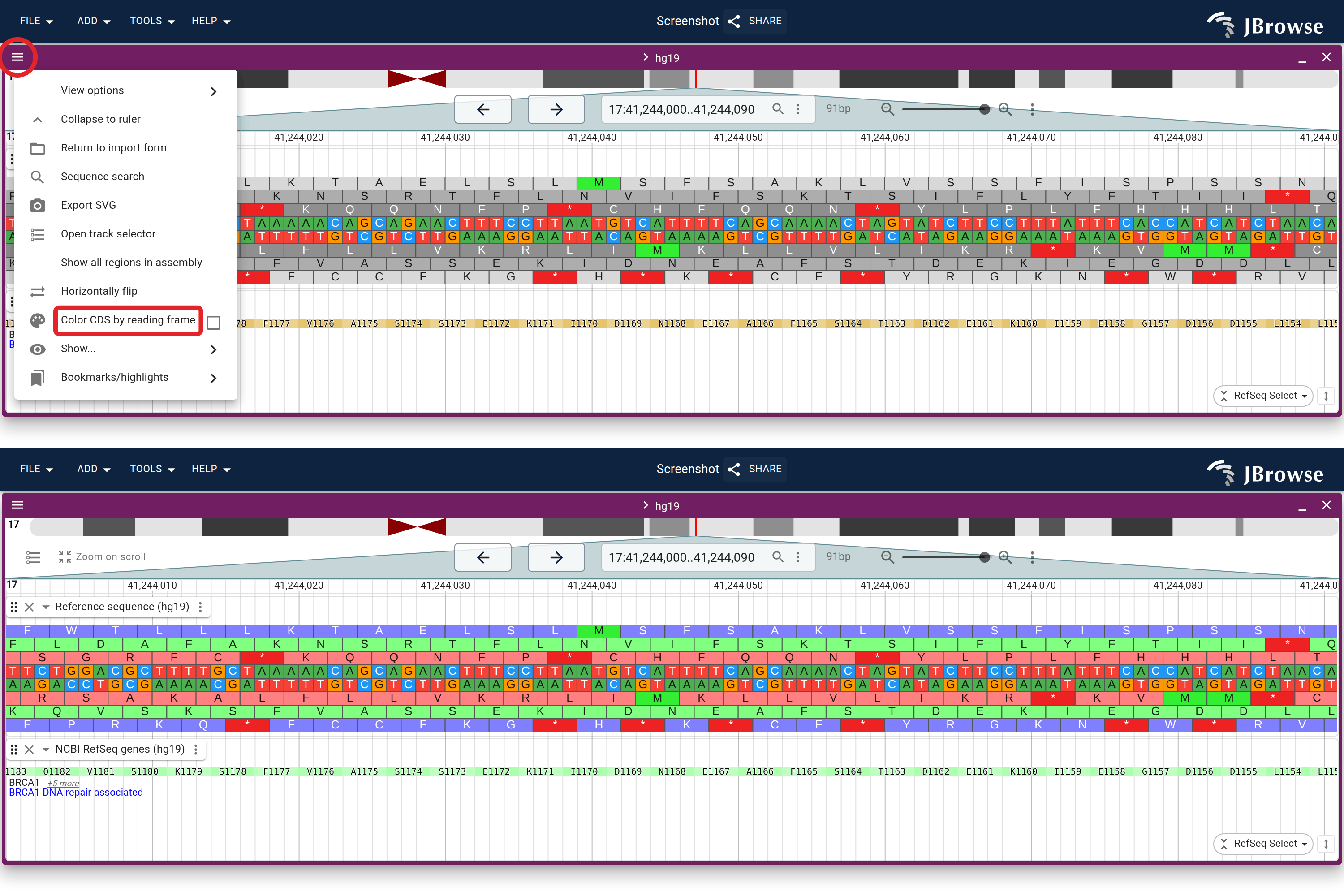

Color by CDS
Color CDS by reading frame, in the linear genome view's hamburger menu, tints each CDS segment by the frame it is read in, so one colour is one frame across the view. Frame is constant within a segment, so a colour change across a junction is a frame shift. The setting applies to every gene track in the view, and JBrowse remembers it across sessions.
Color transcripts by a value in the file
The color slot takes a jexl expression evaluated against each drawn part, so a
per-transcript number in the GFF3 attribute column can drive the fill:
- JBrowse lowercases attribute names; values stay strings.
dIF=0.79reads under the keydif, and comparing it numerically needsparseFloat - JBrowse evaluates the expression against the box being painted (an exon,
CDS, or UTR), so a transcript's own attribute is
feature.parent.dif. A UTR followscolorunlessutrColoroverrides it - Test the significance flag, not the magnitude. The expression in the
tutorial below branches on a
dtuattribute the analysis wrote and only then reads the size
Declare what the colors mean in the legend slot; the key draws over the track,
and you can dismiss it. See the
jexl configuration guide.
The differential transcript usage tutorial has the track configuration behind that figure and the pipeline that writes the attributes.
Peptide lettering
The track draws the translated protein on coding features by default. Zooming in, the amino acids first appear as alternating per-codon shading, then at roughly base-pair resolution as single-letter code over each codon, in register with the reference sequence track. Turn off Show amino acids when zoomed in, in the view menu's Show... submenu, to keep the view from fetching the reference.
The translation follows the transcript's strand and CDS phase, splitting codons
that straddle an exon boundary. A CDS with a transl_table attribute (NCBI
convention, e.g. transl_table=2 for vertebrate mitochondria) translates with
that code. The first codon shows as M when it is a valid start for that table

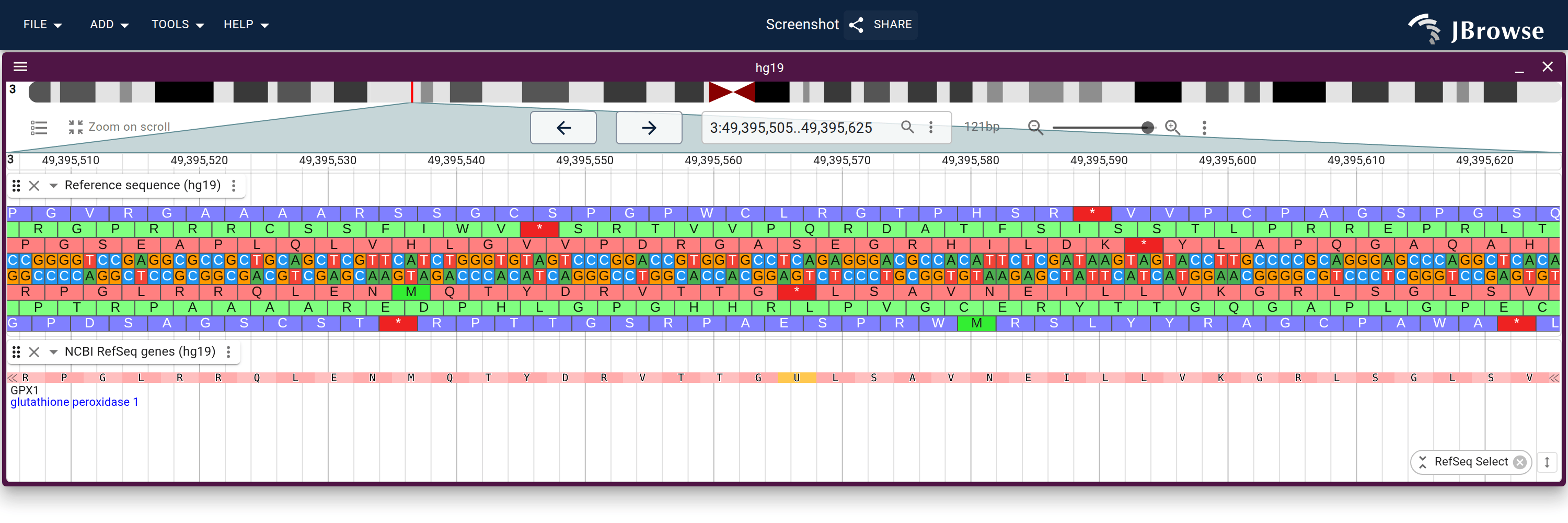

(including GTG or TTG); the track applies and highlights any transl_except
override (e.g. selenocysteine U).

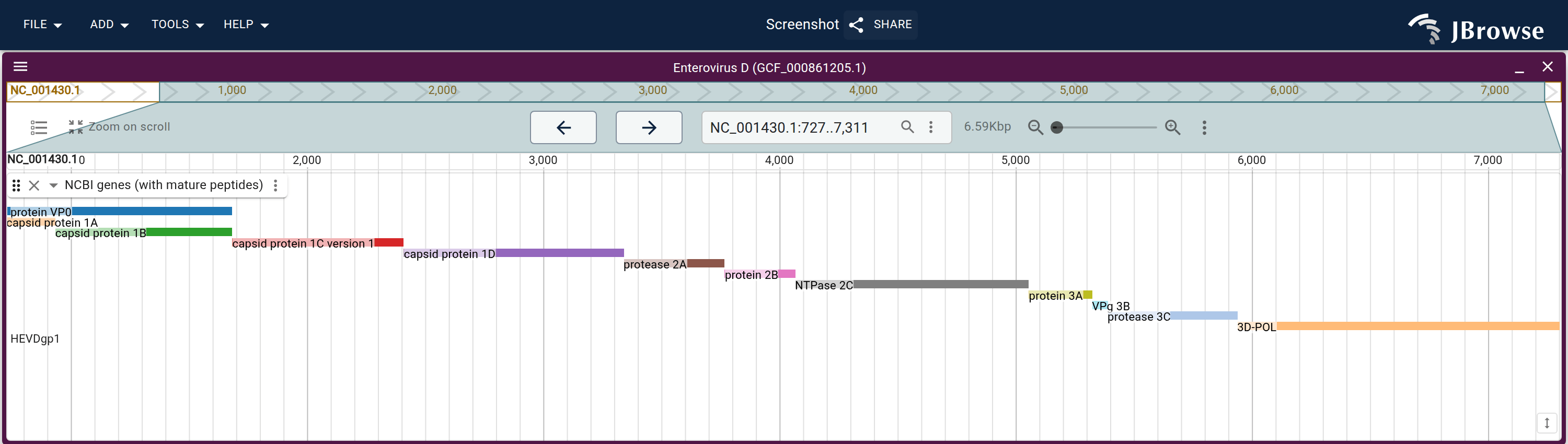

Mature peptides (polyproteins)
Many viral genomes encode one polyprotein cleaved into mature peptides. When a
CDS has mature_protein_region (or mature_protein_region_of_CDS) subfeatures,
the track draws each cleavage product as a separate stacked row in a distinct
color, hoverable and clickable. Its name comes from the product attribute when
the track's labels.name reads it:
{
"type": "FeatureTrack",
"trackId": "enterovirus_d_genes",
"name": "Genes",
"assemblyNames": ["GCF_000861205.1"],
"adapter": {
"type": "Gff3TabixAdapter",
"uri": "https://example.com/GCF_000861205.1.gff.gz"
},
"displayDefaults": {
"labels": {
"name": "jexl:feature.product || feature.name || feature.id"
}
}
}jbrowse add-track https://example.com/GCF_000861205.1.gff.gz \
--trackId enterovirus_d_genes \
--name Genes \
--assemblyNames GCF_000861205.1 \
--displayDefaults '{"labels":{"name":"jexl:feature.product || feature.name || feature.id"}}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "FeatureTrack",
"trackId": "enterovirus_d_genes",
"name": "Genes",
"assemblyNames": ["GCF_000861205.1"],
"adapter": {
"type": "Gff3TabixAdapter",
"uri": "https://example.com/GCF_000861205.1.gff.gz"
},
"displayDefaults": {
"labels": {
"name": "jexl:feature.product || feature.name || feature.id"
}
}
}See the jexl configuration guide for the expression syntax.
Reading a feature's protein sequence
Click the feature and use the Sequence section of the details panel for the protein, CDS, cDNA or genomic sequence. See Feature sequence panel.
Using gene tracks with the Protein3d plugin
The Protein3d plugin uses the same transcript-to-protein mapping. Right click a gene and launch the protein structure viewer for an interactive 3D structure (AlphaFold DB or UniProt) linked to the genome view: hovering a position highlights the residue, and vice versa. See the proteins tutorial for launch routes and installation.
A whole chromosome of genes
Zoomed out far enough, a gene track stops fetching and shows a "region too large" message with a Force load button. A track can carry a sidecar instead: a bigWig of feature counts per kilobase, built once from the file, drawn as a band wherever the features are too many to fetch. The band names its peak in its corner, and hovering reads the count under the cursor.
jbrowse make-density writes the sidecar beside the file, and
jbrowse add-track attaches one it finds there; --density names one
elsewhere. What it writes is the densityAdapter slot on the track's adapter:
jbrowse make-density genes.gff3.gz --chrom-sizes hg38.chrom.sizes
jbrowse add-track genes.gff3.gz --load copyThe track menu's Density band submenu: Automatic swaps where the fetch would be too large, Features only keeps the message, Density only always draws the band. While the band is standing in for a fetch that was too large, the same submenu carries Load features anyway, the banner's force-load. See the gene density tutorial.
