Structural variants from Hi-C

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.20. Desktop beta builds for Linux and macOS are on the releases page; the Windows build waits on code signing.

Two chromosomes joined by a translocation touch along the join, so Hi-C reads linking them run far above background. The Philadelphia chromosome, the BCR-ABL1 fusion in the K562 leukemia line, is the example, against GM12878's normal karyotype. JBrowse fetches a Hi-C matrix for every pair of regions on screen. We:

load each line's .hic file as a Hi-C track, and the contact domains as a BEDPE feature track
open a chr9 window and a chr22 window in one linear genome view, so JBrowse draws the contacts between the two
rank the chr9-chr22 contact bins with juicer_tools to find the junction, and pick the control and normalization the ranking needs

Prerequisites

a JBrowse to paste the tracks into (Web or Desktop)
java, which juicer_tools needs for the scan script; the script downloads juicer_tools itself
curl, for the same scan script

The data

Deep in situ Hi-C for GM12878 and K562 from ENCODE, plus ENCODE's domain and loop calls over the GM12878 matrix.

Nothing to download: the track configs and the scan script below read these files by URL. Your own .hic file loads by swapping uri in the track config under Adding the Hi-C and contact-domain tracks.

Read by URL (no download needed)

What it is	File
GM12878 in situ Hi-C (ENCSR410MDC)	ENCFF053VBX.hic
K562 in situ Hi-C (ENCSR545YBD)	ENCFF080DPJ.hic
GM12878 contact domains (Arrowhead)	ENCFF301CUL.bedpe.gz
GM12878 loops (HiCCUPS)	ENCFF712NKX.bedpe.gz

Reading a Hi-C contact map: the triangle, domains and loops

Hi-C counts how often two stretches of the genome touch in the nucleus. JBrowse draws the result as a triangle: the diagonal runs along the top edge, and depth below it is genomic separation. Two features of that picture have names, and ENCODE publishes both as annotation files derived from the matrix:

Contact domains (also called topologically associating domains, TADs) are the square blocks sitting on the diagonal. Inside one, everything contacts everything; across a boundary, contact drops sharply. ENCODE calls them with Arrowhead and ships a BEDPE.

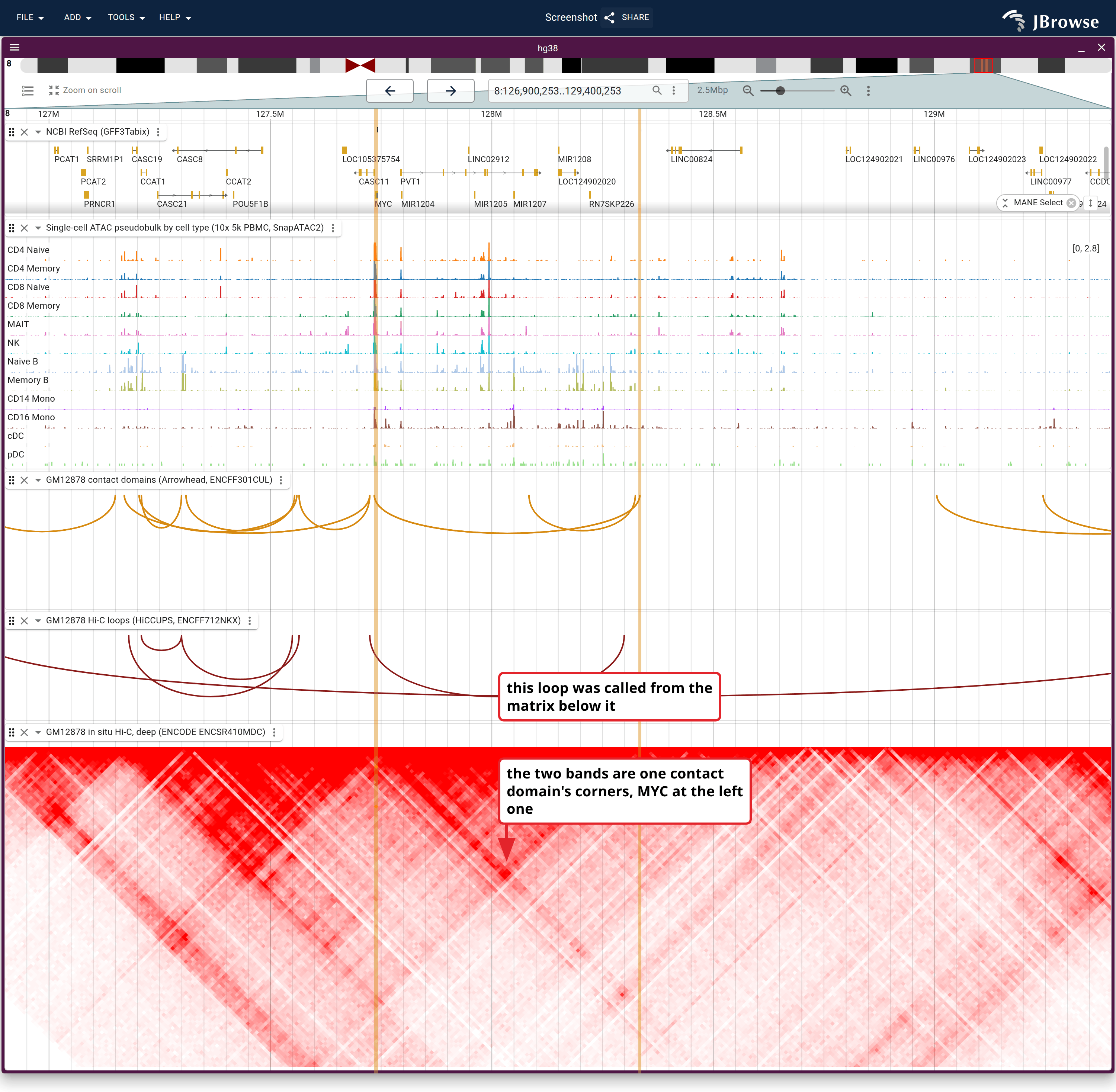

Loops are individual bright dots off the diagonal: two specific points contacting each other far more than their separation predicts, usually a pair of convergent CTCF sites. ENCODE calls them with HiCCUPS, also a BEDPE.

Over a wide window the triangle can render as red speckle. If a Hi-C track looks like noise, change data.resolution first, where a negative value steps to coarser bins (adjusting resolution).

Loading the GRCh38 assembly

ENCODE aligned both Hi-C libraries to GRCh38, so we load that assembly before adding any track.

Config file

Goes in the assemblies array of config.json. See Assemblies.

{
  "name": "hg38",
  "uri": "https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz",
  "refNameAliases": {
    "uri": "https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt"
  },
  "cytobands": "https://jbrowse.org/genomes/GRCh38/cytoBand.txt"
}

CLI (add-assembly)

jbrowse add-assembly https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz \
  --name hg38 \
  --refNameAliases https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt \
  --config '{"cytobands":"https://jbrowse.org/genomes/GRCh38/cytoBand.txt"}'

JBrowse Desktop

hg38 is one of the genomes JBrowse Desktop hosts, with gene tracks already set up: on the start screen click Show all available genomes and pick it. To load the files of this config instead:

In JBrowse Desktop, Open new genome on the start screen (or File → Open genome... in a session), then Open from a URL and paste, one per line:

https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz
https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz.fai
https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz.gzi

JBrowse reads the format off the file name. Then fill in:

Genome name: hg38
refName aliases (under More options): https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt
cytobands (under More options): https://jbrowse.org/genomes/GRCh38/cytoBand.txt

The figures also show NCBI's MANE transcripts as the gene track:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "mane_hg38",
  "name": "MANE 1.0",
  "uri": "https://hgdownload.soe.ucsc.edu/gbdb/hg38/mane/mane.1.0.bb",
  "assemblyNames": ["hg38"]
}

CLI (add-track)

jbrowse add-track https://hgdownload.soe.ucsc.edu/gbdb/hg38/mane/mane.1.0.bb \
  --trackId mane_hg38 \
  --name "MANE 1.0" \
  --assemblyNames hg38

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track... and, in Add a track from file or URL, enter:

Main file: https://hgdownload.soe.ucsc.edu/gbdb/hg38/mane/mane.1.0.bb

Click Next. JBrowse reads the adapter and track type off the file name. Then fill in:

Track name: MANE 1.0
Assembly: hg38

Click Add.

Adding the Hi-C and contact-domain tracks

The .hic files are tens of GB, and JBrowse requests only the bins on screen.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "hic_k562_insitu",
  "name": "K562 in situ Hi-C (ENCODE ENCSR545YBD)",
  "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/4d332729-3463-4782-b33c-76e4fa8ff72a/ENCFF080DPJ.hic",
  "assemblyNames": ["hg38"],
  "displayDefaults": {
    "data": { "normalization": "NONE" }
  }
}

CLI (add-track)

jbrowse add-track https://encode-public.s3.amazonaws.com/2021/10/28/4d332729-3463-4782-b33c-76e4fa8ff72a/ENCFF080DPJ.hic \
  --trackId hic_k562_insitu \
  --name "K562 in situ Hi-C (ENCODE ENCSR545YBD)" \
  --assemblyNames hg38 \
  --displayDefaults '{"data":{"normalization":"NONE"}}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "trackId": "hic_k562_insitu",
  "name": "K562 in situ Hi-C (ENCODE ENCSR545YBD)",
  "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/4d332729-3463-4782-b33c-76e4fa8ff72a/ENCFF080DPJ.hic",
  "assemblyNames": ["hg38"],
  "displayDefaults": {
    "data": { "normalization": "NONE" }
  }
}

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "trackId": "hic_gm12878_insitu",
  "name": "GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC)",
  "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/6f0cc163-86c7-4a68-baac-65af90f5a90d/ENCFF053VBX.hic",
  "assemblyNames": ["hg38"],
  "displayDefaults": {
    "data": { "normalization": "NONE" }
  }
}

CLI (add-track)

jbrowse add-track https://encode-public.s3.amazonaws.com/2021/10/28/6f0cc163-86c7-4a68-baac-65af90f5a90d/ENCFF053VBX.hic \
  --trackId hic_gm12878_insitu \
  --name "GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC)" \
  --assemblyNames hg38 \
  --displayDefaults '{"data":{"normalization":"NONE"}}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "trackId": "hic_gm12878_insitu",
  "name": "GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC)",
  "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/6f0cc163-86c7-4a68-baac-65af90f5a90d/ENCFF053VBX.hic",
  "assemblyNames": ["hg38"],
  "displayDefaults": {
    "data": { "normalization": "NONE" }
  }
}

Use ENCODE's direct S3 URLs. hic-straw's range reader cannot follow the cross-origin redirect the portal's @@download links return, and the .hic comes back as a 403. The S3 URL for any ENCODE file is in its metadata under cloud_metadata.url.

The domain BEDPE needs one extra slot, "type": "FeatureTrack":

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "FeatureTrack",
  "trackId": "hic_gm12878_domains",
  "name": "GM12878 contact domains (Arrowhead)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedpeAdapter",
    "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/467750ae-7aab-47b0-a304-dc5f8dff89f7/ENCFF301CUL.bedpe.gz"
  }
}

CLI (add-track)

jbrowse add-track https://encode-public.s3.amazonaws.com/2021/10/28/467750ae-7aab-47b0-a304-dc5f8dff89f7/ENCFF301CUL.bedpe.gz \
  --trackId hic_gm12878_domains \
  --name "GM12878 contact domains (Arrowhead)" \
  --assemblyNames hg38 \
  --trackType FeatureTrack

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "hic_gm12878_domains",
  "name": "GM12878 contact domains (Arrowhead)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedpeAdapter",
    "uri": "https://encode-public.s3.amazonaws.com/2021/10/28/467750ae-7aab-47b0-a304-dc5f8dff89f7/ENCFF301CUL.bedpe.gz"
  }
}

Arrowhead writes each domain with both BEDPE ends set to the same interval, so as a FeatureTrack the file gives one box per domain, nested domains stacking into rows. Loops, whose mates differ, are the paired-arc case in the Hi-C track config guide; the whole GM12878 loops track is hic_gm12878_loops in https://jbrowse.org/code/jb2/main/test_data/config_demo.json.

To color or filter either track by a column, set columnNames explicitly.¹

Opening chr9 and chr22 in one view to look for the translocation

Type both locations into the location box, separated by a space: chr9:129,730,000-131,730,000 chr22:22,285,000-24,285,000.

A chr22 window entered beside a chr9 one, GM12878 above and K562 below. The wedge between the triangles appears with the second region.

Video

Open the session the video starts in ↗, then take the steps it shows:

One chr9 window: each Hi-C track is chr9 against itself
Enter ABL1's chr9 window and BCR's chr22 one, space-separated

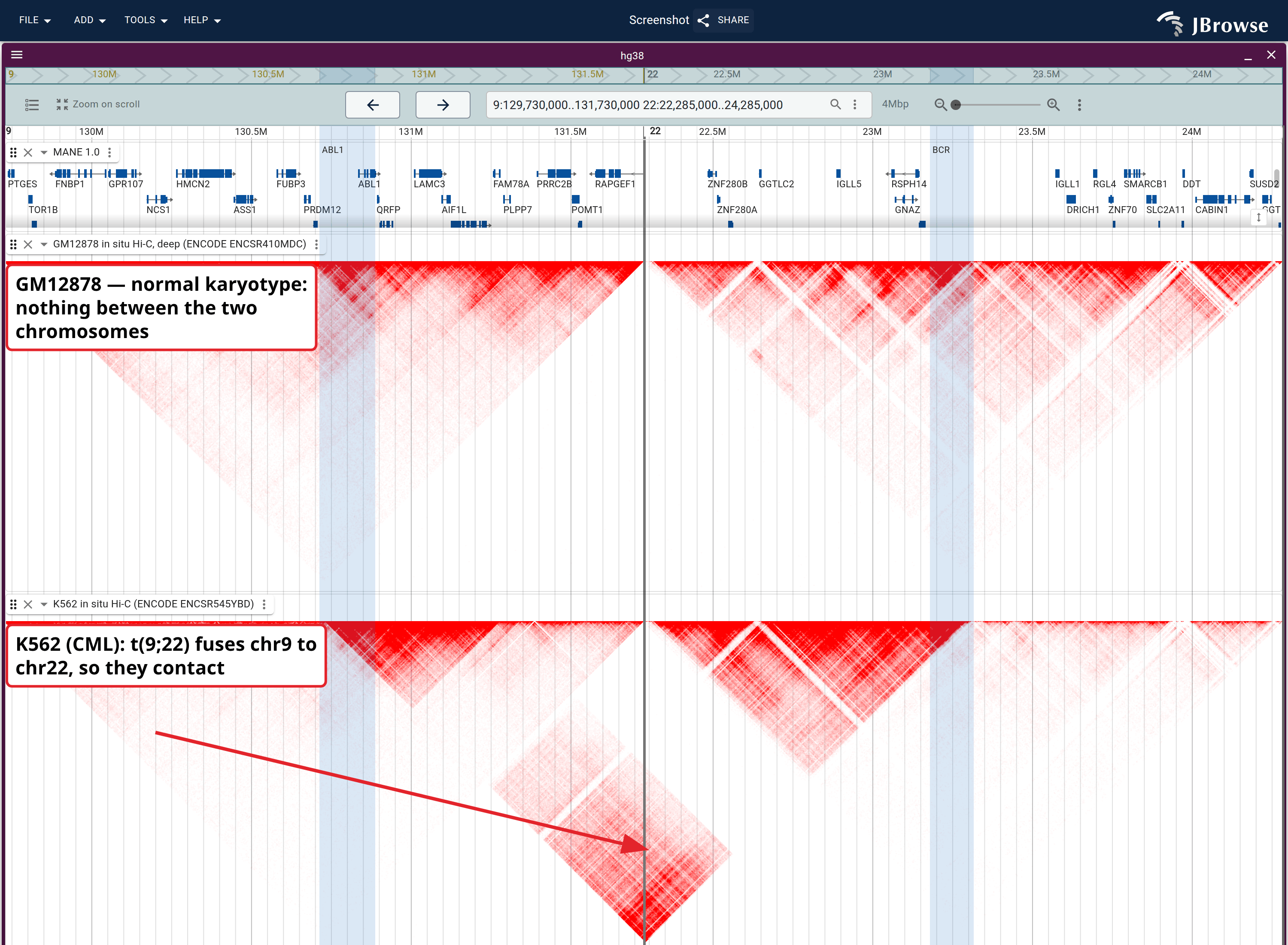

Between the triangles, chr9 meets chr22 in K562 only: the fusion

Steps

Open this view in JBrowse Web ↗ ·

Open in JBrowse Desktop ↗

Needs JBrowse Desktop 5.0 or newer. If nothing opens, copy the link and paste it into Desktop's Open JBrowse Web link..., on the start screen or under File → Session.

https://jbrowse.org/code/jb2/main/?config=test_data%2Fconfig_demo.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%22chr9%3A129%2C730%2C000-131%2C730%2C000%22%2C%22trackLabels%22%3A%22offset%22%2C%22highlight%22%3A%5B%7B%22refName%22%3A%22chr9%22%2C%22start%22%3A130713881%2C%22end%22%3A130887675%2C%22label%22%3A%22ABL1%22%2C%22color%22%3A%22rgba%2830%2C110%2C190%2C0.16%29%22%7D%2C%7B%22refName%22%3A%22chr22%22%2C%22start%22%3A23180509%2C%22end%22%3A23318037%2C%22label%22%3A%22BCR%22%2C%22color%22%3A%22rgba%2830%2C110%2C190%2C0.16%29%22%7D%5D%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22mane_hg38%22%2C%22labels%22%3A%7B%22description%22%3A%7B%22show%22%3Afalse%7D%7D%2C%22height%22%3A68%7D%2C%7B%22trackId%22%3A%22hic_gm12878_insitu%22%2C%22height%22%3A380%2C%22encoding%22%3A%7B%22color%22%3A%7B%22scale%22%3A%7B%22type%22%3A%22linear%22%2C%22domainQuantile%22%3A0.95%7D%7D%7D%2C%22data%22%3A%7B%22normalization%22%3A%22NONE%22%7D%2C%22heightMode%22%3A%22fixed%22%7D%2C%7B%22trackId%22%3A%22hic_k562_insitu%22%2C%22height%22%3A380%2C%22encoding%22%3A%7B%22color%22%3A%7B%22scale%22%3A%7B%22type%22%3A%22linear%22%2C%22domainQuantile%22%3A0.95%7D%7D%7D%2C%22data%22%3A%7B%22normalization%22%3A%22NONE%22%7D%2C%22heightMode%22%3A%22fixed%22%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+hic%2Ftwo_regions

Quickest: open the view, then File → Open track... for your files.

From scratch:

Open your genome: Open new genome in JBrowse Desktop, or jbrowse add-assembly for JBrowse Web.This figure uses hg38, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
Add your track: File → Open track..., or check it in the track selector. Needs a BigBed file (.bb).This figure uses “MANE 1.0”.
1. Track menu → Show → Descriptions (unchecked)
Add the next track the same way. Needs a Hi-C file (.hic).This figure uses “GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC)”.
1. Track menu → Color scheme → Log scale (unchecked)
2. Track menu → Normalization → NONEThe submenu lists only the schemes the file actually carries, and ticks the one the loaded matrix has rather than the one requested. NONE is raw observed counts, which is what a rearrangement needs — matrix balancing divides an amplified fusion back out.
3. Track menu → Layout → Fit to display height (unchecked)Squashes the triangle vertically to fill the track instead of drawing square bins at its natural half-the-view-width height. Unchecked keeps square bins, which fits when the feature of interest sits nearer the diagonal than the track is tall.
Add the next track the same way. Needs a Hi-C file (.hic).This figure uses “K562 in situ Hi-C (ENCODE ENCSR545YBD)”.
1. Track menu → Color scheme → Log scale (unchecked)
2. Track menu → Normalization → NONEThe submenu lists only the schemes the file actually carries, and ticks the one the loaded matrix has rather than the one requested. NONE is raw observed counts, which is what a rearrangement needs — matrix balancing divides an amplified fusion back out.
3. Track menu → Layout → Fit to display height (unchecked)Squashes the triangle vertically to fill the track instead of drawing square bins at its natural half-the-view-width height. Unchecked keeps square bins, which fits when the feature of interest sits nearer the diagonal than the track is tall.
Go to your region in the location box.This figure is at chr9:129,730,000-131,730,000.
View menu → Show → Offset
View menu → Zoom to region / use the location box, then add a highlightThis figure highlights 2 regions; highlights can also be set with the &highlight= URL parameter.

Agent

Paste into a coding agent, with your goal on the first line.

My goal: [write yours, e.g. this view of my own files, or these track settings in my config.json]

Start from this JBrowse view.
- Config it loads: https://jbrowse.org/code/jb2/main/test_data/config_demo.json
- Tracks:
  - MANE 1.0 (mane_hg38), FeatureTrack, a BigBed file (.bb), drawn as LinearBasicDisplay
  - GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC) (hic_gm12878_insitu), HicTrack, a Hi-C file (.hic), drawn as LinearHicDisplay
  - K562 in situ Hi-C (ENCODE ENCSR545YBD) (hic_k562_insitu), HicTrack, a Hi-C file (.hic), drawn as LinearHicDisplay

Docs: https://jbrowse.org/jb2/docs/agents_authoring/ (writing a config), https://jbrowse.org/jb2/docs/agents/ (driving a running JBrowse). Use the jbrowse-authoring, jbrowse-hosted-data and jbrowse-capture skills if you have them. Check any config with `npx @jbrowse/cli validate`, then render it and look: a config that loads is not yet a track that drew.

The session spec that draws the view:
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr9:129,730,000-131,730,000",
      "trackLabels": "offset",
      "highlight": [
        {
          "refName": "chr9",
          "start": 130713881,
          "end": 130887675,
          "label": "ABL1",
          "color": "rgba(30,110,190,0.16)"
        },
        {
          "refName": "chr22",
          "start": 23180509,
          "end": 23318037,
          "label": "BCR",
          "color": "rgba(30,110,190,0.16)"
        }
      ],
      "tracks": [
        {
          "trackId": "mane_hg38",
          "labels": {
            "description": {
              "show": false
            }
          },
          "height": 68
        },
        {
          "trackId": "hic_gm12878_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        },
        {
          "trackId": "hic_k562_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        }
      ]
    }
  ]
}

Redraw the figure headlessly

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr9:129,730,000-131,730,000",
      "trackLabels": "offset",
      "highlight": [
        {
          "refName": "chr9",
          "start": 130713881,
          "end": 130887675,
          "label": "ABL1",
          "color": "rgba(30,110,190,0.16)"
        },
        {
          "refName": "chr22",
          "start": 23180509,
          "end": 23318037,
          "label": "BCR",
          "color": "rgba(30,110,190,0.16)"
        }
      ],
      "tracks": [
        {
          "trackId": "mane_hg38",
          "labels": {
            "description": {
              "show": false
            }
          },
          "height": 68
        },
        {
          "trackId": "hic_gm12878_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        },
        {
          "trackId": "hic_k562_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/config_demo.json \
  --width 1920 --height 1238 \
  --spec session.json -o figure.png

More: Using JBrowse with AI agents.

CLI

Adds these tracks to your config.json, styled as in the figure. Point each uri at your file (replace YOUR_FILE).

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "mane_hg38",
  "name": "MANE 1.0",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "BigBedAdapter",
    "uri": "YOUR_FILE"
  },
  "displayDefaults": {
    "labels": {
      "description": {
        "show": false
      }
    },
    "height": 68
  }
}'

jbrowse add-track-json '{
  "type": "HicTrack",
  "trackId": "hic_gm12878_insitu",
  "name": "GM12878 in situ Hi-C, deep (ENCODE ENCSR410MDC)",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "HicAdapter",
    "uri": "YOUR_FILE"
  },
  "displayDefaults": {
    "height": 380,
    "encoding": {
      "color": {
        "scale": {
          "type": "linear",
          "domainQuantile": 0.95
        }
      }
    },
    "data": {
      "normalization": "NONE"
    },
    "heightMode": "fixed"
  }
}'

jbrowse add-track-json '{
  "type": "HicTrack",
  "trackId": "hic_k562_insitu",
  "name": "K562 in situ Hi-C (ENCODE ENCSR545YBD)",
  "assemblyNames": [
    "hg38"
  ],
  "adapter": {
    "type": "HicAdapter",
    "uri": "YOUR_FILE"
  },
  "displayDefaults": {
    "height": 380,
    "encoding": {
      "color": {
        "scale": {
          "type": "linear",
          "domainQuantile": 0.95
        }
      }
    },
    "data": {
      "normalization": "NONE"
    },
    "heightMode": "fixed"
  }
}'

Run beside config.json, or add --out <dir>. Needs hg38 in the config (jbrowse add-assembly).

Notebook

This view in a notebook, with jbrowse-anywidget. Swap a track's uri for your file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/config_demo.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []),
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "hg38",
            "loc": "chr9:129,730,000-131,730,000",
            "trackLabels": "offset",
            "highlight": [
                {
                    "refName": "chr9",
                    "start": 130713881,
                    "end": 130887675,
                    "label": "ABL1",
                    "color": "rgba(30,110,190,0.16)"
                },
                {
                    "refName": "chr22",
                    "start": 23180509,
                    "end": 23318037,
                    "label": "BCR",
                    "color": "rgba(30,110,190,0.16)"
                }
            ],
            "tracks": [
                {
                    "trackId": "mane_hg38",
                    "labels": {
                        "description": {
                            "show": False
                        }
                    },
                    "height": 68
                },
                {
                    "trackId": "hic_gm12878_insitu",
                    "height": 380,
                    "encoding": {
                        "color": {
                            "scale": {
                                "type": "linear",
                                "domainQuantile": 0.95
                            }
                        }
                    },
                    "data": {
                        "normalization": "NONE"
                    },
                    "heightMode": "fixed"
                },
                {
                    "trackId": "hic_k562_insitu",
                    "height": 380,
                    "encoding": {
                        "color": {
                            "scale": {
                                "type": "linear",
                                "domainQuantile": 0.95
                            }
                        }
                    },
                    "data": {
                        "normalization": "NONE"
                    },
                    "heightMode": "fixed"
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws this view as an SVG, no browser needed. Swap --config or a track for your own.

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/config_demo.json \
  --assembly hg38 --loc chr9:129,730,000-131,730,000 \
  --view '{"trackLabels":"offset","highlight":[{"refName":"chr9","start":130713881,"end":130887675,"label":"ABL1","color":"rgba(30,110,190,0.16)"},{"refName":"chr22","start":23180509,"end":23318037,"label":"BCR","color":"rgba(30,110,190,0.16)"}]}' \
  --trackLabels offset \
  --track mane_hg38 '{"labels":{"description":{"show":false}},"height":68}' \
  --track hic_gm12878_insitu '{"height":380,"encoding":{"color":{"scale":{"type":"linear","domainQuantile":0.95}}},"data":{"normalization":"NONE"},"heightMode":"fixed"}' \
  --track hic_k562_insitu '{"height":380,"encoding":{"color":{"scale":{"type":"linear","domainQuantile":0.95}}},"data":{"normalization":"NONE"},"heightMode":"fixed"}' \
  --width 1920 --out figure.svg

For a PNG, --out figure.png (needs rsvg-convert: apt install librsvg2-bin, brew install librsvg).

Session

The session spec behind the figure, over this config.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr9:129,730,000-131,730,000",
      "trackLabels": "offset",
      "highlight": [
        {
          "refName": "chr9",
          "start": 130713881,
          "end": 130887675,
          "label": "ABL1",
          "color": "rgba(30,110,190,0.16)"
        },
        {
          "refName": "chr22",
          "start": 23180509,
          "end": 23318037,
          "label": "BCR",
          "color": "rgba(30,110,190,0.16)"
        }
      ],
      "tracks": [
        {
          "trackId": "mane_hg38",
          "labels": {
            "description": {
              "show": false
            }
          },
          "height": 68
        },
        {
          "trackId": "hic_gm12878_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        },
        {
          "trackId": "hic_k562_insitu",
          "height": 380,
          "encoding": {
            "color": {
              "scale": {
                "type": "linear",
                "domainQuantile": 0.95
              }
            }
          },
          "data": {
            "normalization": "NONE"
          },
          "heightMode": "fixed"
        }
      ]
    }
  ]
}

Two regions on separate chromosomes touch at background rate, so the wedge between them stays faint unless the two are fused. K562 carries the Philadelphia chromosome, t(9;22)(q34;q11) (Rowley 1973), joining BCR on chr22 to ABL1 on chr9.

ABL1 and BCR as two windows in one view, GM12878 above and K562 below. The wedge between the panels is chr9 against chr22.

The domain boundaries inside each window line up between the two lines, so chr9 and chr22 each fold normally in K562.

Ranking chr9-chr22 contact bins with juicer_tools

The wedge shows that chr9 and chr22 touch, and ranking the contact bins finds where. Run one dump per .hic file and sort the results, starting with the raw contact counts between the two chromosomes:

# NONE: raw counts, since balancing divides out an amplified fusion
# BP 250000: 250 kb base-pair bins
# -Xmx4g: a whole chromosome pair needs more than the default heap
java -Xmx4g -jar juicer_tools.jar dump observed NONE \
  case.hic chr9 chr22 BP 250000 case.txt

An empty output file means the .hic stores nothing at that resolution, or has no vector for the normalization you asked for (a file may store those only at coarser bins). The file has three columns: bin1 start, bin2 start and contact count. Rank the bins by count:

# awk in place of head, which would kill sort with SIGPIPE under pipefail
sort -k3,3 -rn case.txt | awk 'NR <= 10'

scan_hic_translocation.sh dumps the case and the control, ranks the case bins and prints the control count beside each:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/scan_hic_translocation.sh
bash scan_hic_translocation.sh

Override CASE, CTRL, CHR1, CHR2, RES and NORM to scan any two .hic files that hold inter-chromosomal blocks. Reading the output:

The top row pairs ABL1 intron 1 with the 5' end of BCR.
RES=10000 resolves the junction itself, ABL1 intron 1 against the BCR major breakpoint cluster region. The K562 fusions tutorial places the DNA break of the same fusion in that intron.
A second chr9-chr22 bin further down also sits well clear of the control, so treat the ranking as a list of candidates to open.

Purpose-built callers scan the whole genome: EagleC, hic_breakfinder and HiNT. Each writes BEDPE, which loads here as a paired-arc track next to the matrix it was called from.

Choosing the control and normalization for the translocation scan

The ranking rests on the choice of control and of normalization, and both carry over to a scan of your own files:

Control depth. The scan compares the case against a control, ENCODE's deep GM12878 in situ file ENCSR410MDC by default. The script leaves the much shallower GM12878 "supernatant" fraction, ENCSR730CER, commented out, because a wedge empty for want of reads looks the same as one empty for want of a translocation. With the deep file, GM12878 has more contact than K562 across the whole chr9-chr22 block except the junction bin, where the order inverts.
Normalization. Matrix balancing divides out per-bin coverage differences, and an amplified fusion is such a difference. Re-run the scan with NORM=INTER_SCALE and ABL1×BCR drops off the top of the table. Balanced matrices suit domains and loops and raw counts suit rearrangements, so both Hi-C tracks here set data.normalization to NONE.
The control's own ranking. The scan prints a ranked list for the control below the one for the case. A bin hot in both GM12878 and K562, such as the top of the control list, is a reproducible mapping artifact.

External links

HiGlass

Notes

Juicer writes a version banner after the header line, so column names read from the header come out undefined past the tenth column, and a jexl expression on one of them matches nothing and reports no error. HiCCUPS writes 24 columns and Arrowhead 16, and both leave name and score at . and put what they rank by further along: observed for HiCCUPS, a second column called score for Arrowhead. Values past the tenth column arrive as strings, so compare with > and <, which coerce. ↩

Feedback on this tutorial is welcome: contact us.

Structural variants from Hi-C

Prerequisites#

The data#

Reading a Hi-C contact map: the triangle, domains and loops#

Loading the GRCh38 assembly#

Adding the Hi-C and contact-domain tracks#

Opening chr9 and chr22 in one view to look for the translocation#

Ranking chr9-chr22 contact bins with juicer_tools#

Choosing the control and normalization for the translocation scan#

See also#

External links#

Notes

Prerequisites

The data

Reading a Hi-C contact map: the triangle, domains and loops

Loading the GRCh38 assembly

Adding the Hi-C and contact-domain tracks

Opening chr9 and chr22 in one view to look for the translocation

Ranking chr9-chr22 contact bins with juicer_tools

Choosing the control and normalization for the translocation scan

See also

External links
