QTL mapping (BXD mice)

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.13. Desktop beta builds are coming soon.

The BXD mice are about 200 recombinant-inbred strains bred down from two parents, C57BL/6J (B6, the "B" parent) and DBA/2J (the "D" parent), so each strain is a mosaic of blocks from one or the other. We paint each strain by which parent gave it each block and stack the painting under a GeneNetwork QTL scan of coat color (a QTL is a region linked to variation in a trait). Banding the strains by coat color then shows which blocks under each peak set it.

Prerequisites

  • curl, to fetch GeneNetwork's QTL scan
  • jq, to reshape it
  • python3, for the painting
  • htslib (bgzip, tabix), for the painting
  • A JBrowse instance to add the tracks to (web quickstart or desktop quickstart)

On Debian/Ubuntu, apt install curl jq python3 tabix covers it.

Where the data comes from

BXD consensus genotypes and QTL scans from GeneNetwork (Wang et al. 2016).

The build script fetches these files, so there is nothing to download by hand.

Reading GeneNetwork's BXD genotype file

GeneNetwork distributes the consensus BXD genotypes as a plain-text .geno file. Each row is a marker with a cM genetic-map position and an mm10 Mb physical position, and the painting uses Mb. Each column is a strain, with a one-letter genotype, B, D, H (heterozygous) or U (unknown):

@name:BXD
@mat:B
@pat:D
Chr  Locus         cM    Mb        BXD1  BXD2  BXD5  ...
1    rs31443144    0.11  3.010274  B     B     D     ...
1    rs6269442     0.21  3.492195  B     B     D     ...

The painting skips the F1 columns, since an F1 (a B by D hybrid) is heterozygous at every marker and GeneNetwork computes the scan over the strains.

Painting each strain's B and D blocks

The painting draws one row per strain, each block colored by genotype. bxd_geno_to_painting_bed.py reads the markers of each strain in order along every chromosome and writes one BED interval per run of consecutive same-genotype markers (run-length encoding), coloring B/D/H and writing the strain name into an extra sample column:

#chrom  chromStart  chromEnd   name  score strand thickStart thickEnd itemRgb      sample  genotype
chr1    3001490     20291558   B     0     .      3001490    20291558 65,105,225   BXD1    B
chr1    20291558    53451539   D     0     .      20291558   53451539 220,60,50    BXD1    D
chr1    53451539    69355875   B     0     .      53451539   69355875 65,105,225   BXD1    B

Run it on the .geno, then sort, bgzip and tabix the result:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/bxd_geno_to_painting_bed.py
python3 bxd_geno_to_painting_bed.py BXD.geno bxd_painting.bed
jbrowse sort-bed bxd_painting.bed | bgzip > bxd_painting.bed.gz
tabix -p bed bxd_painting.bed.gz

sort-bed keeps the # header on top and sorts the rest under LC_ALL=C, so the adapter reads the column names off the file whatever your locale.

Both tracks use the mm10 assembly, whose chromosome names the marker positions follow:

Goes in the assemblies array of config.json. See Assemblies.

{
  "name": "mm10",
  "aliases": ["GRCm38"],
  "uri": "https://jbrowse.org/genomes/mm10/fasta/mm10.fa.gz",
  "refNameAliases": {
    "uri": "https://hgdownload.soe.ucsc.edu/goldenpath/mm10/bigZips/latest/mm10.chromAlias.txt"
  },
  "cytobands": "https://jbrowse.org/ucsc/mm10/cytoBandIdeo.bed.gz"
}
jbrowse add-assembly https://jbrowse.org/genomes/mm10/fasta/mm10.fa.gz \
  --name mm10 \
  --alias GRCm38 \
  --refNameAliases https://hgdownload.soe.ucsc.edu/goldenpath/mm10/bigZips/latest/mm10.chromAlias.txt \
  --config '{"cytobands":"https://jbrowse.org/ucsc/mm10/cytoBandIdeo.bed.gz"}'

The painting track is a FeatureTrack with a LinearMultiRowFeatureDisplay. In grammar-of-graphics terms, rows assigns one row per sample and color is a color scale. For your own panel, swap uri for the bgzipped, tabix-indexed BED your conversion wrote.

Goes in the tracks array of config.json. See Tracks.

{
  "type": "FeatureTrack",
  "trackId": "bxd_chromosome_painting_mm10",
  "name": "BXD chromosome painting (GeneNetwork, 198 strains)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "BedTabixAdapter",
    "disableGeneHeuristic": true,
    "uri": "https://jbrowse.org/demos/bxd/bxd_painting.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "rows": "sample",
      "color": {
        "scale": "identity",
        "domain": ["rgb(65,105,225)", "rgb(220,60,50)", "rgb(150,150,150)"],
        "labels": ["B (C57BL/6J)", "D (DBA/2J)", "H (heterozygous)"],
        "title": "Genotype"
      }
    }
  ]
}
jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "bxd_chromosome_painting_mm10",
  "name": "BXD chromosome painting (GeneNetwork, 198 strains)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "BedTabixAdapter",
    "disableGeneHeuristic": true,
    "uri": "https://jbrowse.org/demos/bxd/bxd_painting.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "rows": "sample",
      "color": {
        "scale": "identity",
        "domain": ["rgb(65,105,225)", "rgb(220,60,50)", "rgb(150,150,150)"],
        "labels": ["B (C57BL/6J)", "D (DBA/2J)", "H (heterozygous)"],
        "title": "Genotype"
      }
    }
  ]
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "bxd_chromosome_painting_mm10",
  "name": "BXD chromosome painting (GeneNetwork, 198 strains)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "BedTabixAdapter",
    "disableGeneHeuristic": true,
    "uri": "https://jbrowse.org/demos/bxd/bxd_painting.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "rows": "sample",
      "color": {
        "scale": "identity",
        "domain": ["rgb(65,105,225)", "rgb(220,60,50)", "rgb(150,150,150)"],
        "labels": ["B (C57BL/6J)", "D (DBA/2J)", "H (heterozygous)"],
        "title": "Genotype"
      }
    }
  ]
}

Open this track in JBrowse Web ↗

Open this track in JBrowse Desktop ↗ (JBrowse Desktop 5.0+)

  • scale: "identity" on the color keeps the itemRgb colors, and its labels name the genotype each domain color stands for. The same entries fill the Categories toggles in the track menu, so hiding H isolates the B/D contrast.
  • disableGeneHeuristic: true stops the BED adapter from reading each block as a gene, which the thickStart/thickEnd columns would otherwise trigger.

Loading the coat-color QTL scan as a Manhattan track

GeneNetwork maps these traits itself, and its API serves the per-marker result of a GEMMA run. We fetch the scan for one trait by its GeneNetwork id and reshape it with jq into records of a marker, its mm10 position in Mb, a LOD score (log odds of linkage) and a p-value:

GN='https://genenetwork.org/api/v_pre1/mapping?db=BXDPublish&method=gemma'
curl -fsSL "$GN&trait_id=11280" -o coat_color.json   # 11280 = coat color

{
  printf '#chrom\tstart\tend\tname\tscore\tstrand\tlod\n'
  jq -r '.[0][] | [ "chr" + (.chr|tostring), ((.Mb*1000000)|round),
                    ((.Mb*1000000)|round + 1), .name, ".", ".",
                    (.lod_score*10000|round/10000) ] | @tsv' coat_color.json |
    sort -k1,1 -k2,2n
} | bgzip > bxd_gwas_coatcolor.tsv.gz
tabix -p bed bxd_gwas_coatcolor.tsv.gz

The commands write a tabix-indexed BED-like table, one line per marker:

#chrom  start     end       name        score strand lod
chr4    81304223  81304224  rs3708061   .     .      48.1126

The trait id is the number in the GeneNetwork URL, and bxd_phenocovar.csv in the qtl2data BXD release lists the ids with their descriptions.

A GWASTrack with a GWASAdapter reads one column of that file as the Manhattan score (GWAS track guide):

  • scoreColumn names the column. The default is a pre-computed -log10(p) called neg_log_pvalue, so a LOD column needs it set.
  • scoreTransform stays at its default, since a LOD is already on the scale the plot draws. A raw or natural-log p-value column would need it.

Goes in the tracks array of config.json. See Tracks.

{
  "type": "GWASTrack",
  "trackId": "bxd_gwas_coatcolor_mm10",
  "name": "BXD QTL: coat color (GEMMA)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "GWASAdapter",
    "uri": "bxd_gwas_coatcolor.tsv.gz",
    "scoreColumn": "lod"
  },
  "displayDefaults": {
    "scales": { "y": { "title": "LOD" } }
  }
}
jbrowse add-track-json '{
  "type": "GWASTrack",
  "trackId": "bxd_gwas_coatcolor_mm10",
  "name": "BXD QTL: coat color (GEMMA)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "GWASAdapter",
    "uri": "bxd_gwas_coatcolor.tsv.gz",
    "scoreColumn": "lod"
  },
  "displayDefaults": {
    "scales": { "y": { "title": "LOD" } }
  }
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "GWASTrack",
  "trackId": "bxd_gwas_coatcolor_mm10",
  "name": "BXD QTL: coat color (GEMMA)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "GWASAdapter",
    "uri": "bxd_gwas_coatcolor.tsv.gz",
    "scoreColumn": "lod"
  },
  "displayDefaults": {
    "scales": { "y": { "title": "LOD" } }
  }
}

bxd_gwas_coatcolor.tsv.gz is relative to a config.json. Replace it with its URL or its path on this computer.

Faceting the strains by coat color

The scan has a plateau of tied markers on chr4, whose interval contains Tyrp1, the brown coat-color gene, and a lower peak on chr9. GeneNetwork scores coat color on a four-step scale: black is 4, grey 3, brown 2 and DBA/2's dilute brown 1. We'll fetch each strain's score and turn the four values into four sections of painting rows, so the phenotype orders the rows and the painted genotypes can agree with it or not.

The scores come from GeneNetwork's sample-data API. jq turns them into one rowGroups entry per score, a regex matching that score's strains, and a rowColor that pairs each group with its coat color:

curl -fsSL https://genenetwork.org/api/v_pre1/sample_data/BXDPublish/11280 -o coat_color_values.json
jq '{ "4": ["black", "rgb(30,30,30)"], "3": ["grey", "rgb(150,150,160)"],
      "2": ["brown", "rgb(130,80,40)"], "1": ["dilute brown", "rgb(210,175,130)"] } as $class
  | [ .[] | select((.sample_name | startswith("BXD")) and (.value | IN(1, 2, 3, 4))) ]
  | group_by(-.value)
  | map($class[.[0].value | floor | tostring] + [map(.sample_name) | join("|")])
  | { rowGroups: map({ match: ("^(" + .[2] + ")$"), group: .[0] }),
      rowColor: { field: "group", domain: map(.[0]), range: map(.[1]) } }' \
  coat_color_values.json > coatColor.json

Add both keys to the painting's display entry, beside rows and color, together with facet: "group":

  • rowGroups tags each strain with its coat color as its group.
  • facet: "group" splits the display into one section per group, black at the top. The few strains scored between two steps match no entry and form a section at the bottom.
  • rowColor by group is a color scale on each row's label bar, showing the strain's coat color. The blocks keep their genotype colors, and the unscored strains, with no group, get no color.

The fence below holds those new keys, coatColor.json with facet added. https://jbrowse.org/code/jb2/main/test_data/config_bxd.json holds the whole track, as bxd_chromosome_painting_mm10.

Advanced → Edit plot... in the track menu shows these keys as text and applies edits live.

The generated coatColor.json keys
{
  "rowGroups": [
    {
      "match": "^(BXD100|BXD105|BXD109|BXD11|BXD110|BXD116|BXD119|BXD120|BXD121|BXD123|BXD124|BXD125|BXD128a|BXD131|BXD133|BXD136|BXD14|BXD142|BXD145|BXD148|BXD149|BXD151|BXD152|BXD153|BXD154|BXD156|BXD165|BXD171|BXD173|BXD186|BXD190|BXD191|BXD199|BXD2|BXD20|BXD204|BXD207|BXD210|BXD217|BXD218|BXD219|BXD23|BXD31|BXD32|BXD34|BXD35|BXD42|BXD43|BXD48|BXD48a|BXD50|BXD51|BXD56|BXD86|BXD87)$",
      "group": "black"
    },
    {
      "match": "^(BXD101|BXD117|BXD12|BXD122|BXD130|BXD135|BXD139|BXD141|BXD144|BXD146|BXD147|BXD155|BXD157|BXD16|BXD162|BXD169|BXD172|BXD174|BXD175|BXD176|BXD178|BXD18|BXD180|BXD181|BXD183|BXD184|BXD19|BXD198|BXD202|BXD205|BXD208|BXD211|BXD212|BXD215|BXD22|BXD29|BXD33|BXD38|BXD39|BXD40|BXD49|BXD5|BXD6|BXD76|BXD79|BXD8|BXD94)$",
      "group": "grey"
    },
    {
      "match": "^(BXD102|BXD104|BXD106|BXD108|BXD111|BXD114|BXD115|BXD126|BXD127|BXD128|BXD13|BXD132|BXD134|BXD15|BXD150|BXD177|BXD192|BXD193|BXD194|BXD195|BXD196|BXD197|BXD200|BXD203|BXD209|BXD24|BXD24a|BXD25|BXD27|BXD28|BXD36|BXD52|BXD53|BXD55|BXD59|BXD60|BXD62|BXD65|BXD65a|BXD66|BXD68|BXD72|BXD74|BXD78|BXD88)$",
      "group": "brown"
    },
    {
      "match": "^(BXD1|BXD107|BXD112|BXD113|BXD138|BXD160|BXD161|BXD168|BXD170|BXD187|BXD188|BXD189|BXD201|BXD206|BXD21|BXD216|BXD220|BXD30|BXD44|BXD45|BXD61|BXD63|BXD64|BXD65b|BXD67|BXD69|BXD70|BXD71|BXD73|BXD73a|BXD73b|BXD75|BXD77|BXD81|BXD83|BXD84|BXD85|BXD89|BXD9|BXD90|BXD91|BXD93|BXD95|BXD98|BXD99)$",
      "group": "dilute brown"
    }
  ],
  "facet": "group",
  "rowColor": {
    "field": "group",
    "domain": ["black", "grey", "brown", "dilute brown"],
    "range": [
      "rgb(30,30,30)",
      "rgb(150,150,160)",
      "rgb(130,80,40)",
      "rgb(210,175,130)"
    ]
  }
}

Add the mm10 RefSeq genes (https://jbrowse.org/demos/bxd/mm10.ncbiRefSeq.sorted.gtf.gz, with its .tbi beside it), then:

  • Filter them to Tyrp1 with Filter by... in their track menu (jexl:feature.name=='Tyrp1').
  • Open chr4 with the genes, the scan and the painting.

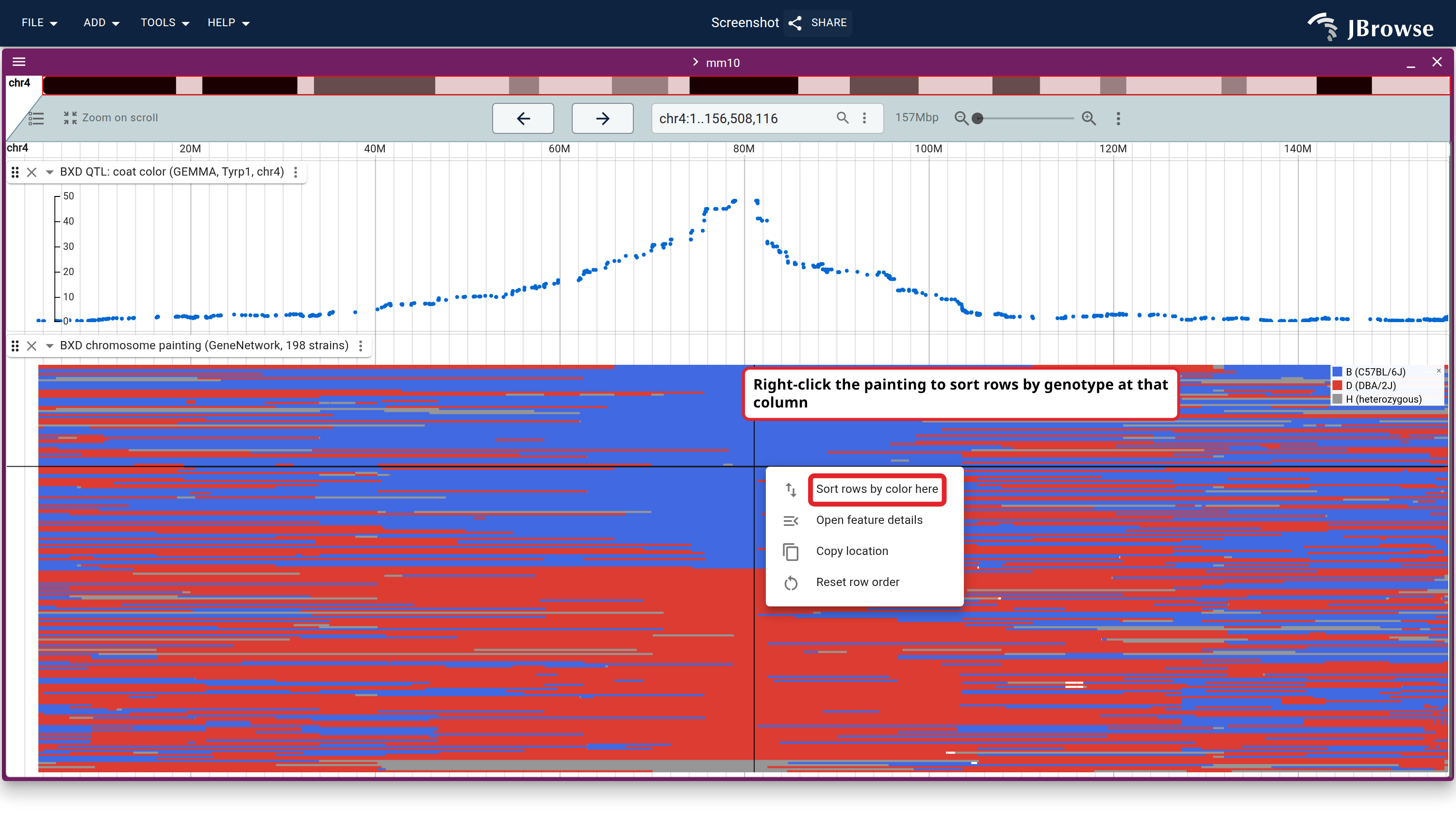

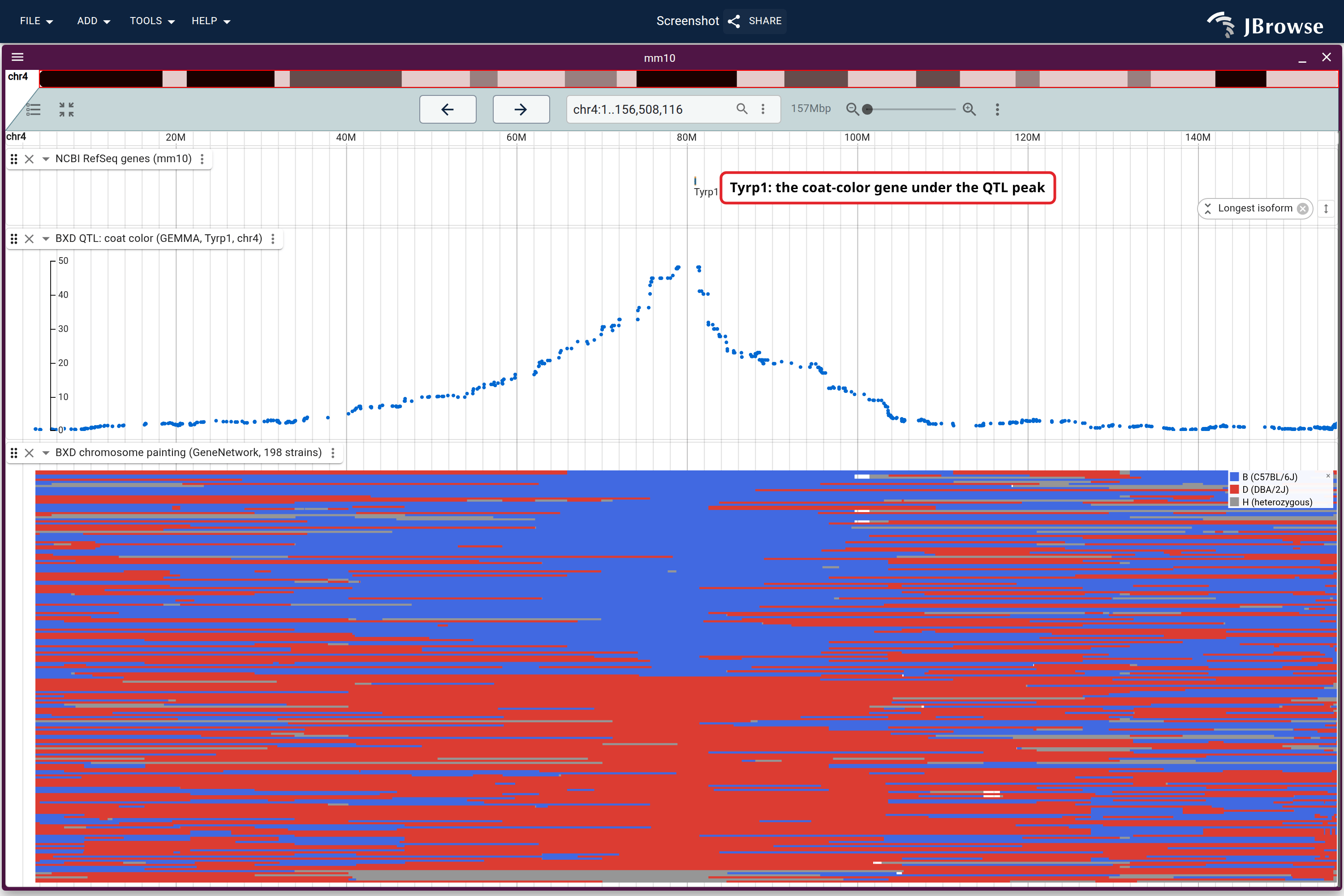

The whole of chr4, with the painting's rows banded by coat color. Under the peak at Tyrp1 the black and grey bands are nearly all B (blue) and both brown bands nearly all D (red). Away from the peak every band is a mix of the two.
Open in JBrowse Web ↗Open in JBrowse Desktop ↗
Desktop link does nothing?

It needs JBrowse Desktop 5.0+. Or paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fconfig_bxd.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22mm10%22%2C%22loc%22%3A%22chr4%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22mm10_ncbi_refseq%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22filter%22%3A%5B%22jexl%3Aget%28feature%2C%27name%27%29%3D%3D%27Tyrp1%27%22%5D%2C%22forceLoad%22%3Atrue%2C%22showOnlyGenes%22%3Atrue%2C%22height%22%3A50%7D%2C%7B%22trackId%22%3A%22bxd_gwas_coatcolor_mm10%22%2C%22type%22%3A%22LinearManhattanDisplay%22%2C%22height%22%3A160%7D%2C%7B%22trackId%22%3A%22bxd_chromosome_painting_mm10%22%2C%22type%22%3A%22LinearMultiRowFeatureDisplay%22%2C%22height%22%3A520%2C%22forceLoad%22%3Atrue%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+qtl%2Fbxd_tyrp1_locus

Or rebuild it from your own data:

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses mm10, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  2. Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file.This figure uses “NCBI RefSeq genes (mm10)”.
    1. Track menu → Filter by... → add the expressionThis figure filters on get(feature,'name')=='Tyrp1'.
    2. Click Force load in the track's "Zoom in to see features or force load" message.Loads the region even past the byte-size limit, which can be slow.
    3. Track menu → Show only genes (checked)
  3. Add the next track the same way.This figure uses “BXD QTL: coat color (GEMMA)”.
  4. Add the next track the same way. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “BXD chromosome painting (GeneNetwork, 198 strains)”.
    1. Click Force load in the track's "Zoom in to see features or force load" message.Loads the region even past the byte-size limit, which can be slow.
  5. Type your region of interest into the location box and press Enter.This figure is at chr4.

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/code/jb2/main/test_data/config_bxd.json, which is what the Web button above opens.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "mm10",
      "loc": "chr4",
      "tracks": [
        {
          "trackId": "mm10_ncbi_refseq",
          "type": "LinearBasicDisplay",
          "filter": [
            "jexl:get(feature,'name')=='Tyrp1'"
          ],
          "forceLoad": true,
          "showOnlyGenes": true,
          "height": 50
        },
        {
          "trackId": "bxd_gwas_coatcolor_mm10",
          "type": "LinearManhattanDisplay",
          "height": 160
        },
        {
          "trackId": "bxd_chromosome_painting_mm10",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 520,
          "forceLoad": true
        }
      ]
    }
  ]
}

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/config_bxd.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []),
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "mm10",
            "loc": "chr4",
            "tracks": [
                {
                    "trackId": "mm10_ncbi_refseq",
                    "type": "LinearBasicDisplay",
                    "filter": [
                        "jexl:get(feature,'name')=='Tyrp1'"
                    ],
                    "forceLoad": True,
                    "showOnlyGenes": True,
                    "height": 50
                },
                {
                    "trackId": "bxd_gwas_coatcolor_mm10",
                    "type": "LinearManhattanDisplay",
                    "height": 160
                },
                {
                    "trackId": "bxd_chromosome_painting_mm10",
                    "type": "LinearMultiRowFeatureDisplay",
                    "height": 520,
                    "forceLoad": True
                }
            ]
        }
    ],
)
app  # display the widget

jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file with --bam, --vcfgz and the other file flags.

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/config_bxd.json \
  --assembly mm10 --loc chr4 \
  --track mm10_ncbi_refseq display:LinearBasicDisplay '{"filter":["jexl:get(feature,'\''name'\'')=='\''Tyrp1'\''"],"forceLoad":true,"showOnlyGenes":true,"height":50}' \
  --track bxd_gwas_coatcolor_mm10 display:LinearManhattanDisplay '{"height":160}' \
  --track bxd_chromosome_painting_mm10 display:LinearMultiRowFeatureDisplay '{"height":520,"forceLoad":true}' \
  --width 1500 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "mm10",
      "loc": "chr4",
      "tracks": [
        {
          "trackId": "mm10_ncbi_refseq",
          "type": "LinearBasicDisplay",
          "filter": [
            "jexl:get(feature,'name')=='Tyrp1'"
          ],
          "forceLoad": true,
          "showOnlyGenes": true,
          "height": 50
        },
        {
          "trackId": "bxd_gwas_coatcolor_mm10",
          "type": "LinearManhattanDisplay",
          "height": 160
        },
        {
          "trackId": "bxd_chromosome_painting_mm10",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 520,
          "forceLoad": true
        }
      ]
    }
  ]
}
JSON

cat > callouts.json <<'JSON'
[
  {
    "type": "text",
    "anchor": {
      "text": "Tyrp1",
      "alignX": "right",
      "dx": 12
    },
    "maxWidth": 360,
    "fontSize": 15,
    "text": "Tyrp1, the brown locus"
  }
]
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/config_bxd.json \
  --width 1500 --height 1020 \
  --timeout 90000 \
  --spec session.json --annotations callouts.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Under the peak, black and grey strains have B6's copy of Tyrp1 and brown and dilute brown strains DBA/2's; the rest of chr4 is the control, where nothing sets coat color.

Myo5a, the dilute locus, under the chr9 peak

The chr9 peak falls on Myo5a, the dilute locus (its mutation lightens coat color). The same grouped painting, with the gene track filtered to Myo5a, splits the sections the other way:

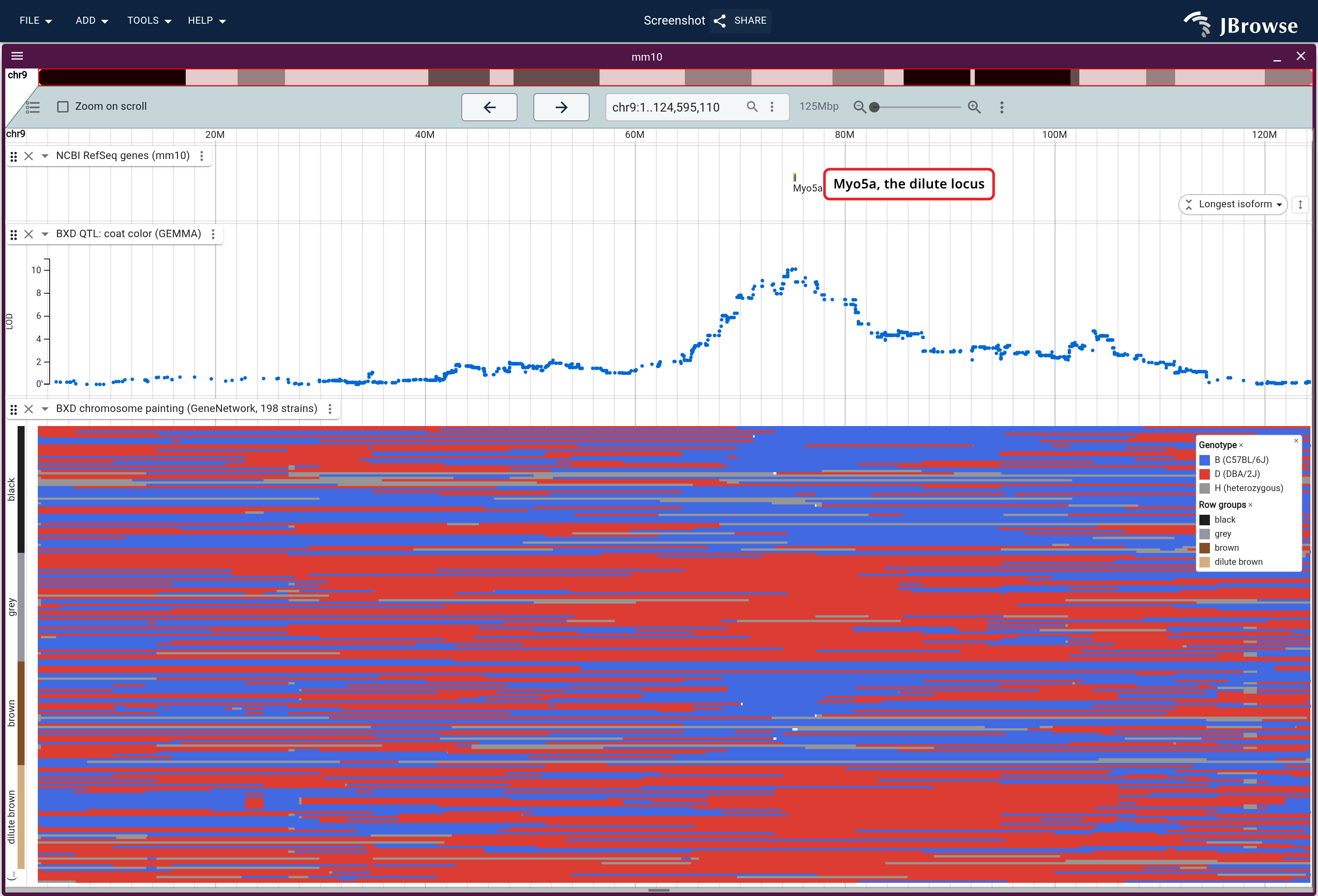

The whole of chr9, same bands. Under the peak at Myo5a the black and brown bands are B and the grey and dilute brown bands D, while the rest of chr9 is mixed.
Open in JBrowse Web ↗Open in JBrowse Desktop ↗
Desktop link does nothing?

It needs JBrowse Desktop 5.0+. Or paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fconfig_bxd.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22mm10%22%2C%22loc%22%3A%22chr9%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22mm10_ncbi_refseq%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22filter%22%3A%5B%22jexl%3Aget%28feature%2C%27name%27%29%3D%3D%27Myo5a%27%22%5D%2C%22forceLoad%22%3Atrue%2C%22showOnlyGenes%22%3Atrue%2C%22height%22%3A50%7D%2C%7B%22trackId%22%3A%22bxd_gwas_coatcolor_mm10%22%2C%22type%22%3A%22LinearManhattanDisplay%22%2C%22height%22%3A160%7D%2C%7B%22trackId%22%3A%22bxd_chromosome_painting_mm10%22%2C%22type%22%3A%22LinearMultiRowFeatureDisplay%22%2C%22height%22%3A520%2C%22forceLoad%22%3Atrue%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+qtl%2Fbxd_myo5a_locus

Or rebuild it from your own data:

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses mm10, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  2. Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file.This figure uses “NCBI RefSeq genes (mm10)”.
    1. Track menu → Filter by... → add the expressionThis figure filters on get(feature,'name')=='Myo5a'.
    2. Click Force load in the track's "Zoom in to see features or force load" message.Loads the region even past the byte-size limit, which can be slow.
    3. Track menu → Show only genes (checked)
  3. Add the next track the same way.This figure uses “BXD QTL: coat color (GEMMA)”.
  4. Add the next track the same way. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).This figure uses “BXD chromosome painting (GeneNetwork, 198 strains)”.
    1. Click Force load in the track's "Zoom in to see features or force load" message.Loads the region even past the byte-size limit, which can be slow.
  5. Type your region of interest into the location box and press Enter.This figure is at chr9.

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/code/jb2/main/test_data/config_bxd.json, which is what the Web button above opens.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "mm10",
      "loc": "chr9",
      "tracks": [
        {
          "trackId": "mm10_ncbi_refseq",
          "type": "LinearBasicDisplay",
          "filter": [
            "jexl:get(feature,'name')=='Myo5a'"
          ],
          "forceLoad": true,
          "showOnlyGenes": true,
          "height": 50
        },
        {
          "trackId": "bxd_gwas_coatcolor_mm10",
          "type": "LinearManhattanDisplay",
          "height": 160
        },
        {
          "trackId": "bxd_chromosome_painting_mm10",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 520,
          "forceLoad": true
        }
      ]
    }
  ]
}

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/code/jb2/main/test_data/config_bxd.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []),
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "mm10",
            "loc": "chr9",
            "tracks": [
                {
                    "trackId": "mm10_ncbi_refseq",
                    "type": "LinearBasicDisplay",
                    "filter": [
                        "jexl:get(feature,'name')=='Myo5a'"
                    ],
                    "forceLoad": True,
                    "showOnlyGenes": True,
                    "height": 50
                },
                {
                    "trackId": "bxd_gwas_coatcolor_mm10",
                    "type": "LinearManhattanDisplay",
                    "height": 160
                },
                {
                    "trackId": "bxd_chromosome_painting_mm10",
                    "type": "LinearMultiRowFeatureDisplay",
                    "height": 520,
                    "forceLoad": True
                }
            ]
        }
    ],
)
app  # display the widget

jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file with --bam, --vcfgz and the other file flags.

npx @jbrowse/img --config https://jbrowse.org/code/jb2/main/test_data/config_bxd.json \
  --assembly mm10 --loc chr9 \
  --track mm10_ncbi_refseq display:LinearBasicDisplay '{"filter":["jexl:get(feature,'\''name'\'')=='\''Myo5a'\''"],"forceLoad":true,"showOnlyGenes":true,"height":50}' \
  --track bxd_gwas_coatcolor_mm10 display:LinearManhattanDisplay '{"height":160}' \
  --track bxd_chromosome_painting_mm10 display:LinearMultiRowFeatureDisplay '{"height":520,"forceLoad":true}' \
  --width 1500 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "mm10",
      "loc": "chr9",
      "tracks": [
        {
          "trackId": "mm10_ncbi_refseq",
          "type": "LinearBasicDisplay",
          "filter": [
            "jexl:get(feature,'name')=='Myo5a'"
          ],
          "forceLoad": true,
          "showOnlyGenes": true,
          "height": 50
        },
        {
          "trackId": "bxd_gwas_coatcolor_mm10",
          "type": "LinearManhattanDisplay",
          "height": 160
        },
        {
          "trackId": "bxd_chromosome_painting_mm10",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 520,
          "forceLoad": true
        }
      ]
    }
  ]
}
JSON

cat > callouts.json <<'JSON'
[
  {
    "type": "text",
    "anchor": {
      "text": "Myo5a",
      "alignX": "right",
      "dx": 12
    },
    "maxWidth": 360,
    "fontSize": 15,
    "text": "Myo5a, the dilute locus"
  }
]
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/config_bxd.json \
  --width 1500 --height 1020 \
  --timeout 90000 \
  --spec session.json --annotations callouts.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Reproduce it end to end

bxd_build_demo.sh runs every step above. It:

  1. downloads JBrowse and the GeneNetwork consensus genotypes
  2. builds the painting with bxd_geno_to_painting_bed.py
  3. fetches the coat-color scan (trait 11280) and the per-strain scores from GeneNetwork
  4. writes a config.json that opens on mm10 chr4 with the scan over the painting banded by coat color, and prints the marker at the peak and its LOD as it goes
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/bxd_build_demo.sh
bash bxd_build_demo.sh            # builds ./bxd_demo/jbrowse2
npx --yes serve bxd_demo/jbrowse2 # then open the printed URL

Any GeneNetwork trait id works in place of 11280.

See also
