Mutation cohort (TCGA)

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.13. Desktop beta builds are coming soon.

We turn a TCGA project's somatic mutation calls into one matrix, each column a distinct mutation and each row a tumor. JBrowse groups the rows by whichever clinical field you point it at, receptor status or stage, so the mutations a subtype shares line up.

Prerequisites

A JBrowse 2 instance to add tracks to (see the web quickstart or the desktop quickstart) and the JBrowse CLI

Where the data comes from

Show full URLs

TCGA-BRCA open-access somatic mutation calls from the GDC (TCGA 2012).

The build script fetches these files, so there is nothing to download by hand.

primary-tumor Masked Somatic Mutation MAFs (mutation annotation format), queried and downloaded through the GDC API: api.gdc.cancer.gov/fileshttps://api.gdc.cancer.gov/files
per-tumor clinical annotation, from harmonized case fields and each case's clinical XML: api.gdc.cancer.gov/caseshttps://api.gdc.cancer.gov/cases

The build script copies the hg38 reference and the MANE gene track from the hosted UCSC hg38 hub's config; that MANE track is the gene track the collapse-introns step below right-clicks.

The cohort VCF and the clinical table

The VCF is the GDC's per-tumor Masked Somatic Mutation calls merged into one multi-sample file, one column per tumor:

#CHROM POS       ID  REF ALT  INFO                          FORMAT    TCGA-A2-A0T2-01A  TCGA-A8-A07C-01A
chr3   179234297 .   A   G    GENE=PIK3CA;HGVSP=p.H1047R... GT:AD:DP  0/1:81,29:110     0/0

Two conventions affect how to read the matrix:

0/0 marks a site the caller did not call, since a MAF has no coverage record for one
every somatic call is written het, because a MAF gives no ploidy

Read counts are kept in AD/DP. INFO/CSQ re-encodes the VEP columns from the MAF (Consequence, IMPACT, HGVSp_Short, SIFT, PolyPhen), so the track can color cells by consequence impact without running an annotator.

The clinical TSV is one row per tumor barcode and one column per attribute:

name              histology  er        pr        her2      subtype    stage
TCGA-3C-AAAU-01A  lobular    positive  positive  negative  HR+/HER2-  X

Its columns come from three places:

histology and stage are the GDC's harmonized case fields
er/pr/her2 are read from each case's clinical XML, with in-situ hybridization taking precedence over immunohistochemistry for HER2
subtype is derived from those three; a tumor whose receptor calls do not resolve it stays unknown

The table lists more tumors than the mutation track draws.¹

Load the cohort VCF into JBrowse

Add the assembly first. The hosted FASTA calls its contigs bare (1) while the VCF uses chr1, so pass the alias file and both resolve.

Config file

Goes in the assemblies array of config.json. See Assemblies.

{
  "name": "hg38",
  "uri": "https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz",
  "refNameAliases": {
    "uri": "https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt"
  },
  "cytobands": "https://jbrowse.org/genomes/GRCh38/cytoBand.txt"
}

CLI (add-assembly)

jbrowse add-assembly https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz \
  --name hg38 \
  --refNameAliases https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt \
  --config '{"cytobands":"https://jbrowse.org/genomes/GRCh38/cytoBand.txt"}'

JBrowse Desktop

hg38 is one of the genomes JBrowse Desktop hosts, with gene tracks already set up: on the start screen click Show all available genomes and pick it. To load the files of this config instead:

In JBrowse Desktop, Open new genome on the start screen (or File → Open genome... in a session), then Open from a URL and paste, one per line:

https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz
https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz.fai
https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz.gzi

JBrowse reads the format off the file name. Then fill in:

Genome name: hg38
refName aliases (under More options): https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt
cytobands (under More options): https://jbrowse.org/genomes/GRCh38/cytoBand.txt

The cohort is a VariantTrack whose adapter reads the clinical TSV, shown in the multi-sample matrix display:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 1010,
      "color": { "field": "impact" }
    }
  ]
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 1010,
      "color": { "field": "impact" }
    }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 1010,
      "color": { "field": "impact" }
    }
  ]
}

The track config sets three things:

variantLayout: 'columns' uses one column per mutation, so a gene's mutations pack together however far apart they sit, with a connector band from each column to its position
color is a color scale, and its field set to impact colors each cell by its VEP impact tier from CSQ, the same as Color by... → Consequence impact in the track menu
samplesTsvLocation makes the clinical columns available to facet and color rows by

The display divides height among the rows, so each row is about a pixel tall and a band's mutation density shows as its darkness.

In grammar-of-graphics terms, facet splits the display into stacked sections, one per value of a samples TSV column, sorted, and facet.domain pins the sections you want first. rowColor is a color scale on each row's label bar, so it puts the matching color strip in the gutter.

Group by... and Color by... → Samples in the track menu set the same two keys.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": { "field": "histology", "domain": ["ductal", "lobular"] },
      "rowColor": "histology"
    }
  ]
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": { "field": "histology", "domain": ["ductal", "lobular"] },
      "rowColor": "histology"
    }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": { "field": "histology", "domain": ["ductal", "lobular"] },
      "rowColor": "histology"
    }
  ]
}

Open in JBrowse

Open this track in JBrowse Web ↗

Open this track in JBrowse Desktop ↗ (JBrowse Desktop 5.0+)

We open the matrix over CDH1's exons (see Gene track):

Right-click CDH1 in the gene track.
Choose Collapse introns, then Replace current view.

The whole CDH1 transcript reshaped to its exons from the gene's context menu, and the 979-tumor matrix redrawn over the coding sequence.

Video

Open the session the video starts in ↗, then take the steps it shows:

Right-click CDH1 and collapse its introns

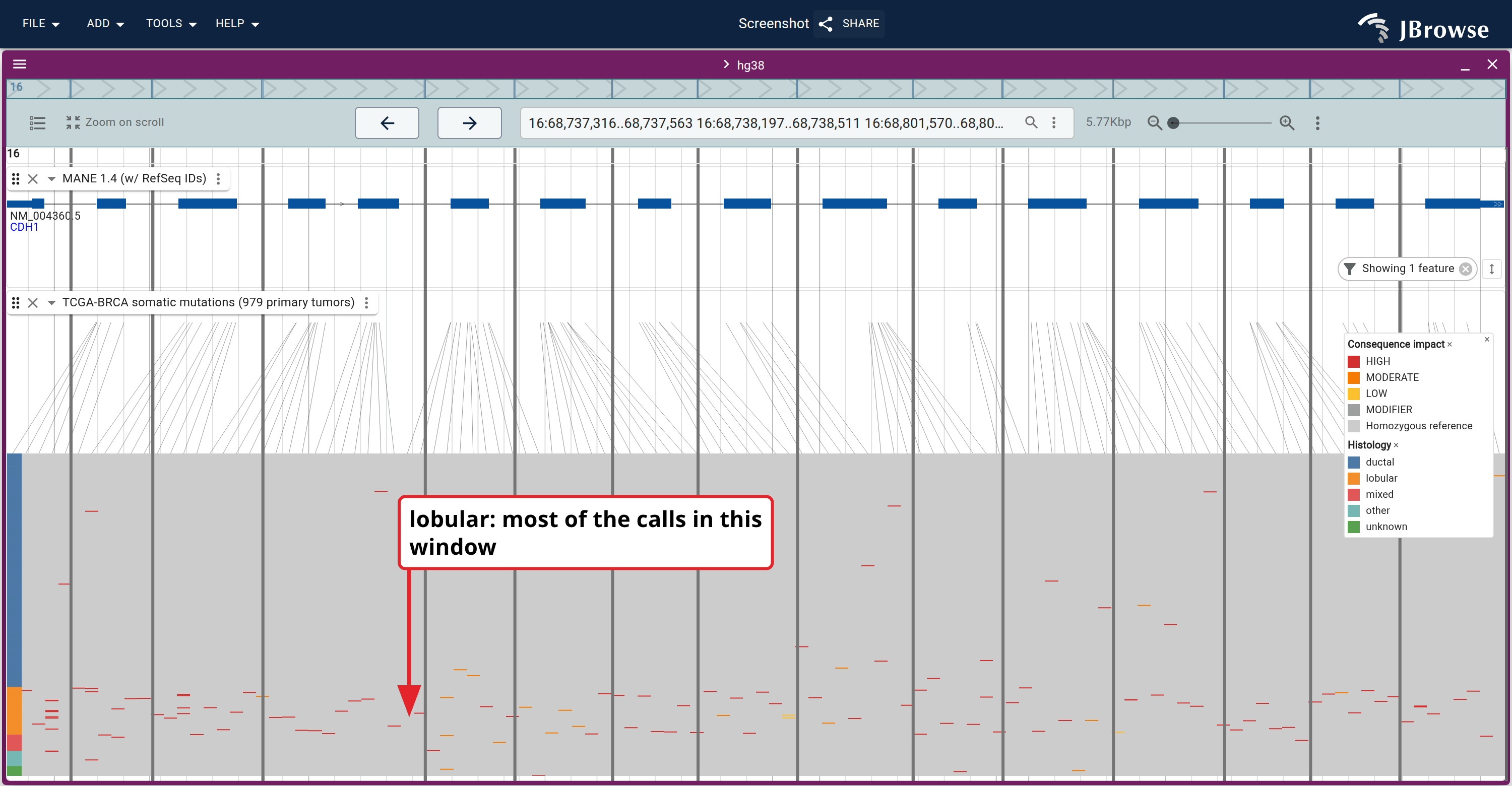

979 tumors over CDH1's exons alone; red marks high-impact mutations

Steps

Open this view in JBrowse Web ↗ · Open this view in JBrowse Desktop ↗

Desktop link does nothing?

It needs JBrowse Desktop 5.0+. Or paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2F1000g%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22VariantTrack%22%2C%22trackId%22%3A%22tcga_brca_mutations%22%2C%22name%22%3A%22TCGA-BRCA+somatic+mutations+%28979+primary+tumors%29%22%2C%22assemblyNames%22%3A%5B%22hg38%22%5D%2C%22category%22%3A%5B%22TCGA%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22VcfTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Ftcga%2Ftcga_brca_mutations.vcf.gz%22%2C%22samplesTsvLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Ftcga%2Ftcga_brca_clinical.tsv%22%7D%7D%2C%22displays%22%3A%5B%7B%22type%22%3A%22LinearMultiSampleVariantDisplay%22%2C%22variantLayout%22%3A%22columns%22%2C%22height%22%3A450%2C%22lineZoneHeight%22%3A130%2C%22color%22%3A%7B%22field%22%3A%22impact%22%7D%2C%22facet%22%3A%7B%22field%22%3A%22histology%22%2C%22domain%22%3A%5B%22ductal%22%2C%22lobular%22%5D%7D%2C%22rowColor%22%3A%22histology%22%7D%5D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22hg38%22%2C%22loc%22%3A%2216%3A68%2C730%2C000-68%2C842%2C000%22%2C%22trackLabels%22%3A%22offset%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22MANE.GRCh38.v1.4.refseq%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A84%7D%2C%7B%22trackId%22%3A%22tcga_brca_mutations%22%2C%22type%22%3A%22LinearMultiSampleVariantDisplay%22%2C%22variantLayout%22%3A%22columns%22%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+tcga%2Fmutations_collapse_introns

The short route: open the view in JBrowse Web, where File → Open track... adds your own files beside its hosted genome and tracks.

From scratch with your own data, the steps behind the figure:

Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one). For JBrowse Web, jbrowse add-assembly puts it in your config.json.This figure uses hg38, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
Add a track: check one your config has in the track selector, or File → Open track... to paste a URL or choose a local file. This one needs a BigBed file (.bb).This figure uses “MANE 1.4 (w/ RefSeq IDs)”.
Add the next track the same way. This one needs a bgzip-compressed, tabix-indexed VCF (.vcf.gz + .tbi).This figure uses “TCGA-BRCA somatic mutations (979 primary tumors)”.
1. Track menu → Show... → Show as genotype matrixChecked: one equal-width column per variant.
Type your region of interest into the location box and press Enter.This figure is at 16:68,730,000-68,842,000.
View menu → Show... → Offset

CLI

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": [
    "hg38"
  ],
  "category": [
    "TCGA"
  ],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": {
        "field": "impact"
      },
      "facet": {
        "field": "histology",
        "domain": [
          "ductal",
          "lobular"
        ]
      },
      "rowColor": "histology"
    }
  ]
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs hg38 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Spec tab, or jbrowse set-default-session.

Spec

This session spec draws the figure. It goes after &session=spec- on a JBrowse Web link that loads https://jbrowse.org/demos/1000g/config.json, which is what the Web button above opens.

{
  "sessionTracks": [
    {
      "type": "VariantTrack",
      "trackId": "tcga_brca_mutations",
      "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
      "assemblyNames": [
        "hg38"
      ],
      "category": [
        "TCGA"
      ],
      "adapter": {
        "type": "VcfTabixAdapter",
        "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
        "samplesTsvLocation": {
          "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
        }
      },
      "displays": [
        {
          "type": "LinearMultiSampleVariantDisplay",
          "variantLayout": "columns",
          "height": 450,
          "lineZoneHeight": 130,
          "color": {
            "field": "impact"
          },
          "facet": {
            "field": "histology",
            "domain": [
              "ductal",
              "lobular"
            ]
          },
          "rowColor": "histology"
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "16:68,730,000-68,842,000",
      "trackLabels": "offset",
      "tracks": [
        {
          "trackId": "MANE.GRCh38.v1.4.refseq",
          "type": "LinearBasicDisplay",
          "height": 84
        },
        {
          "trackId": "tcga_brca_mutations",
          "type": "LinearMultiSampleVariantDisplay",
          "variantLayout": "columns"
        }
      ]
    }
  ]
}

Notebook

The same view with jbrowse-anywidget, from the config the figure loads. Swap a track's uri for your own file.

from jbrowse_anywidget import JBrowseApp, fetch_hub

config = fetch_hub("https://jbrowse.org/demos/1000g/config.json")
app = JBrowseApp(
    assemblies=config["assemblies"],
    tracks=config.get("tracks", []) + [
        {
            "type": "VariantTrack",
            "trackId": "tcga_brca_mutations",
            "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
            "assemblyNames": [
                "hg38"
            ],
            "category": [
                "TCGA"
            ],
            "adapter": {
                "type": "VcfTabixAdapter",
                "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
                "samplesTsvLocation": {
                    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
                }
            },
            "displays": [
                {
                    "type": "LinearMultiSampleVariantDisplay",
                    "variantLayout": "columns",
                    "height": 450,
                    "lineZoneHeight": 130,
                    "color": {
                        "field": "impact"
                    },
                    "facet": {
                        "field": "histology",
                        "domain": [
                            "ductal",
                            "lobular"
                        ]
                    },
                    "rowColor": "histology"
                }
            ]
        }
    ],
    views=[
        {
            "type": "LinearGenomeView",
            "assembly": "hg38",
            "loc": "16:68,730,000-68,842,000",
            "trackLabels": "offset",
            "tracks": [
                {
                    "trackId": "MANE.GRCh38.v1.4.refseq",
                    "type": "LinearBasicDisplay",
                    "height": 84
                },
                {
                    "trackId": "tcga_brca_mutations",
                    "type": "LinearMultiSampleVariantDisplay",
                    "variantLayout": "columns"
                }
            ]
        }
    ],
)
app  # display the widget


jbrowse-img draws the same view as an SVG, from the command line and without a browser. Point --config at your own config, or swap a track for your own file with --bam, --vcfgz and the other file flags.

cat > tracks.json <<'JSON'
[
  {
    "type": "VariantTrack",
    "trackId": "tcga_brca_mutations",
    "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
    "assemblyNames": [
      "hg38"
    ],
    "category": [
      "TCGA"
    ],
    "adapter": {
      "type": "VcfTabixAdapter",
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
      "samplesTsvLocation": {
        "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
      }
    },
    "displays": [
      {
        "type": "LinearMultiSampleVariantDisplay",
        "variantLayout": "columns",
        "height": 450,
        "lineZoneHeight": 130,
        "color": {
          "field": "impact"
        },
        "facet": {
          "field": "histology",
          "domain": [
            "ductal",
            "lobular"
          ]
        },
        "rowColor": "histology"
      }
    ]
  }
]
JSON

npx @jbrowse/img --config https://jbrowse.org/demos/1000g/config.json \
  --tracks tracks.json \
  --assembly hg38 --loc 16:68,730,000-68,842,000 \
  --trackLabels offset \
  --track MANE.GRCh38.v1.4.refseq display:LinearBasicDisplay '{"height":84}' \
  --track tcga_brca_mutations display:LinearMultiSampleVariantDisplay '{"variantLayout":"columns"}' \
  --width 1920 --out figure.svg

--out figure.png writes a PNG instead, through rsvg-convert (apt install librsvg2-bin, brew install librsvg).

Agent

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit: change the location or a track's settings, or add your own track under sessionTracks, and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "VariantTrack",
      "trackId": "tcga_brca_mutations",
      "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
      "assemblyNames": [
        "hg38"
      ],
      "category": [
        "TCGA"
      ],
      "adapter": {
        "type": "VcfTabixAdapter",
        "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
        "samplesTsvLocation": {
          "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
        }
      },
      "displays": [
        {
          "type": "LinearMultiSampleVariantDisplay",
          "variantLayout": "columns",
          "height": 450,
          "lineZoneHeight": 130,
          "color": {
            "field": "impact"
          },
          "facet": {
            "field": "histology",
            "domain": [
              "ductal",
              "lobular"
            ]
          },
          "rowColor": "histology"
        }
      ]
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "16:68,730,000-68,842,000",
      "trackLabels": "offset",
      "tracks": [
        {
          "trackId": "MANE.GRCh38.v1.4.refseq",
          "type": "LinearBasicDisplay",
          "height": 84
        },
        {
          "trackId": "tcga_brca_mutations",
          "type": "LinearMultiSampleVariantDisplay",
          "variantLayout": "columns"
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/1000g/config.json \
  --width 1920 --height 904 \
  --spec session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

CDH1's exons (introns collapsed), rows grouped and colored by histology, cells colored by VEP impact. The truncating (HIGH impact) cells crowd into the lobular band and the much larger ductal band above it is nearly empty.

Loss of E-cadherin, the protein CDH1 encodes, is the defining lesion of lobular breast cancer (Ciriello et al. 2015).

The GDC's open mutation calls cover the exome only, so every figure here is gene-scale.

Setting facet and rowColor to subtype instead bands the rows by receptor status (TCGA 2012), with the HR+/HER2- band first in domain:

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": {
        "field": "subtype",
        "domain": ["HR+/HER2-", "HER2+", "triple-negative"]
      },
      "rowColor": "subtype"
    }
  ]
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": {
        "field": "subtype",
        "domain": ["HR+/HER2-", "HER2+", "triple-negative"]
      },
      "rowColor": "subtype"
    }
  ]
}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "variantLayout": "columns",
      "height": 450,
      "lineZoneHeight": 130,
      "color": { "field": "impact" },
      "facet": {
        "field": "subtype",
        "domain": ["HR+/HER2-", "HER2+", "triple-negative"]
      },
      "rowColor": "subtype"
    }
  ]
}

Open in JBrowse

Open this track in JBrowse Web ↗

Open this track in JBrowse Desktop ↗ (JBrowse Desktop 5.0+)

The bottom band is the tumors whose receptor calls do not resolve a subtype.

With its introns collapsed the same way, PIK3CA shows its calls piled on three columns: H1047R in the kinase domain, and E542K and E545K side by side in the helical domain. All three run through every band, densest in HR+/HER2-.

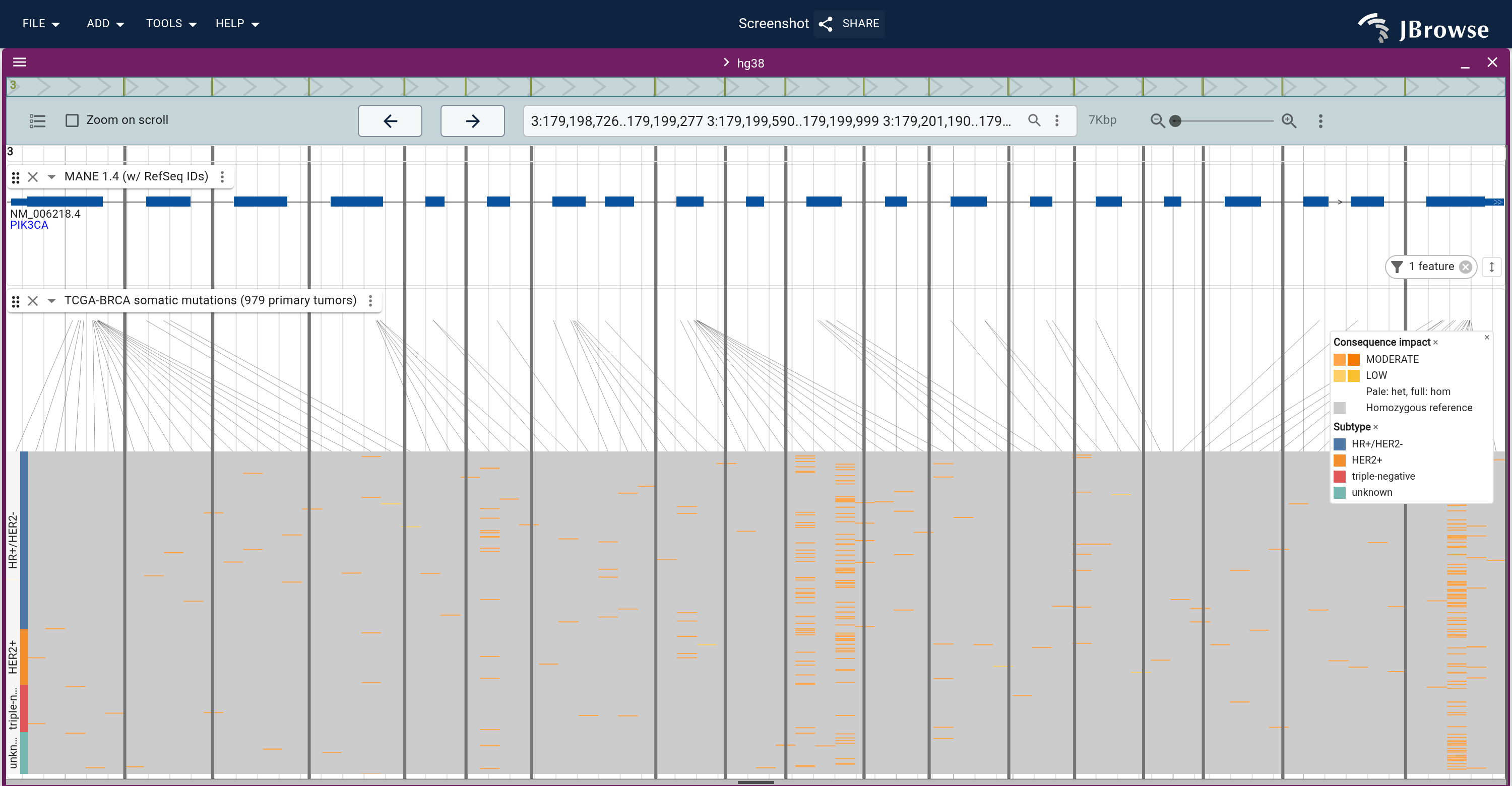

PIK3CA's exons (introns collapsed), rows banded and colored by receptor subtype. Three columns, two in the helical domain and one in the kinase domain, hold most of the cohort's calls, against the private columns spread around them.

Add a track of mutation frequency per gene

The bands above differ in height, so their darkness does not compare as a rate. mutation_recurrence.py writes one interval per gene, valued as the percent of each group with a mutation. It takes the same SAMPLES.tsv:COLUMN group spec as the copy-number cohort's cnv_recurrence.py:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/mutation_recurrence.py
python3 mutation_recurrence.py tcga_brca_mutations.vcf.gz by_subtype.bedGraph \
  --groups tcga_brca_clinical.tsv:subtype

#chrom  start      end        HR+/HER2-  HER2+  triple-negative  unknown
chr3    179199065  179234302  40.56      30.18  11.19            30.71
chr17   7670683    7676564    19.44      39.64  80.42            32.28

BedGraphTabixAdapter takes every column past end as a separate signal, and a MultiQuantitativeTrack draws one row per group.

Config file

Goes in the tracks array of config.json. See Tracks.

{
  "type": "MultiQuantitativeTrack",
  "trackId": "tcga_brca_mutation_recurrence_by_subtype",
  "name": "TCGA-BRCA mutation recurrence by receptor subtype",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "BedGraphTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz"
  },
  "displayDefaults": {
    "height": 260,
    "scales": { "y": { "domainMin": 0, "domainMax": 100 } },
    "showRowSeparators": true
  }
}

CLI (add-track)

jbrowse add-track https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz \
  --trackId tcga_brca_mutation_recurrence_by_subtype \
  --name "TCGA-BRCA mutation recurrence by receptor subtype" \
  --assemblyNames hg38 \
  --trackType MultiQuantitativeTrack \
  --category TCGA \
  --displayDefaults '{"height":260,"scales":{"y":{"domainMin":0,"domainMax":100}},"showRowSeparators":true}'

In the app

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "tcga_brca_mutation_recurrence_by_subtype",
  "name": "TCGA-BRCA mutation recurrence by receptor subtype",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "BedGraphTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz"
  },
  "displayDefaults": {
    "height": 260,
    "scales": { "y": { "domainMin": 0, "domainMax": 100 } },
    "showRowSeparators": true
  }
}

Open the track above the matrix to read each band's rate over it.

--impact sets what counts as a hit, defaulting to the HIGH and MODERATE tiers of the consequence impact that colors the matrix. The rate has no background model, and gene length enters directly: TTN, a very long gene, ranks near the top on passenger mutations alone.

On the matrix:

Clustering → Cluster rows by genotype... gathers every mutated sample into one block (see Clustering rows).
Filter by... → Minor allele frequency keeps the recurrent mutations (see filtering by allele frequency and missingness).

Use your own cohort

maf_to_vcf.py takes any directory of MAFs (vcf2maf output, cBioPortal study downloads, your own caller) whose rows have Chromosome, Start_Position, the two allele columns, Tumor_Sample_Barcode, and CONTEXT. A cohort that never passed through a MAF needs a multi-sample somatic VCF. For grouping, any TSV whose first column matches the VCF's sample names works.

Reproduce it end to end

One script builds every file above for any project id, build_tcga_cohort_mutations.sh:

It downloads every open-access Masked Somatic Mutation MAF in the project, the GDC's aliquot-merged ensemble calls with germline sites masked out, which need no dbGaP application.
maf_to_vcf.py merges them into one VCF, a column per tumor. A GDC file query also returns metastasis MAFs, so the merge keeps primary tumors (sample-type code 01 in each MAF's barcode), the tumors the copy-number cohort paints. It keeps one aliquot per tumor, names each column by sample barcode as the copy-number rows are named, and reads each deletion's anchor base from the MAF's CONTEXT column, so it needs no reference FASTA.
tcga_clinical_tsv.py builds the clinical table.
mutation_recurrence.py writes, per gene and group, the share of tumors with at least one call in the --impact tiers. A tumor counts once however many calls it has in the gene.

It needs curl, python3, and bgzip + tabix from htslib, which on Debian/Ubuntu is apt install curl python3 tabix.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_tcga_cohort_mutations.sh
bash build_tcga_cohort_mutations.sh TCGA-BRCA 20 # 20 tumors, to test the pipeline
bash build_tcga_cohort_mutations.sh TCGA-BRCA    # the full cohort, ~10 minutes
npx --yes serve jbrowse2                         # then open the printed URL

The script writes a jbrowse2/ opening on PIK3CA with the recurrence rows over the matrix.

Swap in any other project id (TCGA-LUAD, TCGA-COAD, ...) for a different cohort, with --no-receptors to tcga_clinical_tsv.py for a non-breast project. A third argument names the clinical column the recurrence track splits on; subtype is breast only, while histology and stage work for any project.

External links

Notes

A case with no mutation calls still has receptor status. JBrowse reports the unmatched tumors when the track loads. ↩

Feedback on this tutorial is welcome: contact us.

Mutation cohort (TCGA)

Prerequisites

Where the data comes from

The cohort VCF and the clinical table

Load the cohort VCF into JBrowse

Facet the rows by clinical annotation

Facet rows by receptor subtype

Add a track of mutation frequency per gene

Use your own cohort

Reproduce it end to end

See also

External links

Notes

Mutation cohort (TCGA)

Prerequisites#

Where the data comes from#

The cohort VCF and the clinical table#

Load the cohort VCF into JBrowse#

Facet the rows by clinical annotation#

Facet rows by receptor subtype#

Add a track of mutation frequency per gene#

Use your own cohort#

Reproduce it end to end#

See also#

External links#

Notes

Prerequisites

Where the data comes from

The cohort VCF and the clinical table

Load the cohort VCF into JBrowse

Facet the rows by clinical annotation

Facet rows by receptor subtype

Add a track of mutation frequency per gene

Use your own cohort

Reproduce it end to end

See also

External links
