Comparing one genome's two haplotypes (T2T-HG002)

2 videos in this tutorial

TL;DR: T2T-HG002 v1.2 ships both haplotypes as contigs of one FASTA, named chr1_MATERNAL and chr1_PATERNAL, so JBrowse loads it as a single assembly and maternal against paternal is a self-alignment. The Q100 project publishes the chain between them, so there is nothing to align.

Prerequisites

a JBrowse instance to load the config into (the web quickstart, or the desktop quickstart). Every file here is a URL, so Desktop needs nothing hosted. The JBrowse CLI is needed only for the CLI tab under each config below

Where the data comes from

T2T-HG002 v1.2, the Q100 project's diploid assembly and its own maternal-to-paternal chain (Hansen et al. 2026), plus JHU Liftoff v0.6 gene models built on v1.1.

the diploid assembly, both haplotypes in one FASTA (e.g. chr1_MATERNAL, chr1_PATERNAL): https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz
the Q100 project's maternal-to-paternal chain: https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/changes/hg002v1.2_to_other_haplotype.chain.gz
the JHU Liftoff v0.6 gene models, maternal haplotype (the paternal file sits beside it, PAT in place of MAT): https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/annotation/JHULiftoff/v0.6/hg002v1.1.MAT.loff.v0.6.gff.gz

Loading the assembly and the alignment

JBrowse reads the assembly and the chain from their published URLs, so there is nothing to download. The assembly is a name and the FASTA URL; the adapter comes from the extension and the .fai and .gzi sit beside it.

Config file CLI (add-assembly) JBrowse Desktop

{
  "name": "hg002v1.2",
  "displayName": "T2T-HG002 v1.2 (diploid)",
  "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz"
}

jbrowse add-assembly https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz \
  --name hg002v1.2 \
  --displayName "T2T-HG002 v1.2 (diploid)"

In JBrowse Desktop, Open new genome on the start screen (or File → Open genome... in a session), then Open from a URL and paste, one per line:

https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz
https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz.fai
https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/hg002v1.2.fasta.gz.gzi

JBrowse reads the format off the file name. Then fill in:

Genome name: hg002v1.2
Assembly display name (under More options): T2T-HG002 v1.2 (diploid)

The alignment is a synteny track over the Q100 chain. Both endpoints are the same assembly, since the two haplotypes are contigs of one:

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "SyntenyTrack",
  "trackId": "hg002v1.2_mat_vs_pat",
  "name": "Maternal vs paternal (Q100 chain)",
  "assemblyNames": ["hg002v1.2", "hg002v1.2"],
  "adapter": {
    "type": "ChainAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/changes/hg002v1.2_to_other_haplotype.chain.gz",
    "queryAssembly": "hg002v1.2",
    "targetAssembly": "hg002v1.2"
  }
}

jbrowse add-track-json '{
  "type": "SyntenyTrack",
  "trackId": "hg002v1.2_mat_vs_pat",
  "name": "Maternal vs paternal (Q100 chain)",
  "assemblyNames": ["hg002v1.2", "hg002v1.2"],
  "adapter": {
    "type": "ChainAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/changes/hg002v1.2_to_other_haplotype.chain.gz",
    "queryAssembly": "hg002v1.2",
    "targetAssembly": "hg002v1.2"
  }
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "SyntenyTrack",
  "trackId": "hg002v1.2_mat_vs_pat",
  "name": "Maternal vs paternal (Q100 chain)",
  "assemblyNames": ["hg002v1.2", "hg002v1.2"],
  "adapter": {
    "type": "ChainAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/changes/hg002v1.2_to_other_haplotype.chain.gz",
    "queryAssembly": "hg002v1.2",
    "targetAssembly": "hg002v1.2"
  }
}

The whole genome first

A dotplot shows whether anything moved between chromosomes. Open Add → Dotplot view. Both axes read T2T-HG002 v1.2 (diploid), and an axis set to it carries both haplotypes interleaved.

Switch to Manual and tick Plot only certain chromosomes. Each box takes a comma-separated list of contig names with * as a wildcard, so *_MATERNAL on the X axis and *_PATERNAL on the Y axis give one haplotype per axis.

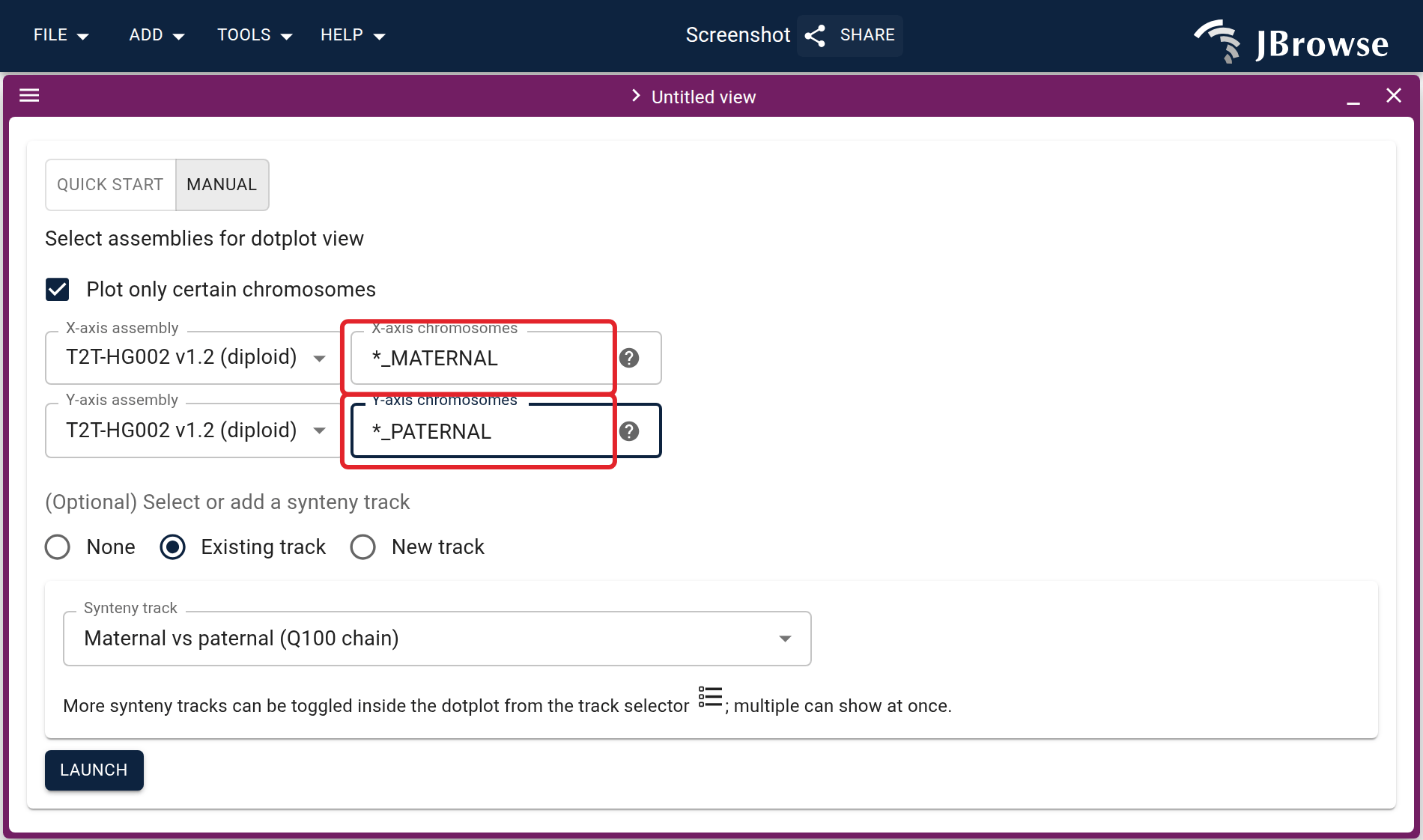

The dotplot import form in Manual mode. Both axes are the same assembly, and the chromosome boxes cut each one down to a single haplotype. The Q100 chain is already selected as the synteny track. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Press Launch, then click the palette icon in the view's header and pick Strand, which draws the collinear blocks red and the inverted ones blue.

Building the whole-genome dotplot from the import form: switching modes, opening the chromosome boxes, restricting each axis to one haplotype, and coloring the launched plot by strand. Open the session this video starts in ↗

HG002 is male, so chrX_MATERNAL and chrY_PATERNAL have nothing on the other haplotype to chain to, and their column and row stay empty.

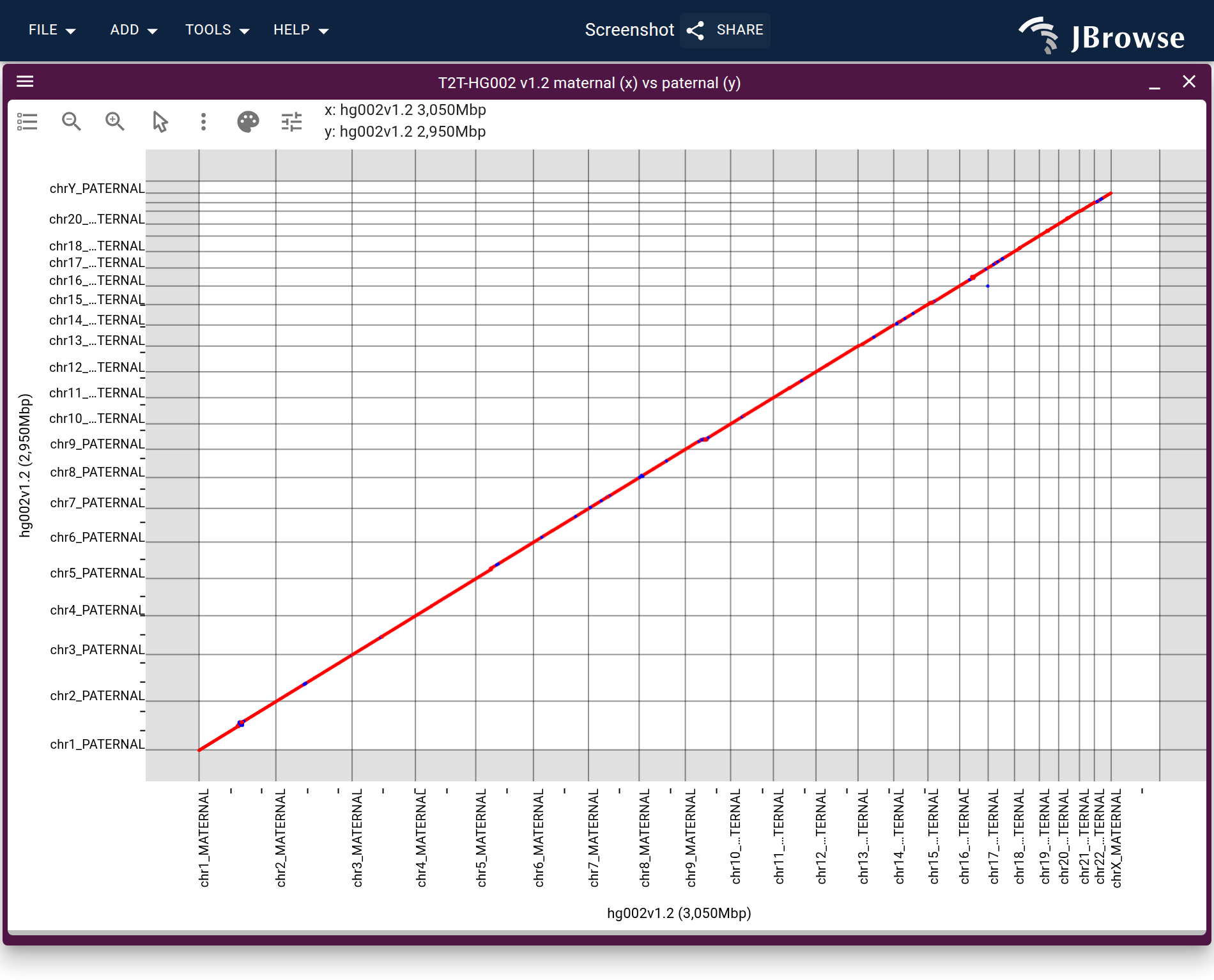

The Q100 maternal-to-paternal chain as a dotplot, maternal contigs on x against paternal on y, colored by strand. Each chromosome pairs with its own counterpart; the empty lane and column are chrX and chrY. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The 8p23.1 inversion

Every chromosome in the plot is a red diagonal against its own counterpart, and chromosome 8 is the one to look at closely. HG002 is heterozygous for the 8p23.1 inversion polymorphism (Bosch et al. 2009), so the maternal and paternal copies of that arm run in opposite directions, and the Q100 chain carries it as its largest inverted block, close to 4 Mb. The plot places it; a linear synteny view is where the two copies can be read against each other, with each haplotype's own tracks beside the ribbons.

There are two ways into that view. From the plot, drag a box around the cell where chr8_MATERNAL meets chr8_PATERNAL and pick Zoom in; near the start of the short arm the diagonal breaks into a blue block running the other way, and a box dragged around it, with some red either side, offers Linear synteny view and opens the panels framed on the box. From the Add menu, Linear synteny view opens on Quick start, which already offers the two rows the chain implies and the chain between them, so Launch is the only click it needs, and both panels open on the whole assembly. This section takes the second route, since it gives a window to write down.

Click the follow button in the view's header, the arrows icon, before framing anything. It makes the top panel the anchor: wherever it goes, the panel below is placed on the sequence that aligns to it, resolved through the chain. From here on the top panel is the only one to navigate. Type chr8_MATERNAL:5,250,000-14,250,000 into its search box, and the paternal panel arrives on the matching stretch of chr8_PATERNAL on its own. Then:

pick Strand from the palette icon, the coloring the plot used: collinear red, inverted blue
turn the chain track on in each panel's own track selector, where it draws as blocks on that panel's own ruler. The inverted block is the long blue bar in both

Genes read the inversion a second way. The JHU Liftoff GFFs are published beside the assembly, one per haplotype, on matching contig names:

they annotate v1.1, and on chromosome 8 the lanes still land where the v1.2 ribbons do
the gene symbol is in gene_name with no Name, so the label points there
the paternal panel takes the same config with PAT in the name and URL, under its own trackId

Config file CLI (add-track) JBrowse Desktop

{
  "type": "FeatureTrack",
  "trackId": "hg002_genes_mat",
  "name": "Genes (JHU Liftoff v0.6, HG002 v1.1 MAT)",
  "assemblyNames": ["hg002v1.2"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/annotation/JHULiftoff/v0.6/hg002v1.1.MAT.loff.v0.6.gff.gz"
  },
  "displayDefaults": {
    "geneGlyphMode": "longestCoding",
    "labels": { "name": "jexl:feature.gene_name || feature.name || feature.id" }
  }
}

jbrowse add-track https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/annotation/JHULiftoff/v0.6/hg002v1.1.MAT.loff.v0.6.gff.gz \
  --trackId hg002_genes_mat \
  --name "Genes (JHU Liftoff v0.6, HG002 v1.1 MAT)" \
  --assemblyNames hg002v1.2 \
  --displayDefaults '{"geneGlyphMode":"longestCoding","labels":{"name":"jexl:feature.gene_name || feature.name || feature.id"}}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "FeatureTrack",
  "trackId": "hg002_genes_mat",
  "name": "Genes (JHU Liftoff v0.6, HG002 v1.1 MAT)",
  "assemblyNames": ["hg002v1.2"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/T2T/HG002/assemblies/annotation/JHULiftoff/v0.6/hg002v1.1.MAT.loff.v0.6.gff.gz"
  },
  "displayDefaults": {
    "geneGlyphMode": "longestCoding",
    "labels": { "name": "jexl:feature.gene_name || feature.name || feature.id" }
  }
}

Then, on each gene lane:

geneGlyphMode keeps the longest coding transcript, so the lane is one row deep
Color by... → Strand paints forward red and reverse blue, matching the ribbons
labels arrive at this zoom on a second track over the same GFF, cut to a few genes with Filter by...

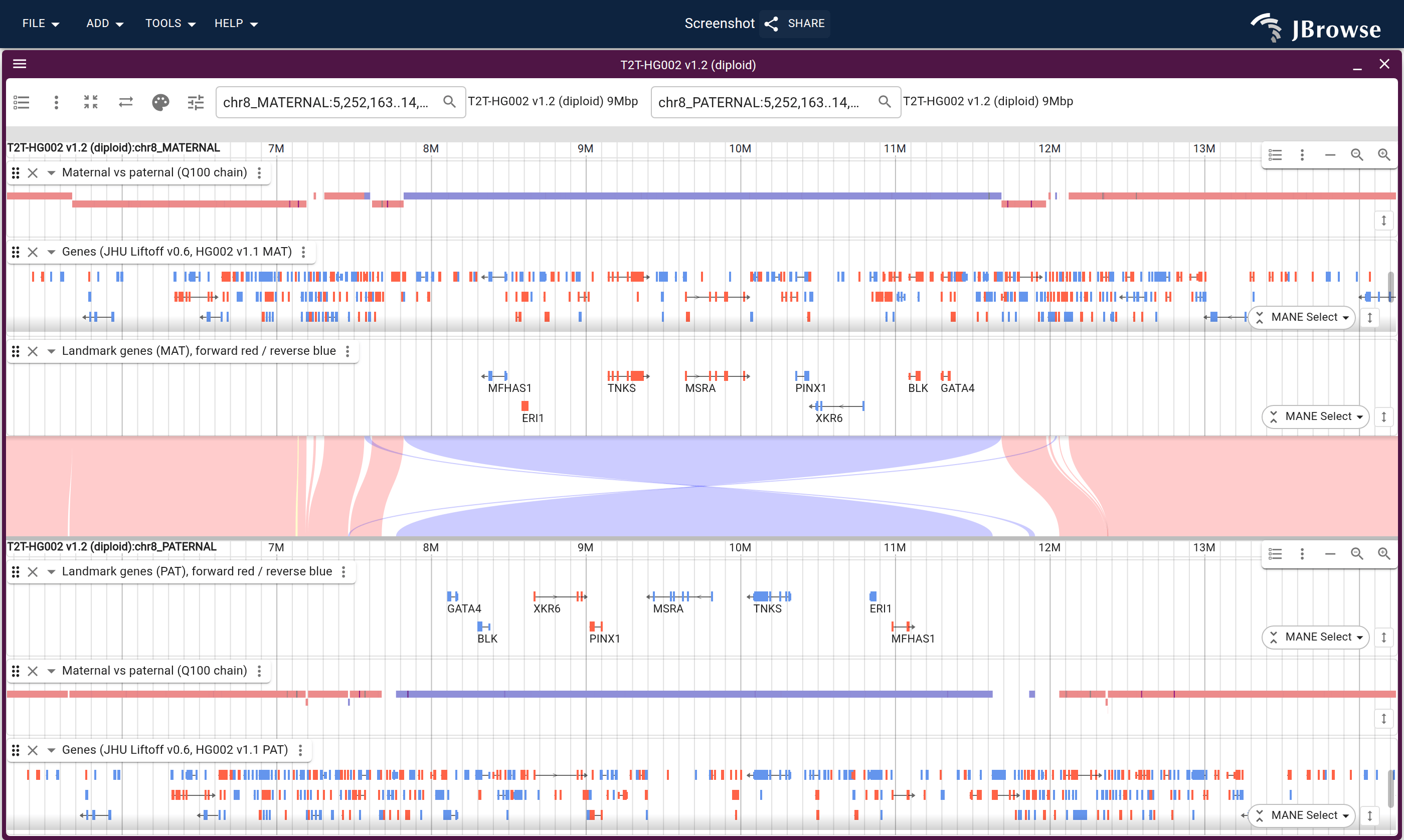

HG002 v1.2 maternal (top) against paternal (bottom) at 8p23.1, colored by strand. The inverted block is the long blue bar in both panels, and the labeled lane beside the ribbons carries the same genes in opposite orders. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Why the panel below follows

At 9 Mb across, the two haplotypes sit some tens of kilobases out of register, which is a few pixels, so the same window typed into both panels would have looked lined up. Zoomed in, the offset is the whole screen: the same coordinate is no longer the same sequence, because every upstream indel shifts one haplotype against the other. Following is what keeps the panels on the same sequence. It walks the top panel's window through the chain's CIGAR and sends the panel below there on every pan, so the ribbons stay near-vertical however far you go.

The figure below is 70 kb typed into both panels with follow off. The maternal panel carries a chain block and the paternal panel's lane is empty, because those coordinates land in the gap past that block's end on the other haplotype. The follow button fills the lane and closes the ribbon. Turn it off to pan the paternal panel by hand, and right-click a chain block for Move other panel to the matching region, the same walk done once.

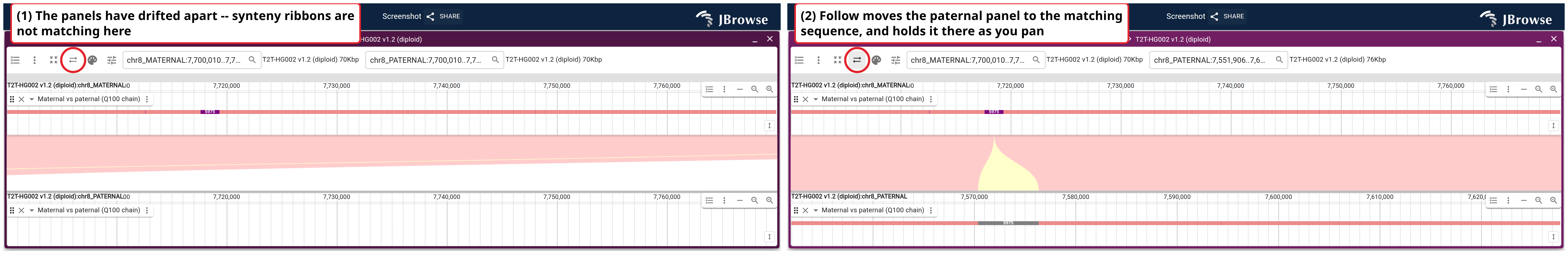

Before and after the follow button, maternal over paternal with the Q100 chain blocks on each haplotype's own coordinates. The paternal lane is empty on the left because those coordinates land past the end of the block above them. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The clip below opens 2 Mb into the collinear chain past the inversion, both panels typed to the same coordinates, where the Liftoff lanes name the same genes about 240 kb out of register.

Maternal over paternal at chr8:13-15 Mb with the gene lanes and location markers on. The follow button places the paternal panel from the maternal one through the chain, so the same genes land under each other and the markers stand upright, and the panel below keeps pace as the top one is dragged 2.4 Mb along. Open the session this video starts in ↗

Location markers, in the header's settings menu, draws lines through each ribbon at regular positions, joining a point on the top row to where it maps on the bottom.

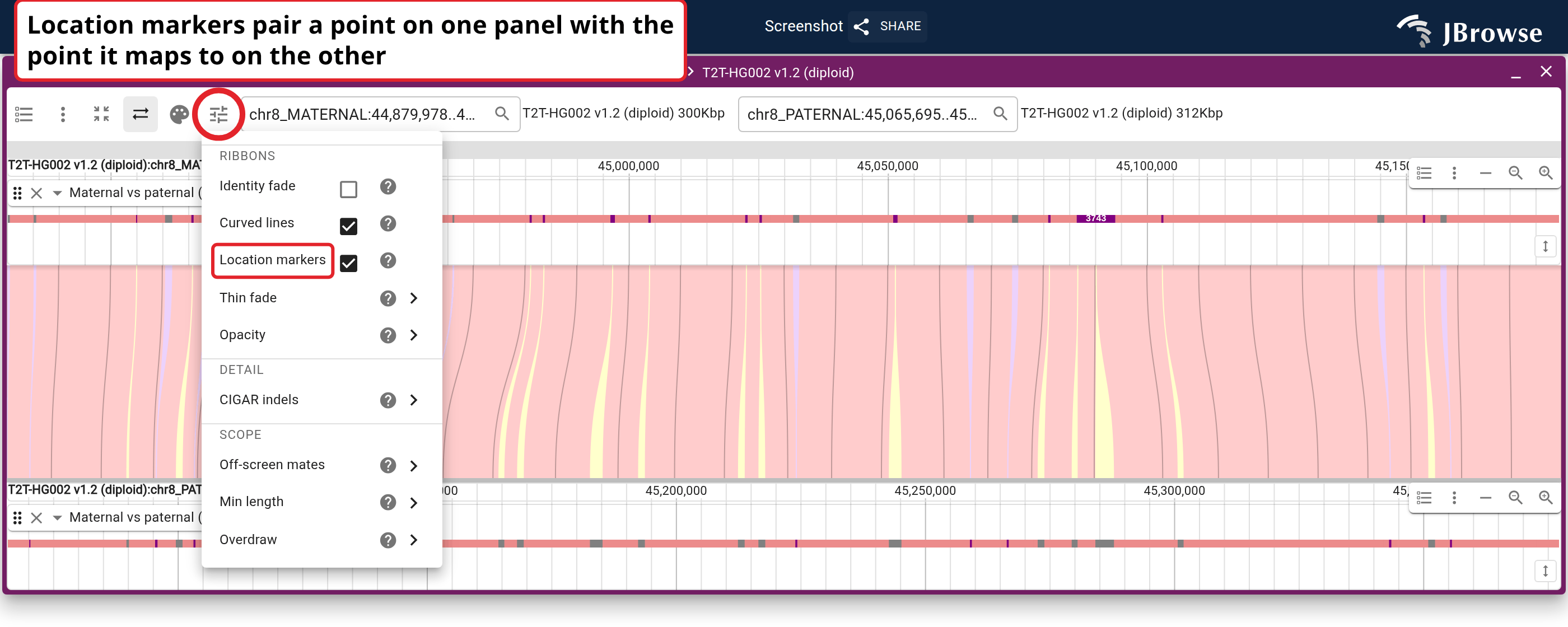

The same pair of panels with location markers on, and the settings menu that turned them on still open over it. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

References

The Q100 / T2T-HG002 assembly releases, including v1.2 and the chains between the haplotypes. https://github.com/marbl/HG002
Hansen, N. F. et al. A complete diploid human genome benchmark for personalized genomics. Cell (2026). https://doi.org/10.1016/j.cell.2026.06.016
Bosch, N. et al. Nucleotide, cytogenetic and expression impact of the human chromosome 8p23.1 inversion polymorphism. PLOS ONE 4, e8269 (2009). https://doi.org/10.1371/journal.pone.0008269
