Plotting features in a custom display

A custom display fetches features in a worker and declares what it draws as a list of marks, each a shape bound to the display's payload. With one of the shared shapes you write no shader, no painter and no hit test; createMarkBackend turns the list into the WebGPU, WebGL2 and Canvas2D backends, and the same painter is the SVG export. Only a drawing no shared shape fits needs a shape of its own, which is GPU displays.

Start in config

Plotting a field of a feature file needs no plugin at all. A marks entry on LinearMarkDisplay draws a bar, point or span over any feature adapter, with an encoding naming which fields feed it, and that page is the first rung. This guide is the second: a shape the library lacks, over the same worker encoding. The third is a display of your own, for a layout or a meaning the mark display does not have; the plugin below composes one, and plugins/gwas is the in-tree form of it.

A build-step plugin, not a no-build one: it bundles @jbrowse/render-core and composes mixins from @jbrowse/plugin-linear-genome-view, whose surface is larger and faster-moving than @jbrowse/core, so pin the versions you develop against. @jbrowse/render-core first publishes in the next release; until then, build against a jbrowse-components checkout.

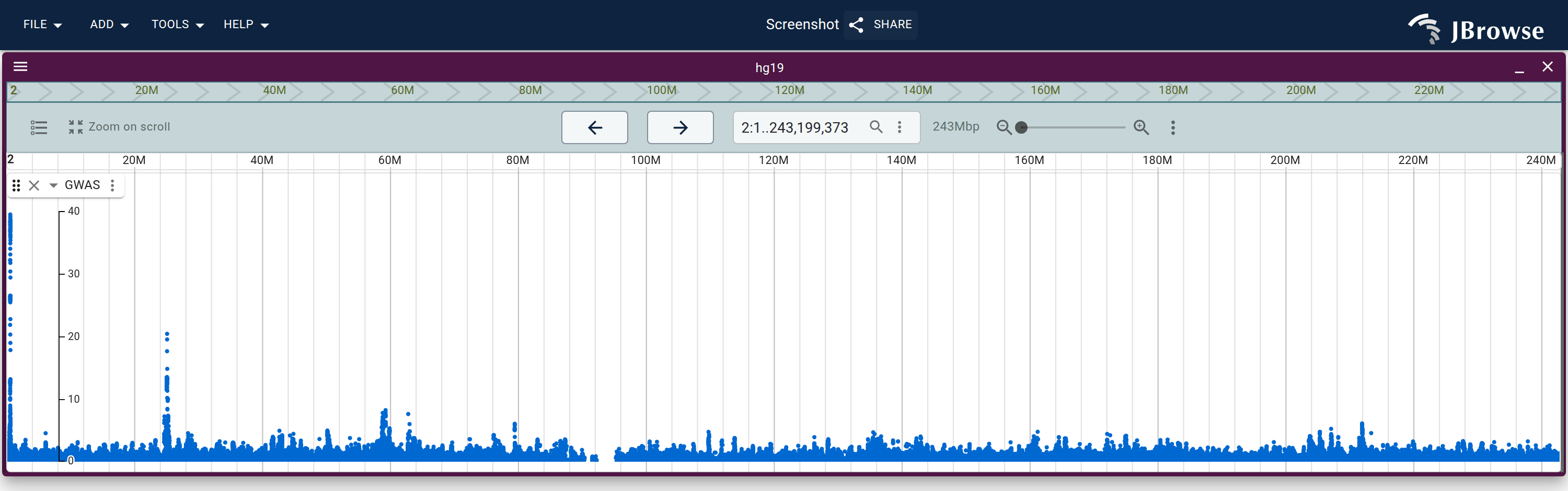

A real feature-plotting display built the way this guide describes: plugins/gwas/src/LinearManhattanDisplay fetches scored points in a worker as typed arrays and declares one mark over the shared point shape. Each point is a GWAS variant positioned by genome coordinate (X) and −log₁₀(p-value) (Y); the tall peak on hg19 chr2 is a strong association. Open this view in JBrowse ↗

Rendering across two threads

Rendering splits across two threads:

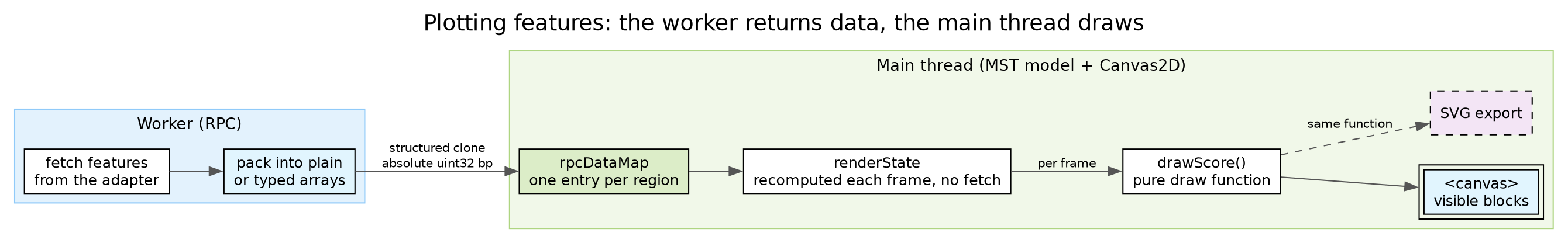

The worker fetches and encodes, the main thread stores per region and draws. The shape's painter backs both the Canvas2D fallback and the SVG export.

The worker returns compact data, never pixels, with all genomic positions absolute (not region-relative). The model owns the fetched data (rpcDataMap), a cheap per-frame renderState, and the fetch/draw wiring; mixins supply the fetch and draw lifecycles. The mark list says which of the payload's arrays feed which lane of a shape, and the backend built from it paints the visible blocks — on the GPU where there is one, through the shape's Canvas2D painter where there is not, and through that same painter for SVG export.

Three terms recur below (the architecture spec's vocabulary is fuller):

region: one entry of view.displayedRegions. Your worker fetches and stores data one region at a time.
block: a visible slice of a region with its on-screen pixel span. You draw per block.
displayedRegionIndex: a region's index in view.displayedRegions, the join key between rpcDataMap and the blocks: rpcDataMap.get(block.displayedRegionIndex).

The simplest complete in-tree reference is plugins/gwas/src/LinearManhattanDisplay/, whose whole drawing is one mark over the shared pointMark; this guide mirrors its shape.

Files to create

example-plugins/score-example/ is the finished plugin — a standalone package CI installs from a packed tarball and asserts renders, so it stays buildable against the published packages. It draws a box whose height is the feature's score, which neither shared shape does, so it carries a shape of its own (scoreMark.ts and shaders/); a display on spanMark or pointMark has neither file:

src/
  index.ts                       the plugin class; installs the display, the RPC method and the feature panel
  LinearScoreDisplay/
    configSchema.ts              config slots (color, scoreColumn)
    findScoreHit.ts              the display's hit: `nearestMarkHit` asks the mark's `hitNearest`, which its `ink` implies, about every instance under the cursor
    index.ts                     registers the display type; the model and the component both load lazily
    model.ts                     MST model: rpcDataMap, renderState, fetchNeeded, startRenderingBackend, renderSvg
    renderSvg.tsx                SVG export: the mark list painted through renderDisplaySvg
    scoreMark.ts                 the `score` shape: score.slang's pass, its uniform write, and the placement its painter (also the SVG export) and its ink (the hit test and the highlight) both read
    scoreMarks.ts                ScoreRenderState, the mark list (one `score` mark over the RPC payload) and the backend type
    components/
      ScoreDisplayComponent.tsx  React: DisplayChrome wrapping the canvas; builds the backend from the mark list
    shaders/
      score.slang                the `score` shape's shader: one box per feature, compiled by gen:shaders
  ScoreFeaturePanel/
    index.tsx                    adds a panel to the feature details widget
  ScoreRPC/
    GetScoreData.ts              worker: fetch features from the adapter, then encode
    index.ts                     registers the RPC method
    rpcTypes.ts                  ScoreRegionData and the RPC arg types

Step 1: Define the data the worker returns

The payload is the encoder's own channels, EncodedChannels from @jbrowse/core/util/markEncoding: the same arrays a config-declared mark draws from, so a shape reads them under the same names. A payload of your own is for what those channels cannot say — Manhattan ships an LD r² array beside them — and it stays compact, structured-clone-friendly and in absolute genomic positions.

// One region's worth of features as the encoder packs them: parallel typed
// arrays, `x`/`x2` absolute genomic uint32 (never region-relative, so they
// cross the worker boundary without precision loss) and `y` the raw score,
// plus the score extremes. The shape reads the arrays under these names.
export type ScoreRegionData = Encoded<'y'>

Step 2: Write the RPC method

The worker fetches from the adapter and hands the features to encodeFeatures, which reads the score column as y and returns the channels. It is the evaluation LinearMarkDisplay runs for a marks entry, so a display with a shape of its own and a config-declared bar chart pack a region the same way. See RPC and worker system for the full RpcMethodType contract; the shape is:

ScoreRPC/GetScoreData.ts:

import { getFeatureAdapterOrThrow } from '@jbrowse/core/data_adapters/getFeatureAdapter'
import RpcMethodType from '@jbrowse/core/pluggableElementTypes/RpcMethodType'
import { rpcResult } from '@jbrowse/core/util/librpc'
import {
  encodeFeatures,
  encodedChannelTransferables,
} from '@jbrowse/core/util/markEncoding'

import type { GetScoreDataArgs, ScoreRegionData } from './rpcTypes.ts'
import type { RpcExecuteArgs } from '@jbrowse/core/rpc/RpcRegistry'

// Registering the name here is what types `rpcManager.call(…, 'GetScoreData', …)`
// at every call site: the args are checked and the return type is inferred,
// instead of both being `any`.
declare module '@jbrowse/core/rpc/RpcRegistry' {
  interface RpcRegistry {
    GetScoreData: {
      args: GetScoreDataArgs
      return: ScoreRegionData
      // wrapped in rpcResult so postMessage transfers its buffers
      transferables: true
    }
  }
}

export default class GetScoreData extends RpcMethodType<'GetScoreData'> {
  name = 'GetScoreData' as const

  async execute(args: RpcExecuteArgs<'GetScoreData'>) {
    const {
      sessionId,
      adapterConfig,
      region,
      scoreColumn,
      signal,
      statusCallback,
    } = args
    const dataAdapter = await getFeatureAdapterOrThrow({
      pluginManager: this.pluginManager,
      sessionId,
      adapterConfig,
    })
    // statusCallback arrives as an ordinary function: the caller's never
    // crossed the boundary, the RPC layer replaced it with a side channel and
    // rebuilt one here. Hand it to whatever does the slow work rather than only
    // bracketing that work, so the message tracks the download.
    statusCallback?.('Fetching features')
    const features = await dataAdapter.getFeaturesArray(region, {
      signal,
      statusCallback,
    })
    // The encoder is the packer: one walk reads `scoreColumn` as `y`, skips a
    // feature with no finite score, and ships the dense arrays with their
    // extremes. The lane list is what the shape reads — `y` here; a display
    // that hovers through a Flatbush adds `index`. A packer of your own is for
    // a payload the encoder's channels cannot say.
    const encoded = encodeFeatures(features, { y: scoreColumn }, ['y'], {
      jexl: this.pluginManager.jexl,
    })
    return rpcResult(encoded, encodedChannelTransferables(encoded))
  }
}

Step 3: The MST model

Compose MultiRegionDisplayMixin (which brings the fetch autoruns and the render lifecycle), TrackHeightMixin, and StoredHoverMixin for the hover the component stores. You supply four things: a place to store fetched data (rpcDataMap), a per-frame renderState, a fetchNeeded action, and a startRenderingBackend action; the renderSvg action at the end is the export.

import { ConfigurationReference, getConf } from '@jbrowse/core/configuration'
import { BaseDisplay } from '@jbrowse/core/pluggableElementTypes/models'
import { getContainingView } from '@jbrowse/core/util'
import { cssColorToABGR } from '@jbrowse/core/util/colorBits'
import MultiRegionDisplayMixin from '@jbrowse/display-kit/MultiRegionDisplayMixin'
import StoredHoverMixin from '@jbrowse/display-kit/StoredHoverMixin'
import TrackHeightMixin from '@jbrowse/display-kit/TrackHeightMixin'
import { fetchEachRegion } from '@jbrowse/display-kit/fetchEachRegion'
import { types } from '@jbrowse/mobx-state-tree'
import { installUpload } from '@jbrowse/render-core/installUpload'
import { inkOfInstances } from '@jbrowse/render-core/marks'

import { SCORE_MARKS } from './scoreMarks.ts'

import type { ScoreRegionData } from '../ScoreRPC/rpcTypes.ts'
import type { LinearScoreDisplayConfigModel } from './configSchema.ts'
import type { ScoreHit } from './findScoreHit.ts'
import type { ScoreRenderState, ScoreRenderingBackend } from './scoreMarks.ts'
import type { Region } from '@jbrowse/core/util'
import type { HighlightRect } from '@jbrowse/display-kit/highlightHost'
import type { ExportSvgDisplayOptions } from '@jbrowse/display-kit/types'
import type { Instance } from '@jbrowse/mobx-state-tree'
import type { LinearGenomeViewModel } from '@jbrowse/plugin-linear-genome-view'

/**
 * #stateModel LinearScoreDisplay
 * #displayFoundation MultiRegionDisplayMixin
 * The worked-example score display: one value per feature, drawn as a box
 * along the genome. The developer guides walk through this model.
 *
 * #example
 * The display attaches to any `FeatureTrack`, so a track naming it in
 * `displays` gets it in place of the stock linear one:
 * ```js
 * {
 *   type: 'FeatureTrack',
 *   trackId: 'genes_with_scores',
 *   name: 'Genes (scored)',
 *   assemblyNames: ['hg38'],
 *   adapter: {
 *     type: 'BedTabixAdapter',
 *     bedGzLocation: { uri: 'https://example.com/genes.bed.gz' },
 *     index: { location: { uri: 'https://example.com/genes.bed.gz.tbi' } },
 *   },
 *   displays: [
 *     {
 *       type: 'LinearScoreDisplay',
 *       displayId: 'genes_with_scores-LinearScoreDisplay',
 *       scoreColumn: 'score',
 *     },
 *   ],
 * }
 * ```
 */
export function modelFactory(configSchema: LinearScoreDisplayConfigModel) {
  return types
    .compose(
      'LinearScoreDisplay',
      BaseDisplay,
      TrackHeightMixin(),
      MultiRegionDisplayMixin(),
      StoredHoverMixin<ScoreHit>((a, b) => a.start === b.start),
      types.model({
        type: types.literal('LinearScoreDisplay'),
        configuration: ConfigurationReference(configSchema),
      }),
    )
    .views(self => ({
      // fetched data keyed by displayedRegionIndex: the foundation's per-region
      // store, narrowed to this display's payload. The render lifecycle
      // uploads/draws one region at a time from it
      get rpcDataMap(): ReadonlyMap<number, ScoreRegionData> {
        return self.regionPayloads as ReadonlyMap<number, ScoreRegionData>
      },
      get view() {
        return getContainingView(self) as LinearGenomeViewModel
      },
      // fetch inputs watched by SettingsInvalidate; any change refetches. Put
      // settings that change what the worker computes here; never scroll/zoom
      // (those change every frame) or the fetch results themselves.
      rpcProps() {
        return { scoreColumn: getConf(self, 'scoreColumn') }
      },
    }))
    .views(self => ({
      // the score range every loaded region's boxes are placed through: zero
      // up to the largest score any region shipped, read off the extremes the
      // encoder packed beside the channels, so a region arriving rescales
      // every box rather than only its own
      get domain(): [number, number] {
        let max = -Infinity
        for (const { yMax } of self.rpcDataMap.values()) {
          max = yMax > max ? yMax : max
        }
        return [0, max > 0 ? max : 1]
      },
    }))
    .views(self => ({
      // recomputed cheaply every frame without fetching; carries the canvas
      // dimensions (required) plus whatever the marks read. The color is
      // resolved to the packed form here, once, so the uniform write and the
      // painter are handed the same number
      get renderState(): ScoreRenderState {
        return {
          canvasWidth: self.canvasWidthPx,
          canvasHeight: self.height,
          color: cssColorToABGR(getConf(self, 'color')),
          domainY: self.domain,
        }
      },
    }))
    .views(self => ({
      // the box the hovered bar painted, which DisplayChrome lights: the
      // display names the instance and the shape's `ink` says where it is
      get hoverInk(): HighlightRect[] {
        const hit = self.hoveredFeature
        return hit
          ? inkOfInstances(
              SCORE_MARKS,
              self.renderBlocks,
              index => self.rpcDataMap.get(index),
              self.renderState,
              index =>
                index === hit.regionIndex
                  ? [{ mark: 0, index: hit.instance }]
                  : undefined,
            )
          : []
      },
    }))
    .actions(self => ({
      // called by the fetch autorun for the regions that need loading;
      // fetchEachRegion handles cancellation and staleness
      fetchNeeded(needed: { region: Region; displayedRegionIndex: number }[]) {
        // no `if (!adapterConfig)` guard: the `adapter` slot is a union of the
        // registered adapter schemas, all of which are creatable from an empty
        // snapshot, so MST always materializes an object there and the guard
        // could never fire
        const { adapterConfig } = self
        return fetchEachRegion(self, needed, {
          // `ctx.callRpc`, never `rpcManager.call`: the context injects this
          // fetch's signal and its status callback, and forgetting either
          // is silent — no cancellation for this display, or no progress. The
          // callback here is this region's own slot in the fan-out, so the N
          // parallel calls aggregate into one bar instead of overwriting each
          // other
          call: (region, ctx) =>
            ctx.callRpc('GetScoreData', {
              adapterConfig,
              region,
              ...self.rpcProps(),
            }),
          // what a region stores; the foundation commits it with the region's
          // span and fetch inputs as one record
          onResult: (_idx, result) => result,
        })
      },
      // called once by DisplayChrome when the backend is created, and again
      // after a context loss. One installer streams each region into the
      // backend and draws every frame from renderState; it is the only part of
      // the model that knows a backend exists, and it is the same whether that
      // backend is the GPU or the Canvas2D one.
      startRenderingBackend(backend: ScoreRenderingBackend) {
        installUpload(self, backend, {
          cells: () => self.rpcDataMap,
          render: b =>
            b.renderBlocks(
              self.renderBlocks,
              self.rpcDataMap,
              self.renderState,
            ),
        })
      },
    }))
    .actions(self => ({
      /**
       * #action
       * The SVG export, lazily loaded with the mark list it paints through.
       * Its own block: the export reads `self` as the slice `renderSvg.tsx`
       * declares, and MST does not type a block's own members onto its `self`
       */
      async renderSvg(opts?: ExportSvgDisplayOptions) {
        const { renderSvg } = await import('./renderSvg.tsx')
        return renderSvg(self, opts)
      },
    }))
}

export type LinearScoreDisplayStateModel = ReturnType<typeof modelFactory>
export type LinearScoreDisplayModel = Instance<LinearScoreDisplayStateModel>

renderBlocks (the list of visible blocks with their pixel spans) comes from MultiRegionDisplayMixin, so you don't compute it. The fetch chain (fetchNeeded, rpcProps, cancellation, regionTooLarge) is documented in full in the data fetching pipeline.

Step 4: The mark list

A shape owns geometry and picking: one .slang shader and its packer, one uniform write, one Canvas2D painter (which is also the SVG export) and one hit test, all reading the same channel arrays. A mark binds a shape to this display through two lenses: channels names which of the payload's arrays feed which of the shape's lanes, and params names which render-state values reach its uniforms. That declaration is the whole of the renderer:

// Which of the payload's arrays feed which of the shape's lanes, and which
// render-state values reach its uniforms: two lenses, run once per block per
// frame. The encoder's payload already carries the shape's lane names, so the
// channel lens is the payload itself. Everything that draws comes from the
// shape.
export const SCORE_MARKS = [
  defineMark({
    shape: scoreMark,
    channels: (d: ScoreRegionData) => d,
    params: (s: ScoreRenderState) => ({ color: s.color, domain: s.domainY }),
  }),
]

The example's scoreMark is its own, because a box grown from the bottom to a value is neither of the shared shapes. Most displays are one of them, and name it in place of scoreMark with nothing else to write:

spanMark — a coloured rectangle from x to x2 on the band of row: features laid into rows, MAF's alignment cells, anything that is a box on a row.
pointMark — a glyph at x on a linear domain of y, widening to a bar where x2 - x is wider than the glyph: a scatter plot, Manhattan's points, any datum placed by a value.

Manhattan's whole drawing, over pointMark:

import { defineMark, pointMark } from '@jbrowse/render-core/marks'

import type { ManhattanRpcResult } from '../ManhattanRPC/rpcTypes.ts'
import type { ManhattanRenderState } from './manhattanRenderingBackendTypes.ts'

/**
 * What this display draws, as a declaration: one `point` mark over the
 * encoder's channels, which already carry the shape's lane names.
 *
 * The GPU pass and its packer, the Canvas2D painter (which is also the SVG
 * export) and the hit-test geometry all come from `pointMark`; what is written
 * here is only which of this display's render-state values reach the shape's
 * uniforms.
 */
export const MANHATTAN_MARKS = [
  defineMark({
    shape: pointMark,
    channels: (d: ManhattanRpcResult) => d,
    params: (s: ManhattanRenderState) => ({
      domain: s.domainY,
      diameterPx: s.pointDiameterPx,
    }),
  }),
]

ScoreRenderState must include canvasWidth and canvasHeight (the FrameDimensions the backend needs to size the backing store); add whatever else the shape's params read. A shape takes packed colours and the display resolves them, so the colour is stored here as the number the shader's uniform takes, resolved once in the model:

// Recomputed cheaply every frame without fetching: the canvas dimensions
// (required, to size the backing store) plus what the drawing reads
export interface ScoreRenderState {
  canvasWidth: number
  canvasHeight: number
  // packed ABGR (`cssColorToABGR`), resolved once in the model so both backends
  // are handed the same number
  color: number
  // the score range the boxes are placed through, from the loaded regions'
  // extremes, so a box's height means the same in every region
  domainY: [number, number]
}

Step 5: The React component

DisplayChrome wraps your canvas with shared status chrome (loading scrim, error bar, "region too large" banner) and wires the rendering-backend factory and WebGL/WebGPU context-loss recovery. You give it a factory and render the <canvas> from the canvasRef it hands back. The factory is createMarkBackend over the list — WebGPU, then WebGL2, then Canvas2D — and its import is the one place the display reaches the GPU stack, which is why it sits on the lazily loaded component and not on the model:

import DisplayChrome from '@jbrowse/display-kit/DisplayChrome'
import { createMarkBackend } from '@jbrowse/render-core/marks/backend'
import { observer } from 'mobx-react'

import { findScoreHit } from '../findScoreHit.ts'
import { SCORE_MARKS } from '../scoreMarks.ts'

import type { LinearScoreDisplayModel } from '../model.ts'

// The only import on the mark path that reaches the HAL. It lives here, on the
// lazily loaded component, and not in the model: a state model is eager, so
// naming the backend there would load the GPU stack at plugin install.
// createMarkBackend tries WebGPU, then WebGL2, then Canvas2D, and every backend
// walks the same mark list.
function createScoreBackend(canvas: HTMLCanvasElement) {
  return createMarkBackend(canvas, SCORE_MARKS)
}

// DisplayChrome supplies the display's chrome (loading scrim, error bar,
// region-too-large banner) and WebGL/WebGPU context-loss recovery, and is the
// only place useRenderingBackend is called. Its render-prop hands back the
// canvasRef to attach to the <canvas>.
const ScoreDisplayComponent = observer(function ScoreDisplayComponent({
  model,
}: {
  model: LinearScoreDisplayModel
}) {
  const { hoveredFeature } = model
  return (
    <DisplayChrome
      model={model}
      factory={createScoreBackend}
      testid="score-display"
      style={{ width: '100%', height: model.height }}
      // measured against the chrome container, which the canvas fills, so the
      // pointer lands in canvas px with no offset
      onPointerPosition={state => {
        model.setHoveredFeature(
          state
            ? findScoreHit(
                state.x,
                state.y,
                model.renderBlocks,
                model.rpcDataMap,
                model.renderState,
              )
            : undefined,
        )
      }}
    >
      {({ canvasRef }) => (
        <>
          <canvas
            ref={canvasRef}
            style={{ width: '100%', height: '100%', display: 'block' }}
          />
          {hoveredFeature ? (
            <div
              style={{
                position: 'absolute',
                left: hoveredFeature.x + 6,
                top: hoveredFeature.y - 6,
                pointerEvents: 'none',
                fontSize: 11,
                background: 'rgba(255,255,255,0.85)',
                padding: '0 3px',
              }}
            >
              {hoveredFeature.score.toFixed(2)}
            </div>
          ) : null}
        </>
      )}
    </DisplayChrome>
  )
})

export default ScoreDisplayComponent

Step 6: Register the display

import { lazy } from 'react'

import { DisplayType } from '@jbrowse/core/pluggableElementTypes'

import { configSchema } from './configSchema.ts'

import type PluginManager from '@jbrowse/core/PluginManager'

const ScoreDisplayComponent = lazy(
  () => import('./components/ScoreDisplayComponent.tsx'),
)

export default function LinearScoreDisplayF(pluginManager: PluginManager) {
  pluginManager.addDisplayType(() => {
    return new DisplayType({
      name: 'LinearScoreDisplay',
      configSchema,
      // a thunk, so the model and everything it names load when a track first
      // shows this display or a session names it, not at plugin install
      stateModel: () =>
        import('./model.ts').then(m => m.modelFactory(configSchema)),
      displayName: 'Score display (example)',
      trackType: 'FeatureTrack',
      viewType: 'LinearGenomeView',
      ReactComponent: ScoreDisplayComponent,
    })
  })
}

The model and the component both load late. A state model is eager — anything registered at plugin install loads everything it names by value — so the stateModel thunk keeps the display's mixins and installUpload out of every host's startup bundle until a track first shows the display or a session names it.

Register the RPC method in the same plugin's install() with pluginManager.addRpcMethod(() => new GetScoreData(pluginManager)), and see custom track and display types for how displays attach to a track type.

Hit-testing (clicks and hovers)

The shape defines where its ink is: its ink is the rect its painter fills, hitNearest measures the cursor against it, and the shared shapes carry both. The walk over the blocks under the cursor is render-core's nearestMarkHit; the display's part is which candidates each mark is asked about, and what to do with the answer:

// `nearestMarkHit` walks the blocks under the cursor and asks the mark's
// `hitNearest`, which measures the cursor against the rect its `ink`
// declares. What the display chooses is the candidates: every instance here,
// back to front so a tie goes to the box painted on top, which is enough at a
// few thousand boxes. A display with hundreds of thousands asks the encoder for
// its `index` lane — a Flatbush over (bp, score) — and answers with what that
// finds between the reach's `bpMin`/`valueMin` and `bpMax`/`valueMax` instead
// (`findManhattanHit` in plugins/gwas is the worked form).
export function findScoreHit(
  xPx: number,
  yPx: number,
  blocks: RenderBlock[],
  regions: ReadonlyMap<number, ScoreRegionData>,
  state: ScoreRenderState,
): ScoreHit | undefined {
  const hit = nearestMarkHit(
    SCORE_MARKS,
    blocks,
    index => regions.get(index),
    state,
    xPx,
    yPx,
    {
      radiusPx: HIT_RADIUS_PX,
      candidates: data => backToFront(0, data.count),
    },
  )
  return hit
    ? {
        start: hit.region.x[hit.index]!,
        end: hit.region.x2[hit.index]!,
        score: hit.region.y[hit.index]!,
        x: hit.x,
        y: hit.y,
        regionIndex: hit.block.displayedRegionIndex,
        instance: hit.index,
      }
    : undefined
}

The component hands DisplayChrome's onPointerPosition to it and stores the hit through StoredHoverMixin (composed in Step 3), whose hoveredFeature the body reads back. A display with many features per block builds a spatial index (e.g. Flatbush) from rpcDataMap in a cached view, and its candidates answers what the index finds in the reach it is handed, which carries the values the shape can ink near the cursor as well as the bp, instead of every instance; plugins/gwas's findManhattanHit.ts does that.

SVG export

The export comes with the mark: paintMarkBlocks runs each mark's painter against the SVG context, and renderDisplaySvg owns the readiness gate and the terminal states around it.

export async function renderSvg(
  model: ScoreSvgModel,
  opts?: ExportSvgDisplayOptions,
) {
  return renderDisplaySvg(model, opts, ScoreSvgBody)
}

// The same painter the Canvas2D backend runs, handed an SVG context. The
// export's width is the shell's, not the on-screen renderState's, which
// subtracts the track outline the export does not draw. The shell clips the
// body to its box.
function ScoreSvgBody({
  model,
  height,
  canvasWidth,
  renderBlocks,
  opts,
}: LgvSvgBodyProps<ScoreSvgModel>) {
  const state = { ...model.renderState, canvasWidth, canvasHeight: height }
  return (
    <PaintLayer
      width={canvasWidth}
      height={height}
      opts={opts}
      paint={ctx => {
        paintMarkBlocks(ctx, SCORE_MARKS, model.rpcDataMap, renderBlocks, state)
      }}
    />
  )
}

The model's renderSvg action loads it lazily. SVG export has the pipeline.

A Canvas2D-only display

A drawing that is not instances of a shape — the reference sequence's letters — skips the mark layer, writes a Canvas2D backend by hand and returns it through createCanvas2DBackend, with no shader and no GPU ladder. plugins/sequence is the one in-tree display still built that way:

// A Canvas2D-only display needs no separate factory file and no HAL ladder:
// createCanvas2DBackend just wraps the backend in the Promise DisplayChrome
// awaits. Swap in createRenderingBackend (and its createGpuBackend option) only
// once a profile shows Canvas2D can't hold 60fps.
export function SequenceRenderer(canvas: HTMLCanvasElement) {
  return createCanvas2DBackend(canvas, c => new Canvas2DSequenceRenderer(c))
}

Writing your own shape

Everything above carries over unchanged — model, fetch chain, renderState, the mark list, the component and the SVG export. Only the shape the mark names changes: a .slang, a uniform write, a painter and a hit test of your own, held to each other by a sweep test. See GPU displays.

In-tree references

plugins/marks/src/LinearMarkDisplay/ - the config-declared display: one CoreEncodeFeatures call per region, a mark list built from the marks slot, the legend off the encoder's scale tables
plugins/gwas/src/LinearManhattanDisplay/ - a real feature-plotting display (scored scatter) on the shared pointMark, its worker on encodeFeatures with LD's colour and r² as reader channels, plus an indexed hit test (this guide mirrors it)
plugins/variants/src/LinearMultiSampleVariantDisplay/ - a display that keeps a shape of its own (cellMark.ts) beside its shader
plugins/canvas/src/LinearBasicDisplay/ - the fullest reference: the generic feature display, five marks over one payload
plugins/sequence/src/LinearReferenceSequenceDisplay/ - the one Canvas2D-only display, with no shape

Plotting features in a custom display

Rendering across two threads#

Files to create#

Step 1: Define the data the worker returns#

Step 2: Write the RPC method#

Step 3: The MST model#

Step 4: The mark list#

Step 5: The React component#

Step 6: Register the display#

Hit-testing (clicks and hovers)#

SVG export#

A Canvas2D-only display#

Writing your own shape#

In-tree references#

See also#
