Graph genome view
The graph genome view plugin draws a pangenome graph as a graph, as a track of the linear genome view. The graph sits under the view's other tracks, on the view's own coordinates, and moves when the view moves. The reference's path through the graph is the backbone, and every segment off that path is an alternate allele from another assembly. Most other pangenome tracks are projections, which flatten the graph onto one reference's coordinates as synteny, variants, alignment, or depth.
Prerequisites: the plugin (below), a graph in rGFA or GFA, and the contributing assemblies if you want to open a node on them.
The graph track comes from a separate plugin,
jbrowse-plugin-graphgenomeviewer,
not bundled in JBrowse Web, because its force-directed layout uses the
GPL-licensed Bandage engine (its
OGDF FMMM layout). The plugin is in beta. The
plugin store lists it as GraphGenomeView. A
config names it with the entry below, where storePlugin picks the build for
the JBrowse reading the config and esmUrl is the fallback when the store
cannot be read (configuring plugins).
{
"plugins": [
{
"name": "GraphGenomeView",
"storePlugin": "GraphGenomeView",
"esmUrl": "https://jbrowse.org/plugins/jbrowse-plugin-graphgenomeviewer/latest/dist/jbrowse-plugin-graphgenomeviewer.esm.js"
}
]
}RgfaTabixAdapter and MinigraphBubbleAdapter ship in the same plugin. The
plugin needs a JBrowse 5 build (v5.0.0-beta.9 or later). A JBrowse 4 host does
not load it, and a config naming it opens with no graph track and neither
adapter.
Quick start
To index a graph, convert it once into tabix-indexed BED files that JBrowse can
query by locus: .segs.bed.gz for the segments and .links.bed.gz for the
links between them. One command, gfa-to-tabix build, builds them and writes a
track config for them, as Pangenome (hosting your own graph) describes.
Then Add track with that config, whose adapter is RgfaTabixAdapter, and
the track opens as the graph.
Route 1 builds the index. Skip to
Seven layouts if you just need to know what the track menu's
items do.
The graph opens in the Anchored layout, on the view's own coordinates, so typing in the location box, a gene search, a click on the cytoband and a drag-zoom move it as they move every other track. When the view moves past the stretch the graph was cut from, the track cuts the new window.
A graph track can also name a coarse tier, the same graph with one node per bubble. Zoomed out past the handover the track names, the track cuts the tier, so a whole chromosome draws as a graph, and zoomed back in it cuts the segments again.
Two adapters cut a subgraph: RgfaTabixAdapter over the index, and
GbzBaseSyntenyAdapter over a gbz-base database, whose cut includes the
haplotypes' walks. The same index pair behind a BedTabixAdapter draws only as
a lane. To skip indexing entirely, Route 2 opens a GFA as
a file.
Where a segment's coordinates come from
A graph is a set of segments and links, which is all force-directed layout needs. Drawing it as a track of a linear view also needs each segment's position on a reference, and the formats differ on where that position lives.
| Format | Where positions live | Opening a locus |
|---|---|---|
| rGFA (minigraph, the minigraph stage of Minigraph-Cactus) | SN/SO/SR tags on every segment | direct, the file states them |
| plain GFA (pggb, odgi, base-level Minigraph-Cactus) | inside the P/W path lines | walk a path first, in the app or offline |
| assembly graph (SPAdes, Flye, Velvet) | nowhere, there is no reference | not possible |
rGFA and plain GFA both produce a segment track on the reference and a graph that lines up under it. Every feature below except the force layout reads those coordinates. An assembly graph therefore gets no locus cut, neither anchored layout, no hover sync and no graph track. Bandage, whose engine draws the force layout here, was built for assembly graphs. Use Bandage for one.
Route 1: a graph track, browsable by locus
Once indexed, the graph loads as a GraphTrack that draws whatever window is on
screen as a graph.
gfa-to-tabix build 0.12.0 or
later builds the index, the format decides which route it takes, and every step
after that is the same. An rGFA's bubbles also need
gfatools on PATH:
# or a binary from https://github.com/GMOD/gfa-to-tabix/releases
cargo install gfa-to-tabix
# rGFA: the tags are already coordinates, so this is a projection
gfa-to-tabix build ecoli_minigraph.rgfa -o ecoli_minigraph
# plain GFA: walk the P (or W) lines to derive the same thing, with K12 as the
# backbone, and take the bubbles from the snarl VCF that pggb -V wrote
gfa=$(ls pggb/*.smooth.final.gfa)
vcf=$(ls pggb/*.smooth.final.K12.vcf)
gfa-to-tabix build "$gfa" -o ecoli_pggb --reference K12 --snarls "$vcf"The rGFA in these figures is a minigraph graph of five strains, built by the
pangenome tutorials. To build your own,
minigraph needs PanSN-named records. It takes its stable names from the input
FASTA headers, and the per-strain files call their contig chr in all five. Fed
those files, minigraph puts every segment on an ambiguous chr that no later
command can query by strain.
The plain-GFA walk makes four choices:
--referencenames an assembly, not a path. Every contig that assembly contributes is reference, and the command walks those contigs first, at rank 0. A genome with more than one contig has one reference path per contig. Anchoring on only one of those paths would leave the other contigs' segments to whichever donor path reaches them first. A bare sample (GRCh38) is enough where the reference is haploid. For a diploid reference, write the haplotype (HG002#1), or the command picks one and names it on stderr.- The walk also records which haplotypes visit each segment, as
SM:Z:in the index. rGFA has no field for them. On this route that value fillssamplesin the node popup. - When a path reaches a segment twice, the first visit wins, and the node draws as one tube at one x. The repeat stays visible as depth.
- A segment the reference never visits is placed on the coordinates of the assembly it comes from. rGFA places such segments the same way, which is why a reference query reaches them through the links file.
Both routes write <prefix>.segs.bed.gz and <prefix>.links.bed.gz with their
tabix indexes, and a second such pair for the coarse tier, the same graph with
every variant under 10 kb folded into the reference. One adapter reads all four,
and <prefix>.config.json holds the track:
Goes in the tracks array of config.json. See Tracks.
{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "foldBelowBp": 10000 }
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}jbrowse add-track-json '{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "foldBelowBp": 10000 }
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "foldBelowBp": 10000 }
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}ecoli_minigraph, ecoli_minigraph.fold10000 are relative to a config.json. Replace each with its URL or its path on this computer.
The uri is the shared prefix, from which the adapter resolves .segs.bed.gz,
.links.bed.gz and both .tbi files. coarse names the tier by a prefix of
its own and its fold size, foldBelowBp. A tenth of that is the handover, the
linear view's zoom in bp per pixel past which the graph track cuts the tier;
aboveBpPerPx in coarse sets the handover directly. <prefix>.graph.json
names the same files and fold size, and Add pangenome graph track reads it
beside the segments file, so a track opened there gets the tier with no config.
These stable names are PanSN (K12#1#chr), and their sample prefix is already
the assembly name, so the track needs no assemblyNameToPanSN mapping.
HPRC's graph track
needs one, because that graph calls the reference GRCh38 while the assembly is
hg38.
The config lists the graph display first, so the track opens as the graph, and Track menu → Display types → Feature display draws the same segments as a lane instead, one block each. As the graph, the track cuts the window on screen out of the index with a window-width of margin on each side, and cuts again whenever the view leaves that stretch. A cut of segments spans at most 5 Mb; past that the track keeps its last cut and says so. The track cuts on the graph's reference, which is the first assembly the track names.
The legible window width depends on the graph. A minigraph graph records structural variation and collapses everything smaller, so a legible window is hundreds of kb. A pggb graph puts a node at every SNP, so a legible window is hundreds of bp.
The graph track draws only what the zoom can show: variants smaller than ten of
the linear view's pixels fold into the reference, the legend says how small, and
zooming in brings them back. A track whose adapter names coarse gives the
graph a second tier to cut, built by the same fold
(gfa-to-tabix fold). Once the
linear view is zoomed out past the handover, the graph track cuts the tier and
the size limit no longer applies; the drawing barely changes across the
handover, since the fine cut has folded the same variants by then. The segments
lane draws segments at every zoom, so load the tier's prefix as a track of its
own too, a lane that draws a whole chromosome where the segments lane refuses.
Each line in the graph is one graph link. The track draws a link only when both endpoints are inside the cut, so an allele near the window's edge draws only the link that stays inside it.
Route 2: a GFA file
With no index, Add → Graph genome view opens a GFA by file or URL in a view of its own and draws all of it, with its own pan and zoom and the same layouts the track has. The file is the whole graph, with no index to cut another window from. Use this route for a window someone cut for you, and for a graph too large to index:
odgi extract -i graph.og -r K12#1#chr:1004500-1004900 -E -o - \
| odgi sort -i - -o - -O | odgi view -i - -g > window.gfa
# vg equivalent, for a Minigraph-Cactus graph
vg chunk -x graph.xg -p K12#1#chr:1004500-1004900 -c 20 > window.vgView menu → Graph settings... → Reference path picks the path to anchor on,
since a plain GFA states no reference. odgi extract writes the window into the
path name (K12#1#chr:1004500-1004961), and the view takes the offsets from
that name. A whole-genome path starts at zero.
The paths also show which samples go through a node. The P and W lines state
every traversal, and Node details lists them under samples. A true rGFA
has no traversals to read. There samples is empty, and the panel reports
contributingAssembly, the one assembly SN names for the segment.
Route 1 gives the same answer without the GFA file when the index came from a
plain GFA. On that route gfa-to-tabix build does the traversal walk offline
and writes each segment's haplotypes into the index as SM:Z:. Only an index
built from a minigraph rGFA lacks them.

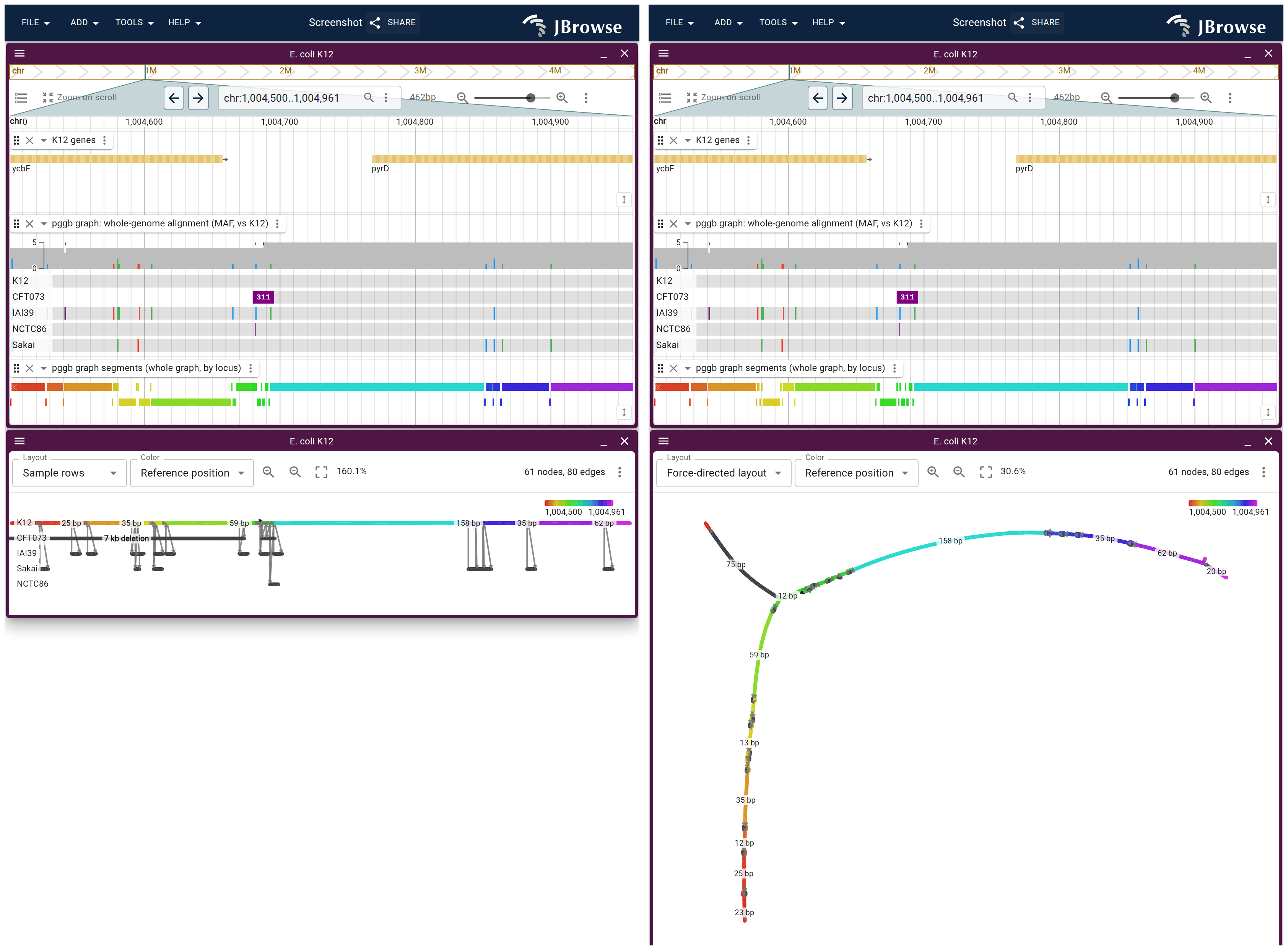

Sample rows draws a row per contributing assembly. Each node is drawn once,
on the row of the first path that reaches it, and the other haplotypes stay in
samples. A row shows what one assembly does to the reference. A segment that
several haplotypes share appears on only one of their rows.
On JBrowse Desktop
JBrowse Desktop runs Route 2 with no server, config or index. Install the plugin once by opening Global plugins... in the start screen menu and clicking Install beside GraphGenomeView under Available plugins. Then Add → Graph genome view offers Choose file.
Desktop starts a session only by opening a genome, so pick a genome before looking for the Add menu. Any genome works, because the view lays out a GFA opened this way from the GFA's P/W lines.
Seven layouts
The track menu's Layout submenu draws the same subgraph seven ways, and the axes mean something different in each:
| Layout | x | y |
|---|---|---|
| Anchored | reference bp | one row per stable rank |
| Sample rows | reference bp | one row per assembly |
| Walk rows | each walk's own bp | one bar per haplotype |
| Ordered | reference order | a lane per allele |
| Tube map | node order | a tube per path |
| Tube map on reference | reference bp | a tube per path |
| Force-directed | nothing (FMMM) | nothing |
Ordered keeps x monotone in reference order, ignoring bp. A SNP allele gets the same room as the kilobase segment beside it, and a bubble draws as a lens. Walk rows needs a graph with walks, and draws each haplotype's route as a bar. Tube map and Tube map on reference need P or W lines, and draw each path as a colored tube through boxed nodes.
The track opens in Anchored, whose x is the view's own coordinate, so the graph lines up under the other tracks and pans and zooms with them. Ordered and Force-directed give x another meaning, so the track draws them in coordinates of their own, fitted to it, the way a variant matrix does, and adds Zoom in, Zoom out and Zoom to fit to its menu; moving the view still cuts the new window. A strip along the top of such a track draws each reference segment at its bp in the view, in the color its node has below, so under the Reference position scheme a hue on the strip finds its node in the drawing. A triangle at either end of the strip marks reference the graph draws past that edge of the window, and Reference strip at bp in the track menu turns the strip off. Force-directed is the picture of a locus for when the shape matters. An anchored drawing flattens both routes through a locus onto the reference axis, and an allele then looks like a stub hanging under a line. A graph opened from a file starts in the force layout.
Anchored and Sample rows both need a backbone, from rGFA tags or from a reference path. A graph with neither greys them out. Force-directed is then the only layout available, and it draws the classic Bandage picture with alternate alleles as bubbles. The MHC figure shows it under the lanes of the same window.
Rank is minigraph's SR tag, and it counts build order. Rank 0 is the first
assembly on the command line, rank 1 is sequence first added with the second,
and so on. A high-rank segment is sequence none of the earlier assemblies had.
Only rank 0 has reference coordinates, so rank 0 is the only rank that a lane on
the reference can show.
Rank comes from how the graph was built. At a dense locus one rank holds alleles from many haplotypes, so a rank row has no biological meaning. Sample rows groups rows by the assembly each allele came from. A row then shows what that strain does to the reference: the backbone sits on top, and each strain's charcoal marks sit under it, tied by grey threads to where they attach.
The assembly an allele "came from" depends on the format. On rGFA it is the
strain that first contributed the sequence, because SR is build order and
the file records no other assemblies. A path GFA states every path that visits a
segment, so a row shows which haplotypes have it and the node popup lists the
rest.
Anchored and Sample rows both draw an allele across the reference it replaces. An insertion replaces no reference, so it draws as a mark where it attaches, with its size in the tooltip.
Bubbles, genes and walks on the drawing
Show... → Show bubble halos in the track menu draws the graph's bubbles on every node layout. Each bubble is a halo along the bubble's nodes, colored by its type, with a label naming the type, and the legend names each color. The option starts off, because on a base-level cut every SNP's halo is a blob. The bubbles come from the bubble index beside an rGFA where there is one. Otherwise the graph derives them from the drawing's layering, which covers a GBZ cut, a plain GFA and the inside of an opened bubble. Click a label to open that bubble alone inside the track, with a button back. An opened bubble derives the bubbles inside it, so a superbubble opens level by level.
The graph draws the session's gene track onto the backbone. Exons are dark stretches along their reference nodes, and each gene's name is pinned under the backbone at the gene's midpoint. An allele has no reference coordinates and shows no exon. Show... → Show genes on the backbone in the track menu turns the genes off, and Gene track in its Graph settings... picks the track when the assembly has more than one.
A graph with walks, such as a GBZ cut or a GFA with P or W lines, supports three more displays. Node width in the track menu's Graph settings... draws a node thicker the more walks visit it, scaled by the square root of its depth against the mean, which is Bandage's rule. Uniform turns that off. In a bubble with a route over a kilobase, every route has a chip at the far point of its loop while the halos are on. The chip names the walks that take the route and gives the route's length. The track menu's Haplotypes submenu highlights one walk. Its nodes keep their color, its links draw dark, and everything else fades, on the reference strip too, so the stretches of reference the walk skips read at their bp. A readout beside the legend compares the walk's length with the reference walk's.
A gbz-base track draws one lane per haplotype, and Display types → Graph in
its track menu draws the same track as a graph of the haplotypes' walks. The
Haplotypes field in Graph settings... lists the haplotypes the cut holds
beside the reference, and with the field empty the track cuts every haplotype in
the graph. Past 5 Mb, or for a cut over the adapter's nodeLimit, the track
asks you to zoom in. A variant track over the graph's VCF covers a wider window.
Repeat lengths across HPRC haplotypes
reads a repeat array this way.
Bubble spread and graph context
Bubble spread in the track menu's Graph settings... sets how a node's bp becomes its drawn length in the force layout. The anchored layouts place a node from its coordinates, so the setting has no effect there. The engine comes from Bandage, whose graphs are assembled contigs of kb to Mb. It maps length linearly with a tiny floor, so a pangenome allele of a few bases clamps to a stub.
Two alternative settings fix that:
- Open bubbles and Wide bubbles raise the floor, so every allele gets a drawn length while everything above the floor stays proportional. Pick one of these when a long node has to stay long, such as when a path ribbon runs along it. The floor applies per node, so it also lengthens a graph's non-branching chain nodes, and the drawing grows with node count.
- Compress lengths pulls both ends towards the graph's mean, so a cut spanning kilobases and single bases fits one drawing at any node count. It uses Bandage's power law, moved onto the axis a pangenome needs it on. The cost is at the top end: a long node no longer looks long.
Proportional is the unmodified Bandage map. Keep it when a figure is about relative length.

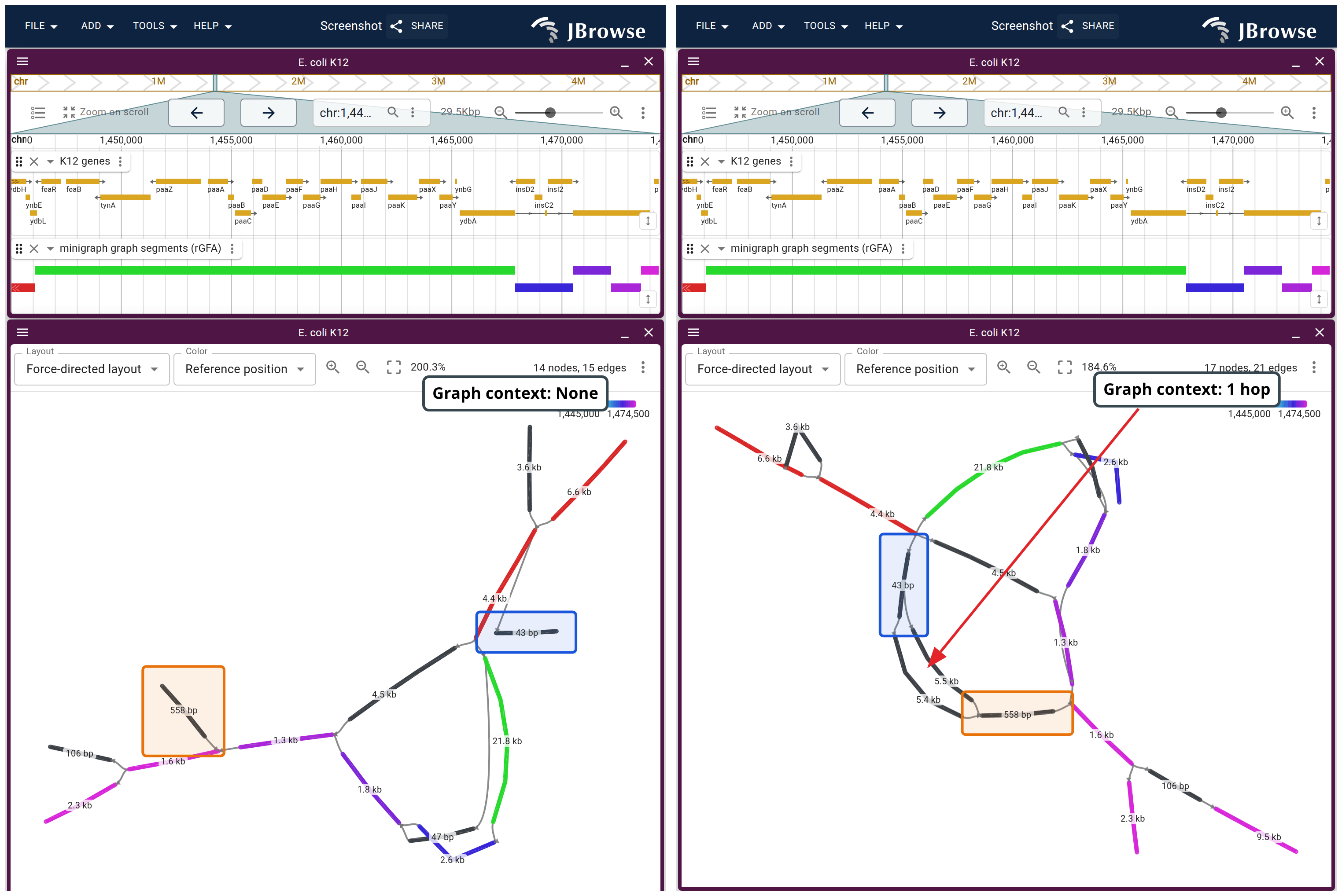

Graph context, in the same Graph settings..., sets how far the cut
follows links past the region, and defaults to 1 hop. It is the in-app
counterpart of odgi extract -c N. An allele's interior segments are indexed
under the sequence of their haplotype, so a reference query never reaches them.
A detour that leaves the backbone before the window and rejoins after it
therefore arrives as two stubs. A hop closes those stubs, at the cost of one
query per off-reference segment already reached. None shows what the region
query alone reaches.
Both halves below share the genes and segments lanes and color each node the same way, so a segment can be found in either. A hop is one step, so the right half still ends in a loose end. The hop expands only over off-reference segments, so it does not pull in the backbone on either side of the window.
A 2 hops setting handles a graph with alleles nested inside alleles. On this window 1 hop already closes the cut. The setting stops at two, because hops only grow a neighbourhood: in HPRC's graph, half of the off-reference segments sit three or more links from the backbone.
An exact cut comes from an index in the anchored layout, which
gfa-to-tabix writes by default and the
HPRC track reads. It files each allele under the reference interval its bubble
hangs from, so one query returns every bubble under the region whole, and
Graph context changes nothing there. The E. coli index in the figure above
is in the older layout, where each segment is filed under its own coordinate.
Color schemes and matching a linear track
The track menu's Color submenu opens on Auto, which is Reference position on any graph with reference coordinates and Uniform on one with none. Three of its schemes are described here:
- Reference position ramps hue over the window the subgraph was cut from, red at its start to magenta at its end, with a key in the top right naming the interval. A segment with no reference coordinate draws flat charcoal, outside the ramp, so a hue always marks a position on the reference. A linear track can reproduce only this scheme exactly, because it is a function of two numbers and a midpoint.
- Stable rank is the rank ladder above: rank 0 blue, then a ramp for the rest.
- Depth is how many paths walk each segment, which is core-versus-accessory at the segment level.

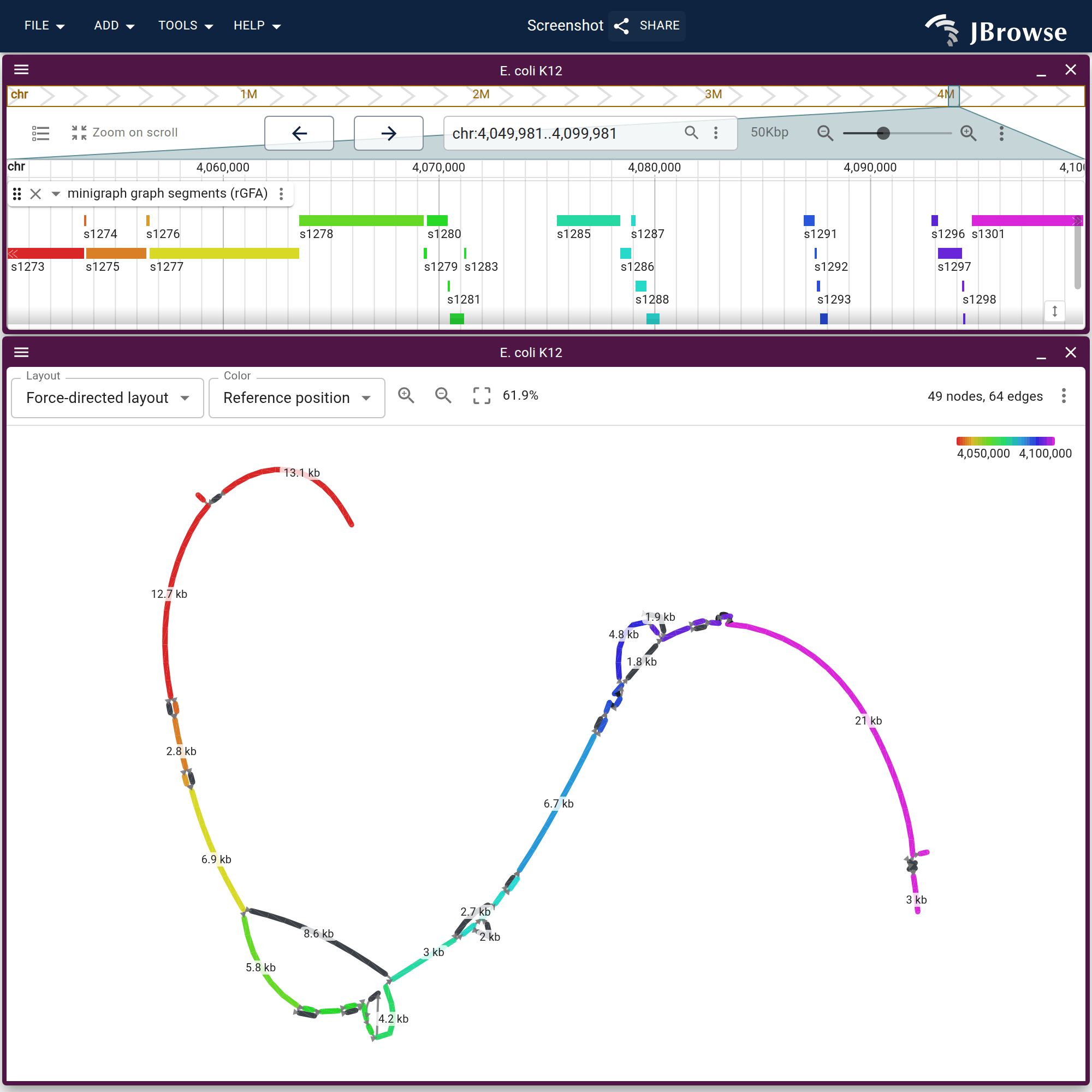

A segments lane shares the graph's hues when its track's color holds the
matching expression. Reference position, over the 50 kb window from 4,050,000
that the figures above are cut from:
Goes in the tracks array of config.json. See Tracks.
{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "aboveBpPerPx": 1000 }
},
"displayDefaults": {
"color": "jexl:feature.rank>0 ? 'rgb(60,65,72)' : `hsl(${min(300, max(0, ((feature.start+feature.end)/2 - 4050000) / 50000 * 300))},70%,50%)`"
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}jbrowse add-track-json '{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "aboveBpPerPx": 1000 }
},
"displayDefaults": {
"color": "jexl:feature.rank>0 ? '\''rgb(60,65,72)'\'' : `hsl(${min(300, max(0, ((feature.start+feature.end)/2 - 4050000) / 50000 * 300))},70%,50%)`"
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "GraphTrack",
"trackId": "ecoli_minigraph_segments",
"name": "minigraph graph: rGFA segments",
"assemblyNames": ["K12"],
"adapter": {
"type": "RgfaTabixAdapter",
"uri": "ecoli_minigraph",
"coarse": { "uri": "ecoli_minigraph.fold10000", "aboveBpPerPx": 1000 }
},
"displayDefaults": {
"color": "jexl:feature.rank>0 ? 'rgb(60,65,72)' : `hsl(${min(300, max(0, ((feature.start+feature.end)/2 - 4050000) / 50000 * 300))},70%,50%)`"
},
"displays": [
{
"type": "LinearGraphDisplay",
"displayId": "ecoli_minigraph_segments-LinearGraphDisplay"
},
{
"type": "LinearBasicDisplay",
"displayId": "ecoli_minigraph_segments-LinearBasicDisplay"
}
]
}ecoli_minigraph, ecoli_minigraph.fold10000 are relative to a config.json. Replace each with its URL or its path on this computer.
The rank branch matches the graph's charcoal for off-reference segments. It
applies only on a lane opened on a contributing assembly, where rank>0 segments
have coordinates.
Stable rank needs no window, so it is the only scheme a hosted config can use.
For the same track, set this color:
jexl:feature.rank==0 ? 'rgb(52,152,219)' : 'rgb(237,137,44)'Hover sync between the graph and the lanes

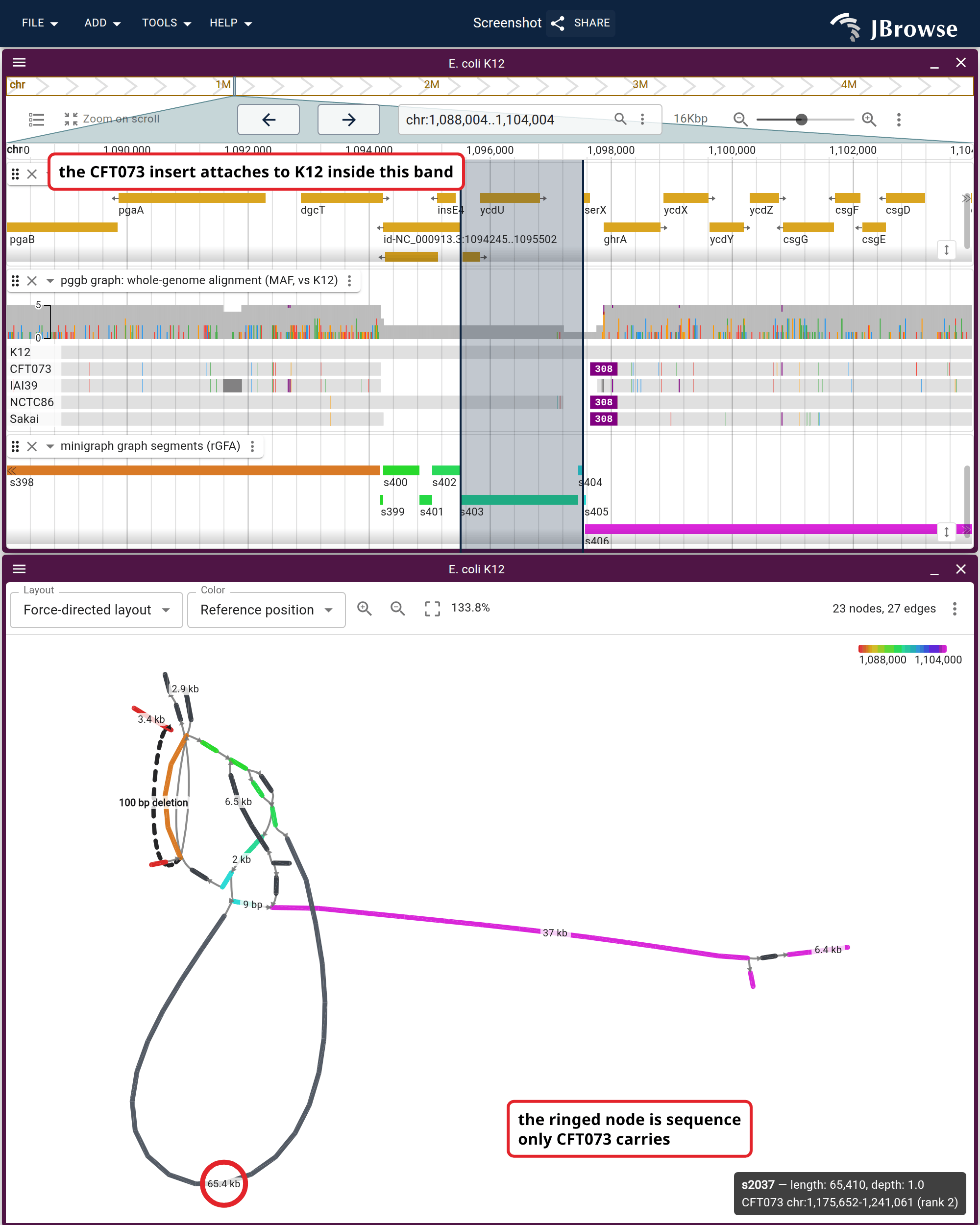

Hover a node, and the lanes above it highlight the reference interval the node occupies; above a force-directed or ordered drawing, the reference strip boxes the same interval and draws a line to the node. Hovering a bubble's label does the same for the bubble's span. This needs no configuration, and it is the only way to locate a rank>0 allele, because those alleles have no reference coordinates.
The reverse direction, a lane's pointer lighting the segment under it, is off by default, since every track's pointer crosses some segment. Show... → Hover highlight → Everything turns it on, along with edge hover. It then works from any track: a gene gives a coordinate, and that is enough, because rGFA segments do not overlap on a stable sequence and one backbone segment covers the coordinate.

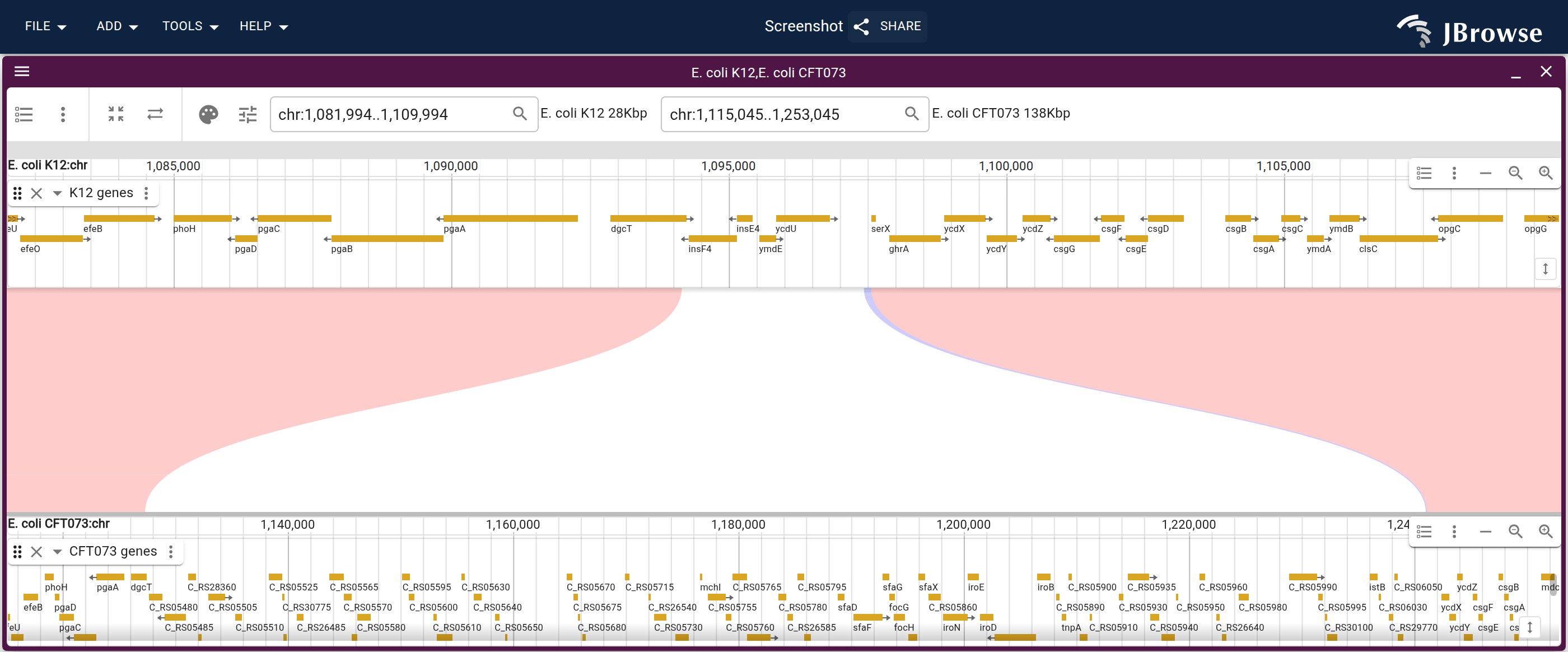

The alignment lane below shows the same event from the other side. CFT073 has no aligned bases across the band, and neither do IAI39 or Sakai, while NCTC86 aligns straight through it.
The lane is a projection onto K12's coordinates. It has a column for every base K12 has and none for a base K12 lacks, so it cannot draw 65 kb that exists only in CFT073. The graph holds both, and the ringed node in the graph track is that 65 kb.
The same event drawn as an alignment is independent evidence. The graph's insertion comes from the graph's segment and link indexes. The alignment below comes from a whole-genome alignment made without the graph.
The all-vs-all tutorial sets the same kind of alignment beside its own graph track.
A hover highlight disappears when the pointer moves. Right-click a node → Highlight in <assembly> writes the same interval into the linear view's highlight list, where it stays. The item names the assembly it will mark, so it reads Highlight in hg38 on an HPRC session.
From a node back to a genome
Every segment records the sequence it came from and its offset in that sequence. With only the reference loaded, that takes you back to the reference: a node's right-click menu offers Open in the reference around the node, which moves the view the graph is drawn in. With the contributing assemblies loaded, the same menu offers Open in the strain that contributed the node, which opens a linear view of that strain framed on the segment's own coordinates. A CFT073 allele opens CFT073 at the offset its tags state.

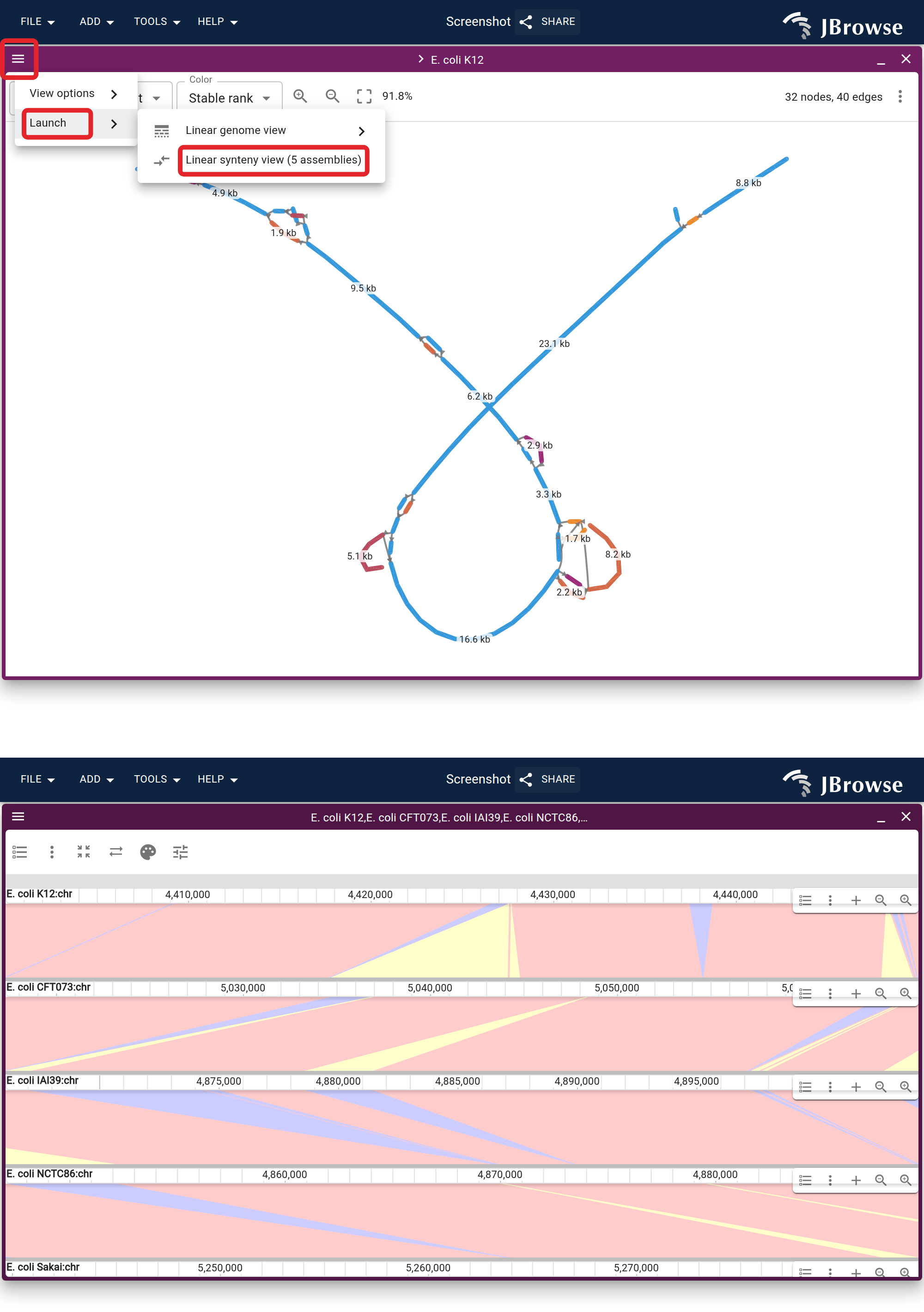

The menu offers only loaded assemblies. The view it opens shows the session's annotation for the assembly it opens on, so each strain opens with its genes. A graph opened as a view of its own has a Launch menu in its view menu that does the same for the whole window: one linear view per contributing strain, and a synteny view of all of them, one panel per strain, which needs a synteny track in the session that aligns the strains. An alignment in a synteny track offers the same jump from its right-click menu, Open <strain> at the matching region, so either view opens a strain the same way.
On HPRC's graph the contributors are its 464 haplotypes, and the config the HPRC page on genomes.jbrowse.org opens declares every one as an assembly under its PanSN name, so a node there offers the haplotype that contributed it. Browsing the HPRC graph opens one this way.
The per-strain entries show each strain's sequence at the locus. K12's
asnW/asnU/asnV tRNA genes are integration sites for E. coli pathogenicity
islands, and in that window the graph gives CFT073 tens of kilobases that the
reference lacks. Clicking CFT073's entry opens that sequence on CFT073's
coordinates, where CFT073's gene track names it: clbA to clbS, the
colibactin island. The coordinates it opens on come from the segments' SN/SO
tags.

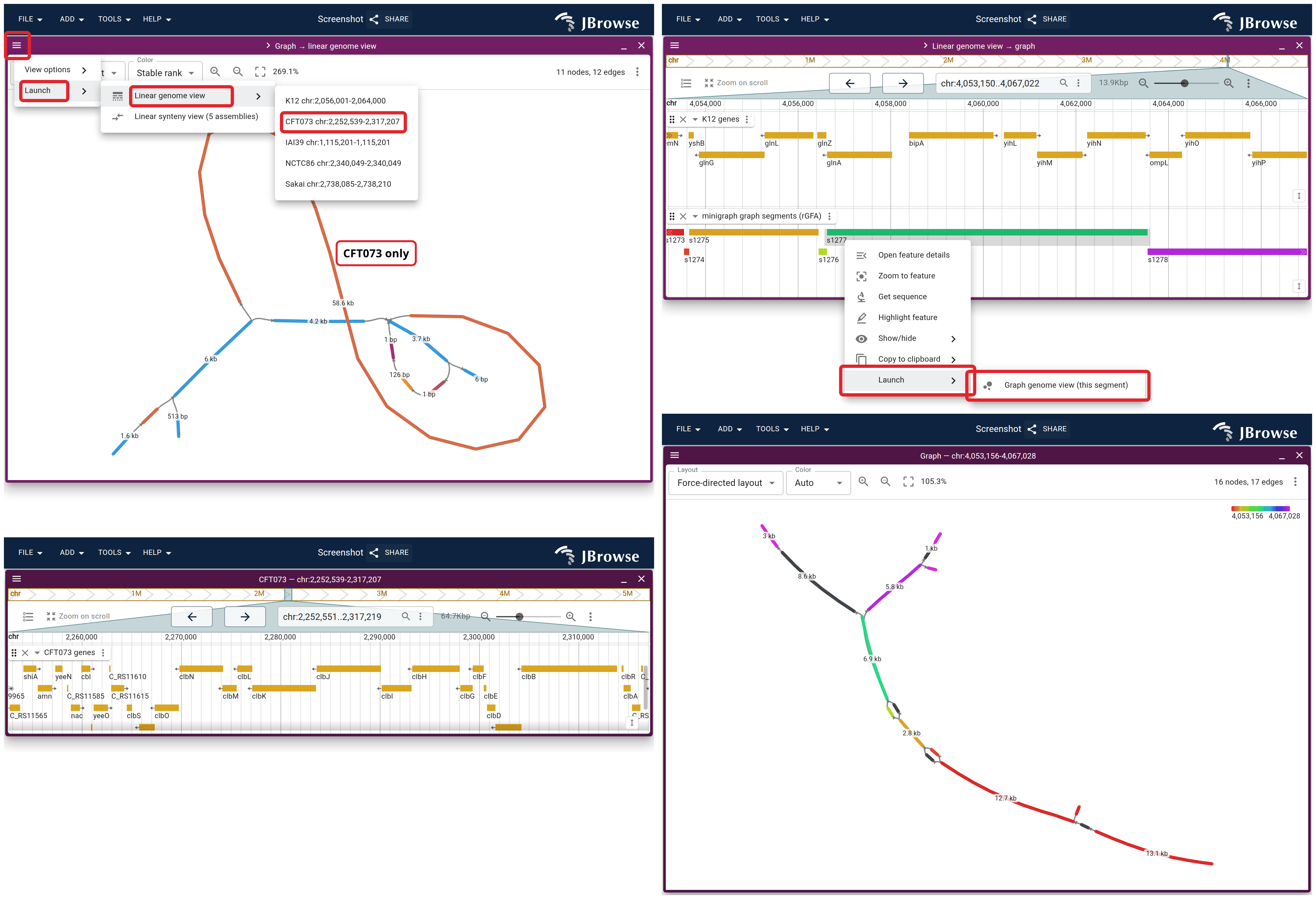

The two halves of the figure below show the same trip in opposite directions. On
the left, the graph opens a linear view of a strain. On the right, a linear view
draws the graph, around segment s1277 of the
Route 1 track. The two use
different colorings for different questions: stable rank shows whose sequence
an arm is, and the reference-position ramp shows where each segment sits.
Which strain takes which path
Requires the source assemblies.
The .segs.bed.gz and .links.bed.gz indexes record what the graph contains.
Which strains have each segment is not in them, because rGFA's SR tag is build
order, not sample. minigraph can recompute the walks by aligning each assembly
back to the graph (minigraph -cxasm --call). The call writes one line per
bubble per sample, with the path that sample takes and its length.
gfa-to-tabix paths projects the
call files of every strain into one tabix-indexed BED, with a row per bubble per
strain:
for s in K12 Sakai CFT073 NCTC86 IAI39; do
minigraph -cxasm --call -t8 ecoli_minigraph.rgfa $s.pansn.fa > $s.call.bed
done
gfa-to-tabix paths -o ecoli_minigraph_paths \
K12.call.bed Sakai.call.bed CFT073.call.bed NCTC86.call.bed IAI39.call.bedThe reference goes first, because its path through a bubble is the reference allele that the other strains are scored against. Load the result with one row per strain:
Goes in the tracks array of config.json. See Tracks.
{
"type": "FeatureTrack",
"trackId": "ecoli_minigraph_paths",
"name": "minigraph graph: per-strain path through each bubble",
"uri": "ecoli_minigraph_paths.bed.gz",
"assemblyNames": ["K12"],
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"rows": {
"field": "strain",
"domain": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
},
"lengthField": "delta"
}
]
}jbrowse add-track-json '{
"type": "FeatureTrack",
"trackId": "ecoli_minigraph_paths",
"name": "minigraph graph: per-strain path through each bubble",
"uri": "ecoli_minigraph_paths.bed.gz",
"assemblyNames": ["K12"],
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"rows": {
"field": "strain",
"domain": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
},
"lengthField": "delta"
}
]
}'In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "FeatureTrack",
"trackId": "ecoli_minigraph_paths",
"name": "minigraph graph: per-strain path through each bubble",
"uri": "ecoli_minigraph_paths.bed.gz",
"assemblyNames": ["K12"],
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"rows": {
"field": "strain",
"domain": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
},
"lengthField": "delta"
}
]
}ecoli_minigraph_paths.bed.gz is relative to a config.json. Replace it with its URL or its path on this computer.
rowsputs each strain in a separate row,domainin the order givenlengthFieldsets the length channel. Without it, a large insertion and a 1 bp one draw as the same box. Pointed at the BED's signeddeltacolumn, it draws the insertion and deletion marks the alignments track uses
A row covers only the bubbles under it. --call emits a record per bubble and
nothing between bubbles, so over 200 kb of this graph the bubbles cover about a
tenth of the frame and a row is mostly blank. Read a row as marks at the sites
that vary. The User guide: MAF track is the per-base lane.
Each row also describes that bubble across all the strains. The popup shows those columns. A jexl expression over them, set from Edit filters on the track's default display, narrows the track to the sites you want. The multi-row display has no filter setting.
| Column | What it is | Use it for |
|---|---|---|
alleles | distinct paths anyone actually takes here | jexl:feature.alleles>2 cuts to the multi-allelic sites |
nonRef | how many strains leave the reference path | jexl:feature.nonRef==1 finds the singletons, ==4 the sites K12 alone lacks |
strand | the orientation the strain's contig aligned in | jexl:feature.strand==-1 selects inverted alleles |
Most bubbles here are biallelic. A tail of bubbles has a different allele in all
five strains, and those are the hypervariable loci at the end of the
allele-frequency spectrum. strand picks out inversions, which on this graph
are all IAI39's and fall in long contiguous runs. Clustering → Cluster rows by
similarity reorders the rows by which alleles each strain has. On five strains
the clustering is a sanity check. On a few hundred haplotypes it is the
analysis.
gfatools bubble reports top-level bubbles only. On this graph they never
overlap, so one flat lane per strain is complete. The lane loses variation
nested inside a bubble, so a 113 kb allele is one block. The
variants projection
includes that nested tier.
Alleles from the rGFA alone
Someone else's rGFA usually arrives without the assemblies it was built from, so
the re-mapping above is not possible. The two indexes still record every allele
in the graph, because each L-line row records both of its endpoints in full. A
link between two backbone segments that leaves a coordinate gap is a deletion.
A link from the backbone into a rank>0 segment enters an allele, and the
allele's length is the total of the segments it walks before rejoining.
gfa-to-tabix alleles does that
walk and needs only the two files, indexed with --layout contig:
gfa-to-tabix alleles ecoli_minigraph # -> ecoli_minigraph.alleles.bed.gzEach row describes an allele against the reference it replaces, which makes the
row an alignment. The BED therefore has a CIGAR column (2062M63348I), and an
alignments track reads it directly:
Goes in the tracks array of config.json. See Tracks.
{
"type": "AlignmentsTrack",
"trackId": "ecoli_minigraph_alleles",
"name": "minigraph graph: allele inventory (from the rGFA alone)",
"assemblyNames": ["K12"],
"adapter": {
"type": "BedTabixAdapter",
"uri": "ecoli_minigraph.alleles.bed.gz"
}
}jbrowse add-track ecoli_minigraph.alleles.bed.gz \
--trackId ecoli_minigraph_alleles \
--name "minigraph graph: allele inventory (from the rGFA alone)" \
--assemblyNames K12 \
--trackType AlignmentsTrack \
--load copyIn JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:
{
"type": "AlignmentsTrack",
"trackId": "ecoli_minigraph_alleles",
"name": "minigraph graph: allele inventory (from the rGFA alone)",
"assemblyNames": ["K12"],
"adapter": {
"type": "BedTabixAdapter",
"uri": "ecoli_minigraph.alleles.bed.gz"
}
}ecoli_minigraph.alleles.bed.gz is relative to a config.json. Replace it with its URL or its path on this computer.
An AlignmentsTrack works over a BED because the display draws any feature that
has a CIGAR. The alleles pack into rows, and each draws the same insertion
marker and deletion bar a read does, at its real size. Without the CIGAR, a 63
kb allele draws as a 1 bp feature with the size shown only in its label.
The allele size is measured, but the position inside the anchor span is not. A bubble does not record where in the span its indel sits, so by convention the CIGAR puts the indel at the end. Over a 2 kb anchor the offset is invisible, and over a 100 kb anchor the position is approximate.
The popup shows altLen, nested, discoveryRank and the traversed
segments. Two filters are useful. Set both from Edit filters on the same
file loaded as a FeatureTrack, whose default display has that menu item:
jexl:abs(feature.delta)>10000scales this lane to HPRC's two hundred thousand alleles. Filter onabs, sincedeltais negative for a deletion.jexl:feature.nested==0before reading lengths in bulk.nestedmarks a row whose walk passed a branch point, so itsdeltais one of several routes through a nested bubble.
This route cannot tell you which assemblies have an allele. discoveryRank and
firstSeenIn name the first assembly to contribute a segment, because
minigraph collapses shared sequence. An allele that four strains share is
credited to whichever strain was added first. Rank records build order, so a
high rank does not mean the earlier assemblies lacked the sequence. Use the
per-strain route when you have the assemblies.
See also
- Tutorial: Pangenome (hosting your own graph)
- Tutorial: Pangenome (pggb)
- Tutorial: Pangenome (HPRC) part 1: the graph's alleles and the haplotypes that have them
- Tutorial: Pangenome (HPRC) part 2: haplotypes against each other
- Tutorial: Pangenome (mouse)
- Tutorial: Pangenome (Minigraph-Cactus)
- User guide: Linear synteny view
- User guide: Dotplot view
- User guide: Alignments track
- Config guide: Configuring plugins
- PANGENOME_GRAPHS.md — what rGFA and plain GFA can and cannot say about coordinates and which haplotypes have a segment, the one-node-per-bubble level of detail, and the decisions here that look like bugs
