Pangenome (HPRC) part 6, mitochondrial lineages from the graph

JBrowse v5 beta

The tutorials target the JBrowse v5 beta, and the v4.3.0 release on the download page lacks some of what they show. To install the beta of JBrowse Web, run npm install -g @jbrowse/cli@next, then jbrowse create jbrowse2 --branch v5.0.0-beta.8. Desktop beta builds are coming soon.

Mitochondrial DNA passes from mother to child without recombining, so its variants stack up into lineages, and those lineages trace where people's maternal ancestors lived. The Human Pangenome Reference Consortium's graph of the mitochondrial chromosome holds 234 assembled copies of it, every base of every copy. We read one well-known variant off that graph, a 9 bp deletion carried across East Asia and the Americas, then turn the whole graph into a table of who carries what and let clustering recover the lineages from it.

Prerequisites

zstd
odgi and vg
htslib (bgzip, tabix)
Haplogrep 3 (haplogrep3), which needs Java
python3
A running JBrowse instance (the web quickstart or the desktop quickstart)

Where the data comes from

HPRC release 2 publishes its pggb graph one chromosome to a file.

the mitochondrial graph, zstd-compressed GFA: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/pggb/gfas/by-chromosome/20251014_hprc25272.p98-k311.chrM.gfa.zst
the population of each 1000 Genomes sample, which most of the release's donors are: https://ftp.1000genomes.ebi.ac.uk/vol1/ftp/data_collections/1000G_2504_high_coverage/20130606_g1k_3202_samples_ped_population.txt
hg38's RefSeq genes, rehosted: https://jbrowse.org/ucsc/hg38/ncbiRefSeq.gff.gz

The graph plugin

The graph view comes from the GraphGenomeView plugin, which part 1 installs. The view opens a GFA file directly, which is how the graph loads here.

One site as a graph

The end of the COX2 gene is followed by two copies of a 9 bp motif, and a deletion of one copy was among the first mitochondrial markers used to follow people across the Pacific (Redd et al. 1995). odgi cuts 200 bp around it out of the graph, along GRCh38's path:

zstd -dc chrM.gfa.zst > chrM.gfa
odgi build -g chrM.gfa -o chrM.og
# -r is a range on one path, here the reference's
# -c 0 takes the window's own nodes and no neighbours past it
odgi extract -i chrM.og -o window.og -r 'GRCh38#0#chrM:8200-8400' -c 0
odgi view -i window.og -g > chrM_window.gfa

Open the file from the graph view's import form and set Color to Depth, or open the session, which puts the same 200 bp of hg38 above it:

Config file

{
  "defaultSession": {
    "name": "The 9 bp deletion site as a graph",
    "views": [
      {
        "type": "LinearGenomeView",
        "assembly": "hg38",
        "loc": "chrM:8,200-8,400",
        "tracks": ["hg38_ncbiRefSeq_ucsc"]
      },
      {
        "type": "GraphGenomeView",
        "displayName": "chrM 8,200-8,400, all 234 haplotypes",
        "gfaLocation": { "uri": "test_data/chrm/chrM_window.gfa" },
        "layoutMode": "force",
        "referencePath": "GRCh38",
        "colorScheme": "depth",
        "bubbleSpread": "open",
        "paneHeight": 420
      }
    ]
  }
}

CLI (set-default-session)

jbrowse set-default-session --session - << 'EOF'
{
  "name": "The 9 bp deletion site as a graph",
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chrM:8,200-8,400",
      "tracks": ["hg38_ncbiRefSeq_ucsc"]
    },
    {
      "type": "GraphGenomeView",
      "displayName": "chrM 8,200-8,400, all 234 haplotypes",
      "gfaLocation": { "uri": "test_data/chrm/chrM_window.gfa" },
      "layoutMode": "force",
      "referencePath": "GRCh38",
      "colorScheme": "depth",
      "bubbleSpread": "open",
      "paneHeight": 420
    }
  ]
}
EOF

URL

Open this session in JBrowse

Depth colors a node by how many of the 234 paths walk it, so the yellow line is sequence every haplotype shares. Most bubbles along it are single-base substitutions a few haplotypes carry. The labelled loop is the motif: the reference walks its 9 bp, and the haplotypes that lack it take the edge straight across.

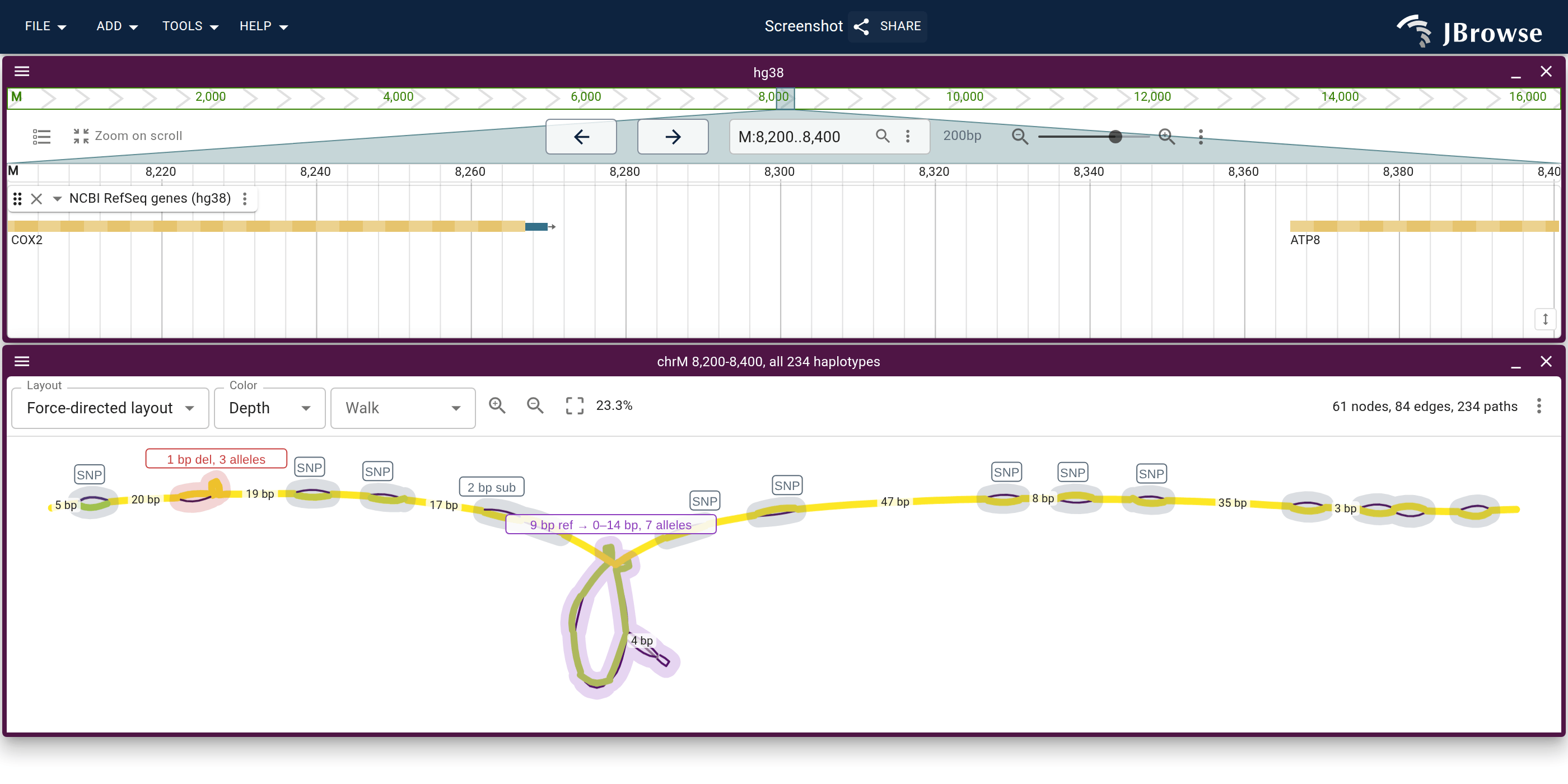

The end of COX2 and the start of ATP8 on hg38, above the same 200 bp of the mitochondrial graph, colored by how many of the 234 haplotypes walk each node. The loop under the labelled bubble is the 9 bp motif, which the haplotypes carrying the deletion bypass. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Who carries it

The graph view shows that a bypass exists. Which haplotypes take it is a table, and vg deconstruct writes one from the graph, a VCF record per bubble with a genotype column per haplotype:

# -P names the sample whose paths are the reference
# -a writes every bubble, including the ones nested inside another
vg deconstruct -P GRCh38 -a chrM.gfa > chrM.deconstruct.vcf

The script keeps the top-level bubbles (LV=0) and writes each genotype as the single haploid call a mitochondrial genotype is. The track's samplesTsvLocation points at a table giving each haplotype its 1000 Genomes population:

Config file

{
  "type": "VariantTrack",
  "trackId": "hprc_chrM_graph_variants",
  "name": "HPRC chrM graph, top-level sites (vg deconstruct)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "chrM.vcf.gz",
    "samplesTsvLocation": { "uri": "chrM_samples.tsv" }
  }
}

CLI (add-track-json)

jbrowse add-track-json '{
  "type": "VariantTrack",
  "trackId": "hprc_chrM_graph_variants",
  "name": "HPRC chrM graph, top-level sites (vg deconstruct)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "chrM.vcf.gz",
    "samplesTsvLocation": { "uri": "chrM_samples.tsv" }
  }
}'

JBrowse Desktop

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "VariantTrack",
  "trackId": "hprc_chrM_graph_variants",
  "name": "HPRC chrM graph, top-level sites (vg deconstruct)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "chrM.vcf.gz",
    "samplesTsvLocation": { "uri": "chrM_samples.tsv" }
  }
}

chrM.vcf.gz, chrM_samples.tsv are relative to a config.json. Replace each with its URL or its path on this computer.

The session groups the rows by superpopulation and draws them in the phased mode, which paints a site's first alternate allele apart from its others. At this site the first alternate allele is the deletion:

Config file

{
  "defaultSession": {
    "name": "The 9 bp deletion by population",
    "views": [
      {
        "type": "LinearGenomeView",
        "assembly": "hg38",
        "loc": "chrM:8,255-8,300",
        "tracks": [
          "hg38_ncbiRefSeq_ucsc",
          {
            "trackId": "hprc_chrM_graph_variants",
            "type": "LinearMultiSampleVariantDisplay",
            "height": 520,
            "renderingMode": "phased",
            "facet": {
              "field": "superpopulation",
              "domain": ["AFR", "EUR", "SAS", "EAS", "AMR", "other"]
            },
            "rowColor": "superpopulation"
          }
        ]
      }
    ]
  }
}

CLI (set-default-session)

jbrowse set-default-session --session - << 'EOF'
{
  "name": "The 9 bp deletion by population",
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chrM:8,255-8,300",
      "tracks": [
        "hg38_ncbiRefSeq_ucsc",
        {
          "trackId": "hprc_chrM_graph_variants",
          "type": "LinearMultiSampleVariantDisplay",
          "height": 520,
          "renderingMode": "phased",
          "facet": {
            "field": "superpopulation",
            "domain": ["AFR", "EUR", "SAS", "EAS", "AMR", "other"]
          },
          "rowColor": "superpopulation"
        }
      ]
    }
  ]
}
EOF

URL

Open this session in JBrowse

The deletion's rows sit in the East Asian and admixed American groups. The South Asian group has none, and the African and European groups one each.

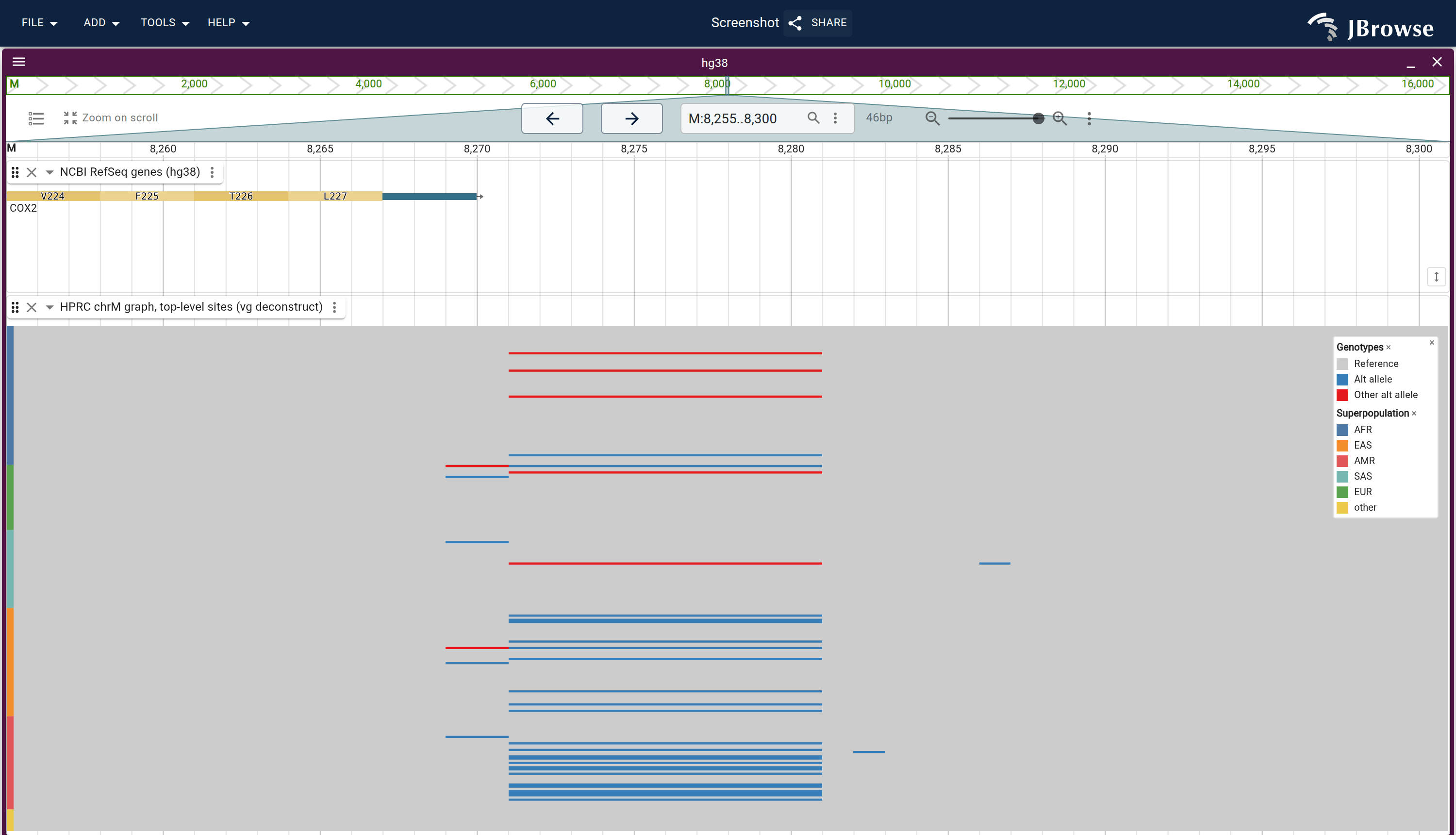

The same site as one row per haplotype, grouped by 1000 Genomes superpopulation, under the end of COX2. Blue rows carry the 9 bp deletion and red rows another allele of the motif. The deletion's rows sit in the East Asian and admixed American groups. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Every site at once

The same track over the whole chromosome is 1,378 sites by 233 haplotypes. Type chrM into the location box, open the track menu and run Clustering → Cluster rows by genotype..., or open the session, which runs it on load:

Config file

{
  "defaultSession": {
    "name": "Mitochondrial haplotypes clustered by genotype",
    "views": [
      {
        "type": "LinearGenomeView",
        "assembly": "hg38",
        "loc": "chrM:1-16,569",
        "tracks": [
          {
            "trackId": "hprc_chrM_graph_variants",
            "type": "LinearMultiSampleVariantDisplay",
            "height": 620,
            "runClustering": true,
            "rowColor": "branch"
          }
        ]
      }
    ]
  }
}

CLI (set-default-session)

jbrowse set-default-session --session - << 'EOF'
{
  "name": "Mitochondrial haplotypes clustered by genotype",
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chrM:1-16,569",
      "tracks": [
        {
          "trackId": "hprc_chrM_graph_variants",
          "type": "LinearMultiSampleVariantDisplay",
          "height": 620,
          "runClustering": true,
          "rowColor": "branch"
        }
      ]
    }
  ]
}
EOF

URL

Open this session in JBrowse

The sidebar colors each row by where an outside tool puts it. Haplogrep assigns a haplotype's variants to a named lineage of PhyloTree, the reference mitochondrial tree, and the branch column of the sample table holds the top branch each lineage belongs to: L0 to L5, the African branches, then M and N, which leave L3, and R, which leaves N (van Oven and Kayser 2009).

haplogrep3 classify --tree phylotree-rcrs@17.3 \
  --in chrM.haplogrep.vcf --out haplogroups.tsv

The clustering saw genotypes and no lineage names, and its clusters come out as blocks of one color. The L branches split off first and carry the most differences from the reference, which is itself a European sequence of branch R, where the rows at the bottom are nearly empty. The band of sites at the right edge is the control region, the chromosome's non-coding stretch.

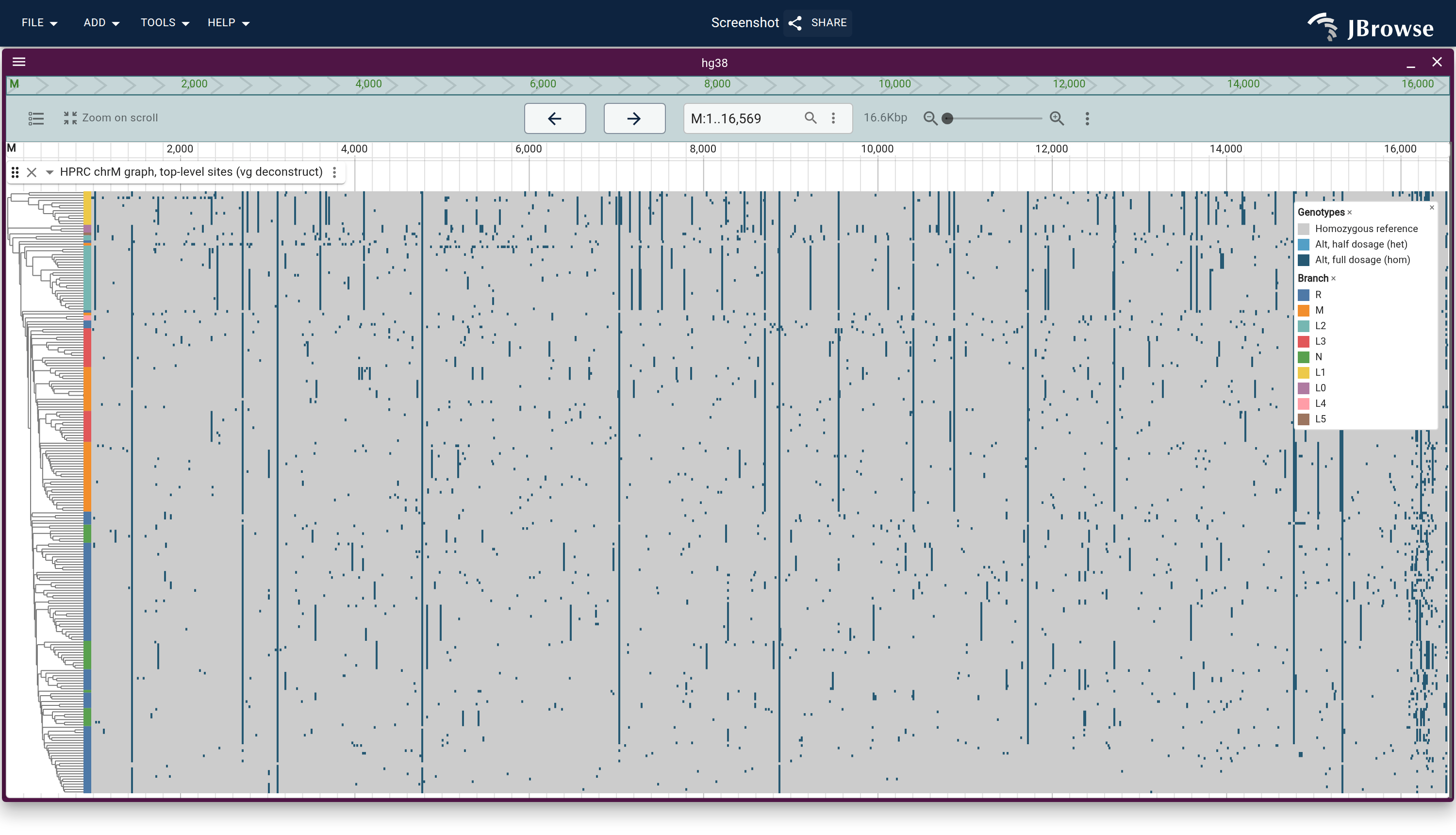

All 233 mitochondrial haplotypes of the graph across the whole chromosome, clustered by genotype, with each row colored by the branch of the mitochondrial tree Haplogrep assigned it. The clusters are blocks of a single branch, the African L branches at the top. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Check it against the lineages

The deletion is the defining marker of haplogroup B (PhyloTree), so the two tables should agree. Count the haplotypes that carry it by the lineage Haplogrep gave them:

python3 - <<'EOF'
import csv, gzip, collections
lineage = {r['name']: r['haplogroup'] for r in csv.DictReader(open('chrM_samples.tsv'), delimiter='\t')}
for line in gzip.open('chrM.vcf.gz', 'rt'):
    f = line.rstrip('\n').split('\t')
    if line.startswith('#CHROM'):
        samples = f[9:]
    elif not line.startswith('#') and f[1] == '8271':
        deletion = [str(i + 1) for i, alt in enumerate(f[4].split(',')) if len(f[3]) - len(alt) == 9]
        carriers = [s for s, gt in zip(samples, f[9:]) if gt in deletion]
print(collections.Counter(lineage[s][:1] for s in carriers))
print(sum(h.startswith('B') for h in lineage.values()), 'haplotypes in B')
EOF

Lineage of a deletion carrier	Haplotypes
B	21
T, R, M and L2	1 each

All 21 haplotypes Haplogrep calls B carry the deletion. The other four carriers sit on unrelated lineages, where the same motif was lost again (Soodyall et al. 1996).

Reproduce it end to end

The script fetches the graph, cuts the window, deconstructs the graph into the VCF, classifies every haplotype and writes the sample table and the config; see Prerequisites. GFA, REFERENCE and WINDOW point it at another graph.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_chrm_graph.sh
bash build_chrm_graph.sh

References

HPRC release 2, the release whose mitochondrial graph this page reads.
Redd AJ, et al. Evolutionary history of the COII/tRNALys intergenic 9 base pair deletion in human mitochondrial DNAs from the Pacific. Mol Biol Evol (1995). https://doi.org/10.1093/oxfordjournals.molbev.a040240
Soodyall H, et al. mtDNA control-region sequence variation suggests multiple independent origins of an "Asian-specific" 9-bp deletion in sub-Saharan Africans. Am J Hum Genet (1996). https://pubmed.ncbi.nlm.nih.gov/8644719/
van Oven M, Kayser M. Updated comprehensive phylogenetic tree of global human mitochondrial DNA variation. Hum Mutat (2009). https://doi.org/10.1002/humu.20921
Schönherr S, Weissensteiner H, Kronenberg F, Forer L. Haplogrep 3, an interactive haplogroup classification and analysis platform. Nucleic Acids Res (2023). https://doi.org/10.1093/nar/gkad284
Garrison E, et al. Building pangenome graphs. Nat Methods (2024). https://doi.org/10.1038/s41592-024-02430-3
