Synteny from a pangenome graph (eight HPRC haplotypes)

TL;DR: we look at one human locus across eight assembled haplotypes from the Human Pangenome Reference Consortium, whole genome, without running an aligner. The consortium's pangenome graph carries every haplotype as a walk through shared nodes, so each haplotype's pairwise alignment to the reference is already inside it: a small converter walks the GFA once and unpacks each haplotype's alignment to GRCh38 into PAF, jbrowse make-pif indexes the result, and each haplotype becomes a lane under the reference carrying the consortium's own gene annotation of it. At the complement factor H cluster, half the lanes carry a deletion that removes two genes, and that is where the page ends.

Prerequisites

pigz (or gzip), to stream the graph
htslib (bgzip, tabix)
python3
The JBrowse CLI (jbrowse), for make-pif
A running JBrowse instance (the web quickstart or the desktop quickstart)

Where the data comes from

HPRC release 2, whose Minigraph-Cactus graph is built from a multiple alignment that the release publishes projected onto GRCh38, beside a CAT gene annotation of every assembly.

the graph's alignment, projected onto GRCh38 and indexed by locus: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/v2.0/hprc-v2.0-mc-grch38/hprc-v2.0-mc-grch38.full.taf.gz
the CAT gene annotation index, one GFF3 per haplotype: https://raw.githubusercontent.com/human-pangenomics/hprc_intermediate_assembly/main/data_tables/annotation/cat/cat_genes_hprc_r2_v1.3.index.csv
GRCh38's chromosome lengths, which bound each chromosome's read of the alignment: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/bigZips/hg38.chrom.sizes
hg38's RefSeq genes, rehosted: https://jbrowse.org/ucsc/hg38/ncbiRefSeq.gff.gz
the finished index, chromosome lengths, annotations and config, rehosted so the lanes load without rerunning the pipeline: https://jbrowse.org/demos/hprc_multiway/config.json, with the build recorded beside it at https://jbrowse.org/demos/hprc_multiway/README.txt

The graph's own alignment, unpacked

The primate page and the E. coli page fill their lanes from a gene table, joining genes by name, so a lane holds genes and nothing between them. An alignment file places sequence: every base of the reference window that a haplotype aligns has a position on that haplotype's own contig, and a gene the haplotype lacks shows as the alignment stopping and resuming past it.

The alignment here is the graph itself. Minigraph-Cactus writes every haplotype into the graph as a walk through its nodes, and two walks that pass through one node carry identical sequence there. A haplotype's pairwise alignment to GRCh38 is therefore its walk read against the reference walk: the nodes both traverse are matches, the nodes only one of them traverses between two shared ones are the indels and substitutions. Nothing is aligned on this page; what the lanes draw is the graph.

The consortium also publishes a separate all-vs-GRCh38 PAF of the same haplotypes, produced by a different aligner, and the CFH panel on the pangenome page slices its lanes out of that file. This page does not use it. One input is what makes the build reproducible: the graph, read as published, with no aligner run and no choice of aligner settings to record.

gfa_to_pairwise_paf.py streams the GFA once and keeps only the reference walks and the haplotypes asked for; every other walk is skipped unparsed, which is what makes the whole graph tractable on a laptop. For each haplotype it chains the shared nodes in reference order into records, one per run that stays on one strand and skips at most --max-gap private bases on either side, and writes an =/X/I/D CIGAR off the node lengths with PanSN names, which is what make-pif and the adapter below expect. A walk states where a contig's piece starts and ends but not the contig's full length, so --contig-lengths takes the assemblies' .fai files and --chrom-sizes-dir writes each haplotype's contigs and lengths, which is all an assembly needs when its lane never reads sequence:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/gfa_to_pairwise_paf.py
pigz -dc hprc-v2.0-mc-grch38.gfa.gz \
  | python3 gfa_to_pairwise_paf.py --reference GRCh38#0 \
      --queries HG01109#1,HG00099#1 --max-gap 10000 \
      --contig-lengths contig_lengths.fai \
      --chrom-sizes-dir sizes/ > hprc_multiway_gfa.paf

The converter reports on stderr, per haplotype, the walks it read, the records it wrote and the bases it aligned, and a haplotype that wrote none is a wrong sample spelling. The graph is written one chromosome at a time with the reference walk first, which is the order the converter expects; a graph whose haplotype walks precede the reference's wants --hold-queries, which it says when it meets one. make-pif sorts, bgzips and indexes the PAF with a fine tier for the per-base CIGARs and a coarse one for whole-chromosome zooms:

jbrowse make-pif hprc_multiway_gfa.paf --csi --out hprc_multiway_gfa.pif.gz

The same script unpacks the alignment a second way, from the graph's published projection onto GRCh38 instead of the graph file, with SOURCE=taf: taffy streams a chromosome of the TAF as MAF and maf_to_pairwise_paf.py chains each haplotype's rows. The two routes agree on the reference covered to within a tenth of a percent and put the deletion below at the same coordinate, which is the check that either is reading the graph faithfully.

The assemblies and their gene models

Each haplotype is an assembly of its chromosome lengths alone, a ChromSizesAdapter over the file the converter wrote, since the lanes never read sequence. Its gene track is the release's CAT annotation of that assembly, whole genome, from the index above: the GFF3 sorted, bgzipped and tabix-indexed as in the web quickstart, with the intron and codon rows dropped and a handful of multi-megabase "genes" CAT's lift-over pass left behind removed. A lane finds its gene models through the session, so the track only has to exist under the lane's assembly name.

The alignment track

One SyntenyTrack names hg38 and every haplotype, and its adapter is an MultiGenomeIndexedPAFAdapter over the index. The PAF names every sequence PanSN-style, HG01109#1#<contig>, while the assemblies are named HG01109.1, and assemblyNameToPanSN is the map between the two, with GRCh38 as GRCh38#0. The list below is cut to three haplotypes for the page; the hosted config carries all eight.

Config file CLI (add-track-json) JBrowse Desktop

{
  "type": "SyntenyTrack",
  "trackId": "hprc_multiway",
  "name": "HPRC haplotypes vs GRCh38 (hg38 + 8 haplotypes, unpacked from the release 2 graph)",
  "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
  "adapter": {
    "type": "MultiGenomeIndexedPAFAdapter",
    "uri": "hprc_multiway_gfa.pif.gz",
    "csi": true,
    "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
    "assemblyNameToPanSN": {
      "hg38": "GRCh38#0",
      "HG01109.1": "HG01109#1",
      "HG01123.1": "HG01123#1",
      "HG00099.1": "HG00099#1"
    }
  },
  "displays": [
    {
      "type": "MultiWaySyntenyDisplay",
      "displayId": "hprc_multiway-MultiWaySyntenyDisplay",
      "height": 600
    }
  ]
}

jbrowse add-track-json '{
  "type": "SyntenyTrack",
  "trackId": "hprc_multiway",
  "name": "HPRC haplotypes vs GRCh38 (hg38 + 8 haplotypes, unpacked from the release 2 graph)",
  "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
  "adapter": {
    "type": "MultiGenomeIndexedPAFAdapter",
    "uri": "hprc_multiway_gfa.pif.gz",
    "csi": true,
    "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
    "assemblyNameToPanSN": {
      "hg38": "GRCh38#0",
      "HG01109.1": "HG01109#1",
      "HG01123.1": "HG01123#1",
      "HG00099.1": "HG00099#1"
    }
  },
  "displays": [
    {
      "type": "MultiWaySyntenyDisplay",
      "displayId": "hprc_multiway-MultiWaySyntenyDisplay",
      "height": 600
    }
  ]
}'

In JBrowse Desktop, or in any running JBrowse Web session, open a view on this track’s assembly, then File → Open track..., choose Add track from pasted JSON, and paste:

{
  "type": "SyntenyTrack",
  "trackId": "hprc_multiway",
  "name": "HPRC haplotypes vs GRCh38 (hg38 + 8 haplotypes, unpacked from the release 2 graph)",
  "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
  "adapter": {
    "type": "MultiGenomeIndexedPAFAdapter",
    "uri": "hprc_multiway_gfa.pif.gz",
    "csi": true,
    "assemblyNames": ["hg38", "HG01109.1", "HG01123.1", "HG00099.1"],
    "assemblyNameToPanSN": {
      "hg38": "GRCh38#0",
      "HG01109.1": "HG01109#1",
      "HG01123.1": "HG01123#1",
      "HG00099.1": "HG00099#1"
    }
  },
  "displays": [
    {
      "type": "MultiWaySyntenyDisplay",
      "displayId": "hprc_multiway-MultiWaySyntenyDisplay",
      "height": 600
    }
  ]
}

Every record aligns one haplotype to GRCh38, so the file is a star with the reference at the centre, which is the shape a lane stack anchored on hg38 reads. The ribbons between two adjacent haplotype lanes are composed through the reference coordinates both share.

The CFH cluster, eight haplotypes

The eight are the panel the pangenome page picks out of the release's callset at the CFHR3/CFHR1 deletion: samples homozygous for the deletion and samples homozygous reference, kept only where the haplotype's own CAT annotation agrees with the genotype it was picked on. HG01109, HG01123, HG01960 and HG02055 carry it; HG00097, HG00099, HG00128 and HG00133 do not. That page draws the panel from a gene table joined on the CAT gene names over the one window; here the same haplotypes are placed by the graph's alignment, whole genome.

Config file CLI (set-default-session) URL

{
  "defaultSession": {
    "name": "The CFH cluster across eight HPRC haplotypes",
    "views": [
      {
        "type": "LinearGenomeView",
        "assembly": "hg38",
        "loc": "chr1:196,700,000-197,000,000",
        "tracks": [
          "hg38_ncbiRefSeq_ucsc",
          {
            "trackId": "hprc_multiway",
            "type": "MultiWaySyntenyDisplay",
            "height": 600
          }
        ]
      }
    ]
  }
}

jbrowse set-default-session --session - << 'EOF'
{
  "name": "The CFH cluster across eight HPRC haplotypes",
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "hg38",
      "loc": "chr1:196,700,000-197,000,000",
      "tracks": [
        "hg38_ncbiRefSeq_ucsc",
        {
          "trackId": "hprc_multiway",
          "type": "MultiWaySyntenyDisplay",
          "height": 600
        }
      ]
    }
  ]
}
EOF

Open this session in JBrowse

Opened on hg38 over the cluster, each lane's header names the haplotype, the contig it sits on and where on it the window lands, and every lane draws its own CAT gene models at its own coordinates. In a non-carrier lane the alignment runs the whole window and the lane's annotation holds every gene the reference does. In a carrier lane the alignment stops at the start of CFHR3 and resumes past CFHR1, the ribbons leave that stretch of the reference unplaced, and the lane's own annotation has no model there to draw. The flanking genes, CFH on one side and CFHR4 onward on the other, place in every lane.

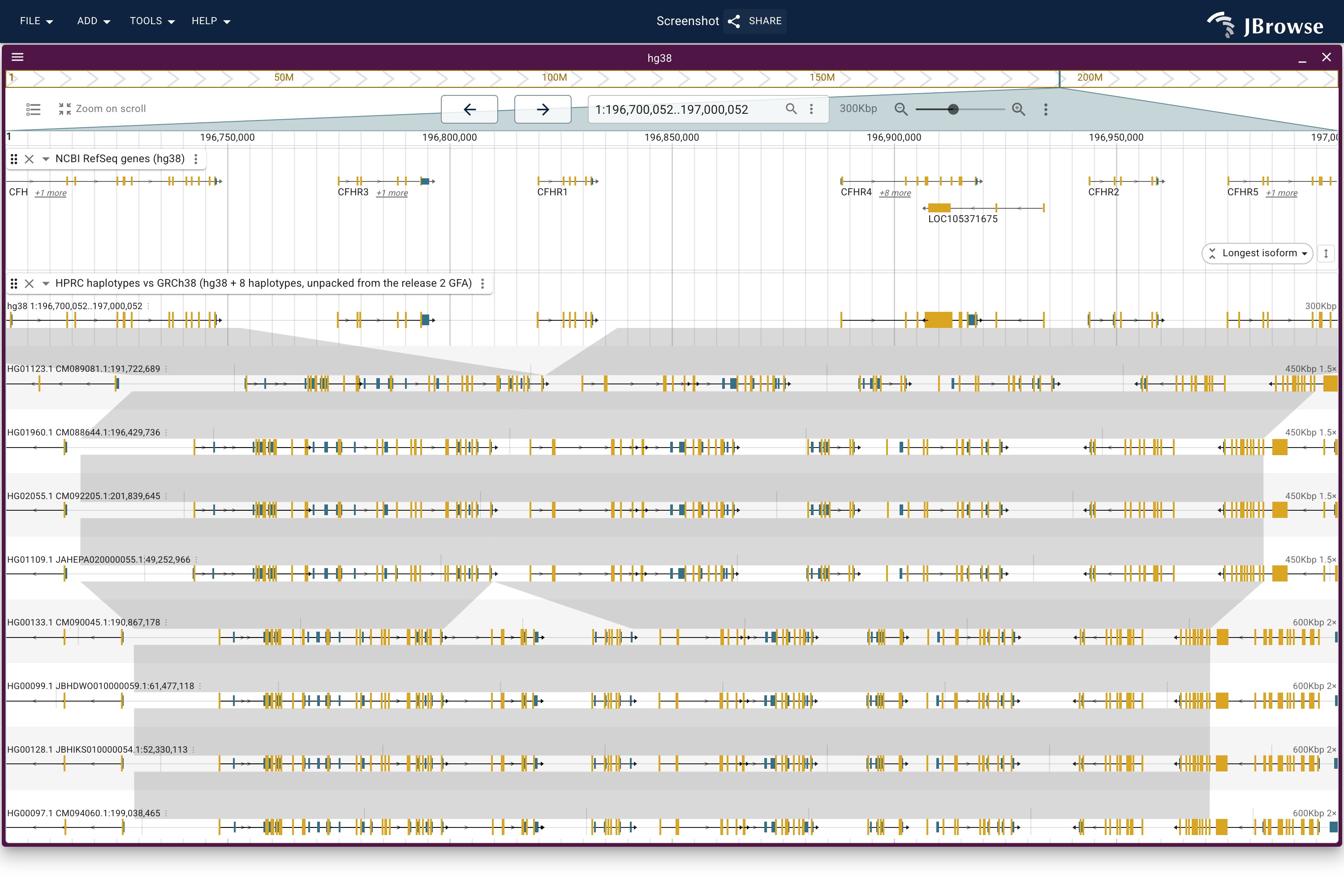

The CFH cluster on hg38 over eight HPRC haplotype lanes placed by the graph's own alignment, each lane drawing its own CAT gene models on its own contig. The non-carrier lanes align straight through; in the carrier lanes the alignment stops before CFHR3 and resumes past CFHR1, and nothing is drawn in between. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The four carriers also sort together at the top of the stack. Lane order is densest first over the fetched window, and a lane whose alignment skips the cluster places less of it, so the order the display chooses on its own is the genotype.

The whole chromosome

The deletion reads the same way at any zoom the index serves, and the stack is meant to be zoomed all the way out. Over the whole of chr1 the coarse tier answers the fetch in one pass, every lane is a haplotype's chromosome in its own frame, and the picture is the assembly rather than a locus: the centromere splits each lane where the graph aligns nothing, and a haplotype whose chr1 was assembled as two scaffolds shows one of them, with the other named in its header so the reader can pin the lane onto it. The track menu's Level of detail entry picks the tier by hand.

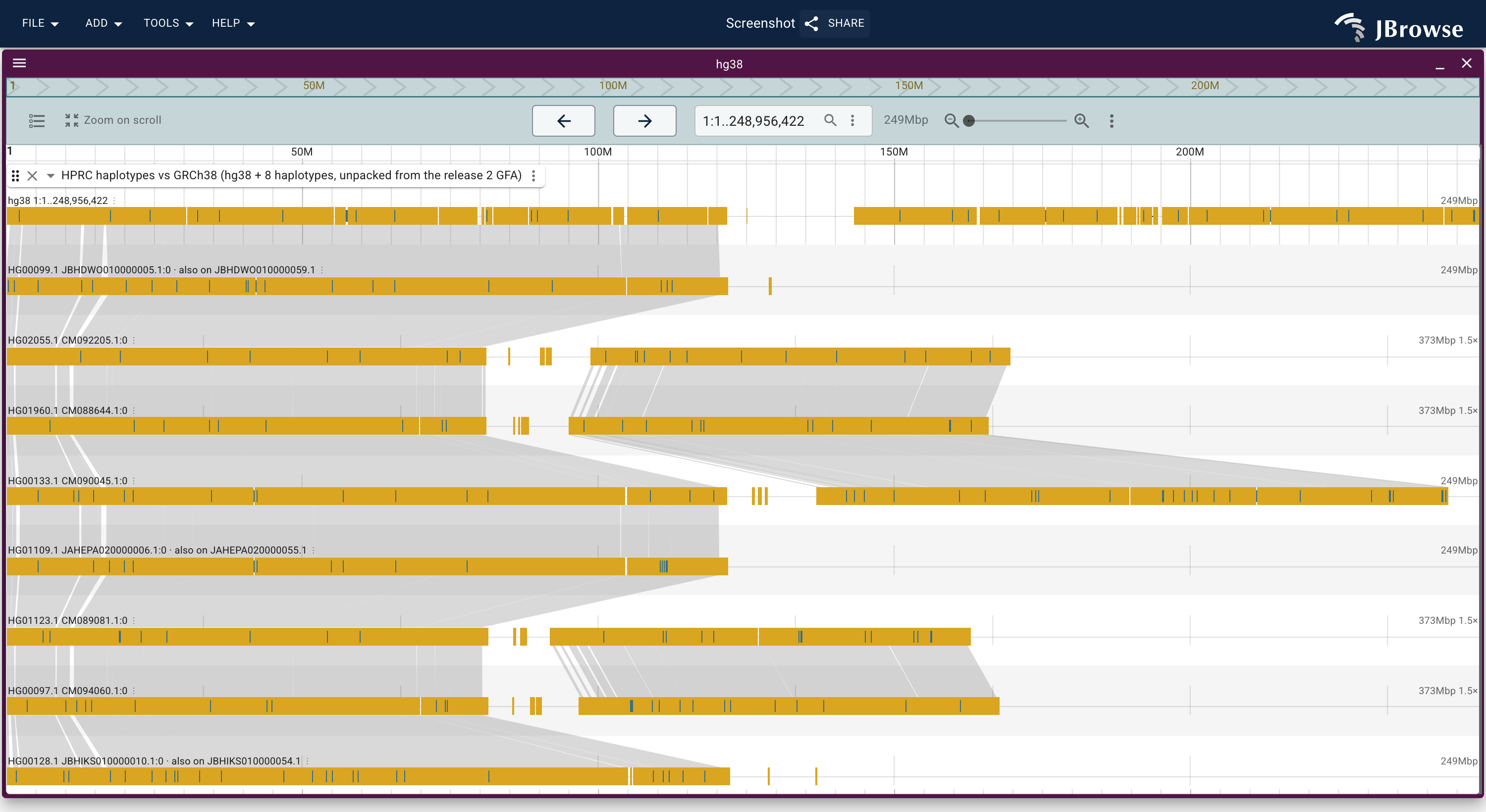

All of hg38 chr1 over the eight haplotype lanes, served from the coarse tier of the graph-derived index. Each lane is a haplotype's chromosome in its own frame, split at the centromere; three lanes name a second scaffold in their headers because their chr1 was assembled in two pieces. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Reading the stack

Each lane is one haplotype in its own coordinates, fitted to wherever its alignment places the anchor window, so the number at a lane's right edge is the span that lane shows and the multiple after it is how much wider than the anchor window that is. Ribbons join a lane to the lane directly above it, and since a star holds no alignment between two haplotypes, the ribbon between two mate lanes is composed through the reference. Hovering a ribbon lights the same alignment in every lane it reaches, and dragging a lane's label reorders the stack. Each lane's header carries a menu: re-anchor the whole view on that haplotype, so it becomes the top lane and hg38 drops into the stack; open the haplotype at the matching region in a view of its own, with this track and its CAT annotation along; or move and hide the lane, the same controls the track menu's Lanes entry offers for every lane at once.

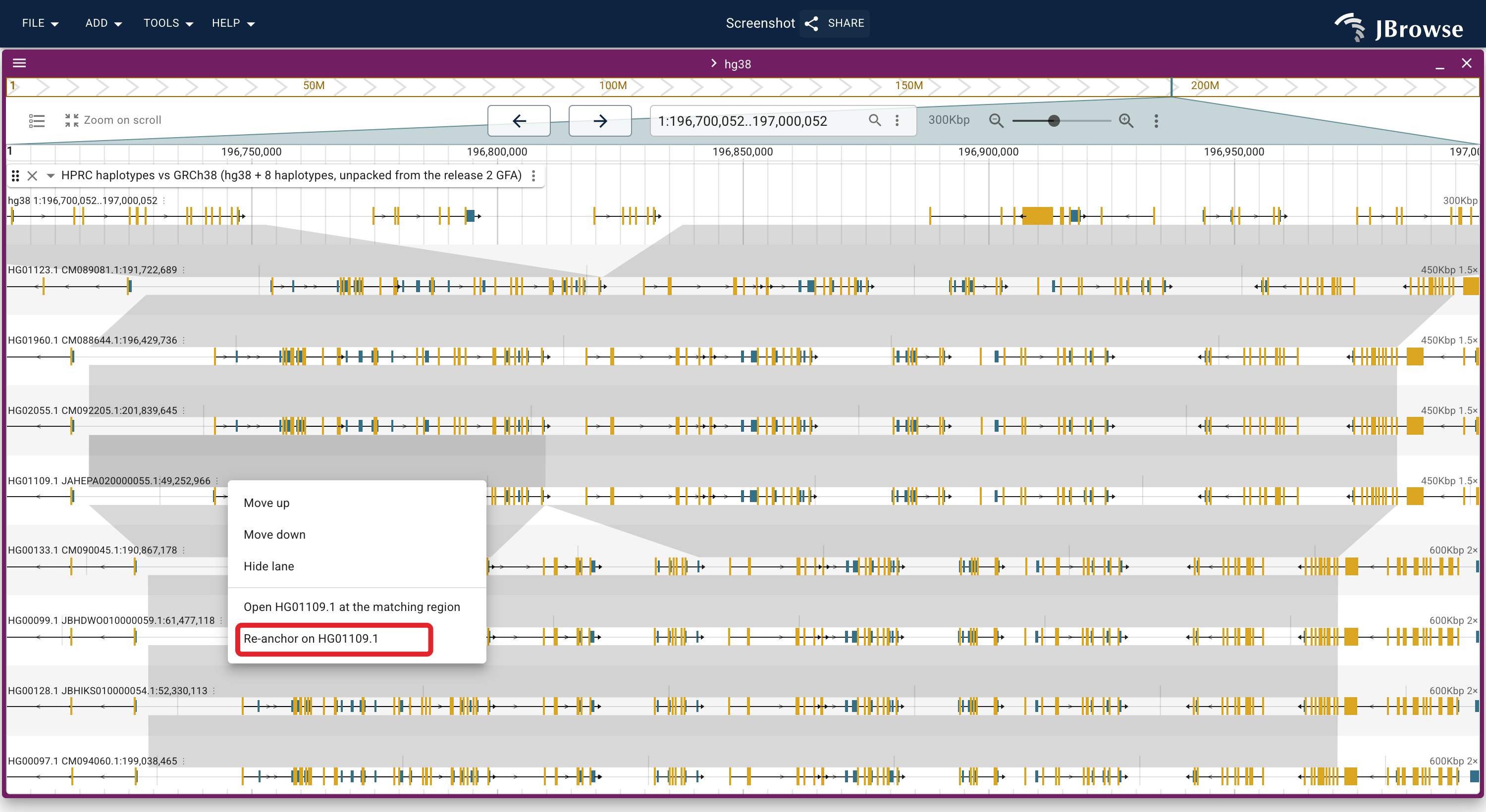

The header menu of one haplotype lane: re-anchor the view on it, open it at the matching region in its own view, or move and hide the lane. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Reproduce it end to end

The script fetches the TAF and its index, unpacks every chromosome for the eight haplotypes several at a time, indexes the PAF, fetches and trims each haplotype's CAT annotation and writes the config; see Prerequisites. The whole alignment streams once, as MAF, and that stream is the cost; JOBS sets how many chromosomes run at once, and a finished chromosome is kept, so a rerun picks up where it stopped.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_hprc_multiway_synteny.sh
bash build_hprc_multiway_synteny.sh

References

HPRC release 2, the release whose graph alignment and CAT annotations this page reads.
Hickey G, et al. Pangenome graph construction from genome alignments with Minigraph-Cactus. Nat Biotechnol (2024). https://doi.org/10.1038/s41587-023-01793-w
Armstrong J, et al. Progressive Cactus is a multiple-genome aligner for the thousand-genome era. Nature (2020). https://doi.org/10.1038/s41586-020-2871-y
taffy, which indexes the alignment and streams it as MAF.
