Multi-row feature track
TL;DR: The multi-row feature display splits one interval file into a stack of labeled rows, one per value of a column you nominate, and paints each feature as a colored block. A cohort of per-sample interval data (chromatin states per cell type, copy number per tumor, ancestry per haplotype, genotype per strain) becomes a single track with one config, one adapter, and one fetch.
Any BED, BigBed, GFF3, or GTF track can be switched to it from the track menu: Display types → Multi-row feature display (painting).
Turning a feature track into rows
Picking it from Display types shows the rows right away, split on whichever
column the file turns out to carry: a RepeatMasker table opens as ~20 rows of
repClass, and anything else falls back to the name column. Which column
assigns a feature to a row is then Partition by… in the same track menu,
which lists the attribute names the loaded features carry — so RepeatMasker also
offers repFamily and name beside the class it started on. Repartitioning
discards a saved row order, a clustering run and any hidden categories, since
all three name rows that the new partition does not have.
To fix the column in config rather than picking it per session, set
partitionField
in the track config:
{
"type": "FeatureTrack",
"trackId": "chromhmm",
"name": "ChromHMM states",
"assemblyNames": ["hg19"],
"adapter": {
"type": "BedTabixAdapter",
"uri": "https://example.com/chromhmm.bed.gz"
},
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"displayId": "chromhmm-LinearMultiRowFeatureDisplay",
"partitionField": "cellType"
}
]
}partitionField names the feature attribute whose value assigns a feature to a
row. Features sharing a value stack into the same row, and the value becomes the
row label.
The rows are discovered from the values the loaded region holds, so a file that gains a sample or a category needs no config change, and a region missing one has no row for it.
Partitioning with a jexl expression
A file can carry the category without carrying a column for it, in which case
partitionField takes a jexl expression instead of
an attribute name. UCSC's bigRmskBed is the common case: the repeat class is a
suffix on the name (L1HS#LINE/L1), so an attribute lookup splits on the full
repeat name, which is thousands of rows rather than twenty.
{
"type": "FeatureTrack",
"trackId": "genark_rmsk",
"name": "RepeatMasker by class",
"assemblyNames": ["GCF_019238085.1"],
"adapter": {
"type": "BigBedAdapter",
"uri": "https://hgdownload.soe.ucsc.edu/hubs/GCF/019/238/085/GCF_019238085.1/bbi/GCF_019238085.1_USGS_WTPT01.rmsk.bb"
},
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"displayId": "genark_rmsk-LinearMultiRowFeatureDisplay",
"partitionField": "jexl:split(split(feature.name,'#')[1],'/')[0]"
}
]
}jbrowse add-track-json '{
"type": "FeatureTrack",
"trackId": "genark_rmsk",
"name": "RepeatMasker by class",
"assemblyNames": ["GCF_019238085.1"],
"adapter": {
"type": "BigBedAdapter",
"uri": "https://hgdownload.soe.ucsc.edu/hubs/GCF/019/238/085/GCF_019238085.1/bbi/GCF_019238085.1_USGS_WTPT01.rmsk.bb"
},
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"displayId": "genark_rmsk-LinearMultiRowFeatureDisplay",
"partitionField": "jexl:split(split(feature.name,'\''#'\'')[1],'\''/'\'')[0]"
}
]
}'Swapping the final [0] for [1] splits by family instead of class.
This isn't the track's default display, so it needs an explicit displays entry
rather than the displayDefaults shorthand (whose color would also reach the
default display).
Preparing the file
The input is one file holding every sample's intervals, with a column naming the
sample. For BED, name the columns with a #-prefixed header line so the adapter
picks them up, then bgzip and tabix as usual:
#chrom chromStart chromEnd name score strand thickStart thickEnd itemRgb cellType
chr1 10000 10600 15_Repetitive/CNV 0 . 10000 10600 245,245,245 GM12878
chr1 10000 10600 15_Repetitive/CNV 0 . 10000 10600 245,245,245 K562Any extra column works the same way, so partitionField can be sample,
cellType, strain, haplotype, or whatever you called it. GFF3/GTF
attributes and BigBed extra fields are addressed by name identically.
Coloring the blocks
Four sources of color, in precedence order:
sampleColorMapgives a color per row, keyed by thepartitionFieldvalue. Use it when the row identity is the signal (one color per population, per treatment arm).coloris a per- feature fill: a CSS color, or a jexl expression reading any attribute. This is how a continuous value becomes a color scale, by binning it in the expression.itemRgbis honored automatically. A BED9 that already carries per-feature colors (ChromHMM state colors, for one) paints correctly with no color configuration.- Otherwise each row is auto-assigned a distinct color from a categorical palette.

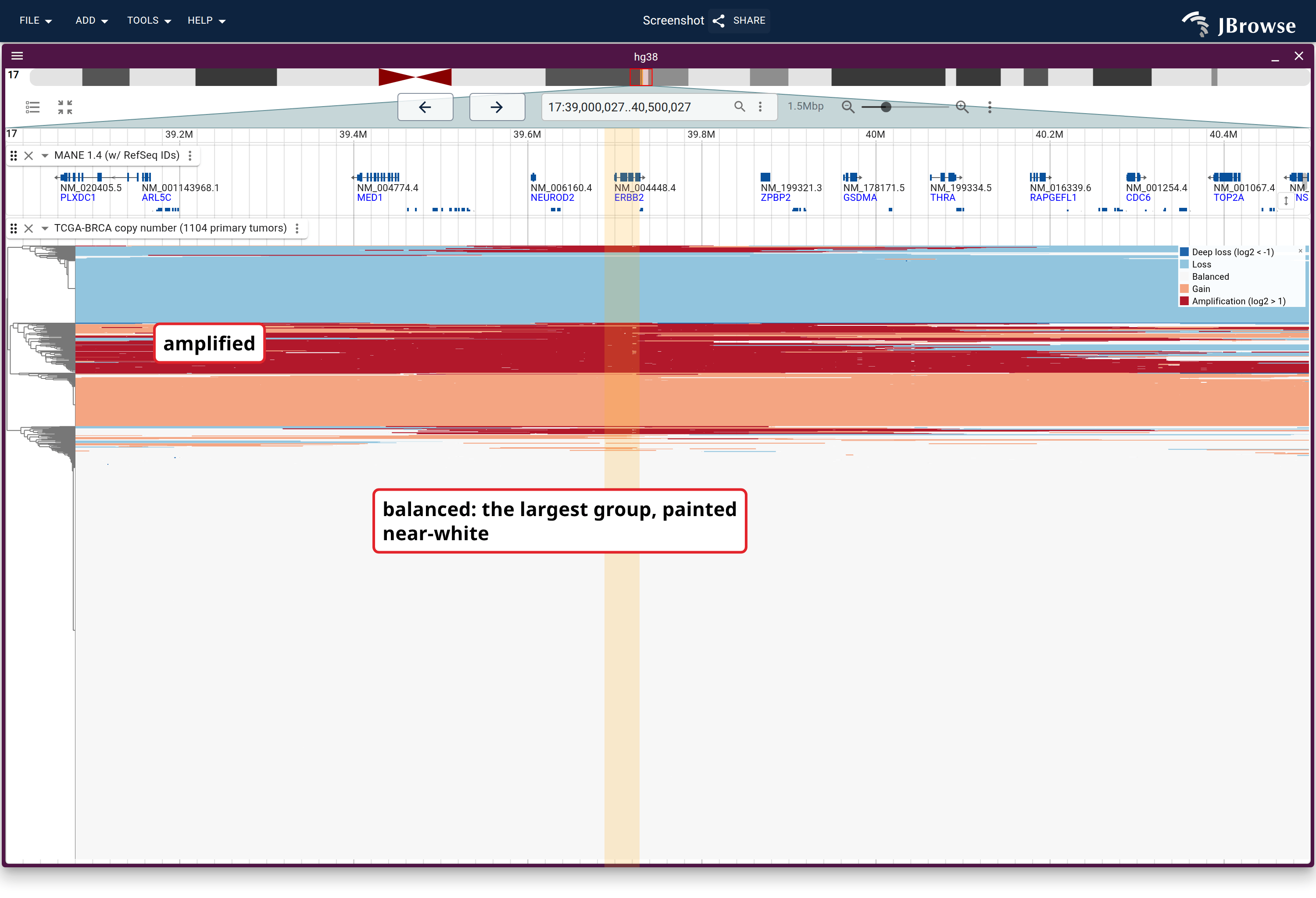

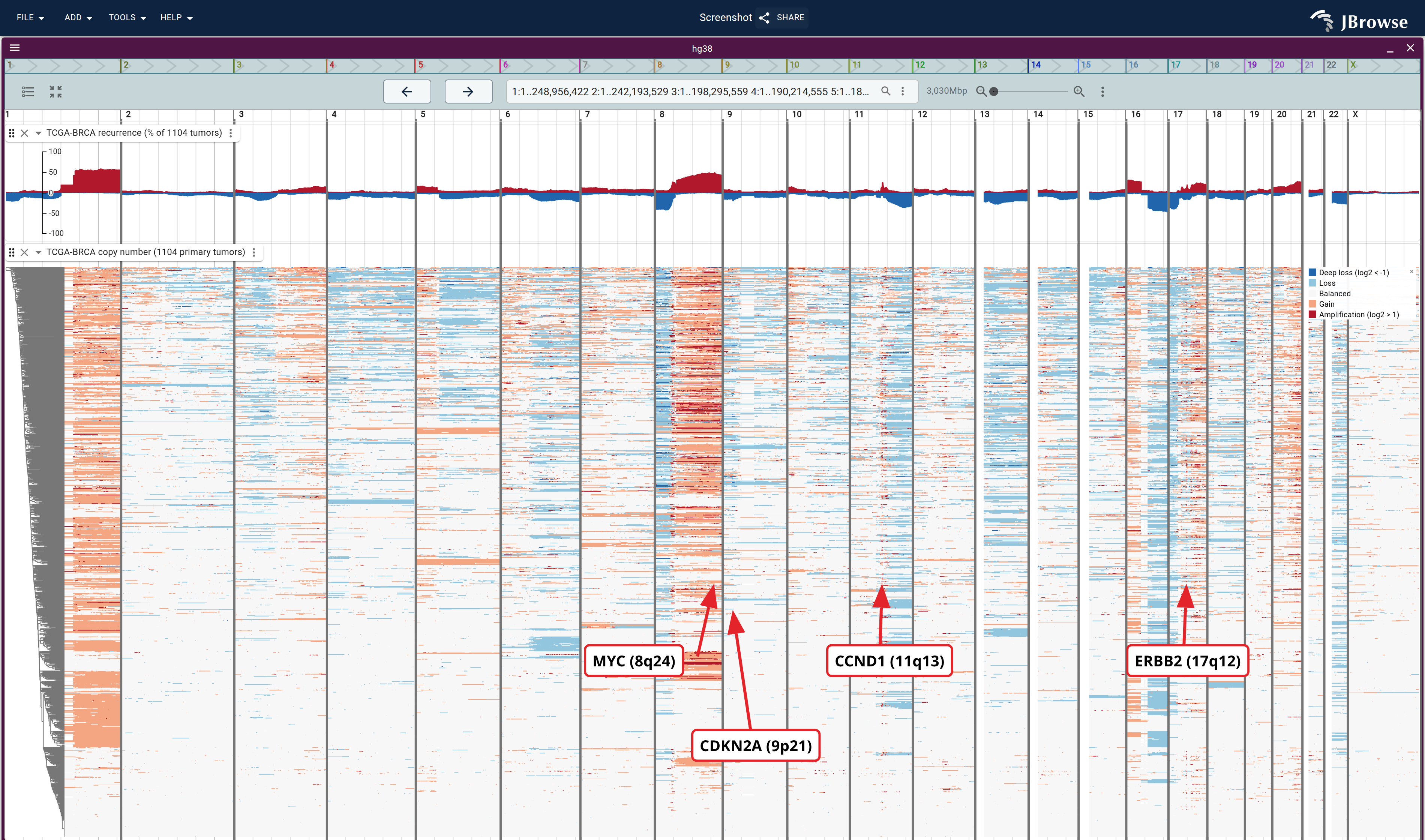

Binning a numeric column onto a diverging scale is the common jexl case, e.g. segment mean copy number:
{
"type": "FeatureTrack",
"trackId": "tcga_brca_cnv",
"name": "TCGA-BRCA copy number",
"assemblyNames": ["hg38"],
"adapter": {
"type": "BedTabixAdapter",
"uri": "https://jbrowse.org/demos/tcga/tcga_brca_cnv.bed.gz"
},
"displays": [
{
"type": "LinearMultiRowFeatureDisplay",
"displayId": "tcga_brca_cnv-LinearMultiRowFeatureDisplay",
"partitionField": "sample",
"color": "jexl:feature.segmean<-1?'#2166ac':feature.segmean<-0.3?'#92c5de':feature.segmean<0.3?'#f7f7f7':feature.segmean<1?'#f4a582':'#b2182b'"
}
]
}Show... → Show legend keys the colors actually present, and the Categories submenu beside it hides individual categories, so you can drop the states or classes you aren't reading and leave the rest painted. The submenu counts what is hidden and offers Show all categories to put them back.
You can also recolor a single row by hand from Edit colors/arrangement...; that overrides every source above for that row and applies at render time, with no refetch.
Row height
The track menu's Row height offers Squeeze to fit view (the default: rows divide the track height, so adding samples shrinks the rows), Normal, and Compact. With fit, drag the track taller to give a deep cohort more room per row.
Ordering and clustering rows
Rows start in file order. Three ways to change that:
- Edit colors/arrangement... reorders or hand-picks rows in a dialog, and
rowOrderpins an explicit order in config. - Right-click a position and choose Sort rows by color here to order rows by the value each carries at that exact base, the analogue of an alignments track's sort-by-base. Rows sharing a value become contiguous blocks, which is what turns a QTL painting at its peak into a clean split by allele. Clear row sort restores the previous order.
- Clustering → Cluster rows by similarity... reorders rows so that samples with similar paintings sit together, and draws a dendrogram in the sidebar. See Clustering rows.
Reset row order appears in the track menu once any of the three has run, and returns the rows to file order.
Show... → Show tree toggles the dendrogram once one has been computed, and Show... → Show row labels the labels beside it, which are useful with no clustering run.
Show... → Color row labels by row color tints each label with the color that
row's blocks are painted in, so a row can be found by color rather than by
reading down a column of similar names. It is off by default: the label box is
also what rowGroups and a color set in Edit colors/arrangement… use, and
both of those win over it. It does nothing on a track colored per feature (an
itemRgb painting, a jexl color slot), where no single color is the row's.
Worked examples
Each of these builds the input file and the track config end to end:
- ChromHMM chromatin states - many cell types from one merged BED, colored by
itemRgb - CNV cohort (TCGA) - a thousand tumors, colored by a jexl expression over a numeric column
- QTL mapping (BXD mice) - strain genotype painting beside a QTL Manhattan plot, sorted at the peak
- Phased trio analysis (1000 Genomes) - IBD blocks and local ancestry per haplotype
