JBrowse CLI with Desktop

TL;DR: build a config.json from the command line with @jbrowse/cli. It records each data file by a path relative to the config, so the same folder opens in JBrowse Desktop or served on the web, and Desktop leaves the config it opens alone.

Prerequisites

  • Node.js 18 or newer
  • JBrowse Desktop, or a web server if you want to serve the same folder

One folder that opens in either app

The @jbrowse/cli builds a JBrowse configuration from the command line. A few commands produce one folder, a config.json sitting next to your data files, that you can open directly in JBrowse Desktop or serve on the web.

It works in both places because the CLI records each file by a path relative to config.json: Desktop resolves those paths against the folder on disk, and a web server resolves them against the served config's URL.

Install the CLI

Install Node.js from NodeSource or NVM; the apt packages tend to be old.

npm install -g @jbrowse/cli
jbrowse --version

To avoid a global install, replace jbrowse with npx @jbrowse/cli in any command below.

Prepare your files first

The CLI references and copies your data without compressing or indexing it, and JBrowse reads only indexed, compressed formats, so get each input into a JBrowse-ready form first: a bgzipped and faidx-indexed FASTA, a sorted and indexed BAM or CRAM, a bgzipped and tabixed VCF, GFF3, or BED. The web quickstart has the samtools / htslib recipe per format, and the commands below assume you have already run them.

Build the config directory

Point every command at the same output directory with --out (it is created if it doesn't exist). The first add-assembly writes myproject/config.json, and each later command edits that same file in place.

# assembly: copies GRCh38.fa.gz and its .fai/.gzi index into myproject/
jbrowse add-assembly GRCh38.fa.gz --name hg38 --load copy --out myproject

# tracks: each copies the data file AND its index (.bai/.tbi/.csi) alongside
jbrowse add-track sample.bam --load copy --out myproject --name "My reads"
jbrowse add-track variants.vcf.gz --load copy --out myproject --name "My variants"

--name hg38 is the assembly name the session and the assembly selector use. --name on a track is its label in the track list.

--load says how the CLI places a local file relative to the config (omit it for a remote URL, which is referenced in place):

--loadWhat it does
copyCopy the file (and its index) into the config directory.
moveMove it into the config directory.
symlinkSymlink it into the config directory (no data duplicated).
inPlaceReference a file already staged in the directory, no file ops.
(omit)For a remote https://… URL, referenced directly, nothing copied.

Now myproject/ is self-contained, with the config next to every file it needs:

myproject/
├── config.json
├── GRCh38.fa.gz  (+ .fa.gz.fai, .fa.gz.gzi)
├── sample.bam    (+ .bam.bai)
└── variants.vcf.gz  (+ .vcf.gz.tbi)

Inside config.json, the CLI referenced each file by its bare relative name:

"adapter": {
  "type": "BamAdapter",
  "bamLocation": { "uri": "sample.bam", "locationType": "UriLocation" },
  "index": {
    "location": { "uri": "sample.bam.bai", "locationType": "UriLocation" },
    "indexType": "BAI"
  }
}

Open on a view by default

A config with tracks but no session opens on the view chooser: the assembly and tracks are loaded, but nothing is displayed until you launch a view and tick them in the track selector. To have the folder open ready to read, write the session you want and hand it to the CLI. assembly is the --name you gave add-assembly, and tracks takes the trackIds the CLI derived from your filenames, which are in config.json:

{
  "name": "myproject",
  "views": [
    {
      "type": "LinearGenomeView",
      "init": {
        "assembly": "hg38",
        "loc": "chr1:1-100,000",
        "tracks": ["sample", "variants.vcf"]
      }
    }
  ]
}
jbrowse set-default-session --session session.json --out myproject

session.json itself stays outside the folder; the CLI copies its contents into config.json.

Open the folder in JBrowse Desktop

In JBrowse Desktop, choose File → Session → Open config.json or .jbrowse file... (or the Open .jbrowse or config.json or link button on the start screen) and pick myproject/config.json. Desktop resolves each relative path against the config's own folder, loading the copied files straight from local disk with no web server.

You can also hand the config straight to Desktop:

jbrowse-desktop myproject/config.json

(On macOS: open -a "JBrowse 2" myproject/config.json. See launching from the command line.)

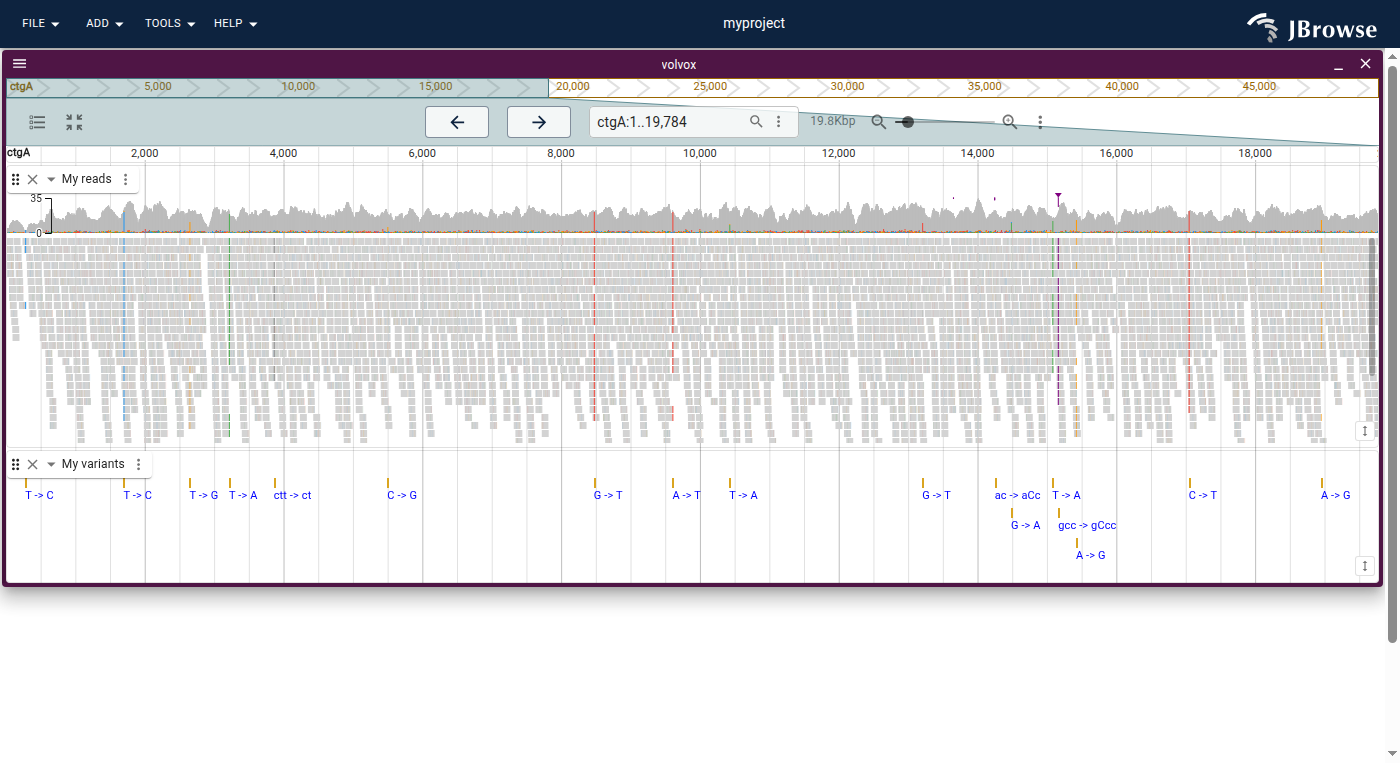

A CLI-built folder opened in JBrowse Desktop by path, with no start screen and no Add track form. The session name, the assembly and the track labels all come from the commands above.

Desktop does not save back into a config.json it opens. It resolves the relative uris into absolute local paths for the renderer, then starts a session of its own and autosaves there, so the folder you built stays portable and still serves on the web. A .jbrowse file, which is one Desktop itself wrote, does save in place.

Serve the same folder on the web

The same config and data work on the web too, with the relative paths resolving against the served config's URL. JBrowse Web is a separate app, so a served myproject/ needs a JBrowse Web instance alongside it. Two ways to get there:

  • Build into a JBrowse Web install: run jbrowse create jbrowse2 first and pass --out jbrowse2 on the commands above, so the app and your config live in one served folder. This is exactly the web quickstart.
  • Point an existing deployment at your config: host myproject/ anywhere (e.g. npx serve myproject) and open your JBrowse Web instance with its URL appended: https://your-jbrowse/?config=http://localhost:3000/config.json.

To make the location box search by gene name, index the text of your gene tracks. This also writes into the same directory:

jbrowse text-index --out myproject
