Cookbook

Short, copy-paste recipes for the config.json settings people reach for most. Most run against the volvox sample data JBrowse ships (test_data/volvox); the synteny recipes and every figure use real datasets. For the full reference, see the config guide.

The smallest config

A config.json needs two things: an assembly to supply the reference sequence, and a track to draw on it.

{
  "assemblies": [{ "name": "volvox", "uri": "volvox.2bit" }],
  "tracks": [{ "trackId": "genes", "uri": "volvox.sort.gff3.gz" }]
}

That is a complete, working file. Everything else on this page is optional.

JBrowse reads the track type and the adapter off the file's extension, takes name from the file name, and puts the track on the one assembly the config declares — the shortest track covers overriding each of those. The same track written out, which is where every recipe below starts:

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes \
  --name Genes \
  --assemblyNames volvox \
  --load copy

A complete config

Here is the same file with the settings people usually reach for: a track of each common type, display settings on each, a view to open on load, and a theme. Two more top-level keys join assemblies and tracks: defaultSession says what to open on load, and configuration holds instance-wide settings like the theme. Every recipe below changes one piece of it.

{
  "assemblies": [{ "name": "volvox", "uri": "volvox.2bit" }],
  "tracks": [
    {
      "type": "FeatureTrack",
      "trackId": "genes",
      "name": "Genes",
      "category": ["Annotation"],
      "assemblyNames": ["volvox"],
      "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
      "displayDefaults": {
        "color": "jexl:feature.strand==1?'#1f77b4':'#d62728'",
        "height": 200,
        "mouseover": "jexl:feature.name"
      }
    },
    {
      "type": "AlignmentsTrack",
      "trackId": "reads",
      "name": "Reads",
      "assemblyNames": ["volvox"],
      "adapter": { "type": "BamAdapter", "uri": "volvox-sorted.bam" },
      "displayDefaults": {
        "heightMode": "fit",
        "colorBy": { "type": "mappingQuality" },
        "filterBy": { "flagExclude": 1540, "flagInclude": 0 }
      }
    },
    {
      "type": "QuantitativeTrack",
      "trackId": "coverage",
      "name": "Coverage",
      "assemblyNames": ["volvox"],
      "adapter": { "type": "BigWigAdapter", "uri": "volvox_microarray.bw" },
      "displayDefaults": {
        "color": "#C8B414",
        "scaleType": "log",
        "minScore": 0
      }
    },
    {
      "type": "VariantTrack",
      "trackId": "variants",
      "name": "Variants",
      "assemblyNames": ["volvox"],
      "adapter": { "type": "VcfTabixAdapter", "uri": "volvox.filtered.vcf.gz" },
      "displayDefaults": {
        "color": "jexl:feature.type=='SNV'?'green':'purple'",
        "jexlFilters": ["feature.INFO.AF[0] > 0.05"]
      }
    }
  ],
  "defaultSession": {
    "name": "My session",
    "views": [
      {
        "type": "LinearGenomeView",
        "init": {
          "loc": "ctgA:1-50000",
          "assembly": "volvox",
          "tracks": ["genes", "reads", "coverage", "variants"]
        }
      }
    ]
  },
  "configuration": {
    "theme": { "palette": { "primary": { "main": "#311b92" } } }
  }
}

Jump to a recipe

To change	Setting	Section
Data file and index	`adapter`, `uri`	shorthand, assemblies
Feature color	`color`, `colorBy`	colors
Feature labels and tooltips	`labels`, `mouseover`	labels & tooltips
Click-details panel	`formatDetails`	feature details
Track height and packing	`height`, `heightMode`, `displayMode`	feature tracks
Feature and read filtering	`jexlFilters`, `filterBy`	filtering, SAM flags
Read grouping and clipping	`groupBy`, `showSoftClipping`	alignments tracks
A track with no data file	`MotifListAdapter`, `CrisprGuideAdapter`	computed from the reference
Plot style and scale	`defaultRendering`, `scaleType`	wiggle tracks
Multiple signals per track	`subadapters`	multi-signal wiggle
Genotype matrix	`displays`	variant tracks
Assembly-to-assembly alignment	`queryAssembly`, `targetAssembly`	synteny, stacking N genomes
Folders, metadata, theme, search, plugins	`category`, `metadata`, `theme`, `plugins`	instance-wide settings
Opening view	`defaultSession`, URL params	config to a URL

Config shorthand

JBrowse expands these at load time, so you write only what matters:

uri on an adapter fills in the location slot and the companion index (.bam → .bam.bai, .cram → .cram.crai, bgzip+tabix → .tbi). For a .csi or non-sibling index, write the full form.
{ name, uri } is a whole assembly. JBrowse picks the adapter from the extension, finds the index siblings, and adds the ReferenceSequenceTrack. See BaseAssembly.
{ trackId, uri, assemblyNames } is a whole track. The extension picks the track type and the adapter as well as the location, and name comes from the file name. In a config with one assembly, assemblyNames goes too. See the shortest track.
displayDefaults routes each setting to the display that defines it, so you never name a display or write a displays array. If you use a key that no display defines, JBrowse warns in the console. Write displays only to pick a non-default display type (like the arc display).
A jexl: prefix turns any slot into a per-feature callback. See using jexl callbacks.

The same objects work in config.json, in a session=spec-… URL, and in an embedded createViewState. The app writes them back out too: About → Copy config on a track, or File → Export session for the whole view.

Applying a recipe from the CLI

config.json is plain JSON, so once you have more than a handful of similar tracks, generating the tracks array from your samplesheet is easier than one CLI call per file.

The web quickstart covers create, add-assembly, and add-track. Four add-track flags cover every recipe on this page:

To set	Flag
Color or height	`--color`, `--height`
Any other display setting: `labels`, `jexlFilters`, `groupBy`	`--displayDefaults '<json>'`
A non-default display, or a top-level field like `metadata`	`--config '<json>'`
Track folders	`--category "RNA-seq,Brain"`

jbrowse add-track genes.gff3.gz --load copy --name Genes \
  --color 'jexl:feature.strand==1?"blue":"red"' --height 200

Wrap the value in single quotes and use double quotes inside the jexl. Re-run the command with --force to change a track you already added. See the CLI reference.

Assemblies

{ name, uri } picks the adapter off the extension, so you rarely have to name one yourself. Here is what each extension resolves to, and the index files it expects alongside:

`uri`	Adapter	Expects
`genome.2bit`	`TwoBitAdapter`	nothing
`genome.fa.gz`	`BgzipFastaAdapter`	`.fa.gz.fai`, `.fa.gz.gzi`
`genome.fa`	`IndexedFastaAdapter`	`.fa.fai`

BgzipFastaAdapter (bgzip genome.fa + samtools faidx genome.fa.gz) is recommended for large genomes.

Refname aliases line up tracks that name the same chromosome differently (chr1 vs 1 vs NC_000001). Point at a two-column chromAliases file:

Config file CLI (add-assembly)

{
  "name": "volvox",
  "uri": "volvox.2bit",
  "refNameAliases": { "uri": "volvox.chromAliases.txt" }
}

jbrowse add-assembly volvox.2bit \
  --name volvox \
  --refNameAliases volvox.chromAliases.txt \
  --load copy

See assemblies for the inline FromConfigAdapter form.

Colors

A track's color is the color key in displayDefaults. Give it a plain CSS color, or a jexl: expression that runs once per feature.

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes_by_strand",
  "name": "Genes (colored by strand)",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "displayDefaults": {
    "color": "jexl:feature.strand==1?'tomato':feature.strand==-1?'cornflowerblue':'goldenrod'"
  }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes_by_strand \
  --name "Genes (colored by strand)" \
  --assemblyNames volvox \
  --displayDefaults "{\"color\":\"jexl:feature.strand==1?'tomato':feature.strand==-1?'cornflowerblue':'goldenrod'\"}" \
  --load copy

Those are the colors Color by... → Strand writes, so a config that ships this recipe and a reader who picks it from the track menu get the same picture, and forward stays red everywhere in the app, synteny ribbons included. Keep the direction if you pick your own colors, or a red block will mean "forward" in one track and "inverted" in the one under it.

NCBI RefSeq genes on hg38 with this recipe applied: forward-strand genes red, reverse-strand blue. Open this view in JBrowse ↗

What you can color by

The expression sees the feature as feature, and every attribute is a plain property on it: feature.type, feature.strand (1/-1/0), feature.score, feature.name, feature.start/end, feature.refName, and feature.parent. VCF INFO fields parse as arrays, so index them (feature.INFO.SVTYPE[0]), and BAM/CRAM tags come from getTag(feature, 'HP').

On a gene track the expression resolves once per exon, CDS and UTR, so a transcript's own attribute is read with feature.parent.myattr. That reads undefined at the top of the chain rather than raising, and a color that comes out undefined paints magenta, so end the ternary on a real color. The full list is in using jexl callbacks. Wrap a callback in log(...) to print what it returns for each feature to the browser console.

More ways to set `color`

Drop any of these into the same displayDefaults:

Recipe	`displayDefaults`	Notes
Solid color	`{ "color": "#6a3d9a" }`	any CSS color: hex, `rgb()`/`hsl()`, or a name
By feature type (lookup table)	`{ "color": "jexl:{CDS:'#d62728',exon:'#2ca02c',gene:'#1f77b4'}[feature.type] \|\| 'gray'" }`	`\|\| 'gray'` catches anything not listed
By a numeric threshold	`{ "color": "jexl:feature.score > 7.3 ? 'red' : '#0068d1'" }`	a hard cutoff, not a gradient
Continuous gradient from a number	{ "color": "jexl:`hsl(${feature.score*3},50%,50%)`" }	maps `feature.score` onto an HSL hue
Auto color per category	`{ "color": "jexl:randomColor(feature.type)" }`	same string always gets the same color
BED file's own colors	leave `color` unset	automatic, see below
BAM/CRAM tag (`AlignmentsTrack`)	`{ "colorBy": { "type": "tag", "tag": "HP" } }`	built-in, reads the tag and picks colors
SNPs vs indels (`VariantTrack`)	`{ "color": "jexl:feature.type=='SNV'?'green':'purple'" }`	branch on `feature.type` or any VCF `INFO` field

randomColor, alpha, hsl, colorString, and interpolate are the built-in color helpers.

A BED or bigBed that carries its own colors needs no callback. Leave color unset and each feature is painted from its color column, whatever that column ends up being called (itemRgb on a BED12, reserved on a bigBed, field8 on a BED9). Write a callback only when you want to override those. Customizing feature colors covers BED column naming and moving an outgrown callback into a plugin.

The lookup table can key on any field the track exposes — UCSC RepeatMasker, for instance, carries a repClass column. The legend slot names what each color stands for, beside the expression that paints it, and the display draws it as a dismissable key over the track (and into an SVG export).

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "rmsk_hg38",
  "name": "RepeatMasker",
  "assemblyNames": ["hg38"],
  "adapter": { "type": "BedTabixAdapter", "uri": "rmsk.bed.gz" },
  "displayDefaults": {
    "color": "jexl:{SINE:'#e41a1c',LINE:'#377eb8',LTR:'#4daf4a',DNA:'#984ea3',Simple_repeat:'#ff7f00',Low_complexity:'#a65628'}[feature.repClass] || 'gray'",
    "legend": [
      { "label": "SINE", "color": "#e41a1c" },
      { "label": "LINE", "color": "#377eb8" },
      { "label": "LTR", "color": "#4daf4a" },
      { "label": "DNA", "color": "#984ea3" },
      { "label": "Simple repeat", "color": "#ff7f00" },
      { "label": "Low complexity", "color": "#a65628" },
      { "label": "other", "color": "gray" }
    ]
  }
}

jbrowse add-track rmsk.bed.gz \
  --trackId rmsk_hg38 \
  --name RepeatMasker \
  --assemblyNames hg38 \
  --displayDefaults "{\"color\":\"jexl:{SINE:'#e41a1c',LINE:'#377eb8',LTR:'#4daf4a',DNA:'#984ea3',Simple_repeat:'#ff7f00',Low_complexity:'#a65628'}[feature.repClass] || 'gray'\",\"legend\":[{\"label\":\"SINE\",\"color\":\"#e41a1c\"},{\"label\":\"LINE\",\"color\":\"#377eb8\"},{\"label\":\"LTR\",\"color\":\"#4daf4a\"},{\"label\":\"DNA\",\"color\":\"#984ea3\"},{\"label\":\"Simple repeat\",\"color\":\"#ff7f00\"},{\"label\":\"Low complexity\",\"color\":\"#a65628\"},{\"label\":\"other\",\"color\":\"gray\"}]}" \
  --load copy

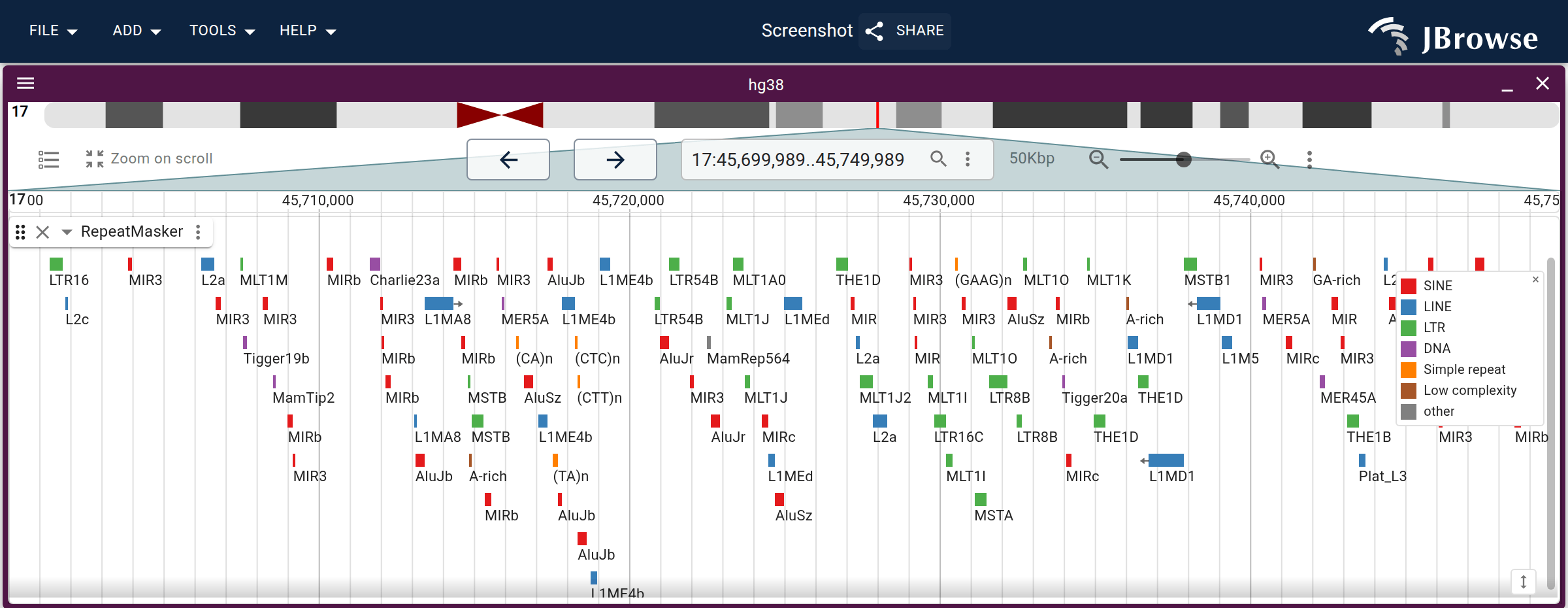

UCSC RepeatMasker over a 17q21 window with the lookup table above: every repeat takes the color of its repClass, and classes not in the table fall through to gray. The key over the track is the legend slot, spelling out what each color stands for. Open this view in JBrowse ↗

A pipeline can rename a type between releases, so read the types out of the file itself before writing the table:

awk -F'\t' '/^##FASTA/{exit} !/^#/{print $3}' annotations.gff |
  sort | uniq -c | sort -rn

The /^##FASTA/{exit} matters: a GFF3 may carry its sequence inline after that marker, and those lines have no # to skip, so a plain grep -v '^#' | cut -f3 counts DNA as feature types and buries the real ones under thousands of rows.

Any type missing from the table falls through to || 'gray', so gray is the signal to go back and check that list. Reading the type list off the file works one of these through end to end.

One row per category

partitionField takes the same attribute the lookup table keys on, and the display assigns each feature to the row named by that value, one lane per category, which shows how much of the window each class takes and whether it clusters. sampleColorMap is the row-keyed form of the same table, so the colors carry over without the jexl.

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "rmsk_hg38_rows",
  "name": "RepeatMasker by class",
  "assemblyNames": ["hg38"],
  "adapter": { "type": "BedTabixAdapter", "uri": "rmsk.bed.gz" },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "rmsk_hg38_rows-LinearMultiRowFeatureDisplay",
      "partitionField": "repClass",
      "sampleColorMap": {
        "SINE": "#e41a1c",
        "LINE": "#377eb8",
        "LTR": "#4daf4a",
        "DNA": "#984ea3",
        "Simple_repeat": "#ff7f00",
        "Low_complexity": "#a65628"
      },
      "showRowSeparators": true
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "rmsk_hg38_rows",
  "name": "RepeatMasker by class",
  "assemblyNames": ["hg38"],
  "adapter": { "type": "BedTabixAdapter", "uri": "rmsk.bed.gz" },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "rmsk_hg38_rows-LinearMultiRowFeatureDisplay",
      "partitionField": "repClass",
      "sampleColorMap": {
        "SINE": "#e41a1c",
        "LINE": "#377eb8",
        "LTR": "#4daf4a",
        "DNA": "#984ea3",
        "Simple_repeat": "#ff7f00",
        "Low_complexity": "#a65628"
      },
      "showRowSeparators": true
    }
  ]
}'

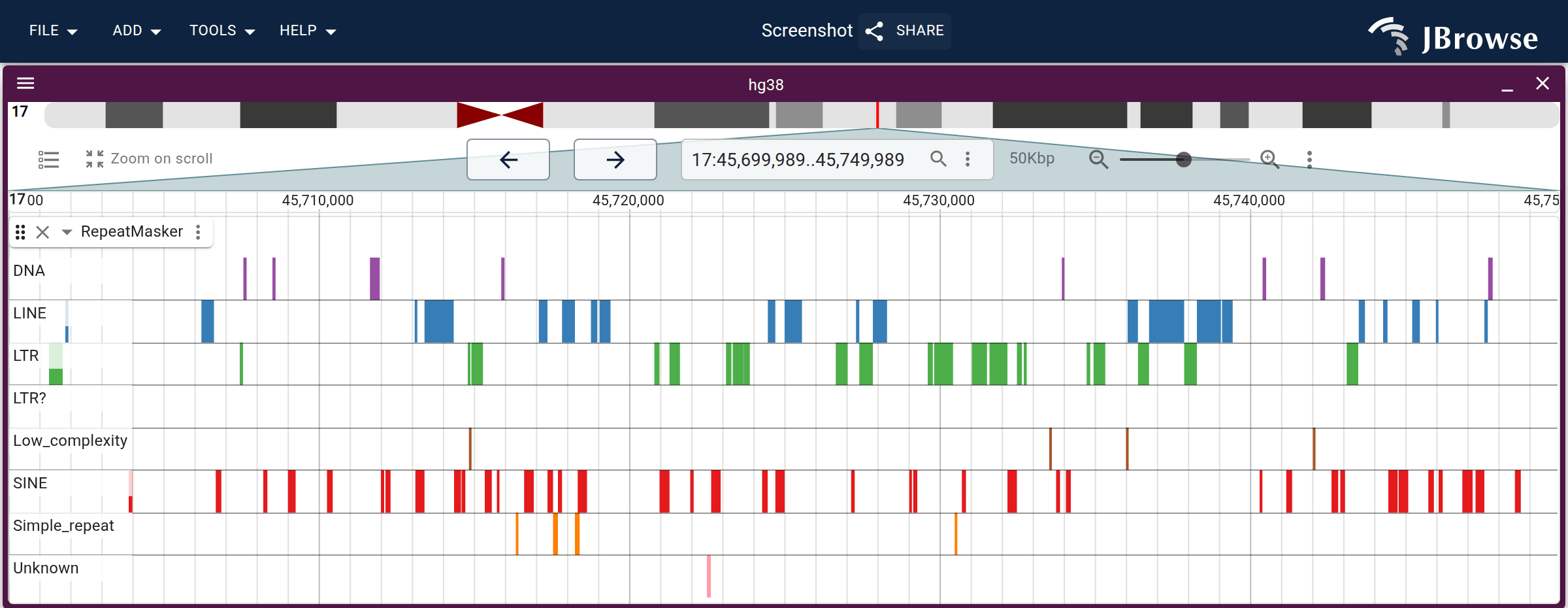

The same RepeatMasker track and window as above, now partitioned on repClass. SINE fills the window, LINE comes in clusters, and each sparse class gets a lane of its own. The LTR? and Unknown lanes are values in the file that the lookup table does not name, the same list the awk above prints. Open this view in JBrowse ↗

Labels, tooltips & details

Labels go in displayDefaults the same way color does. showLabels chooses which text is drawn: auto drops descriptions and then names as the view gets denser, while nameAndDescription, name, description, and none pin one choice at every zoom.

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes_labeled",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "displayDefaults": {
    "labels": {
      "name": "jexl:feature.name || feature.id",
      "description": "jexl:feature.note || feature.description || ''"
    },
    "showLabels": "nameAndDescription"
  }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes_labeled \
  --name Genes \
  --assemblyNames volvox \
  --displayDefaults "{\"labels\":{\"name\":\"jexl:feature.name || feature.id\",\"description\":\"jexl:feature.note || feature.description || ''\"},\"showLabels\":\"nameAndDescription\"}" \
  --load copy

mouseover returns the hover text. It is rendered as HTML, so <b>, <br/>, and links all work:

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes_mouseover",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "displayDefaults": {
    "mouseover": "jexl:`${feature.name} [${feature.type}] ${feature.start}-${feature.end}`"
  }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes_mouseover \
  --name Genes \
  --assemblyNames volvox \
  --displayDefaults '{"mouseover":"jexl:`${feature.name} [${feature.type}] ${feature.start}-${feature.end}`"}' \
  --load copy

Customizing the feature details panel

formatDetails sits at the top level of the track, not in displayDefaults. Its feature callback returns an object that gets merged into what's shown. Name an existing field to rewrite it, add a new one for an extra row, or set a field to undefined to hide it. A value that is just a URL is turned into a link, so linking out needs no <a> markup:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "genes_linked_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "feature": "jexl:{NCBI:'https://www.ncbi.nlm.nih.gov/gene/?term='+feature.name, type:undefined}"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_linked_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "feature": "jexl:{NCBI:'\''https://www.ncbi.nlm.nih.gov/gene/?term='\''+feature.name, type:undefined}"
  }
}'

Fields that are the same on every feature need no callback at all. The slot holds any JSON, and only a string starting with jexl: is evaluated:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "genes_static_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "feature": { "Source": "GENCODE v44", "phase": null }
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_static_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "feature": { "Source": "GENCODE v44", "phase": null }
  }
}'

subfeatures reshapes the nested rows. depth bounds how far down it runs and maxDepth bounds how many levels of subfeature card the panel draws at all, so this track relabels the transcripts of a gene and hides their exon and CDS cards:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "genes_transcript_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "subfeatures": "jexl:{Transcript:feature.name, phase:undefined}",
    "depth": 1,
    "maxDepth": 1
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_transcript_details",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatDetails": {
    "subfeatures": "jexl:{Transcript:feature.name, phase:undefined}",
    "depth": 1,
    "maxDepth": 1
  }
}'

The same four slots exist session-wide under configuration.formatDetails and apply to every track. feature and subfeatures merge with the track's object on top, so a track can rewrite one key the global callback added; depth and maxDepth are overridden outright by a track that sets its own.

{
  "configuration": {
    "formatDetails": {
      "feature": "jexl:{Assembly:'volvox', score:undefined}",
      "maxDepth": 2
    }
  }
}

formatAbout is the same mechanism for the About track dialog, which shows the track's config rather than a feature, so its callback variable is config. hideUris drops the file locations from the dialog:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "genes_about",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatAbout": {
    "hideUris": true,
    "config": "jexl:{Source:'GENCODE v44', Contact:'helpdesk@example.org'}"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_about",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "formatAbout": {
    "hideUris": true,
    "config": "jexl:{Source:'\''GENCODE v44'\'', Contact:'\''helpdesk@example.org'\''}"
  }
}'

See customizing feature details.

Feature tracks

Genes from GFF3, BED, or bigBed are all the same track type. Only the adapter changes:

`uri`	Adapter
`volvox.sort.gff3.gz`	`Gff3TabixAdapter`
`volvox-bed12.bed.gz`	`BedTabixAdapter`
`volvox.bb`	`BigBedAdapter`

For a small, unindexed file, use the plaintext adapter (Gff3Adapter, BedAdapter, VcfAdapter), which reads the whole file into memory. Supported file types has the full extension-to-adapter table.

Track height

height sets the box the track lives in. heightMode decides what happens when more features arrive than fit in that box:

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes_fit",
  "name": "Genes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "displayDefaults": { "height": 200, "heightMode": "fit" }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes_fit \
  --name Genes \
  --assemblyNames volvox \
  --displayDefaults '{"height":200,"heightMode":"fit"}' \
  --load copy

fixed keeps the height you set and scrolls the overflow
grow expands the track downward until every feature shows, no scrollbar
fit shrinks the features so the whole stack fits the current height

Use fit to get a full pileup or a dense annotation into a screenshot without a scrollbar cutting it off. All three are on the "Track sizing" menu of any track.

Pack features onto fewer rows

displayMode sets the vertical room each feature gets, independent of height. collapsed puts everything on one row and turns labels off, which suits a repeat or mappability stripe:

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "repeats_collapsed",
  "name": "Repeats",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BedTabixAdapter", "uri": "volvox-bed12.bed.gz" },
  "displayDefaults": { "displayMode": "collapsed" }
}

jbrowse add-track volvox-bed12.bed.gz \
  --trackId repeats_collapsed \
  --name Repeats \
  --assemblyNames volvox \
  --displayDefaults '{"displayMode":"collapsed"}' \
  --load copy

normal, compact, and superCompact are the other values.

Draw features as arcs

Arcs suit interactions, breakpoints, and paired features. The arc display isn't a FeatureTrack's default, so you select it with a displays array:

{
  "type": "FeatureTrack",
  "trackId": "interactions_arcs",
  "name": "Interactions",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BedpeAdapter", "uri": "volvox.bedpe" },
  "displays": [
    {
      "type": "LinearArcDisplay",
      "displayId": "interactions_arcs-LinearArcDisplay",
      "arcHeight": "jexl:log10(feature.end-feature.start)*20"
    }
  ]
}

color, arcHeight, thickness, and label all accept jexl:, so arc height can encode span or score. See LinearArcDisplay.

Showing only some features (filtering)

jexlFilters draws only the features that pass every expression in the list. Every entry is an expression already, so the jexl: prefix is optional here:

Config file CLI (add-track)

{
  "type": "FeatureTrack",
  "trackId": "genes_filtered",
  "name": "Long genes only",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "Gff3TabixAdapter", "uri": "volvox.sort.gff3.gz" },
  "displayDefaults": {
    "jexlFilters": [
      "feature.end - feature.start > 1000",
      "feature.type == 'gene'"
    ]
  }
}

jbrowse add-track volvox.sort.gff3.gz \
  --trackId genes_filtered \
  --name "Long genes only" \
  --assemblyNames volvox \
  --displayDefaults "{\"jexlFilters\":[\"feature.end - feature.start > 1000\",\"feature.type == 'gene'\"]}" \
  --load copy

The same slot works on variant and alignments tracks.

Tracks computed from the reference

Three adapters take no data file at all: they scan the assembly's own sequence and emit the hits as features. The adapter is handed the sequence of whatever assembly the track is displayed against, so the same track config works on any assembly.

The sequence search guide drives all three from the view's menu, which is the right tool for a one-off question. Write them into config.json when the track should be there for everyone.

Restriction enzyme sites

MotifListAdapter takes a REBASE-style list, one motif per line: an optional name, the site, and an optional cut marker. ^ marks a cut inside the site; (n/m) is for the type IIS enzymes that cut downstream of theirs.

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "restriction_enzymes",
  "name": "Restriction enzymes",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "MotifListAdapter",
    "motifs": "EcoRI\tG^AATTC\nBamHI\tG^GATCC\nBsaI\tGGTCTC(1/5)"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "restriction_enzymes",
  "name": "Restriction enzymes",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "MotifListAdapter",
    "motifs": "EcoRI\tG^AATTC\nBamHI\tG^GATCC\nBsaI\tGGTCTC(1/5)"
  }
}'

Sites may use IUPAC ambiguity codes, blank lines and # comments are ignored, and a palindromic site is reported once rather than twice. Because the list is just text, the same adapter serves primers, adapters, or any named motif set.

CRISPR guide RNAs

CrisprGuideAdapter scans for PAM sites and emits each candidate protospacer, annotated with its GC% and a poly-T flag. The defaults are SpCas9:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "crispr_guides",
  "name": "CRISPR guides SpCas9 (NGG)",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "CrisprGuideAdapter",
    "pam": "NGG",
    "guideLength": 20,
    "pamLocation": "3prime",
    "cutOffset": 3,
    "minGcPercent": 40,
    "maxGcPercent": 60,
    "excludePolyT": true
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "crispr_guides",
  "name": "CRISPR guides SpCas9 (NGG)",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "CrisprGuideAdapter",
    "pam": "NGG",
    "guideLength": 20,
    "pamLocation": "3prime",
    "cutOffset": 3,
    "minGcPercent": 40,
    "maxGcPercent": 60,
    "excludePolyT": true
  }
}'

A PAM occurs roughly every 8bp, so an unfiltered scan is far denser than a display can draw. The adapter keeps everything by default, which is why the GC window and excludePolyT (which drops guides containing TTTT, a terminator for the pol III promoters guides are usually expressed from) are set above.

Other enzymes are the same track with different numbers:

SaCas9 is NNGRRT with guideLength 21
Cas12a is "pam": "TTTV", "pamLocation": "5prime", "guideLength": 23, "cutOffset": 18, "cutOffsetBottom": 23

Cas12a needs that last slot because it is a staggered cutter: the two strands are cut at different offsets, leaving an overhang. For a blunt cutter the two are equal.

A regex motif across the reference

SequenceSearchAdapter takes a single regex, so TATA[AT]A[AT] finds either TATA-box variant:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "tata_boxes",
  "name": "TATA boxes",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "SequenceSearchAdapter",
    "search": "TATA[AT]A[AT]",
    "caseInsensitive": true
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "tata_boxes",
  "name": "TATA boxes",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "SequenceSearchAdapter",
    "search": "TATA[AT]A[AT]",
    "caseInsensitive": true
  }
}'

searchForward and searchReverse are on by default on all three adapters; set either to false to scan one strand. Regex syntax has no reverse complement and no IUPAC codes (N matches a literal N), so an ambiguous site belongs in a motif list rather than here.

Alignments tracks

colorBy, height, showSoftClipping, and groupBy are display settings:

Config file CLI (add-track)

{
  "type": "AlignmentsTrack",
  "trackId": "my_bam",
  "name": "My alignments",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BamAdapter", "uri": "volvox-sorted.bam" },
  "displayDefaults": {
    "height": 400,
    "colorBy": { "type": "mappingQuality" },
    "showSoftClipping": true,
    "groupBy": { "type": "tag", "tag": "HP" }
  }
}

jbrowse add-track volvox-sorted.bam \
  --trackId my_bam \
  --name "My alignments" \
  --assemblyNames volvox \
  --displayDefaults '{"height":400,"colorBy":{"type":"mappingQuality"},"showSoftClipping":true,"groupBy":{"type":"tag","tag":"HP"}}' \
  --load copy

colorBy also takes strand, pairOrientation, insertSize, and modifications (methylation)
groupBy also takes strand, firstOfPairStrand, pairOrientation, supplementary, and mapq

CRAM uses CramAdapter in place of BamAdapter.

Filter reads by SAM flag or tag

flagExclude hides reads with any of its bits set. The 1540 below hides unmapped, vendor-failed, and duplicate reads; 3844 also hides secondary and supplementary
flagInclude keeps only reads with all of its bits set
tagFilters restricts by tag value

A read has to pass every filter to be drawn:

Config file CLI (add-track)

{
  "type": "AlignmentsTrack",
  "trackId": "my_bam_filtered",
  "name": "Haplotype 1 reads",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BamAdapter", "uri": "volvox-sorted.bam" },
  "displayDefaults": {
    "filterBy": {
      "flagExclude": 1540,
      "flagInclude": 0,
      "tagFilters": [{ "tag": "HP", "value": "1" }]
    }
  }
}

jbrowse add-track volvox-sorted.bam \
  --trackId my_bam_filtered \
  --name "Haplotype 1 reads" \
  --assemblyNames volvox \
  --displayDefaults '{"filterBy":{"flagExclude":1540,"flagInclude":0,"tagFilters":[{"tag":"HP","value":"1"}]}}' \
  --load copy

Broad's flag explainer adds up a number for you. fetchSizeLimit on the adapter caps how much data is fetched. See alignments tracks.

Quantitative (wiggle) tracks

Config file CLI (add-track)

{
  "type": "QuantitativeTrack",
  "trackId": "coverage",
  "name": "Coverage",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BigWigAdapter", "uri": "volvox_microarray.bw" },
  "displayDefaults": { "color": "#C8B414", "scaleType": "log", "minScore": 0 }
}

jbrowse add-track volvox_microarray.bw \
  --trackId coverage \
  --name Coverage \
  --assemblyNames volvox \
  --displayDefaults '{"color":"#C8B414","scaleType":"log","minScore":0}' \
  --load copy

Setting color puts the track in single-color mode. Left alone, a wiggle is bicolor: scores above bicolorPivot draw upward in posColor, and scores below it draw downward in negColor. Set color or posColor/negColor, never both. A wiggle colors per signal, so the per-feature callbacks above don't apply here.

defaultRendering picks the plot: xyplot, line, scatter (good for BAF or CN points), or density. Its page lists every value, and LinearWiggleDisplay covers the scale slots.

Multiple signals on one track, each its own color

{
  "type": "MultiQuantitativeTrack",
  "trackId": "multiwig",
  "name": "Grains",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "Grain1",
        "uri": "v1.bw",
        "color": "#f00"
      },
      {
        "type": "BigWigAdapter",
        "name": "Grain2",
        "uri": "v2.bw",
        "color": "#f60"
      }
    ]
  },
  "displayDefaults": { "defaultRendering": "multiline" }
}

defaultRendering takes a multirow* name to stack one row per signal or a multi* name to overlay them in one plot; its page lists all nine.

jbrowse add-track --multiwig v1.bw,v2.bw --load copy --name Grains

--multiwig also takes a .json sources file holding the name/color rows above. subadapters is just a list, so once you have more than a handful of samples, generate it from your samplesheet. Beyond a few hundred, one file per sample stops being the right shape at all, and population copy number serves the same display from a single Zarr store instead.

If the quantity has an absolute meaning, set minScore/maxScore on the display. Autoscale runs per row, so a sample whose signal never leaves the baseline is drawn at the same full height as one with a real amplification, and the rows stop being comparable.

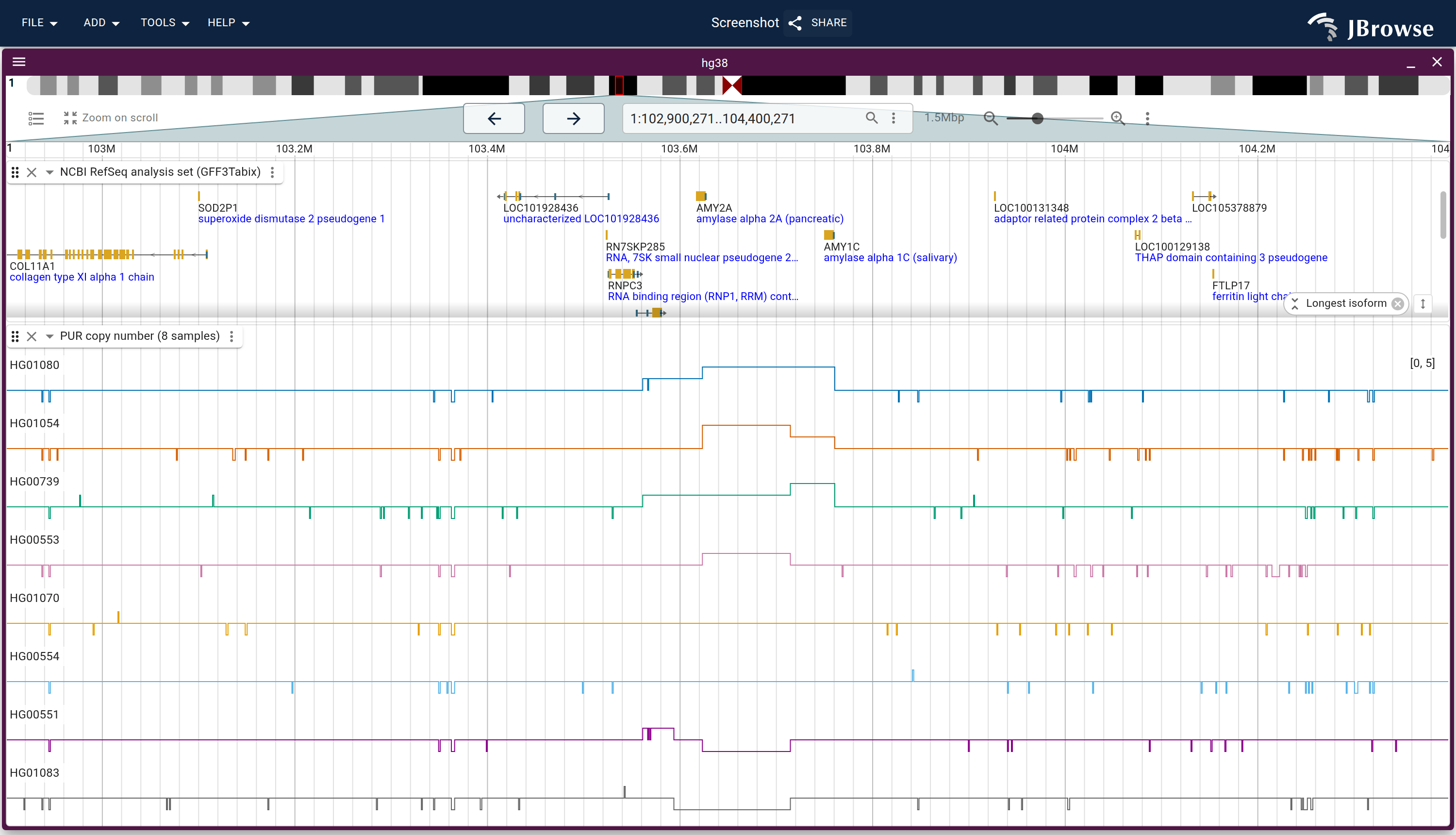

An eight-sample MultiQuantitativeTrack across 1.5 Mb of chr1 (multirowline), each 1000 Genomes individual its own color on a shared 0 to 5 copy-number scale. Every row sits at two copies through the flanks; only the amylase cluster in the middle separates them, from one copy to four. Open this view in JBrowse ↗

Variant tracks

color and jexlFilters work just as they do on a feature track. VCF INFO fields are the usual thing to branch on, and they parse as arrays, so index them:

Config file CLI (add-track)

{
  "type": "VariantTrack",
  "trackId": "svs_by_type",
  "name": "SVs by type",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "VcfTabixAdapter", "uri": "volvox.dup.vcf.gz" },
  "displayDefaults": {
    "color": "jexl:{DEL:'red',INS:'blue',DUP:'green',INV:'orange'}[feature.INFO.SVTYPE[0]] || 'gray'",
    "jexlFilters": ["feature.INFO.AF[0] > 0.05"]
  }
}

jbrowse add-track volvox.dup.vcf.gz \
  --trackId svs_by_type \
  --name "SVs by type" \
  --assemblyNames volvox \
  --displayDefaults "{\"color\":\"jexl:{DEL:'red',INS:'blue',DUP:'green',INV:'orange'}[feature.INFO.SVTYPE[0]] || 'gray'\",\"jexlFilters\":[\"feature.INFO.AF[0] > 0.05\"]}" \
  --load copy

Multi-sample VCFs open in the standard variant display. For genotypes as a grid, switch from the track menu or name the display in the config:

{
  "type": "VariantTrack",
  "trackId": "cohort_matrix",
  "name": "Cohort genotypes",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "VcfTabixAdapter", "uri": "volvox.dup.vcf.gz" },
  "displays": [
    {
      "type": "LinearMultiSampleVariantMatrixDisplay",
      "displayId": "cohort_matrix-LinearMultiSampleVariantMatrixDisplay"
    }
  ]
}

See variant tracks.

Synteny and dotplot tracks

A SyntenyTrack lines up two assemblies and feeds both the dotplot and linear-synteny views. Pick the adapter matching your aligner:

PAFAdapter for minimap2 and wfmash
DeltaAdapter for MUMmer
ChainAdapter for liftOver and lastz

Getting the two assemblies backwards is the most common mistake here. minimap2 takes its inputs target first (minimap2 grape.fa peach.fa makes grape the target), so name them explicitly:

{
  "type": "SyntenyTrack",
  "trackId": "grape_peach_synteny",
  "name": "Grape vs Peach",
  "assemblyNames": ["peach", "grape"],
  "adapter": {
    "type": "PAFAdapter",
    "uri": "out.paf",
    "queryAssembly": "peach",
    "targetAssembly": "grape"
  }
}

The query draws on the dotplot's horizontal axis, and on the top row in linear synteny. The target draws on the vertical axis and the bottom row. Both assemblies must already exist in assemblies. If the track loads blank, it is almost always because the two are swapped: flip queryAssembly and targetAssembly. See the synteny track guide and the synteny visualization tutorial.

Large alignments

Every synteny adapter reads the whole file into memory, except the two indexed (PIF) ones, which do a tabix range lookup instead. Index a big PAF once and reuse it:

jbrowse make-pif alignments.paf   # -> alignments.pif.gz (+ .tbi)

{
  "type": "SyntenyTrack",
  "trackId": "grape_peach_synteny_pif",
  "name": "Grape vs Peach (indexed)",
  "assemblyNames": ["peach", "grape"],
  "adapter": {
    "type": "PairwiseIndexedPAFAdapter",
    "uri": "alignments.pif.gz",
    "queryAssembly": "peach",
    "targetAssembly": "grape"
  }
}

AllVsAllIndexedPAFAdapter is the same thing for an all-vs-all PAF, taking assemblyNames in place of query/target (below).

Gene-level synteny from ortholog tables

MCScanAnchorsAdapter links orthologous genes rather than sequence alignments, and needs the MCScan workflow's per-assembly BED files. MCScan adapters take only assemblyNames, with the query first:

Config file CLI (add-track)

{
  "type": "SyntenyTrack",
  "trackId": "grape_peach_anchors",
  "name": "Grape vs Peach (MCScan anchors)",
  "assemblyNames": ["grape", "peach"],
  "adapter": {
    "type": "MCScanAnchorsAdapter",
    "uri": "grape.peach.anchors.gz",
    "bed1": "grape.bed.gz",
    "bed2": "peach.bed.gz",
    "assemblyNames": ["grape", "peach"]
  }
}

jbrowse add-track grape.peach.anchors.gz \
  --trackId grape_peach_anchors \
  --name "Grape vs Peach (MCScan anchors)" \
  --assemblyNames grape,peach \
  --bed1 grape.bed.gz \
  --bed2 peach.bed.gz \
  --load copy

See the ortholog-tables tutorial, which also covers MCScanBlocksAdapter for a .blocks table.

Stacking more than two genomes

A single all-vs-all PAF backs every band, so you only need one track. Its sequence names must be PanSN-prefixed (sample#haplotype#contig), and assemblyNames lists every assembly the file covers:

Config file CLI (add-track)

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_ava",
  "name": "E. coli all-vs-all",
  "assemblyNames": ["K12", "Sakai", "CFT073"],
  "adapter": {
    "type": "AllVsAllPAFAdapter",
    "uri": "all_vs_all.paf",
    "assemblyNames": ["K12", "Sakai", "CFT073"]
  }
}

jbrowse add-track all_vs_all.paf \
  --trackId ecoli_ava \
  --name "E. coli all-vs-all" \
  --assemblyNames K12,Sakai,CFT073 \
  --adapterType AllVsAllPAFAdapter \
  --load copy

A LinearSyntenyView then takes one assembly row per genome and one track entry per band, so three rows means two bands:

"defaultSession": {
  "views": [
    {
      "type": "LinearSyntenyView",
      "init": {
        "views": [{ "assembly": "K12" }, { "assembly": "Sakai" }, { "assembly": "CFT073" }],
        "tracks": [["ecoli_ava"], ["ecoli_ava"]],
        "minAlignmentLength": 10000
      }
    }
  ]
}

minAlignmentLength hides the short alignments that would otherwise bury the shared backbone. For full walkthroughs, see all-vs-all synteny from one PAF and ortholog tables from a jcvi .blocks file.

Dotplot view and linear synteny view for what each view does with the track
Synteny on genomes.jbrowse.org to launch a synteny view from a liftOver track in a linear genome view
Pangenome graphs for graph-derived alignments

Instance-wide settings

Track folders and metadata are both set on the track itself. A nested category array makes nested folders in the hierarchical track selector, and metadata shows up in the track details:

Config file CLI (add-track-json)

{
  "type": "AlignmentsTrack",
  "trackId": "brain_rnaseq",
  "name": "Brain RNA-seq",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BamAdapter", "uri": "volvox-sorted.bam" },
  "category": ["RNA-seq", "Brain"],
  "metadata": {
    "description": "150bp paired-end reads",
    "source": "See <a href='https://example.com'>the paper</a>"
  }
}

jbrowse add-track-json '{
  "type": "AlignmentsTrack",
  "trackId": "brain_rnaseq",
  "name": "Brain RNA-seq",
  "assemblyNames": ["volvox"],
  "adapter": { "type": "BamAdapter", "uri": "volvox-sorted.bam" },
  "category": ["RNA-seq", "Brain"],
  "metadata": {
    "description": "150bp paired-end reads",
    "source": "See <a href='\''https://example.com'\''>the paper</a>"
  }
}'

Text searching. jbrowse text-index builds the index and writes the matching aggregateTextSearchAdapters entry into your config. After that, the search box jumps to genes by name. See text searching to hand-write or relocate one.

Theming. primary and secondary drive the toolbars and highlights, while tertiary and quaternary drive the accents. See coloring/theming for logos, fonts, and dark mode:

"configuration": {
  "theme": {
    "palette": {
      "primary": { "main": "#311b92" },
      "secondary": { "main": "#0097a7" }
    }
  }
}

Plugins. Use esmLoc for a file sitting next to your config, or esmUrl for one hosted elsewhere. See plugins:

"plugins": [{ "name": "MyPlugin", "esmLoc": { "uri": "myplugin.js" } }]

Opening to a specific view is what the defaultSession in the config above does. See default session.

From config to a URL

A URL can name things config.json already defines:

https://host/jbrowse2/?config=config.json&assembly=volvox&loc=ctgA:1-50000&tracks=genes,coverage

config is which config file to load
assembly is the name of an entry in assemblies (not a track, a common mix-up)
loc is a region, or a gene name if you've run jbrowse text-index
tracks is a comma-separated list of trackIds to turn on

A link like this starts a fresh view and ignores any defaultSession. Add &extendSession=true to keep the existing session and change only the location.

To set how a track looks, give it a displaySnapshot, which takes the same settings as displayDefaults:

&session=spec-{"views":[{"type":"LinearGenomeView","assembly":"volvox","loc":"ctgA:1-50000","tracks":[{"trackId":"genes","displaySnapshot":{"color":"green"}}]}]}

&sessionTracks= adds a track the config has never heard of, using the same objects as its tracks array. A FromConfigAdapter carries its features inline, so a region of interest can travel in the link itself:

&sessionTracks=[{"type":"FeatureTrack","trackId":"url_track","name":"URL track","assemblyNames":["volvox"],"adapter":{"type":"FromConfigAdapter","features":[{"uniqueId":"1","refName":"ctgA","start":100,"end":200,"name":"Boris"}]}}]

See URL query parameter API for the full list, multi-view layouts, and the encoded links the "Share" button produces. FromConfig adapters covers inline features in a config.

Where to go next

Config and session JSON - what this document is, and every surface that opens one
Config guide - structure of config.json and links to every per-track guide
Using jexl callbacks - full catalog of callback functions
Supported file types - every format and its adapter
Config reference - the complete, auto-generated slot list for every track, display, and adapter
Automating JBrowse - the shared init launch model across config, URL, and embedded components

Cookbook

The smallest config#

A complete config#

Jump to a recipe#

Config shorthand#

Applying a recipe from the CLI#

Assemblies#

Colors#

What you can color by#

More ways to set color#

One row per category#

Labels, tooltips & details#

Customizing the feature details panel#

Feature tracks#

Track height#

Pack features onto fewer rows#

Draw features as arcs#

Showing only some features (filtering)#

Tracks computed from the reference#

Restriction enzyme sites#

CRISPR guide RNAs#

A regex motif across the reference#

Alignments tracks#

Filter reads by SAM flag or tag#

Quantitative (wiggle) tracks#

Multiple signals on one track, each its own color#

Variant tracks#

Synteny and dotplot tracks#

Large alignments#

Gene-level synteny from ortholog tables#

Stacking more than two genomes#

Related views#

Instance-wide settings#

From config to a URL#

Where to go next#

The smallest config

A complete config

Jump to a recipe

Config shorthand

Applying a recipe from the CLI

Assemblies

Colors

What you can color by

More ways to set `color`

One row per category

Labels, tooltips & details

Customizing the feature details panel

Feature tracks

Track height

Pack features onto fewer rows

Draw features as arcs

Showing only some features (filtering)

Tracks computed from the reference

Restriction enzyme sites

CRISPR guide RNAs

A regex motif across the reference

Alignments tracks

Filter reads by SAM flag or tag

Quantitative (wiggle) tracks

Multiple signals on one track, each its own color

Variant tracks

Synteny and dotplot tracks

Large alignments

Gene-level synteny from ortholog tables

Stacking more than two genomes

Related views

Instance-wide settings

From config to a URL

Where to go next
