RNA-seq visualization

TL;DR: JBrowse derives splice arcs and spliced read alignments from BAM/CRAM CIGAR N skips with no configuration, and can color or group reads by first-of-pair strand for strand-specific libraries.

Prerequisites

nothing to install to read along: every figure loads hosted data
for your own reads, an aligned, sorted and indexed BAM or CRAM from a spliced aligner
a JBrowse instance to load it into: the web quickstart, or the desktop quickstart, which opens a local BAM with no hosting step

Where the data comes from

Three hg19 alignment sets, hosted on jbrowse.org's demo bucket.

the paired-end stranded RNA-seq alignments behind every short-read figure on this page, from the sample files listed at RSeQC: https://s3.amazonaws.com/jbrowse.org/genomes/hg19/paired_end_rnaseq/Pairend_StrandSpecific_51mer_Human_hg19.bam
the long-read IsoSeq alignments: https://s3.amazonaws.com/jbrowse.org/genomes/hg19/alzheimers_isoseq/hq_isoforms.fasta.bam
the NCBI RefSeq gene models drawn under every figure: https://s3.amazonaws.com/jbrowse.org/genomes/hg19/ncbi_refseq/GRCh37_latest_genomic.sort.gff.gz

What RNA-seq looks like in the genome browser

The example gene is ACTB, a compact gene with deep, even read coverage.

Each grey box below is a read. The thin teal lines jumping across a gap are spliced alignments, where a read maps partly to one exon and partly to the next, skipping the intron between them. The histogram along the top is read coverage at each position.

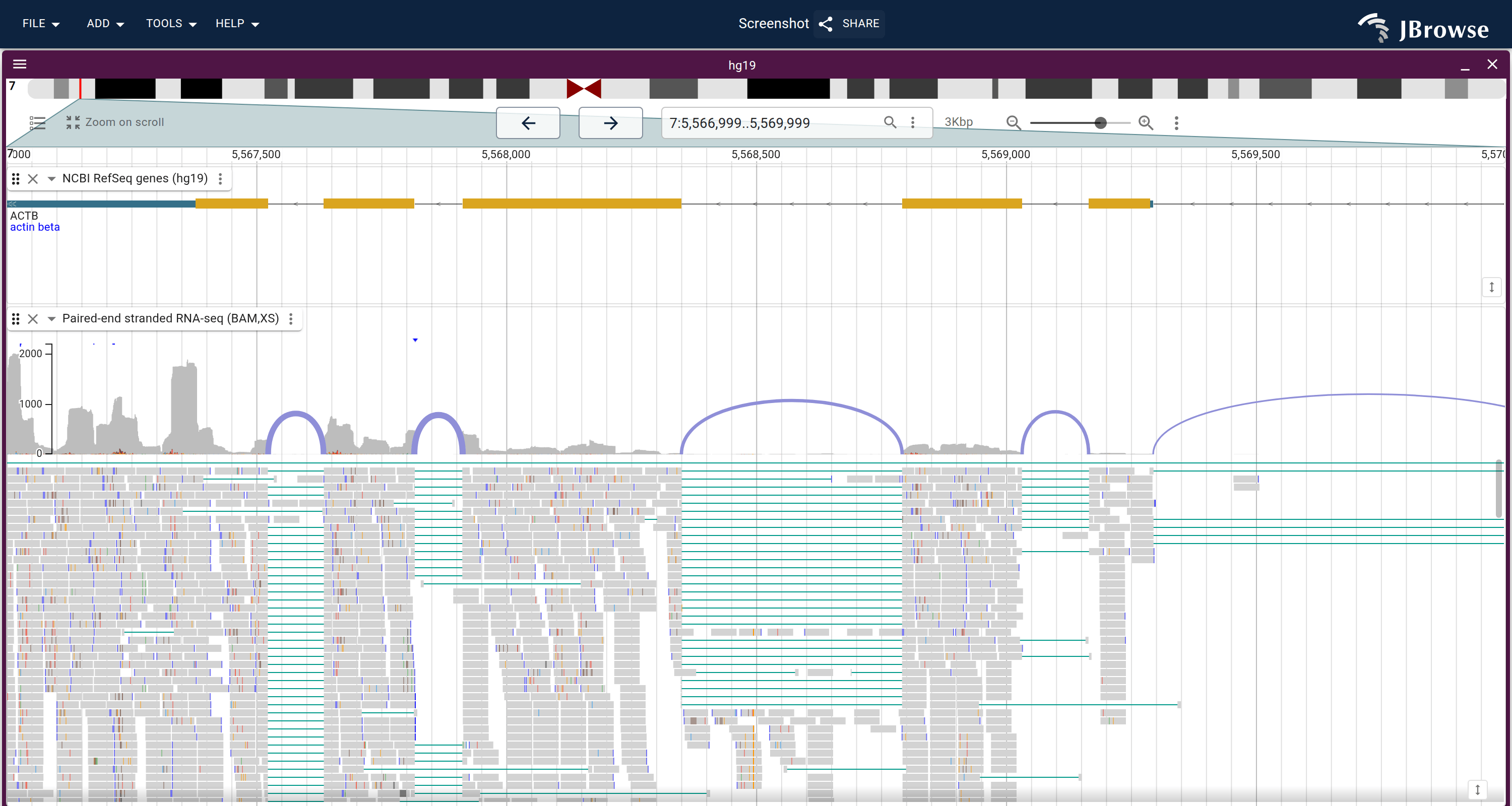

RNA-seq reads over ACTB: the coverage histogram (top), strand-colored splice arcs, the spliced read pileup, and the NCBI RefSeq gene model. Open this view in JBrowse ↗

Read coverage and read height

The histogram counts the reads in the pileup below it at each position. Comparing genes or libraries needs the transcript-length and library-size normalization a counts pipeline applies.

Pick Read height → Compact in the track menu to pack the full read stack into view:

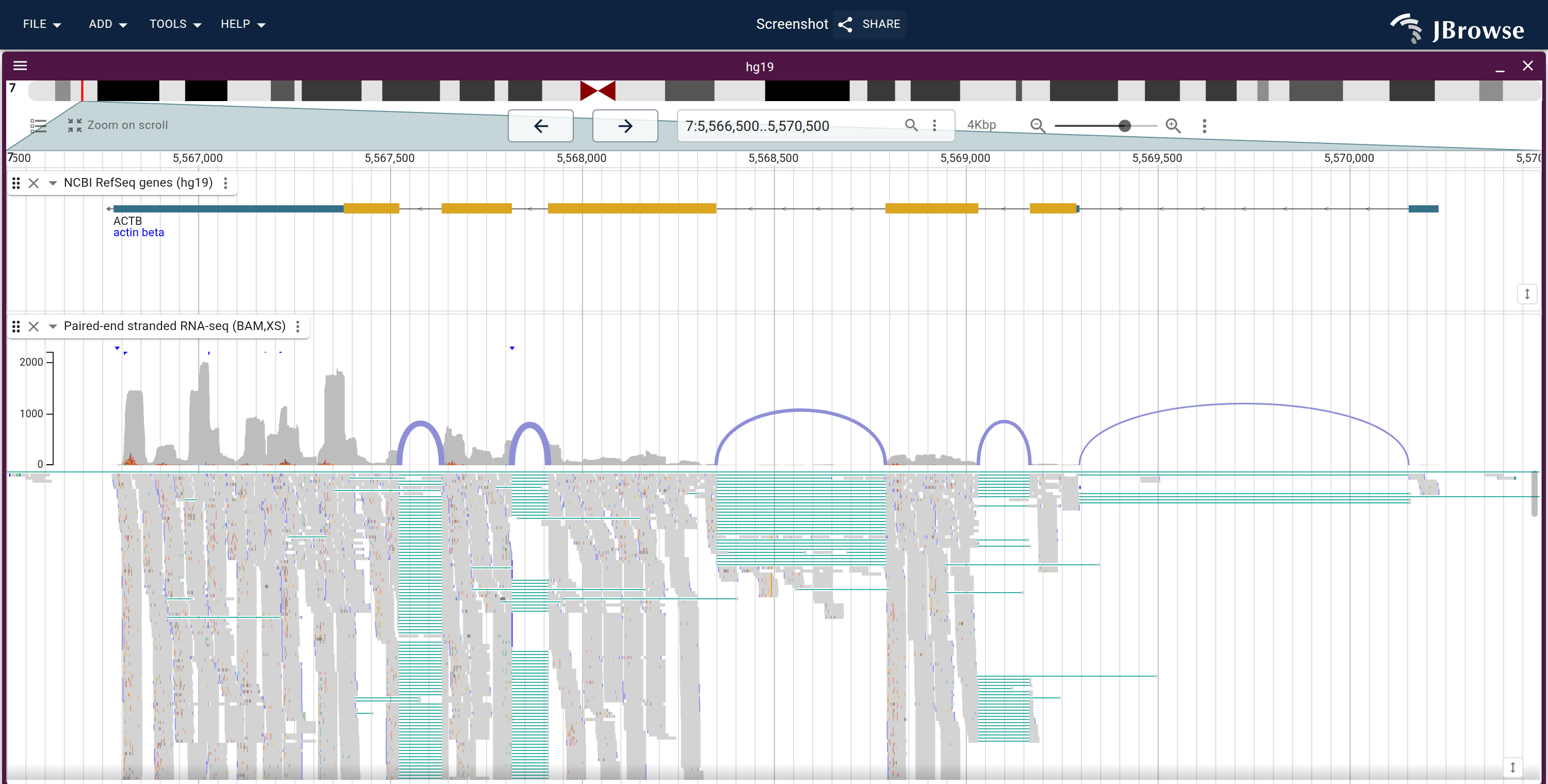

ACTB under compact read height: the whole read stack fits the track, under the per-position coverage histogram and the hg19 NCBI RefSeq gene model. Open this view in JBrowse ↗

Spliced reads, CIGAR strings, and splice arcs

RNA is spliced before sequencing, so a read mapped back to the genome skips the introns that were removed. A spliced aligner like STAR split-maps such a read and encodes the skip in its CIGAR string, the SAM/BAM field describing how a read aligns to the reference.

A spliced read from the ACTB pileup above (reads here are 51 bp) has a CIGAR like this, spaced out for readability:

18M 95N 33M

That means 18 bp (M, match) aligned to one exon, a 95 bp skip (N) across the intron, and 33 bp (M) aligned to the next. Every N in a read's CIGAR is one skipped intron.

JBrowse draws an arc for every read whose CIGAR contains a skip, on the fly. The arc takes its color from the transcript strand: XS and TS record it directly, while minimap2's ts records the orientation relative to the read, which JBrowse combines with the read's own strand. Red for forward, blue for reverse. A junction whose reads carry none of those tags, as in a BAM aligned by STAR without --outSAMstrandField intronMotif, takes its strand from the splice motif instead: JBrowse reads the first and last two bases of the intron off the reference, and GT-AG on the forward strand reads as CT-AC on the reverse. The neutral color is left for a junction whose reads disagree or whose motif is none of GT-AG, GC-AG and AT-AC. Hovering an arc shows the motif beside the read count.

At Normal read height each spliced read stands on its own: two grey exon-aligned ends joined by a thin teal line across the skipped intron. That connector is drawn per read, separate from the red/blue arcs above it, which aggregate every read crossing a junction.

Strand-specific RNA-seq

The arc colors above cover only spliced reads. A strand-specific library records the transcript strand in which mate of the pair a read is, so every read carries it. That is what tells apart genes sitting close together or overlapping on opposite strands.

The surfeit locus packs genes tightly and alternates their strands (RPL7A, SURF1, SURF2, SURF4), so the coloring, which comes from the reads alone, has an annotation to agree with. Open the track menu and pick Color by... → Paired end → First of pair strand:

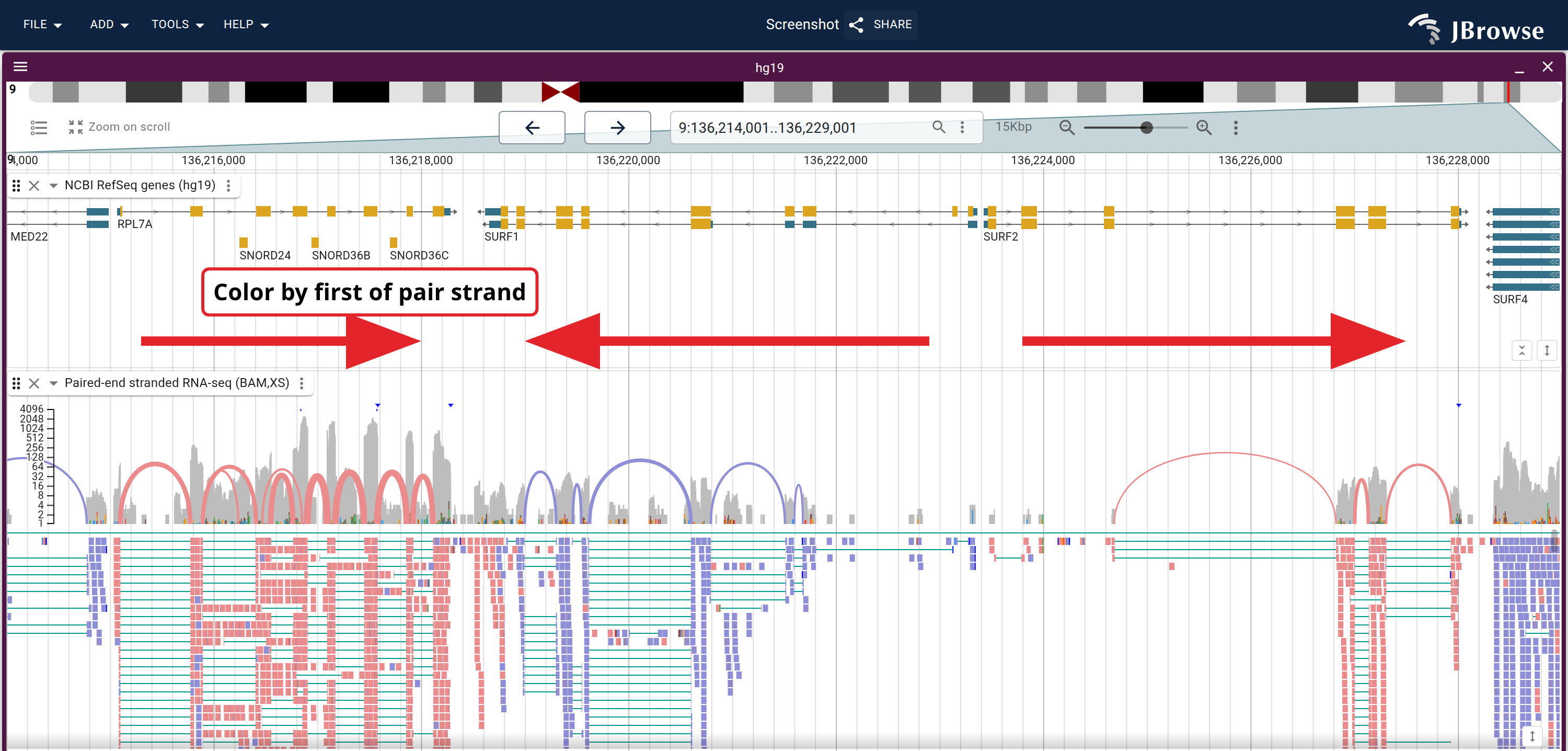

The surfeit locus colored by first-of-pair strand. The pileup splits into two colors, and the switch falls where the genes change strand: RPL7A forward, SURF1 reverse, SURF2 forward. Open this view in JBrowse ↗

Coloring answers the question one read at a time, and the coverage histogram answers it for a whole gene. Pick Group by... → First-of-pair strand, then turn off Show... → Show pileup. Each group gets its own band computed from only its reads, leaving two histograms, forward and reverse, on one autoscaled axis.

In the gene-dense MHC class III region, NELFE and SKIV2L sit back to back on opposite strands:

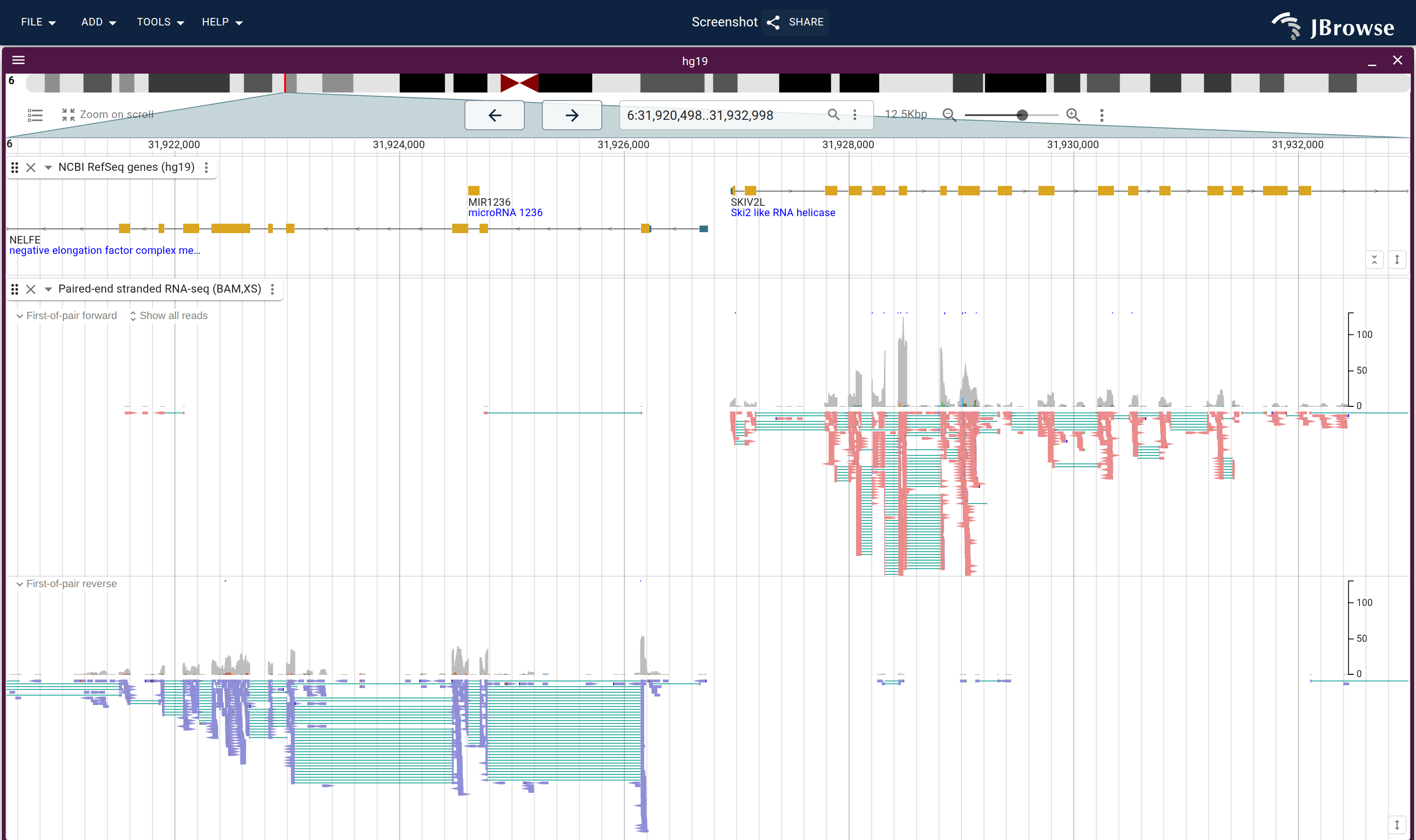

NELFE and SKIV2L, adjacent and on opposite strands, grouped by first-of-pair strand: each band carries signal over exactly one of the two genes. Open this view in JBrowse ↗

Swapping to Strand groups on the read's own strand, which for a paired-end library sends the two mates of every pair to opposite bands, so neither band is the transcript strand.

Short reads and long reads

Short-read RNA-seq (usually Illumina, ~150 bp per read) fragments each transcript, so a transcript is reassembled from many overlapping reads. A long read (PacBio IsoSeq, Nanopore) often spans a whole transcript, aligning across every exon with one N skip per intron. JBrowse derives the same arcs and connectors from those skips:

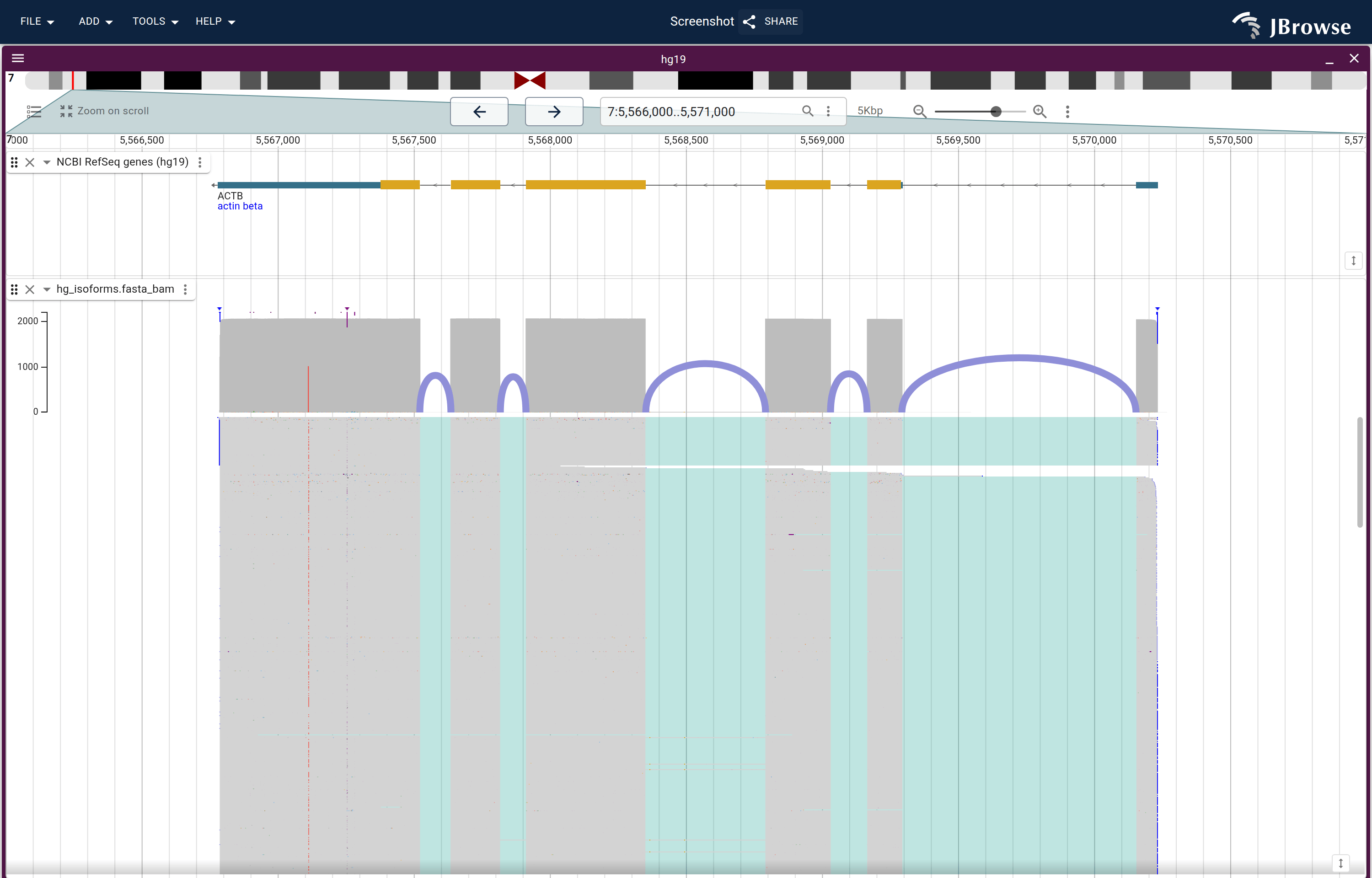

Long-read (IsoSeq) RNA-seq in JBrowse 2. A long read often spans all of a transcript's exons at once, producing a long, clean spliced alignment. Open this view in JBrowse ↗

Reading a deep pileup

Deep RNA-seq buries the evidence under the reads that carry none. Three controls in the track menu pull it back out, and each is a setting on the track rather than a new file.

Sort by... → Spliced reads first gives every read whose CIGAR carries a skip the lowest rows, so the junction-spanning reads sit together at the top of the pileup.

Filter by... has a splicing radio: Only spliced reads keeps just those reads, and the coverage histogram follows, so what is left is a histogram of the junction-spanning evidence alone. Only unspliced reads is the complement, useful for checking intron retention.

Sashimi arcs → Hide non-canonical junctions drops every arc whose intron does not begin and end with GT-AG, GC-AG or AT-AC on either strand. At depth the thin arcs are mostly these alignment artefacts, and they are what Sashimi arcs → Min read support cannot remove without also removing a real junction supported by few reads.

Loading your own RNA-seq data

An aligned, sorted and indexed BAM or CRAM loads from Add track in JBrowse Web, or as an AlignmentsTrack in a config:

Config file CLI (add-track)

{
  "type": "AlignmentsTrack",
  "trackId": "my_rnaseq",
  "name": "My RNA-seq",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BamAdapter",
    "uri": "https://yourhost/rnaseq.bam"
  }
}

jbrowse add-track https://yourhost/rnaseq.bam \
  --trackId my_rnaseq \
  --name "My RNA-seq" \
  --assemblyNames hg38

The track's assemblyNames must match an assembly already configured in JBrowse; see the assemblies configuration guide. Align reads with a spliced aligner such as STAR, then samtools sort and samtools index so the .bai sits beside the BAM.

The alignments track config guide covers adapter and display options. A precomputed coverage signal, such as a strand-specific BigWig from the aligner, loads separately as a quantitative track.

Junction files from the pipeline

The arcs above come from the reads in view. A pipeline's own junction table carries what the browser cannot compute from one window: counts over the whole library, an annotated-or-novel flag, portcullis's filtering verdict. Every such table is a few columns away from BED, and a BED file of introns draws as arcs on a feature track, so the route is one awk line, then bgzip and tabix.

Each recipe writes one line per junction with the intron as the BED interval, the read count as the score, the strand, and the tool's own columns after them. Sorting and indexing is the same for all three:

sort -k1,1 -k2,2n junctions.bed | bgzip > junctions.bed.gz
tabix -p bed junctions.bed.gz

STAR writes SJ.out.tab with the intron as 1-based inclusive coordinates, the strand as 0/1/2, the motif as STAR's own code (0 is non-canonical) and the annotated flag, then the unique and multi-mapping read counts:

awk -v OFS='\t' '{
  # column 4: 1 = +, 2 = -, 0 = undetermined
  s = $4 == 1 ? "+" : $4 == 2 ? "-" : "."
  # BED is 0-based half-open, so the start moves back one
  print $1, $2 - 1, $3, "junc" NR, $7, s, $5, $6
}' SJ.out.tab > junctions.bed

regtools junctions extract already writes BED12, but its interval is the anchor span, the reads' aligned flanks around the intron. The two block sizes trim it back to the intron:

awk -v OFS='\t' '{
  split($11, b, ",")
  print $1, $2 + b[1], $3 - b[2], $4, $5, $6
}' regtools_junctions.bed > junctions.bed

portcullis writes a header row naming its columns, so the recipe reads them by name rather than by position. nb_raw_aln is the raw supporting-read count, canonical_ss is C, S or N for canonical, semi-canonical and non-canonical:

awk -F'\t' -v OFS='\t' '
  NR == 1 { for (i = 1; i <= NF; i++) c[$i] = i; next }
  {
    # start is 0-based and end is inclusive, so end moves forward one
    print $c["refname"], $c["start"], $c["end"] + 1, "junc_" $c["index"],
      $c["nb_raw_aln"], $c["consensus-strand"], $c["canonical_ss"]
  }
' 3-filt/portcullis_filtered.pass.junctions.tab > junctions.bed

The track is a feature track with the arc display picked, and the extra columns named so a color callback can read them. This is the STAR file, colored by its annotated flag; the same shape reads canonical_ss off the portcullis one:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "star_junctions",
  "name": "Splice junctions (STAR)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://yourhost/junctions.bed.gz",
    "columnNames": [
      "chrom",
      "chromStart",
      "chromEnd",
      "name",
      "score",
      "strand",
      "motif",
      "annotated"
    ]
  },
  "displays": [
    {
      "type": "LinearArcDisplay",
      "displayId": "star_junctions-LinearArcDisplay",
      "color": "jexl:get(feature,'annotated')=='1'?'#377eb8':'#e41a1c'",
      "minScore": 3
    }
  ]
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "star_junctions",
  "name": "Splice junctions (STAR)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://yourhost/junctions.bed.gz",
    "columnNames": [
      "chrom",
      "chromStart",
      "chromEnd",
      "name",
      "score",
      "strand",
      "motif",
      "annotated"
    ]
  },
  "displays": [
    {
      "type": "LinearArcDisplay",
      "displayId": "star_junctions-LinearArcDisplay",
      "color": "jexl:get(feature,'\''annotated'\'')=='\''1'\''?'\''#377eb8'\'':'\''#e41a1c'\''",
      "minScore": 3
    }
  ]
}'

The arc's thickness follows the score by default, its label prints the score at the apex, and minScore is the same read-support floor the sashimi menu offers, applied to the file's whole-library counts. The extra columns arrive as text, so the callback compares against '1' rather than 1.
