Pangenome (HPRC)

TL;DR: HPRC release 2's sv.gfa is an rGFA, so its segments carry coordinates and the graph opens by locus from two small tabix indexes. Its wave.vcf.gz ships an index too, so 464 haplotypes draw as a genotype matrix straight off S3.

Experimental

The graph view is a beta plugin, and this tutorial covers experimental ideas. We welcome your feedback.

Prerequisites

nothing at all, to open what this page builds: the HPRC page on genomes.jbrowse.org launches every graph below on a typed region or a whole chromosome. This page is the route for loading the files into your own JBrowse, or rebuilding them
the GraphGenomeView plugin, for the tracks that use RgfaTabixAdapter and MinigraphBubbleAdapter; every other track here is a URL you can paste
to rebuild the hosted files rather than read them: htslib (bgzip, tabix), for the graph indexes and the bubble file
gfatools, for the graph indexes and the bubble file
bedtools, for the repeat-density lanes
UCSC's bedGraphToBigWig, for the repeat-density lanes
UCSC's bigBedToBed, for the repeat-density lanes

Both UCSC binaries are single-binary downloads, and build_repeat_density.sh's header carries the curl line for each.

Where the data comes from

HPRC release 2, whose Minigraph-Cactus graph, wave callset and the alignment underneath both are read straight off S3 or through small tabix projections we host beside them.

the SV-resolution graph (sv.gfa), the minigraph backbone our rGFA tabix projections are built from: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/hprc-v2.0-mc-grch38.sv.gfa.gz
the decomposed variant callset, 464 haplotypes, read straight off S3: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/hprc-v2.0-mc-grch38.wave.vcf.gz
the undecomposed, snarl-level carriage file, 462 haplotypes: https://s3-us-west-2.amazonaws.com/human-pangenomics/submissions/671F0A25-700C-4DDF-96B0-9668F6C0F25E--hprc_v2.0_mc_grch38_index/hprc-v2.0-mc-grch38.pgbi.vcf.gz
the multiple alignment the graph and the callset are both derived from: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/v2.0/hprc-v2.0-mc-grch38/hprc-v2.0-mc-grch38.full.taf.gz

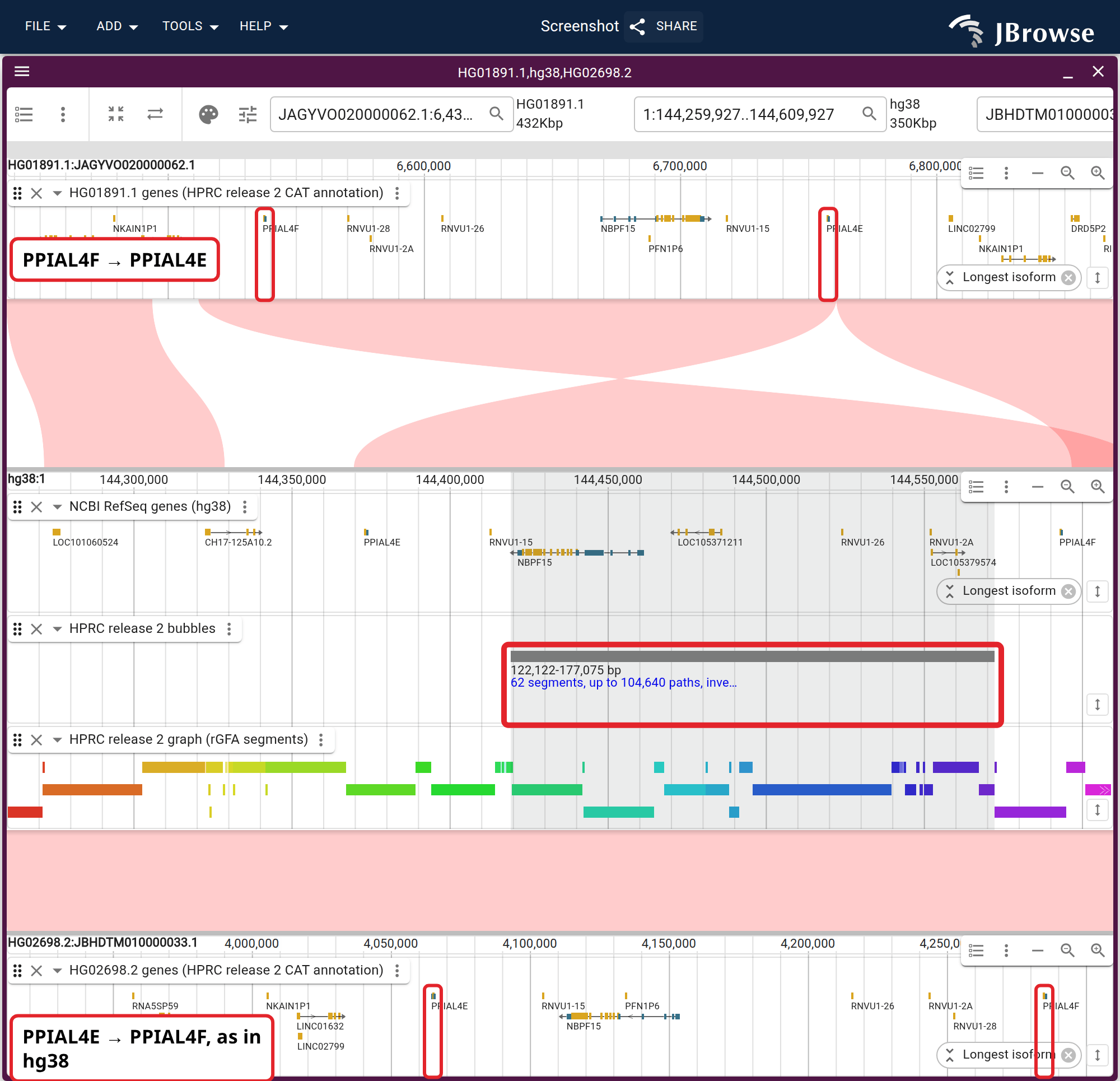

the release's all-vs-GRCh38 alignment, sliced for the CFHR and inversion synteny figures: https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/impg/pafs/hprc465vsgrch38.aln.paf.gz
the CAT gene annotation index, one GFF3 per haplotype: https://raw.githubusercontent.com/human-pangenomics/hprc_intermediate_assembly/main/data_tables/annotation/cat/cat_genes_hprc_r2_v1.3.index.csv
the T2T-CHM13v2.0 reference (hs1), loaded as its own donor assembly: https://hgdownload.soe.ucsc.edu/goldenPath/hs1/bigZips/hs1.2bit
GRCh38's RepeatMasker annotation, binned for the repeat-density lanes: https://hgdownload.soe.ucsc.edu/goldenPath/hg38/database/rmsk.txt.gz
hs1's RepeatMasker annotation, the same lanes' other assembly: https://hgdownload.soe.ucsc.edu/gbdb/hs1/t2tRepeatMasker/chm13v2.0_rmsk.bb
our own rGFA, bubble and repeat-density projections, with the exact build recorded beside them: https://jbrowse.org/demos/hprc/README.txt
hs1's RefSeq genes, rehosted: https://jbrowse.org/ucsc/hs1/hs1.gff.gz

The route, end to end

Everything this page does to the graph, in one session:

open hg38 with its genes and nothing else
paste the track config from Load the graph into the app
cut a window as a graph
take one node back to its coordinates

The link under the clip opens the session it starts in, so pasting a config for your own graph walks the same route on it.

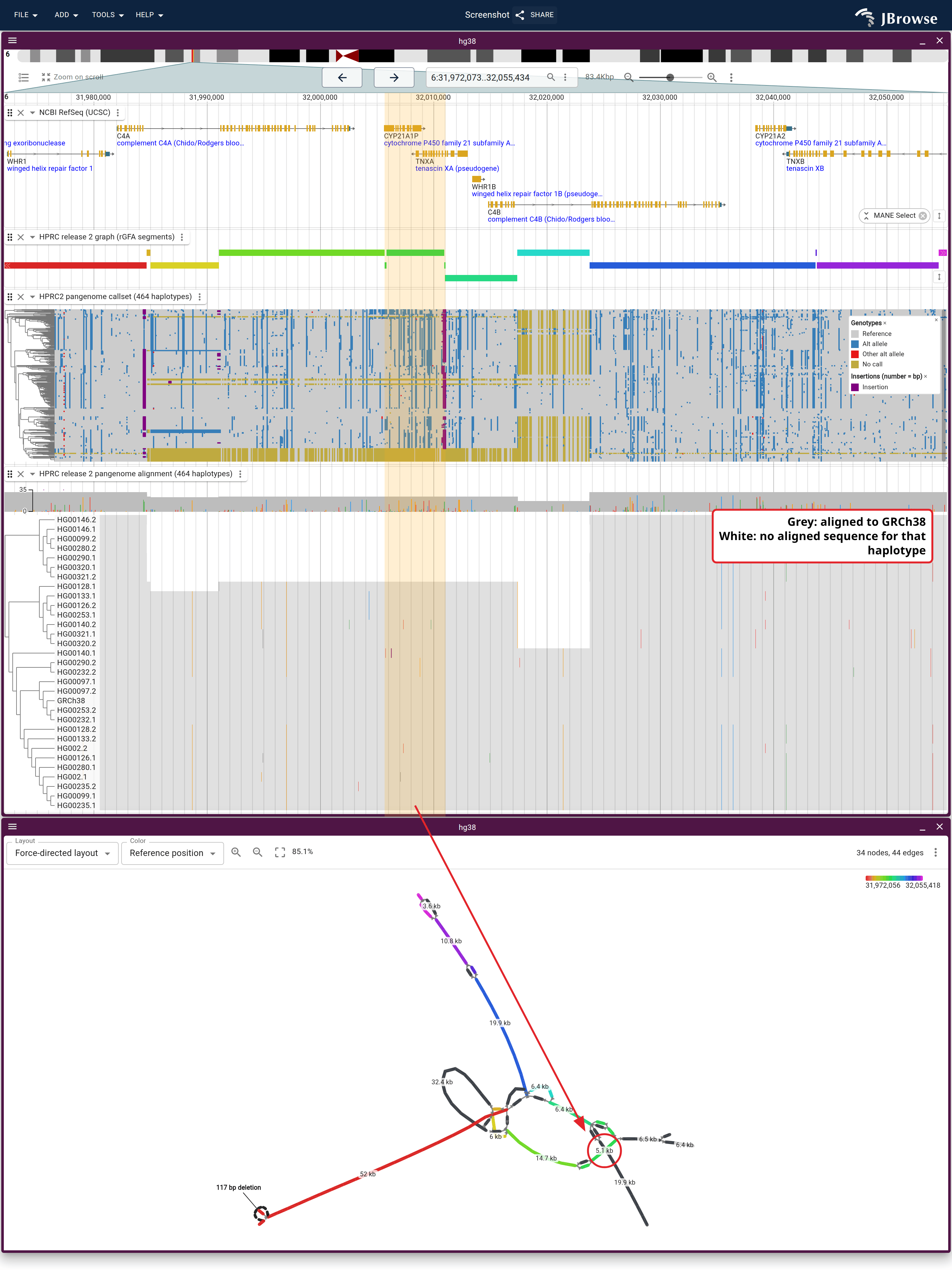

HPRC release 2's graph added to an hg38 session and then read: the track config pasted into Open track..., the MHC class II window cut as a subgraph, that subgraph moved onto the reference axis, and one allele's GRCh38 interval marked in the linear view above it. Open the session this video starts in ↗

HPRC release 2

HPRC release 2 is roughly a fivefold expansion over release 1. This tutorial opens three of its products:

the pangenome graph, drawn as a graph

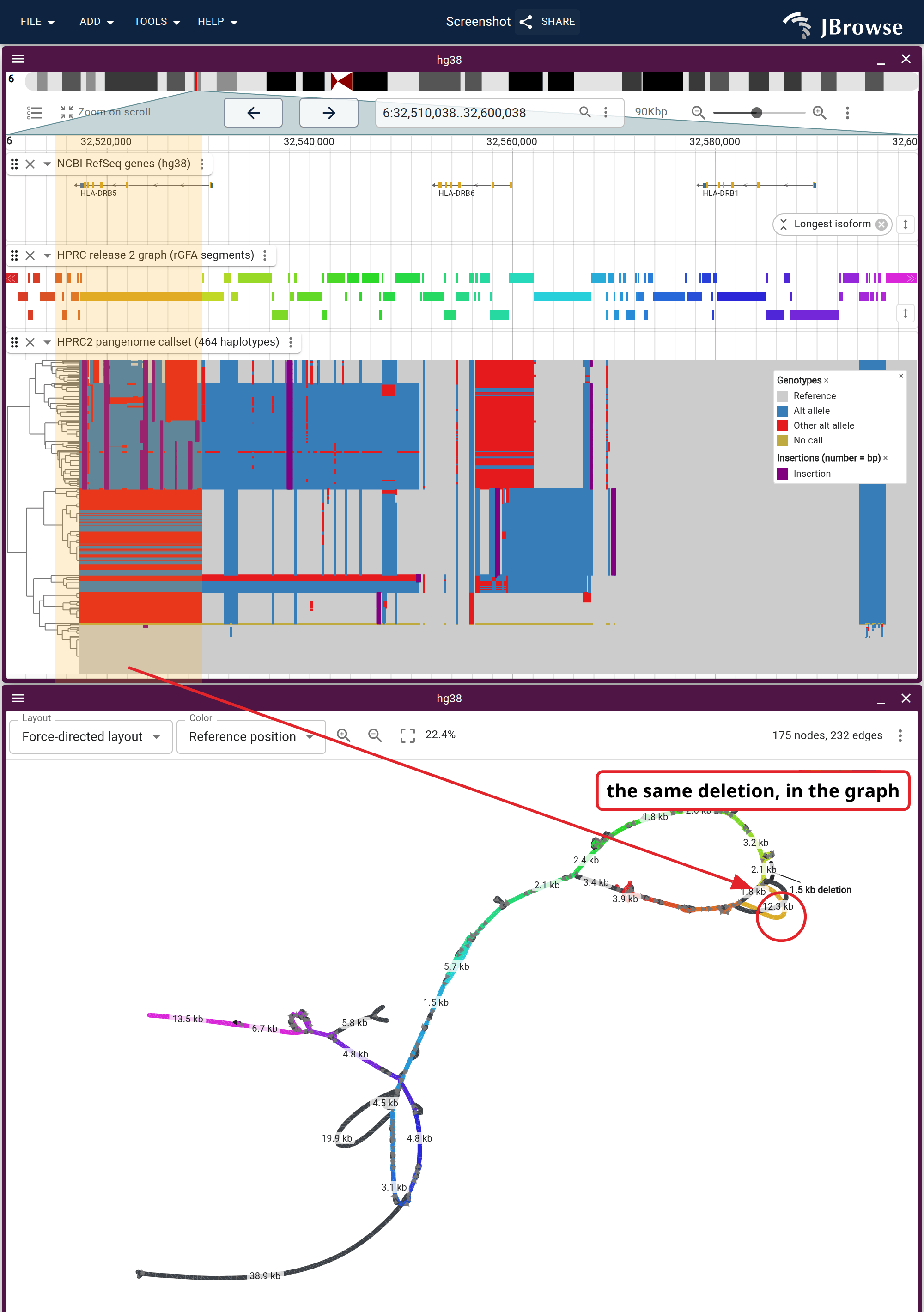

the variant callset, 464 haplotypes as a genotype matrix
the multiple alignment both are derived from

Every track below is a URL you can paste. The callset ships tabix-indexed, so JBrowse reads the slice in view straight off HPRC's S3. The graph route reads projections we prebuilt and host, with the build script in Reproduce it end to end.

The GraphGenomeView plugin

It is beta and not in the plugin store yet, so it loads by URL. In JBrowse Web that is a plugins array at the top level of config.json, beside assemblies and tracks (see configuring plugins):

{
  "plugins": [
    {
      "name": "GraphGenomeView",
      "esmUrl": "https://jbrowse.org/demos/graphgenomeviewer/jbrowse-plugin-graphgenomeviewer.esm.js"
    }
  ]
}

On JBrowse Desktop, install it once from the start screen at Global plugins... → Add custom plugin, putting that esmUrl under Advanced options in ESM build URL and leaving the two fields above it empty.

The graph genome view guide covers the view's layouts, colors and menus on a smaller graph than this one. The allele inventory and the variant callset need no plugin.

What release 2 publishes

pangenomes/freeze/release2/minigraph-cactus/ holds these per reference (a GRCh38 and a T2T-CHM13 build; everything below uses GRCh38):

File	Size	What it is
`*.sv.gfa.gz`	842 MB	SV-resolution graph, and an rGFA
`*.gfa.gz`	63 GB	the base-level graph
`*.gbz`	5.4 GB	the same graph in vg's indexed format
`*.wave.vcf.gz`	2.3 GB	every variant, decomposed, tabix-indexed
`*.wave.vcf.gz.tbi`	2.2 MB	the index, published beside it

The sv.gfa is the graph route; the VCF is the variant route. Both open without downloading the whole file: the VCF ships its index, and we host small BED projections of the graph (below). Release 3 is the verkko assembly and QC release, and publishes no graphs.

Two subdirectories sit beside those files, v2.0/ and v2.1/, holding the fuller per-build set. The alignment the graph and the callset are derived from is only there: v2.0/hprc-v2.0-mc-grch38/hprc-v2.0-mc-grch38.full.taf.gz, 5.9 GB with a .tai index, which the last section opens.

Every file above is published twice, once per reference, and this page uses the GRCh38 build. Both build scripts run on the CHM13 files unchanged, with one config change, the PanSN prefix: { "chm13": "CHM13" } in place of { "hg38": "GRCh38" }.

Regular GFA vs rGFA

Whether a graph opens by locus straight from the file depends on whether its segments carry coordinates, which is what the two formats differ on. An rGFA (what minigraph emits) tags every segment with three fields, the whole of the spec:

S  s3  TTGCAA  LN:i:6  SN:Z:GRCh38#0#chr1  SO:i:10621  SR:i:0

SN is the stable sequence the segment sits on
SO is its offset there
SR is its rank, 0 on the reference backbone

So the file itself states where each segment sits and which segments are the reference, and JBrowse opens any locus with no extraction step. A regular GFA states the same thing only inside its P/W path lines, so it takes a walk first, or a window cut offline with odgi extract as in the E. coli tutorial.

Release 2 labels no file "rGFA", but sv.gfa is the minigraph stage of the Minigraph-Cactus build, so its segments already carry these tags. The base-level gfa.gz beside it does not, and neither do pggb graphs, which keep the odgi extract route.

A PanSN name has two halves, and only the first needs configuring:

The sample half needs assemblyNameToPanSN: { "hg38": "GRCh38" }, tying an hg38 assembly to the graph's GRCh38 prefix. The prefix disambiguates: the same graph also carries CHM13#0#chr1.
The contig half is ordinary refName aliasing, which your assembly already does, so an hg38 spelling chr6 as 6 needs no further configuration.
The variant callset later in this tutorial needs no mapping at all: its contigs are plain GRCh38 (chr6, not GRCh38#0#chr6).

Load the graph

JBrowse reads two tabix-indexed BED projections of the graph. We host them, so a FeatureTrack pointed at the shared prefix downloads nothing but the region in view; the adapter resolves <uri>.segs.bed.gz, <uri>.links.bed.gz, and both .tbi files:

{
  "type": "FeatureTrack",
  "trackId": "hprc_minigraph_segments",
  "name": "HPRC release 2 graph (rGFA segments)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  },
  "displayDefaults": {
    "color": "jexl:feature.rank==0 ? 'rgb(52,152,219)' : 'rgb(237,137,44)'"
  }
}

The color jexl paints each segment in the graph view's own Stable rank colors, so a segment is the same color in both panels.

Each segment draws where its tags say it sits, so the GRCh38 backbone tiles the reference and the graph is queryable by locus. Those hosted files are ours: we ran the sv.gfa.gz through build_rgfa_tabix.sh and put the output on jbrowse.org.

Open a locus as a graph

The graph draws a window at a time, and there are three ways to pick one:

Drag across the ruler and choose Graph genome view (this selection). Selecting more than the view will draw greys the item out and displays its limit.
Launch → Graph genome view (this region) in the track menu takes whatever is on screen.
Right-click one segment to cut the graph around that segment.

Any of them works without a graph track in the view: the item appears whenever the session holds a track whose adapter can cut a subgraph, and the subgraph comes from the same two files the track reads.

The third lane in the figure below is the bubble track, which the figures from here on read alongside the graph.

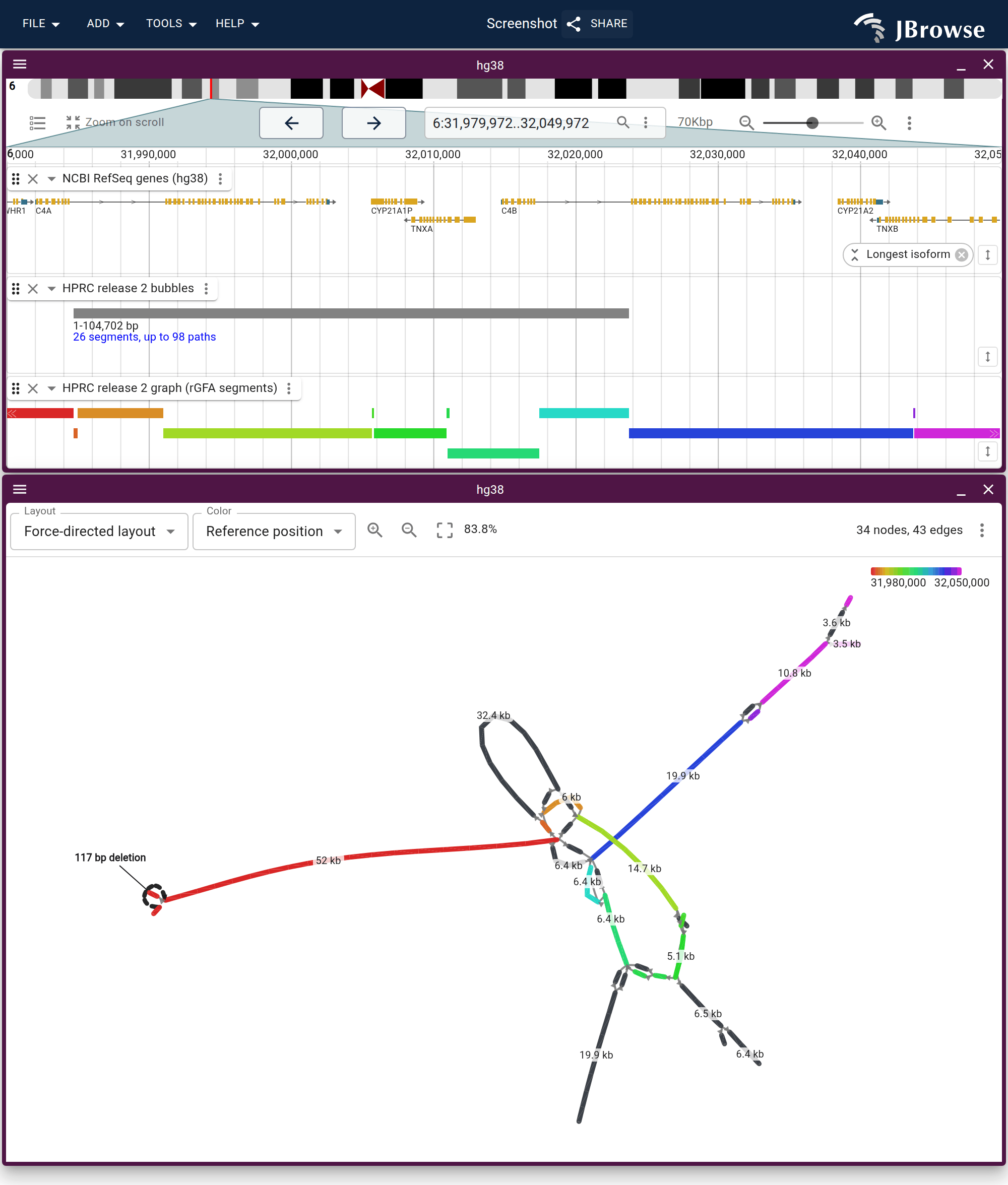

The C4 locus as a force-directed graph, under three lanes of the same window. The bubbles track reports a single bubble spanning the locus, and the graph below is what it contains. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

A force layout has no x axis to share with the linear view, so color carries the correspondence. Reference position, which the graph opens on, ramps hue over the window the subgraph was cut from and paints any segment without a reference coordinate flat charcoal. The guide covers the other schemes.

The ramp is two numbers and a midpoint, so a linear track can paint the same colors. This is the segments track above with the ramp in place of its rank colors, so a block above and its node below are the same color:

{
  "type": "FeatureTrack",
  "trackId": "hprc_minigraph_segments",
  "name": "HPRC release 2 graph (rGFA segments)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  },
  "displayDefaults": {
    "color": "jexl:feature.rank>0 ? 'rgb(60,65,72)' : `hsl(${min(300, max(0, ((feature.start+feature.end)/2 - 31980000) / 70000 * 300))},70%,50%)`"
  }
}

The two constants in the color are the window's start and its length, here the C4 window the figure above was cut from, which makes it a per-view setting.

A rank-0 segment sits on GRCh38 and has a coordinate; a rank>0 segment sits on another assembly's refName, so the ramp has no GRCh38 position to take and those segments draw the flat grey the expression gives them. Where each attaches comes from the anchored layout or a hover; the bubble lane and the allele inventory give their lengths.

Bubble spread and Graph context decide whether that picture is readable, and the graph genome view guide covers what each does on a graph small enough to watch it happen. Two of their behaviors are specific to a graph this size:

Raise Graph context to 2 hops when the drawing looks emptier than the bubble lane above it says it should be. At this scale that means an allele with alleles of its own, which one hop reaches the entrance of and not the interior. For an exact slice, gfatools view -R <region> -r 1 walks the graph itself.
The layout scales to a target node size, so ten times the nodes turns the loops that carry the figure into specks. Every window in the table below is around a hundred kb.

Insertions, deletions and their sizes

Every node and every deletion arc carries its own size, so the drawing states what each alternative is worth.

Extra sequence is a node, so it draws as a tube. Missing sequence is an edge: a link from one backbone segment to another that is not its neighbour, taken by the haplotypes that skip what lies between. Those edges are dashed and near-black, off the color ramp.

Read a deletion on the anchored layout, where x is GRCh38 bp, so the arc spans exactly the sequence it removes. In a row layout the span carries the size and every arc is the same shape.

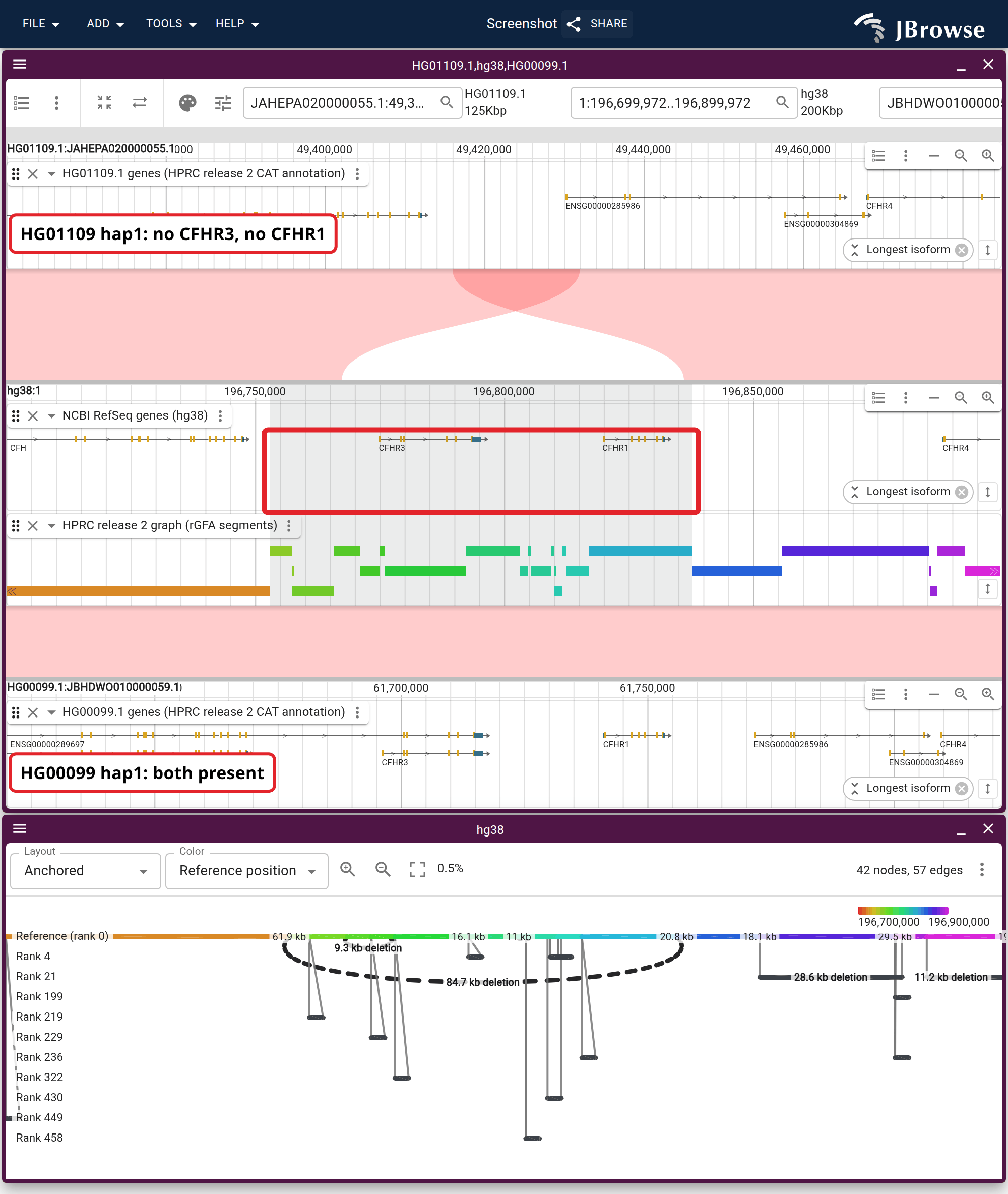

The complement factor H cluster on chr1: two HPRC haplotypes aligned to GRCh38, above the same window as an anchored graph. Each row carries its own CAT annotation, and the dashed arc under the graph's reference row spans the gap that removes CFHR3 and CFHR1. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Hovering one of these edges gives the interval and the bp it removes.

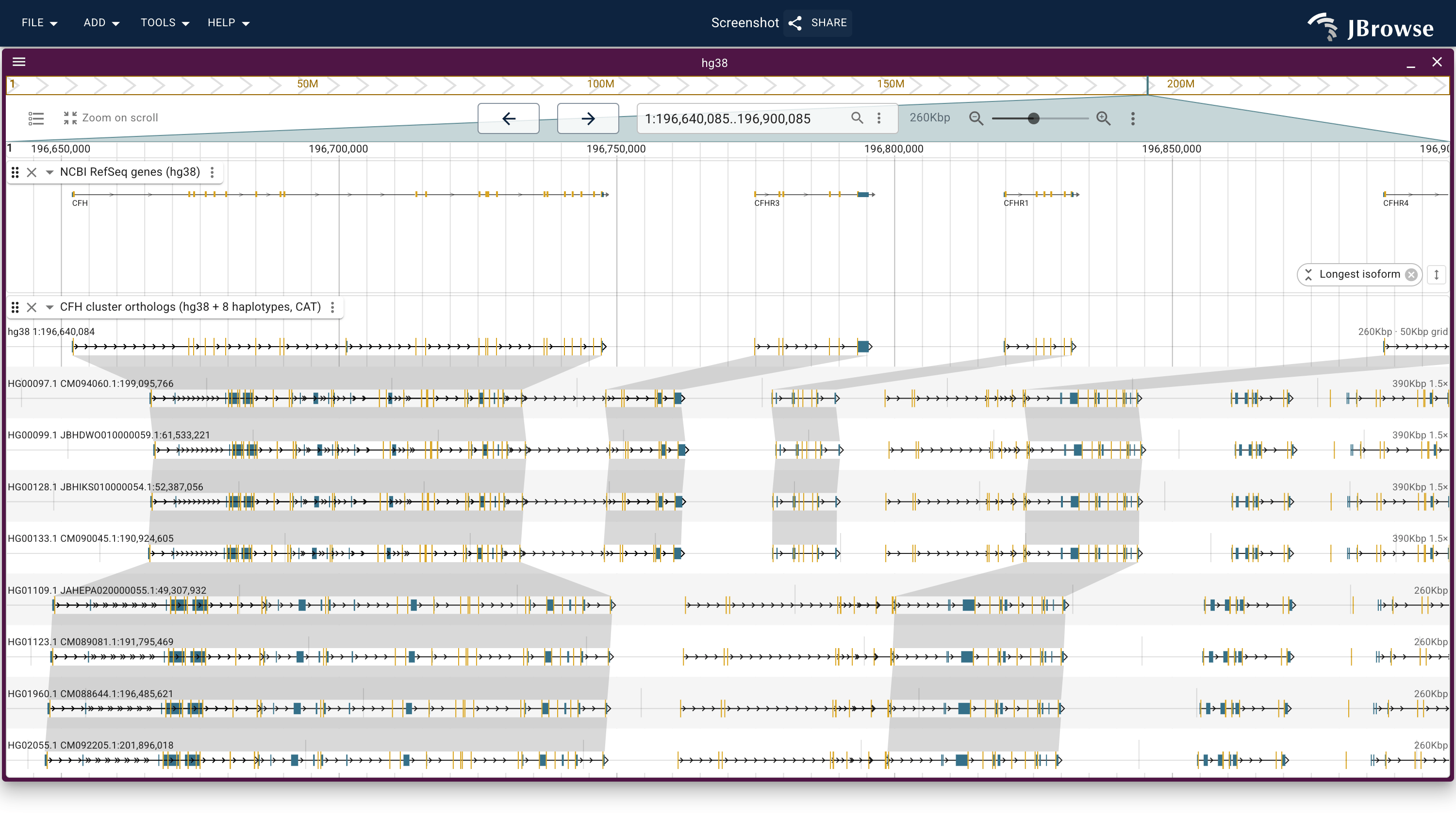

Release 2 annotates every assembly with CAT, on the assembly's own contigs, so a haplotype row carries its own gene models. The index (cat_genes_hprc_r2_v1.3.index.csv) gives one GFF3 per haplotype; load a slice of one as an ordinary FeatureTrack on that haplotype's assembly.

Only the window is cut, so an allele whose interior falls outside it draws as a short arm off the backbone. When a cut comes back as a single tangle, widen it until the backbone chain is in frame: the figure below is cut from chr1:103,500,000-103,850,000, wider than the amylase entry in the table further down.

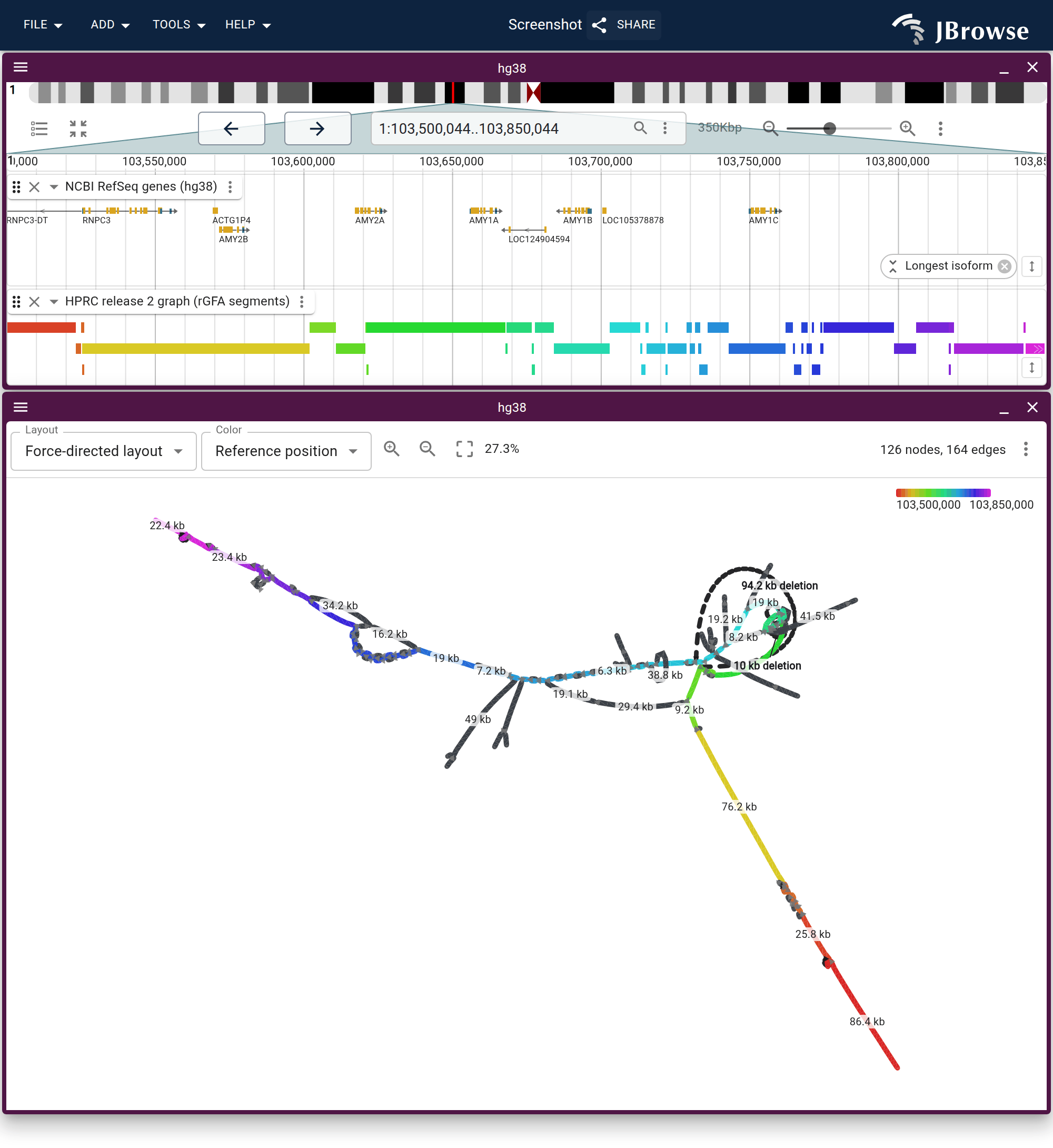

The amylase locus on chr1 as a force-directed graph, under the RefSeq genes and the rGFA segments for the same window. Every crossing is inside the amylase bubble at the end of the backbone chain. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The graph's own bubble index says what that window holds, and tabix reads it over HTTP without the browser. The bubble spanning AMY1A and AMY1B is the first row:

tabix https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.bubbles.bed.gz \
  'GRCh38#0#chr1:103,690,000-103,780,000' | cut -f1-8 | head -1
# GRCh38#0#chr1  103611080  103732636  95  269401  1  26889  316616

After the span: segments, paths, the inversion flag, then the lengths of the shortest and longest allele the bubble holds. Three things follow from the rest of the file:

two columns further out (cut -f13,14, dropped from the query above) carry those two alleles as sequence, so a bubble's own sequence is one tabix query away and the adapter puts it in the feature details panel
the segments and links projections drop sequence entirely, being coordinate BEDs, so going from an interior node id back to its bases means the GFA itself: gfatools view -l <segment> -r 0 prints the S-line, and gfatools gfa2fa writes the whole graph out as FASTA
bubbles are indexed under the graph's PanSN names and the alleles under plain GRCh38 contigs, which is why only the bubble track config carries assemblyNameToPanSN

gfatools bubble and the rGFA tags state the distinct sequence a bubble can hold, so length is the proxy for copy number here. The .gbz beside them carries a walk per haplotype, which is a copy count at KIV-2 or AMY1, and reading it is a vg job. Release 2 strips the AT (allele traversal) field from the wave VCF, recorded in its own header as bcftools annotate -x INFO/AT.

The guide sets out what the three modes put on each axis. Here is the same MHC class II window drawn in two of them:

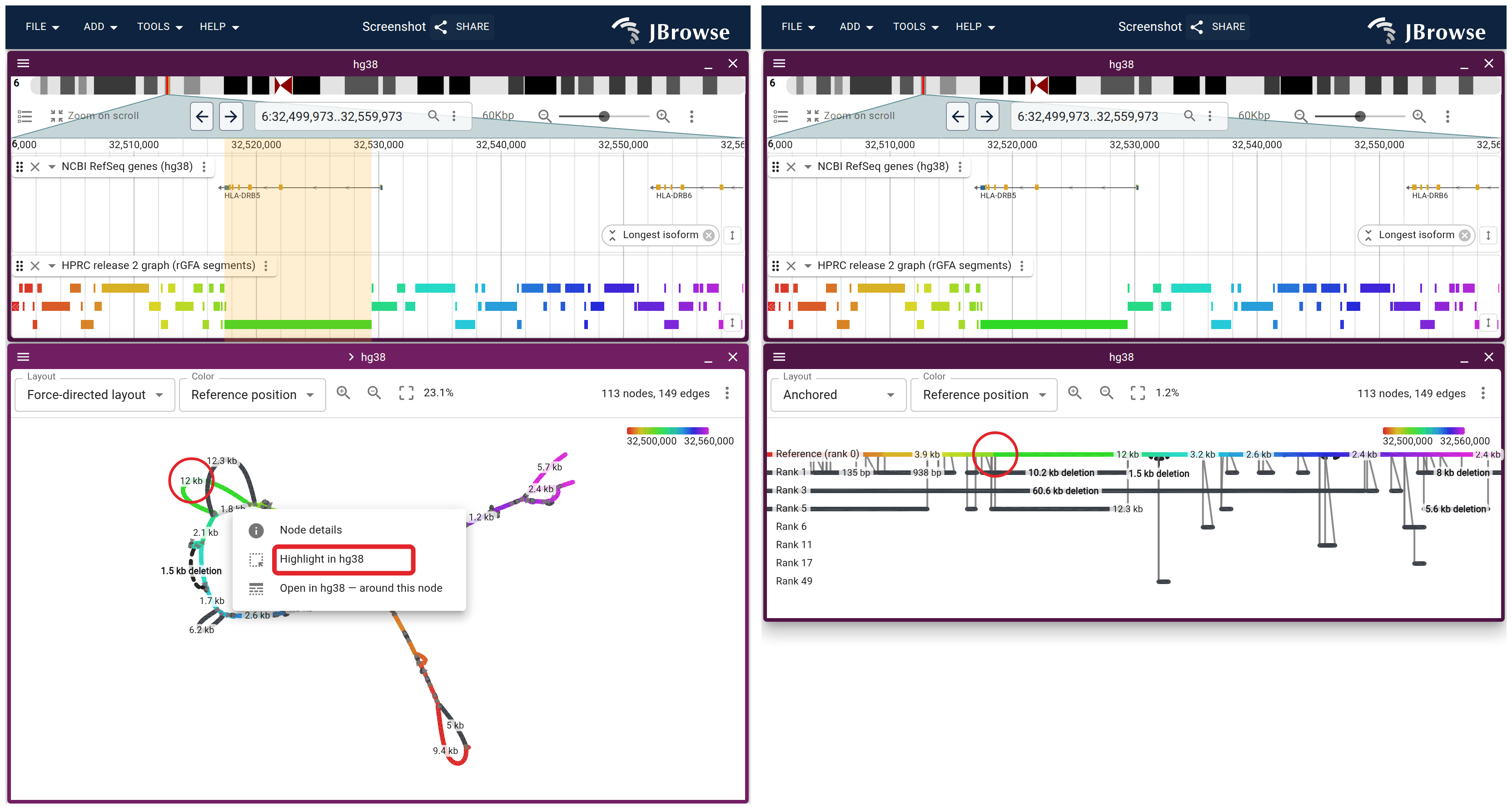

One MHC class II subgraph drawn both ways, same window and same tracks above it. Left, force-directed. Right, anchored: every x is a GRCh38 coordinate, so each allele hangs below where it attaches. Open in JBrowse: Force-directed ↗ · Anchored ↗

Both halves ring the same node, the 12 kb reference stretch the graph draws in green. On the left a right-click menu is open on the black allele beside it, and Highlight in hg38 wrote the orange band above over that ringed backbone segment: an off-reference allele is highlighted across the reference it replaces.

Taking the dropdown from one to the other says which node in the tangle is which node on the axis, and the video under HPRC release 2 makes that move on this subgraph.

Each locus below is a window small enough to draw:

Locus	Window
MHC class II	`chr6:32,510,000-32,600,000`
KIR	`chr19:54,750,000-54,840,000`
AMY1	`chr1:103,690,000-103,780,000`
C4	`chr6:31,980,000-32,050,000`
LPA KIV-2	`chr6:160,525,000-160,655,000`

What the graph holds in one of them is one query against the allele inventory, here cut down to span, kind, size and the haplotype the allele was first seen in:

tabix https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.alleles.bed.gz \
  chr6:32,510,000-32,600,000 | cut -f1-3,10,11,16

An empty answer needs reading carefully. chr5:70,925,000-70,954,000, over SMN1, returns nothing: minigraph merged SMN1 and SMN2 onto one path. Near-identical segmental duplications collapse this way throughout, so a quiet window can be a collapsed one, across the whole class of genes defined by a duplication: SMN1/SMN2, RHD/RHCE, PMS2/PMS2CL and the CYP clusters among them.

Which haplotype an allele came from

Sample rows is the mode that answers this: rank is build order, so one rank holds alleles from a dozen haplotypes, where a sample row is one haplotype. The guide pictures it on five strains; with 464 it is a list of donors, naming whose sequence a node is.

LPA is the locus for the shape. Its KIV-2 repeat sets the level of Lp(a), an inherited cardiovascular risk factor, and its copy number varies from person to person:

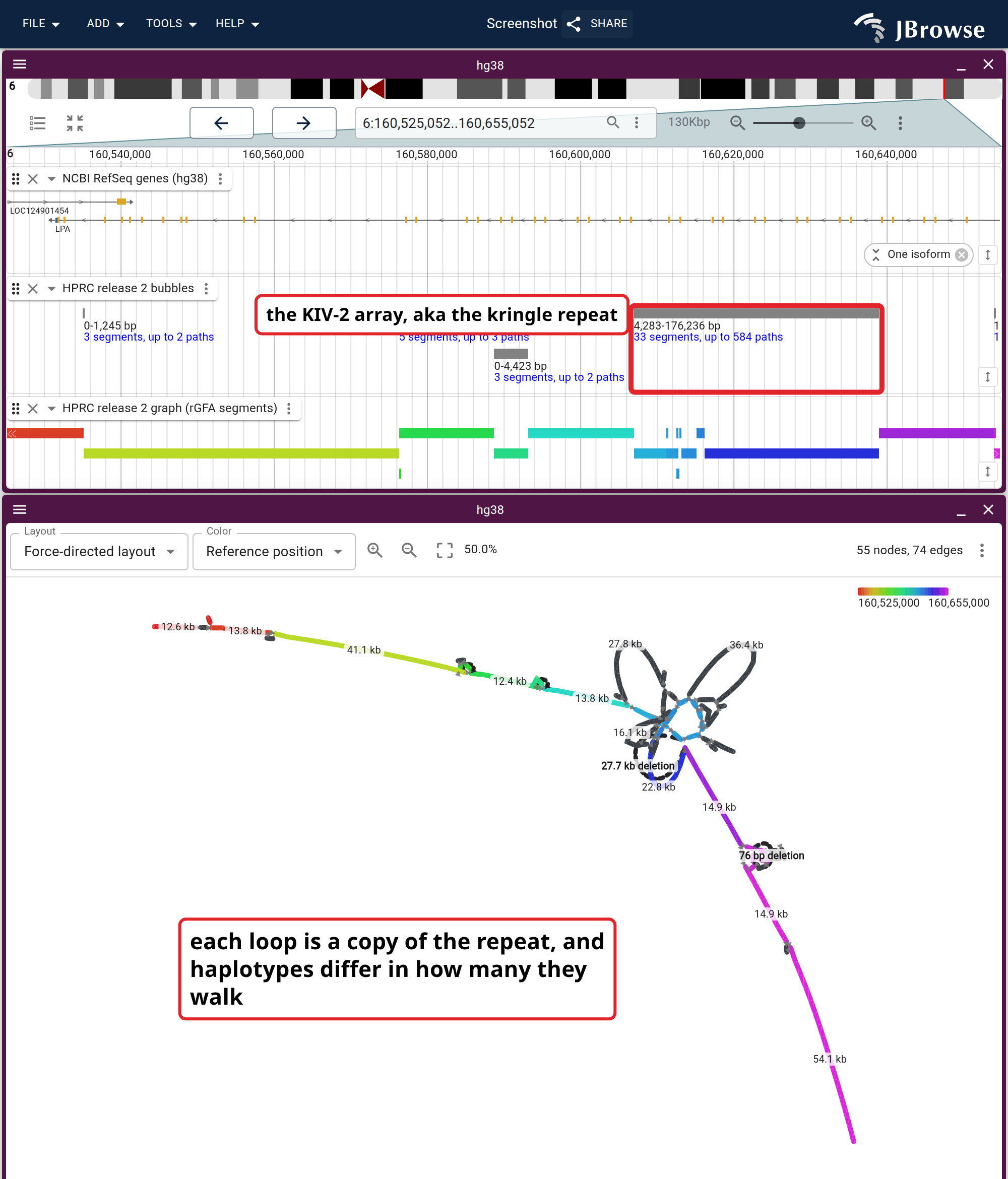

The KIV-2 repeat inside LPA as a force-directed graph, under the RefSeq genes, the bubbles lane and the rGFA segments. The bubble the lane reports across the repeat is the chain of loops below it, with one dashed arc bypassing the reference between two of them. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

A donor row names the haplotype the sequence was taken from, the attribution the node panel reports.

From a node back to a coordinate

Right-click a node for two answers that persist past a hover:

Highlight in hg38 marks its reference interval in the linear view beside the graph and leaves it there.
Open in hg38 scrolls that view to it.

The graph's own Launch menu does the same for the whole window it was cut from.

What you are offered depends on which segment you clicked, because rGFA states each segment's source sequence (SN) and offset (SO):

a backbone (rank 0) segment sits on GRCh38, so you get its exact coordinates there.
an allele (rank>0) segment sits on one haplotype's own sequence, e.g. HG02717#1#chr6. That coordinate is exact too, and has no loaded assembly to open it in, so you get the GRCh38 interval between the two backbone segments the allele detaches from and rejoins, the same span a hover highlights.

Either way the node's haplotype is named, in the tooltip and in the details panel a left-click opens. Read that name as contributingAssembly, which is what the panel calls it: the first assembly to contribute the segment. The panel's carriedBy row holds the set of haplotypes that walk it, and on this graph it is empty, because the rGFA route anchors nodes on their SN tags and an rGFA records no traversals. Load a GFA that carries P or W lines, as the graph genome view guide does, and the view anchors on those paths: carriedBy then lists every sample through the node and Sample rows becomes carriage rather than attribution. At HPRC scale the answer is a published file: carriage at the graph's own granularity is one record per snarl with a genotype per haplotype, so the site under the node you clicked states who walks it.

That route is drawn in the layout figure above: its left half has the menu open on a 1.8 kb HG01433.2 allele, the black node ringed without a number, over the band Highlight in hg38 left in the linear view. The band is the 12 kb backbone segment that allele attaches across, which here is HLA-DRB5.

The lanes above combine into one route:

rubberband a locus into a graph
right-click an allele to put the linear view on its GRCh38 interval
read that interval off the tracks anchored there: the bubble track gives the bubble it belongs to, the allele inventory its length and the haplotype it was first seen in, and the variant callset whether anything is genotyped there

The graph states what sequence exists and where it attaches; those three state how common it is.

Where the contributing assemblies are themselves loaded, a handful of genomes, the same menu opens any of them, or all at once as a synteny view. See the graph genome view guide.

Loading CHM13 as an assembly

Two contributors spell their contigs chr17-style and can be loaded as assemblies: CHM13 and HG002, whose two haplotypes count separately. The other 460 haplotypes name their contigs by GenBank accession (CM102524.1). CHM13 is the one with a published reference behind it, T2T-CHM13v2.0, which UCSC serves as hs1; Comparing one genome's two haplotypes (T2T-HG002) loads the other. Its coordinates are that assembly's: CHM13 segments on chr17 run past the end of GRCh38's chr17 and inside hs1's.

Load it under its own name, with the graph's spelling as an alias. The view resolves a donor through assemblyManager, which is keyed by name and aliases alike, so hs1 is what the launch opens and CHM13 is what the graph says:

Config file CLI (add-assembly)

{
  "name": "hs1",
  "displayName": "Human (T2T-CHM13v2.0/hs1)",
  "aliases": ["CHM13", "T2T-CHM13v2.0"],
  "uri": "https://hgdownload.soe.ucsc.edu/goldenPath/hs1/bigZips/hs1.2bit"
}

jbrowse add-assembly https://hgdownload.soe.ucsc.edu/goldenPath/hs1/bigZips/hs1.2bit \
  --name hs1 \
  --alias CHM13 \
  --alias T2T-CHM13v2.0 \
  --displayName "Human (T2T-CHM13v2.0/hs1)"

Its genes are the same UCSC RefSeq set the hg38 lane above reads, on hs1:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "hs1_ncbiRefSeq_ucsc",
  "name": "NCBI RefSeq genes (hs1)",
  "assemblyNames": ["hs1"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://jbrowse.org/ucsc/hs1/hs1.gff.gz",
    "csi": true
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "hs1_ncbiRefSeq_ucsc",
  "name": "NCBI RefSeq genes (hs1)",
  "assemblyNames": ["hs1"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "https://jbrowse.org/ucsc/hs1/hs1.gff.gz",
    "csi": true
  }
}'

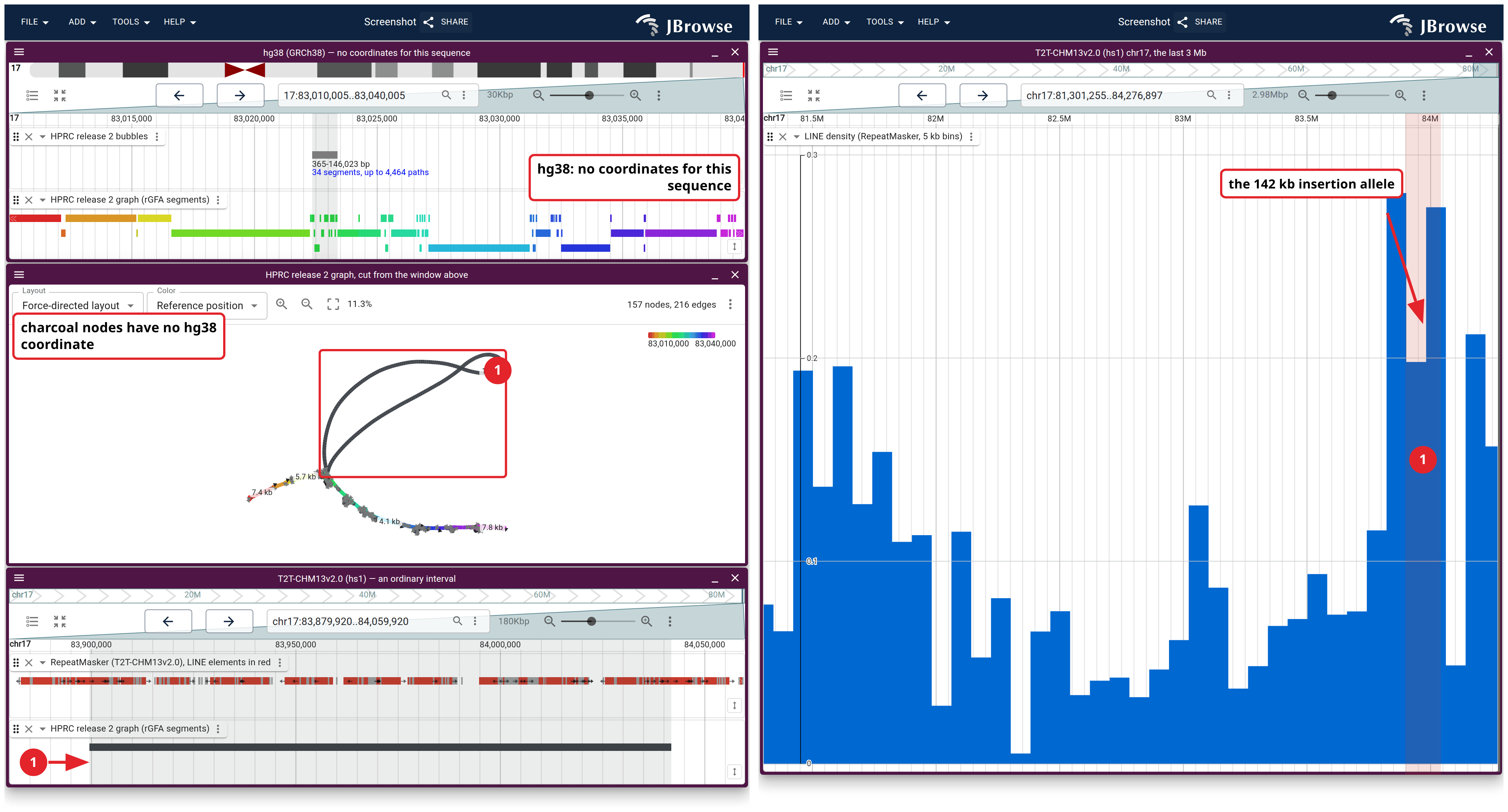

The segments track can draw on hs1 as well, which is where the assemblyNameToPanSN map earns its second entry: hs1 asks for CHM13#0#chr17 the same way hg38 asks for GRCh38#0#chr17. This replaces the track above, same trackId, one more assembly:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "hprc_minigraph_segments",
  "name": "HPRC release 2 graph (rGFA segments)",
  "assemblyNames": ["hg38", "hs1"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38",
    "assemblyNameToPanSN": { "hg38": "GRCh38", "hs1": "CHM13" }
  },
  "displayDefaults": {
    "color": "jexl:feature.rank==0 ? 'rgb(52,152,219)' : 'rgb(237,137,44)'"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "hprc_minigraph_segments",
  "name": "HPRC release 2 graph (rGFA segments)",
  "assemblyNames": ["hg38", "hs1"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38",
    "assemblyNameToPanSN": { "hg38": "GRCh38", "hs1": "CHM13" }
  },
  "displayDefaults": {
    "color": "jexl:feature.rank==0 ? '\''rgb(52,152,219)'\'' : '\''rgb(237,137,44)'\''"
  }
}'

With both assemblies loaded a CHM13 node opens on either one, and on hs1 its coordinates are the donor's own rather than the GRCh38 interval it attaches across. The node in the figure below is 142 kb of chr17 that GRCh38 does not carry, near the end of the chromosome, and RepeatMasker tiles it with long L1 elements.

The hs1 pane holding that node is barely wider than the node itself, so the allele has only its own surroundings to be dense against. The panel beside it is the same measurement at a scale that can say whether the L1 density means anything. Open the LINE row alone over the last 3 Mb of the chromosome and set the track's Resolution low, so each drawn value averages about 100 kb. At the file's own 5 kb bins the allele is invisible inside the spikes; averaged to something near its own size it is a block.

A donor node on both coordinate systems: the GRCh38 window, the graph cut from it, then that node on hs1's own chr17 tiled by long L1 elements in red. Beside them ①, LINE density across the last 3 Mb of the chromosome at a ~100 kb mean.

CHM13 entered this graph late, after most of the other haplotypes, so little is credited to it: tabix hprc-v2.0-mc-grch38.segs.bed.gz 'CHM13#0#chr1' returns a short list for the whole of chr1, most of it attaching only to other donors. Finding one that touches GRCh38, like the node above, means scanning the links index for CHM13 rows with a GRCh38 endpoint:

tabix https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.links.bed.gz \
  'CHM13#0#chr17' |
  awk -F'\t' '$6 ~ /^GRCh38/ || $10 ~ /^GRCh38/'

What kind of sequence GRCh38 was missing

The lane above says the inserted sequence is tiled by L1. Whether that is unusual, a subtelomere being repeat-dense either way, takes the same measurement on both assemblies at the same scale: the fraction of each 5 kb bin covered by one RepeatMasker class, one lane per class, on GRCh38 and CHM13 alike. bedtools measures it, one lane at a time, from a RepeatMasker BED of chrom start end class:

# CHM13's rmsk ships as a bigBed where UCSC's hg38 is a table
bigBedToBed chm13v2.0_rmsk.bb rmsk.raw.bed

# only the chroms the rmsk BED covers, so no lane carries empty scaffold bins
bedtools makewindows -g hs1.main.sizes -w 5000 | sort -k1,1 -k2,2n > windows.bed

# merge first: one fragmented L1 is several overlapping records, and unmerged
# coverage counts the shared bases twice and reports over 100%
awk -F'\t' '$4=="LINE"' rmsk.bed | bedtools merge -i - > line.bed

# -a windows -b class puts the covered fraction of each window in the last column
bedtools coverage -a windows.bed -b line.bed -sorted -g hs1.main.sizes |
  awk -F'\t' '{printf "%s\t%s\t%s\t%.5f\n", $1, $2, $3, $NF}' > line.bg
bedGraphToBigWig line.bg hs1.main.sizes hs1_repeat_density_LINE.bw

Config file CLI (add-track-json)

{
  "type": "MultiQuantitativeTrack",
  "trackId": "hs1_repeat_density",
  "name": "Repeat density by class (RepeatMasker, 5 kb bins)",
  "assemblyNames": ["hs1"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "LINE",
        "color": "rgb(200,60,45)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_LINE.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "SINE",
        "color": "rgb(60,110,180)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_SINE.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "LTR",
        "color": "rgb(70,150,90)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_LTR.bw"
      }
    ]
  },
  "displayDefaults": {
    "defaultRendering": "multirowxy",
    "minScore": 0,
    "maxScore": 1
  }
}

jbrowse add-track-json '{
  "type": "MultiQuantitativeTrack",
  "trackId": "hs1_repeat_density",
  "name": "Repeat density by class (RepeatMasker, 5 kb bins)",
  "assemblyNames": ["hs1"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "LINE",
        "color": "rgb(200,60,45)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_LINE.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "SINE",
        "color": "rgb(60,110,180)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_SINE.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "LTR",
        "color": "rgb(70,150,90)",
        "uri": "https://jbrowse.org/demos/hprc/repeat_density/hs1_repeat_density_LTR.bw"
      }
    ]
  },
  "displayDefaults": {
    "defaultRendering": "multirowxy",
    "minScore": 0,
    "maxScore": 1
  }
}'

Swap hs1 for hg38 in the trackId/assemblyNames and the URLs for the GRCh38 copy. DNA, Satellite and Simple_repeat are hosted under the same names if you want them, near zero here but the whole story on a centromere. The pinned minScore/maxScore are load-bearing for the same reason they are in the cookbook recipe this follows: autoscale runs per row, so each class would rescale to its own maximum and the comparison the track exists for would disappear.

Open the track on each assembly's last 650 kb of chr17, what each one ends the chromosome with, since sequence one of them lacks has no lifted-over interval. build_repeat_density.sh reports the two windows at almost the same total repeat content, so a single density lane would show no difference. What moved is the composition, in opposite directions: more L1, less Alu.

Whether that is a lot depends on the scale it is asked at, which is what the last part of the donor-node figure draws. The same script ranks the allele against every window of its own size in CHM13, and it comes out near the top of its own neighbourhood and unremarkable against the genome. The enrichment is local: this sequence is L1-dense for this end of chr17.

The bubble track

A bubble is where haplotypes diverge and rejoin. The bubble track reports where the graph varies and by how much, in one file:

{
  "type": "FeatureTrack",
  "trackId": "hprc_minigraph_bubbles",
  "name": "HPRC release 2 bubbles",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "MinigraphBubbleAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.bubbles.bed.gz",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  }
}

The MinigraphBubbleAdapter labels each bubble with its shortest and longest allele, and one bubble in the HLA class II window spans tens of kilobases depending on the haplotype. The path count needs care: it counts routes combinatorially rather than haplotypes observed, and saturates at 2147483647 (the track labels those bubbles uncountable). HPRC publishes no bubble file, so this one is ours too, built with gfatools bubble.

A whole chromosome as a graph

The graph track above draws one node per segment, and a window past a few hundred kilobases is more nodes than anything can lay out.

The bubble file is also a level of detail. Collapsing each bubble to a single node, with the invariant reference between bubbles as backbone, turns the same graph into something that fits on a screen. build_bubble_tier.sh does that in one pass over the file you already have:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_bubble_tier.sh
bash build_bubble_tier.sh hprc-v2.0-mc-grch38.bubbles.bed.gz \
  hprc-v2.0-mc-grch38.tier10000 10000

The threshold is on content, the larger of the reference span and the longest allele. A pure insertion is an alternative to nothing, so a large share of the bubbles are zero-length on GRCh38, and a threshold on end - start would drop every one of them, the graph's largest insertions among them.

The result reads through the same adapter as the fine index. A tier is a prefix, so choosing a level of detail is choosing a file:

Config file CLI (add-track-json)

{
  "type": "FeatureTrack",
  "trackId": "hprc_tier",
  "name": "HPRC release 2 graph: bubble tier (one node per bubble)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.tier10000",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "hprc_tier",
  "name": "HPRC release 2 graph: bubble tier (one node per bubble)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.tier10000",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  }
}'

One setting has to move with it. The view refuses a cut over 5 Mb, which is a proxy for node count and a fair one at segment granularity, but a tier breaks the proxy. A GraphGenomeView pointed at one carries maxRegionBp raised to the span it is drawing, which the figure below links a session for. The real ceiling is unchanged: maxGraphNodes counts what actually came back.

The same bubble file also plots directly as a curve of where the graph varies and by how much. MinigraphBubbleAdapter already reports each bubble's segment count as its score, so the only change is the track type, a FeatureTrack offering no wiggle display to pick:

Config file CLI (add-track-json)

{
  "type": "QuantitativeTrack",
  "trackId": "hprc_bubble_score",
  "name": "HPRC release 2 graph: variability (segments per bubble)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "MinigraphBubbleAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.bubbles.bed.gz",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  }
}

jbrowse add-track-json '{
  "type": "QuantitativeTrack",
  "trackId": "hprc_bubble_score",
  "name": "HPRC release 2 graph: variability (segments per bubble)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "MinigraphBubbleAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.bubbles.bed.gz",
    "assemblyNameToPanSN": { "hg38": "GRCh38" }
  }
}'

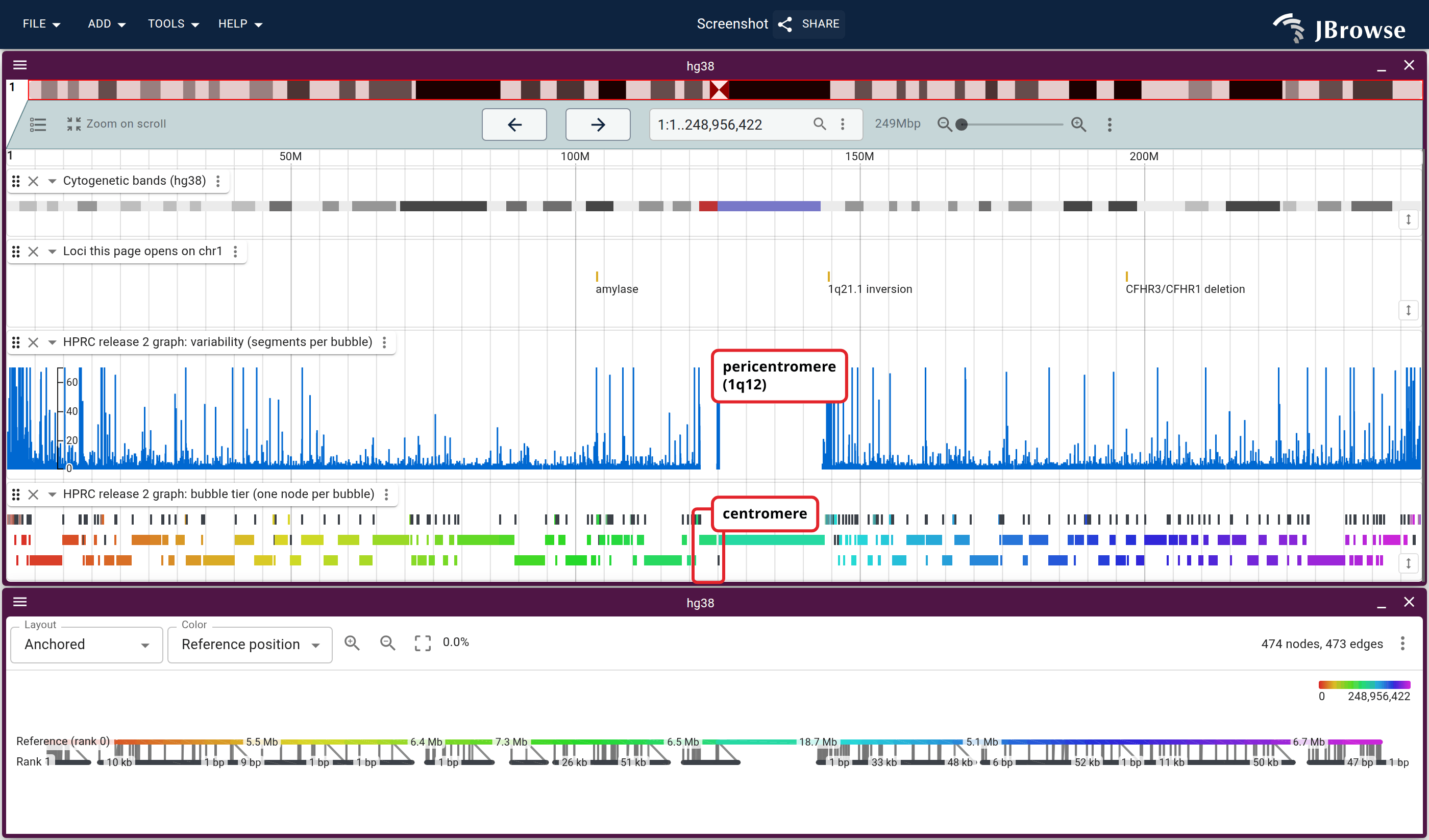

All 249 Mb of GRCh38 chr1 with the cytogenetic bands on the same axis, then the three chr1 loci this page opens, then three lanes off two files: the bubble file as a curve of segments per bubble, the same bubbles as the tier's segments lane, and the tier as a graph. The blank column is 1q12, where nothing aligns. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The tier draws the whole chromosome in a few hundred nodes and lays them out in milliseconds; build_bubble_tier.sh prints what it kept for whatever threshold you pass it. The chain alternates strictly, one backbone node per bubble, because gfatools bubble reports top-level bubbles only and those never overlap, so one flat walk is complete. The heterochromatin gap the caption names, a long run of unknown sequence (N) in GRCh38, costs it a single backbone node. Bubbles are called across the centromere itself.

The lane above the curve is what this view is for. Every locus this page has opened on chr1 is in it (the amylase bubble, the 1q21.1 inversion, the CFHR3/CFHR1 deletion), and the curve is high at each. None of them is the tallest peak on the lane, and the tallest sits at a locus this page never opens. Scanning here and expanding what stands out is the working order.

This is the coarse end of a ladder: a tier node is a bubble, so it says where the graph varies and by how much, and nothing about the alleles inside it. The node id is the bubble's own source segment, so the same span in the fine index is the expanded view of it.

Inversions

Insertions are nodes and deletions are edges; an inversion is the same reference sequence, walked backwards. The bubble file is where it is findable. gfatools bubble sets a column when a bubble's paths disagree about orientation, and the adapter exposes it as an inversion boolean, so Edit filters on the bubble track cuts the lane to them:

jexl:feature.inversion

The AMY1 bubble row printed earlier carries a 1 in that column, which few bubbles do. Their breakpoints are in the links index, stated as an orientation disagreement between two backbone segments, which makes them readable without the graph:

columns 4 and 5 name the two endpoints, each id ending in the + or - it is entered on
columns 9 and 13 give their ranks

So the test is: both ends on the backbone, and the two signs disagree.

tabix https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.links.bed.gz \
  'GRCh38#0#chr1:144,400,000-144,600,000' |
  awk -F'\t' -v OFS='\t' '
    { dup = seen[$4 $5]++ }                  # count every row, so a repeat prints once
    $9 == 0 && $13 == 0 && !dup {            # both ends on the GRCh38 backbone
      from = substr($4, length($4))          # the trailing + or -
      to   = substr($5, length($5))
      if (from != to) print $4, $5, $7, $8, $11, $12
    }'
# s12829+  s12842-  144418665 144419292  144495968 144539697
# s12830-  s12843+  144419292 144419591  144539697 144540296
# s12831-  s12861+  144419591 144442163  144567263 144572458

Three links, rank 0 at both ends, each pairing a + with a -: the segments between them are walked backwards, which brackets chr1:144,419,292-144,572,458 as inverted on some haplotypes.

Read the flag as where to look rather than as a call. An inverted paralog and an inverted haplotype look alike to the graph, and the callset does not settle it either: INV is declared in the wave VCF's header and no record at these loci carries it.

The alignments do settle it, and the test is the sequence either side rather than the block. A haplotype whose whole window aligns reverse says nothing, since its contig may simply be deposited that way. A block that reverses while the sequence either side of it stays forward is an inversion. build_hprc_inversion_synteny.sh runs that classification over HPRC's published all-vs-GRCh38 PAF at the bubble above, prints the split it finds (carriers reverse the block while keeping its surroundings forward, non-carriers keep it forward, and the rest are mixed or reverse throughout and are evidence for neither), and slices out one of each. Which one matters: 1q21.1 is a segmental duplication and every haplotype here also aligns inverted paralogs nearby, each crossing on screen the way the inversion does, so the script keeps only haplotypes whose alignments inside the drawn window are the inversion and the forward sequence either side.

Each haplotype row carries its own CAT gene annotation, which states the same event a second way without reference to the ribbon. The pair boxed on each row is the same two genes, PPIAL4F and PPIAL4E: on the carrier PPIAL4F comes first, on the non-carrier PPIAL4E does, and the hg38 row between them agrees with the non-carrier.

The 1q21.1 bubble the graph flags as an inversion, drawn as alignments. Between the two haplotype rows are the RefSeq genes, the bubble lane cut to inversion-flagged bubbles, and the rGFA segments. The boxed pair on each row is PPIAL4F and PPIAL4E. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The allele inventory has nothing for them by construction: a mixed-orientation pair of backbone segments is a breakpoint rather than a skipped span, so build_rgfa_alleles.sh leaves those pairs out of its deletions.

The allele inventory

The bubbles say where the graph varies. A third hosted file says what the variation is: one row per allele the graph holds, anchored on GRCh38 and derived from the two indexes above.

Config file CLI (add-track)

{
  "type": "AlignmentsTrack",
  "trackId": "hprc_minigraph_alleles",
  "name": "HPRC release 2 graph: allele inventory",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.alleles.bed.gz"
  }
}

jbrowse add-track https://jbrowse.org/demos/hprc/hprc-v2.0-mc-grch38.alleles.bed.gz \
  --trackId hprc_minigraph_alleles \
  --name "HPRC release 2 graph: allele inventory" \
  --assemblyNames hg38 \
  --trackType AlignmentsTrack

The AlignmentsTrack over a BED is what draws the sizes. Each row carries a CIGAR against the reference span it replaces (2062M63348I), and the alignments display draws whatever has one, so the alleles pack into rows and each insertion draws at its real magnitude.

The magnitude is measured, the position inside the span is not. A bubble states what sequence replaces a reference interval, never where inside that interval it sits, so the CIGAR puts the indel at the end of the span by convention. Over a 2 kb anchor nothing turns on it; over a CFHR-scale span the marker is placed rather than located.

The lane's rows are the display packing overlapping alleles, not a set of haplotypes. The one event worth looking at over this window, the 84,683 bp deletion between CFHR3 and CFHR1, is drawn on the same coordinates by the graph.

The whole graph holds a few hundred thousand alleles, about half of them insertions, so a wide window is dense. The graph genome view guide walks through the columns, how the walk derives them, and the two filters that make a lane this size readable: jexl:abs(feature.delta)>10000 for size and jexl:feature.nested==0 before reading lengths in bulk. nested is common on this graph, and build_rgfa_alleles.sh's closing summary prints how many rows carry it.

discoveryRank and firstSeenIn carry the same attribution the node panel does, on the allele rather than the segment. minigraph collapses, so one haplotype can end up named on half the rows in a dense window purely by build order, and a high rank does not mean the earlier haplotypes lacked the sequence. Carriage is a different file.

The variant callset

The wave.vcf.gz ships its index beside it, so JBrowse reads only the slice you are viewing out of the 2.3 GB file. Paste the S3 URL into a VariantTrack and pick the multi-sample display:

{
  "type": "VariantTrack",
  "trackId": "hprc2_wave_grch38",
  "name": "HPRC2 pangenome",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/hprc-v2.0-mc-grch38.wave.vcf.gz"
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "renderingMode": "phased"
    }
  ]
}

renderingMode: "phased" splits each of the VCF's 232 phased sample columns into its two haplotypes, giving 464 independent rows instead of 232 diploid ones. Co-inherited blocks are visible only in that form. Three counts circulate around this data and they are one thing:

231 diploid HPRC samples plus a haploid CHM13 are the 232 columns
463 assembled haplotypes is where AN tops out
the display draws 464 rows, because CHM13's second row exists and is entirely no-call

hprc465vsgrch38, the PAF the CFHR figure slices, is HPRC's own file, named for the assemblies it aligns rather than for these columns.

The VCF is fully decomposed, so chr6:32,450,000-32,650,000 (the window in the figure below) holds over fourteen thousand records, most of them SNPs and the rest small indels. The structural tier is already in this file. Add the filter

jexl:feature.INFO.LV[0]==0 && alleleLength(feature)>=50

from Edit filters and the same window drops to a couple of hundred sites.

Both halves are load-bearing:

alleleLength is the longest allele the record describes. A filter on end - start would keep only deletions, since an insertion consumes no reference.
LV is the record's level in vg's snarl tree, and LV==0 keeps the top-level sites. Without it the panel paints some events twice at two positions, because this file writes a nested child as its own record beside its parent, with PS naming that parent.

LV==0 has a cost. A parent record sits at one position and its children spread over the span it covers, so the filter collapses that whole span onto one column. At C4 the effect is the width of the figure: chr6:32,000,000-32,020,000 holds hundreds of records and not one of them is LV==0, so the filter alone empties 20 kb across CYP21A1P and TNXA, which is where that locus varies most. Pair it with a size filter, as above, or drop it and read the duplicates; a blank column under it is a statement about the snarl tree rather than about the cohort.

Read a column as a site that holds a structural allele rather than as a guarantee about every cell in it. The filter admits a record on its longest allele and most records it admits here are multi-allelic, so a site can enter the panel on one haplotype's 60 bp insertion while another haplotype's cell in the same column is colored for a SNP. The file states the rest per allele: TYPE gives each ALT's class (snp, ins, del, complex) and LEN its length, both in the feature details panel a click opens.

Frequency is in the file. AC, AF, AN and NS are on every record, so jexl:feature.INFO.AF[0]>0.05 selects the common alleles without clustering anything. AC/AF are per-ALT arrays, so on a multi-allelic site index the allele you mean. Two fields guard the reading:

A no-call is not a reference call, and missingness(feature) is available as a filter for exactly that, which matters where assembly coverage is thin (KIR, LPA).
CONFLICT names samples the graph gives two disagreeing paths, and it fires on no record in this window.

The display widens each insertion cell to a marker sized by the inserted bp, in that haplotype's own genotype color (showInsertionGlyphs), since an insertion consumes no reference. Only haplotypes carrying the allele widen.

That leaves few enough alleles to draw each at its own genomic position, lined up with the genes above. Clustering → Cluster rows by genotype... → Run clustering in the track menu reorders the 464 rows by genotype similarity and draws a dendrogram beside them. The next section's figure is that matrix, beside the graph the same alleles came out of.

The 464-haplotype lane clustered from the track menu: Clustering, Cluster rows by genotype, Run clustering, and the rows arriving in their new order with a dendrogram beside them. Open the session this video starts in ↗

Carriage at the graph's own granularity

The callset above is decomposed, so one graph bubble arrives as many records and a column is a primitive variant rather than an allele of the graph. Release 2 also publishes the undecomposed form, one record per snarl, in the hprc_v2.0_mc_grch38_index submission. Read it when the question is who carries a given bubble: its rows and the graph's alleles are the same objects.

{
  "type": "VariantTrack",
  "trackId": "hprc2_pgbi_grch38",
  "name": "HPRC2 pangenome carriage (snarl-level, 462 haplotypes)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/submissions/671F0A25-700C-4DDF-96B0-9668F6C0F25E--hprc_v2.0_mc_grch38_index/hprc-v2.0-mc-grch38.pgbi.vcf.gz"
  },
  "displays": [
    { "type": "LinearMultiSampleVariantDisplay", "renderingMode": "phased" }
  ]
}

The snarl file ships its own index, so nothing is downloaded but the slice in view: the C4 window is a couple of seconds over HTTP. It carries 231 sample columns rather than the wave file's 232, CHM13 not being among them, so phased mode draws 462 rows and AN tops out there too.

AT is what this file adds: it states each allele as the traversal it takes through the graph, the same statement the AT in a pggb VCF makes, which the wave file drops (bcftools annotate -x INFO/AT is in its own header). The same LV==0 filter cuts this lane to top-level sites, the tier the bubble track holds.

ID and AT name base-level integer nodes (>161001867>161004536), not the sNNNNN segment ids of sv.gfa, so match a record to a bubble by interval.

With this lane loaded the two readings sit over one coordinate and say different, compatible things: the allele inventory gives the haplotype the graph credits an allele to, and a genotype column here gives the haplotypes that walk it.

The alignment the graph and callset came from

The graph and the callset are both derived from the multiple alignment, and release 2 publishes that too: hprc-v2.0-mc-grch38.full.taf.gz, 5.9 GB, 464 haplotypes, beside a .tai index written by taffy. The index makes it addressable, so a locus is a ranged read rather than a download:

{
  "type": "MafTrack",
  "trackId": "hprc_v2_0_mc_grch38",
  "name": "HPRC release 2 pangenome alignment (464 haplotypes)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "BgzipTaffyAdapter",
    "uri": "https://s3-us-west-2.amazonaws.com/human-pangenomics/pangenomes/freeze/release2/minigraph-cactus/v2.0/hprc-v2.0-mc-grch38/hprc-v2.0-mc-grch38.full.taf.gz"
  }
}

The uri shorthand resolves the sibling .tai, which downloads once.

TAF is taffy's own column-oriented format, and the same alignment is published as a 53 GB MAF under v2.1/, which BgzipMafAdapter reads with the same uri shorthand. The v2.0 file is the one this page uses: it is the build the graph and the callset above come from, and it is far smaller to store and cheaper to read a locus out of.

Each product this page has opened states something different about the same sequence, so the figure below puts them on one axis: the graph as its segments and again as a subgraph, the callset as a genotype matrix over all 464 haplotypes, and the alignment as rows. The band runs down all of them.

The C4 locus on one axis: the NCBI RefSeq genes, the graph's rGFA segments, the callset's 464 haplotypes clustered by genotype, thirty-two of those haplotypes as alignment rows clustered by identity, and the same window as a force-directed subgraph. The band marks the pseudogene pair between C4A and C4B, where the haplotypes that carry nothing there gather into a block. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The locus is C4, the example HPRCv2 itself opens with. Every alignment row is a human haplotype, so a row that drops out belongs to a person who does not carry that segment. Read down a column for who carries what, across for where each segment starts and stops.

Both matrices are clustered, over different measurements: the callset by genotype, the alignment by how much of each bin a haplotype aligns and matches at, where a bin it does not reach scores zero. Each dendrogram comes from its own measurement, so neither reads as the other's. The graph's attribution is a third, crediting a segment to whichever assembly first contributed it, where a genotype names every haplotype that carries the allele. What lines up across all of them is the span, which is what the band is for.

Clustering the alignment is a run. A MAF usually orders its rows by a guide tree the file ships, and HPRC's ships none: how the haplotypes group is a property of the locus. Cluster rows by identity... under the track menu's Clustering submenu computes it over the window in view, and Reset row order puts back whatever the file supplied.

The alignment draws sixteen samples rather than all 232, thirty-two haplotype rows at two per sample, because a row needs enough height for its name to fit beside it and the whole cohort named is a track several screens tall. Drop subtreeFilter from the session and every haplotype is there, at whatever height it fits in.

The MAF track guide covers the conservation band, per-row identity and codon view, all derived from the alignment with no extra files.

Every haplotype in its own coordinates

The alignment above is anchored: each haplotype is drawn on GRCh38's axis, which is what makes hundreds of rows comparable at all, and what leaves each assembly's own coordinates out of the picture. A multi-way synteny track is the other reading. One lane per haplotype, each in that assembly's own contig coordinates and carrying that assembly's own CAT gene models, with ribbons connecting a gene to its copy in the lane below.

No aligner is in the loop. CAT projects the GENCODE gene set onto every release 2 assembly, so a gene keeps its name on every haplotype, and joining the annotations by name is already the ortholog table: one row per GRCh38 gene in the window, one column per haplotype, . where that haplotype's annotation has no copy.

Picking the panel out of the callset

build_hprc_cfhr_synteny.sh genotypes the CFHR3/CFHR1 deletion over all 464 haplotypes rather than taking a list, and prints what it found: 139 haplotypes carry it, 36 samples are homozygous for it and 124 are homozygous reference.

# the site as the callset states it. One record with two ALTs here, so the
# deletion allele is the one far shorter than the REF span rather than the one
# at a fixed index.
bcftools view -r chr1:196753075-196753075 -Oz -o cfhr_site.vcf.gz "$WAVE"

It then walks the homozygous samples in callset order and keeps a haplotype only if three things hold: its alignment in the window sits on one contig, release 2 annotated it, and its own CAT annotation agrees with the genotype it was picked on, meaning no CFHR3 or CFHR1 on a carrier and both on a non-carrier. The third is the control, since the callset and the annotation are separate products of the release, and a lane is drawn only where the two say the same thing.

That last check is the one that costs: a CAT annotation is ~110 MB, whole genome, and ships no index, so the shortlist is fetched concurrently (CAT_JOBS, 6 by default) and each slice is kept, which is what makes a re-run that only wants the table cheap.

Reading it

The session below opens the CFH cluster at chr1:196,640,000-196,900,000, one lane per haplotype:

Config file CLI (set-default-session) URL

{
  "defaultSession": {
    "name": "CFH cluster, one lane per haplotype",
    "views": [
      {
        "type": "LinearGenomeView",
        "init": {
          "assembly": "hg38",
          "loc": "chr1:196,640,000-196,900,000",
          "tracks": [
            {
              "trackId": "hg38_ncbiRefSeq_ucsc",
              "type": "LinearBasicDisplay",
              "showOnlyGenes": true,
              "displayMode": "compact"
            },
            {
              "trackId": "hprc_cfhr_multiway",
              "type": "MultiWaySyntenyDisplay",
              "rowOrder": [
                "HG00097.1",
                "HG00099.1",
                "HG00128.1",
                "HG00133.1",
                "HG01109.1",
                "HG01123.1",
                "HG01960.1",
                "HG02055.1"
              ],
              "height": 460
            }
          ]
        }
      }
    ]
  }
}

jbrowse set-default-session --session - << 'EOF'
{
  "name": "CFH cluster, one lane per haplotype",
  "views": [
    {
      "type": "LinearGenomeView",
      "init": {
        "assembly": "hg38",
        "loc": "chr1:196,640,000-196,900,000",
        "tracks": [
          {
            "trackId": "hg38_ncbiRefSeq_ucsc",
            "type": "LinearBasicDisplay",
            "showOnlyGenes": true,
            "displayMode": "compact"
          },
          {
            "trackId": "hprc_cfhr_multiway",
            "type": "MultiWaySyntenyDisplay",
            "rowOrder": [
              "HG00097.1",
              "HG00099.1",
              "HG00128.1",
              "HG00133.1",
              "HG01109.1",
              "HG01123.1",
              "HG01960.1",
              "HG02055.1"
            ],
            "height": 460
          }
        ]
      }
    }
  ]
}
EOF

Open this session in JBrowse

rowOrder puts every non-carrier above every carrier, and that ordering is what makes the deletion readable: a ribbon connects adjacent lanes only, so a chain can only run as far as the first lane missing the gene.

The CFH cluster on chr1 as one multi-way synteny track: hg38 genes over a lane per HPRC haplotype, each on its own contig and carrying its own CAT gene models. The CFHR3 and CFHR1 chains run through the non-carrier lanes and stop where the carriers begin, and every flanking gene's chain runs the whole way down. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Every lane sits at a different coordinate on a different contig, which is what the headers say, and the flanking genes still line up down the stack because a lane is fitted to the orthologs rather than projected onto GRCh38. The two chains that stop are CFHR3 and CFHR1: the carriers' own annotations have neither gene, so there is nothing in those lanes for a ribbon to reach.

Comparing the graph with the callset

The graph and the callset are the same object at two resolutions. minigraph records structural variation (roughly >50 bp) and collapses everything smaller, so SNPs are absent from the graph even though every one is in the VCF. Filter the callset to that same tier and the two describe the same events from opposite ends. The graph states an allele and its length, and cannot say whose it is: collapsing is what let it be found at all. The callset never lost the samples, so it states whose.

The graph and the callset still do not line up row for row:

the rows differ because one lane is attribution and the other carriage, so a donor can appear on one haplotype in the graph and carry the same event on the other in the callset
the records differ because of decomposition, which the file states outright: ORIGIN names the position of the complex record vcfwave split each one out of, so one graph bubble arrives as many VCF records, and that is what the LV==0 filter above undoes

The word "bubble" also covers two different decompositions here. The bubble lane is gfatools bubble's top-level superbubbles over the rGFA, where LV/PS are vg's snarl tree over the graph the callset was deconstructed from. They agree about where the graph varies without being in one-to-one correspondence, so match a bubble to a record by interval rather than by count.

What does line up is the event: mark an interval in the linear view and it crosses the genes, the segments lane and the genotype matrix in one column, and the reference-position ramp gives the graph's backbone at that position the same hue as the segments above it.

One window, both products. The band is one 14.6 kb deletion site from the callset, and the matrix below it, all 464 haplotypes clustered by genotype, colors the haplotypes carrying it. The force graph has no coordinate axis, so an arrow runs from the band to the reference node the deletion removes. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Reproduce it end to end

Two scripts and one gfatools call rebuild the hosted files, or build the same set for a different graph, with the tools listed under Prerequisites. Their provenance (source, size, exact commands, build date) is in README.txt beside them.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_rgfa_tabix.sh
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_rgfa_alleles.sh
bash build_rgfa_tabix.sh hprc-v2.0-mc-grch38.sv.gfa.gz out
bash build_rgfa_alleles.sh out

build_rgfa_tabix.sh writes the two tabix indexes RgfaTabixAdapter reads, straight from the gzipped rGFA (nothing to unpack), using gfatools for the segment projection. It needs an rGFA: sv.gfa.gz is one, the .gfa.gz beside it is not (see Regular GFA vs rGFA).
build_rgfa_alleles.sh reads only those two indexes and never the graph, so the allele inventory takes seconds off the small index pair rather than the 842 MB download they came from, and works with no assemblies loaded, the normal situation with someone else's graph.

The bubble track is neither script but one gfatools call over the same graph:

gzip -dc hprc-v2.0-mc-grch38.sv.gfa.gz | gfatools bubble - \
  | sort -k1,1 -k2,2n | bgzip > out.bubbles.bed.gz
tabix -p bed out.bubbles.bed.gz

Carriage is already a published file, tabix-indexed like the callset. The route that rebuilds it, build_minigraph_paths.sh, writes one row per haplotype per bubble for the guide's per-strain paths lane, at the cost of a 464-assembly download and a mapping run. One call per sample is the whole of it:

# --call asks for the path each sample takes through every bubble rather than an
# alignment. It emits one line per `gfatools bubble` line above, in the same
# order for every sample, so line N of one sample and line N of another are the
# same bubble and can be joined on line number alone.
# -xasm is the assembly-to-graph preset, and -c asks for the base-level
# alignment the call is read off.
minigraph -cxasm --call -t 8 graph.rgfa.gz sample.fa > sample.call.bed

Run it once per assembly, with the reference first: the reference's path through a bubble is the allele every other sample's path is compared against.

build_rgfa_tabix.sh takes an optional third argument, the reference's PanSN sample, and writes a second index pair keyed only under that sample's sequences (hprc-v2.0-mc-grch38.ref.*, also hosted). It is a fraction of the full pair's index size, returns byte-identical rows, and is for a segments track drawn on GRCh38. Do not point the graph cut at it: Graph context defaults to 1 hop, a hop follows an allele's interior segments, and those are indexed under the donor contig the small pair drops, so the graph comes back as though the setting were None.

Three figures have a script of their own. The repeat-density lanes come from one that bins UCSC's RepeatMasker for both assemblies:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_repeat_density.sh
bash build_repeat_density.sh out

It writes the twelve bigWigs (six classes x two assemblies, genome-wide) and prints the per-class table the section above quotes, so the numbers come out of the same run that builds the lanes. The first run downloads ~500 MB and re-running skips what is already built, so an interrupted run resumes.

The other two both read release 2's published all-vs-GRCh38 PAF:

BASE=https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts
curl -fO $BASE/build_hprc_cfhr_synteny.sh
curl -fO $BASE/build_hprc_inversion_synteny.sh
bash build_hprc_cfhr_synteny.sh       # writes ./hprc_cfhr_synteny_build/
bash build_hprc_inversion_synteny.sh  # writes ./hprc_inversion_synteny_build/

build_hprc_cfhr_synteny.sh picks a carrier and a non-carrier of the deletion out of the callset, slices their alignments out of that PAF, and slices each haplotype's CAT annotation to the same window. build_hprc_inversion_synteny.sh runs the inversion classification over the same PAF and prints the split it finds before slicing out one haplotype of each kind.

References

HPRC release 2, the release this page opens: the Minigraph-Cactus graph, the wave callset and the alignment underneath both.
Li H. The rGFA format and gfatools, which define the SN/SO/SR tags this page opens the graph by and call the bubbles.
taffy, which writes the .tai index that makes the 5.9 GB alignment addressable by locus.

Feedback on this tutorial is welcome: contact us.

Pangenome (HPRC)

Prerequisites#

Where the data comes from#

The route, end to end#

HPRC release 2#

The GraphGenomeView plugin#

What release 2 publishes#

Regular GFA vs rGFA#

Load the graph#

Open a locus as a graph#

Insertions, deletions and their sizes#

The Layout dropdown#

Which haplotype an allele came from#

From a node back to a coordinate#

Loading CHM13 as an assembly#

What kind of sequence GRCh38 was missing#

The bubble track#

A whole chromosome as a graph#

Inversions#

The allele inventory#

The variant callset#

Carriage at the graph's own granularity#

The alignment the graph and callset came from#

Every haplotype in its own coordinates#

Picking the panel out of the callset#

Reading it#

Comparing the graph with the callset#

Reproduce it end to end#

See also#

References#

Prerequisites

Where the data comes from

The route, end to end

HPRC release 2

The GraphGenomeView plugin

What release 2 publishes

Regular GFA vs rGFA

Load the graph

Open a locus as a graph

Insertions, deletions and their sizes

The Layout dropdown

Which haplotype an allele came from

From a node back to a coordinate

Loading CHM13 as an assembly

What kind of sequence GRCh38 was missing

The bubble track

A whole chromosome as a graph

Inversions

The allele inventory

The variant callset

Carriage at the graph's own granularity

The alignment the graph and callset came from

Every haplotype in its own coordinates

Picking the panel out of the callset

Reading it

Comparing the graph with the callset

Reproduce it end to end

See also

References
