Synteny visualization (all-vs-all minimap2)

TL;DR: a synteny track shows which stretches of DNA correspond between genomes. We stack five E. coli strains in one linear view, built from a single all-vs-all PAF, the file minimap2 writes when every genome is aligned against every other.

Prerequisites

the NCBI datasets CLI
minimap2
samtools
htslib (bgzip, tabix)
unzip
node, for the JBrowse CLI

On Debian/Ubuntu, apt install minimap2 samtools tabix unzip covers most of these. The NCBI datasets CLI is a single-binary download, and node comes from nodejs.org.

Where the data comes from

Five E. coli RefSeq assemblies, each fetched by accession with the datasets CLI.

K12: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/005/845/GCF_000005845.2_ASM584v2/
Sakai: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/008/865/GCF_000008865.2_ASM886v2/
CFT073: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/007/445/GCF_000007445.1_ASM744v1/
NCTC86: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/002/007/705/GCF_002007705.1_ASM200770v1/
IAI39: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/026/345/GCF_000026345.1_ASM2634v1/
the all-vs-all PAF, per-strain gene tracks and config, rehosted so the stacked view loads without rerunning the pipeline: https://jbrowse.org/demos/ecoli_pangenome/

Many genome rows from one PAF file

A linear synteny view can stack more than two genomes: N genome rows with a synteny "ribbon" band between each adjacent pair. When the genomes are closely related (strains or accessions of one species), the most convenient source is a single all-vs-all PAF, with every genome aligned to every other. This tutorial builds a five-strain E. coli pangenome view from one such file.

Synteny from ortholog tables stacks cross-species comparisons from gene-level ortholog tables.

Producing an all-vs-all PAF

An all-vs-all PAF is what the PGGB mapping step produces, but you can also make one yourself: concatenate PanSN-named genomes and self-align them with minimap2. PanSN (Pangenome Sequence Naming) names every sequence sample#haplotype#contig, e.g. K12#1#chr. It's how pangenome tools tell which genome a sequence belongs to, and later on the adapter uses that sample prefix to classify each PAF record.

First obtain each strain's genome FASTA. This example uses five complete NCBI RefSeq assemblies, which the script downloads with the NCBI datasets CLI, annotation included, and reduces to one chr record apiece by dropping the plasmids and renaming the chromosome:

Strain	RefSeq accession
K12	GCF_000005845.2
Sakai	GCF_000008865.2
CFT073	GCF_000007445.1
NCTC86	GCF_002007705.1
IAI39	GCF_000026345.1

Naming every chromosome chr is what each strain row reads in the view, and the annotations that come down in the same call are what gene tracks use further below.

Those five FASTAs become the JBrowse assemblies as-is. The PanSN names exist only inside the PAF, so the concatenated copy for minimap2 is its own file. The haplotype is always 1 here, since these are haploid bacterial assemblies:

for strain in K12 Sakai CFT073 NCTC86 IAI39; do
  # '>chr' -> '>K12#1#chr'
  awk -v s="$strain" '/^>/{print ">" s "#1#chr"; next} {print}' "$strain.fa"
done > all.fa

minimap2 -c -x asm20 -X all.fa all.fa > all_vs_all.paf

-c emits the base-level CIGAR the linear synteny view needs.

-X is required: it skips each sequence's own diagonal and the reciprocal copy of each pair, leaving every cross-strain pair once. Paralogy is untouched, which the one-vs-all mode below reads as a strain's own repeats (rRNA operons, IS elements).

Setting up the five assemblies

The stacked view has one row per strain, so each strain FASTA must be a JBrowse assembly whose name matches an entry in the track's assemblyNames. Compress and index each one, then load it:

for strain in K12 Sakai CFT073 NCTC86 IAI39; do
  bgzip -f "$strain.fa"
  samtools faidx "$strain.fa.gz"   # writes the .fai and .gzi JBrowse needs
  jbrowse add-assembly "$strain.fa.gz" --name "$strain" --load copy
done

Each assembly's reference sequence name is the plain chr from its FASTA: the adapter strips the PanSN prefix before matching, so K12#1#chr in the PAF resolves to chr in the K12 assembly. An assembly whose refNames still carry the prefix draws an empty view. The assemblies configuration guide has the equivalent JSON.

Loading the PAF with AllVsAllPAFAdapter

Since the file already holds every pairwise comparison, a single track can back every band of the stacked view. List every assembly the file covers in assemblyNames. The synteny view then tells the adapter which pair each band draws, and the adapter keeps only the records whose PanSN prefixes match that pair:

Config file CLI (add-track)

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_ava",
  "name": "E. coli pangenome (all-vs-all PAF)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "AllVsAllPAFAdapter",
    "uri": "all_vs_all.paf",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}

jbrowse add-track all_vs_all.paf \
  --trackId ecoli_ava \
  --name "E. coli pangenome (all-vs-all PAF)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType AllVsAllPAFAdapter \
  --load copy

If a JBrowse assembly name differs from its PanSN sample prefix, map it with the assemblyNameToPanSN slot (e.g. if you named the assembly Ecoli_K12 but its PanSN prefix is K12, use { "Ecoli_K12": "K12" }). A name matching no sample in the file raises an error listing the samples the file does hold, so the mapping can be written from what the error reports.

The CLI tab on the block above adds the same track. It spells the adapter out with --adapterType, because a .paf extension on its own is inferred as the pairwise PAFAdapter, which reads only the first two assembly names. One --assemblyNames fills in both the track's and the adapter's, in any order: it is the full set of assemblies the file covers.

Haplotype-resolved genomes

These five strains are haploid, so each PanSN prefix is a whole sample and K12 covers everything named K12#1#.... A haplotype-resolved pangenome can load each haplotype as its own assembly and map it to a sample#haplotype prefix, which turns hap1 against hap2 into a synteny band in its own right. The depth is a per-track choice: the synteny track config guide has the mapping and what changes between them.

Large files: index with make-pif

AllVsAllPAFAdapter reads the whole PAF into memory, which is fine for strains of one species but does not scale to a whole-genome pangenome of many samples. For those, index the file once with jbrowse make-pif and switch the adapter to AllVsAllIndexedPAFAdapter. A tabix range query then fetches only the records overlapping the region in view:

# produces all_vs_all.pif.gz and all_vs_all.pif.gz.tbi
jbrowse make-pif all_vs_all.paf

make-pif reads the PanSN names as it goes and finishes by printing the exact add-track command for the samples it found, so you can paste it straight back:

jbrowse add-track all_vs_all.pif.gz --adapterType AllVsAllIndexedPAFAdapter \
  -a CFT073,IAI39,K12,NCTC86,Sakai --load copy

Everything else about the track is unchanged, only the adapter block differs from the un-indexed version above:

Config file CLI (add-track)

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_ava_indexed",
  "name": "E. coli all-vs-all (indexed)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "AllVsAllIndexedPAFAdapter",
    "uri": "all_vs_all.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}

jbrowse add-track all_vs_all.pif.gz \
  --trackId ecoli_ava_indexed \
  --name "E. coli all-vs-all (indexed)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType AllVsAllIndexedPAFAdapter \
  --load copy

assemblyNames, assemblyNameToPanSN, and stacking the rows all work as above. The .pif.gz keeps its PanSN sequence names, and make-pif emits a coarse zoomed-out tier by default so whole-genome views stay responsive. --coarse tunes that tier and --csi swaps the TBI index for sequences longer than ~512 Mb. Raising --coarse means raising the adapter's coarseBpPerPxThreshold with it, which keeps the coarse ribbons at the zooms where the indels they draw straight across are too small to see.

Stacking the genomes

With the track in your config, you can stack the five strains from the UI, or declaratively so the view opens on load.

From the UI

The import form is one pass, whatever the row count:

Add → Linear synteny view opens it in Quick start, which launches straight from a pre-configured synteny track.
Choose ecoli_ava. It lists all five assemblies, so each becomes a row, one per strain, and that one track backs every band.
Click Launch.

Manual mode builds the stack by hand (Add row per strain, the connector button between each pair to pick its track), starting from whatever Quick start had selected.

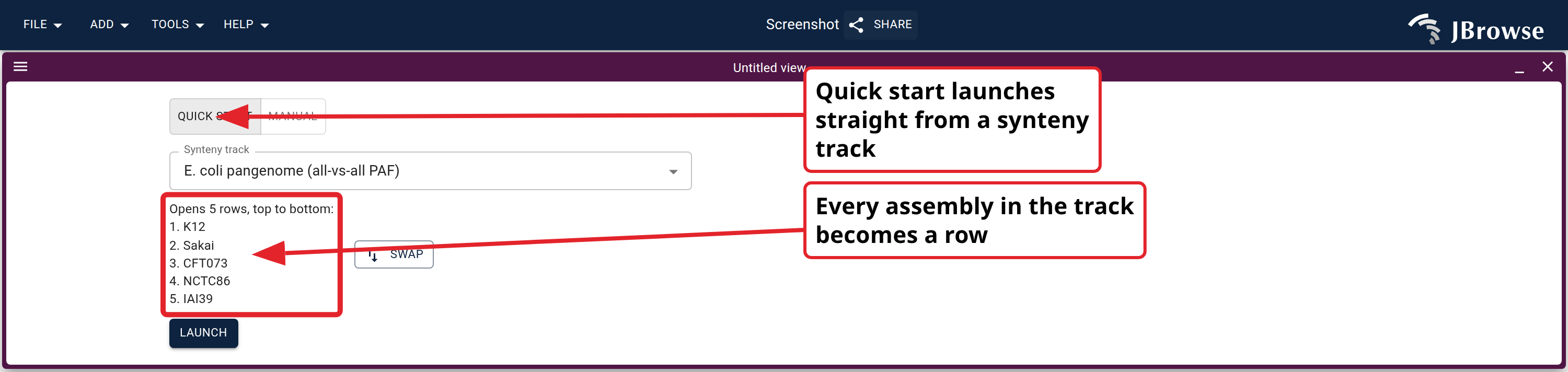

The all-vs-all Quick start in the import form. The ecoli_ava track fills its five assemblies in as rows, and Launch opens the stack. Open this view in JBrowse ↗

Declaratively with defaultSession

To open the stacked view automatically on load, add a top-level defaultSession key to your config.json holding a LinearSyntenyView snapshot. Five rows means four bands, so tracks has four entries, all served by the same track:

Config file CLI (set-default-session) URL

{
  "defaultSession": {
    "name": "E. coli 5-strain pangenome",
    "views": [
      {
        "type": "LinearSyntenyView",
        "init": {
          "views": [
            { "assembly": "K12" },
            { "assembly": "Sakai" },
            { "assembly": "CFT073" },
            { "assembly": "NCTC86" },
            { "assembly": "IAI39" }
          ],
          "tracks": [
            ["ecoli_ava"],
            ["ecoli_ava"],
            ["ecoli_ava"],
            ["ecoli_ava"]
          ],
          "minAlignmentLength": 10000,
          "collapseEmptyRows": true
        }
      }
    ]
  }
}

jbrowse set-default-session --session - << 'EOF'
{
  "name": "E. coli 5-strain pangenome",
  "views": [
    {
      "type": "LinearSyntenyView",
      "init": {
        "views": [
          { "assembly": "K12" },
          { "assembly": "Sakai" },
          { "assembly": "CFT073" },
          { "assembly": "NCTC86" },
          { "assembly": "IAI39" }
        ],
        "tracks": [
          ["ecoli_ava"],
          ["ecoli_ava"],
          ["ecoli_ava"],
          ["ecoli_ava"]
        ],
        "minAlignmentLength": 10000,
        "collapseEmptyRows": true
      }
    }
  ]
}
EOF

Open this session in JBrowse

The CLI tab writes the same session into an existing config.json. It carries the value of defaultSession, which is what set-default-session takes. The URL tab opens it against the hosted copy of this dataset.

Three keys there are worth reading, and each is a one-time load setting that goes under init:

tracks is one entry per band: tracks[0] connects rows 0-1, tracks[1] rows 1-2, and so on to tracks[3] for rows 3-4, all served by ecoli_ava.
minAlignmentLength hides minimap2's many short alignments, leaving the shared backbone. Tune it to taste.
collapseEmptyRows gives a ribbon-only row a bare scalebar, which is every row here, since none of the five carries a track of its own.

See the ortholog-tables tutorial for a fuller walk-through of the defaultSession structure.

The row order here is a free choice: an all-vs-all file is a complete graph, so every adjacent pair is a direct alignment.

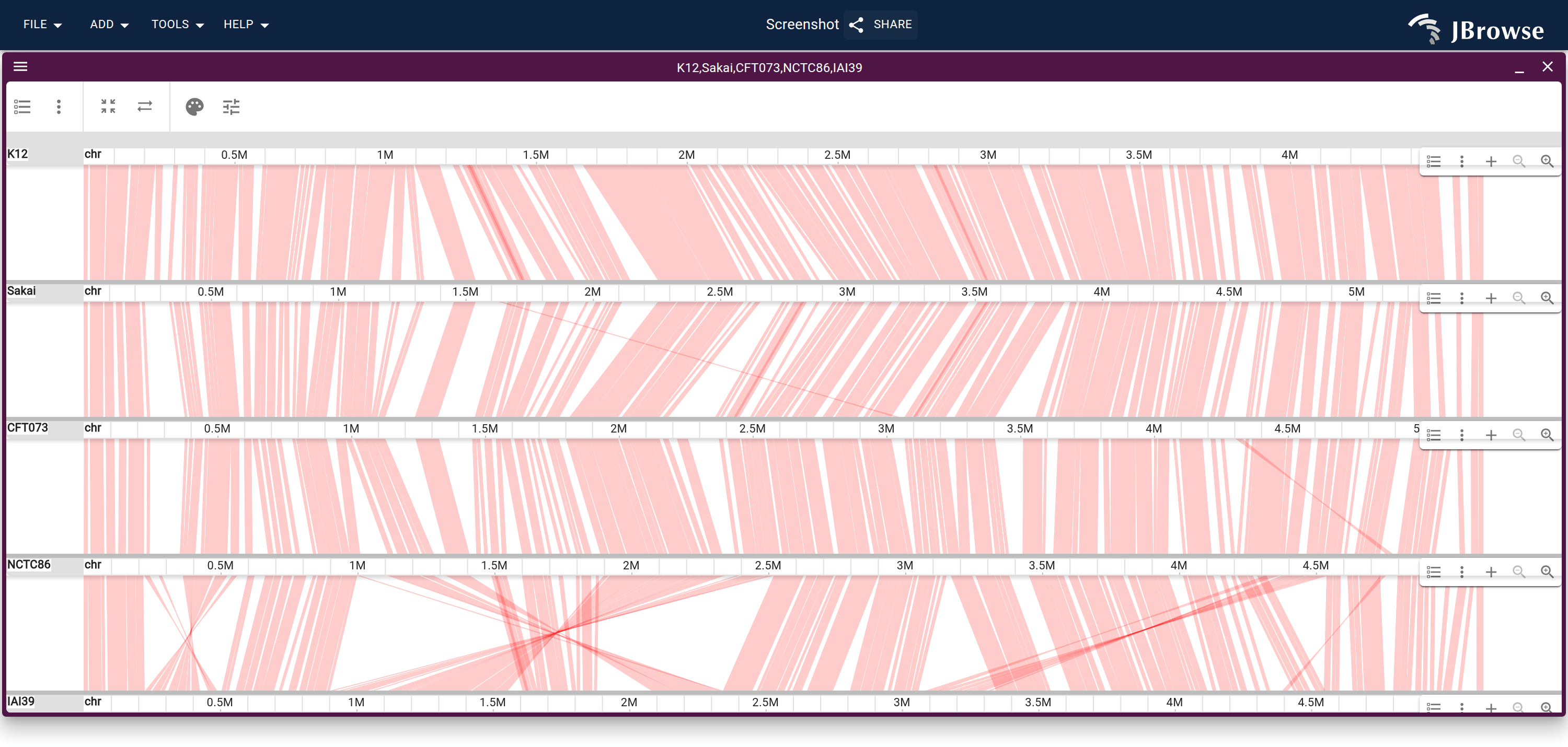

Five E. coli strains stacked from one minimap2 all-vs-all PAF, short alignments hidden with minAlignmentLength. The continuous ribbons are the backbone shared by all five; the bottom band crosses because IAI39 is inverted against the others. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The gaps in those ribbons are where the strains differ. Sakai's largest carry its prophage Shiga-toxin genes, and CFT073's are its own pathogenicity islands.

Adding gene tracks

A gap says the strains differ without saying what by, and the annotations downloaded alongside each genome answer that. Each GFF needs the same two adjustments the FASTA got, both done by the script: its seqid becomes chr to match the assembly, and its plasmid features are dropped, since the assembly kept only the chromosome.

for strain in K12 Sakai CFT073 NCTC86 IAI39; do
  jbrowse sort-gff "$strain.gff" | bgzip > "$strain.gff.gz"
  tabix "$strain.gff.gz"
  jbrowse add-track "$strain.gff.gz" -a "$strain" --name "$strain genes" --load copy
done

-a "$strain" is what matters here: each track is added to one strain's assembly, so it rides along with that strain's row in the stacked view.

With genes loaded the gaps become readable. Navigate Sakai's row to chr:1,267,000-1,268,400 and the gap holds stx2A and stx2B, the Shiga-toxin subunits, in a region with no alignment to K-12.

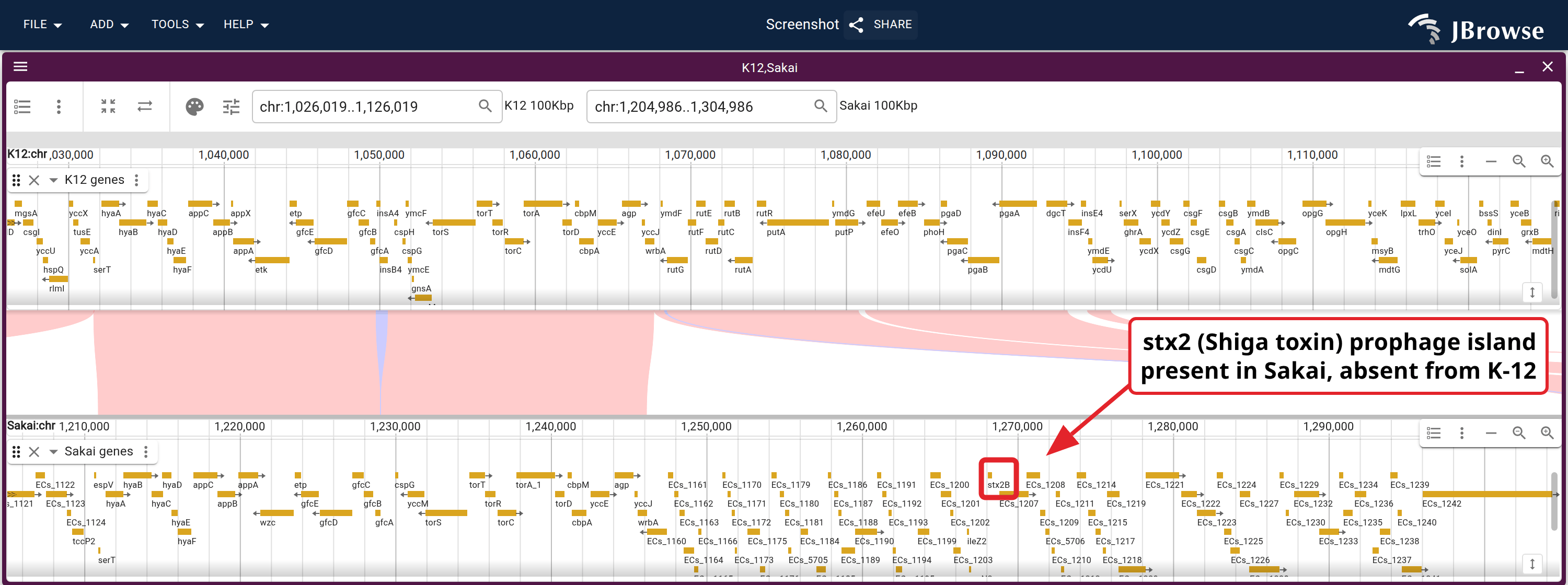

K-12 (top) and Sakai (bottom) with their gene tracks, framing the Sp5 prophage. The synteny ribbon runs out at the shared-backbone boundary, and everything right of it, stx2B included, has no counterpart in K-12. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

One strain against all the others

The same track also works in a plain linear genome view. With no second row and so no target assembly, it draws the strain you are looking at against every other sample in the file at once.

A mate the track does not list still draws, labelled by its bare PanSN prefix, so a plain view of K12 shows all four other strains without loading them as assemblies. A strain's own paralogy draws as well. Clicking a feature offers to launch a synteny view against its mate, for the mates the track lists, since that view needs a real assembly to open a row for.

Every alignment lands in one pileup, so nothing says which strain a block came from. Three items on the track menu sort that out:

Group by... → Mate assembly gives one labelled lane per sample. A lane is a single row, shading darker where several alignments cover the same base. Untick Show... → Collapse groups to one row to stack every lane instead, or expand one from its label.
Group by... → Hide self-alignment lane drops the lane for the strain you are viewing. It is this run's built-in control: minimap2 -X skipped each genome's own diagonal, so a K-12 lane filling with K-12 says the PAF was built wrong. The figures below have it ticked.
Show... → Show coverage adds a histogram of how many other strains cover each base. A synteny track in a plain view renders through the same display as a read pileup, so the rest of that menu is the one you already know from alignments.

The figure below carries a second pane, the same window in the pangenome graph of these strains, which the next section picks up. The shaded band is K-12's phenylacetate (paa) operon: Sakai, CFT073 and IAI39 all stop at its left edge where NCTC86 runs through.

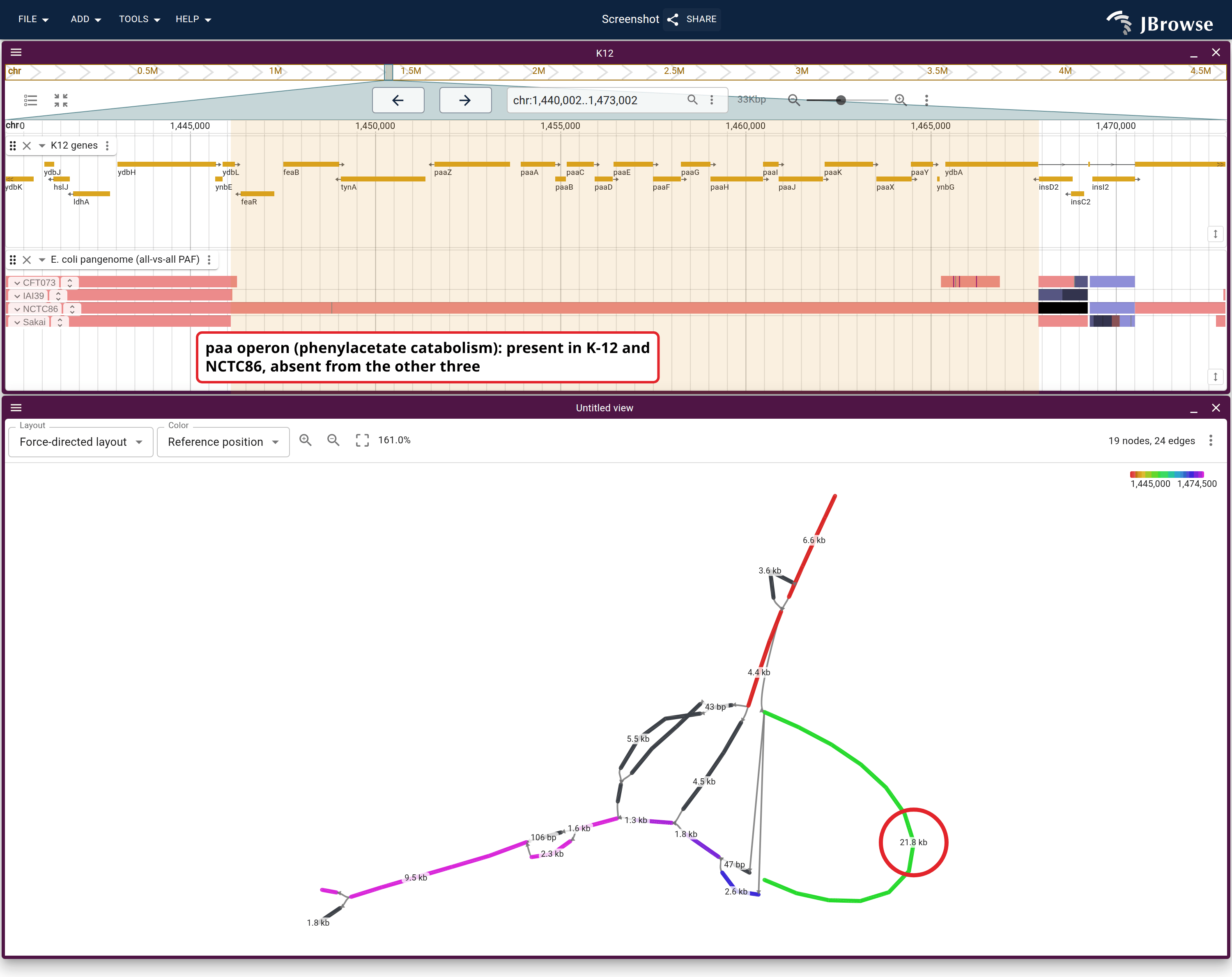

Above, one track with one lane per strain: K-12 against every other sample in the file, grouped by mate assembly. Below, the same window as a graph, where the short arm beside the ringed node is the detour the other three take. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The same mode zoomed out to the whole chromosome gives a per-strain overview. A synteny view's rows are ordinary linear genome views, so the lanes can sit on the K-12 row of the stack above and both readings of the same PAF share one axis. At this size the whole PAF is in memory on every pan; for a real pangenome, index it first with make-pif:

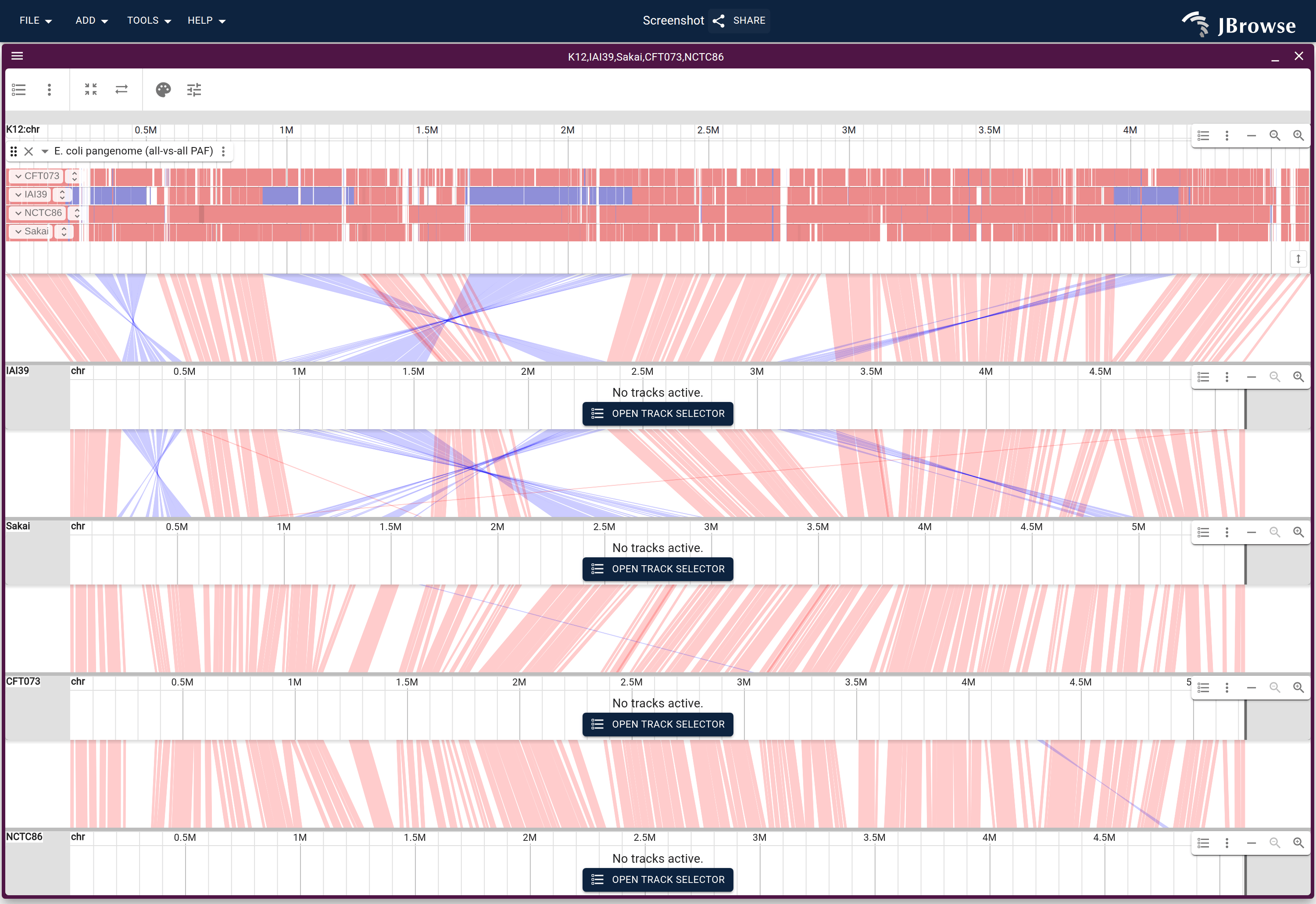

The one-vs-all lanes on the K-12 row of the five-strain stack, both drawn from the same PAF and colored by strand. White gaps are where a strain breaks from the K-12 backbone. IAI39 sits directly below K-12, so its blue stretches and the blue crossings under them are the same inversions. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The gap in the graph genome view

Sequence absent from the alignment is absent from the PAF, so what the strains that stop there carry is in the graph: the island is a segment, and each strain's walk either goes through that segment or takes a detour around it.

The E. coli tutorials build that minigraph graph of the same five strains, and the graph genome view plugin opens a window of it beside the alignment. The ringed segment, s502, is a block in K-12's segments lane and the long node carrying the island.

The lower band is blank across the island, which is a substitution: Sakai's alignment to K-12 stops before the island and resumes past it, and its own window over the same flanks comes out longer. Each strain carries an island of its own there, the phenylacetate operon and a prophage on K-12, a set of nleG effector genes on Sakai.

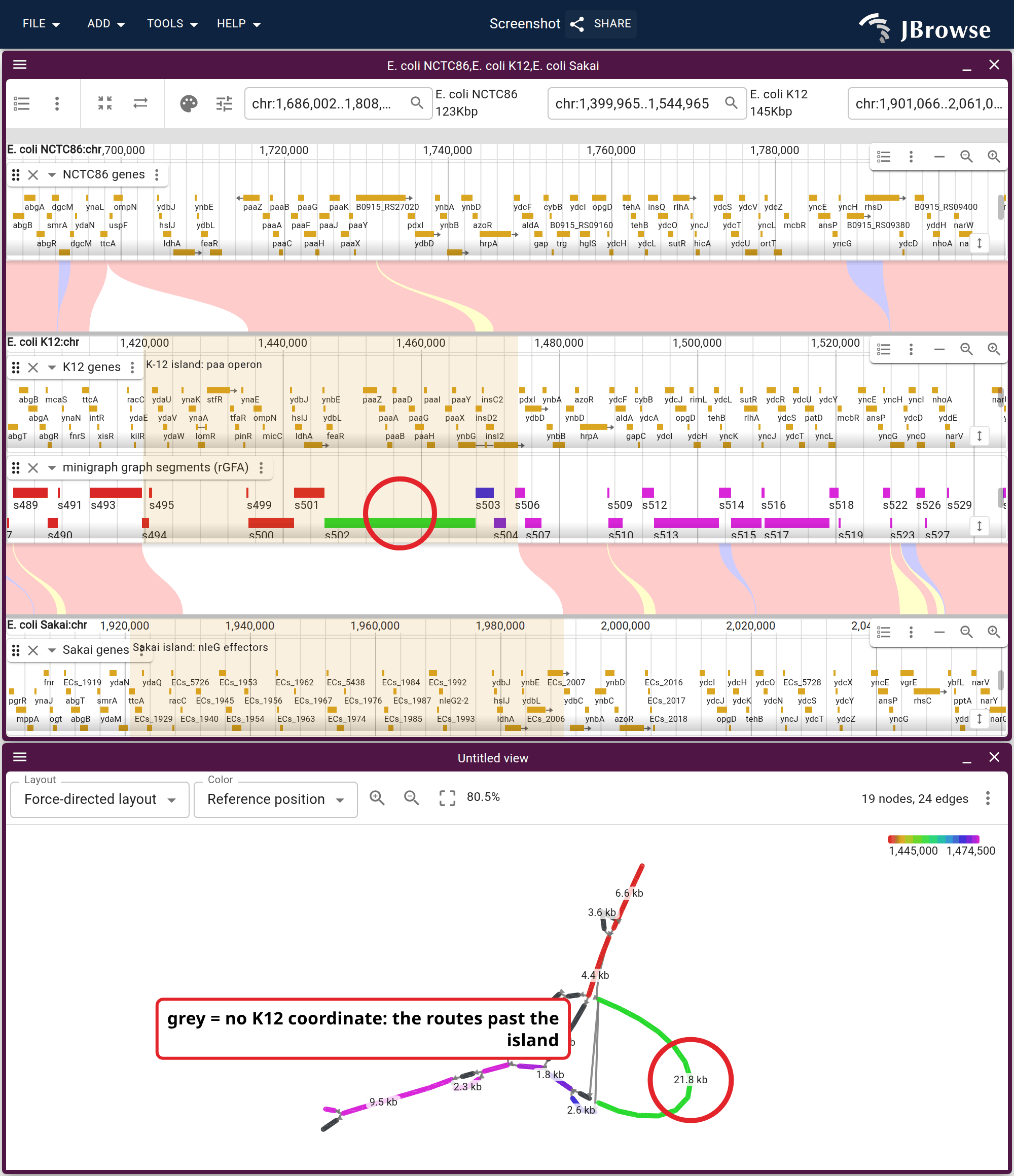

Above, the phenylacetate operon window with NCTC86 over K12 and Sakai under it. Each strain's own island is shaded in its own row and the band between them is blank across both, which is what a substitution looks like from either side. Below, the same window as a graph on the same reference-position ramp, the two rings marking one segment in both. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Launching a stacked view at one locus

The lanes say where a strain breaks from the backbone. The stacked view says what the break looks like on both sides of it. To go from one to the other, drag-select a region and pick Launch → Linear synteny view: with the all-vs-all track as the dialog's dataset, JBrowse reads that region back out of the same PAF. It finds every assembly aligning to it, and opens a row for each with a ribbon band in between. Selecting the paa operon window above gives the five-strain stack for that locus alone.

The dialog lists the assemblies it found plus the one you selected in, top to bottom, and lets you reorder them before launching. Ribbons are drawn between neighbouring rows only, so the order determines which comparisons the view can show. That is why IAI39 sits directly below K-12 in the figure above.

Right-clicking a single alignment instead of selecting a region offers three ways out of it. Launch synteny view for this position opens the one pair that alignment describes. Launch synteny view for all assemblies here is the same multi-strain dialog as the selection route, cut from this track at the block you clicked in. Open Sakai at the matching region (or whichever strain the alignment names) opens that strain on its own coordinates, with its gene track, at the stretch the alignment maps your window to, which is also what a graph node offers for its strain.

A launched view is a few kilobases wide, which is where the alignment's own CIGAR starts to matter. minimap2 -c wrote one for every record in this PAF, so each insertion and deletion is drawn where it falls; the palette button's Show color legend names the colors, and CIGAR indels in the settings menu switches between colored indels, transparent ones, and none.

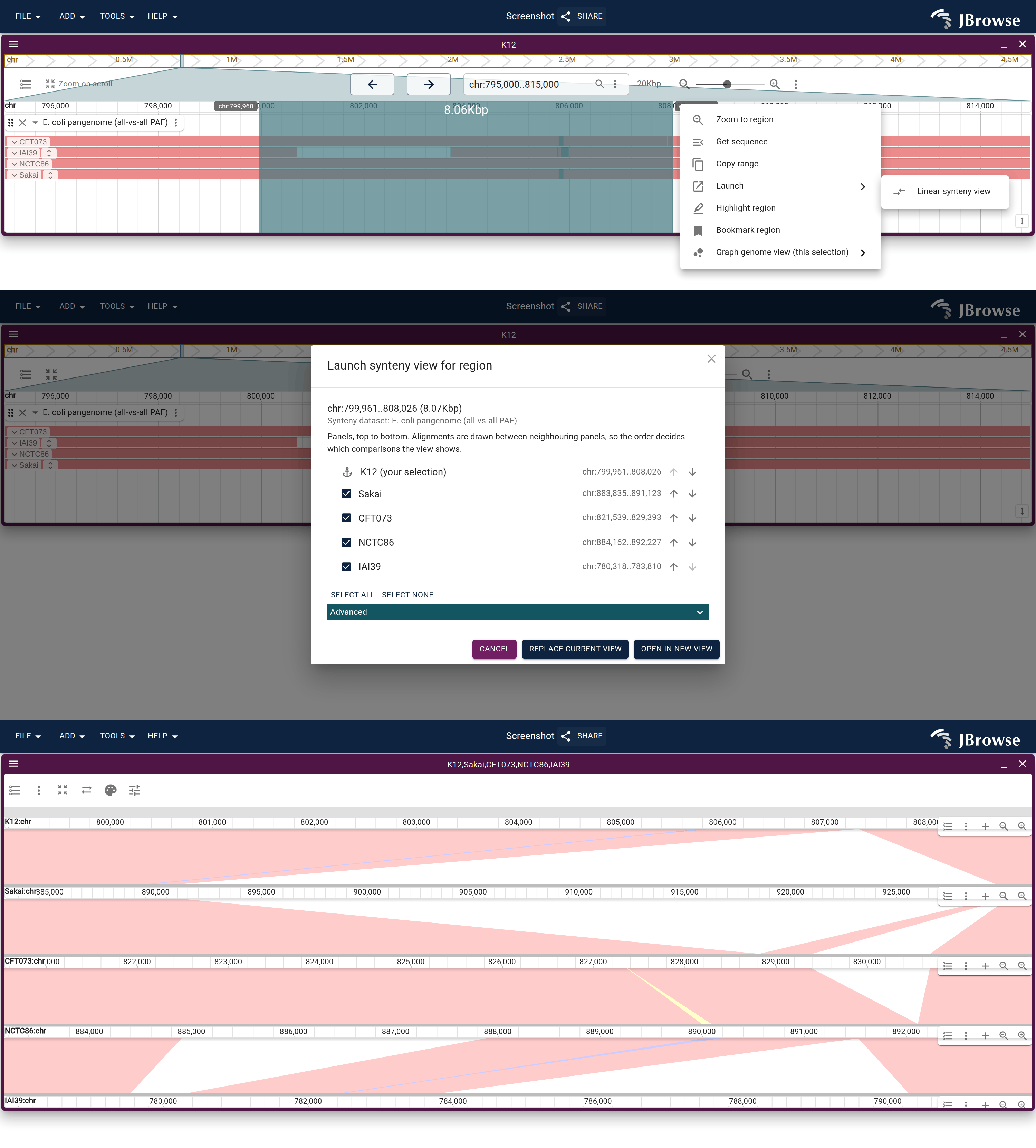

Rubberband-select a window of the shared backbone, then Launch → Linear synteny view. Open in JBrowse: Selection ↗ (large dataset — this session takes a while to load) · Dialog ↗ (large dataset — this session takes a while to load) · Result ↗ (large dataset — this session takes a while to load)

From the lanes to the stack for one locus: a scale-bar selection raises Launch, the dialog lists a panel per strain that aligns to the window, and its arrows move IAI39 up under K-12 before the launch replaces the lane view with the stack. Open the session this video starts in ↗

Checking a gap against the PAF

Every coordinate above is read off all_vs_all.paf, so the file can be asked directly. Print the Sakai side of every Sakai/K-12 alignment near the stx2 island, taking the coordinates from whichever column Sakai landed in, since -X emits each pair once and in either direction:

awk -F'\t' -v OFS='\t' '
  $1 ~ /^Sakai#/ && $6 ~ /^K12#/ { print $3, $4; next }
  $1 ~ /^K12#/   && $6 ~ /^Sakai#/ { print $8, $9 }
' all_vs_all.paf | sort -n | awk '$1 < 1300000 && $2 > 1200000'

1207288	1207877
1210882	1246166
1251954	1252260
1274685	1275548

The block on the second line is the shared backbone the ribbon in the figure draws, and it ends at 1,246,166. Past a short scrap nothing aligns again until 1,274,685, so stx2A and stx2B fall in a stretch of Sakai with no K-12 counterpart.

Reproduce it end to end

One script runs everything on this page, including the download and preparation steps described above but not pasted, build_ecoli_pangenome_synteny.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_ecoli_pangenome_synteny.sh
bash build_ecoli_pangenome_synteny.sh          # builds ./ecoli_pangenome_build/jbrowse2
npx --yes serve ecoli_pangenome_build/jbrowse2 # then open the printed URL

It downloads the five RefSeq genomes, self-aligns them into the all-vs-all PAF, downloads JBrowse, and writes a config.json with the five assemblies, the per-strain gene tracks, the all-vs-all synteny track, and a default session that opens on the stacked view. It needs everything under Prerequisites on your PATH.

For a whole-genome pangenome, swap the add-track step for the make-pif + AllVsAllIndexedPAFAdapter path from Large files.
