A selected haplotype (Dog10K)
TL;DR: score every window of the Dog10K phased panel for how far apart fourteen toy breeds and eleven giant breeds sit, draw that as a Manhattan track, then slice one peak out of the 397 GB SNV callset over HTTP, load it as a multi-sample variant track with a sample-metadata TSV, and cluster the rows.
Prerequisites
- nothing to read along. Everything below is for building the track yourself
- the
UU_Cfam_GSD_1.0dog assembly set up in JBrowse (UCSC calls it canFam4; itschrom.sizesis all this track needs, see the assemblies guide) bcftoolsbuilt with libcurlcurlpython3- htslib (
tabix)
On Debian/Ubuntu, apt install bcftools tabix curl python3 covers it; the
packaged bcftools is linked against libcurl, so it can read the remote
callset. The scripts write local files, which
JBrowse Desktop opens by path and JBrowse Web takes
through Add track.
Where the data comes from
The Dog10K consortium's public share (Meadows et al. 2023), read directly over HTTP with no local copy of either callset.
- the phased imputation panel, scored window by window for the Fst scan: https://kiddlabshare.med.umich.edu/dog10K/phased-imputation-panel/AutoAndXPAR.Dog10K.phased.bcf
- the SNV/indel callset the IGF1 window is sliced from: https://kiddlabshare.med.umich.edu/dog10K/SNP_and_indel_calls_2021-10-17/AutoAndXPAR.SNPs.vqsr99.vcf.gz
- the sample table, breed panels and the wolf outgroup are derived from it: https://kiddlabshare.med.umich.edu/dog10K/sample-information/dog10K-alignment-sample-table.2022-02-23-v7.txt
Scanning for a locus
Body size is the trait, so the two groups are the breeds at its extremes: every
animal of fourteen toy or small breeds against every animal of eleven giant
breeds. Hudson Fst
(Hudson et al. 1992) per window
over the Dog10K phased imputation panel scores how far apart their allele
frequencies sit, summed as a ratio of averages
(Bhatia et al. 2013), and
build_dog10k_size_fst.sh
writes one BED line per window.
A Manhattan track expects a -log10(p) column, and this file has an Fst column.
GWASAdapter takes the column to read as the score
(scoreColumn) and the transform
to apply to it
(scoreTransform) as separate
settings, so naming the column is enough: Fst is already on the scale the plot
draws. QTL mapping (BXD mice) loads a LOD column through the same two
slots.
{
"type": "GWASTrack",
"trackId": "dog10k_size_fst",
"name": "Fst, toy/small vs giant breeds (200 kb windows)",
"assemblyNames": ["UU_Cfam_GSD_1.0"],
"adapter": {
"type": "GWASAdapter",
"uri": "dog10k_size_fst.bed.gz",
"columnNames": ["chrom", "chromStart", "chromEnd", "name", "fst", "sites"],
"scoreColumn": "fst"
},
"displayDefaults": {
"significanceLine": 0.295
}

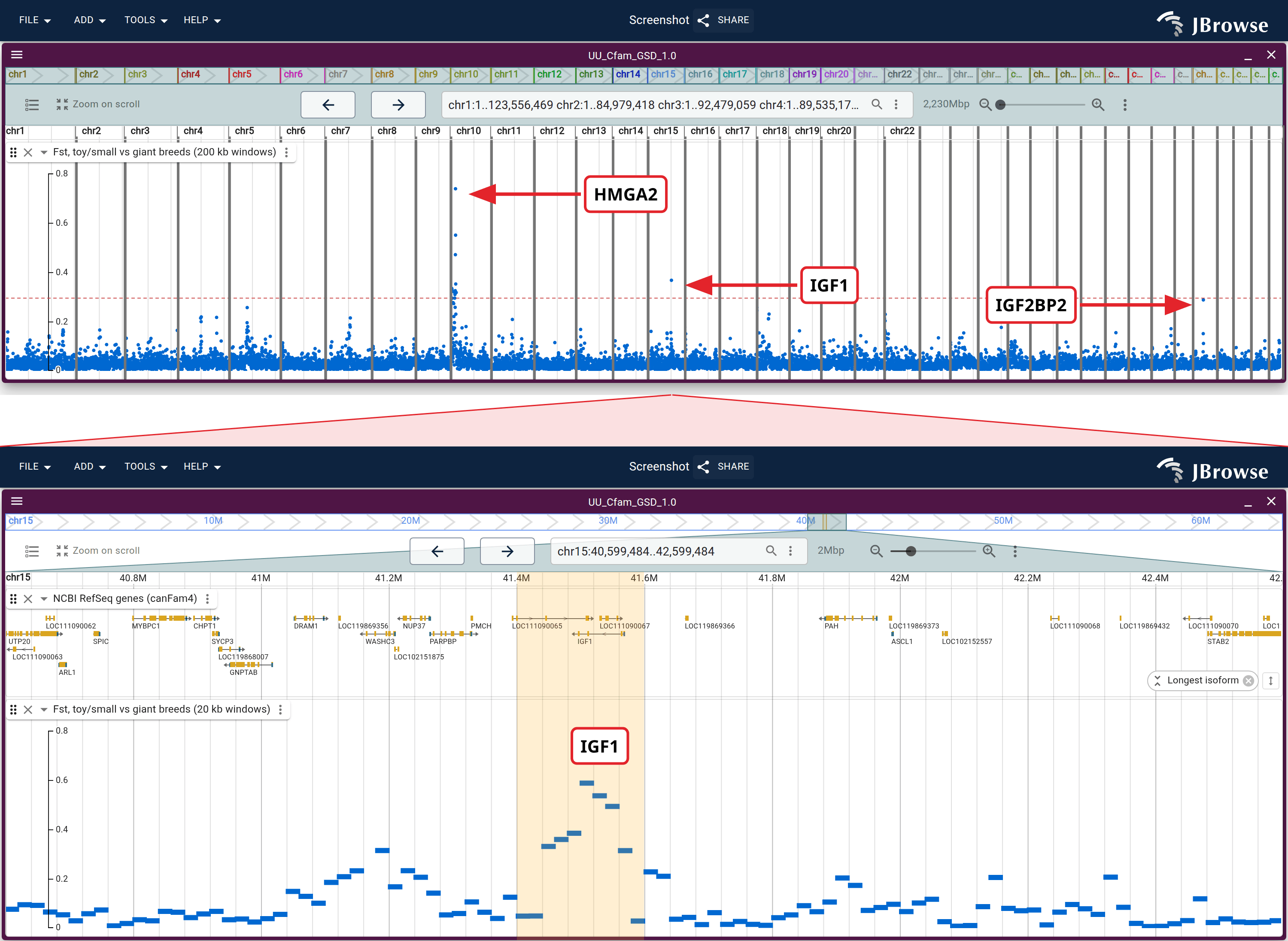

}Opening the assembly with no location shows all of its regions at once, so the display lays the autosomes out side by side.
Rerunning the same script over one region rebins it, which is the lower half of the figure below: the same panel and the same estimator at 20 kb over two megabases, where the peak resolves into a sweep.
WINDOW=20000 REGIONS=chr15:40600000-42600000 \
OUTBED=dog10k_size_fst_igf1_20kb.bed \
bash build_dog10k_size_fst.shEach point is a window, so a peak names a region. A genome-wide scan bins wide enough to hold down twelve thousand windows' worth of noise, which is what makes the IGF1 peak a single bar.
Fst has no p-value, so
significanceLine
draws a quantile of the scan's own windows: the dashed line is the 99.9th
percentile, printed by the build script alongside the ranked windows. It is a
property of these windows at this size, so rebinning the scan means taking it
again. The tallest labelled peak, on chr10, is HMGA2, one of the six variants
Rimbault et al. 2013 fit to about half
the size variation across breeds.
Each group is a set of closed populations, so drift inside one large breed scores the same way differentiation across the contrast does. A window has fourteen breeds against eleven behind it.
The IGF1 body-size locus
The rest of this tutorial takes the IGF1 peak. IGF1 is a major determinant of body size in dogs: small breeds share a haplotype at the locus that large breeds largely lack (Sutter et al. 2007). Drawn per animal, that haplotype shows how far along the chromosome it extends, which animals depart from their breed, and where the wolves fall.
Choosing the panel
The panel is the two groups the scan compared plus the twelve Greek gray wolves, taken from the Dog10K sample table by breed name: whole breeds, selected on breed, since the variation within a breed is part of what the clustering below has to recover, and several breeds depart from the pattern one animal at a time.
Slicing the locus out of the callset
The SNV callset is a single 397 GB VCF over 1,987 canids with a tabix index
beside it. bcftools reads only the window:
SNVS=https://kiddlabshare.med.umich.edu/dog10K/SNP_and_indel_calls_2021-10-17/AutoAndXPAR.SNPs.vqsr99.vcf.gz
bcftools view -r chr15:41350000-41750000 -S igf1.samples --force-samples \
-f PASS "$SNVS" \
| bcftools view -q 0.05:minor -Oz -o dog10k_igf1.vcf.gz
tabix -p vcf dog10k_igf1.vcf.gzThe window extends past both ends of IGF1 so that the haplotype's boundaries fall inside the view.
The second bcftools view keeps sites that are common within the panel. Most
sites in a callset this size are rare, and a site that is reference in all 167
animals draws an empty column.
Loading the slice with sample metadata
The display draws one row per sample. For a panel this size, point the adapter at a TSV whose first column is the sample name and whose other columns are attributes; the display colors and orders rows by any of them:
name breed size
CHIH000005 Chihuahua Toy/small
STBD000001 Saint Bernard Giant
CLUPGR000001 Greek gray wolf Gray wolfcolorBy names the column that paints the sidebar swatch:
{
"type": "VariantTrack",
"trackId": "dog10k_igf1_haplotype",
"name": "Dog10K SNVs across IGF1 (toy, giant, wolf)",
"assemblyNames": ["UU_Cfam_GSD_1.0"],
"adapter": {
"type": "VcfTabixAdapter",
"uri": "dog10k_igf1.vcf.gz",
"samplesTsvLocation": { "uri": "dog10k_igf1_samples.tsv" }
},
"displays": [
{
"type": "LinearMultiSampleVariantDisplay",
"colorBy": "size",
"height": 760
}
]
}jbrowse add-track-json '{
"type": "VariantTrack",
"trackId": "dog10k_igf1_haplotype",
"name": "Dog10K SNVs across IGF1 (toy, giant, wolf)",
"assemblyNames": ["UU_Cfam_GSD_1.0"],
"adapter": {
"type": "VcfTabixAdapter",
"uri": "dog10k_igf1.vcf.gz",
"samplesTsvLocation": { "uri": "dog10k_igf1_samples.tsv" }
},
"displays": [
{
"type": "LinearMultiSampleVariantDisplay",
"colorBy": "size",
"height": 760
}
]
}'Clustering the rows
Rows arrive in the VCF's order, which is the order the panel was built in, so they start out grouped by breed. Clustering → Cluster rows by genotype... in the track menu, then Run clustering, reorders them by genotype similarity and draws a dendrogram in the sidebar.
The clustering reads genotypes only. The swatch is applied afterwards from the sample table, so the two are independent.
Framing the window
In a matrix every record is one column of equal width, so a window's width in the frame is a count of records. The build script prints which sites separate the two size classes, and this window is that span with a margin of undifferentiated sequence on each side, which is where the Fst lane comes back down.
Clustering reads the region on screen, and over the whole window the separating
columns are diluted by the undifferentiated sites around them. Zoom to the core,
cluster there, then widen back out: the order holds, because it is stored per
sample name. A session can state it directly, since the display takes
clusterRegion beside runClustering, which is what the figure below does.
Reading the IGF1 haplotype block

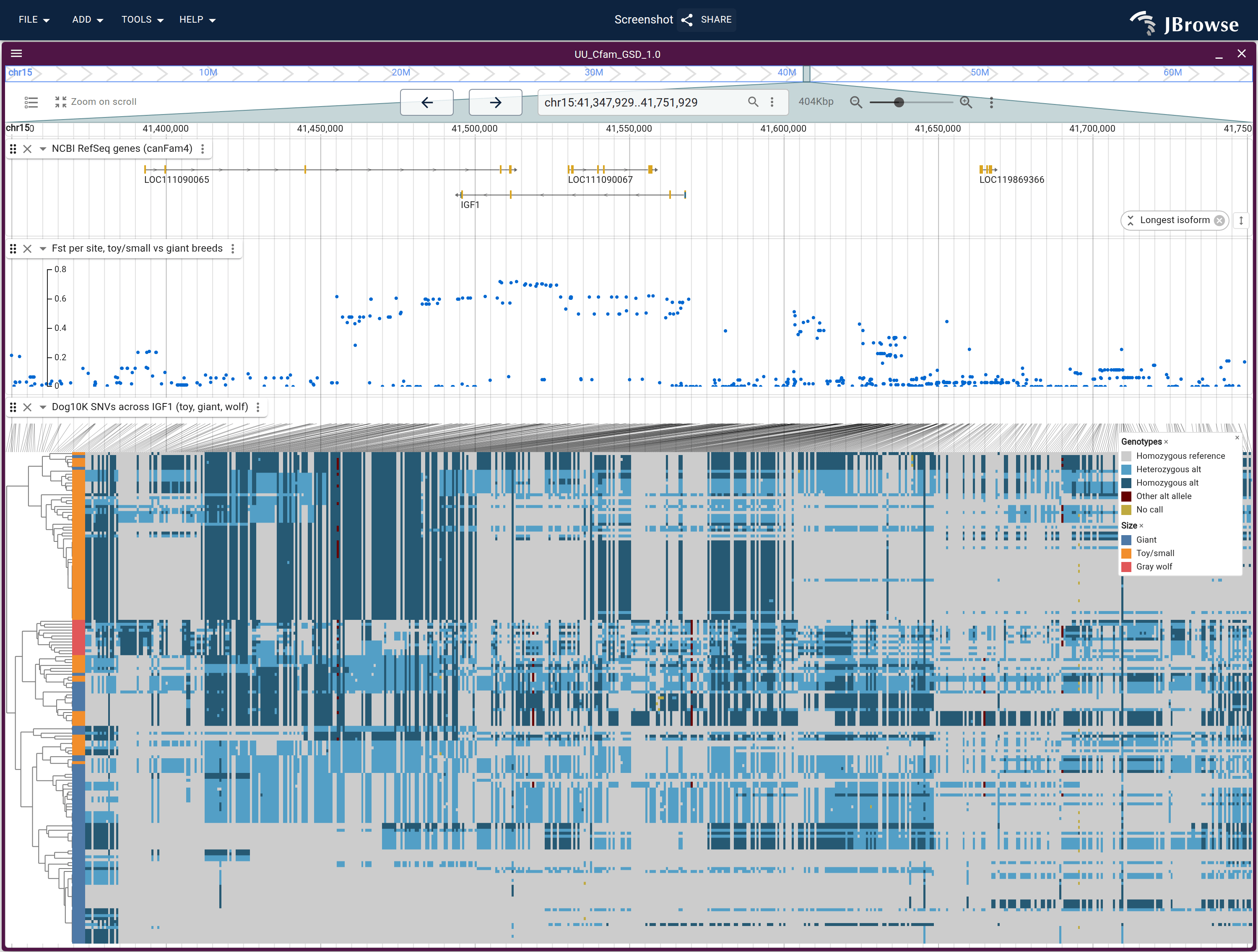

Clustering on genotypes alone recovers the size split, and the block's boundaries fall within the window, so its extent reads against the gene track above it. The two panels differ here by a shift in allele frequency, so the block is a run of columns where one class is enriched.
The lane between them says which columns are doing the work: the same Hudson Fst as the genome scan, between the same two panels, computed one site at a time over this VCF. Every point is one column of the matrix, though not the column directly beneath it, since the matrix gives each record equal width and the Fst lane keeps genomic spacing; the sloped lines between the two tie each column back to its coordinate. The scan reads the phased imputation panel and this lane reads the SNV callset, so the peak comes off two different files.
Rows depart from their swatch in both directions: single orange rows sit within the giant cluster and single blue rows within the small one. The build script prints the range within each size class alongside its median.
The wolves form a contiguous band, on the toy and small side of the split. In the other two Dog10K tutorials the wild canids carry none of the allele under study; here they carry part of the haplotype.
Where to go next
Both halves take the same two inputs, a pair of groups and a region, so any trait the sample table records can be substituted: change the breed lists and the scan reports its own peaks, then change the region and the metadata column to draw one of them. The Dog10K paper's own selection scan (its Fig. 8) lists peaks for five ancestry components, and the structural-variant paper lists more.
Reproduce it end to end
Two scripts, in order:
BASE=https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts
curl -fO $BASE/build_dog10k_size_fst.sh
curl -fO $BASE/build_dog10k_igf1.sh
bash build_dog10k_size_fst.sh # writes ./dog10k_size_fst_build/
bash build_dog10k_igf1.sh # writes ./dog10k_igf1_build/build_dog10k_size_fst.sh
downloads the Dog10K sample table, derives the two breed panels from it, streams
one autosome at a time out of the phased panel, and prints the ranked windows.
build_dog10k_igf1.sh
derives the same panels plus the metadata TSV, slices the IGF1 window out of
the callset, scores every site in it with the same estimator the scan uses, and
reports the alt-allele dosage per size class over the sites inside the gene that
separate the two dog classes.
