Coloring/theming
TL;DR: set colors and sizing under a top-level theme in the
configuration section. JBrowse's palette
has four customizable colors (primary, secondary, tertiary, quaternary);
add "mode": "dark" inside a palette for dark mode. configuration.preferences
sets the starting value of the settings users can toggle for themselves.
Color
The color scheme and some sizing options are configured via a top-level theme
in the configuration section of the
config file. For example:
{
"configuration": {
"theme": {
"palette": {
"primary": {
"main": "#4400a6"
}
}
}
}

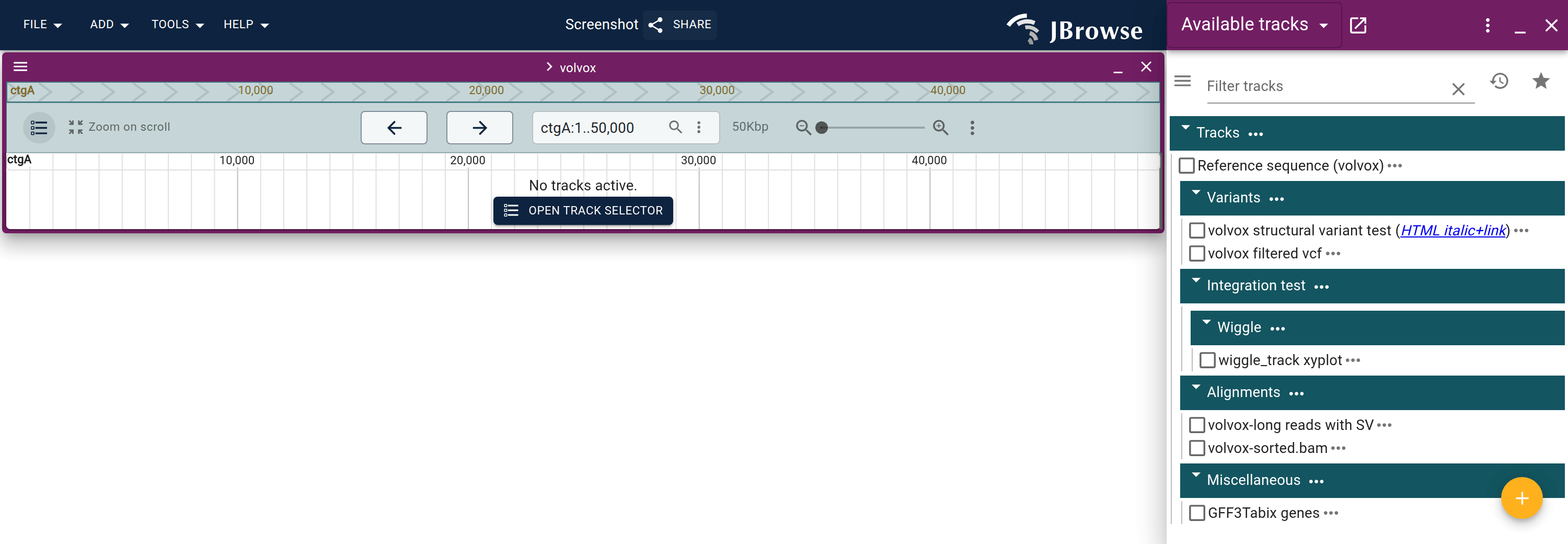

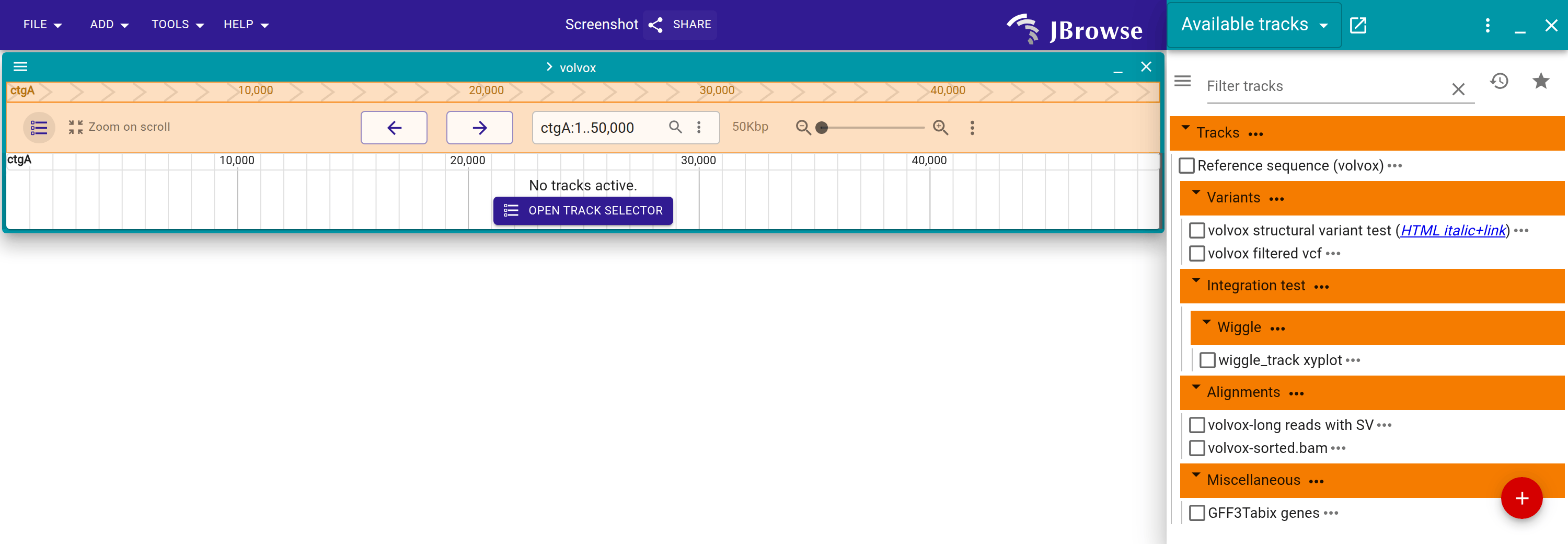

}JBrowse's palette has 4 customizable colors. Here's the default theme next to a theme customized with the palette below:
The customized theme uses this configuration:
| Color code | Color | |
|---|---|---|
| Primary | #311b92 | Deep purple |
| Secondary | #0097a7 | Cyan |
| Tertiary | #f57c00 | Orange |
| Quaternary | #d50000 | Red |
tertiary and quaternary are JBrowse extensions to the standard MUI palette
(which has only primary/secondary). The rest of the palette behaves as MUI
documents.
{
"configuration": {
"theme": {
"palette": {
"primary": {
"main": "#311b92"
},
"secondary": {
"main": "#0097a7"
},
"tertiary": {
"main": "#f57c00"
},
"quaternary": {
"main": "#d50000"
}
}
}
}
}Extra themes and dark mode
Extra themes added via the config show up in a "Preferences" dialog in jbrowse-web and jbrowse-desktop for the user to select.
Dark mode is enabled by adding "mode": "dark" inside a theme's palette,
which switches it to
MUI's dark mode. This
works both on an extraThemes entry and on the top-level theme, where it
makes the default theme dark.
Example:
{
"configuration": {
"extraThemes": {
"myTheme": {
"name": "My theme",
"palette": {
"mode": "dark",
"primary": {
"main": "#311b92"
},
"secondary": {
"main": "#0097a7"
},
"tertiary": {
"main": "#f57c00"
},
"quaternary": {
"main": "#d50000"
}
}
}
}
}
}Logo
A custom logo replaces the JBrowse 2 logo in the top right corner. Store an SVG file on your server and specify its path:
{
"configuration": {
"logoPath": {
"uri": "path/to/my/custom-logo.svg"
}
}
}The logo is auto-fitted to the toolbar: full bar height, automatic width to preserve the aspect ratio, capped at 150px wide. A wide, short logo (roughly 3:1) fills the space best; a tall one is capped by the width limit and ends up small.
Sizing
typography and spacing adjust font size and the space between elements:
{
"configuration": {
"theme": {
"typography": { "fontSize": 10 },
"spacing": 2
}
}
}User preference defaults
configuration.preferences sets the starting value of the settings a user can
change for themselves in the Preferences dialog. A user's own choice is stored
in localStorage and wins from then on, so these are defaults for your
instance, not a way to lock a setting down.
{
"configuration": {
"preferences": {
"numberGrouping": false,
"scrollZoom": true,
"useWorkspaces": true,
"animationMode": "system"
}
}
}numberGroupingwrites coordinates with thousands separators (chr1:1,234,567). Turn it off for an instance whose users copy coordinates into tools that reject the commas.scrollZoommakes the mouse wheel zoom without Ctrl held.useWorkspacesopens views as tabbed/tiled panels rather than a vertical stack. A session that namesuseWorkspacesitself still wins over this.animationModeisenabled,disabled, orsystem, which follows the OS prefers-reduced-motion setting.
Advanced
JBrowse uses Material-UI
for its theming (see the
developer theming guide for the full palette
and exported color constants). Most options you can pass to MUI's
createTheme
work in the theme configuration.
Some aspects of the theme, like style overrides, accept callback functions that can't be expressed in the config but can be added via a plugin. See this example plugin, which adds a theme and overrides the 'default' theme from a plugin. See no-build plugin tutorial for how to load a small plugin like this from config.
