Selection scans (Drosophila DGRP)

TL;DR: compute per-window Fst, nucleotide diversity (π), and Tajima's D from a multi-sample VCF, load them as bigWig quantitative tracks stacked in one view, each on its own y-axis, and read where the signals line up against genes.

Prerequisites

nothing to read along. Everything below is for building the tracks yourself
curl
node, for the JBrowse CLI
vcftools - windowed Fst, π, and Tajima's D from a VCF
bcftools - reading the VCF header and sample list
htslib (bgzip, tabix) - compressing and indexing the VCF built in the per-sample section
bedGraphToBigWig - UCSC utility that packs a bedGraph into an indexed bigWig

On Debian/Ubuntu, apt install vcftools bcftools tabix curl covers everything but bedGraphToBigWig, which is a single static binary from UCSC. Homebrew has the same four (brew install vcftools bcftools htslib), and all five are on bioconda if you already run conda.

Where the data comes from

The Drosophila Genetic Reference Panel, 205 inbred lines (Mackay et al. 2012), lifted to dm6.

the DGRP freeze-2 genotype calls: https://resources.aertslab.org/DGRP2/NCSU/final/dm6/DGRP2.source_NCSU.dm6.final.SNPs_only.vcf.gz
the In(2L)t inversion karyotype for each line, from DGRPool's phenotype record: https://dgrpool.epfl.ch/phenotypes/1520/download
the finished Fst scan, rehosted so the tracks on this page load without rebuilding: https://jbrowse.org/demos/popgen/fst_In2Lt.bw
π inside the inverted and standard karyotypes: https://jbrowse.org/demos/popgen/pi_INV.bw and https://jbrowse.org/demos/popgen/pi_STD.bw
the inversion genotypes and the line table beside them: https://jbrowse.org/demos/popgen/dgrp_In2Lt_sv.vcf.gz and https://jbrowse.org/demos/popgen/dgrp_In2Lt_samples.tsv

The dm6 assembly and gene track are the hosted UCSC hub's own entries.

Windowed statistics as tracks

A population-genetic scan is a per-window statistic running along the genome: Fst between two groups, nucleotide diversity (π) within one, dxy between them. That is the shape of a wiggle track, so whatever a scanner writes per window loads as a quantitative track and reads against the genes underneath it. Haplotype-based selection statistics (iHS, XP-EHH, e.g. from selscan) capture sweeps that Fst misses and, being per-site or per-window scores, load the same way.

This tutorial stacks Fst, π and Tajima's D in one view, each scaled to its own data, over the Drosophila Genetic Reference Panel (DGRP), 205 inbred lines (Mackay et al. 2012) on dm6. Two signals stand out:

Fst across the In(2L)t inversion. The inversion suppresses recombination between the two arrangements in a heterozygote (Corbett-Detig & Hartl 2012), so Fst tracks the arrangement boundary.
The π landscape. It dips at loci under selection, such as the insecticide-resistance gene Cyp6g1 (Daborn et al. 2002).

Building the scans

The inversion karyotypes (Gardeux et al. 2023) harmonize the In(2L)t typing of Huang et al. 2015. The karyotype column is 0 for standard homozygotes, 2 for inverted homozygotes, and 1 for heterozygotes, which is what splits the panel into the two groups Fst compares. The heterozygotes are dropped from both groups.

build_dgrp_popgen.sh downloads both files and derives the two sample lists, normalizing DGRPool's DGRP_021 to the VCF's DGRP-021. Each list is one sample name per line, which is the form vcftools takes for --weir-fst-pop and --keep.

Each scan is then one vcftools run, an awk turning its table into a bedGraph, and a pack into a bigWig. Fst uses the Weir & Cockerham estimator (Weir & Cockerham 1984):

# chrom.sizes from the VCF header, so it carries the same contig names the
# scans will
bcftools view -h dgrp2.vcf.gz |
  awk -F'[=,>]' '/^##contig/{print $3"\t"$5}' > dm6.chrom.sizes

# window == step, so windows tile rather than overlap
vcftools --gzvcf dgrp2.vcf.gz \
  --weir-fst-pop In2Lt_INV.txt --weir-fst-pop In2Lt_STD.txt \
  --fst-window-size 2000 --fst-window-step 2000 --out fst_In2Lt
# BIN_START is 1-based here, hence -1; negative Fst is an estimator artifact
# at low-differentiation sites and is floored at 0.
# $5 is WEIGHTED_FST, the window's summed variance components divided; $6 beside
# it is MEAN_FST, the average of the per-site ratios, which any window with a
# few uninformative sites in it pulls around.
# BIN_END is the NOMINAL window end, so a contig's last window is reported past
# the end of it. Clamp, or bedGraphToBigWig refuses the whole file.
awk -F'\t' 'NR==FNR{len[$1]=$2; next}
     FNR>1 && $5!="nan" && $5!="-nan" {
       v=$5+0; if (v<0) v=0
       end=$3; if (end>len[$1]) end=len[$1]
       if (end>$2-1) print $1"\t"($2-1)"\t"end"\t"v
     }' dm6.chrom.sizes fst_In2Lt.windowed.weir.fst |
  sort -k1,1 -k2,2n > fst_In2Lt.bedgraph
bedGraphToBigWig fst_In2Lt.bedgraph dm6.chrom.sizes fst_In2Lt.bw

The clamp reads window ends against that same chrom.sizes. Diversity is the same three steps with --window-pi 2000, reading $5 of pi_all.windowed.pi, and --keep restricts it to one arrangement. Reading $4 of the same table instead gives the called-variant count the figure below stacks under π.

The two groups here are very unequal, since the inverted arrangement is the rarer one. Weir & Cockerham corrects for sample size, and Hudson's estimator summed as a ratio of averages is the usual recommendation where the groups differ this much (Bhatia et al. 2013); A selected haplotype (Dog10K) scans with that one.

Tajima's D (Tajima 1989) reads its table differently from the other two. --TajimaD reports BIN_START 0-based, so it takes no -1 shift, and reports no BIN_END at all, so the window end is constructed here before the same clamp applies to it.

vcftools --gzvcf dgrp2.vcf.gz --TajimaD 2000 --out tajimad_all
# BIN_START is already 0-based (no -1), and there is no BIN_END, so the end is
# built here and clamped: an interval past the contig end is rejected downstream
awk -F'\t' 'NR==FNR{len[$1]=$2; next}
     FNR>1 && $4!="nan" && $4!="-nan" {
       end=$2+2000; if (end>len[$1]) end=len[$1]
       if (end>$2) print $1"\t"$2"\t"end"\t"$4
     }' dm6.chrom.sizes tajimad_all.Tajima.D |
  sort -k1,1 -k2,2n > tajimad_all.bedgraph
bedGraphToBigWig tajimad_all.bedgraph dm6.chrom.sizes tajimad_all.bw

Window size trades resolution for smoothness. 2 kb is dense enough in this panel that a single-gene sweep like Cyp6g1 resolves sharply. Widen toward 5-10 kb for smoother genome-wide overviews, or narrow further only where SNP density stays high.

The one thing to check yourself is chromosome naming: a mismatch draws an empty track with no error. The bigWigs take their contig names from the VCF header, which spells the arms 2L, 2R, 3L, 3R, X and 4, FlyBase style, where UCSC dm6 prefixes them chr2L. If your dm6 assembly uses the UCSC names, refname aliasing reconciles the two at display time.

Negative Fst estimates, an artifact of the Weir & Cockerham estimator at low-differentiation sites, are floored at 0. Tajima's D keeps its sign, since its negative excursions are the signal.

Because this VCF holds variant sites only, --window-pi divides by the nominal window size, so every position not in the file counts as invariant and callable alike. A window that lost sites to filtering or to coverage reads as low diversity, and how much each window lost varies. pixy (Korunes & Samuk 2021) takes an allSites VCF, where an invariant position and a missing one are distinguishable, and reports π, dxy and Fst per window without that bias, one row per window, so its output packs into a bigWig the same way.

Tajima's D is read as an excursion against the panel's own background. A variant-sites-only callset of inbred lines lifts the whole baseline, since filtering takes the rare alleles D is most sensitive to and vcftools counts two chromosomes where a line contributes one.

Loading the scans in JBrowse

You need a dm6 assembly loaded, ideally with a FlyBase or RefSeq gene track so gene-name search works. See configuring assemblies and gene tracks. Each scan loads as an ordinary quantitative track, which auto-scales to its own data. Add each track object below to the tracks array of your config.json (or paste it via the add-track JSON editor in the app):

Config file CLI (add-track)

{
  "type": "QuantitativeTrack",
  "trackId": "fst_in2lt",
  "name": "Fst (In(2L)t vs standard, 2kb windows)",
  "assemblyNames": ["dm6"],
  "adapter": {
    "type": "BigWigAdapter",
    "uri": "https://jbrowse.org/demos/popgen/fst_In2Lt.bw"
  }
}

jbrowse add-track https://jbrowse.org/demos/popgen/fst_In2Lt.bw \
  --trackId fst_in2lt \
  --name "Fst (In(2L)t vs standard, 2kb windows)" \
  --assemblyNames dm6

Load the Fst and π scans as two separate tracks: they sit on very different scales (Fst approaches 1, π stays near 0.01), so each needs its own y-axis, where a multi-wiggle shares one across its rows.

A multi-wiggle suits rows on the same scale, such as the same statistic across groups. The per-group π bigWigs (pi_INV.bw/pi_STD.bw) share a scale, so inverted and standard diversity load as one track on one shared y-domain:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "pi_by_arrangement",
  "name": "π by In(2L)t arrangement",
  "assemblyNames": ["dm6"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "source": "π In(2L)t",
        "uri": "https://jbrowse.org/demos/popgen/pi_INV.bw"
      },
      {
        "type": "BigWigAdapter",
        "source": "π standard",
        "uri": "https://jbrowse.org/demos/popgen/pi_STD.bw"
      }
    ]
  }
}

The inverted lines carry somewhat less diversity than the standard ones across the inverted region, most noticeably near the breakpoints.

Reading the signals

The three scans are read against each other. Search Cyp6g1 (on 2R) in the location box and add the Tajima's D track alongside π. Both dip together over the swept window. D carries π inside it, so the pair says the frequency spectrum is skewed further toward rare alleles than the drop in diversity on its own accounts for. Add the called-variant count under them, which is column 4 of the table π comes from, so it counts the same windows over the same calls. A duplication of Cyp6g1 segregates alongside the resistance allele (Schmidt et al. 2010), and copy number costs a window called sites.

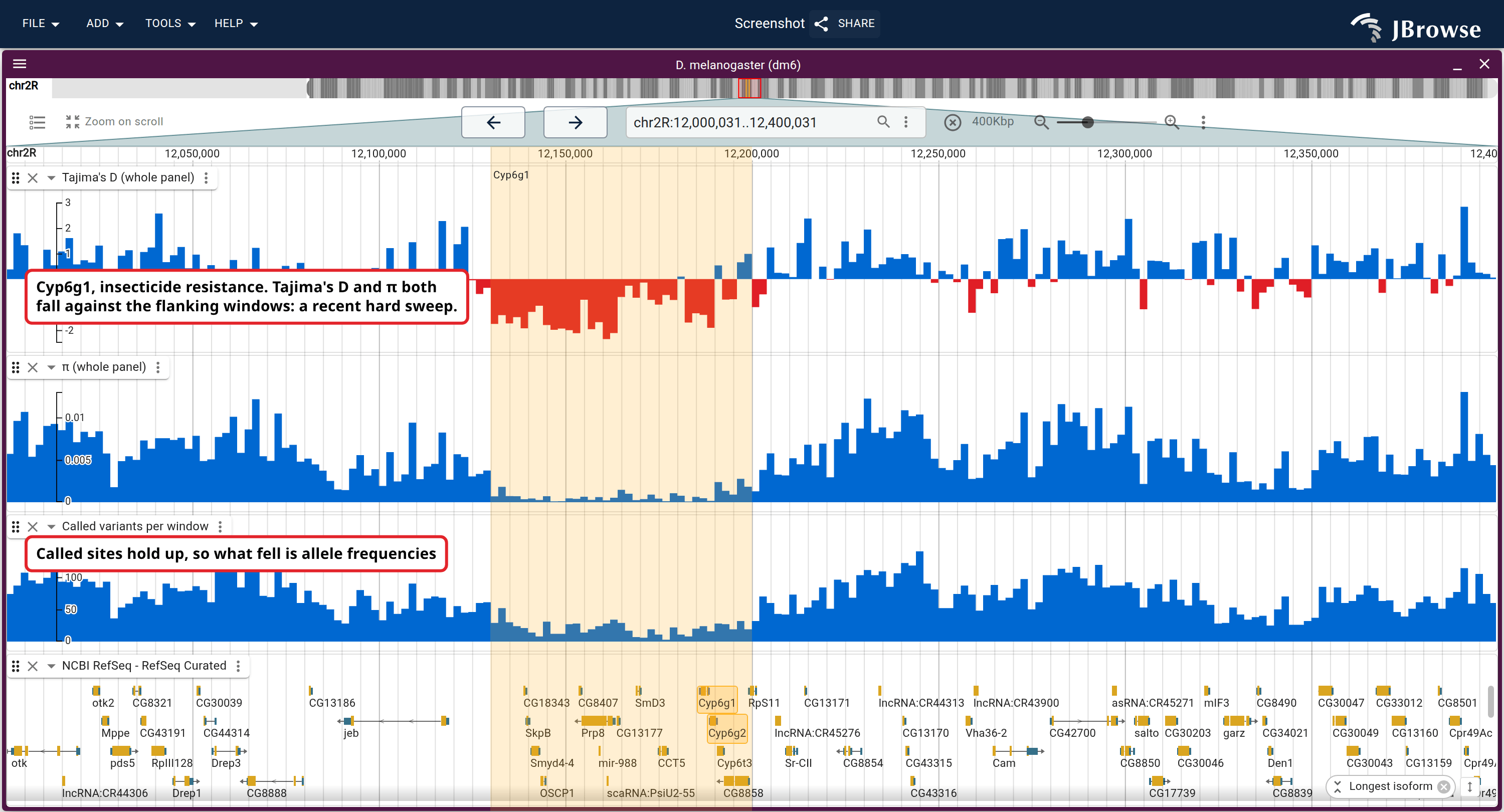

Tajima's D, π and called variants per window across 2R around Cyp6g1 (highlighted; Cyp6g1 and Cyp6g2 labeled in the gene track). D and π dip over the highlighted window against their background either side, the joint trough being the hard-sweep signature. The count under them falls too, but nothing like as far. Open this view in JBrowse ↗

Each pair of values reads differently:

Fst	Within-group π	Reading
High	Low in one group	Selective sweep / local adaptation in that group
High	High in both, high dxy	Long-standing divergence (e.g. an inversion)
Low	High	Shared variation / gene flow

Other selection loci in this panel read the same way against their own genes, including Ace and CHKov1 on 3R. In(3R)Payne, a cosmopolitan inversion under clinal selection, is typed in the same DGRPool table set, so repeating the grouping step with its phenotype scans 3R exactly as the steps above scan 2L.

The inversion, genome-wide and per line

Opening the assembly with no location shows all of its regions at once, so the six arms lay out side by side. The In(2L)t Fst track rises over the inverted region of chromosome 2L, against low background Fst on every other arm.

That view gives one number per window across the arrangement. To see which lines carry it, represent the whole arrangement as a single structural-variant call, one <INV> record spanning the In(2L)t breakpoints (2L:2,225,744-13,154,180), genotyped across every karyotyped line, and load it in the regular multi-sample variant display, which draws each genotype at the call's true span so the carriers line up under the Fst plateau. LD across an inversion (mosquitoes) builds the same one-record karyotype track for a 22 Mb mosquito inversion.

The build script writes both inputs: a samples.tsv whose first column is the sample name and whose other columns are attributes the display can order and color rows by, and a one-record SV VCF genotyping every karyotyped line 1/1 or 0/0 from its arrangement call.

Load it as a VariantTrack whose adapter carries the samples TSV, with a LinearMultiSampleVariantDisplay that both orders (groupBy) and colors (colorBy) its rows by the karyotype column:

{
  "type": "VariantTrack",
  "trackId": "dgrp_In2Lt_sv",
  "name": "In(2L)t inversion genotyped across DGRP lines",
  "assemblyNames": ["dm6"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/popgen/dgrp_In2Lt_sv.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/popgen/dgrp_In2Lt_samples.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantDisplay",
      "groupBy": "karyotype",
      "colorBy": "karyotype"
    }
  ]
}

Viewed across the whole arm, each row is a line colored by its genotype at the inversion, with the karyotype strip down the sidebar. groupBy keeps the two karyotype classes contiguous, so each reads as one block.

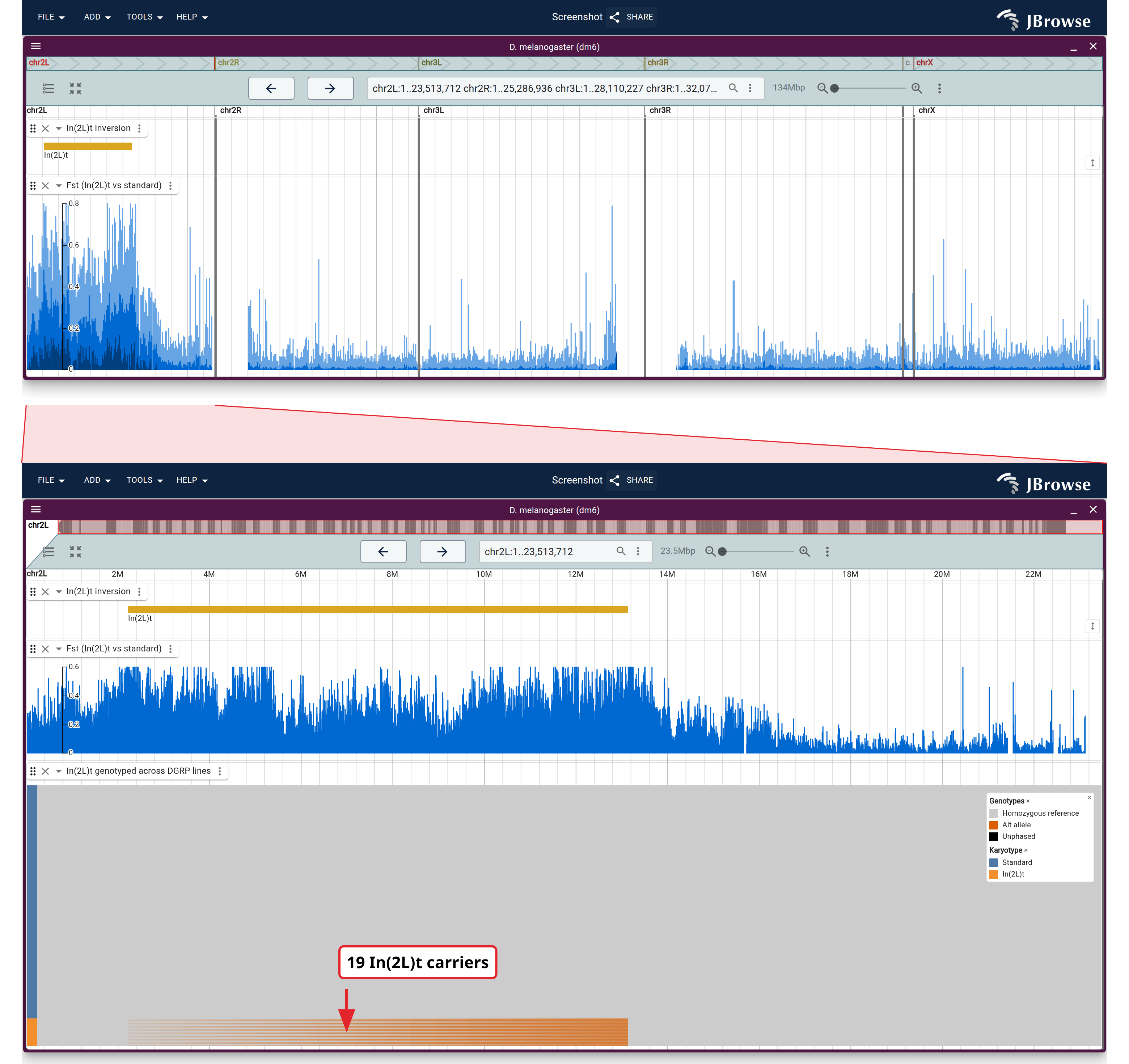

Top: all six dm6 arms, with the In(2L)t extent over Fst between the two arrangements, the block on 2L standing against low background everywhere else. Bottom: the same two tracks across chr2L alone, with one row per DGRP line under them, genotyped for the inversion and grouped by karyotype. The carrier block spans breakpoint to breakpoint; the Fst plateau above it runs past both. Open in JBrowse: Six arms ↗ · Chromosome 2L ↗ (large dataset — this session takes a while to load)

The genotypes here are the arrangement karyotypes themselves, so the lane records which lines carry the inversion, and the two Fst lanes above it quantify how far ordinary SNPs across the region co-segregate with it. The plateau carries a few megabases past each breakpoint, the margin Corbett-Detig & Hartl report for the common Drosophila inversions; the extent at the top of the frame is published coordinates.

Reproduce it end to end

Every step above (the downloads, the group split, all three scans, and the per-sample inversion genotypes) is wrapped in build_dgrp_popgen.sh, which also downloads JBrowse and writes a ready-to-serve config:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_dgrp_popgen.sh
bash build_dgrp_popgen.sh                  # builds ./dgrp_popgen_build/jbrowse2
npx --yes serve dgrp_popgen_build/jbrowse2 # then open the printed URL

The config carries the dm6 assembly (from UCSC) plus the Fst, π, Tajima's D and called-variant scan tracks and the inversion genotypes, opening on the In(2L)t inversion across arm 2L. The .bw and .vcf.gz files are written next to it, so you can host them elsewhere or open them as local track files in JBrowse Desktop.

References

Bhatia et al. (2013). Estimating and interpreting FST: the impact of rare variants
Corbett-Detig & Hartl (2012). Population genomics of inversion polymorphisms in Drosophila melanogaster
Daborn et al. (2002). A single P450 allele associated with insecticide resistance in Drosophila
Danecek et al. (2011). The variant call format and VCFtools
Gardeux et al. (2023). DGRPool: A web tool leveraging harmonized Drosophila Genetic Reference Panel phenotyping data
Huang et al. (2015). Linkage disequilibrium and inversion-typing of the Drosophila melanogaster Genome Reference Panel
Korunes & Samuk (2021). pixy: Unbiased estimation of nucleotide diversity and divergence in the presence of missing data
Mackay et al. (2012). The Drosophila melanogaster Genetic Reference Panel
Schmidt et al. (2010). Copy number variation and transposable elements feature in recent, ongoing adaptation at the Cyp6g1 locus
Tajima (1989). Statistical method for testing the neutral mutation hypothesis by DNA polymorphism
Weir & Cockerham (1984). Estimating F-statistics for the analysis of population structure
