Data fetching pipeline

TL;DR: Most linear displays compose MultiRegionDisplayMixin, which installs the autoruns that manage fetch lifecycle, cancellation, and cache invalidation. You override fetchNeeded (usually via fetchEachRegion) and declare rpcProps as the cache key. This chain is the thing to understand for writing a non-GPU display, and for debugging unexpected refetches in any display.

The exceptions are displays whose data isn't partitioned by region at all; they compose GlobalFetchMixin and install their own fetch autorun. See display foundations for which foundation each in-tree display uses.

The fetch autoruns#

installPerRegionFetchAutoruns installs four autoruns:

clearAllRpcData():

• cancels the in-flight fetch
• clears error and loadedRegions
• resets the canvas-drawn flag
• calls clearDisplaySpecificData(), the hook your display overrides to drop its own rpcDataMap

Cancelling bumps fetchGeneration, which re-fires FetchVisibleRegions to start fresh fetches.

It deliberately leaves the too-large gate alone. regionTooLarge is derived from the cached byte estimate, which a blocked display re-takes once per settled viewport, so it releases itself and needs no imperative clear; keeping the estimate is what stops the banner flickering on an ordinary clear.

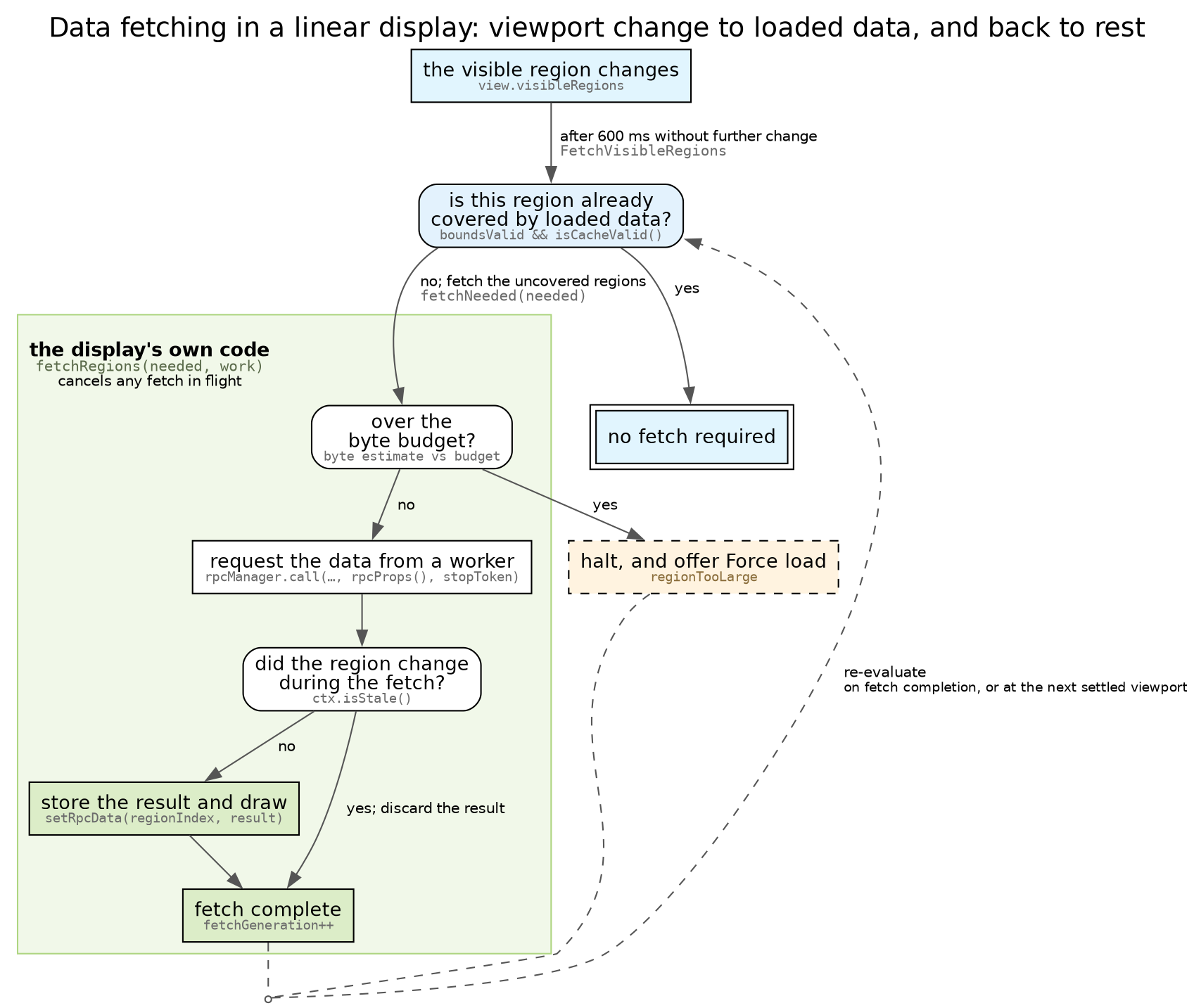

The whole fetch chain#

isBlockCovered compares the block against the loaded bounds, and those are buffered wider than the viewport, so a small pan finds them still covering and fetches nothing. isCacheValid is the override hook beside it, for a display whose data goes stale for reasons the bounds can't see.

Implementing fetchNeeded#

fetchNeeded is the hook you override to make RPC calls. Reach for fetchEachRegion, which runs one RPC per region in parallel over the fetchRegions(needed, work) primitive and applies both ctx.isStale() guards for you — forgetting either is a stale-data write, so it is a correctness primitive. LinearScoreDisplay's is a whole one, sitting in an .actions(self => ({ ... })) block:

// called by the fetch autorun for the regions that need loading;
// fetchEachRegion handles cancellation, stop tokens and staleness
fetchNeeded(needed: { region: Region; displayedRegionIndex: number }[]) {
  // no `if (!adapterConfig)` guard: the `adapter` slot is a union of the
  // registered adapter schemas, all of which are creatable from an empty
  // snapshot, so MST always materializes an object there and the guard
  // could never fire
  const { adapterConfig } = self
  return fetchEachRegion(self, needed, {
    // `ctx.callRpc`, never `rpcManager.call`: the context injects this
    // fetch's stop token and its status callback, and forgetting either
    // is silent — no cancellation for this display, or no progress. The
    // callback here is this region's own slot in the fan-out, so the N
    // parallel calls aggregate into one bar instead of overwriting each
    // other
    call: (region, ctx) =>
      ctx.callRpc('GetScoreData', {
        adapterConfig,
        region,
        ...self.rpcProps(),
      }),
    onResult: (idx, result) => {
      self.setRpcData(idx, result)
    },
  })
},

call reaches the worker through ctx.callRpc, not rpcManager.call: the context injects this fetch's stop token and its status callback, so a fetch cannot issue an RPC that the cancel and the progress bar do not know about. Hand-threading them is silent when you forget — no cancellation for that display, or no progress. The envelope keeps the literal method name at the call site so the registry's typed args and return survive, and the ctx it receives is that region's own, so every region's progress aggregates into one bar.

A batch-wide step after every region has landed goes in onComplete, which runs once and under the same staleness guard — both canvas feature displays commit their region-too-large measurements there, which is the one thing that has to be atomic across a batch whose payloads are not.

The two batched counterparts#

Reach past fetchEachRegion when the worker does not answer one payload per region:

• fetchAllRegions hands all regions to a single RPC call that returns one result per region, results[i] paired with needed[i]. Use it when the adapter serves the whole set in one pass more efficiently — BigWig coalesces adjacent on-disk blocks across region boundaries, which N independent calls cannot.
• fetchRegionsBatched is for a worker answer that covers every region and cannot be split: multi-sample variant's cellData, MAF's per-batch sample union. One call, one commit, and every region marked loaded together. The region list is its argument rather than the plan's needed, because a display on it picks its own set — the variant matrix lays columns out across the whole visible width, so a partial refetch has no meaning there.

MAF's is the worked case for the second, since it also runs a second RPC concurrently under the same stop token, and takes one staleness guard around the whole batch rather than per region:

type MafBatch = {
  results: { displayedRegionIndex: number; result: R }[]
  bytes?: number
}
await fetchRegionsBatched(self, needed, {
  // Annotated, because the two arms are what tells `fetchRegionsBatched`
  // which half is the payload: inferred, the marker's absent fields would
  // widen the payload's own.
  call: async (regions, ctx): Promise<MafBatch | RegionTooLargeResult> => {
    // The CDS-frame annotation overlay (when configured) fetches in the same
    // stop-token-guarded pass as the main data so the two share staleness +
    // loadedRegions book-keeping; the two RPCs run concurrently.
    //
    // Concurrently, and each is itself a per-region fan-out, so they get a
    // slot apiece rather than the shared callback: two fan-outs writing one
    // status field directly is last-writer-wins between them, and the
    // annotation branch's rows are a small fraction of the alignment's.
    const slot = createStatusFanOut(ctx.statusCallback)
    const [results] = await Promise.all([
      callEachRegion(regions, { ...ctx, statusCallback: slot() }, call),
      fetchAnnotationData(self, regions, { ...ctx, statusCallback: slot() }),
    ])
    // The batch's own byte number, whichever way it goes: the budget is what
    // one region may cost, so the largest is what was judged and what the
    // banner quotes.
    const perRegionBytes = results.map(r => measuredBytes(r.result))
    const bytes = largestRegionBytes(perRegionBytes)
    const kept: { displayedRegionIndex: number; result: R }[] = []
    let refused = false
    for (const { displayedRegionIndex, result } of results) {
      if (isRegionRefused(result)) {
        refused = true
      } else {
        kept.push({ displayedRegionIndex, result })
      }
    }
    return refused
      ? { regionTooLarge: true as const, bytes }
      : { results: kept, bytes }
  },
  commit: ({ results }) => {
    const sampleSet = unionSampleSets(results)
    if (sampleSet) {
      self.setSamples(sampleSet)
    }
    commit(results)
  },
})

ctx.isStale() returns true if the user panned/zoomed or settings changed while the fetch was in flight. Where the check goes is the decision the helper makes for you, and it is the only thing that separates them: per region, results commit as they arrive; around the batch, as above, a cross-region decision can't be made from a half-superseded set. fetchRegions itself is the primitive underneath all three, and no display calls it directly — one that did would own both guards and the ctx.commitRegion beside its own store by hand, which is the class of bug the helpers exist to make unavailable.

rpcProps: the cache key#

SettingsInvalidate watches rpcPropsCacheKey, the serialized return value of rpcProps(). When that string changes it calls clearAllRpcData() and restarts the fetch cycle. This is how config changes (color scheme, filter settings, etc.) trigger a full refetch.

What is watched is the method's return value: building the payload usually reads far more observables than it returns — a whole config snapshot, or a value that was itself fetched — and tracking the call would refetch on every one of them. Two consequences to design around:

• Only fields that reach the return are cache keys. A value merely consulted while building the payload invalidates nothing.
• JSON.stringify is the comparison, so a field whose distinct states serialize the same way is a dead cache axis that fails silently. An undefined drops its key entirely, and a class instance without a toJSON flattens to {}. Prefer primitives and plain arrays.

It goes in a .views() block, and holds only the settings the worker reads:

// fetch inputs watched by SettingsInvalidate; any change refetches. Put
// settings that change what the worker computes here; never scroll/zoom
// (those change every frame) or the fetch results themselves.
rpcProps() {
  return { scoreColumn: getConf(self, 'scoreColumn') }
},

Do not include values that change every frame (scroll position, zoom level). Those belong in renderState (for GPU displays) or re-read inside the work callback. Putting them in rpcProps causes a refetch on every pixel of scroll.

Do not include the fetch results themselves. Putting derived cell data or computed arrays in rpcProps creates an infinite fetch loop because storing results triggers another settings change.

If you need to extend a parent class's rpcProps, capture the super version before redefining it (the same super-capture pattern used for any extended view) so you don't silently drop the parent's dependencies.

Byte estimation and regionTooLarge#

Displays that fetch potentially large files can ask the adapter how many bytes a region would download, and hold off the fetch when that is over budget. Opt in with one getter:

/**
 * #getter
 * Opt into RegionTooLargeMixin's byte gate: `fetchNeeded` passes
 * `resolvedByteLimit()` to `RenderAlignmentData`, whose first await is
 * the index estimate — so an over-budget region is refused before a
 * single read is downloaded.
 */
get gateEnabled() {
  return true
},

...and one argument at the fetch: pass byteLimit: self.resolvedByteLimit() in your RPC's args. The worker then reads the adapter's index estimate as the first thing it awaits, and when that exceeds the byte limit (the adapter's own fetchSizeLimit, else the display config's) it returns a RegionTooLargeResult instead of a payload rather than downloading anything. The fan-out helpers commit that measurement, skip the store and loadedRegions for the refused region, and DisplayChrome shows the too-large banner with a "Force load" button.

Two things fall out of that:

• regionTooLarge is derived, not a flag: it is a pure comparison of the last measurement against the budget. What keeps that measurement describing what you are looking at is that a blocked display keeps running its fetch, once per settled viewport — the fetch stops at the measurement, so it costs an index read and downloads nothing. So the banner releases itself on a fresh measurement, with no imperative clear and no flicker while you pan.
• "Force load" sets one volatile boolean for the whole track (forceLoadTrack), so the user approves a track once, with its size quoted in front of them, and that approval covers every locus. The declarative equivalent is the forceLoad config slot.

The verdict has two axes, and they stop gating for different reasons:

• The byte axis drops out when the adapter offers no index estimate, which is how adapters that summarize at screen resolution (BigWig, HiC, sequence) cost nothing to support. It has no span floor — below AUTO_FORCE_LOAD_BP it keeps gating against a raised budget rather than switching off, so a gene-scale view of deep data loads while a pileup an order of magnitude heavier still asks.
• The density axis stops below AUTO_FORCE_LOAD_BP (20 kb) outright, since its number is extrapolated rather than measured at the span it judges.

"Exempt" in this mixin means force-loaded, not un-measurable — gateExempt is configForceLoad || forceLoadTrack and lifts both axes. REGION_TOO_LARGE.md is the full account, including the four bugs the predecessor had from an axis name claiming a term it did not have.

No display calls the gate by hand. Both fetch runners do it — fetchRegions for this family and runGlobalFetch for the global one — so a display outside the per-region chain opts in with the same one getter and nothing else. The commit side is shared too: nextGateState(prev, event) holds the rules about order (which of two measurements wins, what a clear leaves behind, what a force-load approval outlives), because those are the ones an exhaustive truth table over states cannot see.

FetchMixin: cancellation and staleness#

MultiRegionDisplayMixin composes FetchMixin, which owns the stop-token lifecycle. Each fetchRegions() mints a fresh stopToken, signals the previous one to stop so in-flight adapter calls abort, and captures fetchGeneration as its staleness epoch.

That counter bumps once at every fetch end — success, error, or cancel — and does two jobs with the one bump:

• isStale() compares it against the epoch, so the superseded flow returns true and drops its results.
• FetchVisibleRegions reads it to re-evaluate once the fetch is over.

isLoading is true while activeStopToken is set, and the fetch autorun reads it through untracked(() => self.isLoading) so guarding on it doesn't make it a trigger.

FetchMixin also owns reloadCounter, the pure "go again" signal reload() bumps and every fetch autorun reads unconditionally, above its bail-outs — after an error each of the other inputs is unchanged, so nothing else would ever wake the fetch. It lives here because it is the one mixin both LGV fetch foundations compose; a display that overrides reload() should still bump it.

Prerequisite fetches#

Some displays need one more thing before the viewport fetch can ask for anything: the .hic file's binsize list, the sample list a multi-sample VCF draws rows from. That read is per adapter, not per viewport, so it cannot ride the autoruns above — watching fetchGeneration would re-read the header on every pan.

installFetch(self, { report, prepare, run, commit, setError, delay, name }) (@jbrowse/core/util/installFetch) is the shape for it — the same skeleton every fetch outside the two display foundations runs on — and the rules it holds are there because the displays that had hand-rolled the same fetch were each missing a different one:

• latest-wins. A reload-overlapped pair of reads must not commit in whatever order they resolve.
• the error rule. Only a current run's real failure is published, so a superseded run's teardown cannot overwrite the error slot its successor owns.
• the trigger list. reloadCounter is read unconditionally, above every gate, so Retry re-runs the body even from a state where nothing else moved.
• the leading edge. First paint waits on this fetch, so it must not spend its whole debounce window on a cold open.

prepare runs synchronously inside the autorun body, so what it reads to build the call — the adapter config — is tracked and re-fires the read; run owns the RPC through the same ctx.callRpc envelope and reads nothing tracked; commit runs only while the run is still current. setError is both the clear at the start and the publish on failure, so a display whose failure has a second consequence says so there — the sample-list scan raises a session notification too, because a list that will not load leaves the band empty rather than partial and nothing else on screen would say so. Pass no contract: the display's own foundation already installed the two dev-only contract checks, and a second install is reported as the double-attach it exists to catch.

The viewport fetch then declines until the prerequisite lands, and says so with awaitingPrerequisite — which defers the retry verdict to the run after it arrives rather than waiving it.

Composing the mixin#

Compose it alongside BaseDisplay and TrackHeightMixin, then add the rpcDataMap volatile, the rpcProps view and the setRpcData/fetchNeeded actions above. LinearScoreDisplay in Plotting features in a custom display is that model whole and compiling.
