Customizing feature details

TL;DR: the track slot formatDetails takes jexl callbacks that return an object of fields to merge onto a feature: a new key adds a row, an existing key overrides it, and undefined/null hides it. formatAbout does the same for the About track dialog. For complex logic, register a jexl function in a small plugin.

Here is an example track with a formatter:

{
  "type": "FeatureTrack",
  "trackId": "genes",
  "assemblyNames": ["hg19"],
  "name": "Genes",
  "formatDetails": {
    "feature": "jexl:{name:'<a href=https://google.com/?q='+feature.name+'>'+feature.name+'</a>',newfield:'Custom contents here: '+feature.name,type:undefined }"
  },
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  }
}

✕

Do it yourselfIn DesktopSession specIn a notebookWith an agent

The steps behind the figure above, run against your own data.

1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses volvox, loaded from a .2bit genome.
2. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).This figure uses “GFF3Tabix genes”.
3. Drag the bar at the bottom edge of the track to resize it.
4. Type your region of interest into the location box and press Enter.This figure is at ctgA:17200-23200.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

Copy

https://jbrowse.org/code/jb2/main/?config=test_data%2Fvolvox%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22volvox%22%2C%22loc%22%3A%22ctgA%3A17200-23200%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22gff3tabix_genes%22%2C%22height%22%3A300%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+customized_feature_details

This session spec pastes after &session=spec- on any JBrowse Web instance.

Copy

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "volvox",
      "loc": "ctgA:17200-23200",
      "tracks": [
        {
          "trackId": "gff3tabix_genes",
          "height": 300
        }
      ]
    }
  ]
}

Loaded against config: test_data/volvox/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

Copy

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("volvox", "https://your-server/your-genome.fa.gz"),
    location="ctgA:17200-23200",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track",
    "name": "My track",
    "assemblyNames": ["volvox"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

Copy

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "volvox",
      "loc": "ctgA:17200-23200",
      "tracks": [
        {
          "trackId": "gff3tabix_genes",
          "height": 300
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/volvox/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

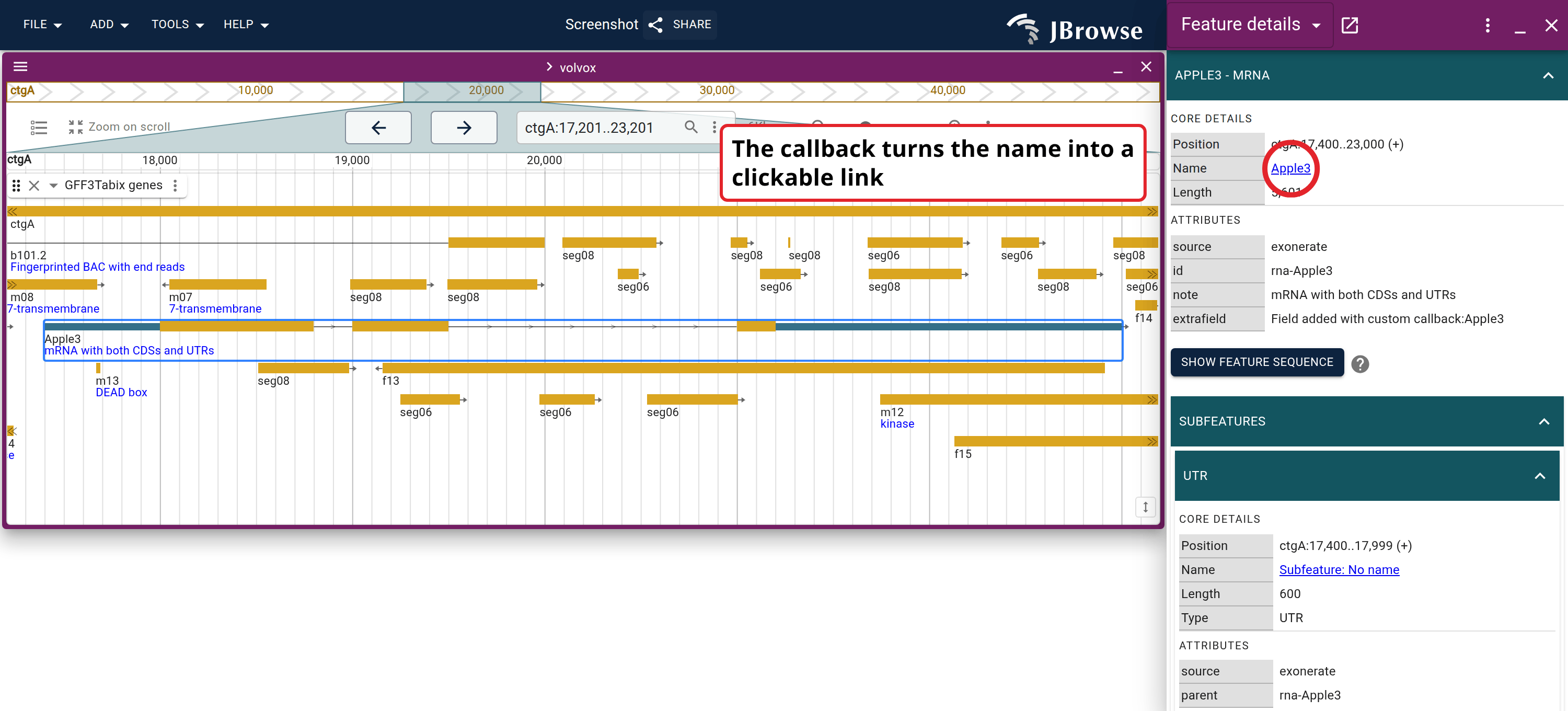

This formatter links the name field to a Google search (useful for linking to gene pages), adds a custom newfield, and removes type by setting it to undefined. The <a> markup is needed here only because the link text (the gene name) differs from the URL. A value that is nothing but a URL is linked for you.

The formatDetails slots are:

• feature - customizes the top-level feature
• subfeatures - customizes the subfeatures, recursively up to depth
• depth - how many levels of subfeature subfeatures runs on
• maxDepth - how many levels of subfeature card the panel renders at all, which is a separate question from how deep subfeatures formats

Use a jexl callback for feature, subfeatures, or both. Each returns an object with the fields to replace.

How the returned object is applied#

The object you return is shallow-merged onto the feature (any keys you don't mention are left untouched), and the result drives what the panel shows:

• a new key adds a field
• an existing key overrides that field's value (the raw value is replaced, not shown alongside)
• a key set to undefined or null hides the field. The panel filters out null-ish values, so either works. null is the more robust choice if you build the object in JavaScript, since a serialization round-trip (e.g. saving a session) turns hidden fields into null anyway.

This applies to core fields too: returning {type: undefined} removes the Type row, {name: ...} rewrites the Name row, and so on. length counts as one, even though the panel computes it from start/end rather than reading it off the feature: name it and your value is shown, set it null and the row is gone.

If the callback returns something that is not an object, the tier is dropped rather than merged. "jexl:feature.name" where "jexl:{name:feature.name}" was meant produces no rows.

Values are HTML, and bare URLs become links#

Every value is run through an HTML sanitizer before it is shown, so <b>, <a>, <table> and friends render as markup. A value that is not recognizable HTML is escaped instead, which is why a VCF <TRA> allele still reads as <TRA>.

A value that is just a URL is turned into a link for you:

{
  "type": "FeatureTrack",
  "trackId": "genes_ncbi_link",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "feature": "jexl:{NCBI:'https://www.ncbi.nlm.nih.gov/gene/?term='+feature.name}"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_ncbi_link",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "feature": "jexl:{NCBI:'\''https://www.ncbi.nlm.nih.gov/gene/?term='\''+feature.name}"
  }
}'

Write the anchor by hand only when the link text has to differ from the URL.

Static fields as a plain object#

The slot holds any JSON value, and only a string starting with jexl: is evaluated. For fields that are the same on every feature, write the object directly:

{
  "type": "FeatureTrack",
  "trackId": "genes_static_fields",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "feature": {
      "Source": "GENCODE v44",
      "Contact": "helpdesk@example.org",
      "phase": null
    }
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_static_fields",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "feature": {
      "Source": "GENCODE v44",
      "Contact": "helpdesk@example.org",
      "phase": null
    }
  }
}'

Session-wide formatDetails#

The same four slots exist session-wide under configuration.formatDetails, which applies to every track at once:

{
  "configuration": {
    "formatDetails": {
      "feature": "jexl:{Assembly:'hg19', score:undefined}",
      "subfeatures": "jexl:{Assembly:'hg19'}",
      "maxDepth": 2
    }
  }
}

Where both tiers are set:

• feature and subfeatures are merged, the track's object over the session's, so a track can rewrite individual keys the global callback added and leave the rest.
• depth and maxDepth override: a track's value wins, and the session-wide one applies to every track that doesn't set its own.

formatAbout works the same way, except that hideUris is OR'd rather than overridden, so a session-wide true cannot be turned back on by a track.

depth and maxDepth#

Take a GFF3 gene, which nests three levels deep: gene, then mRNA, then exon and CDS.

• depth bounds the callback. It defaults to 2, so subfeatures runs on the mRNAs and their exons and CDSs, but not deeper. Set it to 1 to reformat only the transcript rows.
• maxDepth bounds the panel. Unset there is no limit. Set it to 1 and the panel shows the transcript cards but not the exon and CDS cards inside them, whether or not anything reformatted them.

{
  "type": "FeatureTrack",
  "trackId": "genes_transcripts_only",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "subfeatures": "jexl:{Transcript:feature.name, phase:undefined}",
    "depth": 1,
    "maxDepth": 1
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes_transcripts_only",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatDetails": {
    "subfeatures": "jexl:{Transcript:feature.name, phase:undefined}",
    "depth": 1,
    "maxDepth": 1
  }
}'

Making sophisticated customizations to feature detail panels#

For complex customizations, register a jexl function in a plugin.

Create a small plugin file, myplugin.js:

// myplugin.js
export default class MyPlugin {
  name = 'MyPlugin'
  version = '1.0.0'
  install() {}
  configure(pluginManager) {
    pluginManager.jexl.addFunction('formatName', feature => {
      return `<a href="https://google.com/?q=${feature.name}">${feature.name}</a>`
    })
  }
}

Put myplugin.js in the same directory as your config file, then use the custom jexl function in your config callbacks:

{
  "plugins": [
    {
      "name": "MyPlugin",
      "esmLoc": { "uri": "myplugin.js" }
    }
  ],
  "tracks": [
    {
      "type": "FeatureTrack",
      "trackId": "genes",
      "assemblyNames": ["hg19"],
      "name": "Genes",
      "adapter": {
        "type": "Gff3TabixAdapter",
        "uri": "volvox.sort.gff3.gz"
      },
      "formatDetails": {
        "feature": "jexl:{name:formatName(feature)}"
      }
    }
  ]
}

See our no-build plugin tutorial for more info on setting up a simple plugin for doing these customizations.

More jexl function examples#

The remaining examples are all bodies for pluginManager.jexl.addFunction(...) in the same plugin file above. Only the function changes.

Rename many attributes at once. A jexl function can return a whole object rather than one field, which suits a GFF3 with several attributes to relabel. New keys with spaces or custom capitalization are added as-is:

pluginManager.jexl.addFunction('formatFeature', feature => {
  const ret = {}
  if (feature.gc_content !== undefined) {
    ret.gc_content = undefined
    ret['GC Content'] = feature.gc_content
  }
  if (feature.avg_read_depth !== undefined) {
    ret.avg_read_depth = undefined
    ret['Average Read Depth'] = feature.avg_read_depth
  }
  return ret
})

Call it with "feature": "jexl:formatFeature(feature)".

Link out to dbxrefs. Turn each dbxref into a link, falling back to plain text for prefixes you don't handle:

pluginManager.jexl.addFunction('linkout', feature => {
  if (!feature.dbxref) {
    return ''
  }
  const dbxrefs = Array.isArray(feature.dbxref)
    ? feature.dbxref
    : [feature.dbxref]
  return dbxrefs.map(dbxref => {
    const [prefix, ref] = dbxref.split(':')
    return prefix === 'Genbank' || prefix === 'GeneID'
      ? `<a href="https://www.ncbi.nlm.nih.gov/gene/?term=${ref}">${dbxref}</a>`
      : dbxref
  })
})

Call it on both levels so subfeatures get the links too:

{
  "plugins": [
    {
      "name": "MyPlugin",
      "esmLoc": { "uri": "myplugin.js" }
    }
  ],
  "tracks": [
    {
      "type": "FeatureTrack",
      "trackId": "genes",
      "name": "Genes",
      "assemblyNames": ["hg19"],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "uri": "volvox.sort.gff3.gz"
      },
      "formatDetails": {
        "feature": "jexl:{dbxref:linkout(feature)}",
        "subfeatures": "jexl:{dbxref:linkout(feature)}"
      }
    }
  ]
}

The feature in formatDetails callbacks is a plain JS object, not a SimpleFeature, because the detail panel reads from the serialized session. Use property access (feature.start); feature.get('start') does not work here. See property access vs get() for how this differs across callback types.

The About track dialog#

formatAbout is the same idea for the "About track" dialog, which shows a track's own configuration rather than a feature. It has two slots, on the track or session-wide as configuration.formatAbout:

• hideUris drops every file location from the dialog. Session-wide and per-track are OR'd, so a session-wide true cannot be turned back on by a track. It hides the URLs from the dialog only, not from config.json, which the browser downloads either way.
• config is a jexl callback returning an object merged over the config shown, applied exactly as formatDetails.feature is: a new key adds a row, an existing one overrides, undefined/null hides. Where both are set, the track's object is merged over the session's.

The callback's variable is config, not feature:

{
  "type": "FeatureTrack",
  "trackId": "genes",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatAbout": {
    "hideUris": true,
    "config": "jexl:{Source:'GENCODE v44',adapter:undefined}"
  }
}

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "genes",
  "name": "Genes",
  "assemblyNames": ["hg19"],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "uri": "volvox.sort.gff3.gz"
  },
  "formatAbout": {
    "hideUris": true,
    "config": "jexl:{Source:'\''GENCODE v44'\'',adapter:undefined}"
  }
}'

jbrowse add-assembly and add-track accept the same thing through --config, so a generated config can set it without a post-processing step; see Command line tools (JBrowse CLI).

Adding a panel or replacing the widget#

formatDetails callbacks reshape the fields of an existing feature. To add an entirely new section, or to replace the widget wholesale, use a plugin with these extension points (see extension points):

• Core-extraFeaturePanel - append a custom panel (your own React component) below the built-in sections
• Core-replaceWidget - wrap or replace the whole feature-details widget

See also#

• Using jexl callbacks
• Customizing feature colors
• Extension points
