ChromHMM chromatin states

TL;DR: ChromHMM labels each region of the genome with a chromatin state, promoter, enhancer, heterochromatin and so on, once per cell type. We merge many per-cell-type segmentation BEDs into one file, which JBrowse draws as a single track with one color-coded row per cell type.

Prerequisites

wget
htslib (bgzip, tabix)
node, for the JBrowse CLI
python3, for the 127-epigenome build only

On Debian/Ubuntu, apt install wget tabix covers wget and htslib; node comes from nodejs.org.

Where the data comes from

Two hg19 ChromHMM releases, both 15-state segmentations: UCSC's nine-cell-type ENCODE Broad HMM set, and the Roadmap Epigenomics compendium across 127 epigenomes.

the nine ENCODE Broad HMM segmentation BEDs, one per cell type, merged into the multi-row file below: http://hgdownload.soe.ucsc.edu/goldenPath/hg19/encodeDCC/wgEncodeBroadHmm/
the Roadmap segmentations, fetched either individually or as the whole 127-epigenome tarball: https://egg2.wustl.edu/roadmap/data/byFileType/chromhmmSegmentations/ChmmModels/coreMarks/jointModel/final/
the row labels and tissue groups the rowGroups stripe reads, EID_metadata.tab: https://egg2.wustl.edu/roadmap/data/byFileType/metadata/EID_metadata.tab
the state colors, since the Roadmap segmentations themselves carry none: https://egg2.wustl.edu/roadmap/data/byFileType/chromhmmSegmentations/ChmmModels/coreMarks/jointModel/final/colormap_15_coreMarks.tab
both merged files, rehosted as bigBeds so the tracks below load without the build: https://jbrowse.org/demos/chromhmm/wgEncodeBroadHmm.multirow.bb and https://jbrowse.org/demos/chromhmm/roadmap_15state_127epigenomes.bb

Many cell types in one track

ChromHMM segments the genome into chromatin states (active promoter, strong enhancer, heterochromatin, ...) from combinations of histone-mark ChIP-seq. A segmentation is produced per cell type, so a useful browser track stacks many cell types on top of each other at the same locus, one labeled row per cell type, each painted with the ChromHMM state colors.

ChromHMM's output is a stack of separate BED files (Gm12878.bed, K562.bed, ...). Each is a BED9 whose name column holds the state (e.g. 1_Active_Promoter) and whose itemRgb column carries the state color. Merging them into a single file with an extra cellType column lets the multi-row feature display split that one track into a labeled sub-row per cell type, so 9 cell types (or 127) share one config, one adapter, and one fetch.

HOXA is the window the build script opens on. The genes are transcribed in the order they sit in, so a cell type opens the stretch matching its own position along the body axis and holds the rest under Polycomb, and most of the rows that open the cluster at all stop between HOXA7 and HOXA9.

The two cell types that open the posterior genes are the mesodermal pair, HUVEC and HSMM. The keratinocyte, lung-fibroblast and mammary lines stop at HOXA7, and GM12878 and K562 are blood and hold the whole cluster shut. H1-hESC is pluripotent, and its magenta is 3_Poised_Promoter, the bivalent state HOX clusters are held in before a lineage commits.

What the merged file holds

The nine UCSC ENCODE Broad HMM 15-state segmentation BEDs (hg19, one per cell type) concatenate into a single cellType-tagged BED, which the build script does in one pass. Two properties of that merged file matter for loading it. Each line is standard BED9 plus one trailing string field, the cell-type label that becomes a row:

#chrom  chromStart  chromEnd  name               score  strand  thickStart  thickEnd  itemRgb      cellType
chr1    10000       10600     15_Repetitive/CNV  0      .       10000       10600     245,245,245  GM12878
chr1    10000       10600     15_Repetitive/CNV  0      .       10000       10600     245,245,245  K562

That #-prefixed defline is part of the file, so the adapter takes the column names from the data. The merge is one pass over the per-cell-type BEDs:

# awk appends each file's own name as the row label, so Gm12878.bed.gz labels
# its segments Gm12878
{
  printf '#chrom\tchromStart\tchromEnd\tname\tscore\tstrand\tthickStart\tthickEnd\titemRgb\tcellType\n'
  for f in *.bed.gz; do
    gzip -dc "$f" | awk -v c="${f%%.*}" 'BEGIN{OFS="\t"} {print $0, c}'
  done
} > multirow.bed

# `sort-bed` is `sort -k1,1 -k2,2n` with the #-defline kept on top, and pins
# LC_ALL=C so nine files' worth of refnames group the same way everywhere
jbrowse sort-bed multirow.bed | bgzip > multirow.bed.gz
tabix -p bed multirow.bed.gz

Both merged files are also hosted as bigBeds, for reading with nothing built (see Where the data comes from). Those take a BigBedAdapter, which is what the second track config below names.

Configure the multi-row feature display

Add a FeatureTrack with a BedTabixAdapter, and give it a LinearMultiRowFeatureDisplay that partitions on the cellType field. The track references the hg19 assembly, so set that up first if you haven't, see the assemblies configuration guide:

{
  "type": "FeatureTrack",
  "trackId": "broad_chromhmm_multirow_hg19",
  "name": "ChromHMM chromatin state (Broad ENCODE, 9 cell types)",
  "assemblyNames": ["hg19"],
  "category": ["ENCODE", "Chromatin state"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "wgEncodeBroadHmm.multirow.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "partitionField": "cellType",
      "rowOrder": [
        "GM12878",
        "H1-hESC",
        "K562",
        "HepG2",
        "HUVEC",
        "HMEC",
        "HSMM",
        "NHEK",
        "NHLF"
      ],
      "height": 200
    }
  ]
}

The adapter's uri shorthand resolves the .bed.gz.tbi beside the file, which leaves two display settings to write:

partitionField is the feature attribute to split rows by. Every distinct cellType value becomes its own labeled sub-row, so a 9-cell-type file draws as 9 stacked rows.
rowOrder pins the sub-rows to a chosen order, here the ENCODE tier ordering; the display falls back to alphabetical.

rowHeight is left at its auto-fit default, which divides the track height evenly across however many rows the file turns out to have, so no row scrolls out of view.

The defline names the columns, so the adapter's columnNames is for files that don't carry one. A feature with an itemRgb is painted with it, so every block gets its ChromHMM state color straight from the file; the color slot overrides that.

These steps work unchanged on JBrowse Desktop, which opens wgEncodeBroadHmm.multirow.bed.gz straight from local disk with no web server; point uri at the local path.

The legend, filtering and row order

The display derives the key from the state colors: one entry per distinct color, labeled with the first state name seen in it. States that share a color collapse into one entry, which in the Broad 15-state model pairs 4_Strong_Enhancer with 5_, 6_Weak_Enhancer with 7_, and 9_Txn_Transition with 10_Txn_Elongation. 13_Heterochrom/lo and both Repetitive/CNV states share one grey, so unchecking that entry hides all three. Turn the key off with Show... → Show legend in the track menu, or spell it out with the legend slot.

Most of any segmentation is quiescent or heterochromatic. The track menu's Categories submenu has a checkbox per legend entry: unchecking the quiescent and repressed states drops them everywhere in the painting, leaving only promoters, enhancers, and transcription. It applies at render time with no refetch, and because entries are keyed by color, one uncheck hides every state sharing that color.

Two more track-menu actions turn the painting into a comparison:

Clustering → Cluster rows by similarity reorders the rows by their state colors across the region in view and draws the dendrogram in the sidebar. On the 127-epigenome track below, related tissues group themselves at whatever locus is in view.
Right-click a column of the painting and pick Sort rows by color here to rank the rows by the state each one carries at that base. On a promoter, the cell types with an active TSS rise to the top.

Scaling up: 127 epigenomes

The same recipe scales to the Roadmap Epigenomics 15-state model across 127 epigenomes. The only difference upstream is 127 input files. The multi-row display fetches and lays out one file, so 127 epigenomes is one track, one adapter, one fetch.

This track fills in the legend slot: the Roadmap file's state names are mnemonics (12_EnhBiv, 14_ReprPCWk), and fifteen {label, color} entries spell them out and fix their order at 1 to 15. The merged 127-epigenome file is hosted, so the whole track is:

{
  "type": "FeatureTrack",
  "trackId": "roadmap_chromhmm_multirow_hg19",
  "name": "ChromHMM chromatin state (Roadmap, 127 epigenomes)",
  "assemblyNames": ["hg19"],
  "category": ["Roadmap Epigenomics", "Chromatin state"],
  "adapter": {
    "type": "BigBedAdapter",
    "uri": "https://jbrowse.org/demos/chromhmm/roadmap_15state_127epigenomes.bb"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "partitionField": "cellType",
      "legend": [
        { "label": "1 Active TSS", "color": "rgb(255,0,0)" },
        { "label": "2 Flanking active TSS", "color": "rgb(255,69,0)" },
        { "label": "3 Transcribed 5'/3' flank", "color": "rgb(50,205,50)" },
        { "label": "4 Strong transcription", "color": "rgb(0,128,0)" },
        { "label": "5 Weak transcription", "color": "rgb(0,100,0)" },
        { "label": "6 Genic enhancer", "color": "rgb(194,225,5)" },
        { "label": "7 Enhancer", "color": "rgb(255,255,0)" },
        { "label": "8 ZNF genes / repeats", "color": "rgb(102,205,170)" },
        { "label": "9 Heterochromatin", "color": "rgb(138,145,208)" },
        { "label": "10 Bivalent TSS", "color": "rgb(205,92,92)" },
        { "label": "11 Flanking bivalent", "color": "rgb(233,150,122)" },
        { "label": "12 Bivalent enhancer", "color": "rgb(189,183,107)" },
        { "label": "13 Repressed Polycomb", "color": "rgb(128,128,128)" },
        { "label": "14 Weak repressed Polycomb", "color": "rgb(192,192,192)" },
        { "label": "15 Quiescent / low", "color": "rgb(255,255,255)" }
      ],
      "height": 700
    }
  ]
}

Those colors are how the painting reads: red active TSS, yellow enhancer and green transcription, grey Polycomb, speckled olive where the same bases are bivalent.

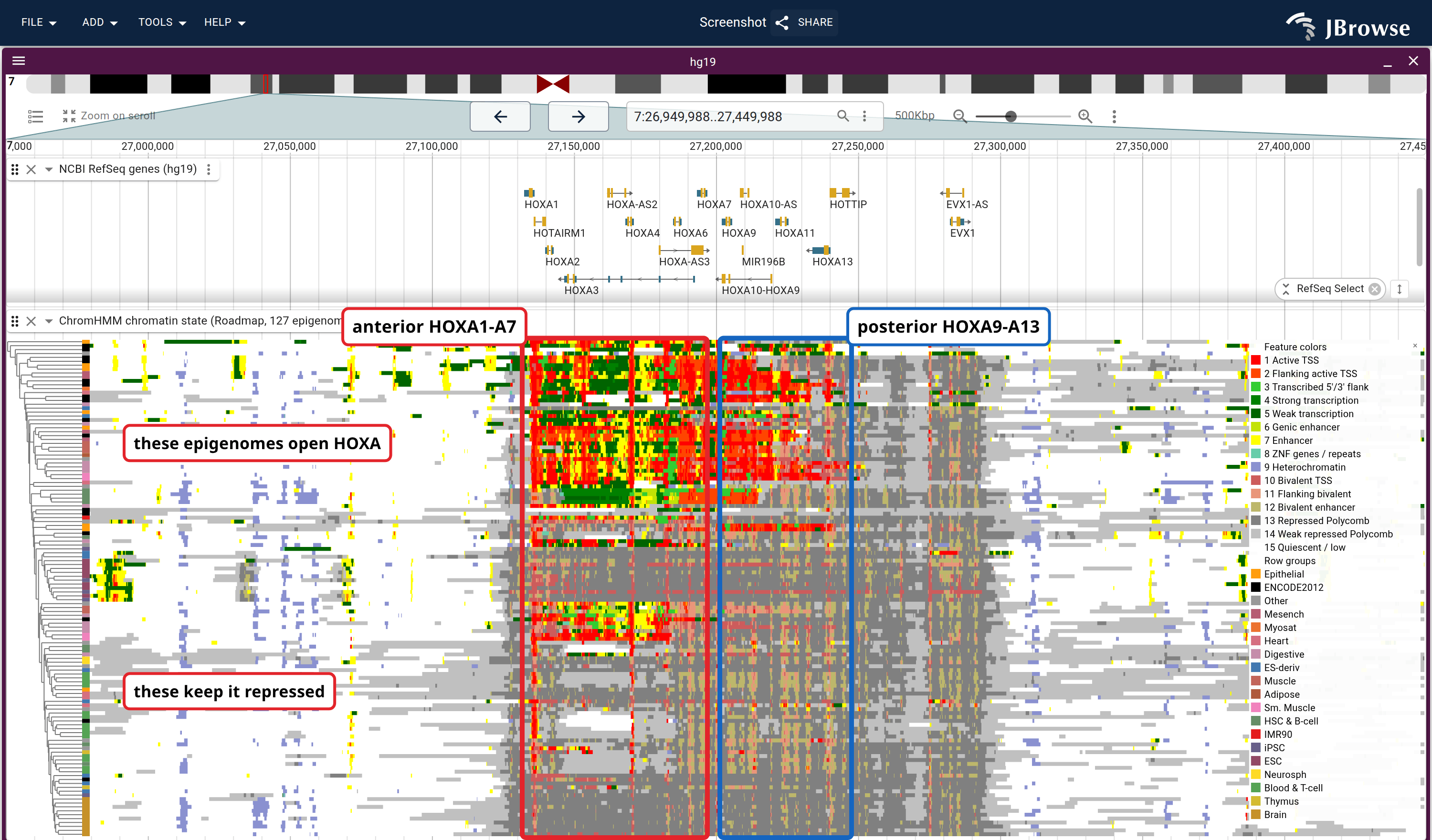

127 Roadmap epigenomes over HOXA, one row each, ordered by Cluster rows by similarity. One block of epigenomes opens the cluster; the rest hold it repressed. The stripe left of the painting is each row's Roadmap tissue group. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Clustering the 127-epigenome ChromHMM track over HOXA. The rows open in Roadmap's tissue order; the track menu's Cluster rows by similarity re-lays them out into blocks and draws the dendrogram beside them. Open the session this video starts in ↗

That config has no rowOrder; Cluster rows by similarity... derives the row order from the data at whatever locus is in view.

At this scale a row is a few pixels tall and carries no text, so the tissue names live in the stripe beside the painting. The rowGroups slot takes one { match, group, color } per Roadmap tissue group and tints each matching row's sidebar swatch. The build script writes those entries from the GROUP and COLOR columns of EID_metadata.tab, and the tissue is an axis the clustering never saw. The key beside the painting lists the groups in the order the stripe runs, so an entry can be found by where its colour sits.

ENCODE2012 is a group in that list. Roadmap folded the ENCODE 2012 reference epigenomes into the compendium under a group of their own (GM12878, K562, HeLa-S3, HepG2, A549, HUVEC, NHEK and the rest), so that entry names where the data came from. It is the largest group, and its members span ten anatomies, from blood to skin to lung, so the stripe reads as mixed where that colour appears. The other candidate columns in the same file are ANATOMY, which splits 127 epigenomes across 30 values with eight singletons, and TYPE, which sorts them by how the sample was collected.

Reproduce it end to end

One script does the whole path, build_chromhmm_multirow.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_chromhmm_multirow.sh
bash build_chromhmm_multirow.sh         # builds ./chromhmm_build/jbrowse2
npx --yes serve chromhmm_build/jbrowse2 # then open the printed URL

It downloads the nine segmentation BEDs, merges them into the cellType-tagged BED above, bgzips and tabixes it, downloads JBrowse, and writes the config.json from the section above, opening on the HOXA cluster.

build_chromhmm_roadmap.sh builds the 127-epigenome track by the same steps, and ends in the same bgzip plus tabix -p bed:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_chromhmm_roadmap.sh
EIDS=E003,E116,E123,E127 bash build_chromhmm_roadmap.sh
npx --yes serve chromhmm_roadmap_build/jbrowse2

EIDS picks a subset, here the four Roadmap re-analyses of the ENCODE lines the first track uses, which finishes in minutes. Leave it out for all 127 and the run takes about twenty minutes and wants ~12 GB of scratch. Every table it needs is one Roadmap publishes: the row labels come from EID_metadata.tab, the row order from that file's GROUP and EID columns, and the state colors from colormap_15_coreMarks.tab, since the segmentations themselves are BED4 and carry no color at all.
