Mutation cohort (TCGA)

TL;DR: we turn a TCGA project's somatic mutation calls into one matrix, each column a distinct mutation and each row a tumor. JBrowse groups the rows by whichever clinical field you point it at, receptor status or stage, so the mutations a subtype shares line up.

Prerequisites

A JBrowse 2 instance to add tracks to (see the web quickstart, or the desktop quickstart, which loads these tracks by URL with nothing to host) and the JBrowse CLI
These files, hosted:

File	What
`https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz`	the cohort's somatic mutations
`https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv`	per-tumor histology, receptors, stage
`https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz`	per-gene mutation rate per subtype

Where the data comes from

TCGA-BRCA open-access somatic mutation calls from the GDC (TCGA 2012).

primary-tumor Masked Somatic Mutation MAFs, queried and downloaded through the GDC API: https://api.gdc.cancer.gov/files
per-tumor clinical annotation, from harmonized case fields and each case's clinical XML: https://api.gdc.cancer.gov/cases
the cohort VCF, rehosted so the figures and their live links load without the GDC round trip: https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz
the recurrence track split by clinical group: https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz
the clinical table those groups come from: https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv

The hg38 reference and gene track beside them are the hosted UCSC hub's own entries.

What the two files hold

The VCF is the GDC's per-tumor Masked Somatic Mutation calls merged into one multi-sample file, one column per tumor:

#CHROM POS       ID  REF ALT  INFO                          FORMAT    TCGA-A2-A0T2-01A  TCGA-A8-A07C-01A
chr3   179234297 .   A   G    GENE=PIK3CA;HGVSP=p.H1047R... GT:AD:DP  0/1:81,29:110     0/0

Two conventions bear on any figure read off that matrix:

0/0 marks a site the caller did not call, since a MAF carries no coverage record for one.
Every somatic call is written het, because a MAF gives no ploidy.

The read counts are kept in AD/DP, so the variant popup shows what the caller saw.

INFO/CSQ re-encodes the MAF's own VEP columns (Consequence, IMPACT, HGVSp_Short, SIFT, PolyPhen), which is what lets the track color cells by consequence impact without running an annotator.

The clinical TSV is one row per tumor barcode and one column per attribute:

name              histology  er        pr        her2      subtype    stage
TCGA-3C-AAAU-01A  lobular    positive  positive  negative  HR+/HER2-  X

Its columns come from three different places:

histology and stage come from the GDC's harmonized case fields.
er/pr/her2 are read from each case's open-access clinical XML, with the in-situ hybridization result taking precedence over immunohistochemistry for HER2 wherever a case has both, since that is the test an equivocal IHC gets sent for.
subtype is derived from those three, and a tumor whose receptor calls do not resolve it stays unknown.

The table is built per project, so it names more tumors than either track carries: a case with no mutation calls still has receptor status. JBrowse reports the tumors it could not match when the track loads.

Load the cohort VCF into JBrowse

Two commands set the whole thing up, an assembly and a track. Start with hg38, where the one thing to watch is naming: the hosted FASTA calls its contigs bare (1) while the VCF uses chr1, so pass the alias file alongside it and both resolve.

export OUT=/var/www/html/jbrowse2

jbrowse add-assembly https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz \
  --name hg38 --type bgzipFasta \
  --refNameAliases https://s3.amazonaws.com/jbrowse.org/genomes/GRCh38/hg38_aliases.txt \
  --out $OUT

The track goes in as JSON rather than a second command line, since add-track's flags do not reach inside a display:

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantMatrixDisplay",
      "height": 1010,
      "featureColor": "jexl:impactColor(feature)"
    }
  ]
}

Three settings there:

The matrix display lays columns out by feature index, so a gene's mutations pack together however far apart they sit, and the band above the rows keeps a line from each column to the position it came from.
featureColor with the impactColor helper takes each mutation's VEP impact tier out of the CSQ field, so truncating and missense cells are told apart. It is the same Color by... → Consequence impact preset the track menu offers.
samplesTsvLocation on the adapter makes the clinical columns available to group and color rows by.

height sets how much of the page the cohort gets, and rows auto-fit by dividing it. A matrix row goes below a pixel, so a band's mutation density reads as how dark it is.

Group the rows by clinical annotation

The rows start in barcode order, which encodes nothing. groupBy names a column of the samples TSV and makes each of its values a contiguous band of rows. colorBy puts the matching color strip in the gutter, so each band is labeled. colorBy is also Color by... → Samples in the track menu; groupBy is config only.

{
  "type": "VariantTrack",
  "trackId": "tcga_brca_mutations",
  "name": "TCGA-BRCA somatic mutations (979 primary tumors)",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutations.vcf.gz",
    "samplesTsvLocation": {
      "uri": "https://jbrowse.org/demos/tcga/tcga_brca_clinical.tsv"
    }
  },
  "displays": [
    {
      "type": "LinearMultiSampleVariantMatrixDisplay",
      "height": 450,
      "lineZoneHeight": 130,
      "featureColor": "jexl:impactColor(feature)",
      "groupBy": "histology",
      "colorBy": "histology"
    }
  ]
}

Point the two slots at histology and the rows band by how the tumor was called under the microscope:

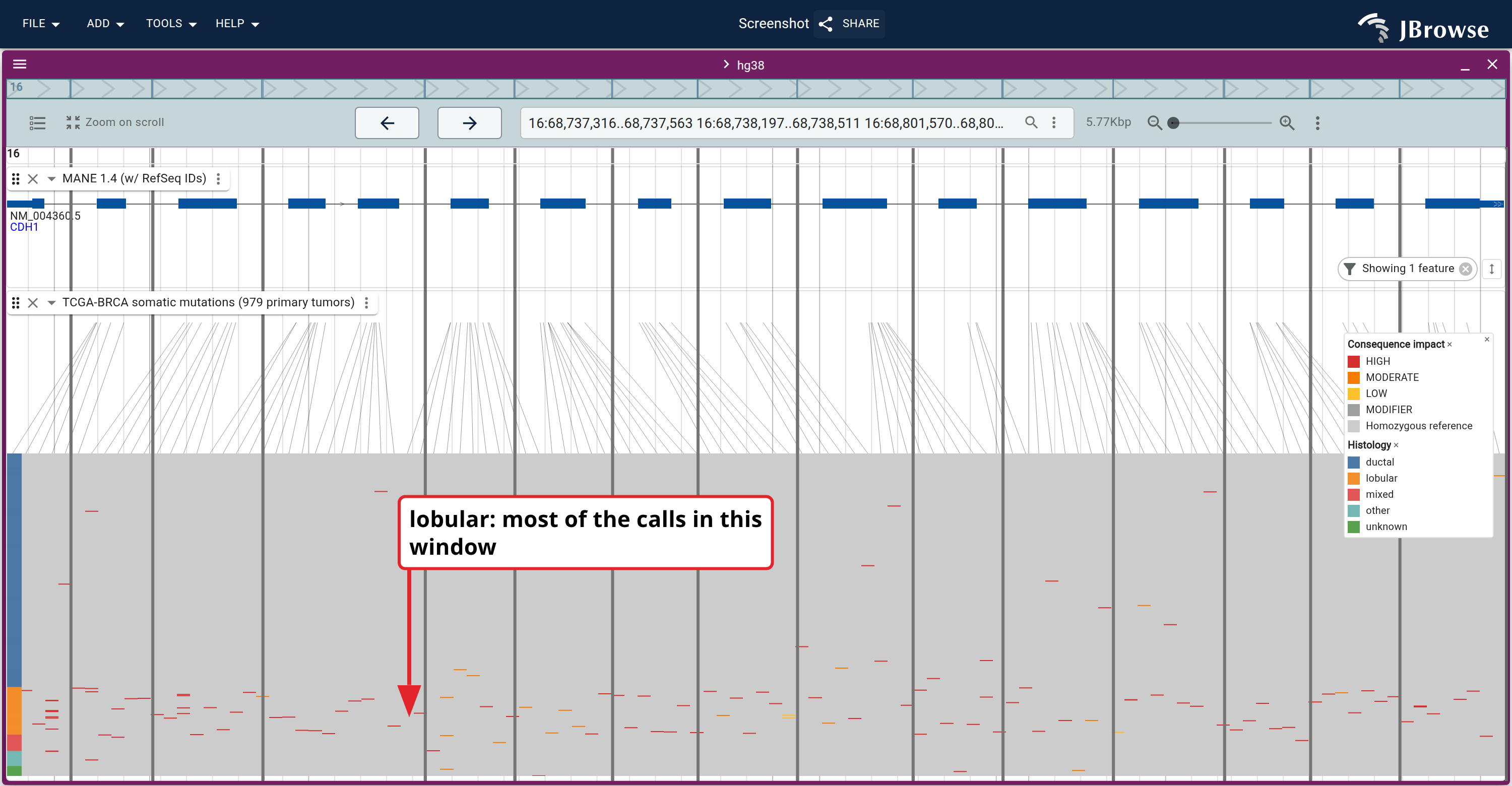

CDH1's exons with rows grouped and colored by histology and the gene's introns collapsed. The truncating (HIGH impact) cells crowd into the lobular band and the much larger ductal band above it is nearly empty. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

E-cadherin loss is the defining lesion of lobular breast cancer (Ciriello et al. 2015).

The window that figure is drawn in comes from the gene itself. Right-click CDH1 in the gene lane, choose Collapse introns, and Replace current view reshapes the frame to its exons (see Gene track):

The whole CDH1 transcript reshaped to its exons from the gene's own context menu, and the 979-tumor matrix redrawn over the coding sequence. Open the session this video starts in ↗

Two more things in that figure travel to any gene-scale matrix:

lineZoneHeight (or the handle under the band) drags the connector band open, which says where in the transcript a gene's calls fall. A tumor suppressor is inactivated by any truncating call anywhere in the coding sequence, so CDH1's fan lands in exon after exon.
A ClinVar track puts the germline record beside the somatic one, on the same coordinates, so a matrix column and a pathogenic tick meet where a somatic call sits on a submitted germline variant. It reads at hotspot or single-exon zoom; across sixteen collapsed exons ClinVar's submissions touch each other and the lane is a barcode.

Most columns are one tumor wide, and the GDC's open mutation calls are exome only, so these figures are all gene-scale.

Group by receptor subtype

Point the slots at subtype and the rows band by receptor status (TCGA 2012):

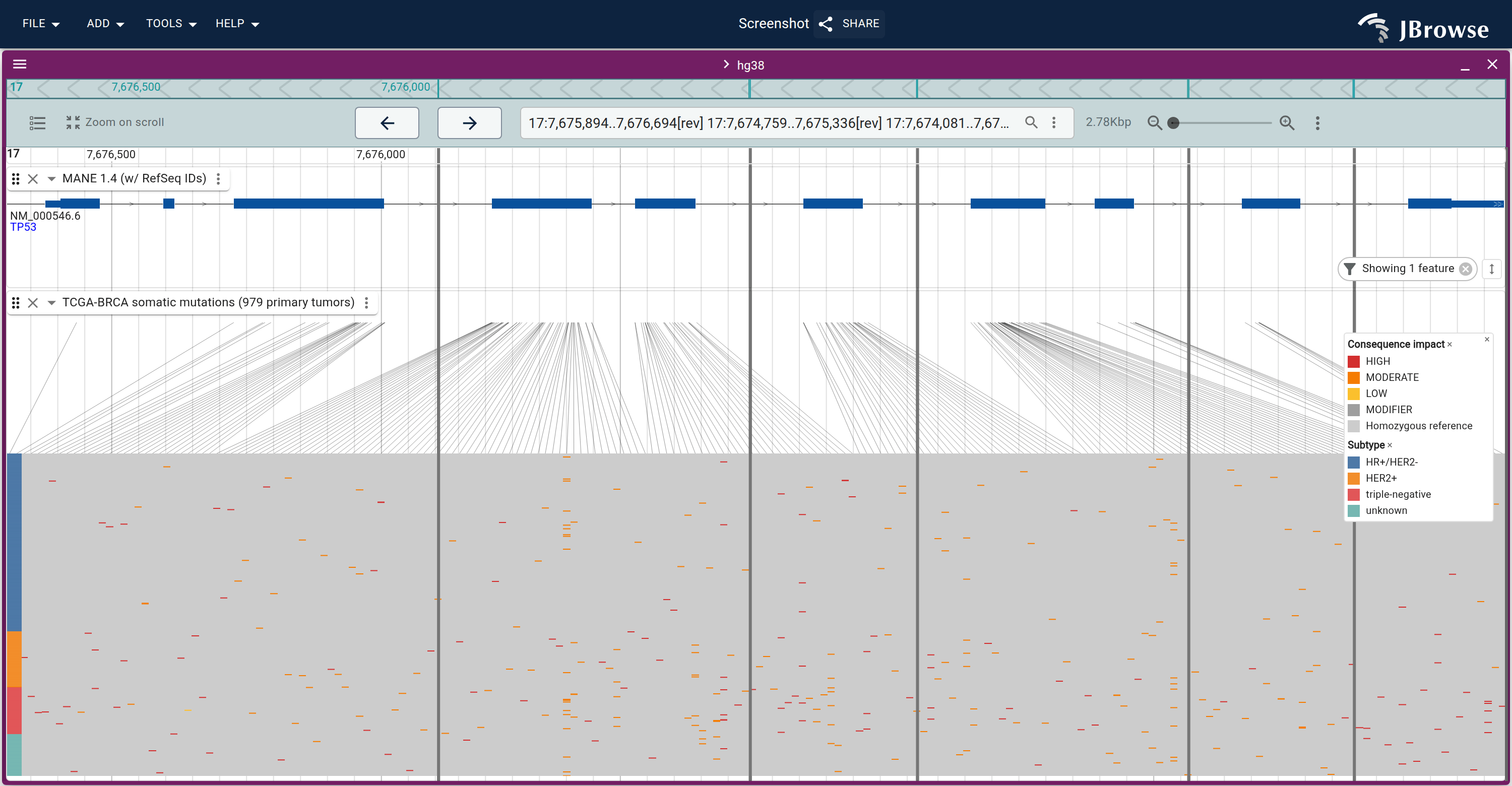

TP53's exons with rows grouped and colored by receptor subtype, introns collapsed. The triple-negative band is visibly the dense one and the much larger HR+/HER2- band above it is sparse, with the calls spread the length of the coding sequence. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The bottom band is the tumors whose receptor calls do not resolve a subtype. Hovering a column in the live view names its mutation and its consequence, and clicking one opens the variant popup with the per-tumor read counts.

PIK3CA's calls at the same zoom pile on two hotspots in the HR+/HER2- band, H1047R in the kinase domain and E542K/E545K in the helical one, so its connector fan comes off a couple of points.

Add a mutation recurrence track

A band's darkness reads as its mutation rate where the bands are of comparable height. The bands above differ in height, so how often the calls fall needs its own axis.

mutation_recurrence.py is the mutation counterpart of the copy-number cohort's cnv_recurrence.py. It takes the same SAMPLES.tsv:COLUMN group spec, so a tumor falls in the same group in every track on both pages, and writes one interval per gene valued in percent of the cohort:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/mutation_recurrence.py
python3 mutation_recurrence.py tcga_brca_mutations.vcf.gz by_subtype.bedGraph \
  --groups tcga_brca_clinical.tsv:subtype

#chrom  start      end        HR+/HER2-  HER2+  triple-negative  unknown
chr3    179199065  179234302  40.56      30.18  11.19            30.71
chr17   7670683    7676564    19.44      39.64  80.42            32.28

That is the same shape the copy-number recurrence writes, so the same adapter and the same display read it: BedGraphTabixAdapter takes every column past end as its own signal, and a MultiQuantitativeTrack draws one row per group.

{
  "type": "MultiQuantitativeTrack",
  "trackId": "tcga_brca_mutation_recurrence_by_subtype",
  "name": "TCGA-BRCA mutation recurrence by receptor subtype",
  "assemblyNames": ["hg38"],
  "category": ["TCGA"],
  "adapter": {
    "type": "BedGraphTabixAdapter",
    "uri": "https://jbrowse.org/demos/tcga/tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz"
  },
  "displayDefaults": {
    "height": 260,
    "minScore": 0,
    "maxScore": 100,
    "showRowSeparators": true
  }
}

minScore/maxScore pin every row to one axis, so the rows read against each other. Open it above the matrix and each band has its own rate over it.

The two rows above go opposite ways across the same four columns: TP53 climbs toward the triple-negative group where PIK3CA falls.

--impact sets what counts as a hit, defaulting to the HIGH and MODERATE tiers, which are the tiers impactColor paints in the matrix. LOW and MODIFIER are the synonymous, UTR and intronic calls.

The rate carries no background model and no significance test, and gene length enters the count directly: TTN is 100 kb of coding sequence, so it ranks near the top on passenger mutations alone.

Cluster the rows by genotype

Clustering → Cluster rows by genotype... in the track menu orders the rows by their genotypes (see Clustering rows for the mechanic), which gathers every carrier into one block and turns a hotspot column into a solid bar. It replaces the clinical bands while it is on, and answers which tumors share a mutation.

Thin the matrix down to recurrent mutations

The track menu's Filter by... → Minor allele frequency slider (and its minorAlleleFrequencyFilter config slot) drops the low-frequency columns, which on somatic data means keeping only mutations recurrent across the cohort: at PIK3CA the hotspots survive and the private columns go. See filtering by allele frequency and missingness for the sliders themselves.

The threshold is an allele frequency over called alleles, and each somatic call here is one alt allele out of two, so a mutation carried by 10% of the cohort sits at 0.05. CDH1's truncating calls are spread along the gene, so a threshold high enough to isolate a hotspot empties the window the histology figure is built on.

Use your own cohort

Nothing here is TCGA specific past the clinical columns. Any MAF collection reshapes with the same step, and maf_to_vcf.py takes a directory of them, so output from vcf2maf, cBioPortal's study downloads, or your own caller works as long as the rows carry Chromosome, Start_Position, the two allele columns, Tumor_Sample_Barcode, and CONTEXT. For the grouping, any TSV whose first column matches the VCF's sample names will do.

Where to go next

The copy-number cohort paints the same tumors one row each, under a recurrence track, and its next steps are this page's too: allele-specific copy number and the methylation arrays are both open access at the GDC and cover these tumors.

Reproduce it end to end

One script builds every file above for any project id: build_tcga_cohort_mutations.sh, which merges the MAFs with maf_to_vcf.py, assembles the clinical table with tcga_clinical_tsv.py, and tallies the per-gene rates with mutation_recurrence.py. It needs curl, python3, and bgzip + tabix from htslib, which on Debian/Ubuntu is apt install curl python3 tabix.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_tcga_cohort_mutations.sh
bash build_tcga_cohort_mutations.sh TCGA-BRCA 20 # 20 tumors, to test the pipeline
bash build_tcga_cohort_mutations.sh TCGA-BRCA    # the full cohort, ~10 minutes
npx --yes serve jbrowse2                         # then open the printed URL

It writes tcga_brca_mutations.vcf.gz (+ .tbi), tcga_brca_clinical.tsv and tcga_brca_mutation_recurrence_by_subtype.bedGraph.gz (+ .tbi), then a jbrowse2/ opening on PIK3CA with the recurrence rows over the matrix display. The assembly is the hosted UCSC hg38 hub's own entry copied in, so the reference is never downloaded. The recurrence step is derived from the VCF rather than re-downloaded, and is separately runnable as mutation_recurrence.py if you have a cohort VCF already.

The full run reports 87574 distinct mutations from 992 MAFs across 979 tumors (400 rows wrong sample type, 351 rows replicate aliquot) in 7.7 MB, plus a 140 KB clinical table. Swap in any other project id (TCGA-LUAD, TCGA-COAD, ...) for a different cohort, and pass --no-receptors to tcga_clinical_tsv.py for a non-breast project, whose receptor columns would come back empty. A third argument names the clinical column the recurrence track splits on, since subtype is derived from the receptor calls and so is breast only, while histology and stage come from harmonized GDC fields and work for any project.

Four of its steps decide whether the resulting track is correct:

Open-access files only. The GDC's Masked Somatic Mutation MAFs are the aliquot-merged ensemble calls with germline and other risky sites masked out, and need no dbGaP application.
The sample type comes off the barcode inside each MAF. A GDC file query filters on what a case has, so asking for Primary Tumor keeps a case's metastasis MAF as readily as its primary one. Which tumor a MAF is of is in the file, so the merge step filters on the sample-type code of the barcode it reads there (01, primary solid tumor), the same tumors the copy-number cohort paints.
Indels are anchored off the MAF's own CONTEXT column. A MAF writes a deletion as its deleted bases against a - alt, where VCF needs both alleles to share a preceding base. That base is in CONTEXT, so no reference FASTA is fetched, and a row whose context cannot support the conversion is reported.
One MAF per sample barcode. A few cases were sequenced twice under the same barcode, and the merge keeps one aliquot, so a tumor's row is one run's calls. Sample names are truncated to the sample barcode, so the same tumor is one row name in both tracks.
