Single-cell RNA pseudobulk

TL;DR: pool each cluster's cells into one coverage BigWig outside JBrowse, load the set as a single MultiWiggle track, and the browser shows one row per cell type. The same clustering also drives an embedded UMAP that filters those rows.

Prerequisites

cells already clustered and labeled, plus the barcoded BAM the counts came from (Cell Ranger's possorted_genome_bam.bam, or any BAM carrying a corrected cell-barcode tag)
bedGraphToBigWig from the UCSC utilities, or pip install deeptools sinto plus samtools for the split-the-BAM route; the reproduce script bins the reads itself, so it needs bedGraphToBigWig but neither of the other two
a JBrowse instance to load the finished BigWigs into (see the web quickstart, or the desktop quickstart)

Where the data comes from

10x Genomics' 5k PBMC v3 experiment, streamed and pooled by cell type without landing on disk.

the barcoded alignments, read by region over HTTPS rather than downloaded: https://cf.10xgenomics.com/samples/cell-exp/3.0.2/5k_pbmc_v3/5k_pbmc_v3_possorted_genome_bam.bam
the filtered feature-barcode matrix the clustering runs on: https://cf.10xgenomics.com/samples/cell-exp/3.0.2/5k_pbmc_v3/5k_pbmc_v3_filtered_feature_bc_matrix.h5

Where in the gene the reads land

Putting the cells on genomic coordinates says where in the gene the reads landed: which end, which exons, which annotated transcript the pile agrees with.

Where the signal piles up in a gene is the chemistry: 10x 3' kits sequence the 3' end of each transcript, so a coverage track of that library is a spike near the polyadenylation site. Full-length chemistries (Smart-seq, and 5' kits to a lesser degree) spread coverage over the gene body.

Generating per-cell-type BigWigs

Clustering and labeling stay upstream, in Seurat, scanpy, or whatever produced the annotation. This page starts from a barcode-to-label table and the BAM.

Two decisions about what goes into a row determine whether the rows can be compared to each other:

Duplicates. Cell Ranger flags PCR duplicates of the same UMI with the standard 0x400 flag; filter them out so a row's height tracks expression. Restricting to uniquely mapped reads (MAPQ 255, which is what STAR emits inside Cell Ranger) keeps multimappers off paralogs.
Normalization. Cell types differ in cell count and in sequencing depth, so each pooled track needs scaling (CPM is the usual choice) before one row's height means anything next to another's.

Coverage must also be splice-aware: an RNA read spanning an intron carries an N in its CIGAR, and counting that as covered fills in introns that no read touched.

The familiar route is to split the BAM by label with sinto filterbarcodes and run bamCoverage on each output:

# barcodes.tsv is two columns: cell barcode, cell-type label
sinto filterbarcodes -b possorted_genome_bam.bam -c barcodes.tsv -p 8
for bam in *.bam; do
  samtools index "$bam"
  bamCoverage -b "$bam" -o "${bam%.bam}.bw" \
    --samFlagExclude 1024 --minMappingQuality 255 --normalizeUsing CPM
done

--samFlagExclude 1024 is the duplicate filter and --minMappingQuality 255 the unique-mapping one, the two decisions above. That writes a second copy of the BAM to disk, split N ways.

build_scrna_pseudobulk.sh takes the other route: it reads the BAM by region straight over HTTPS, accumulating each cell type's coverage in one pass, so nothing is downloaded, nothing is split and no scratch space is needed. Either way the last step is where the normalization lands:

# CPM: scale by 1e6 / this cell type's own read total, so a row from 200 cells
# compares with one from 2,000
awk -v total="$reads" -v OFS='\t' \
  '{print $1, $2, $3, $4 * 1e6 / total}' celltype.bg > celltype.cpm.bg

# chromosomes in the chrom.sizes' own order, which for UCSC names is
# lexicographic (chr1, chr10, ... chr2) and not the order reads stream in
bedGraphToBigWig celltype.cpm.bg hg38.chrom.sizes celltype.bw

One pass over a chromosome fills a row per cell type. Both decisions above are the two continues, and the splice-awareness is get_blocks:

# of_barcode maps a corrected cell barcode to its cell type's row index
bam = pysam.AlignmentFile(BAM, "rb", index_filename=bai)
length = bam.get_reference_length(chrom)
cov = np.zeros((len(types), length // BIN + 1), dtype=np.uint32)

for read in bam.fetch(chrom):
    # 0x400 is the duplicate flag, 0x100 secondary and 0x800 supplementary. The
    # first is the duplicate decision; the other two stop one read landing in
    # several places at once. MAPQ 255 is what STAR emits for a unique
    # alignment, which is the only kind CellRanger writes.
    if read.flag & SKIP_FLAGS or read.mapping_quality < MIN_MAPQ:
        continue
    try:
        t = of_barcode[read.get_tag("CB")]
    except KeyError:
        continue  # a cell the labeling dropped, or an uncorrected barcode
    # get_blocks splits the read at every N in its CIGAR, so an intron the read
    # spans stays a gap instead of filling in
    for start, end in read.get_blocks():
        cov[t][start // BIN : (end - 1) // BIN + 1] += 1

Writing each row out as a bedGraph and converting it is the last step. Scale column 4 by 1e6 / <that cell type's counted reads> first, which is the CPM decision above:

bedGraphToBigWig CD8_T.all.bg hg38.chrom.sizes bw/CD8_T.bw

Loading the BigWigs

One MultiQuantitativeTrack holds the whole set, one BigWigAdapter subadapter per cell type, each carrying the row's name, color, and group. The nine rows in the figure below are nine such entries; here are the first three:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "pbmc5k_scrna_pseudobulk",
  "name": "scRNA pseudobulk by cell type (10x 5k PBMC)",
  "category": ["Single cell", "Expression"],
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "CD4 T",
        "group": "T cell",
        "color": "#1f77b4",
        "uri": "https://example.com/bw/CD4_T.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CD8 T",
        "group": "T cell",
        "color": "#279e68",
        "uri": "https://example.com/bw/CD8_T.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CD14 Mono",
        "group": "Monocyte",
        "color": "#8c564b",
        "uri": "https://example.com/bw/CD14_Mono.bw"
      }
    ]
  },
  "displayDefaults": {
    "defaultRendering": "multirowxy",
    "height": 330
  }
}

Take the row order and the row colors from the single-cell object: related lineages stay adjacent, and a row keeps the color its cluster had on the UMAP, so a reader can move between the two pictures.

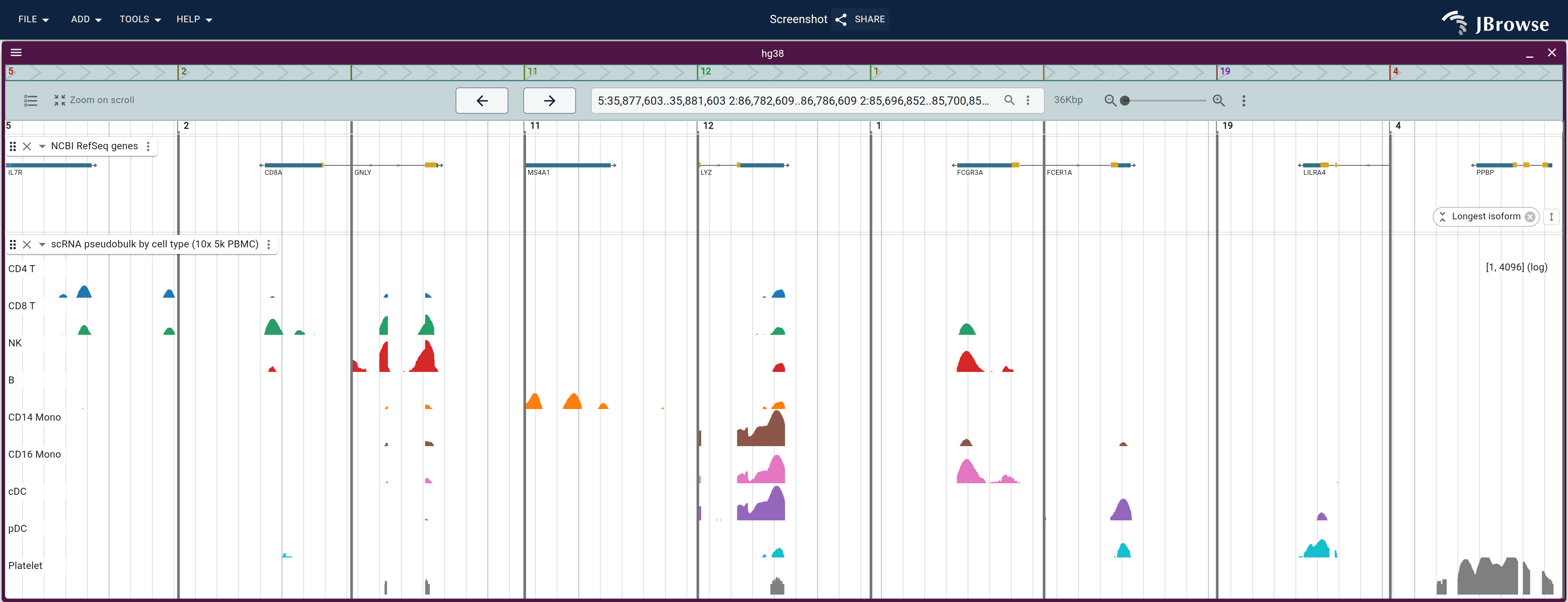

Nine per-cell-type BigWigs from the 10x 5k PBMC dataset, loaded as one MultiQuantitativeTrack, over nine marker loci in one discontinuous view, in the same order as the rows they mark. The signal walks down the diagonal. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Reading a marker gene means comparing the height of its 3' spike from row to row. The figure is on a log scale, because every row shares one axis.

The --multiwig CLI form and the add-track UI workflow build the same track without hand-writing it, and both are covered on Single-cell ATAC pseudobulk, which loads an ATAC set the same way.

One row per cell

A pseudobulk row is a sum over thousands of cells, and it draws that sum as a smooth curve. The cells themselves can go under it, one row each, read from a cells-by-bins Zarr matrix.

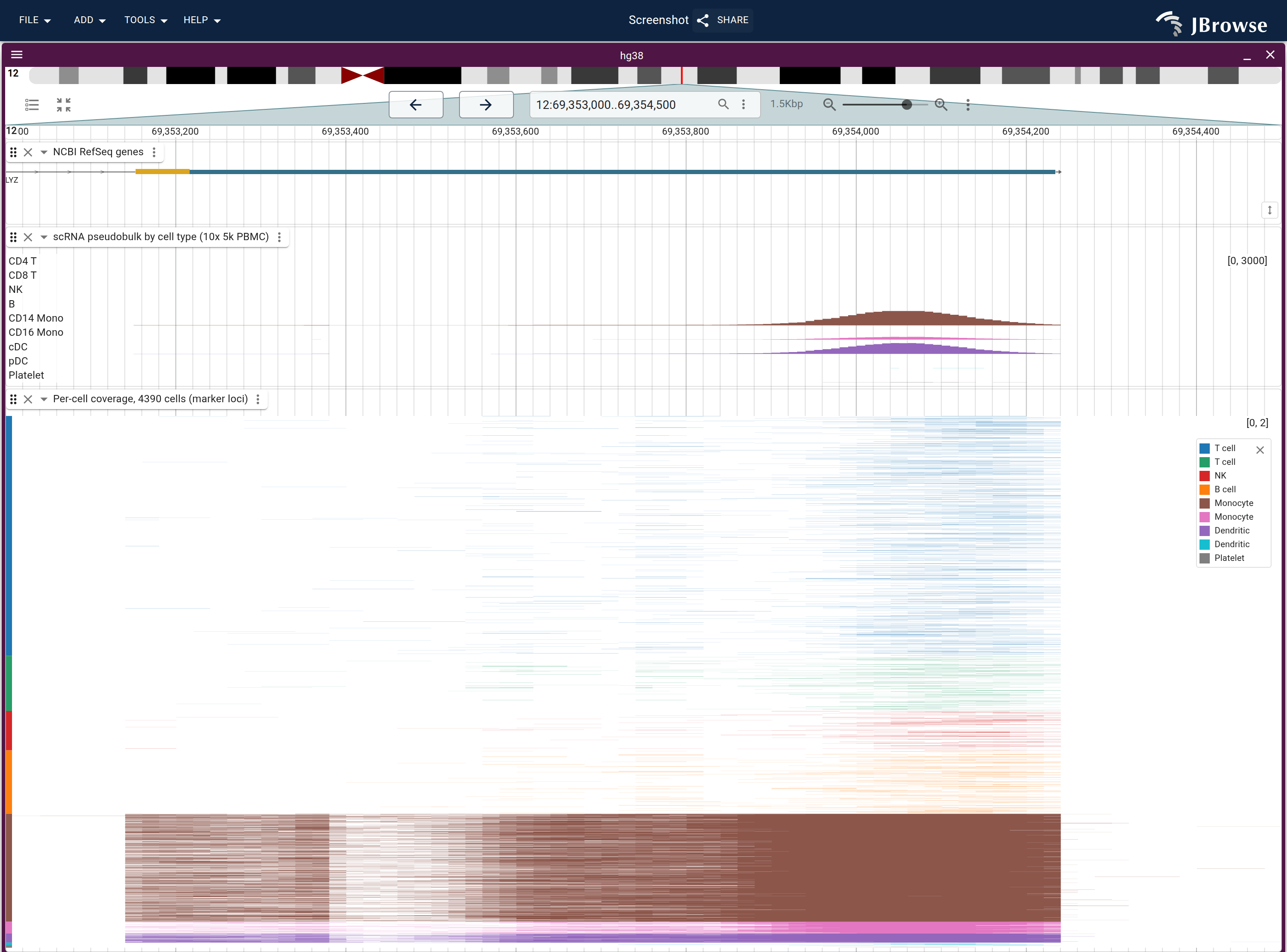

The nine pseudobulk rows at LYZ above the individual cells they are a sum over, ordered by cell type and colored to match. The monocyte and dendritic blocks are solid; the lymphocyte blocks are speckle, one UMI per cell. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Summed, the lymphocyte rows are a low flat line beside the monocyte peak. Per cell, many of those cells carry a single UMI of a monocyte gene: ambient RNA in the droplet.

Two settings decide whether the speckle is visible at all:

Order the rows by cell type. Thousands of rows in a few hundred pixels is well under a pixel each, so a block only means anything if the cells in it are adjacent. The group on each row seeds that, and it also drives the sidebar tree.
Pin the score axis. A minScore: 0 and a low maxScore put one UMI a visible fraction up the color ramp, the same as the copy-number heatmap in CNV across a population (1000 Genomes). Autoscale takes its maximum from the tallest single cell in view.

The store is read by the MultiWiggleZarrAdapter that jbrowse-plugin-zarr adds, the same adapter CNV across a population (1000 Genomes) uses for 2504 individuals of the 1000 Genomes panel. Declaring the plugin and pointing a track at the store is the whole config; the cell list, the bin size and the row colors are attributes of the store, written by the build step:

{
  "plugins": [
    {
      "name": "Zarr",
      "url": "https://jbrowse.org/demos/zarr/jbrowse-plugin-zarr.umd.production.min.js"
    }
  ],
  "tracks": [
    {
      "type": "MultiQuantitativeTrack",
      "trackId": "pbmc5k_scrna_percell",
      "name": "Per-cell coverage (marker loci)",
      "category": ["Single cell"],
      "assemblyNames": ["hg38"],
      "adapter": {
        "type": "MultiWiggleZarrAdapter",
        "uri": "percell.zarr"
      },
      "displayDefaults": {
        "defaultRendering": "multirowdensity",
        "minScore": 0,
        "maxScore": 2,
        "height": 420
      }
    }
  ]
}

A relative uri resolves against the config that holds it, so a store sitting beside config.json needs no absolute URL, and nothing runs on the server.

The store's bin axis lays each window end to end keyed by refName, so it holds one window per chromosome, and the marker genes it covers sit on different chromosomes. Per-cell coverage says something only at a locus the cells have reads at, so the store covers marker windows and stays under a megabyte.

The rows are signal, so an RNA set and an ATAC set stack in one view: the demo config carries a pseudobulk scATAC set over the same PBMCs beside the RNA one.

Linking the UMAP to the tracks

The single-cell UMAP example puts a UMAP beside this track in an embedded view and wires the two together. Selecting cell types calls the display's own row filter:

display.setSubtreeFilter(['CD8 T', 'NK'])

Filtering also tightens the shared score axis onto the rows still drawn. Clicking a gene in the track goes the other way and recolors the cells by that gene's expression, read from session.selection with no click handler.

Reproduce it end to end

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_scrna_pseudobulk.sh
bash build_scrna_pseudobulk.sh    # builds ./scrna_pseudobulk_build
npx --yes serve scrna_pseudobulk_build/jbrowse2

Its input is 10x Genomics' public 5k PBMC v3 dataset. The script runs the standard scanpy pipeline on the filtered count matrix (QC, normalize, PCA, neighbors, UMAP, Leiden), labels each cluster by scoring it against canonical PBMC marker panels, and prints the whole score matrix so the labels can be checked against it. It then pseudobulks the BAM against those labels and writes the finished JBrowse instance, plus the UMAP's own data files.

A cluster whose best panel score is weak is labeled unassigned, which is where the low-count cluster a PBMC run produces usually ends up.

References

10x Genomics 5k PBMC v3, the dataset this page pseudobulks
scanpy's clustering tutorial, the pipeline the build script follows
sinto filterbarcodes and deepTools bamCoverage for the split-the-BAM route

Feedback on this tutorial is welcome: contact us.
