Display settings

TL;DR: every setting in a track menu has a name, and JBrowse will tell you what it is. Change the setting by clicking, read the session JSON back, and the same key works in a shareable link, in a saved session file, and in config.json. This page changes four settings on one CRAM track and follows them through all three.

Prerequisites

JBrowse Web or JBrowse Desktop. Both are covered at each step.
Nothing to download. The volvox demo data is hosted.

Open the reads track

Volvox is the small demo dataset the JBrowse test builds ship, and volvox-sv (cram) is its structural-variant CRAM.

In JBrowse Web, open volvox at ctgA:1-10,000.

In JBrowse Desktop, choose File → Session → Open JBrowse Web link... and paste that same URL, or File → Session → Open config.json or .jbrowse file... and give it https://jbrowse.org/code/jb2/main/test_data/volvox/config.json. Desktop reads a config you open and leaves it alone, saving your edits to a session of its own.

Either way you get a pileup of short reads, drawn at the default height in the default gray.

Change four settings

Open the track's menu from the track label, and set:

Color by... → Paired end → Insert size and orientation, which leaves normally-paired reads gray and colors the rest by how they disagree with the reference.
Read connections → View as pairs / link supplementary alignments, which puts each read on the same row as its mate.
Show... → Show soft clipping, which draws the clipped ends the aligner trimmed off.

Then drag the bottom edge of the track down to about 250px, so the deeper stack of paired rows fits.

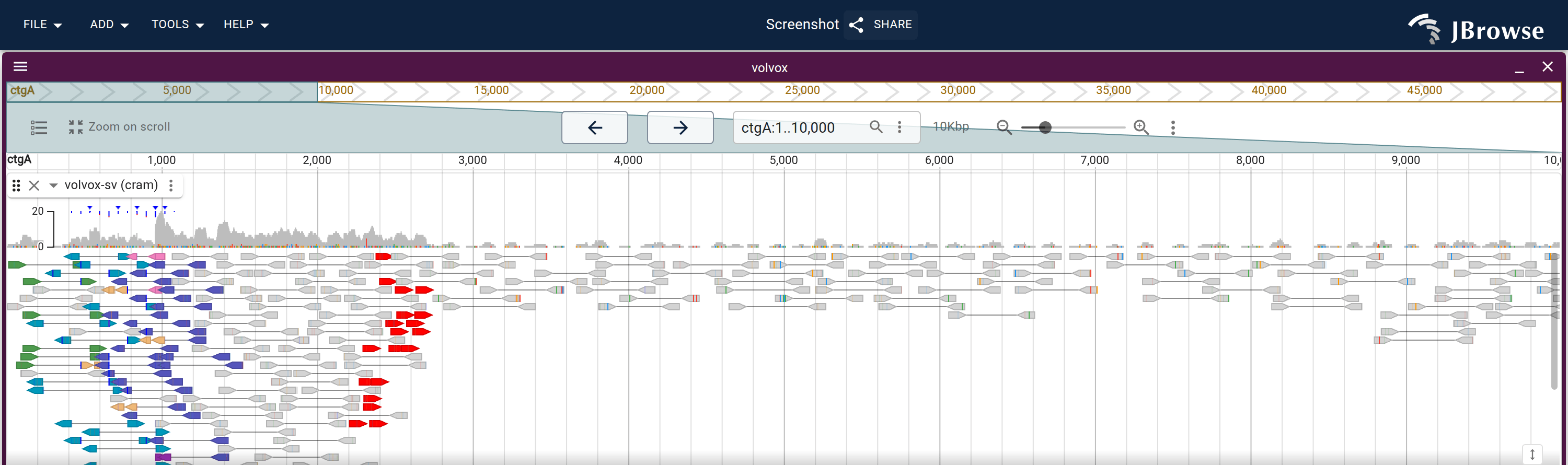

The volvox-sv (cram) track at ctgA:1-10,000 as a 250px-tall pileup, soft-clipping shown, reads viewed as pairs and colored by insert size and orientation. The colored cluster at the left flags a structural variant. Open this view in JBrowse ↗

Ask JBrowse what you just set

Three menu clicks and a drag changed four settings, and each one has a name you can type into a config.

In JBrowse Web, click Share, take Plaintext JSON from the settings icon in the dialog, and tick the Show readable JSON box that arrives with it. In JBrowse Desktop, choose File → Session → Save session as..., save a volvox.jbrowse file, and open it in a text editor.

Three settings taken from the volvox-sv (cram) track menu, then the share dialog's settings icon, Plaintext JSON, and the readable session panel that arrives with it. Open the session this video starts in ↗

Both hold the same JSON. Each of the four is a write to the track's own config, so they arrive together under trackConfigDeltas, keyed by the track id you edited:

"trackConfigDeltas": {
  "volvox_sv_cram": {
    "displays": [
      {
        "displayId": "volvox_sv_cram-LinearAlignmentsDisplay",
        "height": 250,
        "linkedReads": "normal",
        "colorBy": { "type": "insertSizeAndOrientation" },
        "showSoftClipping": true
      }
    ]
  }
}

height, linkedReads, colorBy and showSoftClipping are the setting names, and every route below spells them the same way.

Change one more setting in the app, wait a second, and read volvox.jbrowse again: Desktop autosaves the open session about a second after each edit, and reopening that file brings the settings back.

The config schema docs list the same names per display (e.g. LinearAlignmentsDisplay, LinearWiggleDisplay) with what each one accepts, which is where to go for a setting you have not clicked yet.

Put the settings in config.json

A session remembers settings for one session. To have the track open this way for everyone, every time, put the same keys in its displayDefaults:

Config file CLI (add-track-json)

{
  "type": "AlignmentsTrack",
  "trackId": "volvox_sv_cram",
  "name": "volvox-sv (cram)",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "CramAdapter",
    "cramLocation": { "uri": "volvox-sv.cram" },
    "craiLocation": { "uri": "volvox-sv.cram.crai" }
  },
  "displayDefaults": {
    "height": 250,
    "linkedReads": "normal",
    "colorBy": { "type": "insertSizeAndOrientation" },
    "showSoftClipping": true
  }
}

jbrowse add-track-json '{
  "type": "AlignmentsTrack",
  "trackId": "volvox_sv_cram",
  "name": "volvox-sv (cram)",
  "assemblyNames": ["volvox"],
  "adapter": {
    "type": "CramAdapter",
    "cramLocation": { "uri": "volvox-sv.cram" },
    "craiLocation": { "uri": "volvox-sv.cram.crai" }
  },
  "displayDefaults": {
    "height": 250,
    "linkedReads": "normal",
    "colorBy": { "type": "insertSizeAndOrientation" },
    "showSoftClipping": true
  }
}'

JBrowse routes each key in displayDefaults to the display that uses it. Spell out the full displays array when you are selecting a non-default display type (LinearMultiSampleVariantDisplay, LDDisplay, and so on); see configuring tracks for both forms.

Reload with that config and the track opens paired, colored and soft-clipped, with no clicking.

Precedence when config and session disagree

Now both places are set, so make them disagree. The config above asks for height: 250. Load a session that asks for 100 on the same track:

{
  "views": [
    {
      "assembly": "volvox",
      "loc": "ctgA:1-10000",
      "type": "LinearGenomeView",
      "tracks": [
        {
          "trackId": "volvox_sv_cram",
          "height": 100,
          "colorBy": { "type": "insertSizeAndOrientation" }
        }
      ]
    }
  ]
}

Try this example live ↗

The track comes up 100px tall. The session wins, and it wins per setting: a key the session does not mention still comes from displayDefaults.

Each entry in a view's tracks array is either a plain trackId string or an object with trackId plus settings written alongside it, as above. The settings can equivalently be nested under an explicit displaySnapshot key ({ "trackId": "...", "displaySnapshot": { "height": 100 } }); the inline form is shorthand for it. Use the explicit form when you also need trackSnapshot for track-config fields.

Where each route keeps the value

Route	Kept in	Applies to
The pin beside a menu row	your browser, or the app	every track of that display type, for you
Share link (`?session=`)	the URL	whoever opens that link
Save session as... (Desktop)	the `.jbrowse` file	whoever opens that file
`displayDefaults` in `config.json`	the config file	everyone, every session

The pin is the one route with no file in it, and the only one a reader of your instance can reach without your help; defaults for all tracks covers it. ?session= URLs are a JBrowse Web feature, since Desktop has no session-URL server; Desktop's nearest equivalent is File → Session → Export session to web..., which uploads the session and hands you a web link with the settings encoded in it.

URL parameters has the full session-spec format, including trackSnapshot and multi-view specs.

In an embedded component

The embedded React components take the same keys through defaultSession.view.init.tracks:

init: {
  loc: 'ctgA:1105..3000',
  assembly: 'volvox',
  tracks: [
    {
      trackId: 'volvox_microarray',
      type: 'LinearWiggleDisplay',
      defaultRendering: 'line',
      height: 150,
    },
  ],
}

See embedding the linear genome view for the surrounding setup.
