Pangenome (pggb)

TL;DR: build a five-strain E. coli graph with pggb, then load its linear projections (synteny, pangenome variants, whole-genome MAF, depth and per-strain presence) as ordinary JBrowse tracks on the K12 axis, and draw the graph itself beside them.

Experimental

The graph view is a beta plugin, and this tutorial covers experimental ideas. We welcome your feedback.

Prerequisites

  • docker or singularity, for the pggb image, which also carries odgi
  • samtools
  • bedGraphToBigWig (UCSC kentUtils)
  • python3
  • htslib (bgzip, tabix)
  • node, for the JBrowse CLI
  • the NCBI datasets CLI, to fetch the RefSeq genomes for the whole build rather than the steps on this page
  • unzip, to unpack them for the same whole build
  • the GraphGenomeView plugin, for the graph itself; every other track here is a built-in type

On Debian/Ubuntu, apt install samtools tabix unzip python3 covers four of those. Docker installs from docs.docker.com; the NCBI datasets CLI and bedGraphToBigWig are each a single-binary download; and node comes from nodejs.org. Everything else runs inside the pggb image.

Where the data comes from

Five E. coli RefSeq assemblies, fetched by accession with the NCBI datasets CLI and concatenated into one PanSN-named FASTA for pggb.

The linear projections

A pangenome graph collapses many genomes into one structure: shared sequence is a single path that every sample walks, and where samples differ the path branches. pggb, Minigraph-Cactus, and progressiveCactus build these graphs, and odgi manipulates them.

Bacterial pangenomes are also built from annotations: Panaroo, Roary and PPanGGOLiN cluster genes across assemblies into a core and an accessory set, which gives the gene table. These tracks give where the sequence sits, and a gene cluster no reference carries has no coordinate on the K12 axis.

Most of what JBrowse draws are the graph's linear projections: the same graph flattened onto one reference genome's coordinates. Every builder emits them, so a graph built with any of these tools lands on track types you already have:

ProjectionWhat it showsFrom the graphJBrowse track
SyntenyThe blocks each pair of genomes sharesodgi untangle, halSyntenysynteny track
Pangenome variantsEvery difference the graph calls, across all samplespggb -V, cactus-pangenome --vcf, vg deconstructmulti-sample variant track
Whole-genome alignmentThe multiple alignment, column by columnpggb -M, hal2mafMAF track
Pangenome depthHow many genomes cover each reference base (core/accessory)odgi depth, odgi pavquantitative track

This tutorial builds a five-strain E. coli pangenome with pggb, loads each projection, and draws the graph itself. It uses the same five genomes as the all-vs-all synteny tutorial, which builds the synteny projection alone from a plain minimap2 alignment.

Building the graph with pggb

pggb takes one FASTA of all the genomes, PanSN-named sample#haplotype#contig. wfmash's -Y '#' (on by default) skips a mapping whose query and target share the prefix before the last #, which stops a genome being aligned to itself, and -V reads the same prefix to assign each VCF sample and phase. Concatenate the five strains (haplotype 1, these being haploid bacterial assemblies) and index the result, chromosomes only, so no plasmid reaches the graph:

for strain in K12 Sakai CFT073 NCTC86 IAI39; do
  awk -v s="$strain" '/^>/{print ">" s "#1#chr"; next} {print}' "$strain.fa"
done > all.fa
bgzip all.fa
samtools faidx all.fa.gz

Run pggb next: the image pins all five tools the pipeline is made of at once; pggb's installation docs cover the alternatives. -V K12:10000 decomposes the graph into a VCF against the K12 path and -M writes the multiple alignment as a MAF. The image also carries odgi, which the untangle, depth, presence and subgraph sections reuse, so wrap the docker run once as in_pggb:

in_pggb() {
  docker run --rm -u "$(id -u):$(id -g)" -w /data -v "$PWD":/data \
    ghcr.io/pangenome/pggb:202603141454453ade6b "$@"
}

in_pggb pggb -i /data/all.fa.gz -o /data/pggb \
  -n 5 -c 4 -p 90 -s 5000 -V K12:10000 -M -t "$(nproc)"
  • -n is the number of haplotypes, -p the minimum alignment identity and -s the segment length; -p 90 -s 5000 suits a bacterial pangenome.
  • -c is the number of mappings wfmash keeps per segment and defaults to 1, so it has to be raised alongside -n or the graph comes out under-connected.
  • The dated build tag keeps the graph reproducible.
  • Under singularity, singularity exec --bind "$PWD":/data --pwd /data docker://<image> replaces the wrapper body and leaves every call after it unchanged.

Five bacterial chromosomes are minutes on a laptop, and the build script carries these flags.

pggb runs four tools in turn:

Then odgi draws the visualizations and vg deconstruct runs the -V step. The output directory holds everything the sections below load: the graph (*.smooth.final.gfa and its .og), the all-vs-all PAF, both VCF tiers, and the MAF. It also already holds pggb's own 1D and 2D renderings of the graph (*.viz_*.png from odgi viz, *.lay.draw.png from odgi layout), unless you passed -v.

Resolve the graph's two spellings once. Every odgi command below refers to them, and the glob has to expand on the host, since a /data/*.gfa inside the container is passed through as a literal:

gfa=$(ls pggb/*.smooth.final.gfa)
og=$(ls pggb/*.smooth.final.og)

.og is odgi's own succinct serialization of that same graph, so every odgi command below reads it rather than reparsing the GFA. The GFA is what the tabix index is built from, since that walk reads P and W lines as text.

Synteny projection

Two files answer this, a track each.

The alignment the graph was induced from

pggb's first step is a wfmash all-vs-all PAF, the same input the all-vs-all synteny tutorial loads, and it comes for free. Index it once with jbrowse make-pif and load it with an AllVsAllIndexedPAFAdapter, so a range query fetches only the region in view:

cp pggb/*.alignments.wfmash.paf ecoli_pggb_ava.paf
jbrowse make-pif ecoli_pggb_ava.paf   # -> ecoli_pggb_ava.pif.gz (+ .tbi)
{
  "type": "SyntenyTrack",
  "trackId": "ecoli_pggb_ava",
  "name": "pggb graph: all-vs-all synteny (wfmash)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "AllVsAllIndexedPAFAdapter",
    "uri": "ecoli_pggb_ava.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}
jbrowse add-track ecoli_pggb_ava.pif.gz \
  --trackId ecoli_pggb_ava \
  --name "pggb graph: all-vs-all synteny (wfmash)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType AllVsAllIndexedPAFAdapter \
  --load copy

Stack the five strains in a linear synteny view exactly as the all-vs-all tutorial describes. The PanSN sample# prefix on every PAF record is how the adapter maps a record to its strain.

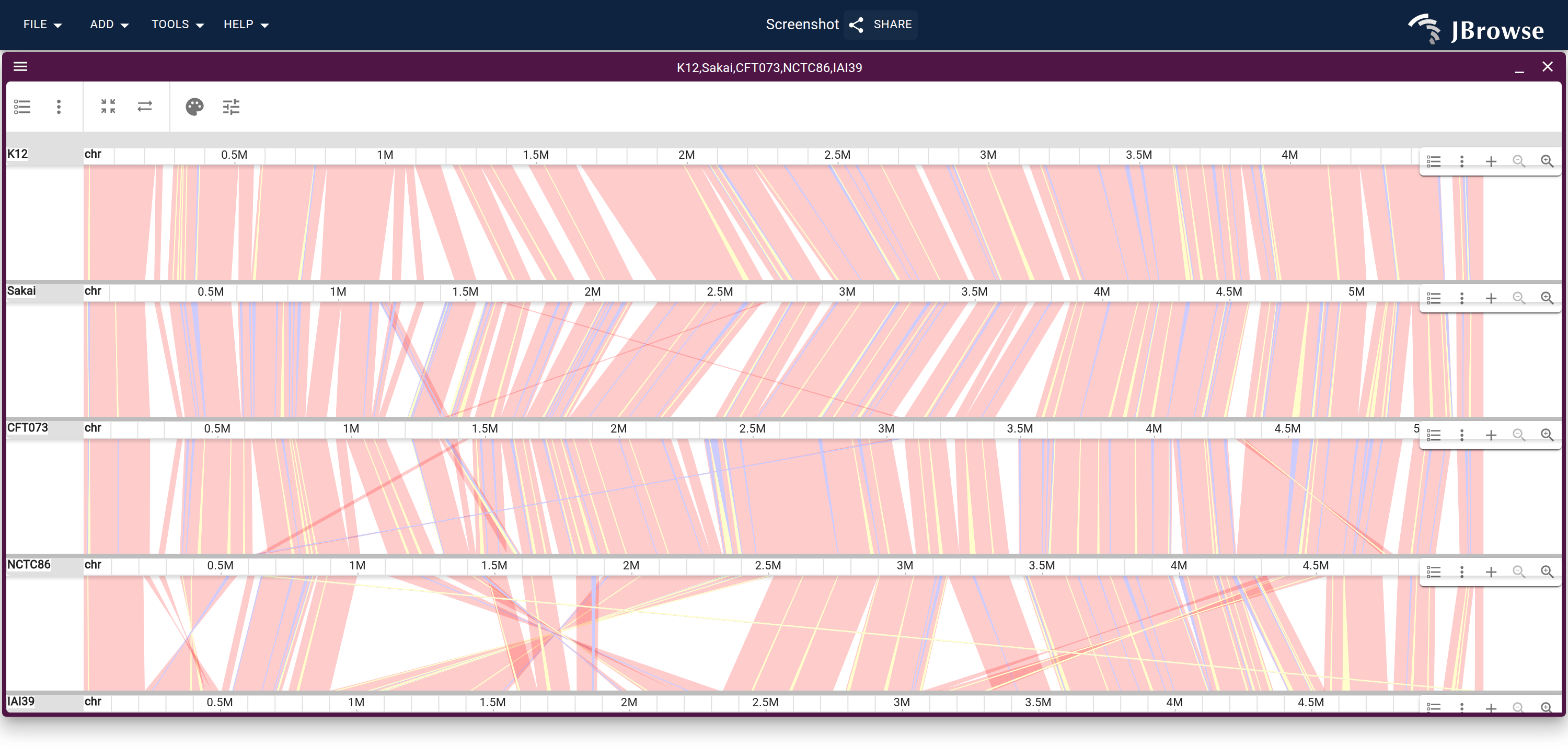

The wfmash alignment pggb induced the graph from: five strains stacked K12 to IAI39, a ribbon between each adjacent pair. The crossings in the bottom band are IAI39's inversions. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open your genomes: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one), then File → Open genome... for each of the rest.This figure's rows, top to bottom: K12, Sakai, CFT073, NCTC86, IAI39.
  2. Open the view: Add → Linear synteny view, and set the rows to those assemblies in the import form.
  3. Point the import form at your own file: click the arrow between two rows, choose New track, and paste a URL or pick a local file.A synteny track the session already has is quicker: pick it under **Quick start**, which fills in the rows itself.This figure uses the “ecoli_pggb_ava” track for all 4 bands.
  4. Click Launch.
  5. Synteny display settings (the sliders button in the view header) → Curved lines (unchecked)
  6. Synteny view header → palette button → DefaultThe palette button's tooltip reads "Color by: ...".
  7. Synteny display settings (the sliders button in the view header) → Min length → drag to 10,000bpHides alignments shorter than this, which is what clears the hairball of short spurious chains at whole-genome zoom.
  8. Drag the bar below a synteny level to resize it.This figure's 4 levels are 110, 110, 110, 110px tall.
  9. Launch synteny view dialog → Collapse panels to rulers (checked)Checked by default. A row the launch gave no tracks opens as its ruler alone instead of a "No tracks active" block; any row expands again from its own controls afterwards.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearSyntenyView%22%2C%22views%22%3A%5B%7B%22assembly%22%3A%22K12%22%7D%2C%7B%22assembly%22%3A%22Sakai%22%7D%2C%7B%22assembly%22%3A%22CFT073%22%7D%2C%7B%22assembly%22%3A%22NCTC86%22%7D%2C%7B%22assembly%22%3A%22IAI39%22%7D%5D%2C%22tracks%22%3A%5B%5B%22ecoli_pggb_ava%22%5D%2C%5B%22ecoli_pggb_ava%22%5D%2C%5B%22ecoli_pggb_ava%22%5D%2C%5B%22ecoli_pggb_ava%22%5D%5D%2C%22drawCurves%22%3Afalse%2C%22colorBy%22%3A%22default%22%2C%22minAlignmentLength%22%3A10000%2C%22levelHeights%22%3A%5B110%2C110%2C110%2C110%5D%2C%22collapseEmptyRows%22%3Atrue%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_synteny

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "LinearSyntenyView",
      "views": [
        {
          "assembly": "K12"
        },
        {
          "assembly": "Sakai"
        },
        {
          "assembly": "CFT073"
        },
        {
          "assembly": "NCTC86"
        },
        {
          "assembly": "IAI39"
        }
      ],
      "tracks": [
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ]
      ],
      "drawCurves": false,
      "colorBy": "default",
      "minAlignmentLength": 10000,
      "levelHeights": [
        110,
        110,
        110,
        110
      ],
      "collapseEmptyRows": true
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearSyntenyView",
      "views": [
        {
          "assembly": "K12"
        },
        {
          "assembly": "Sakai"
        },
        {
          "assembly": "CFT073"
        },
        {
          "assembly": "NCTC86"
        },
        {
          "assembly": "IAI39"
        }
      ],
      "tracks": [
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ],
        [
          "ecoli_pggb_ava"
        ]
      ],
      "drawCurves": false,
      "colorBy": "default",
      "minAlignmentLength": 10000,
      "levelHeights": [
        110,
        110,
        110,
        110
      ],
      "collapseEmptyRows": true
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The all-vs-all tutorial draws these same strains from a minimap2 -c PAF, and the two independent aligners place the backbone and IAI39's inversions the same way. wfmash merges each pair into a few dozen long segments where minimap2 leaves several hundred, so the same minAlignmentLength cuts less here.

Before reusing this file elsewhere: wfmash maps in both directions, so every pair is in the PAF twice, once as query and once as target, over the same spans. A synteny view draws both, and the ribbons come out twice as opaque.

The projection from odgi untangle

odgi untangle is the projection proper. It walks each query path and reports, segment by segment, which stretch of the reference path that query traverses, so it states homology as the graph resolved it, after seqwish and smoothxg had their say. Sequence that collapsed into one set of nodes comes back as several query segments pointing at the same reference span.

-p asks for PAF, so make-pif reads the output with nothing in between:

printf 'K12#1#chr\n' > target.txt
printf 'Sakai#1#chr\nCFT073#1#chr\nNCTC86#1#chr\nIAI39#1#chr\n' > query.txt
in_pggb odgi untangle -i "/data/$og" \
  -R /data/target.txt -Q /data/query.txt -m 1000 -j 0.5 -e 5000 -p -t "$(nproc)" \
  > ecoli_pggb_untangle.paf
jbrowse make-pif ecoli_pggb_untangle.paf

-m merges runs shorter than it into the previous segment, since otherwise every SNP node starts a new one, and -j keeps mappings at or above a jaccard. untangle leaves PAF column 10 at 0 and writes no CIGAR, since it reports a jaccard over graph steps rather than a base alignment. It states its identity in an id:f: tag instead, which is what a synteny track reads on a record carrying no de:f:, so the blocks color by untangle's own number.

untangle starts a segment where the graph stops agreeing, which on a near-colinear bacterial pangenome is rare: this graph gives a few dozen blocks per pair, each ribbon spanning its frame. -e forces a boundary every N bp of the sorted graph, which is what makes both figures below readable. The cut is baked into the file and cannot be undone downstream, so leave it off on a graph with many haplotypes, where untangle finds plenty of boundaries by itself. The Minigraph-Cactus tutorial builds the same projection with halSynteny.

Load it as its own SyntenyTrack, the same adapter as the wfmash track above:

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_pggb_untangle",
  "name": "pggb graph: synteny from the graph (odgi untangle)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "AllVsAllIndexedPAFAdapter",
    "uri": "ecoli_pggb_untangle.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}
jbrowse add-track ecoli_pggb_untangle.pif.gz \
  --trackId ecoli_pggb_untangle \
  --name "pggb graph: synteny from the graph (odgi untangle)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType AllVsAllIndexedPAFAdapter \
  --load copy

untangle projects queries onto a target path, so every record has K12 on one side and a band between two non-reference rows has nothing to draw. Put the reference between the strains you want to compare.

Whole-genome, the result is the near-colinear diagonals the wfmash figure already shows. The two files differ at a repeat. Find one by looking for a reference span that more than one segment of the same query lands on:

gzip -dc ecoli_pggb_untangle.pif.gz | awk -F'\t' 'substr($1,1,1)=="q"' \
  | cut -f1,3,4,8,9 | sort -k4,4n

Two K12 spans come back that way, chr:3,941,447-3,944,255 and chr:4,169,192-4,171,723, and Sakai, NCTC86 and IAI39 each reach both of them from two places. CFT073 reaches neither twice, which is the control. A pairwise PAF has no way to say this: its records are one query interval against one target interval, so a collapsed repeat is either dropped or arbitrarily assigned to one copy.

A dotplot reads the same PIF and shows how the two genomes are arranged relative to each other. A stretch the strain traverses backwards descends, so every inversion is visible at once.

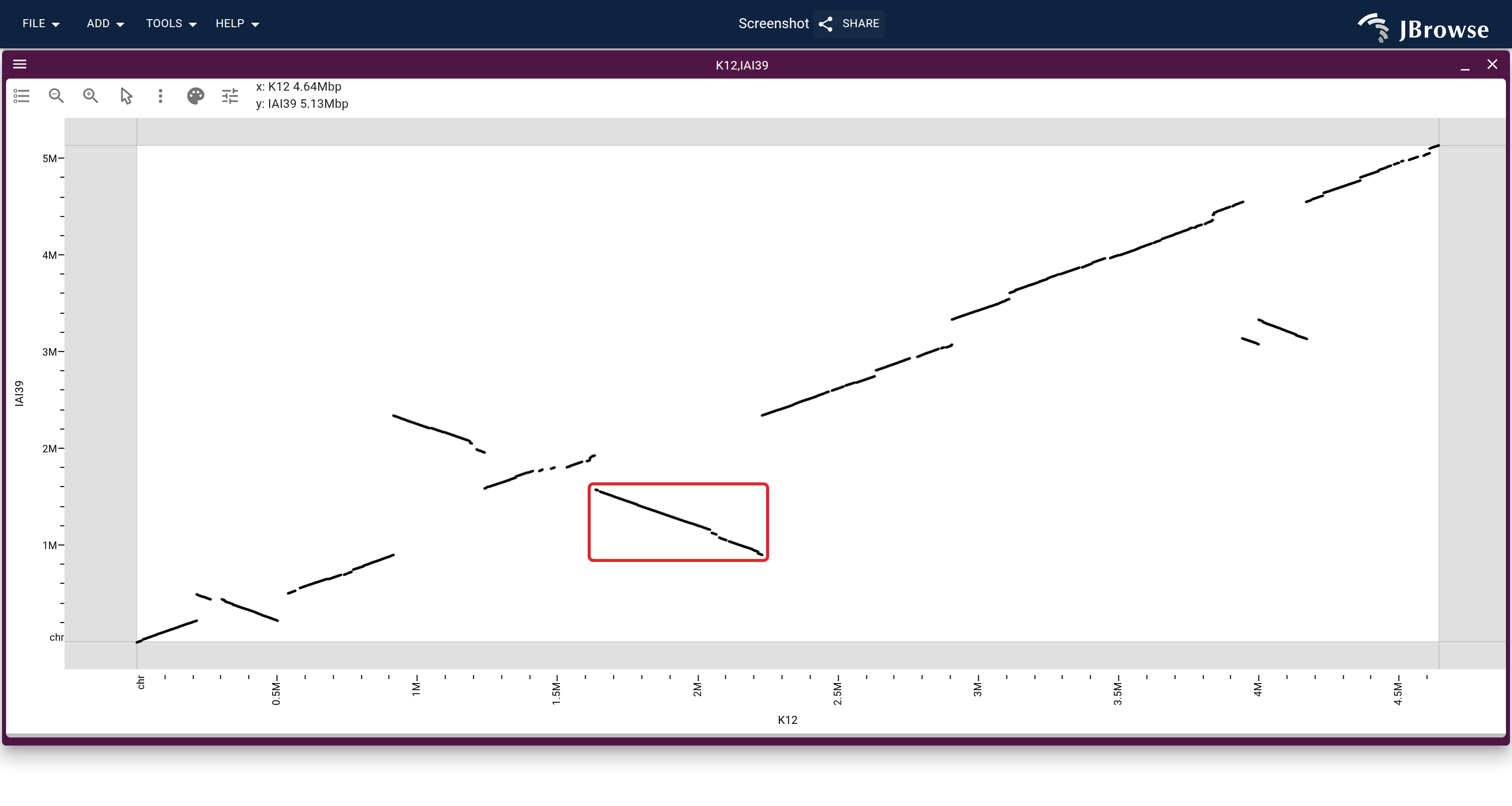

The untangle projection as a dotplot, K12 against IAI39. The descending segments are inversions, and the boxed one is boxed again in the per-strain figure below. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open your genomes: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one), then File → Open genome... for each of the rest.This figure has K12 on X and IAI39 on Y.
  2. Open the view: Add → Dotplot view, and set both axes to those assemblies in the import form.
  3. Point the import form at your own file: use the track panel under the two axis selectors, choose New track, and paste a URL or pick a local file.A synteny track the session already has is quicker: pick it under **Quick start**, which fills in both axes itself.This figure uses the “ecoli_pggb_untangle” track.
  4. Click Launch.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22DotplotView%22%2C%22tracks%22%3A%5B%22ecoli_pggb_untangle%22%5D%2C%22views%22%3A%5B%7B%22assembly%22%3A%22K12%22%7D%2C%7B%22assembly%22%3A%22IAI39%22%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_untangle_dotplot

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "DotplotView",
      "tracks": [
        "ecoli_pggb_untangle"
      ],
      "views": [
        {
          "assembly": "K12"
        },
        {
          "assembly": "IAI39"
        }
      ]
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "DotplotView",
      "tracks": [
        "ecoli_pggb_untangle"
      ],
      "views": [
        {
          "assembly": "K12"
        },
        {
          "assembly": "IAI39"
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Untangle indexes every step of every path, so it is much the slower of the two. On a base-level graph, budget for it or restrict -Q to the paths you need.

One lane per strain, on the K12 axis

A dotplot takes two genomes at a time. The same records drawn as a multi-row feature track put every strain on the reference at once, one row each, so orientation is read down a column. PAF column 5 is the strand each segment traverses the reference in, which the variant and MAF projections carry no field for.

untangle_to_bed.py projects the PAF onto the per-strain BED schema build_minigraph_paths.sh already defines, so partitionField and the colors carry across unchanged. The bubble-decomposition columns untangle does not report (class, delta, path and the rest) are left empty, holding the column positions. lengthField has nothing to read here, because untangle reports no length change:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/untangle_to_bed.py
python3 untangle_to_bed.py ecoli_pggb_untangle.paf chr > ecoli_pggb_untangle_rows.bed
# the writer's header line is `#`-prefixed, and `jbrowse sort-bed` keeps every
# such line on top while sorting the rest, i.e. `sort -k1,1 -k2,2n` under LC_ALL=C
jbrowse sort-bed ecoli_pggb_untangle_rows.bed | bgzip > ecoli_pggb_untangle_rows.bed.gz
tabix -p bed ecoli_pggb_untangle_rows.bed.gz

Load the result as a FeatureTrack with a LinearMultiRowFeatureDisplay:

{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_untangle_rows",
  "name": "pggb graph: untangle per strain (orientation, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "ecoli_pggb_untangle_rows.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "partitionField": "strain",
      "rowOrder": ["Sakai", "CFT073", "NCTC86", "IAI39"],
      "legend": [
        { "label": "Same orientation as K12", "color": "rgb(153,153,153)" },
        { "label": "Inverted", "color": "rgb(214,39,40)" }
      ]
    }
  ]
}
jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_untangle_rows",
  "name": "pggb graph: untangle per strain (orientation, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "ecoli_pggb_untangle_rows.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "partitionField": "strain",
      "rowOrder": ["Sakai", "CFT073", "NCTC86", "IAI39"],
      "legend": [
        { "label": "Same orientation as K12", "color": "rgb(153,153,153)" },
        { "label": "Inverted", "color": "rgb(214,39,40)" }
      ]
    }
  ]
}'

partitionField gives each strain its own row, and the colors are in the file's own itemRgb. The white gaps are where a strain has no untangle segment on that stretch of K12, the same accessory sequence the depth and presence projections below measure.

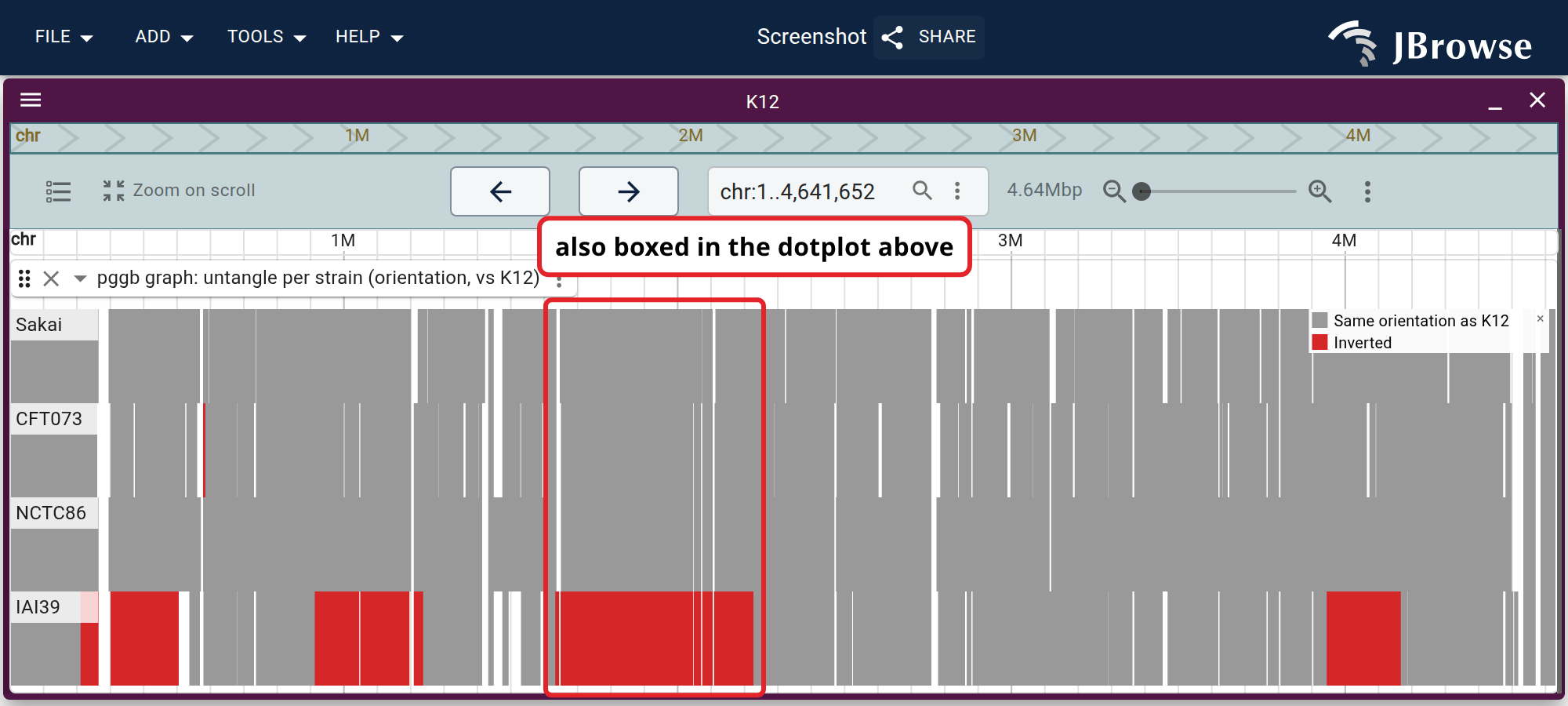

odgi untangle over the whole K12 chromosome, one row per strain, red where the strain runs backwards and white where it has no segment at all. Only IAI39 is inverted at length. Open this view in JBrowse ↗

The steps behind the figure above, run against your own data.

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses K12.
  2. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_untangle_rows” track.
  3. Drag the bar at the bottom edge of the track to resize it.
  4. Type your region of interest into the location box and press Enter.This figure is at chr:1-4,641,652.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1-4%2C641%2C652%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22ecoli_pggb_untangle_rows%22%2C%22type%22%3A%22LinearMultiRowFeatureDisplay%22%2C%22height%22%3A240%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_untangle_rows

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1-4,641,652",
      "tracks": [
        {
          "trackId": "ecoli_pggb_untangle_rows",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 240
        }
      ]
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1-4,641,652",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track",
    "name": "My track",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1-4,641,652",
      "tracks": [
        {
          "trackId": "ecoli_pggb_untangle_rows",
          "type": "LinearMultiRowFeatureDisplay",
          "height": 240
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The box marks the same 594 kb arm in both figures: the dotplot says what the arm is, the per-strain rows say who has it.

selfCov in the popup goes above 1 where a segment lands on a reference span the same strain also lands on elsewhere, so jexl:feature.selfCov>1 in Edit filters cuts the lane to the collapsed repeats.

Pangenome variants projection

pggb -V writes a VCF of every variant the graph decomposes against the K12 path, genotyped across the other four strains. Its CHROM is the PanSN reference path (K12#1#chr), so rename it to the K12 assembly's refName (chr) with bcftools, whose substitution cannot reach INFO/AT or PS. It ships in the pggb image:

printf 'K12#1#chr\tchr\n' > rename_chrs.tsv
in_pggb bash -c "bcftools annotate --rename-chrs /data/rename_chrs.tsv \
  /data/pggb/*.smooth.final.K12.decomposed.vcf \
  | bcftools sort -Oz -o /data/ecoli_pggb.vcf.gz && tabix -p vcf /data/ecoli_pggb.vcf.gz"

Load it as a VariantTrack on K12 and pick the multi-sample display, which draws one row per sample with each variant at its genomic position:

{
  "type": "VariantTrack",
  "trackId": "ecoli_pggb_variants",
  "name": "pggb graph: pangenome variants (vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "ecoli_pggb.vcf.gz"
  },
  "displays": [{ "type": "LinearMultiSampleVariantDisplay" }]
}

Stack the MAF alignment (below) in the same window and the calls sit over the alignment they were decomposed from, which is the figure under Whole-genome alignment (MAF) projection. Read that figure down a column. The two lanes share coordinates, and their row order differs: the variant lane follows the VCF's sample columns and the MAF lane follows the tree the track loads. A strain's no-call block and its gap in the alignment are the same event twice.

Why the reference path takes a length

A graph VCF is a snarl tree. vg deconstruct emits a record per snarl at every level, each carrying LV (its level, 0 at the top) and PS (its parent), so the file holds both a bubble and the variants nested inside it. Those wide records draw over the fine layer they were decomposed from, painting a flat block across the rows that carry them and hiding every SNP underneath.

The -V spec therefore takes REF:LEN. With a length, pggb also runs vcfbub -l 0 -a LEN piped into vcfwave and writes the result beside the raw file as *.decomposed.vcf, which is what the track above loads.

vcfbub pops any site whose alleles run past LEN, emitting the nested sites inside it in its place, so records with LV above 0 survive by design. That caps the width: on this graph the longest reference allele comes out under LEN, so nothing paints over the layer beneath it and the track needs no display filter. vcfwave then realigns what survives into primitive variants.

LEN is a cost knob as much as a filter: vcfwave realigns every allele vcfbub keeps, so the step is dominated by the longest ones, and HPRC's own -a 100000 runs far longer on this graph than -a 10000 does. Structural variation that large reads better in the graph view or the per-strain path track.

Keep the raw file too, through the same rename, and load it as a second track:

in_pggb bash -c "bcftools annotate --rename-chrs /data/rename_chrs.tsv \
  /data/pggb/*.smooth.final.K12.vcf \
  | bcftools sort -Oz -o /data/ecoli_pggb_snarls.vcf.gz && tabix -p vcf /data/ecoli_pggb_snarls.vcf.gz"

The snarl VCF is where the graph structure lives: LV/PS give the snarl tree, and AT states each allele as the segment ids it traverses (AT=>2>4>5,>2>3>5), which are the same ids the graph view labels its nodes with. Filter it on LV in Edit filters to pick one level of the tree. The coarse tier below is built from its LV=0 records.

The multi-sample variant track guide covers the matrix versus the per-position display, genotype coloring, and clustering samples by genotype.

Whole-genome alignment (MAF) projection

pggb -M writes the multiple alignment as a MAF, which JBrowse reads as a MAF track. Its blocks are smoothxg's POA blocks, with two consequences.

Block order. A MAF track projects onto a single reference, and pggb orders each block from its longest path, so the block's reference row is not consistently the same genome. Re-root every block on K12 (dropping blocks that lack it) and rename the PanSN names to sample.chr, so the MAF display can split each row's species off on the .:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/reroot_maf.py
# reroot_maf.py keeps K12-containing blocks, puts K12 first (+ strand), sorts by
# K12 position, and gives each K12 row in a repeat-collapsed block its own block
python3 reroot_maf.py pggb/*.smooth.maf ecoli_pggb.maf K12#1#chr

reroot_maf.py ships with the reproducible build below. One block per reference row matters because an index keys a block on its first row, so a repeat's second copy is only queryable once it anchors a block of its own.

Block padding. A smoothxg bug leaves its own block padding on some rows, which a consumer reading indels off the columns sees as a phantom insertion at every POA block boundary. pangenome/smoothxg#223 fixes it upstream, and no published pggb image carries the fix yet, so reroot_maf.py crops around it.

Then convert the MAF to the tabix-indexed BED the MafTabixAdapter reads, one line per block carrying that block's rows. The usual converter, maf2bed, picks the reference row by assembly name and emits one line per block, undoing the split reroot_maf.py just made. maf_to_bed.py takes row 0 as the reference and keeps it:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/maf_to_bed.py
python3 maf_to_bed.py ecoli_pggb.maf ecoli_pggb.maf.bed
bgzip ecoli_pggb.maf.bed
tabix -p bed ecoli_pggb.maf.bed.gz

The row order comes from the graph. odgi similarity reports how much of the graph each pair of samples shares, in seconds on a bacterial pangenome, and UPGMA over 1 - estimated.identity turns that into the Newick the track reads as nhLocation:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/odgi_similarity_to_newick.py
in_pggb odgi similarity -i "/data/$og" -D '#' -p 1 > ecoli_pggb_similarity.tsv
python3 odgi_similarity_to_newick.py ecoli_pggb_similarity.tsv ecoli_pggb.nh
{
  "type": "MafTrack",
  "trackId": "ecoli_pggb_maf",
  "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
    "nhLocation": { "uri": "ecoli_pggb.nh" },
    "uri": "ecoli_pggb.maf.bed.gz"
  }
}

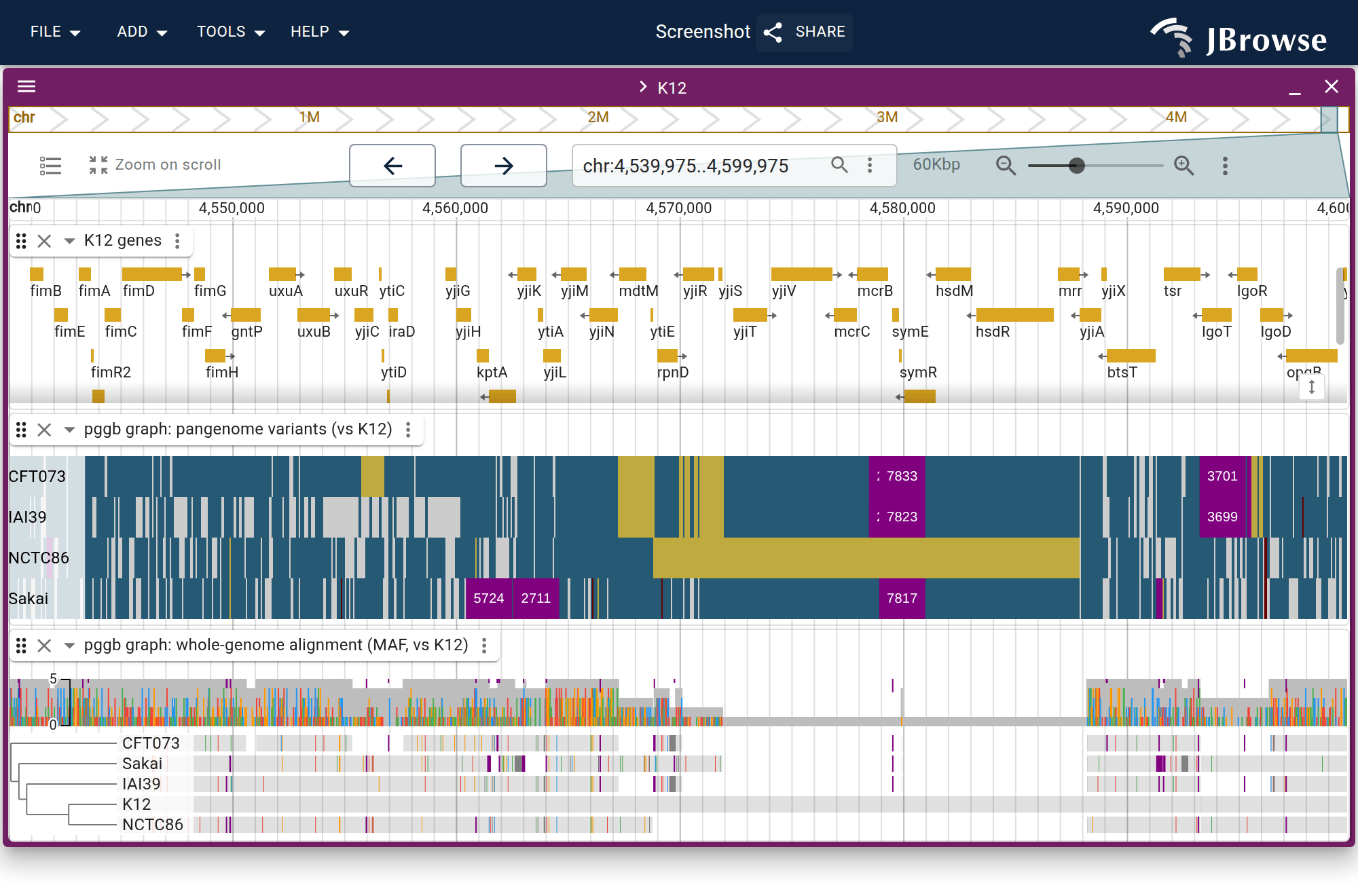

The graph's whole-genome alignment projected onto K12, one row per strain in the tree's order, with the variant calls above. A blank row is a strain with no alignment to K12 there. Open this view in JBrowse ↗

The steps behind the figure above, run against your own data.

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses K12.
  2. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “K12_genes” track.
  3. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_variants” track.
  4. Drag the bar at the bottom edge of the track to resize it.“ecoli_pggb_variants”.
  5. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_maf” track.
  6. Type your region of interest into the location box and press Enter.This figure is at chr:4,540,000-4,600,000.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A4%2C540%2C000-4%2C600%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_variants%22%2C%22type%22%3A%22LinearMultiSampleVariantDisplay%22%2C%22height%22%3A120%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22type%22%3A%22LinearMafDisplay%22%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fmaf

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:4,540,000-4,600,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay"
        },
        {
          "trackId": "ecoli_pggb_variants",
          "type": "LinearMultiSampleVariantDisplay",
          "height": 120
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay"
        }
      ]
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:4,540,000-4,600,000",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:4,540,000-4,600,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay"
        },
        {
          "trackId": "ecoli_pggb_variants",
          "type": "LinearMultiSampleVariantDisplay",
          "height": 120
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay"
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

samples names and labels the rows, so a tree that fails to build leaves the track working.

A cell in the variant lane is colored by that strain's genotype:

  • grey where the strain matches K12
  • blue where it carries the alternate allele
  • olive where the site is uncalled
  • a numbered purple box where it carries an insertion, the number being how many bases the allele adds beyond K12

An insertion consumes no reference, so the record spans a single base and the marker carries its length. Each strain carrying an insertion here has its own record, of its own length.

The alignment below states the same insertions as columns the reference row gaps through, drawn with the same marker. Here the strains stop aligning to K12 at that coordinate, so the inserted sequence falls between alignment blocks and those rows are left blank.

The MAF track guide covers the conservation band, per-row identity, and codon view, all derived from the alignment with no extra files.

A row is also a comparison waiting to be opened. Drag across the rows and the menu that opens on release lists each strain the selection covers: Open Sakai ... in new view puts that strain's own genome beside this one at the aligned stretch, and Launch synteny view, K12 vs... opens the two as a linear synteny view, the ribbons cut from these same columns. The strains are navigable because the config loads them as assemblies under the names the MAF calls them; a samples entry names the assembly explicitly where the two differ.

From the pggb alignment's rows to a two-strain synteny view: a drag across the rows, the menu listing the strains it covers, and the synteny view the NCTC86 entry opens, with K12's genes over the alignment and NCTC86's genes under the ribbon. Open the session this video starts in ↗

Pangenome depth projection (core vs accessory)

The three projections above show where the genomes differ. Depth shows how much of the graph is shared: odgi depth counts how many paths traverse the graph under each reference base, near the strain count over core sequence and toward 1 over K12-private accessory sequence. odgi ships inside the pggb image.

Tile the K12 path into windows, ask odgi for each window's mean depth, rename the PanSN path to the assembly's chr, and convert to bigWig with bedGraphToBigWig:

reflen=$(awk -v p="K12#1#chr" '$1 == p {print $2}' all.fa.gz.fai)
awk -v p="K12#1#chr" -v len="$reflen" -v w=500 \
  'BEGIN { for (s = 0; s < len; s += w) { e = s + w; if (e > len) e = len
           print p "\t" s "\t" e } }' > depth_windows.bed

# -b gives one row per window instead of per base, so the window size above is
# the resolution of the curve; the awk drops the PanSN prefix for the plain
# refName the K12 assembly uses
in_pggb odgi depth -i "/data/$og" -b /data/depth_windows.bed |
  awk -v p="K12#1#chr" -v OFS='\t' '$1 == p && $4 + 0 == $4 { print "chr", $2, $3, $4 }' |
  sort -k1,1 -k2,2n > ecoli_pggb_depth.bedgraph

printf 'chr\t%s\n' "$reflen" > chrom.sizes
bedGraphToBigWig ecoli_pggb_depth.bedgraph chrom.sizes ecoli_pggb_depth.bw

chrom.sizes is written by hand, since the .fai carries the PanSN path name.

Load it as a QuantitativeTrack on K12:

{
  "type": "QuantitativeTrack",
  "trackId": "ecoli_pggb_depth",
  "name": "pggb graph: pangenome depth (paths over K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "BigWigAdapter",
    "uri": "ecoli_pggb_depth.bw"
  }
}
jbrowse add-track ecoli_pggb_depth.bw \
  --trackId ecoli_pggb_depth \
  --name "pggb graph: pangenome depth (paths over K12)" \
  --assemblyNames K12 \
  --load copy

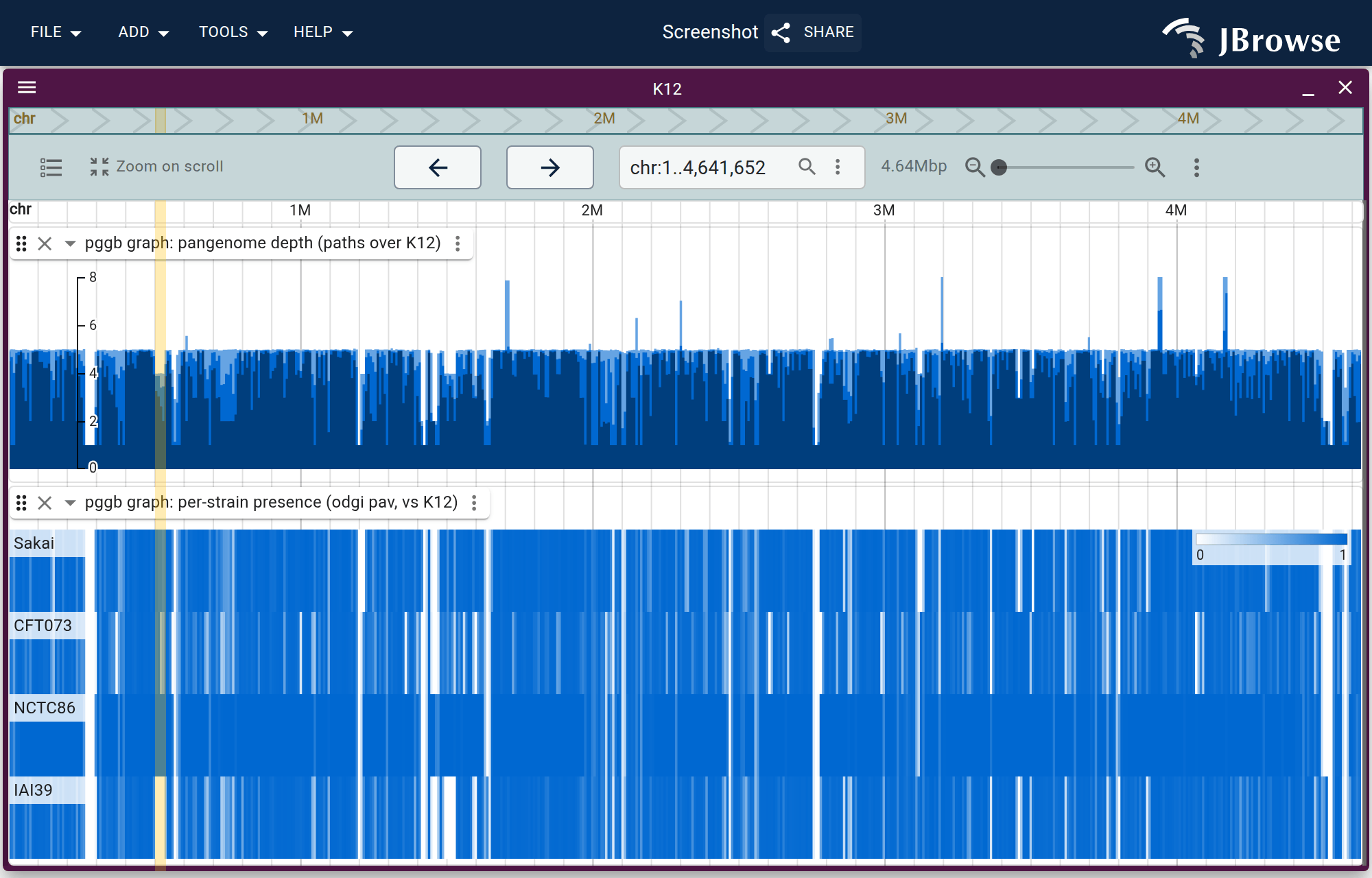

Zoomed out, the track is the pangenome's core/accessory landscape along K12:

  • a plateau near the strain count
  • spikes past it over the rRNA operons the graph collapses into one copy
  • troughs at 1 over K12's private sequence, mostly cryptic prophages and IS elements

The depth lane is drawn at the end of this section, under the per-strain rows that say which strain each trough is missing. A FeatureTrack draws no gene lane at whole-chromosome zoom, so zoom into one trough and the lane names it, which is what the figure below does for the widest of them.

An unrelated isolate's long reads say the same thing without the graph. These are nanopore reads from E. coli E146 (ENA DRR193901), a carbapenem-resistant clinical isolate that is not one of the five, mapped straight onto K12 with minimap2 -ax map-ont. The pileup is drawn with supplementary segments linked, so a read split at the prophage boundary is joined to its other half rather than read as two, and reads long enough to cross the element carry it as a single labelled deletion.

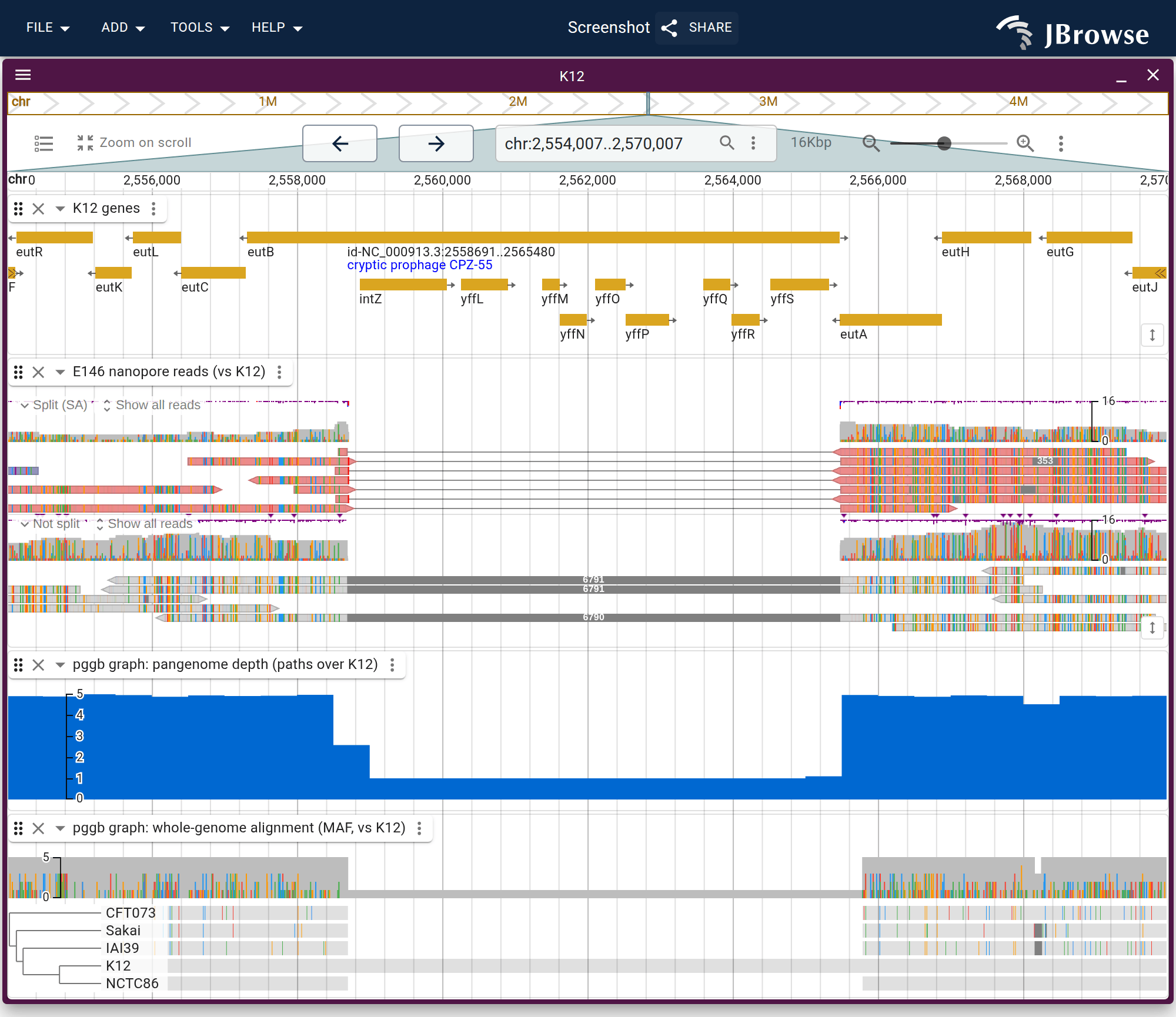

Nanopore reads from an unrelated E. coli isolate over one K12 depth trough, with the graph's depth curve and its MAF below. All four lanes break at the edges of the cryptic prophage CPZ-55. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses K12.
  2. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “K12_genes” track.
  3. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_e146_ont” track.
  4. Track menu → Read connections → View as pairs / link supplementary alignments (checked)“ecoli_e146_ont”.
  5. Track menu → Group by... → Split read (SA tag)“ecoli_e146_ont”.
  6. Drag the bar at the bottom edge of the track to resize it.“ecoli_e146_ont”.
  7. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_depth” track.
  8. Drag the bar at the bottom edge of the track to resize it.“ecoli_pggb_depth”.
  9. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_maf” track.
  10. Type your region of interest into the location box and press Enter.This figure is at chr:2,554,000-2,570,000.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A2%2C554%2C000-2%2C570%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%7D%2C%7B%22trackId%22%3A%22ecoli_e146_ont%22%2C%22type%22%3A%22LinearAlignmentsDisplay%22%2C%22linkedReads%22%3A%22normal%22%2C%22groupBy%22%3A%7B%22type%22%3A%22splitRead%22%7D%2C%22height%22%3A210%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_depth%22%2C%22type%22%3A%22LinearWiggleDisplay%22%2C%22height%22%3A100%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22type%22%3A%22LinearMafDisplay%22%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Flong_reads

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,554,000-2,570,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay"
        },
        {
          "trackId": "ecoli_e146_ont",
          "type": "LinearAlignmentsDisplay",
          "linkedReads": "normal",
          "groupBy": {
            "type": "splitRead"
          },
          "height": 210
        },
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 100
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay"
        }
      ]
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:2,554,000-2,570,000",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_4",
    "name": "My track 4",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,554,000-2,570,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay"
        },
        {
          "trackId": "ecoli_e146_ont",
          "type": "LinearAlignmentsDisplay",
          "linkedReads": "normal",
          "groupBy": {
            "type": "splitRead"
          },
          "height": 210
        },
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 100
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay"
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The reads say where the two sides are joined in a genome that lacks the element.

odgi depth counts path steps, and the graph collapses the rRNA operons into one copy that every strain then walks several times, so those windows read above the strain count. The Minigraph-Cactus tutorial draws both graphs' curves over one of those operons, and only this one steps up.

Per-strain presence

The depth track sums every path into one curve. odgi pav splits it per strain: over the same K12 windows it reports the fraction of each window that strain's path traverses, 1 where the strain is fully present and toward 0 where the window is accessory in it. Slice each strain's rows into its own bigWig and load the set as one MultiQuantitativeTrack:

in_pggb odgi pav -i "/data/$og" -b /data/depth_windows.bed > pav.tsv
# K12 omitted: it is present over its own windows by construction
for strain in Sakai CFT073 NCTC86 IAI39; do
  # column 5 is the PanSN path, column 6 the presence fraction
  awk -F'\t' -v OFS='\t' -v g="${strain}#1#chr" \
    '$5 == g && $6 + 0 == $6 { print "chr", $2, $3, $6 }' pav.tsv |
    sort -k1,1 -k2,2n > "pav_${strain}.bedgraph"
  bedGraphToBigWig "pav_${strain}.bedgraph" chrom.sizes "ecoli_pggb_pav_${strain}.bw"
done

Same windows as the depth curve, so the two lanes line up. The output is one row per window per path (chrom start end name group pav), where group is the PanSN path and pav the fraction, which is what the loop splits on.

{
  "type": "MultiQuantitativeTrack",
  "trackId": "ecoli_pggb_pav",
  "name": "pggb graph: per-strain presence (odgi pav, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "subadapters": [
      {
        "type": "BigWigAdapter",
        "name": "Sakai",
        "uri": "ecoli_pggb_pav_Sakai.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "CFT073",
        "uri": "ecoli_pggb_pav_CFT073.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "NCTC86",
        "uri": "ecoli_pggb_pav_NCTC86.bw"
      },
      {
        "type": "BigWigAdapter",
        "name": "IAI39",
        "uri": "ecoli_pggb_pav_IAI39.bw"
      }
    ]
  }
}

Draw it under the aggregate curve. Where that curve dips, these rows say which strain is missing: one falls to 0 over its own accessory stretch while the others hold at 1. The windows where all four are absent at once are the K12-private islands the depth curve bottoms out over. Across the shaded span K12 carries ybaL through the allantoin operon, one row goes white for its full width, and a second goes white part-way along over the rhsD Rhs element alone.

The aggregate depth curve over all of K12, with odgi pav on the same windows below it, one row per non-K12 strain. Under the shaded span a single row goes white; the deepest troughs in the curve above are where all four do. Open this view in JBrowse ↗

The steps behind the figure above, run against your own data.

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses K12.
  2. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_depth” track.
  3. Drag the bar at the bottom edge of the track to resize it.“ecoli_pggb_depth”.
  4. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses the “ecoli_pggb_pav” track.
  5. Track menu → Plot type → Multi-row → Density“ecoli_pggb_pav”.
  6. Drag the bar at the bottom edge of the track to resize it.“ecoli_pggb_pav”.
  7. Type your region of interest into the location box and press Enter.This figure is at chr:1-4,641,652.
  8. View menu → Zoom to region / use the location box, then add a highlightThis figure highlights 1 region; highlights can also be set with the &highlight= URL parameter.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fconfig.json&session=spec-%7B%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1-4%2C641%2C652%22%2C%22highlight%22%3A%5B%7B%22refName%22%3A%22chr%22%2C%22start%22%3A501500%2C%22end%22%3A539000%2C%22color%22%3A%22rgba%28255%2C193%2C7%2C0.30%29%22%7D%5D%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22ecoli_pggb_depth%22%2C%22type%22%3A%22LinearWiggleDisplay%22%2C%22height%22%3A150%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_pav%22%2C%22type%22%3A%22MultiLinearWiggleDisplay%22%2C%22defaultRendering%22%3A%22multirowdensity%22%2C%22height%22%3A240%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpav

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1-4,641,652",
      "highlight": [
        {
          "refName": "chr",
          "start": 501500,
          "end": 539000,
          "color": "rgba(255,193,7,0.30)"
        }
      ],
      "tracks": [
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_pav",
          "type": "MultiLinearWiggleDisplay",
          "defaultRendering": "multirowdensity",
          "height": 240
        }
      ]
    }
  ]
}

Loaded against config: https://jbrowse.org/demos/ecoli_pangenome/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1-4,641,652",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BamAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1-4,641,652",
      "highlight": [
        {
          "refName": "chr",
          "start": 501500,
          "end": 539000,
          "color": "rgba(255,193,7,0.30)"
        }
      ],
      "tracks": [
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_pav",
          "type": "MultiLinearWiggleDisplay",
          "defaultRendering": "multirowdensity",
          "height": 240
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/demos/ecoli_pangenome/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Compared to odgi viz

Unless you passed -v, pggb rendered the graph in 1D with odgi viz and in 2D with odgi layout before it finished, and the output directory holds both: *.viz_*.png (one per coloring) and *.lay.draw.png. The figure below is odgi viz re-run at a size worth printing, drawing the graph the way it is stored.

The same five-strain graph drawn by odgi viz, one row per strain. The axis is graph node order rather than K12 coordinates, so nothing lines up with a gene or a chromosome position.

It gives one row per strain, as the MAF and per-strain-presence tracks do, over a horizontal axis of the graph's node order (the "pangenome sequence"). The brackets under the rows are the graph's links, each spanning the stretch of node order it jumps.

The JBrowse projections keep the one-row-per-strain idea and redraw everything on K12's coordinates:

  • Depth is the raster's column coverage summed into one curve.
  • Per-strain presence is its filled-vs-gap rows, windowed.
  • The MAF track is those same rows at single-base resolution, colored by mismatch.
  • The variant track is the points where the rows branch, one column each.

What the two axes cost each other is measured on the Minigraph-Cactus page, which marks the same 100 kb of K12 on both.

odgi layout's 2D drawing is path-guided stochastic gradient descent over the whole graph, where the graph view's force-directed layout is Bandage's FMMM over one cut window. Both put the graph's shape on the page with no reference axis, and the view adds the two anchored layouts over its cut window.

Opening the graph in the graph genome view

The projections above flatten the graph onto K12. JBrowse can also draw it as a graph, beside a linear view of the same window, through the graph genome view plugin. That guide covers the view itself, its layouts, and moving between the two panels; this section covers getting a base-level graph in.

Installing the plugin

The plugin is beta and not in the plugin store yet, so it loads by URL. In JBrowse Web that means a plugins array at the top level of config.json, beside assemblies and tracks (see configuring plugins):

{
  "plugins": [
    {
      "name": "GraphGenomeView",
      "esmUrl": "https://jbrowse.org/demos/graphgenomeviewer/jbrowse-plugin-graphgenomeviewer.esm.js"
    }
  ]
}

RgfaTabixAdapter ships in the same plugin, so the segment tracks below need it as much as the view does. On JBrowse Desktop, install it once from the start screen at Global plugins... → Add custom plugin, putting that esmUrl under Advanced options in ESM build URL and leaving the two fields above it empty.

Browsing the whole graph by locus

A plain GFA records no coordinates on its segments, but walking a P line in step order gives every segment it visits an interval on that path's own sequence. Doing that walk once, offline, and writing the result as the two tabix-indexed BEDs RgfaTabixAdapter reads makes the whole graph queryable by locus:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_pggb_tabix.sh
bash build_pggb_tabix.sh "$gfa" ecoli_pggb K12

It produces ecoli_pggb.segs.bed.gz and ecoli_pggb.links.bed.gz with their indexes. The graph view guide covers the four choices that walk makes and what each one costs. At the odgi extract window below, every interval it derives matches the ones gfa_nodes_to_bed.py derives from the extracted subgraph.

Load it as one FeatureTrack pointed at the shared prefix, the same shape the graph view tutorial uses for an rGFA:

{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  },
  "displayDefaults": { "showLabels": "none" }
}

A segment's name is its GFA id, and pggb cuts one every ~17 bp, so showLabels is off here and in the figures below: at any width the lane is legible at, the ids are a row of overlapping integers.

Now the segments draw as an ordinary track on K12, and Track menu → Launch → Graph genome view (this region) cuts a subgraph from the index with no odgi step in between. Rubberbanding the ruler and picking Graph genome view (this selection) does the same for a window you drag. With the all-vs-all alignment open in the same view, that Launch submenu carries Linear synteny view beside it, so one drag offers both readings of a locus: the graph, and a row per strain with the alignment drawn between neighbours. Each view reaches the other again. A synteny row is a linear view with the same ruler, so a drag on any row's scale bar raises the same Launch menu anchored on that strain, and Replace current view there re-anchors the whole stack on it; the segments lane rides onto the K12 row, so its track menu cuts the graph from inside the stack; and the graph's own menu opens the strains as a stack.

One selection, three views: the Launch menu offering the graph beside the synteny stack, the stack anchored on K12 with the segments lane on its top row, that lane's track menu cutting the graph below, and a drag on the Sakai row re-anchoring the stack on Sakai in place. Open the session this video starts in ↗

The clip below takes that from the beginning: a K12 session carrying the plugin and its gene track, the block above pasted in through Open track..., and the graph cut from the window that leaves. The link under it opens the session it starts in.

A K12 session with no graph in it, to a subgraph: the config above pasted into Open track... → Add track from pasted JSON, the window narrowed onto the IS5 element, and the segments lane's own menu cutting the graph below. The nodes that arrive are the blocks the lane above draws. Open the session this video starts in ↗

A node's drawn length is proportional to its sequence by default, and in the pane that clip ends on one arm is 1,199 bp against neighbours of one to seventy, wide enough to swallow the rest of the drawing. Bubble spread → Compress lengths pulls the longest and shortest nodes towards the graph's mean, which leaves the bubble legible as a bubble. Use it whenever a cut spans kilobases and single bases at once; leave it off when one node has to read as long.

One node per bubble, when the window is wider than the graph can draw

The index above draws one node per GFA segment, and a pggb graph runs about 17 bp per segment, so the drawable window is a kilobase or so. Most of what a cut that size draws is single-base alternatives, one small lens each.

A coarse tier draws one node per bubble instead, with the invariant reference between bubbles as backbone. It needs no new adapter or renderer: RgfaTabixAdapter reads it, since a collapsed bubble is a reference span with an id and a rank, which is all the segments and links files state. It needs a bubble decomposition, and pggb -V already wrote one: the LV=0 records of its vg deconstruct snarl VCF are the top-level bubbles with their own reference spans, allele traversals and allele sequences, so snarls_to_bubble_bed.py turns it into the bubble BED the tier builder reads:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/snarls_to_bubble_bed.py
curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_bubble_tier.sh
python3 snarls_to_bubble_bed.py ecoli_pggb_snarls.vcf.gz ecoli_pggb.bubbles.bed
bash build_bubble_tier.sh ecoli_pggb.bubbles.bed ecoli_pggb.tier50 50

That is the raw snarl tree kept above, since vcfbub pops exactly the top-level records a tier is built from.

gfatools bubble places a bubble on a reference by reading rGFA SN/SO/SR tags, and a pggb graph states the same information in its paths, so on this GFA it reports nothing.

The third argument is the threshold, in bp of content. At 0 every single-base alternative is its own node, which over 20 kb is hundreds of them. At 50 those are absorbed into the backbone and every indel is kept, taking the whole 4.64 Mb graph to about a thousand nodes, so a far wider window becomes drawable:

{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_tier50",
  "name": "pggb graph bubbles (coarse tier, one node per bubble)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.tier50"
  }
}

Every node in a tier has K12 coordinates, backbone and bubble alike: the builder ranks an invariant stretch 0 and a bubble 1, so the reference-position ramp colors the stretches the strains agree on and paints charcoal on the sites they differ at.

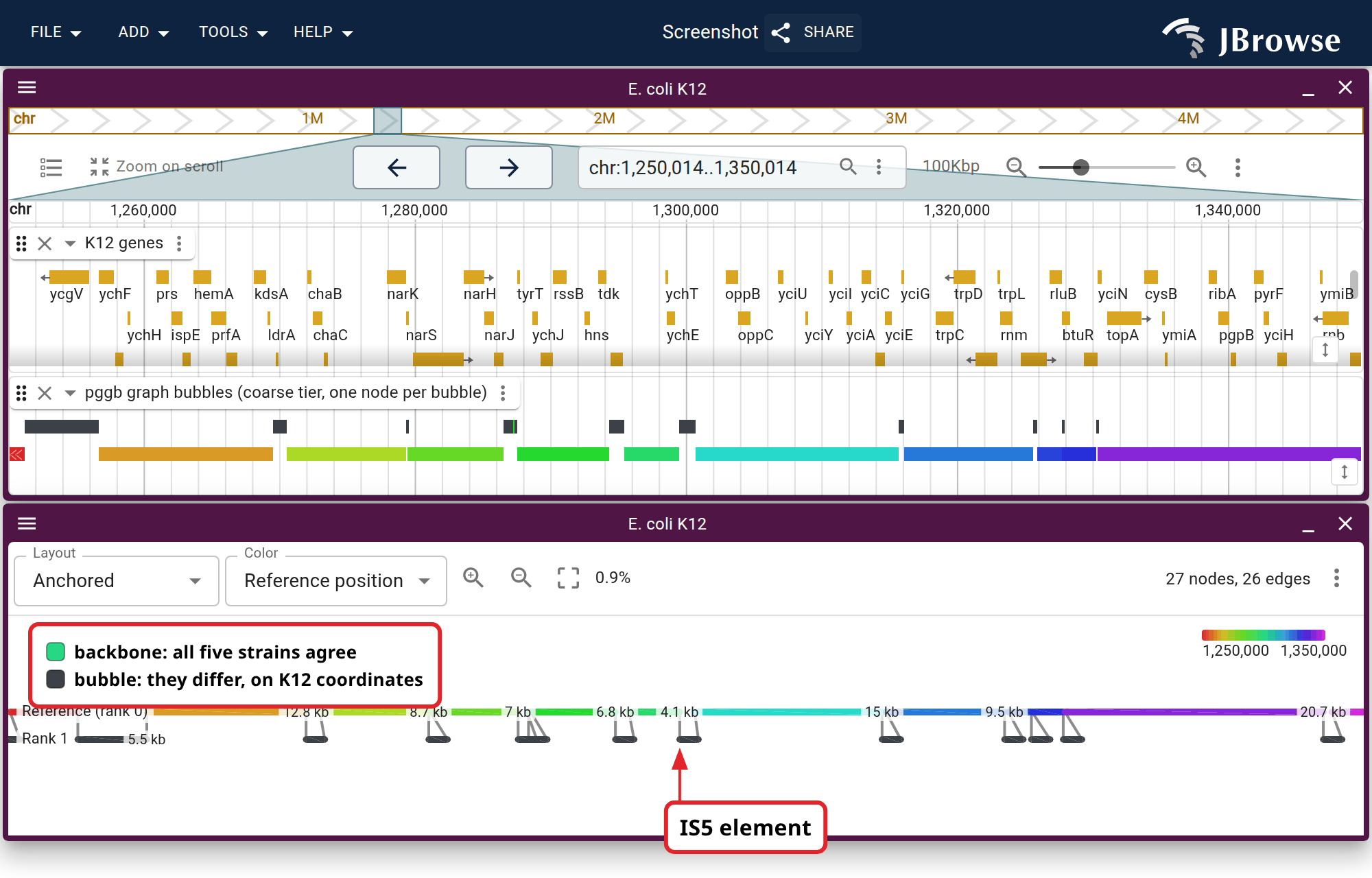

100 kb of K12 around an IS5 element, one node per bubble, as a linear track above and the graph it indexes below. The arrowed bubble is the IS5 element, which K12 carries and the other four skip. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “pggb graph bubbles (coarse tier, one node per bubble)”.
  6. Track menu → Show... → Labels → NonePane 1 · “pggb graph bubbles (coarse tier, one node per bubble)”.
  7. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph bubbles (coarse tier, one node per bubble)”.
  8. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “pggb graph bubbles (coarse tier, one node per bubble)”.
  9. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,250,000-1,350,000.
  10. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  11. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  12. Graph view toolbar → Layout → AnchoredPane 2.
  13. Graph view toolbar → Color → Reference positionPane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_tier50%22%2C%22name%22%3A%22pggb+graph+bubbles+%28coarse+tier%2C+one+node+per+bubble%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb.tier50%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C250%2C000-1%2C350%2C000%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_tier50%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22height%22%3A50%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+1250000%29+%2F+100000+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_tier50%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A1250000%2C%22end%22%3A1350000%7D%2C%22layoutMode%22%3A%22auto%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_bubble_tier

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_tier50",
  "name": "pggb graph bubbles (coarse tier, one node per bubble)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.tier50"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_tier50",
      "name": "pggb graph bubbles (coarse tier, one node per bubble)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.tier50"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,250,000-1,350,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_tier50",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1250000) / 100000 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_tier50",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1250000,
        "end": 1350000
      },
      "layoutMode": "auto",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,250,000-1,350,000",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_tier50",
      "name": "pggb graph bubbles (coarse tier, one node per bubble)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.tier50"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,250,000-1,350,000",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_tier50",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1250000) / 100000 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_tier50",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1250000,
        "end": 1350000
      },
      "layoutMode": "auto",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The tier is a feature track, so it draws in a linear view as well as in the graph. A bubble is anchored on the reference span it replaces; the bubbles take their own row only because at this width most of them are a pixel across.

Hover a node for the segments it collapsed, how many traversals cross it, and its shortest and longest allele. The two tiers are read together, the coarse one to find an event and the fine one to open it, which is why they are the same adapter pointed at a different prefix.

The move between them is the node's own menu. A tier node carries the K12 span it stands for, so Open in K12 takes the linear view straight to that span, which is inside the kilobase the fine index draws at.

The coarse tier's IS5 bubble taken down to the fine index: hovering the node marks the K12 span it stands for in the linear view above, and the node's own Open in K12 entry lands the view on that span, where the segments lane draws. Open the session this video starts in ↗

Switching Layout to Sample rows gives each strain its own row. On this graph a row means carriage, since it names a path that walks the segment. On an rGFA it means build order, because minigraph's SR names the assembly that contributed the segment first.

Rows want a narrower window than the sweep above. A row draws what a strain takes instead of the reference, so it is read segment by segment, and at 17 bp per segment a kilobase leaves each one a few pixels wide. The index says how narrow: tabix ecoli_pggb.segs.bed.gz returns a few dozen backbone segments over this 460 bp and over a thousand across 10 kb.

A row's bar is drawn over the reference it replaces, never over its own sequence length, so an insertion's own length lives in the tooltip instead. That is why CFT073's row carries one long bar labelled 7 kb deletion running off the left edge: its segment is 75 bp on CFT073's own contig, and its two links land on K12:1,004,667 inside the window and on K12:997,574 7.1 kb upstream, so the bar is that 7.1 kb of K12 and most of it is outside the frame. pggb -V writes the same event through vg deconstruct, one record at chr:997,575 genotyped in CFT073 and in none of the other three, and it is drawn again below from CFT073's own coordinates.

In Sample rows the lanes take the MAF's own rows and order: the top row is the K12 backbone, and below it each strain's marks are the segments it takes instead. The MAF row above says the same thing base by base.

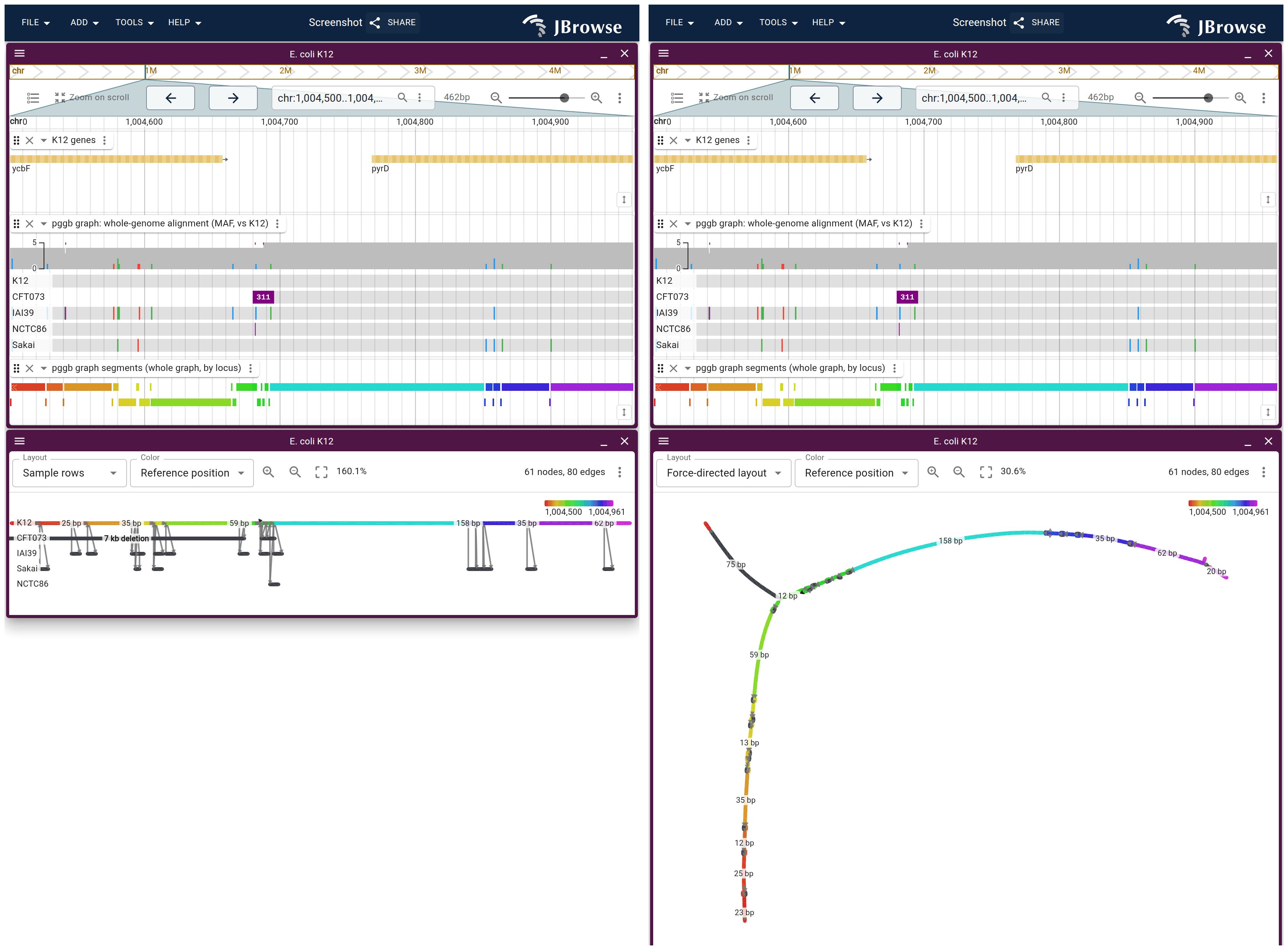

460 bp at the ycbF/pyrD boundary in both layouts, under the same MAF lane. Left, Sample rows. Right, the same nodes with the reference axis let go. Open in JBrowse: Sample rows ↗ (large dataset — this session takes a while to load) · Force-directed ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed MAF (.maf.gz + .tbi).Pane 1 — This figure uses “pggb graph: whole-genome alignment (MAF, vs K12)”.
  6. Track menu → Edit row arrangement... → drag the rows into orderThe same dialog renames a row and recolors it, so a figure's 5 rows carry their order, any labels it shows, and any color it picked.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  7. Track menu → Show... → Show tree (checked)On by default. The item is disabled until there is a tree to show — a clustering run, or a MAF track’s guide tree; the row labels have their own toggle beneath it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  8. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  9. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “pggb graph segments (whole graph, by locus)”.
  10. Track menu → Show... → Labels → NonePane 1 · “pggb graph segments (whole graph, by locus)”.
  11. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  12. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  13. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,004,500-1,004,961.
  14. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  15. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  16. Graph view toolbar → Layout → Sample rowsPane 2.
  17. Graph view toolbar → Color → Reference positionPane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22name%22%3A%22pggb+graph+segments+%28whole+graph%2C+by+locus%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%2C%7B%22type%22%3A%22MafTrack%22%2C%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22name%22%3A%22pggb+graph%3A+whole-genome+alignment+%28MAF%2C+vs+K12%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22MafTabixAdapter%22%2C%22samples%22%3A%5B%22K12%22%2C%22Sakai%22%2C%22CFT073%22%2C%22NCTC86%22%2C%22IAI39%22%5D%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb.maf.bed.gz%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C004%2C500-1%2C004%2C961%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22type%22%3A%22LinearMafDisplay%22%2C%22layout%22%3A%5B%7B%22name%22%3A%22K12%22%7D%2C%7B%22name%22%3A%22CFT073%22%7D%2C%7B%22name%22%3A%22IAI39%22%7D%2C%7B%22name%22%3A%22NCTC86%22%7D%2C%7B%22name%22%3A%22Sakai%22%7D%5D%2C%22showTree%22%3Atrue%2C%22height%22%3A150%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22height%22%3A50%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+1004500%29+%2F+461+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A1004500%2C%22end%22%3A1004961%7D%2C%22layoutMode%22%3A%22samplerows%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_locus_sample_rows_rows

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "ecoli_pggb_maf",
  "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": [
      "K12",
      "Sakai",
      "CFT073",
      "NCTC86",
      "IAI39"
    ],
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "samplerows",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,004,500-1,004,961",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "MafTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "MafTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "samplerows",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed MAF (.maf.gz + .tbi).Pane 1 — This figure uses “pggb graph: whole-genome alignment (MAF, vs K12)”.
  6. Track menu → Edit row arrangement... → drag the rows into orderThe same dialog renames a row and recolors it, so a figure's 5 rows carry their order, any labels it shows, and any color it picked.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  7. Track menu → Show... → Show tree (checked)On by default. The item is disabled until there is a tree to show — a clustering run, or a MAF track’s guide tree; the row labels have their own toggle beneath it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  8. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  9. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “pggb graph segments (whole graph, by locus)”.
  10. Track menu → Show... → Labels → NonePane 1 · “pggb graph segments (whole graph, by locus)”.
  11. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  12. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  13. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,004,500-1,004,961.
  14. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  15. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  16. Graph view toolbar → Layout → Force-directed layoutPane 2.
  17. Graph view toolbar → Color → Reference positionPane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22name%22%3A%22pggb+graph+segments+%28whole+graph%2C+by+locus%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%2C%7B%22type%22%3A%22MafTrack%22%2C%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22name%22%3A%22pggb+graph%3A+whole-genome+alignment+%28MAF%2C+vs+K12%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22MafTabixAdapter%22%2C%22samples%22%3A%5B%22K12%22%2C%22Sakai%22%2C%22CFT073%22%2C%22NCTC86%22%2C%22IAI39%22%5D%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb.maf.bed.gz%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C004%2C500-1%2C004%2C961%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22type%22%3A%22LinearMafDisplay%22%2C%22layout%22%3A%5B%7B%22name%22%3A%22K12%22%7D%2C%7B%22name%22%3A%22CFT073%22%7D%2C%7B%22name%22%3A%22IAI39%22%7D%2C%7B%22name%22%3A%22NCTC86%22%7D%2C%7B%22name%22%3A%22Sakai%22%7D%5D%2C%22showTree%22%3Atrue%2C%22height%22%3A150%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22height%22%3A50%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+1004500%29+%2F+461+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A1004500%2C%22end%22%3A1004961%7D%2C%22layoutMode%22%3A%22force%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_locus_sample_rows_force

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "ecoli_pggb_maf",
  "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": [
      "K12",
      "Sakai",
      "CFT073",
      "NCTC86",
      "IAI39"
    ],
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,004,500-1,004,961",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "MafTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "MafTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The dropdown redraws the same nodes into either layout:

The same 460 bp through the Layout dropdown. Sample rows holds the nodes to the reference axis, one row per strain; the force drawing lets the axis go, and the alternate routes hang off the backbone where the rows had flattened them. Open the session this video starts in ↗

Who carries a segment

Clicking a node opens its details, and on a graph indexed this way they include carriedBy: every haplotype whose path walks that segment. build_pggb_tabix.sh records them as an SM:Z: tag while it walks the paths, so the answer travels with the index.

Read it against contributingAssembly in the same panel, the field an rGFA has to use: there SR is build order, so it names whichever assembly minigraph added the segment first.

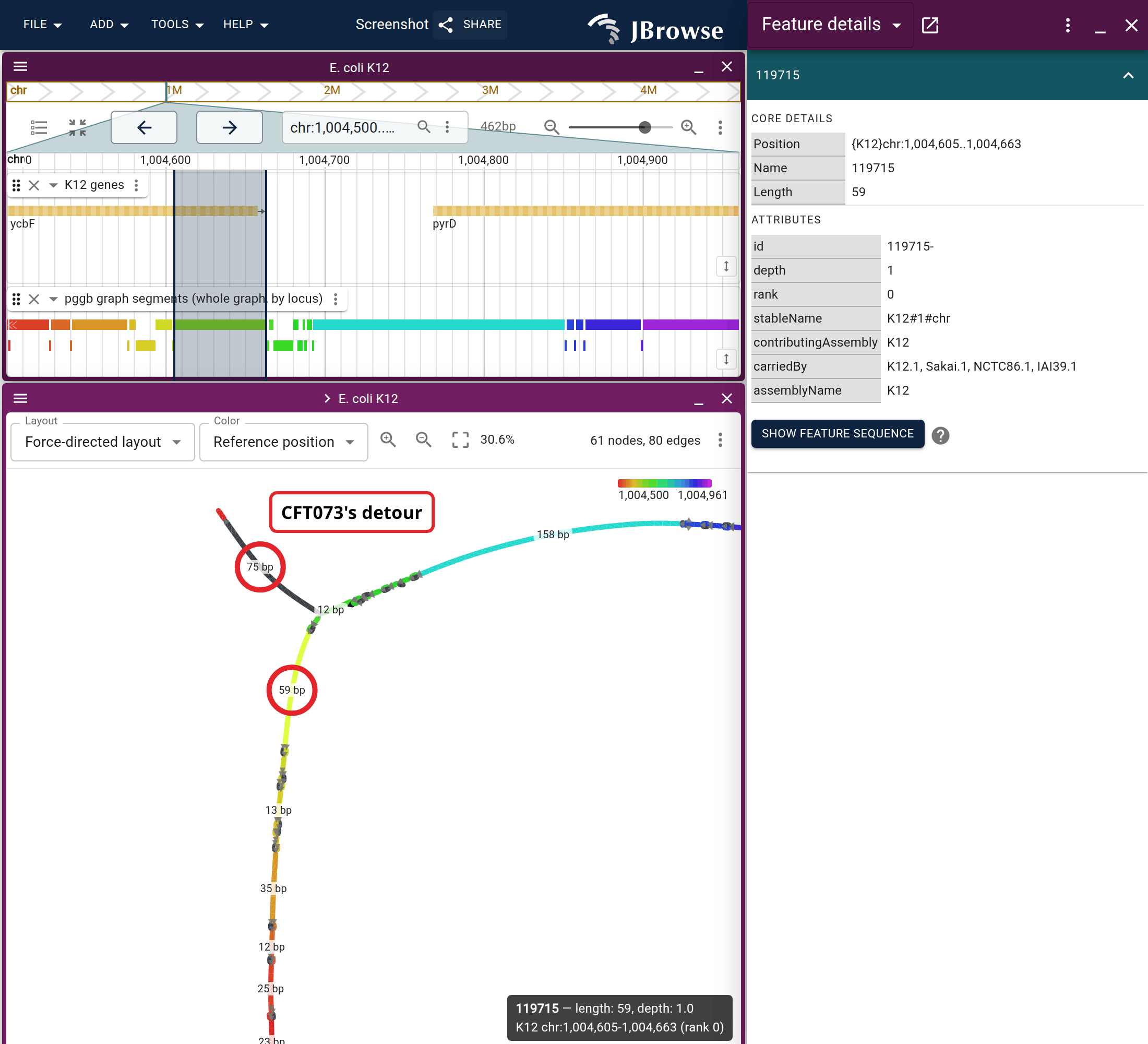

A backbone segment clicked in the graph. carriedBy names the four strains whose paths walk it; contributingAssembly says only K12, which is all an rGFA could report. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “pggb graph segments (whole graph, by locus)”.
  6. Track menu → Show... → Labels → NonePane 1 · “pggb graph segments (whole graph, by locus)”.
  7. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  8. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  9. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,004,500-1,004,961.
  10. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  11. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  12. Graph view toolbar → Layout → Force-directed layoutPane 2.
  13. Graph view toolbar → Color → Reference positionPane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22name%22%3A%22pggb+graph+segments+%28whole+graph%2C+by+locus%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C004%2C500-1%2C004%2C961%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22height%22%3A50%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+1004500%29+%2F+461+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A1004500%2C%22end%22%3A1004961%7D%2C%22layoutMode%22%3A%22force%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_carriage

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,004,500-1,004,961",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,500-1,004,961",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "height": 50,
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 1004500) / 461 * 300)) + ',70%,50%)'"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Carriage as a linear lane

The same tag reaches the segments track as feature attributes, so carriage can be read along K12 rather than one node at a time. samples is the haplotype list and carriers is its length, which is the one a color expression wants:

{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_carriage",
  "name": "pggb graph: segment carriage",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  },
  "displays": [
    {
      "type": "LinearBasicDisplay",
      "displayId": "ecoli_pggb_carriage-LinearBasicDisplay",
      "displayMode": "collapsed",
      "showLabels": false,
      "color": "jexl:feature.carriers==1?'#e31a1c':feature.carriers==2?'#fd8d3c':feature.carriers==3?'#feb24c':feature.carriers==4?'#fed976':feature.carriers==5?'#bdbdbd':'#eeeeee'",
      "legend": [
        { "label": "All 5 strains (core)", "color": "#bdbdbd" },
        { "label": "4 strains", "color": "#fed976" },
        { "label": "3 strains", "color": "#feb24c" },
        { "label": "2 strains", "color": "#fd8d3c" },
        { "label": "1 strain (private)", "color": "#e31a1c" }
      ]
    }
  ]
}
jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_carriage",
  "name": "pggb graph: segment carriage",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  },
  "displays": [
    {
      "type": "LinearBasicDisplay",
      "displayId": "ecoli_pggb_carriage-LinearBasicDisplay",
      "displayMode": "collapsed",
      "showLabels": false,
      "color": "jexl:feature.carriers==1?'\''#e31a1c'\'':feature.carriers==2?'\''#fd8d3c'\'':feature.carriers==3?'\''#feb24c'\'':feature.carriers==4?'\''#fed976'\'':feature.carriers==5?'\''#bdbdbd'\'':'\''#eeeeee'\''",
      "legend": [
        { "label": "All 5 strains (core)", "color": "#bdbdbd" },
        { "label": "4 strains", "color": "#fed976" },
        { "label": "3 strains", "color": "#feb24c" },
        { "label": "2 strains", "color": "#fd8d3c" },
        { "label": "1 strain (private)", "color": "#e31a1c" }
      ]
    }
  ]
}'

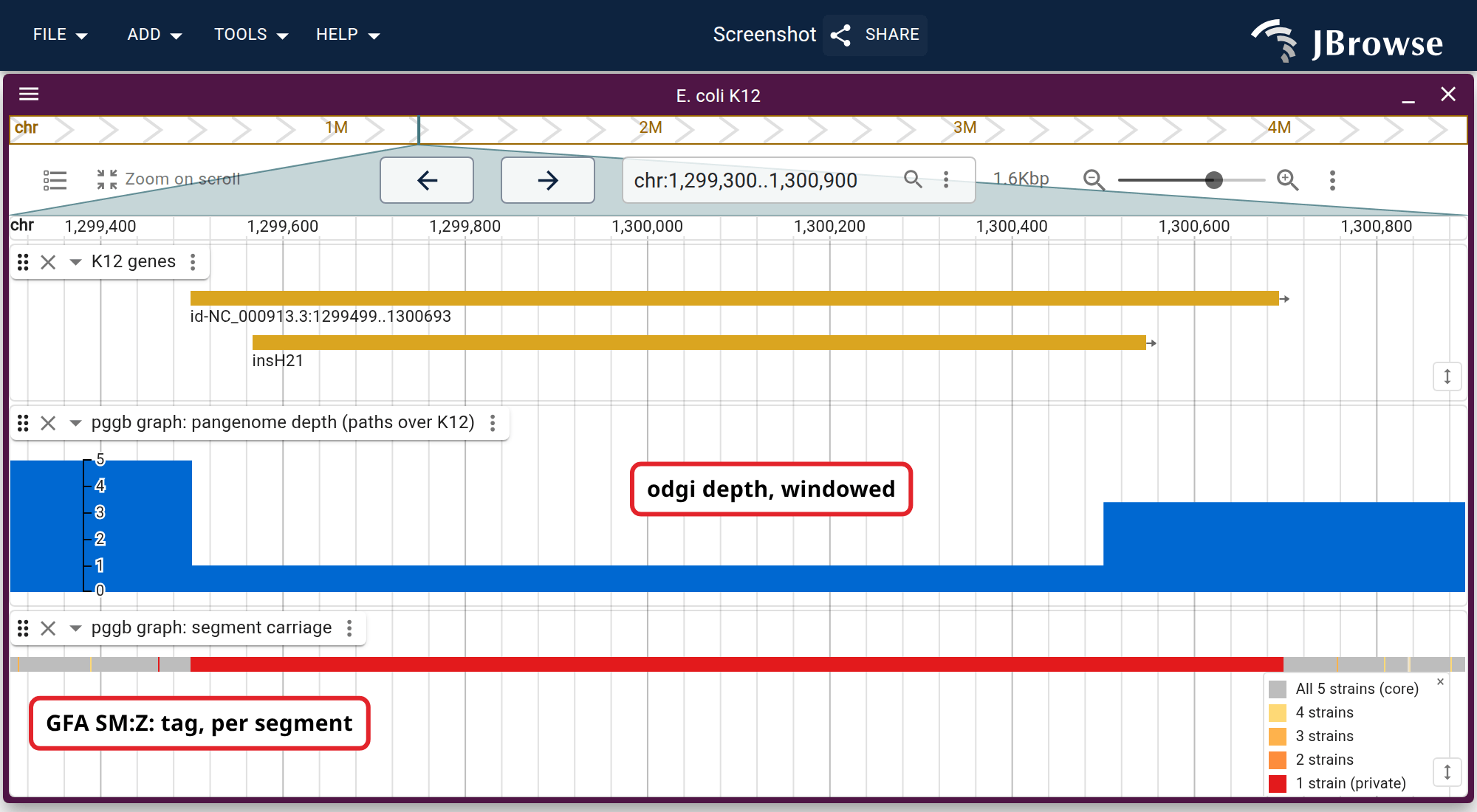

Who carries the IS5 element at K12 chr:1,299,499-1,300,693. The carriage lane is a feature track colored by a jexl expression over the GFA SM:Z: tag, so the red box is a segment K12 alone walks. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  2. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).This figure uses “K12 genes”.
  3. Drag the bar at the bottom edge of the track to resize it.“K12 genes”.
  4. Add your own track: File → Open track..., then paste a URL or choose a local file. This one needs a BigWig file (.bw).This figure uses “pggb graph: pangenome depth (paths over K12)”.
  5. Drag the bar at the bottom edge of the track to resize it.“pggb graph: pangenome depth (paths over K12)”.
  6. Add your own track: File → Open track..., then paste a URL or choose a local file.This figure uses “pggb graph: segment carriage”.
  7. Track menu → Set feature height → Collapsed“pggb graph: segment carriage”.
  8. Track menu → Show... → Labels → None“pggb graph: segment carriage”.
  9. Drag the bar at the bottom edge of the track to resize it.“pggb graph: segment carriage”.
  10. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.“pggb graph: segment carriage”.
  11. Type your region of interest into the location box and press Enter.This figure is at chr:1,299,300-1,300,900.

Some settings have no written step yet — see the Session spec tab.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22QuantitativeTrack%22%2C%22trackId%22%3A%22ecoli_pggb_depth%22%2C%22name%22%3A%22pggb+graph%3A+pangenome+depth+%28paths+over+K12%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22BigWigAdapter%22%2C%22bigWigLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb_depth.bw%22%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_carriage%22%2C%22name%22%3A%22pggb+graph%3A+segment+carriage%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C299%2C300-1%2C300%2C900%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_depth%22%2C%22type%22%3A%22LinearWiggleDisplay%22%2C%22height%22%3A100%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_carriage%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22displayMode%22%3A%22collapsed%22%2C%22showLabels%22%3A%22none%22%2C%22height%22%3A90%2C%22color%22%3A%22jexl%3Afeature.carriers%3D%3D5%3F%27%23bdbdbd%27%3Afeature.carriers%3D%3D4%3F%27%23fed976%27%3Afeature.carriers%3D%3D3%3F%27%23feb24c%27%3Afeature.carriers%3D%3D2%3F%27%23fd8d3c%27%3Afeature.carriers%3D%3D1%3F%27%23e31a1c%27%3A%27%23eeeeee%27%22%2C%22legend%22%3A%5B%7B%22label%22%3A%22All+5+strains+%28core%29%22%2C%22color%22%3A%22%23bdbdbd%22%7D%2C%7B%22label%22%3A%224+strains%22%2C%22color%22%3A%22%23fed976%22%7D%2C%7B%22label%22%3A%223+strains%22%2C%22color%22%3A%22%23feb24c%22%7D%2C%7B%22label%22%3A%222+strains%22%2C%22color%22%3A%22%23fd8d3c%22%7D%2C%7B%22label%22%3A%221+strain+%28private%29%22%2C%22color%22%3A%22%23e31a1c%22%7D%5D%7D%5D%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_carriage_lane

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "QuantitativeTrack",
  "trackId": "ecoli_pggb_depth",
  "name": "pggb graph: pangenome depth (paths over K12)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "BigWigAdapter",
    "bigWigLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_carriage",
  "name": "pggb graph: segment carriage",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "QuantitativeTrack",
      "trackId": "ecoli_pggb_depth",
      "name": "pggb graph: pangenome depth (paths over K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "BigWigAdapter",
        "bigWigLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_carriage",
      "name": "pggb graph: segment carriage",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,299,300-1,300,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 100
        },
        {
          "trackId": "ecoli_pggb_carriage",
          "type": "LinearBasicDisplay",
          "displayMode": "collapsed",
          "showLabels": "none",
          "height": 90,
          "color": "jexl:feature.carriers==5?'#bdbdbd':feature.carriers==4?'#fed976':feature.carriers==3?'#feb24c':feature.carriers==2?'#fd8d3c':feature.carriers==1?'#e31a1c':'#eeeeee'",
          "legend": [
            {
              "label": "All 5 strains (core)",
              "color": "#bdbdbd"
            },
            {
              "label": "4 strains",
              "color": "#fed976"
            },
            {
              "label": "3 strains",
              "color": "#feb24c"
            },
            {
              "label": "2 strains",
              "color": "#fd8d3c"
            },
            {
              "label": "1 strain (private)",
              "color": "#e31a1c"
            }
          ]
        }
      ]
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,299,300-1,300,900",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "QuantitativeTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BigWigAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_3",
    "name": "My track 3",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "QuantitativeTrack",
      "trackId": "ecoli_pggb_depth",
      "name": "pggb graph: pangenome depth (paths over K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "BigWigAdapter",
        "bigWigLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_depth.bw"
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_carriage",
      "name": "pggb graph: segment carriage",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,299,300-1,300,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_depth",
          "type": "LinearWiggleDisplay",
          "height": 100
        },
        {
          "trackId": "ecoli_pggb_carriage",
          "type": "LinearBasicDisplay",
          "displayMode": "collapsed",
          "showLabels": "none",
          "height": 90,
          "color": "jexl:feature.carriers==5?'#bdbdbd':feature.carriers==4?'#fed976':feature.carriers==3?'#feb24c':feature.carriers==2?'#fd8d3c':feature.carriers==1?'#e31a1c':'#eeeeee'",
          "legend": [
            {
              "label": "All 5 strains (core)",
              "color": "#bdbdbd"
            },
            {
              "label": "4 strains",
              "color": "#fed976"
            },
            {
              "label": "3 strains",
              "color": "#feb24c"
            },
            {
              "label": "2 strains",
              "color": "#fd8d3c"
            },
            {
              "label": "1 strain (private)",
              "color": "#e31a1c"
            }
          ]
        }
      ]
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Read it against the depth track. Both answer core versus accessory, in different units: depth is a mean over the windows tiled above, so an accessory stretch shorter than one window is averaged into its neighbours, while the lane is one box per segment, which is where the graph states carriage.

The last color in the chain is the fallback. An rGFA has no tag column, so carriers is absent rather than 0 and the whole lane comes out in that color.

Opening a node in its own strain

A segment the reference never visits sits on its own carrier's coordinates, so the graph can open the strain itself. Right-click that 75 bp CFT073 segment and pick Open in CFT073, and it opens CFT073 at 1,048,515, its own offset, carrying CFT073's gene track. A node's own menu is flat, one entry per assembly the session has loaded; the Launch cascade the view menu carries is the whole-window version of the same thing.

The node's own menu opened on the CFT073 allele, and the view its Open in entry adds: CFT073 on its own coordinates, with its gene track already under it. Open the session this video starts in ↗

That is the deletion read from the donor's side, against annotation neither the graph nor the index has seen. The two links bridge K12:997,574 to K12:1,004,667, and seven K12 genes sit inside that span (elfA, elfD, elfC, elfG, ycbU, ycbV, ycbF, the elf fimbrial operon and its neighbours), with ssuE ending just before it and pyrD starting just after. CFT073 runs ssuE straight into pyrD.

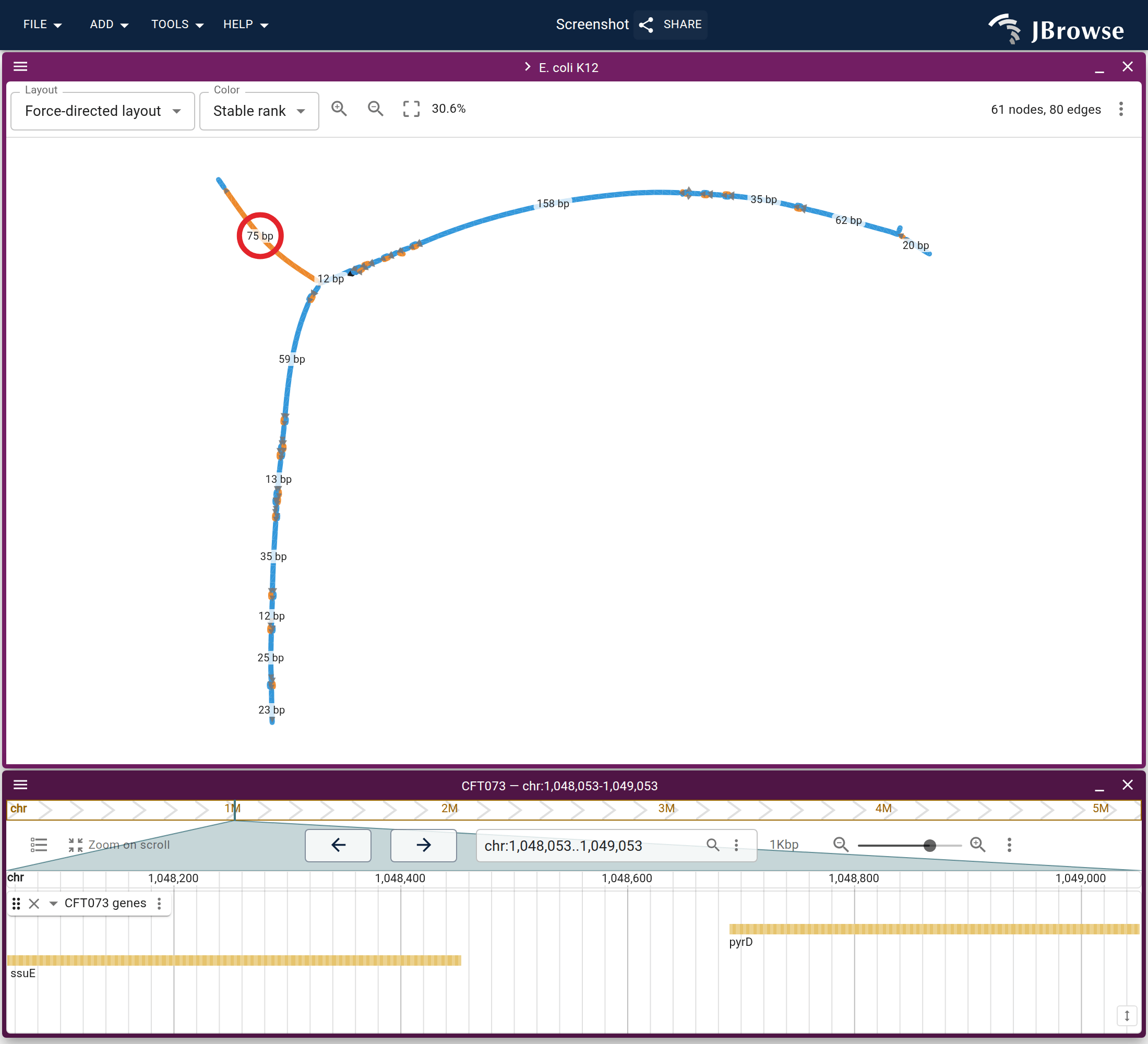

The 75 bp CFT073 segment ringed in the graph, and the linear view its menu entry opens: CFT073 on its own coordinates, where ssuE runs into pyrD with nothing between them. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.
  2. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.
  3. Graph view toolbar → Layout → Force-directed layout
  4. Graph view toolbar → Color → Stable rank

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fecoli_pangenome.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22name%22%3A%22pggb+graph+segments+%28whole+graph%2C+by+locus%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22id%22%3A%22pggb_launch_graph%22%2C%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A1004500%2C%22end%22%3A1004961%7D%2C%22layoutMode%22%3A%22force%22%2C%22colorScheme%22%3A%22stable-rank%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_strain_launch

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "id": "pggb_launch_graph",
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "stable-rank"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/ecoli_pangenome.json

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "id": "pggb_launch_graph",
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 1004500,
        "end": 1004961
      },
      "layoutMode": "force",
      "colorScheme": "stable-rank"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/ecoli_pangenome.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The graph genome view guide covers the rest of that menu, including the synteny entry that opens every contributing strain at once.

Limits of the locus index

Three limits on browsing a base-level graph by locus:

  • The index is offline. Nothing reads the GFA live, so it is rebuilt whenever the graph changes.
  • It grows with total sequence rather than with variation. A pggb graph runs about 17 bp per segment, so a five-strain bacterial pangenome is a few hundred thousand segments and a human pangenome at base level is orders of magnitude past that. pggb itself is run that way at scale, via partition-before-pggb, so index a community or a chromosome at a time and prefer the SV-resolution minigraph graph for whole-genome browsing. The HPRC tutorial takes that route on the Human Pangenome Reference Consortium's graph, which publishes an SV-resolution rGFA beside its base-level graph.
  • The drawable window is small, a property of the graph. At 17 bp per segment, 1 kb is around 150 nodes and 3 kb is a solid braid, and the view declines past its node budget.

A segment carried by several assemblies draws on one row: sample rows put it on the first path that walks it, and the rest are in the node popup under carriedBy.

The build script also runs minigraph -cxggs over the same five strains and indexes the rGFA it emits the same way, so the figure below can put one locus through both graphs. The two panes are two orders of magnitude apart in span: the minigraph side covers three whole backbone segments, the pggb side the stretch banded on its ruler.

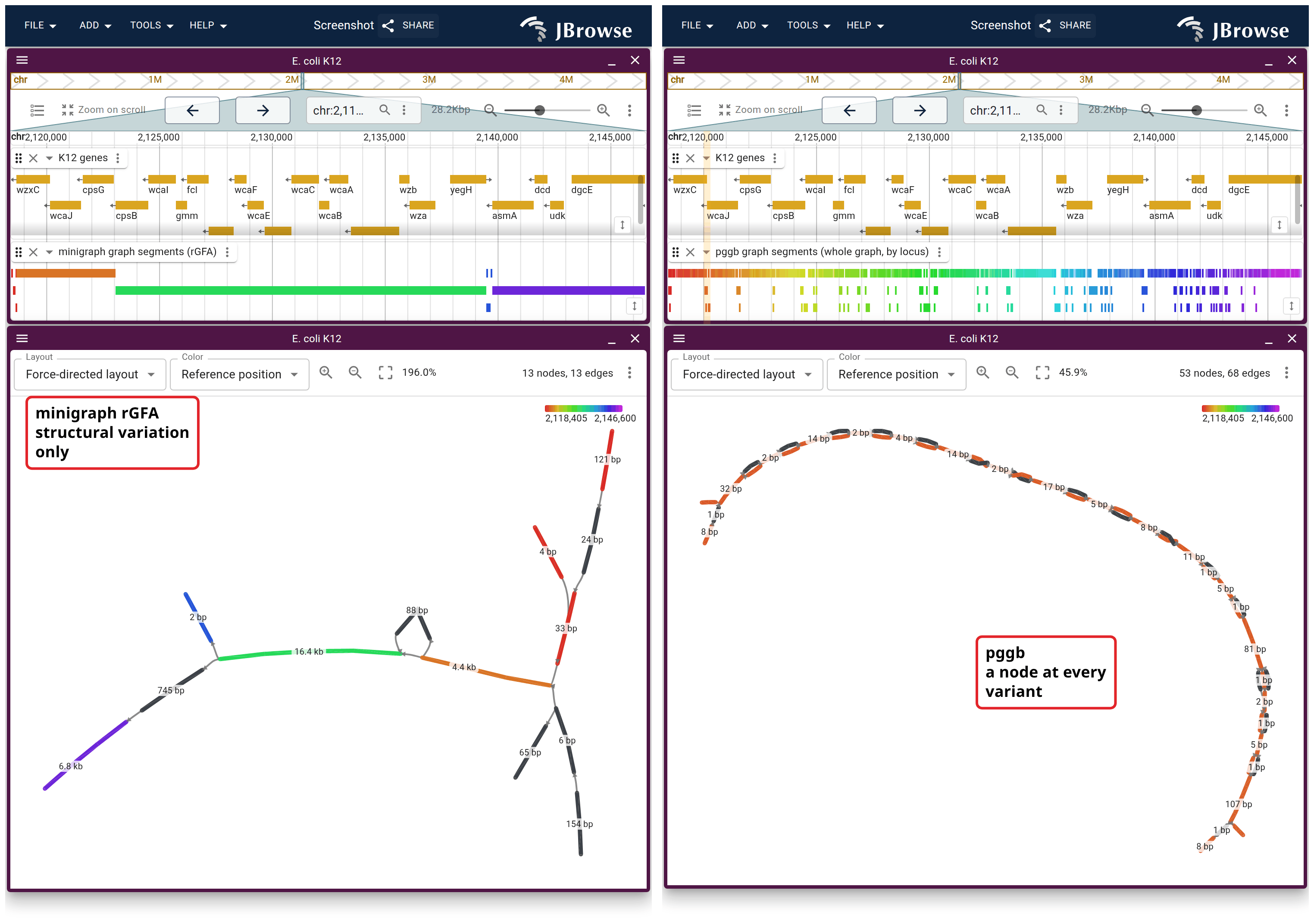

One stretch of K12 at the colanic acid cluster through both graphs, each over the window it can draw. Left, the minigraph rGFA. Right, the pggb graph, with a node at every variant. Open in JBrowse: minigraph ↗ (large dataset — this session takes a while to load) · pggb ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “minigraph graph segments (rGFA)”.
  6. Track menu → Show... → Labels → NonePane 1 · “minigraph graph segments (rGFA)”.
  7. Track menu → Set feature height → Track sizing → Fixed feature height + autogrow track heightPane 1 · “minigraph graph segments (rGFA)”.
  8. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “minigraph graph segments (rGFA)”.
  9. Track menu → Settings → maxFeatureScreenDensityThe features-per-pixel ceiling above which the track asks before drawing. Nothing sets it from a menu, so it is raised on the config.Pane 1 · “minigraph graph segments (rGFA)”.
  10. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:2,118,405-2,146,600.
  11. View menu → Zoom to region / use the location box, then add a highlightThis figure highlights 0 regions; highlights can also be set with the &highlight= URL parameter.Pane 1.
  12. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  13. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  14. Graph view menu → Settings → Bubble spread → Compress lengthsSets a floor on how long a node is drawn in the force layout, so a short allele is a visible arm rather than a speck. Does nothing in the anchored layouts, which place a node from its coordinates.Pane 2.
  15. Graph view menu → Settings → Layout quality → HighHow many iterations the force layout runs. The default is enough for a small graph; raising it is what removes crossings from a drawing that has any.Pane 2.
  16. Graph view toolbar → Layout → Force-directed layoutPane 2.
  17. Graph view toolbar → Color → Reference positionPane 2.

Some settings have no written step yet — see the Session spec tab.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_minigraph_segments%22%2C%22name%22%3A%22minigraph+graph+segments+%28rGFA%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_minigraph%22%7D%2C%22displayDefaults%22%3A%7B%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3D%3D0%3F%27rgb%2852%2C152%2C219%29%27%3A%27rgb%28237%2C137%2C44%29%27%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A2%2C118%2C405-2%2C146%2C600%22%2C%22highlight%22%3A%5B%5D%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_minigraph_segments%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22heightMode%22%3A%22grow%22%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+2118405%29+%2F+28195+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%2C%22maxFeatureScreenDensity%22%3A20%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_minigraph_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A2118646%2C%22end%22%3A2139486%7D%2C%22colorDomain%22%3A%7B%22start%22%3A2118405%2C%22end%22%3A2146600%7D%2C%22bubbleSpread%22%3A%22compress%22%2C%22layoutQuality%22%3A3%2C%22layoutMode%22%3A%22force%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fgraph_resolution_minigraph

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_minigraph_segments",
  "name": "minigraph graph segments (rGFA)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_minigraph"
  },
  "displayDefaults": {
    "color": "jexl:get(feature,'\''rank'\'')==0?'\''rgb(52,152,219)'\'':'\''rgb(237,137,44)'\''"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_minigraph_segments",
      "name": "minigraph graph segments (rGFA)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_minigraph"
      },
      "displayDefaults": {
        "color": "jexl:get(feature,'rank')==0?'rgb(52,152,219)':'rgb(237,137,44)'"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,118,405-2,146,600",
      "highlight": [],
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_minigraph_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "heightMode": "grow",
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 2118405) / 28195 * 300)) + ',70%,50%)'",
          "maxFeatureScreenDensity": 20
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_minigraph_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 2118646,
        "end": 2139486
      },
      "colorDomain": {
        "start": 2118405,
        "end": 2146600
      },
      "bubbleSpread": "compress",
      "layoutQuality": 3,
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:2,118,405-2,146,600",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_minigraph_segments",
      "name": "minigraph graph segments (rGFA)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_minigraph"
      },
      "displayDefaults": {
        "color": "jexl:get(feature,'rank')==0?'rgb(52,152,219)':'rgb(237,137,44)'"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,118,405-2,146,600",
      "highlight": [],
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_minigraph_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "heightMode": "grow",
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 2118405) / 28195 * 300)) + ',70%,50%)'",
          "maxFeatureScreenDensity": 20
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_minigraph_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 2118646,
        "end": 2139486
      },
      "colorDomain": {
        "start": 2118405,
        "end": 2146600
      },
      "bubbleSpread": "compress",
      "layoutQuality": 3,
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file.Pane 1 — This figure uses “pggb graph segments (whole graph, by locus)”.
  6. Track menu → Show... → Labels → NonePane 1 · “pggb graph segments (whole graph, by locus)”.
  7. Track menu → Set feature height → Track sizing → Fixed feature height + autogrow track heightPane 1 · “pggb graph segments (whole graph, by locus)”.
  8. Track menu → Settings → colorA per-feature expression. The Color by... radios write a solid color, a per-attribute palette, and the strand preset only, so an expression of any other shape is authored on the track config.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  9. Track menu → Settings → maxFeatureScreenDensityThe features-per-pixel ceiling above which the track asks before drawing. Nothing sets it from a menu, so it is raised on the config.Pane 1 · “pggb graph segments (whole graph, by locus)”.
  10. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:2,118,405-2,146,600.
  11. View menu → Zoom to region / use the location box, then add a highlightThis figure highlights 1 region; highlights can also be set with the &highlight= URL parameter.Pane 1.
  12. Track menu (on the graph segments track) → Launch → Graph genome view (this region)Launching from the track is what ties the two panels together: the graph is cut from the same file the lane above it draws.Pane 2.
  13. Set the location box before launching the graph view.The cut is the window the linear view was showing, so the graph covers what you were looking at.Pane 2.
  14. Graph view menu → Settings → Bubble spread → Compress lengthsSets a floor on how long a node is drawn in the force layout, so a short allele is a visible arm rather than a speck. Does nothing in the anchored layouts, which place a node from its coordinates.Pane 2.
  15. Graph view menu → Settings → Layout quality → HighHow many iterations the force layout runs. The default is enough for a small graph; raising it is what removes crossings from a drawing that has any.Pane 2.
  16. Graph view toolbar → Layout → Force-directed layoutPane 2.
  17. Graph view toolbar → Color → Reference positionPane 2.

Some settings have no written step yet — see the Session spec tab.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22name%22%3A%22pggb+graph+segments+%28whole+graph%2C+by+locus%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22RgfaTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A2%2C118%2C405-2%2C146%2C600%22%2C%22highlight%22%3A%5B%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A2120000%2C%22end%22%3A2120300%7D%5D%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_segments%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22showLabels%22%3A%22none%22%2C%22heightMode%22%3A%22grow%22%2C%22color%22%3A%22jexl%3Aget%28feature%2C%27rank%27%29%3E0+%3F+%27rgb%2860%2C65%2C72%29%27+%3A+%27hsl%28%27+%2B+min%28300%2C+max%280%2C+%28%28get%28feature%2C%27start%27%29%2Bget%28feature%2C%27end%27%29%29%2F2+-+2118405%29+%2F+28195+*+300%29%29+%2B+%27%2C70%25%2C50%25%29%27%22%2C%22maxFeatureScreenDensity%22%3A20%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22loadedTrackId%22%3A%22ecoli_pggb_segments%22%2C%22loadedRegion%22%3A%7B%22refName%22%3A%22chr%22%2C%22assemblyName%22%3A%22K12%22%2C%22start%22%3A2120000%2C%22end%22%3A2120300%7D%2C%22colorDomain%22%3A%7B%22start%22%3A2118405%2C%22end%22%3A2146600%7D%2C%22bubbleSpread%22%3A%22compress%22%2C%22layoutQuality%22%3A3%2C%22layoutMode%22%3A%22force%22%2C%22colorScheme%22%3A%22reference-position%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fgraph_resolution_pggb

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_segments",
  "name": "pggb graph segments (whole graph, by locus)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,118,405-2,146,600",
      "highlight": [
        {
          "refName": "chr",
          "assemblyName": "K12",
          "start": 2120000,
          "end": 2120300
        }
      ],
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "heightMode": "grow",
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 2118405) / 28195 * 300)) + ',70%,50%)'",
          "maxFeatureScreenDensity": 20
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 2120000,
        "end": 2120300
      },
      "colorDomain": {
        "start": 2118405,
        "end": 2146600
      },
      "bubbleSpread": "compress",
      "layoutQuality": 3,
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:2,118,405-2,146,600",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "RgfaTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_segments",
      "name": "pggb graph segments (whole graph, by locus)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "RgfaTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:2,118,405-2,146,600",
      "highlight": [
        {
          "refName": "chr",
          "assemblyName": "K12",
          "start": 2120000,
          "end": 2120300
        }
      ],
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_segments",
          "type": "LinearBasicDisplay",
          "showLabels": "none",
          "heightMode": "grow",
          "color": "jexl:get(feature,'rank')>0 ? 'rgb(60,65,72)' : 'hsl(' + min(300, max(0, ((get(feature,'start')+get(feature,'end'))/2 - 2118405) / 28195 * 300)) + ',70%,50%)'",
          "maxFeatureScreenDensity": 20
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "loadedTrackId": "ecoli_pggb_segments",
      "loadedRegion": {
        "refName": "chr",
        "assemblyName": "K12",
        "start": 2120000,
        "end": 2120300
      },
      "colorDomain": {
        "start": 2118405,
        "end": 2146600
      },
      "bubbleSpread": "compress",
      "layoutQuality": 3,
      "layoutMode": "force",
      "colorScheme": "reference-position"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Both panes are colored by reference position over the same 28 kb, so a node and the block it came from take one color, and each pane's header carries its node and edge counts. Browse the rGFA whole-genome, and open the pggb graph where you want every base.

A window as a file

With no index, Add → Graph genome view takes a GFA by file or URL. This is the route for a graph too large to index, or for a window someone hands you. Three odgi commands cut one:

  • extract -E takes every node between the first and last in the range
  • sort -O compacts the node ids
  • view -g writes GFA

-E is the aggressive option; -c/-d expand by a bounded number of steps or bp instead, which is what the view's own Graph context setting does when it cuts from an index:

in_pggb bash -c "odgi extract -i /data/$og -r K12#1#chr:1004500-1004900 -E -o - \
  | odgi sort -i - -o - -O \
  | odgi view -i - -g" > ecoli_pggb_subgraph.gfa

Nothing in a plain GFA marks one path as the reference, so pick which to anchor on under View menu → Settings → Reference path. odgi extract writes the window into the path name (K12#1#chr:1004500-1004961), which is where the offsets come from.

The same walk outside the browser puts those nodes on a linear track, so the segment under the cursor is the same segment in both panels:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/gfa_nodes_to_bed.py
python3 gfa_nodes_to_bed.py ecoli_pggb_subgraph.gfa K12#1#chr chr \
  | sort -k1,1 -k2,2n | bgzip > ecoli_pggb_subgraph_nodes.bed.gz
tabix -p bed ecoli_pggb_subgraph_nodes.bed.gz

The BED's itemRgb is the view's own viridis Depth ramp sampled the same way, so the track needs no color configuration and cannot drift from the graph. Nodes the reference path never visits are the alternate alleles. They have no K12 position, so they are absent from the linear track, and in the graph their drawn width is a visibility floor rather than their length in bp, which the node tooltip gives.

A cut graph has ends, and this one has a conspicuous one: the 93 bp node at the green-to-yellow junction, ringed in the figure below, is where CFT073 rejoins. It is the near side of the same deletion drawn above, and its second link falls 7 kb outside the window odgi extract -E was given, so it draws with one end open.

Widening until it closes has a cost. Both anchors are in view only from K12#1#chr:997,574-1,004,961, and -E over a window that size returns thousands of segments where this one returns 48, because a base-level graph averages ~17 bp per segment. -c 1 fetches the far anchor without everything between, and that node's own two ends are then open.

The same event is four nodes in the minigraph graph of these same five strains, where a structural graph spends one segment on the 7 kb K12 stretch. Query its links index over the span and both routes are one row each:

tabix https://jbrowse.org/demos/ecoli_pangenome/ecoli_minigraph.links.bed.gz \
  'K12#1#chr:997000-1005000'

s378 → s379 → s380 is K12 through the deletion and s378 → s2025 → s380 is CFT073 around it, where s2025 is this same CFT073 sequence.

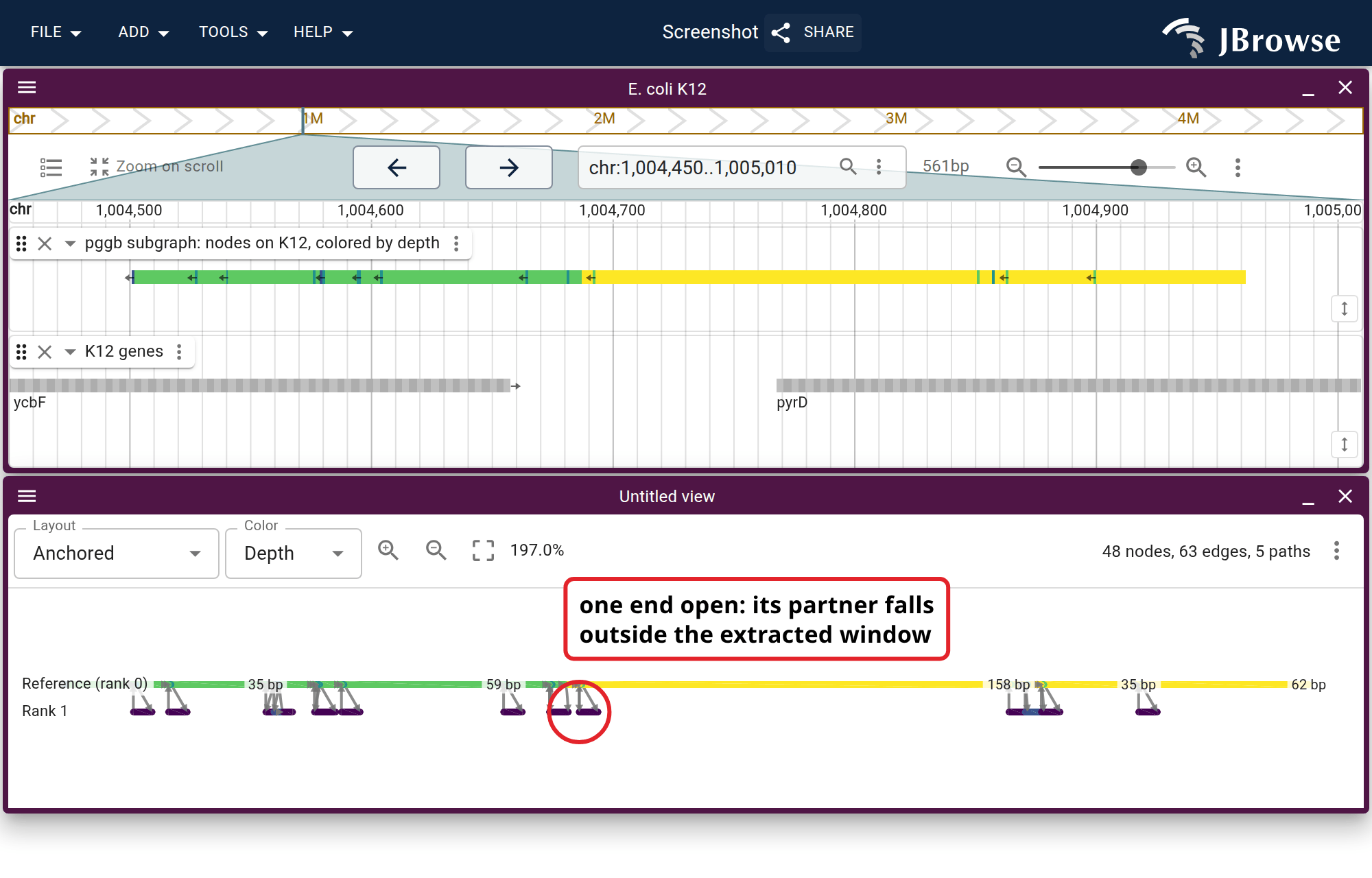

The extracted file beside a linear view of the same locus, anchored on the graph's K12 path so both share an axis and the Depth colors. The ringed node is the one left with an open end. Open this view in JBrowse ↗

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed BED (.bed.gz + .tbi).Pane 1 — This figure uses “pggb subgraph: nodes on K12, colored by depth”.
  4. Track menu → Set feature height → CollapsedPane 1 · “pggb subgraph: nodes on K12, colored by depth”.
  5. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb subgraph: nodes on K12, colored by depth”.
  6. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  7. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  8. Track menu → Color by... → Solid color... → rgb(130,130,130)Pane 1 · “K12 genes”.
  9. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,004,450-1,005,010.
  10. Open the view: Add → Graph genome view, then on its "Load a GFA graph" form paste the URL and click Open (or Choose file for a local .gfa)Loads the whole graph, so it suits a subgraph or a small assembly. A window of a large one is cut from a segments track instead.Pane 2.
  11. Graph view toolbar → Color → DepthPane 2.
  12. Graph view toolbar → Layout → AnchoredPane 2.
  13. Graph view menu → Settings → Reference path → K12Which path the anchored layouts draw x against. Only offered when the file states more than one.Pane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22ecoli_pggb_subgraph_nodes%22%2C%22name%22%3A%22pggb+subgraph%3A+nodes+on+K12%2C+colored+by+depth%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22BedTabixAdapter%22%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb_subgraph_nodes.bed.gz%22%2C%22columnNames%22%3A%5B%22chrom%22%2C%22start%22%2C%22end%22%2C%22name%22%2C%22depth%22%2C%22strand%22%2C%22thickStart%22%2C%22thickEnd%22%2C%22itemRgb%22%5D%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C004%2C450-1%2C005%2C010%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22ecoli_pggb_subgraph_nodes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22displayMode%22%3A%22collapsed%22%2C%22height%22%3A40%7D%2C%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A60%2C%22color%22%3A%22rgb%28130%2C130%2C130%29%22%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22gfaLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb_subgraph.gfa%22%7D%2C%22colorScheme%22%3A%22depth%22%2C%22layoutMode%22%3A%22auto%22%2C%22referencePath%22%3A%22K12%22%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Flocal_subgraph

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "ecoli_pggb_subgraph_nodes",
  "name": "pggb subgraph: nodes on K12, colored by depth",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "BedTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_subgraph_nodes.bed.gz",
    "columnNames": [
      "chrom",
      "start",
      "end",
      "name",
      "depth",
      "strand",
      "thickStart",
      "thickEnd",
      "itemRgb"
    ]
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_subgraph_nodes",
      "name": "pggb subgraph: nodes on K12, colored by depth",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_subgraph_nodes.bed.gz",
        "columnNames": [
          "chrom",
          "start",
          "end",
          "name",
          "depth",
          "strand",
          "thickStart",
          "thickEnd",
          "itemRgb"
        ]
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,450-1,005,010",
      "tracks": [
        {
          "trackId": "ecoli_pggb_subgraph_nodes",
          "type": "LinearBasicDisplay",
          "displayMode": "collapsed",
          "height": 40
        },
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 60,
          "color": "rgb(130,130,130)"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "gfaLocation": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_subgraph.gfa"
      },
      "colorScheme": "depth",
      "layoutMode": "auto",
      "referencePath": "K12"
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,004,450-1,005,010",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "BedTabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "FeatureTrack",
      "trackId": "ecoli_pggb_subgraph_nodes",
      "name": "pggb subgraph: nodes on K12, colored by depth",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "BedTabixAdapter",
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_subgraph_nodes.bed.gz",
        "columnNames": [
          "chrom",
          "start",
          "end",
          "name",
          "depth",
          "strand",
          "thickStart",
          "thickEnd",
          "itemRgb"
        ]
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "assembly": "K12",
      "loc": "chr:1,004,450-1,005,010",
      "tracks": [
        {
          "trackId": "ecoli_pggb_subgraph_nodes",
          "type": "LinearBasicDisplay",
          "displayMode": "collapsed",
          "height": 40
        },
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 60,
          "color": "rgb(130,130,130)"
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "gfaLocation": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_subgraph.gfa"
      },
      "colorScheme": "depth",
      "layoutMode": "auto",
      "referencePath": "K12"
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

-d is the answer at a collapsed repeat. The graph folds a repeat's copies onto one run of segments, so -E walks out of the window to every copy on every chromosome: at the 16S rRNA gene rrsB it returns tens of thousands of segments for a 500 bp cut, where -d 500 returns six.

in_pggb bash -c "odgi extract -i /data/$og -r K12#1#chr:4166800-4167300 -d 500 -o - \
  | odgi sort -i - -o - -O \
  | odgi view -i - -g" > ecoli_pggb_rrna.gfa

odgi paths -L on that cut lists nine path intervals over those six segments, one per visit and named for where the visit starts: two copies each in Sakai, CFT073, NCTC86 and IAI39, one in K12. Nine locations across five chromosomes are one run of segments, which is the collapse the depth curve reads as a spike and untangle draws in coordinate space.

Drawing the haplotype paths

A P line is a path: the ordered list of segments one strain takes through the graph, and a W line is the same thing in GFA 1.1's walk syntax. View menu → Settings → Draw paths draws them. Every node and every connector is split lengthwise into one lane per path, in the order of the color key beside the drawing, and a strain that does not walk a node leaves its lane empty there. Set Color to Grey first, so the only colors in the drawing are the paths.

One lane per path makes carriage legible on a node as short as a single base: an absence lands at the same height on every node, so a missing strain is a gap in a fixed place. A strain with no colored arc walks the window on the backbone.

The setting needs a graph with P or W records. An rGFA has neither, and neither does a subgraph cut from the tabix index above, which rebuilds segments and links only. The file route keeps them: cut the IS5 bubble the coarse tier arrows as a file and the P lines come with it.

in_pggb bash -c "odgi extract -i /data/$og -r K12#1#chr:1299400-1300800 -E -o - \
  | odgi sort -i - -o - -O \
  | odgi view -i - -g" > ecoli_pggb_is5.gfa

The figure keeps the same interval in K12 coordinates above the graph, because a force drawing has no axis of its own. The gene lane names the element (insH21, the IS5 transposase) and the whole-genome alignment states the same carriage through an alignment the graph had no part in.

The broken line in the drawing is the deletion edge: sequence that is not there.

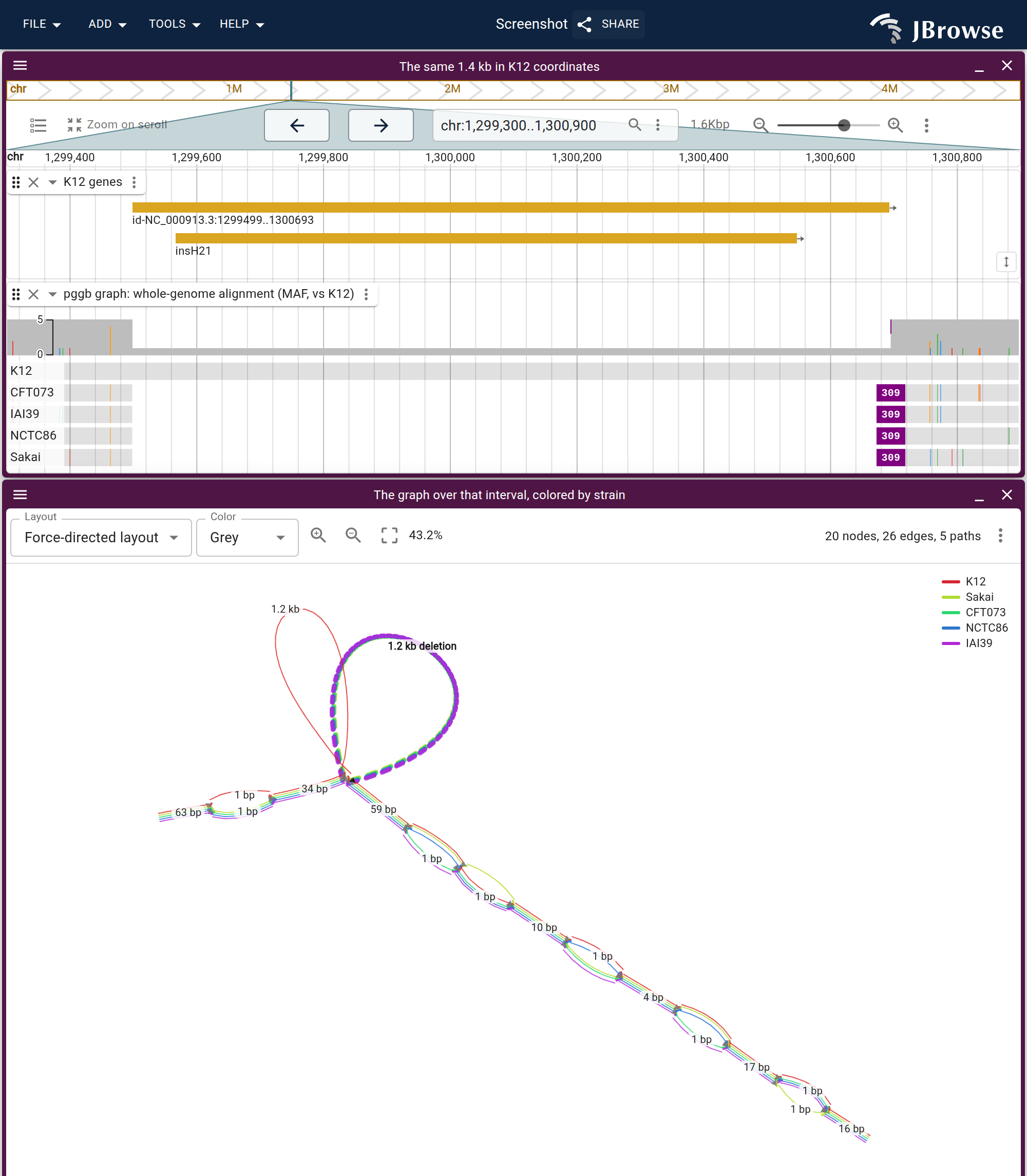

The IS5 bubble cut as a file, so its P lines survive: the interval in K12 coordinates above, the bubble with the strain paths drawn below. Four strokes run along the broken deletion edge, and the missing one is K12. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

The steps behind the figure above, run against your own data.

  1. Open pane 1: Add → Linear genome view.
  2. Open your genome: on the JBrowse Desktop start screen click Open new genome (or Show all available genomes to pick a hosted one).Pane 1 — This figure uses K12, loaded from a bgzip-compressed FASTA (.fa.gz + .fai + .gzi).
  3. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed GFF3 (.gff.gz + .tbi).Pane 1 — This figure uses “K12 genes”.
  4. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “K12 genes”.
  5. Add your own track: open this view's track selector, click + and choose Add track, then paste a URL or choose a local file. This one needs a bgzip-compressed, tabix-indexed MAF (.maf.gz + .tbi).Pane 1 — This figure uses “pggb graph: whole-genome alignment (MAF, vs K12)”.
  6. Track menu → Edit row arrangement... → drag the rows into orderThe same dialog renames a row and recolors it, so a figure's 5 rows carry their order, any labels it shows, and any color it picked.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  7. Track menu → Show... → Show tree (checked)On by default. The item is disabled until there is a tree to show — a clustering run, or a MAF track’s guide tree; the row labels have their own toggle beneath it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  8. Drag the bar at the bottom edge of the track to resize it.Pane 1 · “pggb graph: whole-genome alignment (MAF, vs K12)”.
  9. Type your region of interest into the location box and press Enter.Pane 1 — This figure is at chr:1,299,300-1,300,900.
  10. Click the view's title in its header and enter "The same 1.4 kb in K12 coordinates"Pane 1.
  11. Click the view's title in its header and enter "The graph over that interval, colored by strain"Pane 2.
  12. Open the view: Add → Graph genome view, then on its "Load a GFA graph" form paste the URL and click Open (or Choose file for a local .gfa)Loads the whole graph, so it suits a subgraph or a small assembly. A window of a large one is cut from a segments track instead.Pane 2.
  13. Graph view toolbar → Layout → Force-directed layoutPane 2.
  14. Graph view menu → Settings → Layout quality → HighestHow many iterations the force layout runs. The default is enough for a small graph; raising it is what removes crossings from a drawing that has any.Pane 2.
  15. Graph view menu → Settings → Bubble spread → Open bubblesSets a floor on how long a node is drawn in the force layout, so a short allele is a visible arm rather than a speck. Does nothing in the anchored layouts, which place a node from its coordinates.Pane 2.
  16. Graph view toolbar → Color → GreyPane 2.
  17. Graph view menu → Settings → Reference path → K12Which path the anchored layouts draw x against. Only offered when the file states more than one.Pane 2.
  18. Graph view menu → Settings → Draw paths (on)Colors every node and connector by the P/W records through it, one lane per path in legend order, so a path that skips a node leaves its lane empty. Needs a GFA that states its paths: an rGFA and an indexed cut both carry segments and links only.Pane 2.

Open this view in JBrowse Desktop ↗

Opens JBrowse Desktop (JBrowse Desktop 5.0+) at this view and saves it as a reopenable session — swap in your own files afterwards.

Nothing happens? Paste this link into Desktop's Open JBrowse Web link... (start screen, or File → Session):

https://jbrowse.org/code/jb2/main/?config=test_data%2Fgraphgenomeview%2Fconfig.json&session=spec-%7B%22sessionTracks%22%3A%5B%7B%22type%22%3A%22FeatureTrack%22%2C%22trackId%22%3A%22K12_genes%22%2C%22name%22%3A%22K12+genes%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22Gff3TabixAdapter%22%2C%22gffGzLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz%22%7D%2C%22index%22%3A%7B%22location%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2FK12.gff.gz.tbi%22%7D%7D%7D%7D%2C%7B%22type%22%3A%22MafTrack%22%2C%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22name%22%3A%22pggb+graph%3A+whole-genome+alignment+%28MAF%2C+vs+K12%29%22%2C%22assemblyNames%22%3A%5B%22K12%22%5D%2C%22adapter%22%3A%7B%22type%22%3A%22MafTabixAdapter%22%2C%22samples%22%3A%5B%22K12%22%2C%22Sakai%22%2C%22CFT073%22%2C%22NCTC86%22%2C%22IAI39%22%5D%2C%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb.maf.bed.gz%22%7D%7D%5D%2C%22views%22%3A%5B%7B%22type%22%3A%22LinearGenomeView%22%2C%22displayName%22%3A%22The+same+1.4+kb+in+K12+coordinates%22%2C%22assembly%22%3A%22K12%22%2C%22loc%22%3A%22chr%3A1%2C299%2C300-1%2C300%2C900%22%2C%22tracks%22%3A%5B%7B%22trackId%22%3A%22K12_genes%22%2C%22type%22%3A%22LinearBasicDisplay%22%2C%22height%22%3A70%7D%2C%7B%22trackId%22%3A%22ecoli_pggb_maf%22%2C%22type%22%3A%22LinearMafDisplay%22%2C%22layout%22%3A%5B%7B%22name%22%3A%22K12%22%7D%2C%7B%22name%22%3A%22CFT073%22%7D%2C%7B%22name%22%3A%22IAI39%22%7D%2C%7B%22name%22%3A%22NCTC86%22%7D%2C%7B%22name%22%3A%22Sakai%22%7D%5D%2C%22showTree%22%3Atrue%2C%22height%22%3A150%7D%5D%7D%2C%7B%22type%22%3A%22GraphGenomeView%22%2C%22displayName%22%3A%22The+graph+over+that+interval%2C+colored+by+strain%22%2C%22gfaLocation%22%3A%7B%22uri%22%3A%22https%3A%2F%2Fjbrowse.org%2Fdemos%2Fecoli_pangenome%2Fecoli_pggb_is5.gfa%22%7D%2C%22layoutMode%22%3A%22force%22%2C%22layoutQuality%22%3A4%2C%22bubbleSpread%22%3A%22open%22%2C%22colorScheme%22%3A%22grey%22%2C%22referencePath%22%3A%22K12%22%2C%22drawPaths%22%3Atrue%7D%5D%7D&sessionName=JBrowse+docs%3A+pangenome%2Fpggb_haplotype_paths

A figure adds its tracks to one session. The jbrowse CLI writes the same tracks into a config.json instead, where every session that opens it has them: add-track where flags cover the whole track, add-track-json where they do not.

jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "K12_genes",
  "name": "K12 genes",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "Gff3TabixAdapter",
    "gffGzLocation": {
      "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
    },
    "index": {
      "location": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
      }
    }
  }
}'

jbrowse add-track-json '{
  "type": "MafTrack",
  "trackId": "ecoli_pggb_maf",
  "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": [
    "K12"
  ],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": [
      "K12",
      "Sakai",
      "CFT073",
      "NCTC86",
      "IAI39"
    ],
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
  }
}'

Run these where the config.json is, or add --out <dir>, and point each uri at your own file. The config needs K12 already — jbrowse add-assembly adds yours. The location and the settings the steps carry are session state rather than track config — that half is the Session spec tab, or jbrowse set-default-session.

This session spec pastes after &session=spec- on any JBrowse Web instance.

{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "displayName": "The same 1.4 kb in K12 coordinates",
      "assembly": "K12",
      "loc": "chr:1,299,300-1,300,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "displayName": "The graph over that interval, colored by strain",
      "gfaLocation": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_is5.gfa"
      },
      "layoutMode": "force",
      "layoutQuality": 4,
      "bubbleSpread": "open",
      "colorScheme": "grey",
      "referencePath": "K12",
      "drawPaths": true
    }
  ]
}

Loaded against config: test_data/graphgenomeview/config.json

The same view with jbrowse-anywidget. Point the adapter at your own file.

from jbrowse_anywidget import LinearGenomeView, make_assembly

view = LinearGenomeView(
    assembly=make_assembly("K12", "https://your-server/your-genome.fa.gz"),
    location="chr:1,299,300-1,300,900",
)

view.add_track({
    "type": "FeatureTrack",
    "trackId": "my_track_1",
    "name": "My track 1",
    "assemblyNames": ["K12"],
    "adapter": {"type": "Gff3TabixAdapter", "uri": "https://your-server/your-file"},
})
view.add_track({
    "type": "MafTrack",
    "trackId": "my_track_2",
    "name": "My track 2",
    "assemblyNames": ["K12"],
    "adapter": {"type": "MafTabixAdapter", "uri": "https://your-server/your-file"},
})

view  # display the widget

Hand this to a coding agent. It rebuilds the figure above headlessly, and the session file is then the thing to edit — swap an adapter uri for your own file and rerun.

cat > session.json <<'JSON'
{
  "sessionTracks": [
    {
      "type": "FeatureTrack",
      "trackId": "K12_genes",
      "name": "K12 genes",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "Gff3TabixAdapter",
        "gffGzLocation": {
          "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz"
        },
        "index": {
          "location": {
            "uri": "https://jbrowse.org/demos/ecoli_pangenome/K12.gff.gz.tbi"
          }
        }
      }
    },
    {
      "type": "MafTrack",
      "trackId": "ecoli_pggb_maf",
      "name": "pggb graph: whole-genome alignment (MAF, vs K12)",
      "assemblyNames": [
        "K12"
      ],
      "adapter": {
        "type": "MafTabixAdapter",
        "samples": [
          "K12",
          "Sakai",
          "CFT073",
          "NCTC86",
          "IAI39"
        ],
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb.maf.bed.gz"
      }
    }
  ],
  "views": [
    {
      "type": "LinearGenomeView",
      "displayName": "The same 1.4 kb in K12 coordinates",
      "assembly": "K12",
      "loc": "chr:1,299,300-1,300,900",
      "tracks": [
        {
          "trackId": "K12_genes",
          "type": "LinearBasicDisplay",
          "height": 70
        },
        {
          "trackId": "ecoli_pggb_maf",
          "type": "LinearMafDisplay",
          "layout": [
            {
              "name": "K12"
            },
            {
              "name": "CFT073"
            },
            {
              "name": "IAI39"
            },
            {
              "name": "NCTC86"
            },
            {
              "name": "Sakai"
            }
          ],
          "showTree": true,
          "height": 150
        }
      ]
    },
    {
      "type": "GraphGenomeView",
      "displayName": "The graph over that interval, colored by strain",
      "gfaLocation": {
        "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_pggb_is5.gfa"
      },
      "layoutMode": "force",
      "layoutQuality": 4,
      "bubbleSpread": "open",
      "colorScheme": "grey",
      "referencePath": "K12",
      "drawPaths": true
    }
  ]
}
JSON

npx @jbrowse/capture --instance https://jbrowse.org/code/jb2/main/ \
  --config https://jbrowse.org/code/jb2/main/test_data/graphgenomeview/config.json \
  --session session.json -o figure.png

Using JBrowse with AI agents covers the rest: hosted genomes to point it at, and why waiting for the render is the part that goes wrong.

Reproduce it end to end

build_ecoli_pangenome_graph.sh runs everything above in one shot, fetching the helper scripts it needs beside itself:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_ecoli_pangenome_graph.sh
bash build_ecoli_pangenome_graph.sh   # builds ./ecoli_pangenome_graph_build/jbrowse2
npx --yes serve ecoli_pangenome_graph_build/jbrowse2

In one run it:

  • downloads the RefSeq genomes
  • runs pggb
  • converts the wfmash PAF, odgi untangle, both VCF tiers, the MAF, odgi similarity, odgi depth and odgi pav into the projections above
  • downloads JBrowse
  • writes a config.json with the assemblies, per-strain gene tracks, the graph-derived tracks, and a default session
  • writes the odgi viz raster and every cut GFA this page opens as a file: ecoli_pggb_subgraph.gfa, ecoli_pggb_is5.gfa and ecoli_pggb_rrna.gfa out of odgi, then ecoli_rgfa_slice.gfa, ecoli_paa_subgraph.gfa and the rGFA tabix indexes behind the segments track out of the cactus image, which is where minigraph and gfatools live

The config.json declares the graph genome view plugin, so the graph track and its launch menu item work without adding the plugin by hand. It needs the tools listed under Prerequisites, and picks its container runtime off PATH, docker first and then singularity or apptainer. Force one with CONTAINER=singularity.

JBrowse Desktop opens that folder's config.json by path, so the npx serve line is only for the web build.

Everything downstream is derived from the strain table at the top of the script, so adding genomes there is the only edit an expanded pangenome needs. Watch two costs as that grows: wfmash is all-vs-all, so mapping scales with the square of the genome count, and odgi untangle indexes every step of every path.

See also
