CNV across a population (1000 Genomes)

TL;DR: copy number varies from person to person, and we show the whole 1000 Genomes panel at once: one heatmap row per individual, colored by how far that person strays from the diploid baseline of 2. JBrowse renders that live from per-sample BigWigs, and past a few hundred samples the per-file requests dominate, so the second half packs the values into one Zarr store.

Prerequisites

a JBrowse instance to paste a track into (see the web quickstart, or the desktop quickstart: every file here is a URL, so Desktop needs nothing hosted)
node 24 or newer, to build a Zarr store; the converter is one downloadable file and pulls its own two npm packages
QuicK-mer2 and a 30x alignment, to add samples of your own

Where the data comes from

QuicK-mer2 copy-number estimates over the 30x 1000 Genomes panel, from the Kidd lab at the University of Michigan (Shen and Kidd 2020).

the sample list across 26 populations, from the lab's UCSC track hub: https://raw.githubusercontent.com/KiddLab/kmer_1KG/master/kmer-1kg.trackDb.txt
the per-sample bigWigs, one individual's copy number in 1 kb bins, re-hosted unmodified because the lab's own download share is offline. One file per sample under its population, so HG00551 and HG00553 are https://jbrowse.org/genomes/GRCh38/1000g/kidd_lab_cnv/PUR/HG00551.qm2.CN.1k.bw and https://jbrowse.org/genomes/GRCh38/1000g/kidd_lab_cnv/PUR/HG00553.qm2.CN.1k.bw
the same values packed into one Zarr store for the latency comparison. This is a directory of chunks rather than a file, so it is the uri an adapter takes and not something to open in a browser: https://jbrowse.org/demos/1000g/qm2_cn_1kb.zarr

The QuicK-mer2 estimates

QuicK-mer2 estimates are from the Kidd lab's KiddLab/kmer_1KG track hub, which publishes bigBed heat maps for the UCSC browser; the files this page reads are the lab's raw per-sample bigWigs.

QuicK-mer2 counts only k-mers that occur exactly once in the reference, so its estimates are per paralog.

Load the panel as one track

The whole panel goes in as one track, so the display, the clustering and the color settings are declared once. Add hg38 first, then the track:

{
  "type": "MultiQuantitativeTrack",
  "trackId": "pur_copynumber_1000g",
  "name": "PUR copy number (1000 Genomes)",
  "assemblyNames": ["hg38"],
  "adapter": {
    "type": "MultiWiggleAdapter",
    "bigWigs": [
      "https://jbrowse.org/genomes/GRCh38/1000g/kidd_lab_cnv/PUR/HG00551.qm2.CN.1k.bw",
      "https://jbrowse.org/genomes/GRCh38/1000g/kidd_lab_cnv/PUR/HG00553.qm2.CN.1k.bw"
    ]
  },
  "displayDefaults": {
    "defaultRendering": "multirowdensity",
    "bicolorPivot": 2,
    "minScore": 0,
    "maxScore": 4,
    "posColor": "#b2182b",
    "negColor": "#2166ac"
  }
}

The bigWigs shorthand takes a plain list of absolute URLs and names each subtrack from its filename. Four display settings turn that into a copy-number heatmap:

defaultRendering multirowdensity gives each sample one strip of color.
bicolorPivot 2 puts white at the diploid baseline, so posColor paints gains and negColor losses.
minScore and maxScore pin the scale, so two copies are the same color in every window and after every navigation.

Keep the bounds symmetric around the pivot: the ramp divides both sides by the longer one, so 0 to 4 lets both extremes saturate, and gains past 4 clamp, which the legend shows.

Then run Clustering → Cluster rows by score... in the track menu, which brings similar samples together so the copy-number classes read as blocks. Rows are in file order until you do.

Read the copy-number heatmap

The heatmap summarizes per-sample profiles. Six individuals spanning the range, each plotted as a profile:

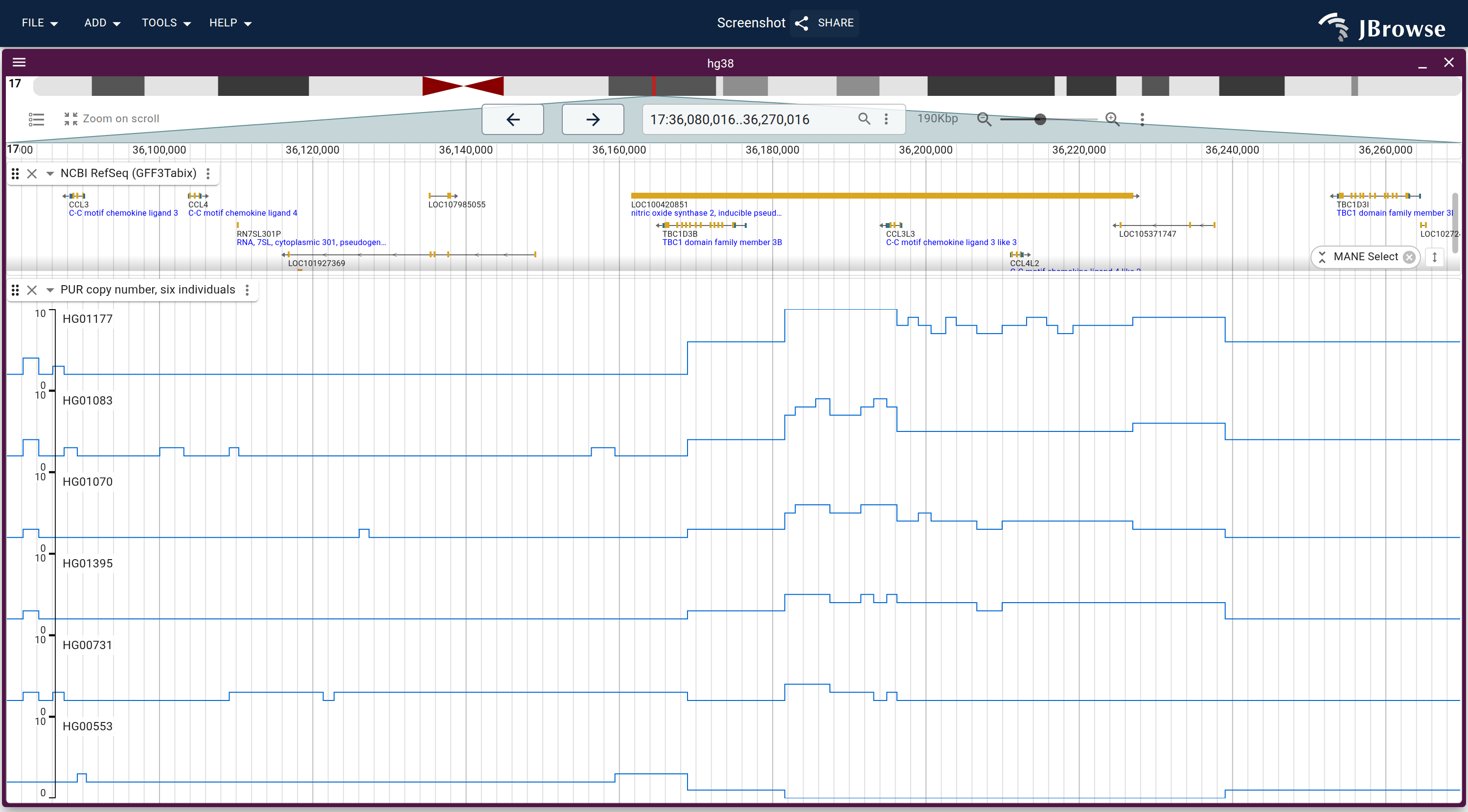

The same window as six stacked profiles on a shared 0-10 axis, from an individual carrying about nine copies down to one carrying none. The plateaus are flat and land on integers. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Two paralogous blocks carry the variation. The right-hand one spans CCL3L1 and CCL4L1, chemokine genes that exist in a variable number of tandem copies. The left-hand one is a TBC1D3 repeat. Between them, an individual in this panel carries anywhere from zero to ten copies.

The same window in the 1000 Genomes SV map

The 1000 Genomes phase 3 integrated SV map, the standard variant-level answer for this cohort, covers this window with one CNV record. It sits at chr17:36,108,706-36,155,499 with three symbolic alleles (<CN2>, <CN3>, <CN4>), and it ends about 35 kb before the block where depth resolves the widest range. Between 36,155,499 and 36,461,232 the GRCh38 release of that callset has no copy-number record at all.

A VCF record is one interval with fixed breakpoints and a small set of symbolic alleles, and nested multiallelic copy number is neither. Depth in turn carries no genotype, allele frequency or phasing, all of which the callset has.

Where the variation does fit the representation, they agree:

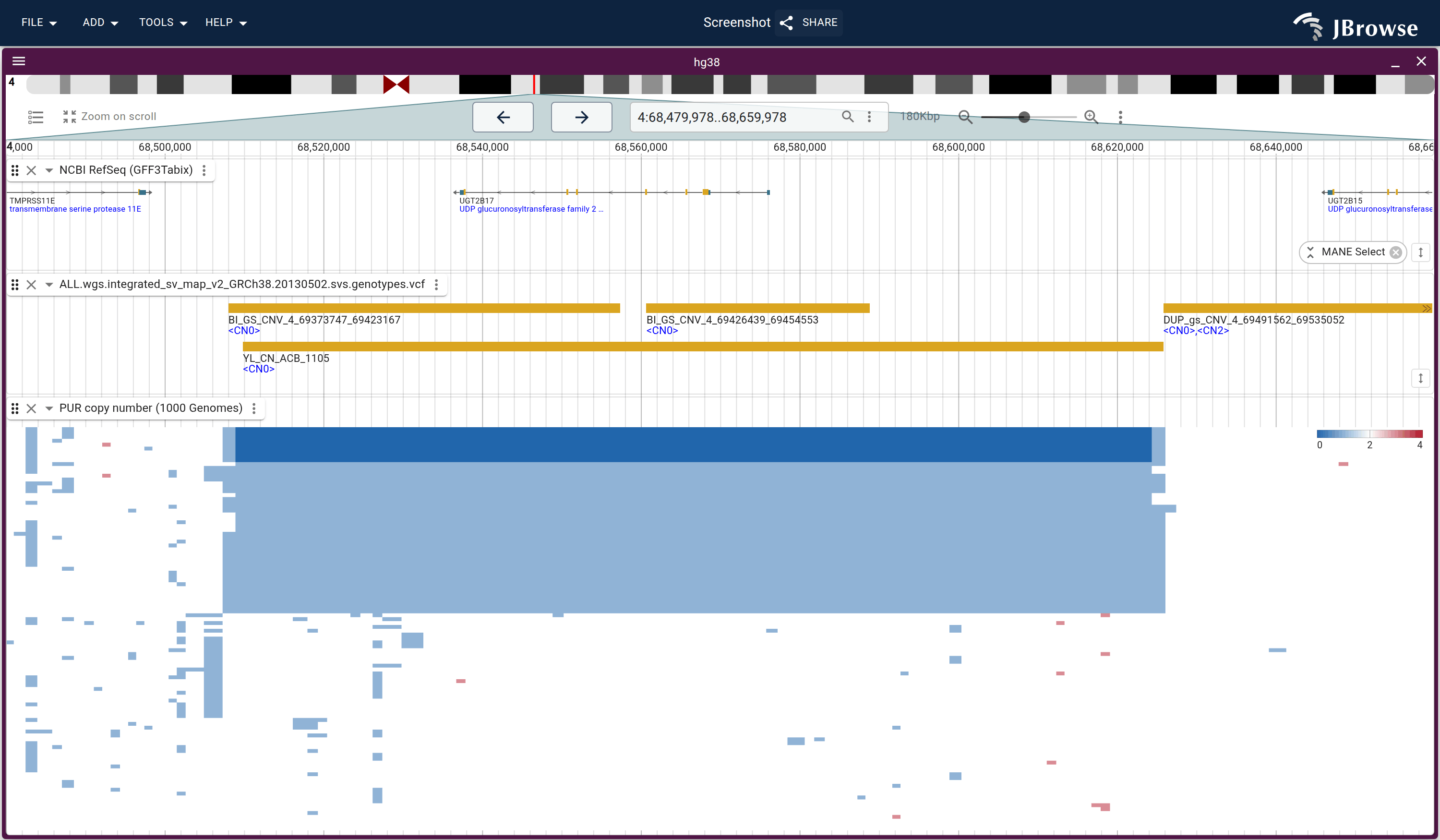

UGT2B17 on chr4, a biallelic deletion: depth is flat at two, one or zero copies with the same breakpoints in every carrier, and the SV map calls it as a CN0 deletion. Same track settings as the CCL3L1 figure. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Scaling past one population

The track above stops at 104 individuals, about where one BigWig per sample stops being pleasant. measure_signal_latency.ts counts what filling this tutorial's window costs each way at panel scale, all 2504 BigWigs against a store holding those same 2504 samples, by wrapping fetch around the same readers the browser uses. It takes the same name/group/url TSV as the converter, so the sample list the build script writes drives it directly:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/measure_signal_latency.ts
npm install @gmod/bbi generic-filehandle2

node measure_signal_latency.ts --samples 1000g_cnv_build/samples.tsv \
  --region chr17:36,080,000-36,270,000 \
  --zarr https://jbrowse.org/demos/1000g/qm2_cn_1kb.zarr

Against the hosted files, at a median range request of 25 ms:

chr17:36,080,000-36,270,000, 2504 samples	2504 BigWigs	Zarr store
requests	15,048	3
bytes	48.39 MB	0.22 MB
wall clock	24.5 s	0.2 s

Six reads per BigWig, against two metadata reads plus one chunk of 2504 samples by 256 bins.

The request count is the cost: every BigWig needs a few reads to find where a region's values live, once per file and waiting on each other, so the cost is a round trip times the number of files. One array of samples by bins, stored so that a single read covers every sample at once, answers the same question in a couple of requests.

Zarr v3 is that format, and it needs no tile server: zarrita.js reads chunks straight off static hosting. jbrowse-plugin-zarr adds a MultiWiggleZarrAdapter that reads one, and because a multi-sample quantitative adapter is duck-typed, the display, the clustering and the settings above are unchanged.

The plugin is in beta and not in the plugin store yet, but the built bundle is hosted, so it loads from any config today (see configuring plugins):

{
  "plugins": [
    {
      "name": "Zarr",
      "url": "https://jbrowse.org/demos/zarr/jbrowse-plugin-zarr.umd.production.min.js"
    }
  ],
  "tracks": [
    {
      "type": "MultiQuantitativeTrack",
      "trackId": "cnv_1000g_zarr",
      "name": "1000 Genomes copy number, 2504 individuals",
      "assemblyNames": ["hg38"],
      "adapter": {
        "type": "MultiWiggleZarrAdapter",
        "uri": "qm2_cn_1kb.zarr"
      },
      "displayDefaults": {
        "defaultRendering": "multirowdensity",
        "bicolorPivot": 2,
        "minScore": 0,
        "maxScore": 4,
        "posColor": "#b2182b",
        "negColor": "#2166ac"
      }
    }
  ]
}

The adapter config is the store's location and nothing else: the sample list, the bin size and the resolution levels are attributes of the store, written by the converter. A relative uri resolves against the config that holds it, so a store sitting beside config.json needs no absolute URL.

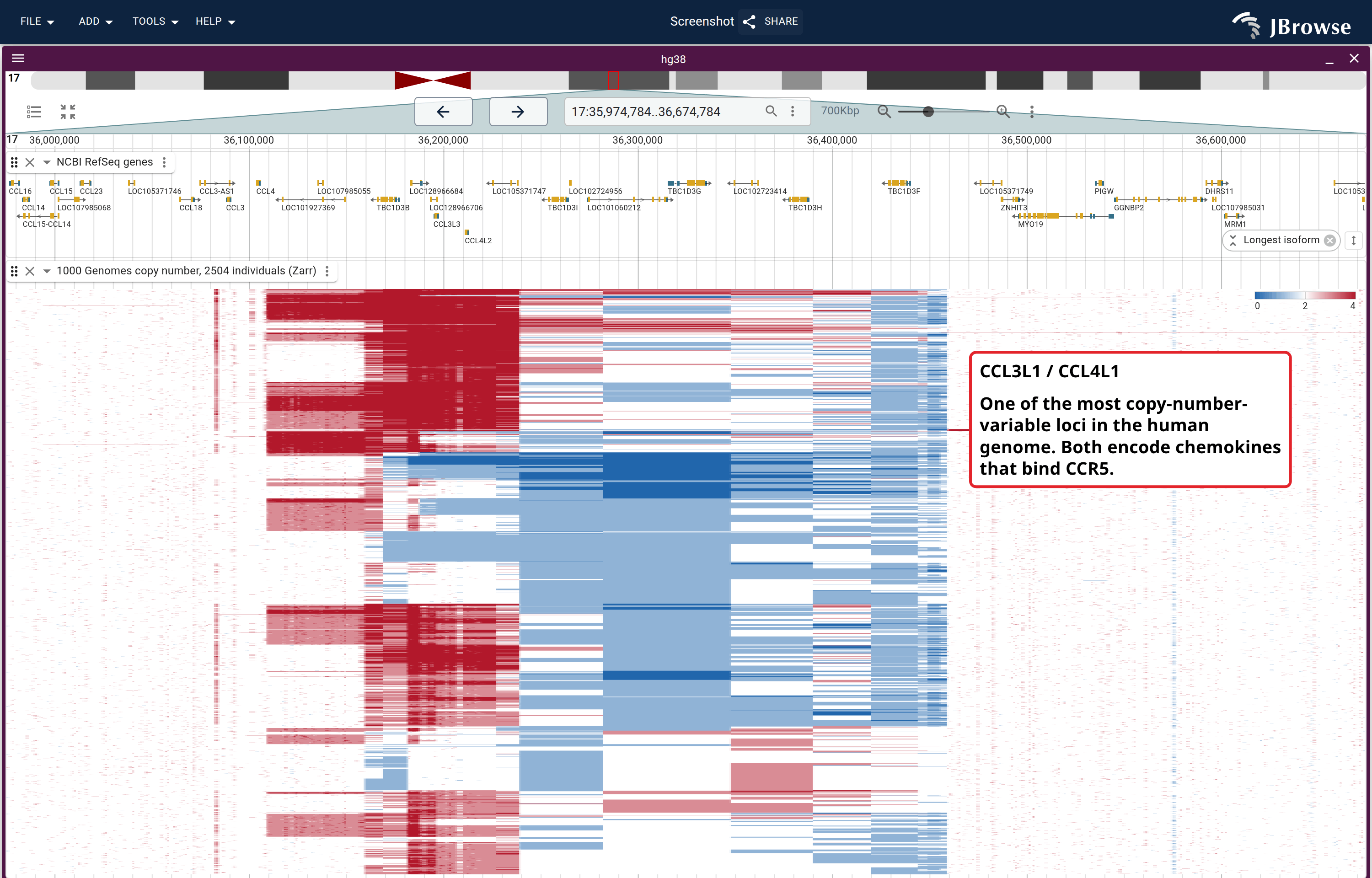

All 2504 individuals of the 1000 Genomes panel, clustered, from a single Zarr store. Red is a gain over the diploid baseline, blue a loss, white two copies: the CCL3L1/CCL4L1 block stands in flat diploid on both sides of it. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Two of the requests are metadata and happen once per store; the rest are chunks, and a chunk carries every sample across a range of bins, so what a view costs follows the width of the window. This frame is wider than the one measured above and spans a few more chunks.

Build the store

build_signal_zarr.ts turns a list of BigWigs into one store. It takes a TSV of name and url, with an optional group column between them (here the population, which labels the rows and groups them in the clustering sidebar). It imports two npm packages and nothing else, so it runs on its own:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_signal_zarr.ts
npm install @gmod/bbi generic-filehandle2

node build_signal_zarr.ts \
  --samples samples.tsv \
  --out qm2_cn_1kb.zarr \
  --region chr17:35000000-37500000 \
  --region chr4:68000000-69000000 \
  --levels 1000,10000

That is the command behind this tutorial's figures, all 2504 samples over the windows the page visits. The converter prints the sizes as it writes; this store lands at 1.4 MB.

--levels is the resolution pyramid: one samples-by-bins array per entry, coarser ones averaged from the finest. The adapter reads the coarsest level whose bins are still no wider than a screen pixel, so a whole-chromosome view costs the same couple of requests the CCL3L1 window does. Give it your input's bin size first, then steps of roughly 3x: 10000,30000,100000 rather than 10000,100000, since a 10x gap leaves a view landing just under a level fetching 10x the bins it can draw.

Every level above the finest stores the minimum and maximum of the bins it averages alongside the mean, the way a BigWig zoom record carries all three. summaryScoreMode picks which one a view draws, so an amplification narrower than a bin is visible under max and averaged back to the diploid baseline under avg.

The finest level is the one to choose deliberately, being the only one held whole in memory while the rest derive from it. Drop the --region flags and this panel is a few GB of matrix at 10 kb bins and about 31 GB at the BigWigs' own 1 kb, so a whole-genome pyramid starts coarse. The converter prints the size of that level before it allocates, and refuses when it will not fit.

The output is an ordinary folder of files. Copy it to any static host with CORS enabled and point a track at it, the same way you would host a BigWig.

If you would rather write a store from something other than BigWigs, the plugin's store format gives the layout the adapter expects.

Your own samples

To put a genome of your own on the same scale, run QuicK-mer2 over its aligned reads. The lab's tutorial takes one 30x 1000 Genomes CRAM through count and est command by command, with its own sample output to check against. For GRCh38 its k-mer index is prebuilt, which skips the search pass over the reference. It is a cluster-sized job either way: the tutorial reports 67 GB of reference files, roughly 50 GB of RAM to hold the index, and about 25 minutes on six threads per sample.

What that leaves for JBrowse is one conversion. est writes copy number in 1 kb windows, and its four columns are bedGraph once the decoy and EBV contigs are dropped:

grep -v decoy sample.qm2.CN.1k.bed | grep -v chrEBV >sample.bedgraph
samtools faidx GRCh38_BSM.fa
cut -f1,2 GRCh38_BSM.fa.fai >GRCh38_BSM.chrom.sizes
bedGraphToBigWig sample.bedgraph GRCh38_BSM.chrom.sizes sample.qm2.CN.1k.bw

Host it, then add its URL to bigWigs, or a name and url row to samples.tsv for the Zarr build, and the sample is another row on the same color ramp. Running an individual the panel already covers gives the lab's estimate of that genome as a check.

Reproduce it end to end

build_1000g_cnv_zarr.sh derives the full 2504-sample list from the Kidd lab trackDb and runs the converter over it. It fetches the converter and installs its two packages beside its own output, so one download is the whole setup:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_1000g_cnv_zarr.sh
bash build_1000g_cnv_zarr.sh                # the tutorial's windows, 1kb base, into ./1000g_cnv_build
bash build_1000g_cnv_zarr.sh --whole-genome # every main contig, 10kb base and five levels

References

Shen & Kidd (2020). Rapid, Paralog-Sensitive CNV Analysis of 2457 Human Genomes Using QuicK-mer2, the citation for the copy-number data used throughout this page
KiddLab/kmer_1KG, the Kidd lab track hub these files come from, and KiddLab/QuicK-mer2, the caller that produced them
The QuicK-mer2 tutorial, one sample from CRAM to copy number, with the lab's own output to check against
1000 Genomes phase 3 integrated SV map
Zarr v3 specification
