Embedding JBrowse

TL;DR: one <script> tag and no build step. Drop assembly, tracks, and init into <LinearGenomeView> and it owns the view engine itself.

Prerequisites

  • a text editor
  • a local HTTP server: opening the HTML file directly won't work, JBrowse needs it served. npx serve -S in the folder works (-S resolves symlinks, so a data file you symlink in still loads)

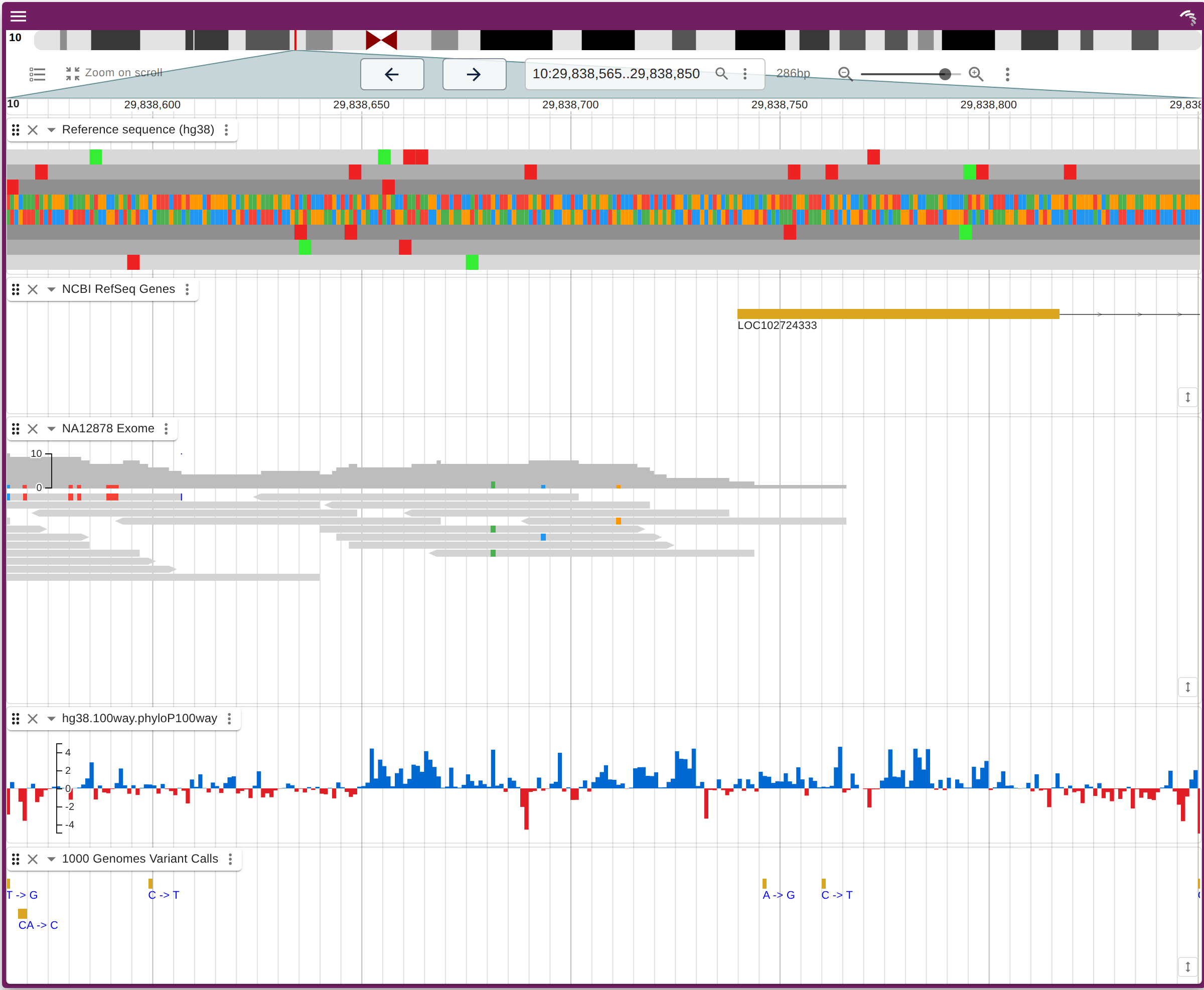

The finished embedded view

JBrowse linear genome view in a web page

The full JBrowse app is the web quickstart. For other view types (synteny, dotplot, circular), a different bundler, or working demo repos, see Embedded components. The LGV storybook has live, copy-pasteable examples for everything beyond a basic view: themes, per-feature colors, text search, drawer widgets, reacting to view state, web-worker rendering.

Quick start

Save as index.html, then run npx serve -S in the folder and open the URL it prints:

<!doctype html>
<html>
  <head>
    <meta charset="UTF-8" />
    <title>JBrowse Linear Genome View</title>
    <script
      src="https://unpkg.com/@jbrowse/react-linear-genome-view2/dist/react-linear-genome-view.umd.production.min.js"
      crossorigin
    ></script>
  </head>
  <body>
    <div id="jbrowse_linear_genome_view"></div>
    <script>
      const { React, createRoot, LinearGenomeView } =
        JBrowseReactLinearGenomeView

      const assembly = {
        name: 'hg38',
        uri: 'https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz',
        refNameAliases: {
          uri: 'https://jbrowse.org/genomes/GRCh38/hg38_aliases.txt',
        },
      }

      const tracks = [
        {
          type: 'FeatureTrack',
          trackId: 'ncbi_genes',
          name: 'NCBI RefSeq Genes',
          assemblyNames: ['hg38'],
          adapter: {
            type: 'Gff3TabixAdapter',
            uri: 'https://jbrowse.org/genomes/GRCh38/ncbi_refseq/GCA_000001405.15_GRCh38_full_analysis_set.refseq_annotation.sorted.gff.gz',
          },
        },
      ]

      const init = {
        loc: '10:29,838,565..29,838,850',
        tracks: ['ncbi_genes'],
      }

      const root = createRoot(
        document.getElementById('jbrowse_linear_genome_view'),
      )
      root.render(
        React.createElement(LinearGenomeView, { assembly, tracks, init }),
      )
    </script>
  </body>
</html>

The unpkg URL always fetches the latest release; pin a version for production (e.g. @jbrowse/react-linear-genome-view2@4.3.0/dist/...) or download the bundle and serve it yourself.

To serve your own data, get each file into the indexed, compressed form JBrowse reads (bgzip and index a FASTA, sort/bgzip/tabix a GFF3, and so on) using the recipes in the web quickstart.

For more tracks, more track types (alignments, variants, quantitative), or name search, see the complete example below, Embedded components, and the LGV storybook.

Using the component in a React app

Pass the same assembly, tracks, and init as props:

import { LinearGenomeView } from '@jbrowse/react-linear-genome-view2'

function GenomeBrowser() {
  return <LinearGenomeView assembly={assembly} tracks={tracks} init={init} />
}

Props are read once on mount, so a parent re-render doesn't reset the browser. To reach the view engine imperatively from outside (navigate, show a track), take a ref (see the LGV storybook) or use useCreateViewState, which builds the same view state as a hook:

import {
  useCreateViewState,
  JBrowseLinearGenomeView,
} from '@jbrowse/react-linear-genome-view2'

function GenomeBrowser() {
  const state = useCreateViewState({ assembly, tracks, location: '...' })
  return <JBrowseLinearGenomeView viewState={state} />
}
More complete example: multiple track types, name search

Genes, repeats, alignments, variants, and conservation together, plus a name search index, all on the same hg38 assembly used above:

const assembly = {
  name: 'hg38',
  uri: 'https://jbrowse.org/genomes/GRCh38/fasta/hg38.prefix.fa.gz',
  refNameAliases: {
    uri: 'https://jbrowse.org/genomes/GRCh38/hg38_aliases.txt',
  },
  cytobands: {
    uri: 'https://jbrowse.org/genomes/GRCh38/cytoBand.txt',
  },
}

const tracks = [
  {
    type: 'FeatureTrack',
    trackId: 'ncbi_genes',
    name: 'NCBI RefSeq Genes',
    assemblyNames: ['hg38'],
    category: ['Genes'],
    adapter: {
      type: 'Gff3TabixAdapter',
      uri: 'https://jbrowse.org/genomes/GRCh38/ncbi_refseq/GCA_000001405.15_GRCh38_full_analysis_set.refseq_annotation.sorted.gff.gz',
    },
    textSearching: {
      textSearchAdapter: {
        type: 'TrixTextSearchAdapter',
        textSearchAdapterId: 'gff3tabix_genes-index',
        uri: 'https://jbrowse.org/genomes/GRCh38/ncbi_refseq/trix/GCA_000001405.15_GRCh38_full_analysis_set.refseq_annotation.sorted.gff.gz.ix',
        assemblyNames: ['hg38'],
      },
    },
  },
  {
    type: 'FeatureTrack',
    trackId: 'repeats_hg38',
    name: 'Repeats',
    assemblyNames: ['hg38'],
    category: ['Annotation'],
    adapter: {
      type: 'BigBedAdapter',
      uri: 'https://jbrowse.org/genomes/GRCh38/repeats.bb',
    },
  },
  {
    type: 'AlignmentsTrack',
    trackId: 'NA12878_exome',
    name: 'NA12878 Exome',
    assemblyNames: ['hg38'],
    category: ['1000 Genomes', 'Alignments'],
    adapter: {
      type: 'CramAdapter',
      uri: 'https://jbrowse.org/genomes/GRCh38/alignments/NA12878/NA12878.alt_bwamem_GRCh38DH.20150826.CEU.exome.cram',
    },
  },
  {
    type: 'VariantTrack',
    trackId: '1000g_vcf',
    name: '1000 Genomes Variant Calls',
    assemblyNames: ['hg38'],
    category: ['1000 Genomes', 'Variants'],
    adapter: {
      type: 'VcfTabixAdapter',
      uri: 'https://jbrowse.org/genomes/GRCh38/variants/ALL.wgs.shapeit2_integrated_snvindels_v2a.GRCh38.27022019.sites.vcf.gz',
    },
  },
  {
    type: 'QuantitativeTrack',
    trackId: 'phyloP100way',
    name: 'hg38.100way.phyloP100way',
    category: ['Conservation'],
    assemblyNames: ['hg38'],
    adapter: {
      type: 'BigWigAdapter',
      uri: 'https://hgdownload.soe.ucsc.edu/goldenpath/hg38/phyloP100way/hg38.phyloP100way.bw',
    },
  },
]

const init = {
  loc: '10:29,838,565..29,838,850',
  tracks: ['ncbi_genes', 'NA12878_exome', 'phyloP100way', '1000g_vcf'],
}

Drop these into the same index.html from Quick start in place of the smaller assembly/tracks/init. This is the config that produced the screenshot at the top of this page.

Notes:

  • CRAM tracks need the assembly's sequence to decode reads, and JBrowse supplies it from the enclosing assembly (the same applies to BAM tracks that lack an MD tag, e.g. from samtools calmd). See the alignments track config guide.
  • These configs use the uri shorthand, which assumes each index sits next to its data file (e.g. file.cram.crai). To place an index elsewhere, use the full adapter form (see the auto-generated config reference).
  • The textSearching block on ncbi_genes is what powers name search; build the index for your own data with jbrowse text-index.
