QTL mapping (BXD mice)

TL;DR: the BXD mice are inbred strains bred down from two parents, B6 and DBA/2, so each strain's genome is a mosaic of blocks from one or the other. We paint each strain by which parent gave it each block and stack that under a GeneNetwork QTL scan, so a trait peak sits over the blocks that drive it.

Prerequisites

curl, to fetch GeneNetwork's QTL scan
jq, to reshape it
python3, for the painting
htslib (bgzip, tabix), for the painting
A JBrowse instance to add the tracks to (see the web quickstart, or the desktop quickstart to add the built files with no hosting step)

On Debian/Ubuntu, apt install curl jq python3 tabix covers it. The QTL scan is downloaded already computed.

Where the data comes from

BXD consensus genotypes and QTL scans from GeneNetwork (Wang et al. 2016).

the BXD consensus genotypes, 198 strains: https://gn1.genenetwork.org/genotypes/BXD.geno
the coat-color scan (trait 11280), from GeneNetwork's mapping API: https://genenetwork.org/api/v_pre1/mapping?db=BXDPublish&method=gemma&trait_id=11280
the chromosome painting, rehosted for the track config: https://jbrowse.org/demos/bxd/bxd_painting.bed.gz

The BXD panel

The BXD family is a panel of ~200 mouse recombinant-inbred (RI) strains bred from a cross of C57BL/6J (the "B" parent) and DBA/2J (the "D" parent). Each strain's genome is a fixed pattern of B and D blocks, and the same strains have been phenotyped for thousands of traits at GeneNetwork.

This tutorial builds two JBrowse tracks from the same BXD panel, on mm10:

a chromosome-painting track (the multi-row feature display) showing each strain's B and D blocks, and
a QTL Manhattan track (the Manhattan display) from a single-marker scan of a real BXD phenotype.

The GWAS/Manhattan and multi-row feature tracks shown here also render inline through the Python anywidget interface (or JBrowseR in R), so you can run the scan and view the peak in one Python or R session.

The data: BXD consensus genotypes

GeneNetwork distributes the consensus BXD genotypes as a plain-text .geno file. Each row is a marker (with a cM genetic-map and an mm10 Mb physical position, we use Mb). Each column is a strain, with a one-letter genotype, B, D, H (heterozygous) or U (unknown):

@name:BXD
@mat:B
@pat:D
Chr  Locus         cM    Mb        BXD1  BXD2  BXD5  ...
1    rs31443144    0.11  3.010274  B     B     D     ...
1    rs6269442     0.21  3.492195  B     B     D     ...

Download it from gn1.genenetwork.org/genotypes/BXD.geno (please cite Wang et al. 2016, Nat Commun 7:10464).

Its own header describes what the columns are: "198 BXD strains and ... the reciprocal F1s", of which "191 are independent, whereas 7 are substrains". The painting below skips the F1 columns: an F1 is heterozygous at every marker by construction, and the scan is computed over the strains.

On JBrowse Desktop, add the .bed.gz/.tsv.gz files you build through Add track with no hosting step needed (desktop quickstart).

Track 1: chromosome painting

The painting is a multi-row feature display: one row per strain, each block colored by genotype. To make it, walk each strain's markers along every chromosome and emit one BED interval per run of consecutive same-genotype markers (run-length encoding), coloring B/D/H and writing the strain name into an extra sample column:

#chrom  chromStart  chromEnd   name  score strand thickStart thickEnd itemRgb      sample  genotype
chr1    3001490     20291558   B     0     .      3001490    20291558 65,105,225   BXD1    B
chr1    20291558    53451539   D     0     .      20291558   53451539 220,60,50    BXD1    D
chr1    53451539    69355875   B     0     .      53451539   69355875 65,105,225   BXD1    B

The bxd_geno_to_painting_bed.py script does exactly this run-length encoding. Run it on the downloaded .geno, then sort, bgzip, and tabix the result:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/bxd_geno_to_painting_bed.py
python3 bxd_geno_to_painting_bed.py BXD.geno bxd_painting.bed
jbrowse sort-bed bxd_painting.bed | bgzip > bxd_painting.bed.gz
tabix -p bed bxd_painting.bed.gz

sort-bed keeps the #-header line on top and sorts the rest under LC_ALL=C, so the adapter can read the column names off the file and the order does not shift with your locale.

Then configure a FeatureTrack whose LinearMultiRowFeatureDisplay partitions on the sample column and colors each block from its itemRgb field. Both tracks reference the mm10 assembly, so set that up first if you haven't. See the assemblies configuration guide.

{
  "type": "FeatureTrack",
  "trackId": "bxd_chromosome_painting_mm10",
  "name": "BXD chromosome painting (GeneNetwork, 198 strains)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "BedTabixAdapter",
    "disableGeneHeuristic": true,
    "uri": "https://jbrowse.org/demos/bxd/bxd_painting.bed.gz"
  },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "partitionField": "sample",
      "legend": [
        { "label": "B (C57BL/6J)", "color": "rgb(65,105,225)" },
        { "label": "D (DBA/2J)", "color": "rgb(220,60,50)" },
        { "label": "H (heterozygous)", "color": "rgb(150,150,150)" }
      ]
    }
  ]
}

partitionField: "sample" splits the one file into one labeled row per strain.
A BED carrying itemRgb is painted with it automatically (color), so every block gets its genotype color straight from the file.
legend names the two parents the colors stand for, a mapping the BED itself does not record. Its entries also drive the track menu's Categories toggles, so hiding H isolates the B/D contrast.
disableGeneHeuristic: true keeps the BED adapter from reading each block as a gene: the thickStart/thickEnd columns trip its BED12 transcript detection.

Track 2: the QTL Manhattan

GeneNetwork maps these traits itself, and its API serves the whole per-marker result of a GEMMA run, the mixed model that accounts for how closely the BXD strains are related.

Fetch a trait's scan by its GeneNetwork id and reshape it with jq. Each record carries a marker, its mm10 position in Mb, a LOD score and a p-value:

GN='https://genenetwork.org/api/v_pre1/mapping?db=BXDPublish&method=gemma'
curl -fsSL "$GN&trait_id=11280" -o coat_color.json   # 11280 = coat color

{
  printf '#chrom\tstart\tend\tname\tscore\tstrand\tlod\n'
  jq -r '.[0][] | [ "chr" + (.chr|tostring), ((.Mb*1000000)|round),
                    ((.Mb*1000000)|round + 1), .name, ".", ".",
                    (.lod_score*10000|round/10000) ] | @tsv' coat_color.json |
    sort -k1,1 -k2,2n
} | bgzip > bxd_gwas_coatcolor.tsv.gz
tabix -p bed bxd_gwas_coatcolor.tsv.gz

Trait ids are the numbers in a GeneNetwork trait's own URL, and bxd_phenocovar.csv in the qtl2data BXD release lists them with their descriptions. 11280 is the hair coat color scale, scored across more strains than most.

That writes a tabix'd BED-like table, one line per marker:

#chrom  start     end       name        score strand lod
chr4    81304223  81304224  rs3708061   .     .      48.1126

A GWASTrack/GWASAdapter reads one column of that file as the Manhattan score. It defaults to a pre-computed -log10(p) in a column called neg_log_pvalue, so a LOD column needs scoreColumn naming it. scoreTransform stays at its default, since a LOD is already on the scale the plot draws; it is what a raw or natural-log p-value column would need. See the GWAS track guide.

Config file CLI (add-track-json)

{
  "type": "GWASTrack",
  "trackId": "bxd_gwas_coatcolor_mm10",
  "name": "BXD QTL: coat color (GEMMA, Tyrp1, chr4)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "GWASAdapter",
    "uri": "bxd_gwas_coatcolor.tsv.gz",
    "scoreColumn": "lod"
  },
  "displays": [
    {
      "type": "LinearManhattanDisplay"
    }
  ]
}

jbrowse add-track-json '{
  "type": "GWASTrack",
  "trackId": "bxd_gwas_coatcolor_mm10",
  "name": "BXD QTL: coat color (GEMMA, Tyrp1, chr4)",
  "assemblyNames": ["mm10"],
  "adapter": {
    "type": "GWASAdapter",
    "uri": "bxd_gwas_coatcolor.tsv.gz",
    "scoreColumn": "lod"
  },
  "displays": [
    {
      "type": "LinearManhattanDisplay"
    }
  ]
}'

Reading the coat-color peak

The coat-color scan puts a plateau of tied markers on chr4, whose interval contains Tyrp1. To line the painting up with it, right-click the painting at that column and pick the "Sort rows by color here" option (a saved session can bake the same sort in through the display's sortRowsBy position). Rows then order by their B/D genotype at the peak: the split directly beneath it is the contrast the scan scores, and it breaks up into mixed B/D blocks away from the locus.

The sort as the menu item does it: 198 strains arrive in their recombinant mosaic, a right-click on the column under the peak reaches Sort rows by color here, and the rows resolve into the B/D split the scan scores. Open the session this video starts in ↗

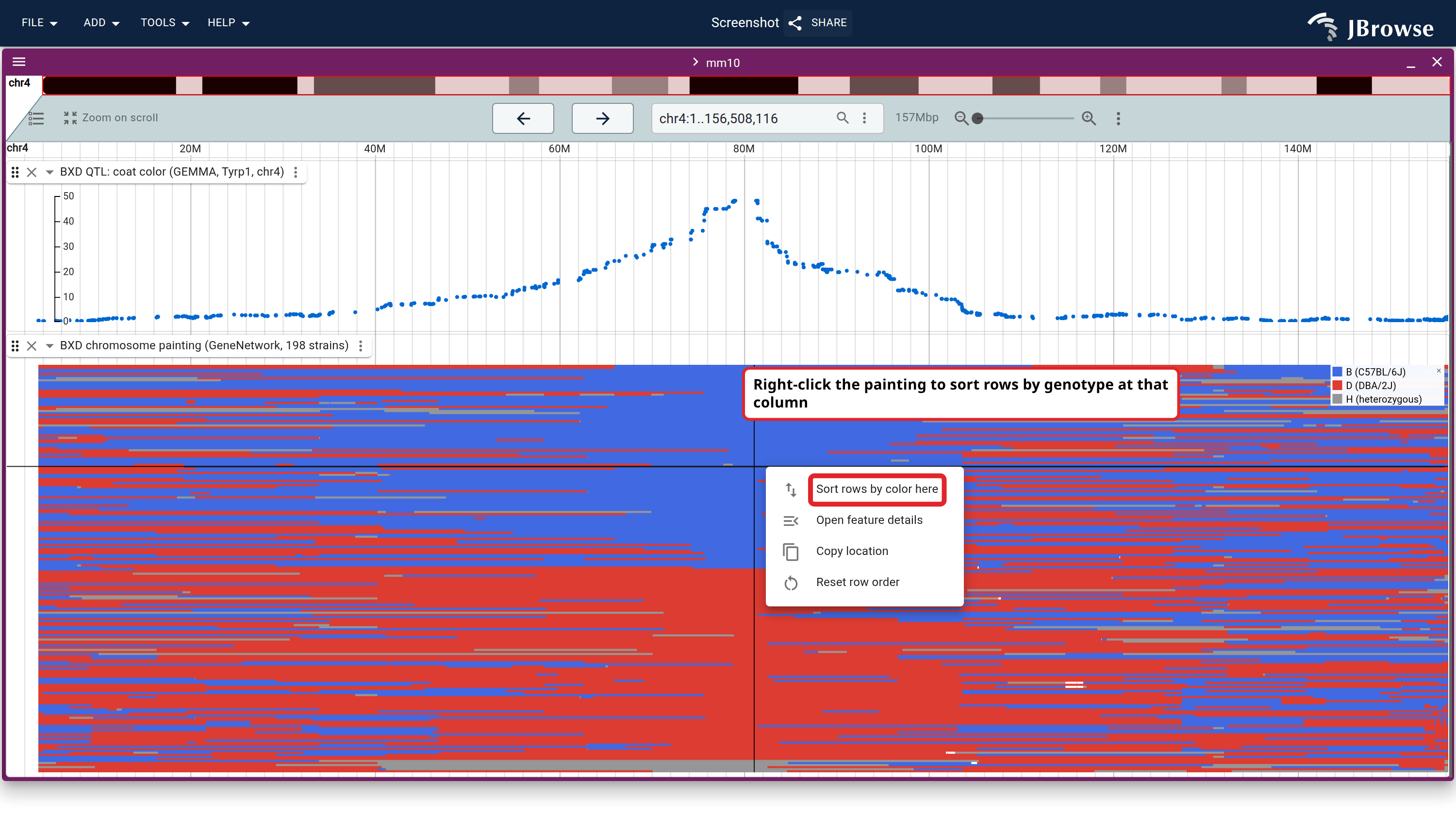

The menu open over the sorted painting: keyed on genotype at the peak, the strains resolve into a clean, wide red-over-blue split directly beneath the Manhattan peak. Open this view in JBrowse ↗

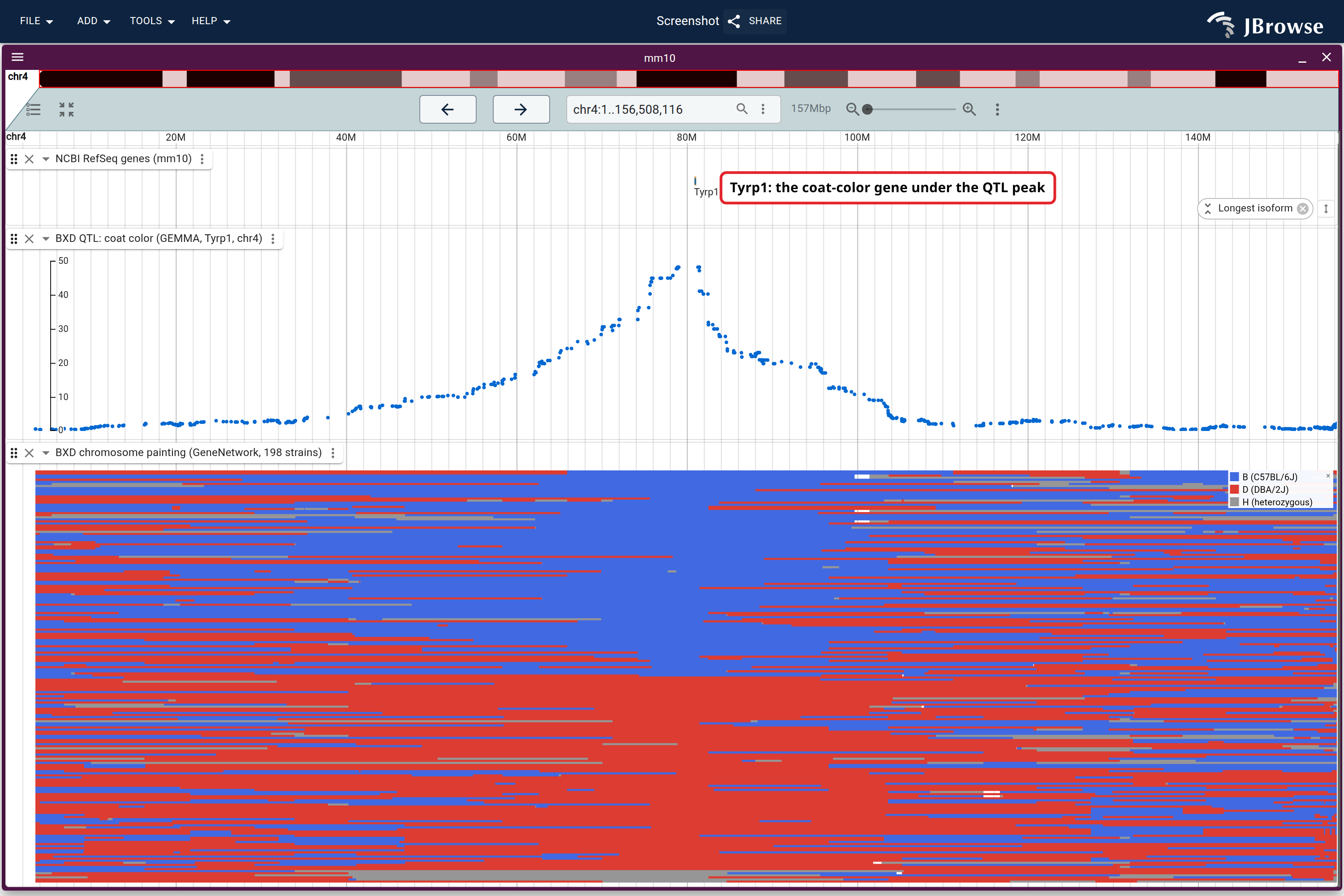

The whole of chr4 (~156 Mb): the coat-color association rises to a peak at ~80 Mb over Tyrp1, and the haplotype painting (sorted by genotype at that peak) resolves into a clean D (red) over B (blue) split at the gene. Open this view in JBrowse ↗

Clustering the rows by similarity

Sorting keys every row on one column. The track menu's Clustering → Cluster rows by similarity keys them on the whole visible region and draws the tree down the left-hand side; a session can trigger it declaratively with runClustering: true, the same way sortRowsBy bakes in a sort. See Clustering rows.

Clustering is computed over the region in view, so this is chr4 similarity.

Reproduce it end to end

Every step above is wrapped in one script, bxd_build_demo.sh, which paints the genotypes with bxd_geno_to_painting_bed.py:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/bxd_build_demo.sh
bash bxd_build_demo.sh            # builds ./bxd_demo/jbrowse2
npx --yes serve bxd_demo/jbrowse2 # then open the printed URL

It downloads JBrowse and the GeneNetwork consensus genotypes, builds the painting, fetches the coat-color scan (trait 11280) from GeneNetwork's mapping API, and writes a config.json that opens on mm10 chr4 with the scan over the painting. It prints the scan's peak marker and LOD as it goes. It needs curl, jq, python3 and htslib (bgzip, tabix) on your PATH.

Any GeneNetwork trait id can be swapped in. Coat color is close to Mendelian here, and a polygenic trait scans flatter, with no peak sharp enough to sort the painting under.
