Data flow, end to end
TL;DR: A track's data crosses one boundary and lands in typed arrays of absolute genomic coordinates, and everything after that point is a redraw. A pan or a zoom therefore costs a frame and not a fetch.
A viewport change asks one question first: is this region already loaded? Where it is, nothing below the top of the figure runs. Where it is not, the display calls an adapter in an RPC worker, which reads the file's index, issues range requests for the chunks the index named, inflates them, builds records, and reduces those records to what the screen needs — a layout, a coverage summary, a set of packed columns. The result crosses back as transferable typed arrays in absolute genomic coordinates, and the main thread uploads it once.
Three other pages draw one segment of this path in full, and the figure names each one on the edge it details:
- Data fetching owns the decision the
top edge carries (
fetch_chain), with its debounce, byte gate, staleness check and generation counter - RPC workers owns the crossing
(
rpc_lifecycle), with the serialize and deserialize hooks on it - Creating a GPU display owns the
two autoruns at the bottom (
gpu_display_lifecycle)
Why each step looks the way it does, and what measured it, is Optimizations.

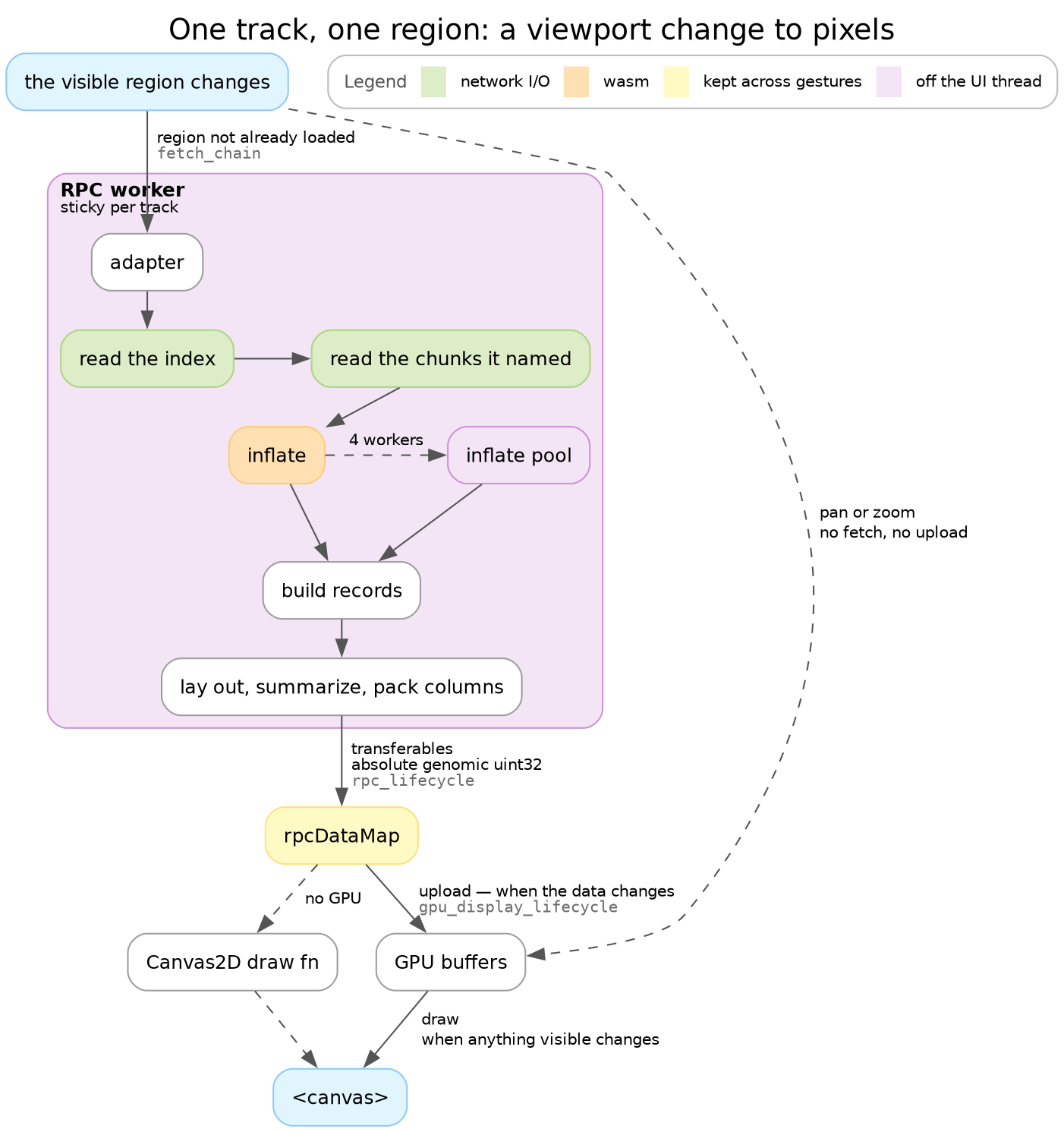

The figure is the main path only. It leaves out:
- the assembly and refName aliases, which load before any track does
- the text-search index, which answers the location box
- the non-linear views — synteny and dotplot own their fetch and share one canvas between displays, so they compose neither of the fetch foundations this path is built on
SHARED_CANVAS_VIEWS.md draws that third shape, and its rules generalize to any container laying out one canvas its children draw on.
Where the worker sits
Everything inside the box runs off the UI thread, in a pool that leaves one core
for the UI and is capped at five —
workerCount overrides that. A
track's queries are sticky to one worker, so a second query from the same
track queues behind the first. That stickiness is what makes the inflate pool
inside the worker worth having, and it is also a ceiling: one track's parse is
single-threaded however many cores the machine has.
The main thread holds the result, uploads it, and draws it.
Which hosts spawn that pool is the host's decision. jbrowse-web and desktop
always do. An embedded component runs the same pool once the page hands it a
makeWorkerInstance factory; without one it runs every step in the box on the
UI thread, so a deep BAM stalls whatever else the page is drawing. Constructing
a worker is bundler-specific, so the factory is the host's to write —
embedded components
has the Vite and the webpack spelling, and passing one is the whole switch, with
no config slot to set.
Where wasm sits
Everything orange is BGZF decompression, in
@gmod/bgzf-filehandle. It is wasm
because that is where a cold query's time goes: most of the wall clock inflating
blocks, against a fraction of a millisecond to a few milliseconds building
records out of them. Reading the index and decoding records both stay in
JavaScript.
The dashed branch beside the inflate step is a further pool of
four workers,
one pool per JS context — so a full RPC pool nests twenty inflate workers under
its five. Where nested workers are unavailable the pool resolves to undefined
and the same code inflates in process, so the option is safe to pass
unconditionally and the degradation carries no error. How large that share is,
what the pool is worth per format, and how to check it engaged are
the fetch clock.
Where the caches sit
Three layers cache different things, and they compose because each dedups a different unit:
| layer | unit | lives in | goes stale when |
|---|---|---|---|
RemoteFileWithRangeCache | compressed bytes, in aligned blocks | the worker | never |
| the parser's own chunk cache | decompressed and parsed chunks | the worker | never |
rpcDataMap | one region's finished columns | the display model | rpcProps changes |
Only the last is on the figure, because it is the one a gesture interacts with. A pan back over a region the display still holds does no work at all; a pan onto a new region re-enters at the top.
The two lower layers hold a byte range and what that range decoded to, and
neither answer changes while the session runs — they are evicted, never
invalidated, and what evicts them is Memory and retention.
rpcDataMap is the one that can hold a wrong answer: it keeps what the worker
computed under one set of settings, so SettingsInvalidate watches the
serialized rpcProps() and clears the map when that string changes.
The cache key
says what may go in it.
Where the GPU sits
The two edges out of rpcDataMap run at different rates. Data crosses to the
GPU when the region changes. Frames after that redraw buffers that are already
there, and all a frame writes is a shader parameter — a pan, a zoom, a recolor,
a re-sort, a resize.
A display with no working GPU backend takes the dashed branch and draws the same data with a Canvas2D function. SVG export runs that same function against a context that serializes each call, which is what stops on-screen and exported pixels drifting apart. Every canvas-drawing display supplies one, and the shader path is the optional accelerator on top.
Where the parsers sit
read the index, read the chunks it named, inflate and build records are
one library per format, maintained in their own repositories, and the three big
ones each draw this segment with the same legend:
@gmod/bam— BAM@gmod/tabix— VCF, GFF, BED and everything else bgzipped and tabix-indexed@gmod/cram— CRAM, whose unit is a slice
What JBrowse adds on top of them is the rest of this figure: the decision not to fetch, the reduction to columns, and the boundary they cross.
