GWAS / Manhattan track
TL;DR: The GWAS track renders results as a Manhattan plot: -log₁₀(p-value) on the Y axis, genomic position on the X axis. Points support LocusZoom-style r² LD coloring to show linkage to an index SNP.
For a genome-wide example, the embedded Pan-UKB GWAS example browses the full Pan-UK Biobank catalog of ~7,200 phenotypes, loading each trait's summary statistics straight from the Pan-UKBB public S3 bucket.
Example file
To try the workflow without preparing anything, paste this hg19 BMI GWAS summary
statistics file (with neg_log_pvalue as the score column) into the Add GWAS
track form:
https://s3.amazonaws.com/jbrowse.org/genomes/hg19/gwas/summary_stats.txt.gzIts peaks are the ones a BMI scan is known for, FTO at chr16:53.8 Mb first by a wide margin, then TMEM18, MC4R and SEC16B, so a view that lands on any of them has something to show.
That file carries no LD of its own. The LD-colored demo below is a second pair,
gwas_giant-bmi_meta_women-only.gz with a PLINK table beside it, both under
jbrowse.org/demos/gwas/, which is what the demo config wires together.
Public data sources
Most public GWAS repositories use their own TSV column layout rather than the BED format GWASAdapter requires, so a conversion step is needed before loading. See the config guide for the preprocessing pipeline.
| Source | Notes |
|---|---|
| GWAS Catalog | Harmonized TSV; needs BED conversion + tabix |
| Pan-UKB | bgzipped TSV; loads directly with scoreColumn: neglog10_pval_meta_hq |
| FinnGen | TSV with raw pval; needs -log₁₀ transform + BED conversion |
| Open GWAS | VCF format; not directly compatible |
LD data

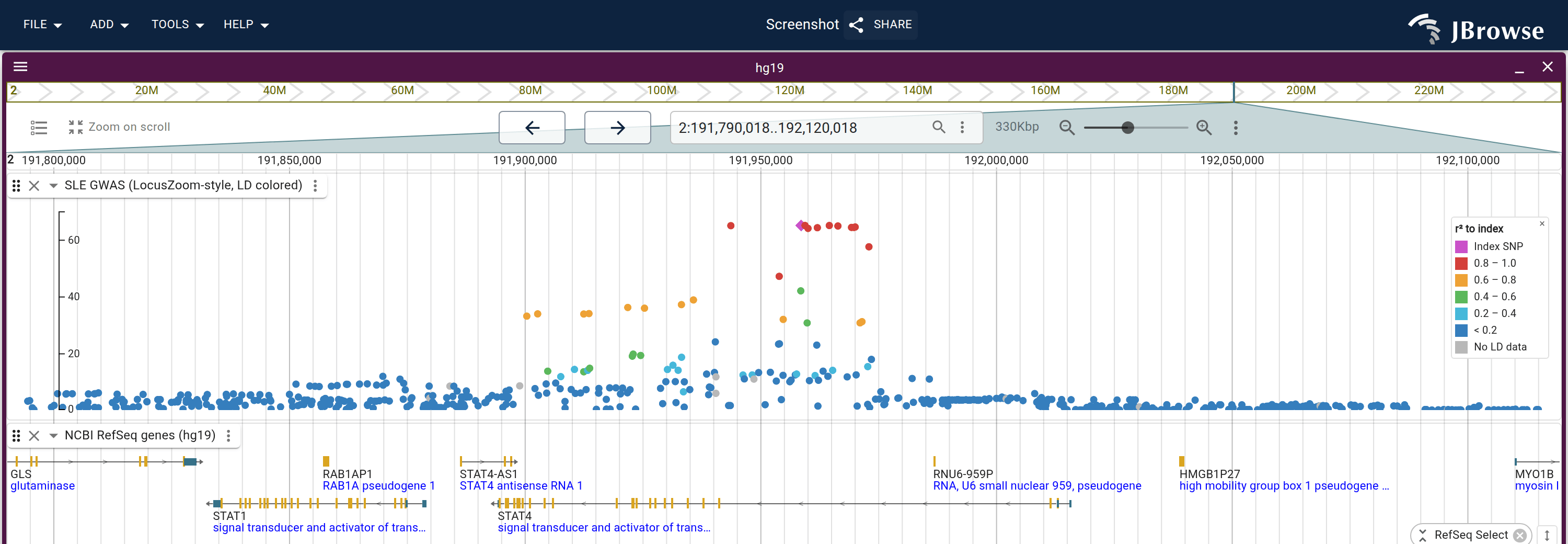

With an LD file loaded, points are colored by r² to an index SNP, revealing which nearby variants are in linkage with the lead signal (see Add GWAS track workflow for how the index is chosen).
The embedded LocusZoom-style LD example shows this r² coloring running live in a React app.
The LD triangle is a separate feature: it draws r² between every pair of nearby variants as a heatmap, and can compute it live from phased genotypes. See the linkage disequilibrium tutorial.
LD data must be in PLINK LD table format, either 1.9's .ld or 2.0's .vcor,
bgzipped or not. Generate it from:
- Your own cohort -
plink2 --r2-unphased --ld-window-kb 1000 --ld-window-r2 0, or 1.9'splink --r2 --ld-window-kb 1000 --ld-window-r2 0 - Reference panel - 1000 Genomes phase 3 at
ftp.1000genomes.ebi.ac.uk/vol1/ftp/release/20130502/(choose EUR, AFR, EAS, AMR, or SAS by population). Pointbcftoolsat the.bcffiles undersupporting/bcf_files/rather than the.vcf.gzbeside them: the BCF and its.csianswer a remote region query in seconds, while the.vcf.gzindex sends htslib to an offset that fails with "Illegal seek"
Clumping the peak
A peak is one signal smeared across every variant in LD with the causal one.
plink2 --clump writes that down rather than leaving it to be read off the
colors: each clump is an index variant plus the variants whose signal it
accounts for, which loads as an interval track under the Manhattan lane.
The reference panel is a region of 1000 Genomes, fetched over HTTP without downloading the file:
BCF=https://ftp.1000genomes.ebi.ac.uk/vol1/ftp/release/20130502/supporting/bcf_files/ALL.chr16.phase3_shapeit2_mvncall_integrated_v5.20130502.genotypes.bcf
curl -fsSLO https://ftp.1000genomes.ebi.ac.uk/vol1/ftp/release/20130502/integrated_call_samples_v3.20130502.ALL.panel
awk 'NR>1 && $3=="EUR"{print $1}' integrated_call_samples_v3.20130502.ALL.panel > eur.samples
# -r is a region request, so 900 kb costs 900 kb rather than the 450 MB chromosome
bcftools view -r 16:53400000-54300000 -S eur.samples -m2 -M2 -v snps \
-q 0.01:minor -Oz -o fto.vcf.gz "$BCF"
# --set-missing-var-ids is not optional: plink2 refuses a dataset where the ID
# '.' appears twice, and an unnamed variant is common in a reference panel
plink2 --vcf fto.vcf.gz --double-id --set-missing-var-ids @:# \
--rm-dup force-first --make-bed --out fto--clump then reads the summary statistics themselves. The columns are named
rather than positional, and --clump-log10 input-only is what says the p-value
column is already -log10, as neg_log_pvalue is:
# plink2 reads the header, so the leading '#' on '#chrom' has to go
gzip -dc summary_stats.txt.gz | sed '1s/^#//' > stats.txt
plink2 --bfile fto --clump stats.txt --clump-log10 input-only \
--clump-p-field neg_log_pvalue --clump-id-field rsid \
--clump-log10-p1 7.3 --clump-log10-p2 2 --clump-r2 0.2 --clump-kb 500 --out fto
# clump to BED: SP2 names the members, and the .bim says where each one is, so
# the span is their lowest and highest position
awk 'NR==FNR{pos[$2]=$4; next} FNR>1 {n=split($11,m,","); lo=$2; hi=$2
for(i=1;i<=n;i++){p=pos[m[i]]; if(p){if(p<lo)lo=p; if(p>hi)hi=p}}
printf "%s\t%d\t%d\t%s (%d variants)\n", $1, lo-1, hi, $3, $5}' \
fto.bim fto.clumps | sort -k2,2n > clumps.bedOver the example file that gives three clumps at FTO, and the big one is the
answer to what the peak is tagging: index rs1121980, 51 variants, spanning 51
kb of FTO's first intron. Load clumps.bed through a
BedAdapter beside the GWAS track.
Add GWAS track workflow
Open the track selector, click Add track, and choose Add GWAS / Manhattan track.
GWAS data (required)
- GWAS file - the
.bed.gzor.txt.gz - GWAS tabix index - omit if the index is at
<file>.tbi - Score column - column name for the -log₁₀(p) values (the
scoreColumnslot)
LD coloring (optional)
Select a PLINK .ld or .ld.gz file. For bgzipped files a second field appears
for the tabix index.
Click Submit. In LD mode JBrowse auto-picks the highest-scoring loaded SNP as the index; right-click any point or use the track menu to change it.
