RepeatMasker as one lane per class

TL;DR: a RepeatMasker track is one packed lane of colored blocks. The same file opened as a multi-row feature display is one labelled lane per class, whose height is that class's share of the window. The class is already in the file, and the display discovers the lanes from it.

Prerequisites

Where the data comes from

The figures read UCSC's RepeatMasker track for hg38 and dm6, rehosted on jbrowse.org.

Where the class lives in the file

The two hub pipelines store it differently:

  • A UCSC golden-path assembly ships a BED whose header names its columns, repClass among them. That is an attribute, so partitionField is just "repClass".
  • A GenArk assembly ships a bigRmskBed, whose autoSql has no class column at all. The class rides on the name as a suffix, L1HS#LINE/L1, so the value has to be derived. That case is worked in Multi-row feature track.

Either way the rows are discovered from the values the loaded region holds, so a window with no satellite has no satellite lane.

Switching the track over

Open RepeatMasker, then Display types → Multi-row feature display (painting) in the track menu. That splits the track on the name column, which is one row per repeat, so the second pick is Partition by... → repClass in the same menu, which lists the columns the loaded features carry.

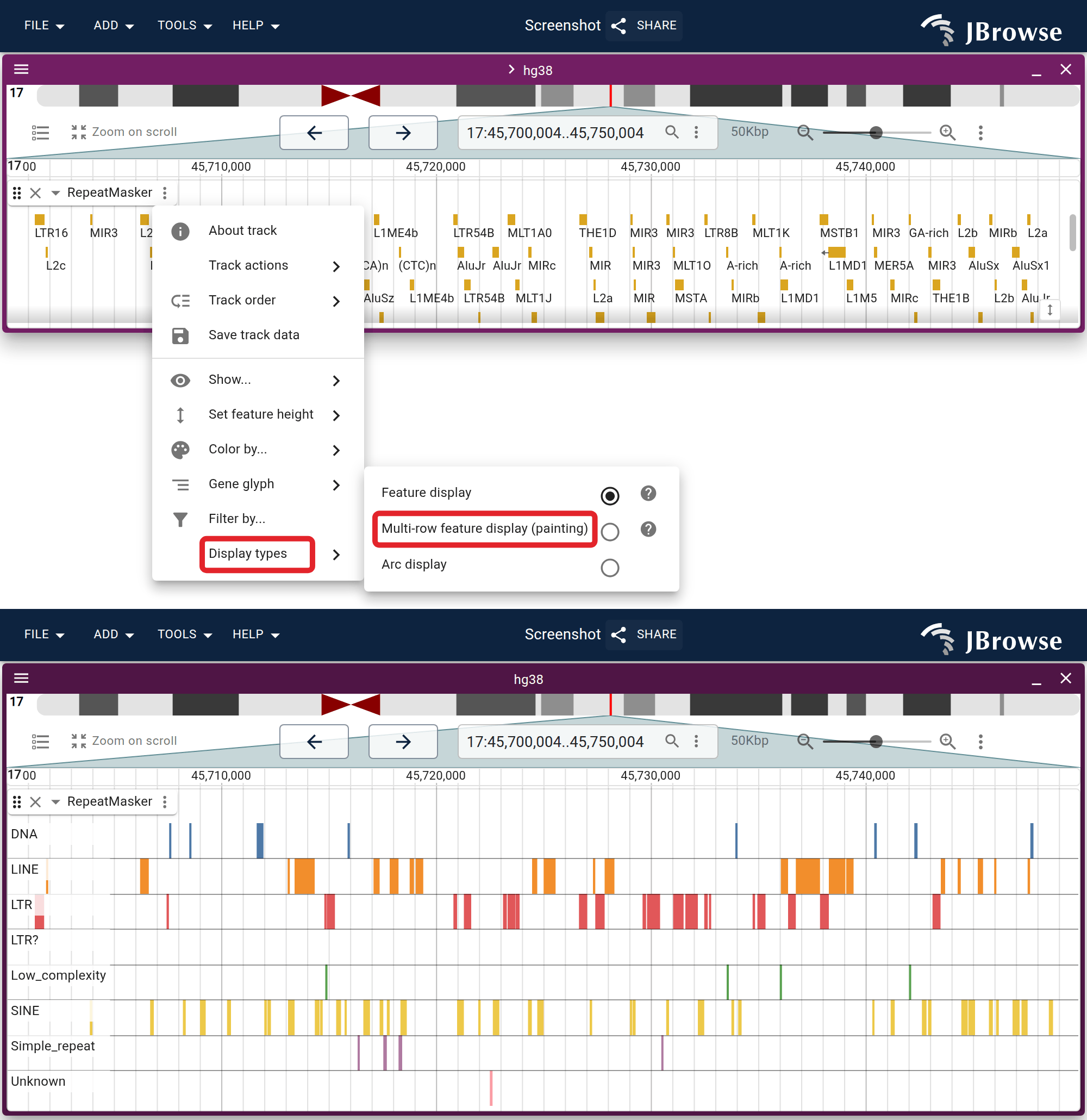

The track menu's Display types submenu on the UCSC RepeatMasker track. Any feature track carries the multi-row display beside its default one.
The RepeatMasker track from one packed lane to a labelled lane per class: the multi-row painting display, then the repeat class column picked out of the ones the file carries. Open the session this video starts in ↗

The colored, packed form and the lane form are the same track and the same fetch:

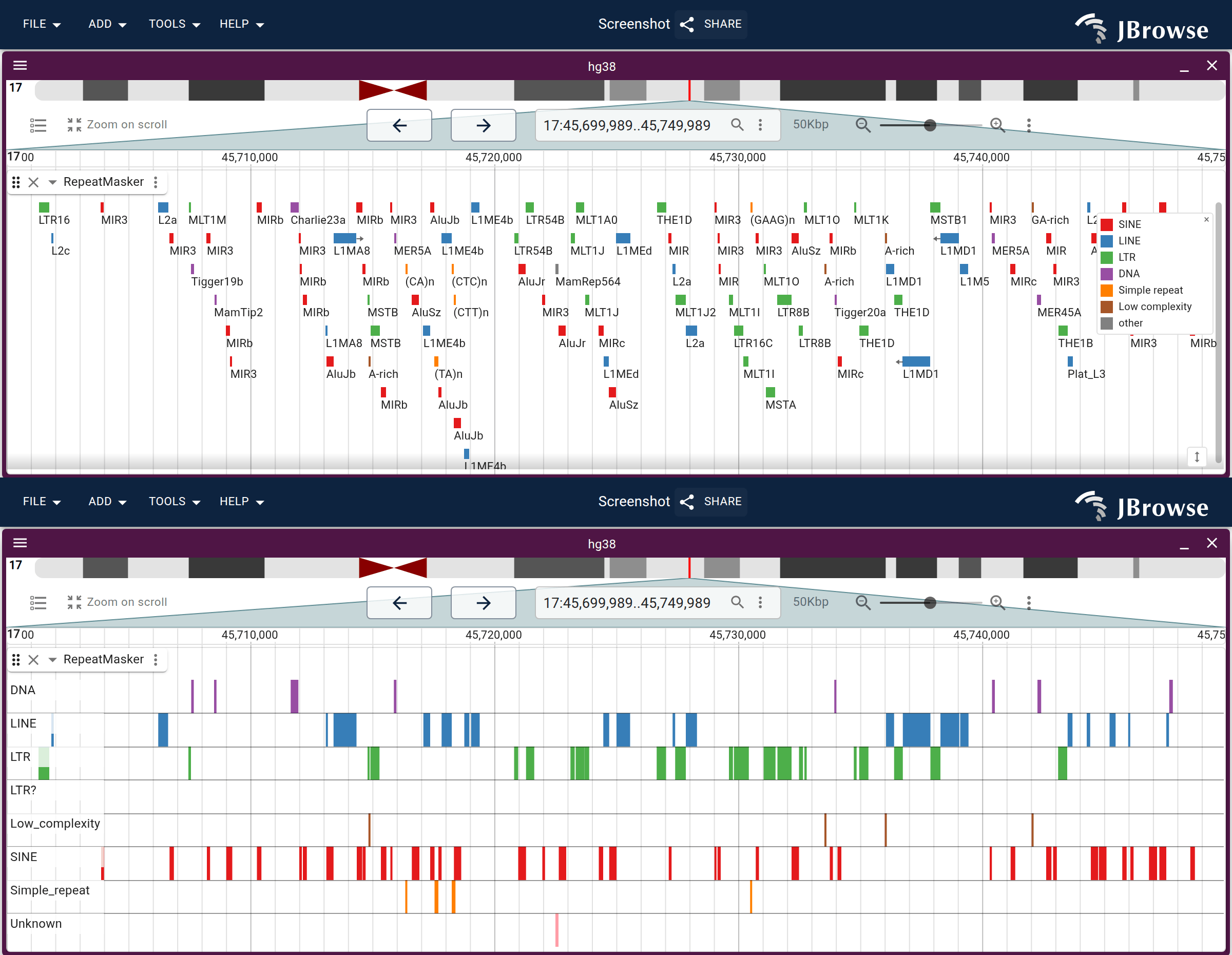

Top: UCSC RepeatMasker over a 17q21 window, colored by repClass through a jexl lookup table, with the display's legend slot as the key. Every class shares one packed lane. Bottom: the same track and window partitioned on repClass instead. SINE fills the window and LINE comes in clusters, and the LTR? and Unknown lanes are values in the file that the lookup table does not name.

Pinning the lanes in a track config

A track config makes the partitioned view the track's default instead of a menu pick, and two more slots come with it: sampleColorMap is keyed by the class, so a lane keeps its color as the window's class list changes, and rowOrder fixes the lane order the same way.

{
  "type": "FeatureTrack",
  "trackId": "rmsk_hg38_rows",
  "name": "RepeatMasker by class",
  "assemblyNames": ["hg38"],
  "adapter": { "type": "BedTabixAdapter", "uri": "rmsk.bed.gz" },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "rmsk_hg38_rows-LinearMultiRowFeatureDisplay",
      "partitionField": "repClass",
      "sampleColorMap": {
        "SINE": "#e41a1c",
        "LINE": "#377eb8",
        "LTR": "#4daf4a",
        "DNA": "#984ea3",
        "Simple_repeat": "#ff7f00",
        "Low_complexity": "#a65628"
      },
      "showRowSeparators": true
    }
  ]
}
jbrowse add-track-json '{
  "type": "FeatureTrack",
  "trackId": "rmsk_hg38_rows",
  "name": "RepeatMasker by class",
  "assemblyNames": ["hg38"],
  "adapter": { "type": "BedTabixAdapter", "uri": "rmsk.bed.gz" },
  "displays": [
    {
      "type": "LinearMultiRowFeatureDisplay",
      "displayId": "rmsk_hg38_rows-LinearMultiRowFeatureDisplay",
      "partitionField": "repClass",
      "sampleColorMap": {
        "SINE": "#e41a1c",
        "LINE": "#377eb8",
        "LTR": "#4daf4a",
        "DNA": "#984ea3",
        "Simple_repeat": "#ff7f00",
        "Low_complexity": "#a65628"
      },
      "showRowSeparators": true
    }
  ]
}'

A lane not named in sampleColorMap takes a color from the categorical palette by its position in the stack, so its color moves as the window's class list changes.

Two things worth knowing about the config, both because their absence is silent:

  • The display is not the track's default, so it needs a real displays entry rather than the displayDefaults shorthand, whose color would reach the default display as well.
  • Whichever display is listed first becomes the one the track opens with. Putting a bare { "type": "LinearBasicDisplay", "displayId": ... } ahead of the multi-row entry keeps the packed form as the default and leaves the lanes one menu click away.

Checking the lanes against the file

The lane heights are a claim about the window, so read the same numbers out of the file. Over the window in the figures:

tabix https://jbrowse.org/ucsc/hg38/rmsk.bed.gz chr17:45,700,000-45,750,000 |
  awk -F'\t' '{ n[$7]++; bp[$7] += $3 - $2 }
    END { for (c in n) printf "%s\t%d\t%d bp\n", c, n[c], bp[c] }' |
  sort -k3 -nr

The classes it prints are the lanes on screen, and their bp totals are the ink in each lane. A lane in the picture with no line here, or the reverse, means the view is not showing the file you think it is.

The Unknown lane is the control: no entry in the sampleColorMap above and none in the cookbook's lookup table, and it is on screen anyway, because the lanes come from the file. Pan to a window whose output has no Unknown line and the lane goes away.

The same command with $6 instead of $7 counts repFamily, which is the finer partition (L1, Alu, MIR) if the classes turn out to be too coarse for what you are reading.

Serving your own RepeatMasker output

Everything above reads a hub's track, whose BED already carries the repClass column the display partitions on. RepeatMasker's own .out does not have one: it writes a single class/family field, LINE/L1 for a repeat with both and a bare Simple_repeat for one whose family is its class. Splitting that field in two, under a header naming the columns, is the whole difference between the .out and the file the track above is reading:

# the header names the columns, which is what lets `partitionField: "repClass"`
# name one the BED spec has never heard of
{
  printf '#genoName\tgenoStart\tgenoEnd\tname\tstrand\trepFamily\trepClass\tswScore\tmilliDiv\n'
  awk 'BEGIN { OFS = "\t" }
    # a data row is the one starting with a bare integer, its SW score
    $1 ~ /^[0-9]+$/ {
      # "LINE/L1" splits; "Simple_repeat" does not, and UCSC repeats the class
      # as the family for exactly those rows. Positions are 1-based inclusive
      # and the strand column spells minus "C".
      n = split($11, cf, "/")
      print $5, $6 - 1, $7, $10, ($9 == "C") ? "-" : "+", (n > 1) ? cf[2] : cf[1], cf[1], $1, int($2 * 10 + 0.5)
    }' repeats.out
} > rmsk.bed

# `sort-bed` is `sort -k1,1 -k2,2n` under LC_ALL=C, header kept on top
jbrowse sort-bed rmsk.bed | bgzip > rmsk.bed.gz
tabix -p bed rmsk.bed.gz

Those are UCSC's first seven columns in UCSC's order, so the tabix | awk check above reads the result unchanged.

Reproduce it end to end

One script converts the .out, indexes it, and writes a runnable JBrowse with the track already set to the multi-row display, build_repeatmasker_classes.sh:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_repeatmasker_classes.sh
bash build_repeatmasker_classes.sh genome.fa repeats.out  # builds ./repeatmasker_build/jbrowse2
npx --yes serve repeatmasker_build/jbrowse2               # then open the printed URL

genome.fa is the FASTA RepeatMasker was run against and repeats.out is its .out; either may be gzipped. Tools are under Prerequisites. It runs the conversion above, samtools faidx over the FASTA for the assembly, and jbrowse add-track with the display already set.

Run the script on a genome UCSC masks too, and its output can be compared against UCSC's own:

curl -o ucsc_rmsk.bed.gz https://jbrowse.org/ucsc/dm6/rmsk.bed.gz
diff <(gzip -dc repeatmasker_build/rmsk.bed.gz | grep -v '^#' | cut -f1-7 | sort) \
     <(gzip -dc ucsc_rmsk.bed.gz | grep -v '^#' | cut -f1-7 | sort)

Silence means every interval, name, strand, family and class agrees with UCSC's conversion of the same .out. The two places this can disagree are both in the .out format: its coordinates are 1-based and inclusive where BED's are 0-based and half-open, and its strand column spells the minus strand C.
