Pangenome (Minigraph-Cactus)

TL;DR: one cactus-pangenome run over five E. coli strains emits the graph, a VCF, an odgi, a HAL and short-read indexes, which become JBrowse tracks on the K12 axis: synteny, pangenome variants, a whole-genome MAF, depth, per-strain presence, and a pileup of an isolate outside the graph, mapped through it.

Experimental

The graph view is a beta plugin, and this tutorial covers experimental ideas. We welcome your feedback.

Prerequisites

docker or singularity, for the cactus image (which carries odgi, halSynteny, hal2maf, vg and samtools)
htslib (bgzip, tabix)
python3
node, for the JBrowse CLI, which the fences below run directly
the NCBI datasets CLI, additionally for the whole build
bedGraphToBigWig (UCSC kentUtils), additionally for the whole build
samtools, additionally for the whole build
unzip, additionally for the whole build
wget, additionally for the whole build
the GraphGenomeView plugin, for drawing the graph as a graph; every other track here is a built-in type

On Debian/Ubuntu, apt install samtools tabix unzip wget python3 covers five of those. Docker installs from docs.docker.com; the NCBI datasets CLI and bedGraphToBigWig are each a single-binary download; and node comes from nodejs.org. Everything else runs inside the cactus image.

Where the data comes from

Five E. coli RefSeq assemblies, fetched by accession with the NCBI datasets CLI, K12 the --reference backbone the other four are aligned onto.

K12: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/005/845/GCF_000005845.2_ASM584v2/
Sakai: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/008/865/GCF_000008865.2_ASM886v2/
CFT073: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/007/445/GCF_000007445.1_ASM744v1/
NCTC86: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/002/007/705/GCF_002007705.1_ASM200770v1/
IAI39: https://ftp.ncbi.nlm.nih.gov/genomes/all/GCF/000/026/345/GCF_000026345.1_ASM2634v1/
KTa004 short reads mapped through the finished graph, forward mate: https://ftp.sra.ebi.ac.uk/vol1/fastq/DRR063/DRR063408/DRR063408_1.fastq.gz
KTa004 short reads, reverse mate: https://ftp.sra.ebi.ac.uk/vol1/fastq/DRR063/DRR063408/DRR063408_2.fastq.gz
the graph's segments and links, tabix-indexed and rehosted so the graph genome view figures load with no local build: https://jbrowse.org/demos/ecoli_pangenome/

The Minigraph-Cactus pipeline

Minigraph-Cactus (cactus-pangenome) builds a pangenome graph reference-first. minigraph lays down a backbone from the reference you pick, every other sample is aligned onto it, and Cactus normalizes the result into a graph.

This tutorial builds a graph from five E. coli strains and loads it in JBrowse as synteny, variants, a whole-genome alignment, depth and presence, then maps a new isolate's reads through the finished graph. The HPRC tutorial opens the Minigraph-Cactus graph the Human Pangenome Reference Consortium publishes, the same builder at human scale.

The pggb tutorial uses the same five strains and the same projections onto K12, so the two pages compare the builders on identical input. What each projection is is written up there and holds for any builder; this one covers producing them from Cactus, and one figure puts the two graphs' depth curves in a single frame. Here is what changes between the two:

Step	pggb	Minigraph-Cactus
Build	wfmash + seqwish + smoothxg, then `-V`/`-M`	one `cactus-pangenome` run emits the graph, VCF, odgi, and a HAL
Reference	symmetric all-vs-all, `-V` picks a path	explicit `--reference`; the minigraph backbone is that genome
Variants	`pggb -V`, CHROM is the PanSN path	`--vcf` (vg deconstruct), CHROM already the reference contig
Whole-genome MAF	`pggb -M`, re-rooted on the reference	the HAL, `hal2maf --refGenome` (already reference-rooted)
Synteny	the wfmash all-vs-all PAF	`halSynteny` from the HAL (or `odgi untangle`)
Depth / presence	`odgi depth` / `odgi pav`	same (odgi ships in the cactus image)
Short reads	no mapping index emitted	`--giraffe` writes the `vg giraffe` indexes

Building the graph with cactus-pangenome

Cactus takes a seqFile: one name<TAB>path line per sample.

cat > seqfile.txt <<'EOF'
K12     K12.fa
Sakai   Sakai.fa
CFT073  CFT073.fa
NCTC86  NCTC86.fa
IAI39   IAI39.fa
EOF

Contigs keep their plain names here (chr). Cactus applies PanSN sample#haplotype#contig naming to the graph internally.

The image carries odgi, halSynteny, hal2maf and vg, which the projections below all need. Cactus also ships a statically linked binary release for a machine with no container runtime. Every later step runs in the same image, so wrap the docker run once and call it in_cactus:

in_cactus() {
  docker run --rm -u "$(id -u):$(id -g)" -w /data -v "$PWD":/data \
    quay.io/comparative-genomics-toolkit/cactus:v3.2.1 "$@"
}

Under singularity, singularity exec --bind "$PWD":/data --pwd /data docker://<image> replaces the wrapper body and every call after it is unchanged. The build script picks the runtime off PATH.

The graph build takes --reference K12, which makes K12 the minigraph backbone, and the path every projection is decomposed against:

in_cactus cactus-pangenome /data/js /data/seqfile.txt \
  --outDir /data/mc --outName ecoli --reference K12 \
  --vcf --gfa --gbz --odgi --viz --draw --giraffe --consCores 8

/data/js is the Toil job store, and must not already exist on a fresh run.
--outName ecoli prefixes every output file.
--vcf deconstructs the graph into the variant projection's input.
--odgi writes the .og that the depth and presence projections read.
--viz writes the odgi raster shown at the end.
--giraffe writes the indexes the read-mapping section needs.

Pinning the image to a dated version tag keeps the graph reproducible.

One run produces everything the sections below use:

mc/ecoli.gfa.gz, mc/ecoli.full.og: the graph (GFA and odgi)
mc/ecoli.vcf.gz: the pangenome variants
mc/ecoli.full.hal: the multiple alignment as a HAL, which the synteny and MAF projections read
mc/ecoli.d2.gbz and its .dist/.min/.zipcodes: the vg giraffe indexes from --giraffe, built over the graph filtered to sequence at least two haplotypes carry
mc/ecoli.viz/chr.full.viz.png: the odgi 1D graph raster

All-vs-all synteny projection

halSynteny reads the HAL's base-level alignment and emits synteny blocks per genome pair. On a near-colinear bacterial graph, odgi untangle collapses each pair to a few whole-chromosome blocks.

halSynteny writes PSL, and names every sequence chr with no sample tag. The build script runs it for all six strain pairs and converts each PSL to PAF, injecting the PanSN sample#0#chr names and decoding the strand. (halSynteny keeps the query on + and flips only the target, so the PAF strand is the second character of the PSL strand field.)

Index the combined PAF so a range query fetches only the region in view:

jbrowse make-pif ecoli_cactus_ava.paf   # -> ecoli_cactus_ava.pif.gz (+ .tbi)

Load it with an AllVsAllIndexedPAFAdapter, whose PanSN sample# prefix on every record is how it maps a record to its strain:

Config file CLI (add-track)

{
  "type": "SyntenyTrack",
  "trackId": "ecoli_cactus_ava",
  "name": "MC graph: all-vs-all synteny (halSynteny)",
  "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
  "adapter": {
    "type": "AllVsAllIndexedPAFAdapter",
    "uri": "ecoli_cactus_ava.pif.gz",
    "assemblyNames": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"]
  }
}

jbrowse add-track ecoli_cactus_ava.pif.gz \
  --trackId ecoli_cactus_ava \
  --name "MC graph: all-vs-all synteny (halSynteny)" \
  --assemblyNames K12,Sakai,CFT073,NCTC86,IAI39 \
  --adapterType AllVsAllIndexedPAFAdapter \
  --load copy

To stack the five strains, use a linear synteny view with one panel per strain and one tracks entry per band, each band naming the same track. Put this in the view's init, or reach the same state from the UI with Add → Linear synteny view, whose Quick start fills in a row per assembly the track lists.

{
  "type": "LinearSyntenyView",
  "init": {
    "views": [
      { "assembly": "K12" },
      { "assembly": "Sakai" },
      { "assembly": "CFT073" },
      { "assembly": "NCTC86" },
      { "assembly": "IAI39" }
    ],
    "tracks": [
      ["ecoli_cactus_ava"],
      ["ecoli_cactus_ava"],
      ["ecoli_cactus_ava"],
      ["ecoli_cactus_ava"]
    ],
    "minAlignmentLength": 10000,
    "levelHeights": [110, 110, 110, 110]
  }
}

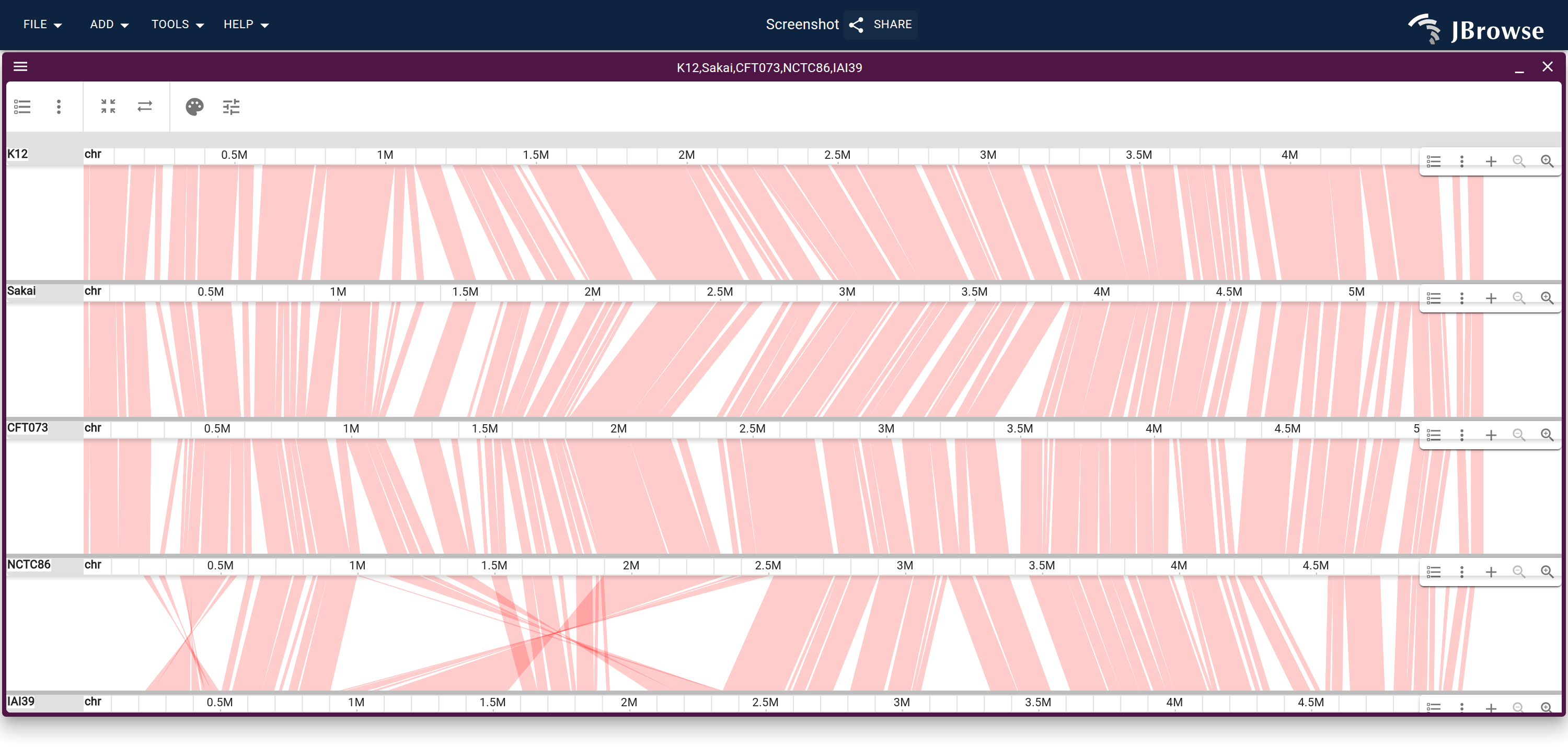

The Minigraph-Cactus graph's synteny projection: five strains stacked K12 to IAI39, a halSynteny ribbon between each adjacent pair. The bottom band crosses where IAI39 carries large inversions relative to the others. Open this view in JBrowse ↗ (large dataset — this session takes a while to load)

Same five strains in the same row order as the all-vs-all tutorial's stack and the pggb one, and all three agree on the backbone and on IAI39's inversions. These blocks are read out of the HAL, so they are the graph's own base-level alignment.

Pangenome variants projection

--vcf decomposes the graph against the K12 reference with vg deconstruct, genotyped across the other four strains. Its CHROM is already the reference contig (chr), so the .gz and .tbi Cactus wrote load unchanged.

Load mc/ecoli.vcf.gz as a VariantTrack on K12 and pick the matrix display, one column per variant and one row per sample:

{
  "type": "VariantTrack",
  "trackId": "ecoli_cactus_variants",
  "name": "MC graph: pangenome variants (vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "VcfTabixAdapter",
    "uri": "mc/ecoli.vcf.gz"
  },
  "displays": [{ "type": "LinearMultiSampleVariantMatrixDisplay" }]
}

The multi-sample variant track guide covers the matrix versus the per-position display, the genotype colors, and clustering samples by genotype.

vg deconstruct emits a snarl tree, one record per snarl at every level, so its wide records paint over the fine layer they were decomposed from. cactus-pangenome pops that tree with vcfbub by default; --vcfbub 0 turns it off, and --vcfwave realigns the survivors into primitive variants. The pggb tutorial sets the same knob by hand, and covers what the width cap costs.

Whole-genome alignment (MAF) projection

cactus-pangenome writes mc/ecoli.full.hal by default, and the MAF comes out of it. hal2maf --refGenome K12 roots every block on K12 directly, and the HAL's genome.sequence rows come out as K12.chr, Sakai.chr, and so on, the sample.contig naming the MAF display splits each species off on:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/maf_to_bed.py
in_cactus hal2maf --refGenome K12 --noAncestors /data/mc/ecoli.full.hal /data/ecoli_cactus.maf
python3 maf_to_bed.py ecoli_cactus.maf ecoli_cactus.maf.bed
bgzip ecoli_cactus.maf.bed
tabix -p bed ecoli_cactus.maf.bed.gz

maf_to_bed.py writes one line per block, carrying that block's rows, which a MafTabixAdapter reads. hal2maf has already rooted every block on K12, so maf2bed converts this MAF too and streams while it does it, which matters at whole-genome scale; see producing the tabix BED.

{
  "type": "MafTrack",
  "trackId": "ecoli_cactus_maf",
  "name": "MC graph: whole-genome alignment (MAF, vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "MafTabixAdapter",
    "samples": ["K12", "Sakai", "CFT073", "NCTC86", "IAI39"],
    "uri": "ecoli_cactus.maf.bed.gz"
  }
}

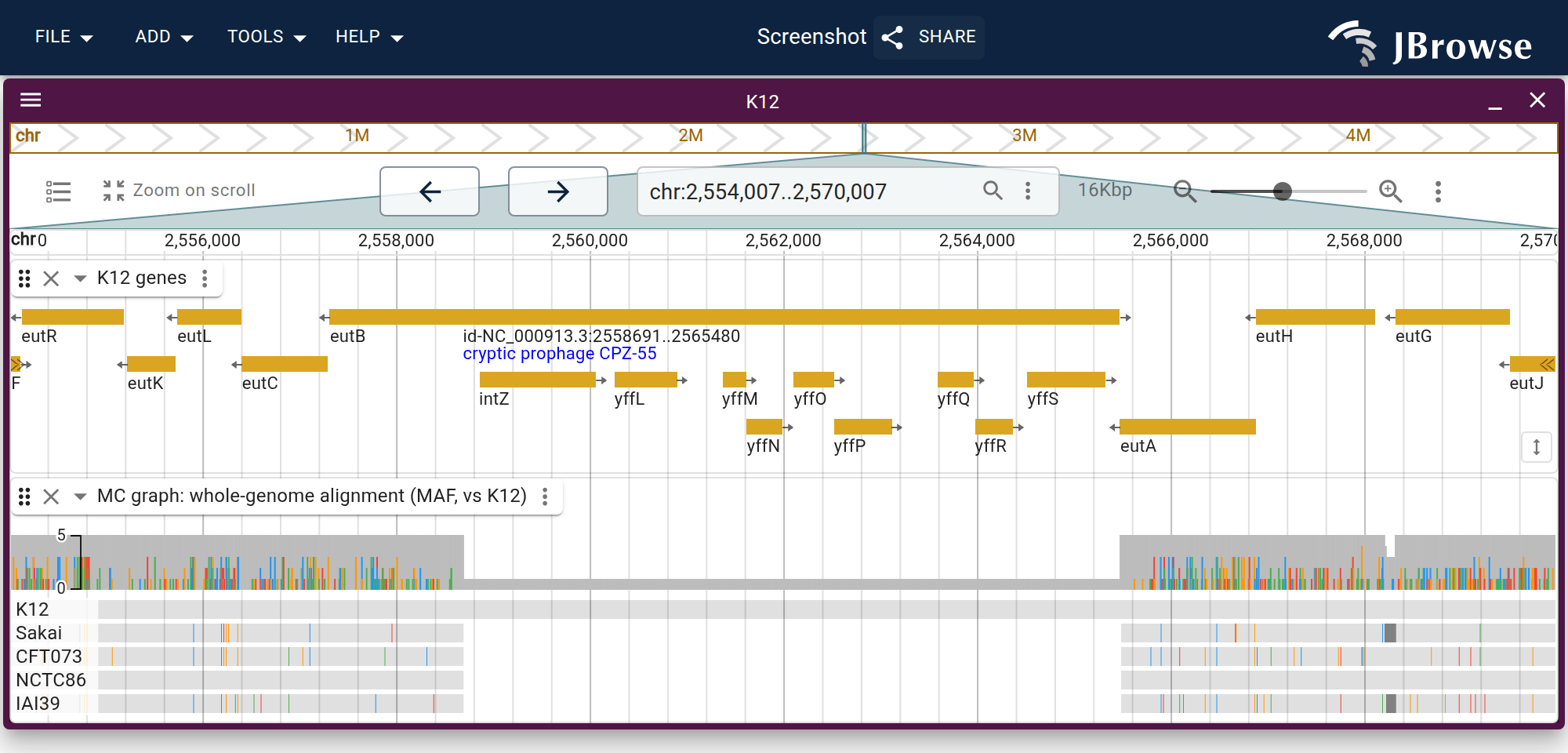

The Minigraph-Cactus HAL projected onto K12 as a MAF: the coverage band on top, then one row per strain, colored where each differs from K12. The four non-K12 rows stop at the edges of the cryptic prophage CPZ-55, which K12 alone carries. Open this view in JBrowse ↗

A row reads blank two ways. No colored columns is sequence the strain shares with K12, which is most of the flanks; a row that stops entirely is a strain with no alignment to K12 there, which is what the four do across the prophage. The coverage band separates them, dropping where rows drop out and holding where they match.

samples both names the rows and fixes their order. To order them by how much of the graph each pair of strains shares instead, run odgi similarity on mc/ecoli.full.og and point nhLocation at the tree, which is what the pggb tutorial's MAF track does.

The MAF track guide covers the conservation band, per-row identity, and codon view, all derived from the alignment with no extra files. The same hal2maf route works for a progressiveCactus HAL of more divergent species.

Pangenome depth and per-strain presence

odgi depth counts how many paths traverse the graph under each K12 base, and odgi pav splits that aggregate per strain. Both run as they do in the pggb tutorial's depth and per-strain presence sections, over mc/ecoli.full.og instead of the pggb GFA, and load as the same QuantitativeTrack and MultiQuantitativeTrack. Two names change: the reference path is K12#0#chr, and each non-reference strain carries a trailing subpath tag (Sakai#0#chr#0), so the per-strain filter has to match a prefix rather than the whole name. The build script runs both.

Depth counts path steps rather than strains, so a repeat the graph folded onto one run of nodes reads above the strain count. On identical input, seqwish folds the rRNA copies together, so the pggb curve runs above the strain count there, and the reference-first graph keeps them apart.

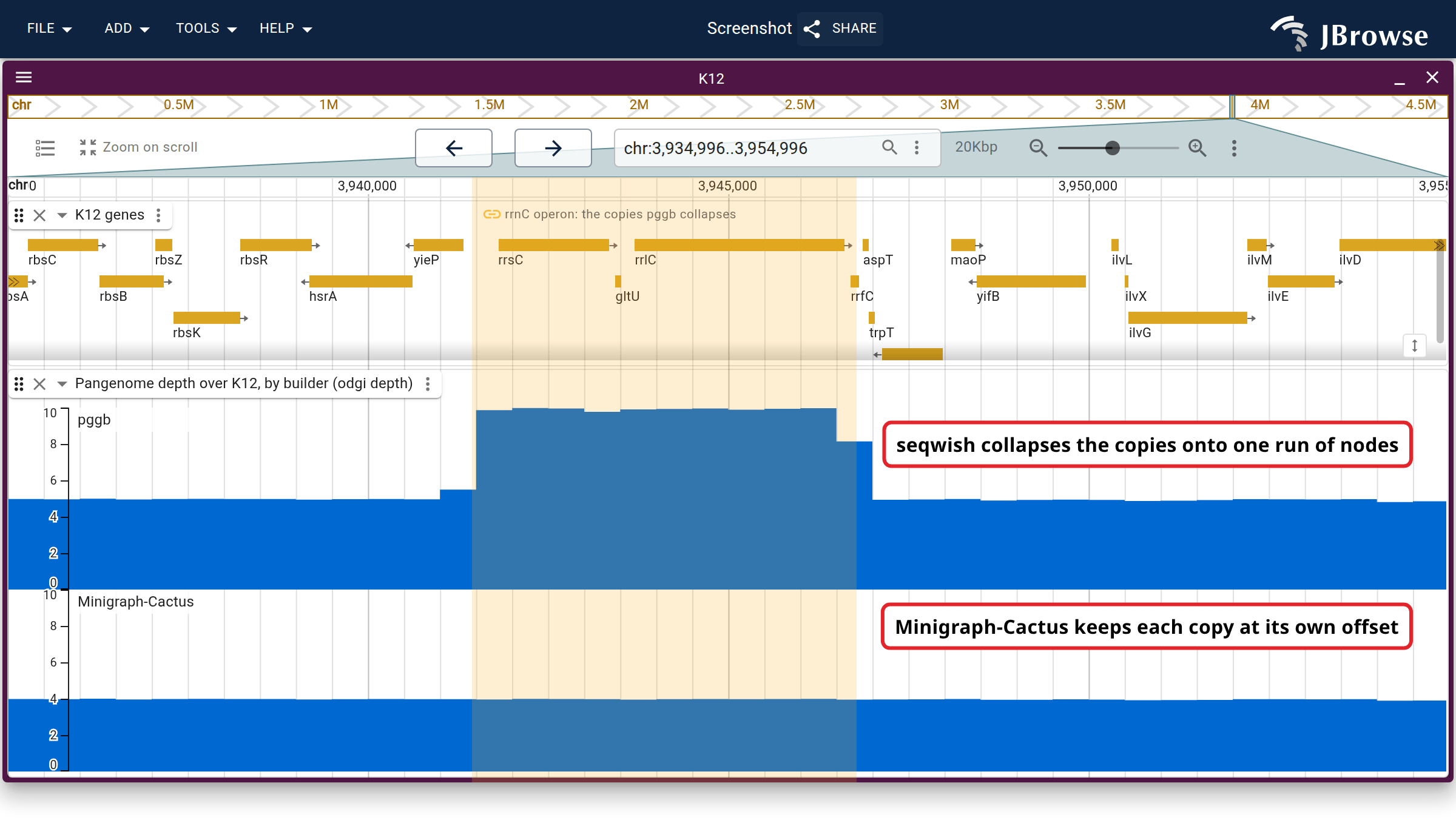

odgi depth over the banded rrnC operon, the same command over the same K12 windows against each builder's graph, on one fixed axis. The pggb row doubles over the operon and the Minigraph-Cactus row does not move. Open this view in JBrowse ↗

seqwish merges identical sequence wherever it occurs, so a collapsed repeat is where to look for variation within an array. A reference-anchored build keeps each copy at its own coordinate, so the depth curve here is a strain tally and a read can be asked which copy it came from.

Drawn under the aggregate curve, the pav rows say which strain accounts for each dip. The picture is the one the pggb tutorial already shows (per-strain presence), because at this scale the two graphs agree.

Mapping a new isolate through the graph

Every projection above re-plots a genome the graph was built from. This one takes a sample outside the graph, maps its short reads through the whole pangenome, and flattens the result onto K12.

A read over an allele K12 lacks places in the graph, on whichever strain's path carries it, and has no K12 coordinate for vg surject to project onto, so surjection leaves it unmapped. The BAM holds the reads over sequence K12 carries, where a divergent read followed a non-reference path through a bubble and paid no mismatches or soft clips for the difference.

--giraffe wrote the indexes for this during the build. vg giraffe maps against the graph and emits a GAM, and vg surject projects that graph alignment onto one path as an ordinary BAM. The reads here are E. coli KTa004 (ENA DRR063408, Illumina MiSeq), a strain the graph has never seen:

in_cactus vg giraffe -p \
  -Z /data/mc/ecoli.d2.gbz -d /data/mc/ecoli.d2.dist \
  -m /data/mc/ecoli.d2.shortread.withzip.min -z /data/mc/ecoli.d2.shortread.zipcodes \
  -f /data/reads/sub_1.fastq.gz -f /data/reads/sub_2.fastq.gz > mapped.gam

in_cactus vg surject -x /data/mc/ecoli.d2.gbz -b -p K12#0#chr \
  -N KTa004 -R KTa004 /data/mapped.gam > mapped.raw.bam

-p K12#0#chr picks the path to surject onto, so the BAM's one reference sequence is that PanSN path name. Rename it to the assembly's refName in the header, drop the unmapped reads, then sort and index; the build script does those four samtools steps, and downloads and subsamples the reads.

The result is a plain BAM, loaded as an ordinary alignments track:

Config file CLI (add-track)

{
  "type": "AlignmentsTrack",
  "trackId": "ecoli_cactus_reads",
  "name": "KTa004 reads mapped through the graph (vs K12)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "BamAdapter",
    "uri": "ecoli_cactus_reads.bam"
  }
}

jbrowse add-track ecoli_cactus_reads.bam \
  --trackId ecoli_cactus_reads \
  --name "KTa004 reads mapped through the graph (vs K12)" \
  --assemblyNames K12 \
  --load copy

Stack it over the variant and MAF projections and the pileup reads against the graph it came out of, at the loci where this isolate is far enough from K12 for the difference to be worth a graph. The alignments track guide covers coloring and sorting the pileup.

vg giraffe rewrites ecoli.d2.dist as it runs, leaving it newer than the .min and .zipcodes built from it, so a second run refuses to start on an index that only looks stale. touch the two derived files before re-mapping.

Opening the graph in the graph genome view

Every projection above flattens the graph onto K12. JBrowse can also draw it as a graph, through the graph genome view plugin.

Installing the plugin

The plugin is beta and not in the plugin store yet, so it loads by URL. In JBrowse Web that means a plugins array at the top level of config.json, beside assemblies and tracks (see configuring plugins):

{
  "plugins": [
    {
      "name": "GraphGenomeView",
      "esmUrl": "https://jbrowse.org/demos/graphgenomeviewer/jbrowse-plugin-graphgenomeviewer.esm.js"
    }
  ]
}

RgfaTabixAdapter ships in the same plugin, so the segments track below needs it as much as the view does. On JBrowse Desktop there is no config file to edit: install it once from the start screen at Global plugins... → Add custom plugin, putting that esmUrl under Advanced options in ESM build URL and leaving the two fields above it empty.

Indexing the graph

mc/ecoli.gfa.gz carries no SN/SO/SR tags, so it takes the plain-GFA route: build_pggb_tabix.sh walks the path lines offline and writes the two tabix-indexed BEDs RgfaTabixAdapter reads, which makes the whole graph queryable by locus with no per-window extraction step.

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_pggb_tabix.sh
bash build_pggb_tabix.sh mc/ecoli.gfa.gz ecoli_cactus K12

Cactus writes the reference as a P line and the haplotypes as W lines, and the walk reads both in file order, so the third argument anchors rank 0 on the K12 path. The non-reference paths carry a trailing subpath tag (Sakai#0#chr#0), which PanSN still resolves to the sample.

The pair loads as one FeatureTrack pointed at the shared prefix, beside the projection tracks the build script already wrote. The uri below is our hosted copy of that pair; a local build swaps in the ecoli_cactus prefix the command above wrote.

{
  "type": "FeatureTrack",
  "trackId": "ecoli_cactus_segments",
  "name": "MC graph: segments (whole graph, by locus)",
  "assemblyNames": ["K12"],
  "adapter": {
    "type": "RgfaTabixAdapter",
    "uri": "https://jbrowse.org/demos/ecoli_pangenome/ecoli_cactus"
  },
  "displayDefaults": { "showLabels": false }
}

The segments then draw as an ordinary track on K12, and Track menu → Launch → Graph genome view (this region) cuts a subgraph at whatever is on screen. The link under the clip opens the session it starts in, so the same route runs on any graph indexed this way.

The Minigraph-Cactus graph put into an empty K12 session and then cut: the config above pasted into Open track... → Add track from pasted JSON, the window narrowed onto the IS1 element past flhD, and Launch → Graph genome view (this region) on the segments lane's own menu. Open the session this video starts in ↗

A kilobase or two is the width to open one at, and the downstream edge of the flagellar operon is a place where the five strains have something to disagree about: K12 carries an IS1 element there that the other four skip. A second copy of the segments track, colored by the SM:Z: carriage the walk recorded, says which segments those are; the pggb page gives that track's config and it takes only a new trackId and this graph's prefix.

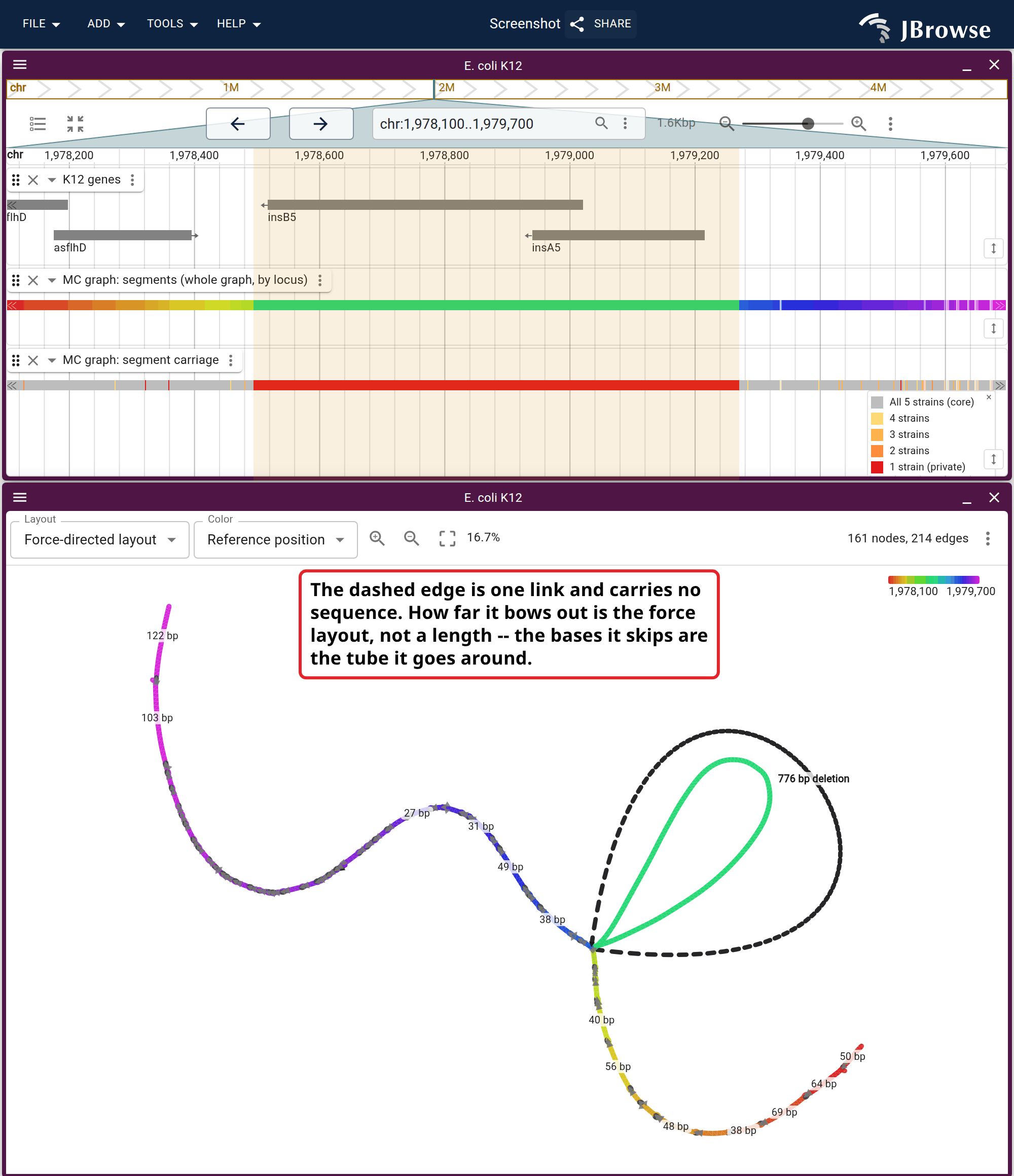

1.6 kb of K12 past flhD, as a linear view above and as a graph below, both reading the same two tabix indexes. The gene lane names the IS1 transposase pair insA5 and insB5 in the shaded span, the carriage lane paints that span as carried by one strain where the rest of the window is all five, and in the graph it is the single long node the other four route around. Open this view in JBrowse ↗

The node and the block are the same segment: both halves run the reference position ramp over the cut's own region, so a color in the lane is that color in the graph. The dashed edge is the other four strains' route, drawn as the deletion it is against K12.

An edge carries no sequence, so its drawn length comes from the layout. In a force layout a link between two anchors that are already close together bows out around everything between them, which is why the route past the IS1 element is the largest thing in the frame. The label on the edge is the length of the node it skips.

The pggb tutorial covers the decisions in the walk that decide what it can be trusted for, and the graph size past which cutting one window offline with odgi extract is the better route.

Compared to `odgi viz`

--viz already wrote mc/ecoli.viz/chr.full.viz.png, the same odgi viz raster the pggb tutorial shows beside its projections. It gives one row per strain, with the graph's node order on the horizontal axis.

The five-strain Minigraph-Cactus graph drawn by odgi viz, one row per strain. The horizontal axis is graph node order, so nothing lines up with a gene or coordinate. The gold band marks the locus carried over to the figure below.

The odgi pav track carries the same information, one row per path painted where that path is present. Drawing it on K12's coordinates in the raster's row order and colors leaves the horizontal axis as the only difference between the two figures. The gold band marks the same chr:1,000,000-1,100,000 in both.

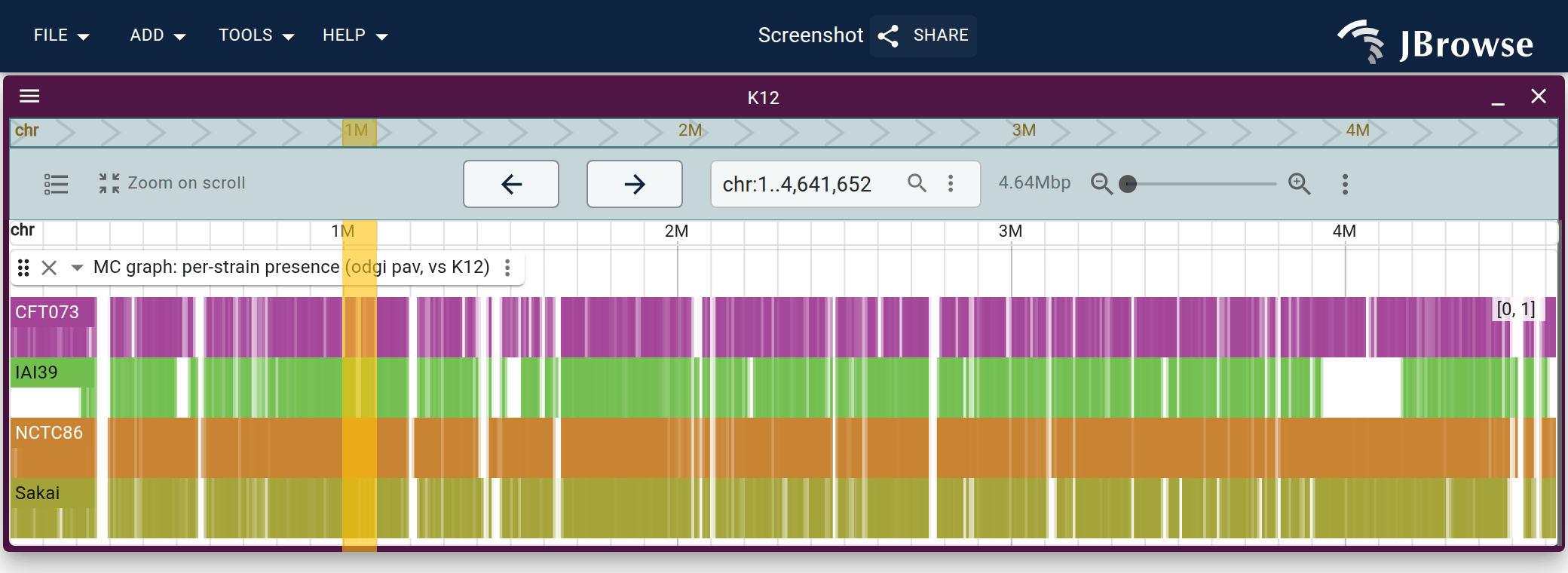

The same paths and the same colors on K12's coordinates. The gold band is the same 100 kb in both figures, and takes up a visibly smaller share of this axis than of the graph axis above. Open this view in JBrowse ↗

The graph axis counts pangenome bases, so a locus where the other strains carry sequence K12 lacks takes up more of it, and the JBrowse axis holds every locus to its reference width. This is the 100 kb window where the gap is largest, which is why it sits over a dip in the depth track.

Node ids in a Cactus graph run 1..N in node order, so walking K12's P line turns a K12 offset into a pangenome offset. build_ecoli_pangenome_cactus.sh does that walk, so both bands come from the same arithmetic.

The band contains Sakai's stx2 prophage and a second Sakai-only stretch, so crossing this 100 kb of K12 costs the other strains substantially more of their own sequence. The all-vs-all tutorial's stx2 figure opens the locus two rows deep with the gene lane on, and Synteny from ortholog tables covers the gene-level version of that zoom.

Reproduce it end to end

build_ecoli_pangenome_cactus.sh runs everything above in one shot, encoding the HAL's MAF with maf_to_bed.py:

curl -fO https://raw.githubusercontent.com/GMOD/jbrowse-components/main/scripts/build_ecoli_pangenome_cactus.sh
bash build_ecoli_pangenome_cactus.sh   # builds ./ecoli_cactus_build/jbrowse2
npx --yes serve ecoli_cactus_build/jbrowse2

It downloads the same five RefSeq genomes as the pggb build, runs cactus-pangenome, converts the HAL, VCF, odgi depth, and odgi pav into the projections above, maps the KTa004 reads through the graph, indexes the graph itself with build_pggb_tabix.sh, downloads JBrowse, and writes a config.json with the five assemblies, per-strain gene tracks, the projection tracks, the segments track, and a default session. It needs the same tools listed under Prerequisites.

The config.json declares the graph genome view plugin, so the segments track and its launch menu item work in that build.

It picks its container runtime from what is on PATH, docker first and then singularity or apptainer. Force one with CONTAINER=singularity.

Pangenome (Minigraph-Cactus)

Prerequisites#

Where the data comes from#

The Minigraph-Cactus pipeline#

Building the graph with cactus-pangenome#

All-vs-all synteny projection#

Pangenome variants projection#

Whole-genome alignment (MAF) projection#

Pangenome depth and per-strain presence#

Mapping a new isolate through the graph#

Opening the graph in the graph genome view#

Installing the plugin#

Indexing the graph#

Compared to odgi viz#

Reproduce it end to end#

See also#

Prerequisites

Where the data comes from

The Minigraph-Cactus pipeline

Building the graph with cactus-pangenome

All-vs-all synteny projection

Pangenome variants projection

Whole-genome alignment (MAF) projection

Pangenome depth and per-strain presence

Mapping a new isolate through the graph

Opening the graph in the graph genome view

Installing the plugin

Indexing the graph

Compared to `odgi viz`

Reproduce it end to end

See also
