Linear synteny view

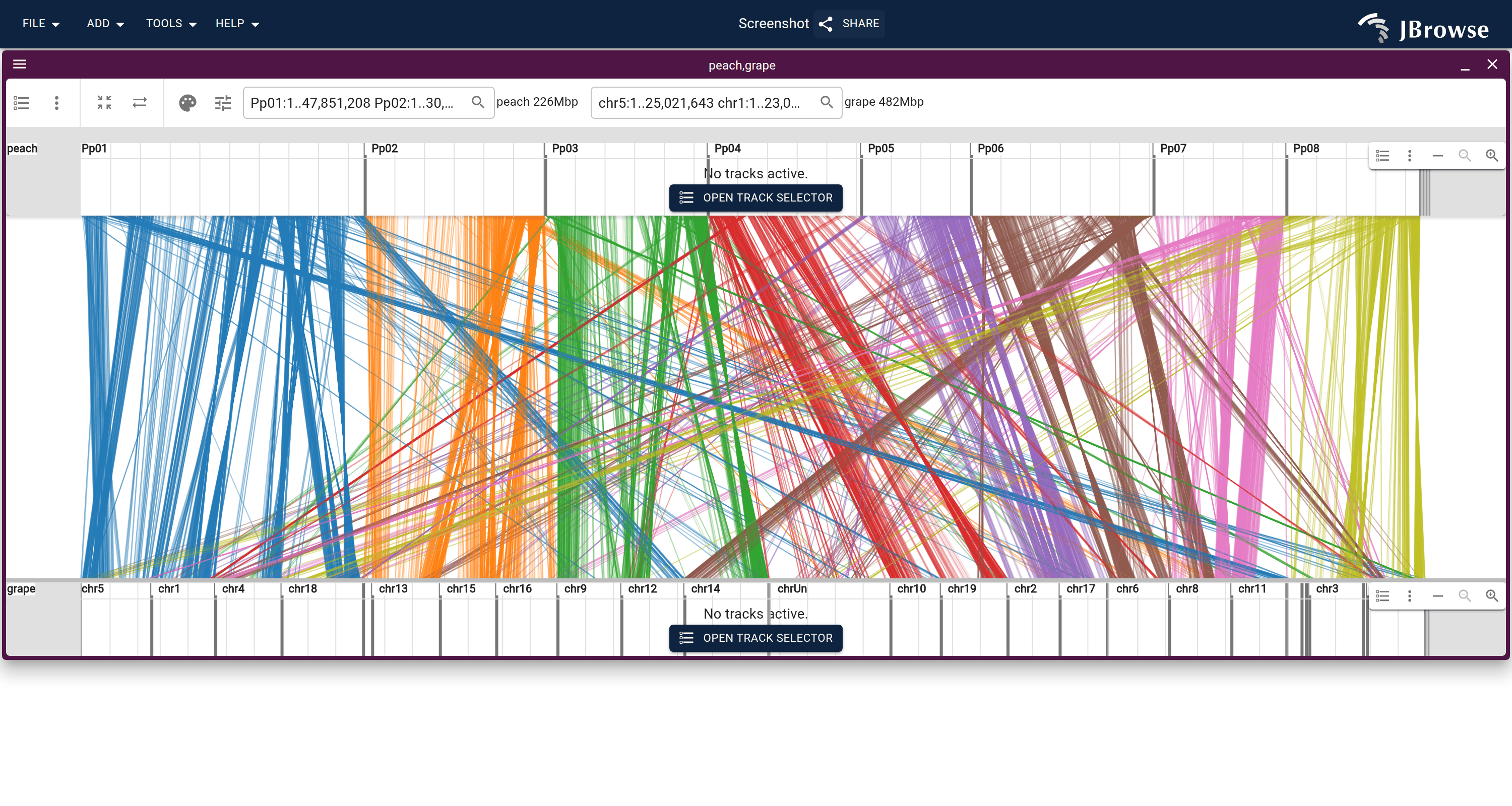

TL;DR: The linear synteny view stacks two genomes, one above the other, and draws their alignments as ribbons connecting matching regions. Each panel behaves like a linear genome view, so you can scroll, zoom, and add tracks to either side independently while the ribbons follow.
Forward-strand alignments are drawn in one color and inverted alignments in another, so a ribbon that twists or crosses marks an inversion or rearrangement.
Query, target, and CIGAR
Every alignment format names the two genomes the same way, as the query and the target. The query is the top row here and the horizontal axis of a dotplot; the target is the bottom row and the vertical axis. Which genome plays which role comes from the track, and Swap in the import form reverses it.
How the two line up base by base is recorded per alignment as a CIGAR, a
compact code where e.g. 120M3I45M is 120 matching bases, 3 extra bases in one
genome, then 45 more matches. It is what the ribbon tooltips report and what the
CIGAR indel modes paint, so an alignment file carrying no CIGARs can only be
drawn as solid blocks. For which file formats carry one and which adapter reads
each, see
the alignment format glossary.
Opening a linear synteny view
Add → Linear synteny view opens the import form. If your config already has a synteny track, it opens in Quick start: pick the track and it fills in a row per assembly that track names, however many that is, then click Launch. Swap reverses the row order, since a synteny track is queryable in either direction and its listed order does not claim which genome belongs on top.
Manual is the same form with the rows exposed: select each row's assembly yourself, click the arrow between two rows to give that pair its dataset, and add a .paf, .out (MashMap), .delta (MUMmer), .chain, .anchors, or .anchors.simple (MCScan) file there if the session has none. It is the way in for a stack whose rows no single track names, and the way to adjust the ones Quick start filled in.
Either mode stacks more than two genomes. The worked examples are from an all-vs-all PAF, an MCScan ortholog table, and a pangenome graph's linear projections.
From a locus you are already looking at
The other way in starts from a locus in a linear genome view with a synteny track open on it, and lets JBrowse frame the panels. The track has to be open: its ribbons are what say the locus aligns anywhere at all, and a dataset that is configured but closed is what the import form above is for.
- Drag-select a region on the scale bar and pick Launch → Linear synteny view. The dialog names the synteny dataset the region is read back out of — a select when the view has more than one open, a line otherwise — and changing it refetches the panels below. JBrowse finds every assembly aligning to the region in that dataset and opens a panel for each. The dialog lists them top to bottom with the locus and size each panel will open on and up/down arrows, the assembly you selected in among them: ribbons are drawn between neighbouring panels only, so that order decides which comparisons the view can show. This is the form to use for an all-vs-all dataset, where a locus reaches several assemblies at once.
- Right-click a single alignment in a synteny track drawn in a linear genome
view and pick Launch synteny view for this position, which opens the one
pair that alignment describes. Its Use CIGAR to map the current visible
region to the target option walks the alignment to find the interval that
matches what you are looking at; without it the panels frame on the whole
block's endpoints, and the dialog prints where each panel will open either
way. An alignment carrying no CIGAR — a PAF written without minimap2's
-c, MashMap, MCScan, the coarse tier of a PIF — offers the same option as Clip the panels to the current visible region, estimating the target interval by interpolating across the block, which is the straight line its ribbon is already drawn as. Worked through in Synteny on genomes.jbrowse.org. On a track declaring three or more assemblies the same menu also offers Launch synteny view for all assemblies here, the multi-panel dialog above cut from this track at the block you clicked in. Open <assembly> at the matching region is the jump rather than the comparison: it opens the mate assembly on its own, with the session's gene track for it, at the stretch the alignment maps your window to, for any mate the session has loaded. The same three are links in the feature's details panel, clipped to the panel's visible window. - The same Linear synteny view (visible region) entry sits in the view's hamburger menu under Launch, for when the region you want is the whole view and there is nothing to select.
- A row of a synteny view launches too. Drag-select on any row's scale bar and the same Launch → Linear synteny view reads the bands' datasets, so the dialog opens anchored on that row's genome with a panel for every assembly aligning to it there. Replace current view then swaps the stack for one anchored on that row, which is how a stack is re-anchored on any of its genomes.
- A row of a MAF track opens as a synteny view too: drag-select across the rows and pick Launch synteny view, <ref> vs..., then the sample. The ribbons are cut from the alignment's own columns, so no synteny file is involved.
Both dialogs offer a window size (padding added to every panel) and a horizontally flip inverted targets checkbox. Without flipping, an inverted panel's coordinates run right to left.
Navigating each panel
Each genome panel is a full linear genome view and, by default, is controlled independently:
- scroll, zoom, and pan either panel on its own; ribbons redraw to follow
- type a region or gene name into a panel's search box to jump it there
- add tracks (genes, alignments, coverage) to either side from its track selector, useful for reading what a syntenic block actually contains
Making the panels move together
Link views in the hamburger menu couples the panels. Independent is the default; the other two couple them differently:
- Locked together replays a pan or zoom in one panel onto the others, so they move together by pixels. That pixel correspondence drifts apart as indels accumulate between the two genomes. Useful once the panels are already lined up on the region you want to walk along, and on comparisons close enough that they stay lined up
- Follow keeps the other panels on whatever aligns to one anchor panel, re-resolved through the synteny data as you move. It re-derives the correspondence from the alignment, so the ribbons stay near-vertical however far you pan
Following is the mode to reach for when comparing two haplotypes or two assemblies of the same genome, where the coordinates diverge but the sequence does not. Turning it on adds an Anchor row section to the same menu, naming which panel drives; the others are placed from it, outward one level at a time in a stack of three or more.

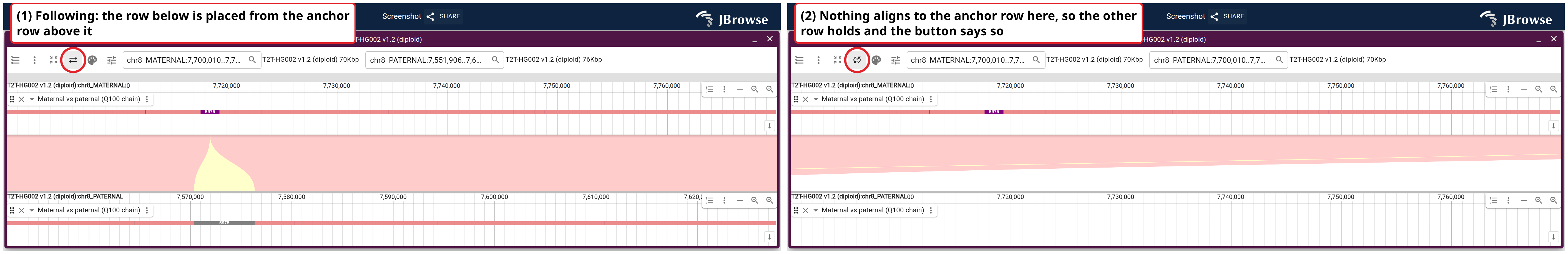

The header's arrows button toggles following on and off without opening the menu, and shows whether it is running. It changes to a warning form where nothing aligns to the anchor's window at all — a haplotype-specific insertion, a centromere, a panel off the end of the alignments — where the other panels hold their position.
A followed panel can still be panned by hand; it returns to the matching region once it settles. Turn following off to keep it where you put it.
Interacting with the ribbons
- Hover a ribbon to see a tooltip with the alignment's coordinates on both genomes and, when zoomed in, the CIGAR operation under the cursor
- Click a ribbon to highlight it across both panels
- Right-click a ribbon for a context menu with Center on feature, which recenters both panels on that alignment's midpoint
- The same menu offers Move top panel to the matching region and Move bottom panel to the matching region. These leave one panel alone and send the other to the sequence that panel's visible window aligns to, resolved through the alignment's CIGAR, which is what to reach for on a chain-scale alignment whose midpoint can be tens of megabases from what is on screen. There are two items because a ribbon sits between two panels
- The same item is on the right-click menu of a synteny track opened as a track inside a panel, as Move other panel to the matching region — there the panel you clicked in is the one that stays
- Those items appear only where the alignment carries a CIGAR to walk. A PAF
written without
minimap2 -c, a MashMap or MCScan file, and the coarse tier of a tiered PIF all describe a block without describing the correspondence inside it, so there is no matching region to resolve; zooming in far enough to load the fine tier brings the items back - To keep a panel on the matching region as you move rather than sending it there once, use Follow above. It works on CIGAR-less alignments too, interpolating across the block
Coloring the ribbons
The palette button in the view header sets what the ribbon color means, and carries a Show color legend toggle:
- Default - the ribbon color plus CIGAR operation coloring, so insertions, deletions, and skips inside an alignment are drawn in their own colors
- Strand - forward and inverted alignments get different colors, so a ribbon that twists reads as an inversion
- Distinct color per track - give every overlaid synteny track its own color from a palette, so several alignment files drawn into the same view can be told apart. Only offered once a view has more than one track
- Query / Target - color by the refName on this side or on the other side, for telling contigs apart when one maps across several
- Reference - color every level of a stacked view by the shared reference's chromosome names, so a region keeps one color as it is traced down the stack
- Identity - per-alignment sequence identity on a viridis ramp. It needs the
=/XCIGAR thatminimap2 --eqxwrites - Mean query identity - length-weighted identity across all alignments of a query/target pair, which smooths a contig split into many hits
- Mapping quality - per-alignment PAF MAPQ on a cividis ramp
- dN/dS - the ratio of non-synonymous to synonymous substitution rate, on a
diverging blue-yellow-red ramp whose pale middle is 1. Blue below it is
purifying selection, red above it positive selection, clamped at 2. It needs
an ortholog table
carrying
dnanddsper link
A mode whose number a track does not carry leaves every ribbon the default color.
Customize per track at the bottom of that menu overrides the choice above for one track at a time: each track can take its own mode, and its automatic palette color can be pinned to one you pick. Choosing any mode above clears those overrides.
The settings button beside it has Identity fade, which modulates ribbon opacity by identity independently of the color mode, so low-identity blocks fade out without spending the color channel.
Display settings
The sliders button in the header opens a menu of every setting that decides what the ribbons look like, in three groups — how one alignment is drawn, how much of it is loaded, and which alignments are drawn at all. Every row is the same shape: a boolean is a checkbox, and a choice or a continuous value opens a submenu holding its options or its slider. Within a group the checkboxes come first, then the choices, then the values. The hamburger menu next to it answers what the view is — which genomes it stacks, where they point, what leaves it.
Ribbons — how one alignment is drawn.
- Identity fade is described above
- Thin fade fades ribbons thinner than a pixel by their on-screen width, so an unfiltered whole-genome view does not read as a hard full-opacity hairball. Its default, Auto, turns the fade on only where the view is dense enough to tangle, leaving a genuinely sparse comparison — distant species, every alignment sub-pixel — unfaded; On and Off pin it
- Curved lines draws ribbons as bezier curves instead of straight connectors, which reads far better at whole-genome scale where straight crossings stack into noise
- Location markers continues the top panel's scalebar grid down through the ribbons, so each tick shows where a round coordinate up there lands below
- Opacity is how much dense overlapping alignments show through each other
Detail — how much of each alignment is loaded and painted.

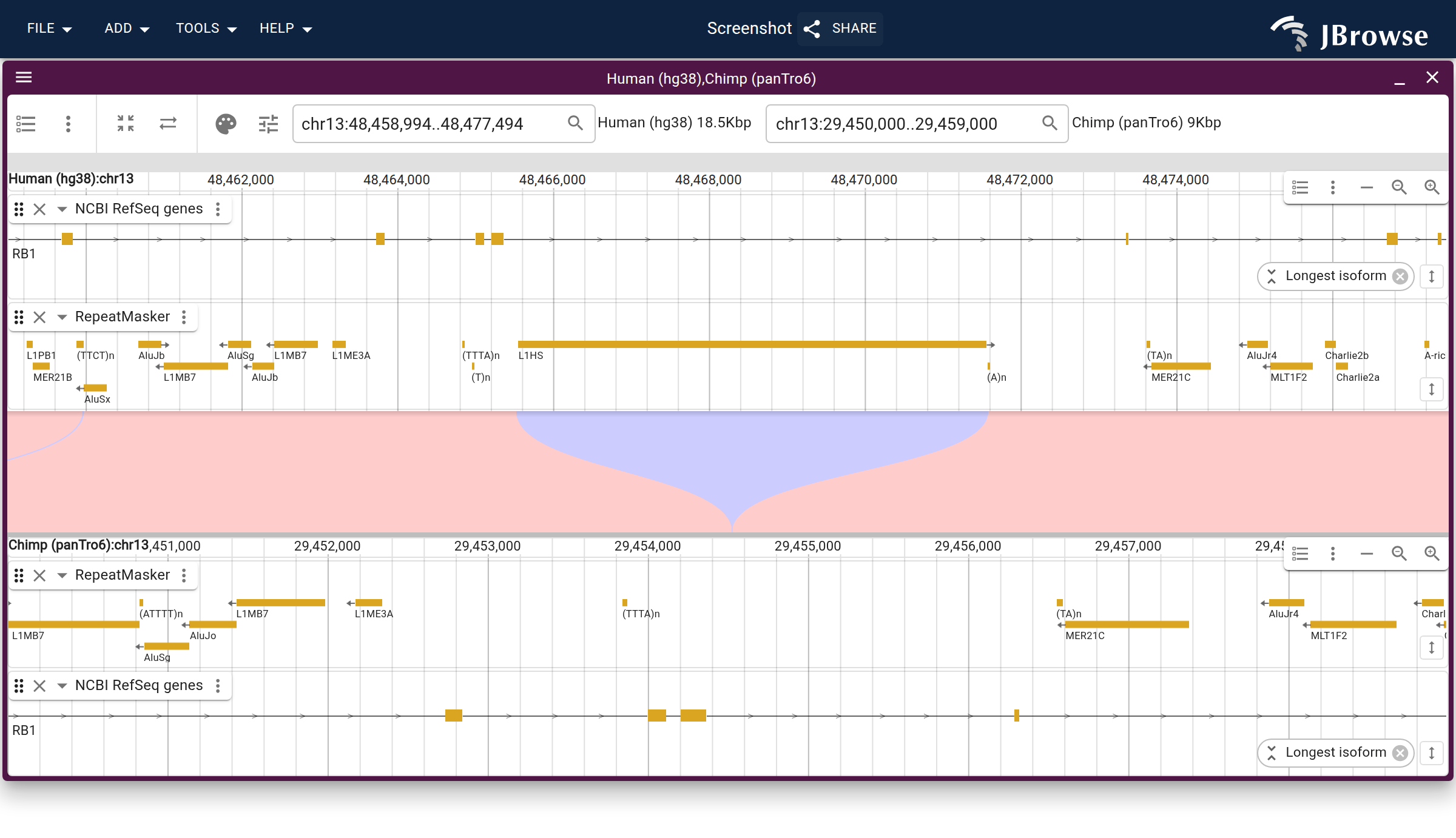

- CIGAR indels is how per-base insertions and deletions inside one are
shown:
- Colored indels paints them
- Transparent indels leaves them as see-through gaps in the ribbon
- Off - don't draw CIGAR indels draws each alignment as one solid block. It carries a warning icon: overlapping blocks run together with nothing to tell them apart, and a gap inside a block is painted as though it matched across
- Level of detail picks which stored tier is fetched
Both rows are gated on the data: a CIGAR-less PAF has no indels to draw, and an adapter with one stored tier has nothing to switch between. A file that is both takes the whole section with it.
Scope — which alignments make it into the picture at all.
- Off-screen mates decides how hard to look for the ones this view cannot draw (below)
- Min length hides ones shorter than it, which is what clears the hairball of short spurious chains at whole-genome zoom
- Overdraw is how many pixels beyond the visible area are still drawn, which is what keeps a ribbon reaching a long way off screen visible while you scroll
View options
The view's hamburger menu keeps seven rows however many genomes are stacked. The three that zoom every row at once are at the top; what varies with the stack is inside Rows:
- Square view - average bp per pixel puts every row on the average of the rows' current scales, keeping each row's center
- Show all regions - each row fit to width zooms every row out to its whole assembly, giving each its own scale so it fills its own pane
- Show all regions - same bp per pixel zooms every row out too, but puts them all on one scale, so a smaller genome draws proportionally shorter than a larger one. The two show-all-regions rows are settings rather than one-off buttons: whichever is marked stays in force, so after zooming into a locus, zooming back out returns to the same shared scale
- Link views decides whether panning one row pans the others, and by what — pixels, or the alignment. Following also picks which row is the anchor
- Rows - Add assembly row to compare three or more assemblies stacked vertically, Remove bottom row, Re-order chromosomes, and one entry per genome opening that row's own view menu (which is otherwise reachable only from that row's header, and a collapsed row has none)
- Export SVG, and Show... for the header's own search boxes
Off-screen mates

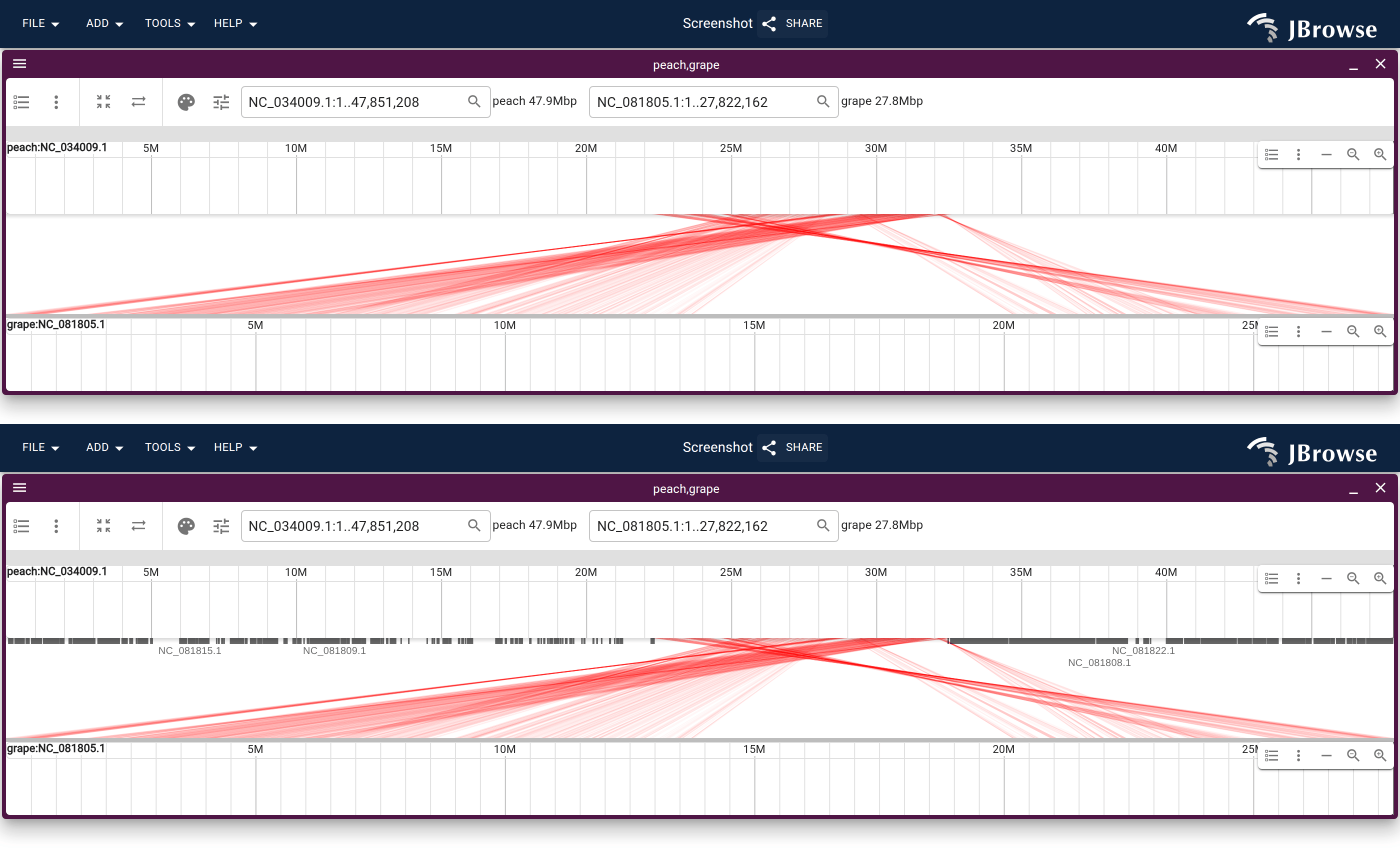

A ribbon needs both of its ends on screen. An alignment with only one end there draws nothing, so a locus syntenic to a chromosome the view cannot pair looks exactly like a locus syntenic to nothing. Two arrangements produce that, and the marks cover both. Either the mate is on a contig the facing panel is not displaying at all, or it is on one that panel has scrolled away from. The second is what a stack of whole genomes is made of. Every contig is displayed there, so nothing is missing from the panel, and the ribbons still disappear as soon as the two rows are not over each other.
Where the mate sits on the facing panel is a live question, so the marks answer it live. Scroll that panel onto the mate and the mark becomes the ribbon it stood in for. Overdraw is the edge it is measured against.
Off-screen mates in the settings menu is where Mark them on the upper panel turns the marks on, and it is on by default. Each mark sits where the alignment is on the panel it does have, stopping short of the ribbons so it cannot be read as an alignment to whatever is directly below. A run of marks to one contig carries that contig's name; where several contigs cover the same stretch, their names stack.
Which panel a mark lands on is decided by which one still has the alignment. An alignment is undrawable as soon as either of its ends leaves its own panel, so the two edges of a band say opposite things. A mark along the top edge means the upper panel still has that alignment and the lower panel cannot pair it — its other end is on a contig the lower panel is not displaying, or on one it has scrolled away from. A mark along the bottom edge is the same sentence with the panels swapped: the lower panel still has it, and the upper panel is the one that cannot pair it. Clicking a mark always moves the other panel, the one that would have to show that contig for the two to be a ribbon.
A panel gets a strip only if the file was queried from it. The upper panel always is, which is what makes marking it free: every alignment anchored in the window it is showing came back, including the ones there is no way to draw, so the top edge accounts for all of them. The lower panel is queried only at the step described below, and until it is, the alignments anchored down there are held only where they happened to fall inside the upper panel's fetch. A strip drawn from those would stop where the fetch stops rather than where the data does, shift as the upper panel pans, and give each mark a count that is some fraction of the alignments going to that contig. So the bottom edge stays empty until there is a query behind it.
A run too narrow to hold its own name goes unlabelled, which at whole-chromosome zoom is most of them. Hover any mark and it names the contig it points at, and how many alignments on this band go there.

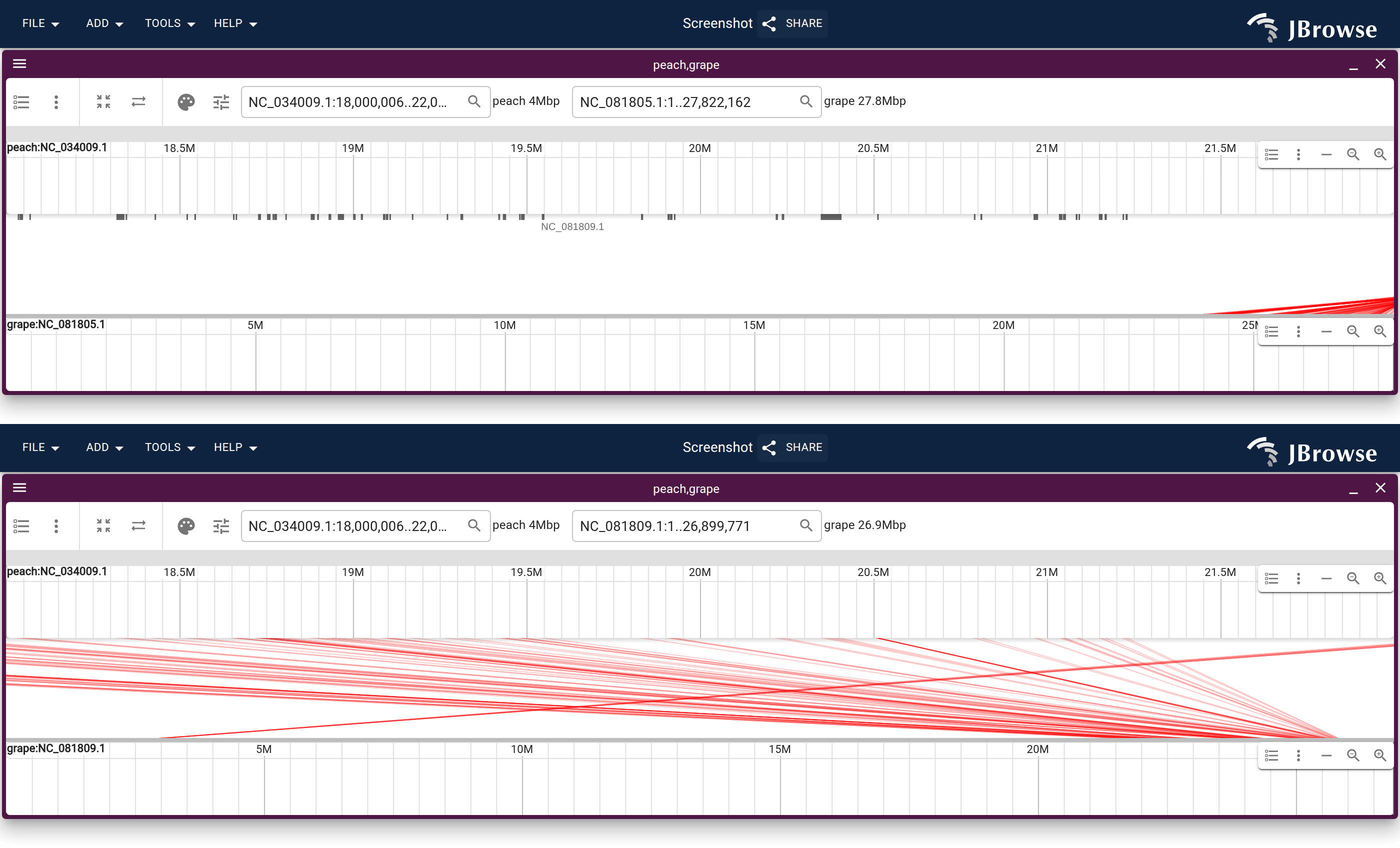

Clicking a mark shows that mate on the facing panel. A contig the panel is already displaying is scrolled to, so the rest of what it was showing stays. That matters most in a stack of whole genomes, where replacing the panel's regions would throw away every other chromosome. A contig it is not displaying has to replace them, and there the click navigates to the mate's own locus rather than to the whole contig, close enough to show the alignments the mark stands for. The window is widened around that locus, to at least 20kb and a little past its ends, so a single small anchor arrives with context around it to place the alignment against. The click turns those marks into ribbons, and the hover says what it will do beforehand.
Either way the click raises a notification carrying an Undo that puts back the row's regions, its zoom and its scroll position. The replacing kind discards a region list that may have been built over several navigations, and even a scroll is worth being able to take back. If the rows are following each other and the one clicked was not the anchor, the click also makes it the anchor, since the follow would otherwise pull the row straight back off the contig it was just sent to, and the notification says so. That undo restores the previous anchor too.
Alignments anchored on the lower panel
A synteny track is queried from the upper panel of each pair, so an alignment anchored on a contig the lower panel is showing — whose other end is somewhere the upper panel is not — is never asked for at all. The same two genomes therefore report differently depending on which one you stacked on top.
Query the lower panel too, and mark it as well — the last step of that same submenu — adds that second query, and with it the strip along the bottom edge.
What comes back splits two ways. An alignment whose other end is on a contig the upper panel is not displaying at all has no second endpoint, so it becomes a mark; clicking one of those navigates the upper panel. An alignment whose other end is on a contig the upper panel is displaying, outside the window it is showing, is a ribbon in principle — but a ribbon with one end that far off the edge is not drawn, which is the same rule that governs any alignment reaching a long way off screen, so it becomes a mark too. Raising Overdraw past the panel's pan buffer is what turns those marks into the ribbons they stand for.
It is off by default: it is a second query per panel pair, which on a whole-genome alignment file is real work.
Smaller insertions

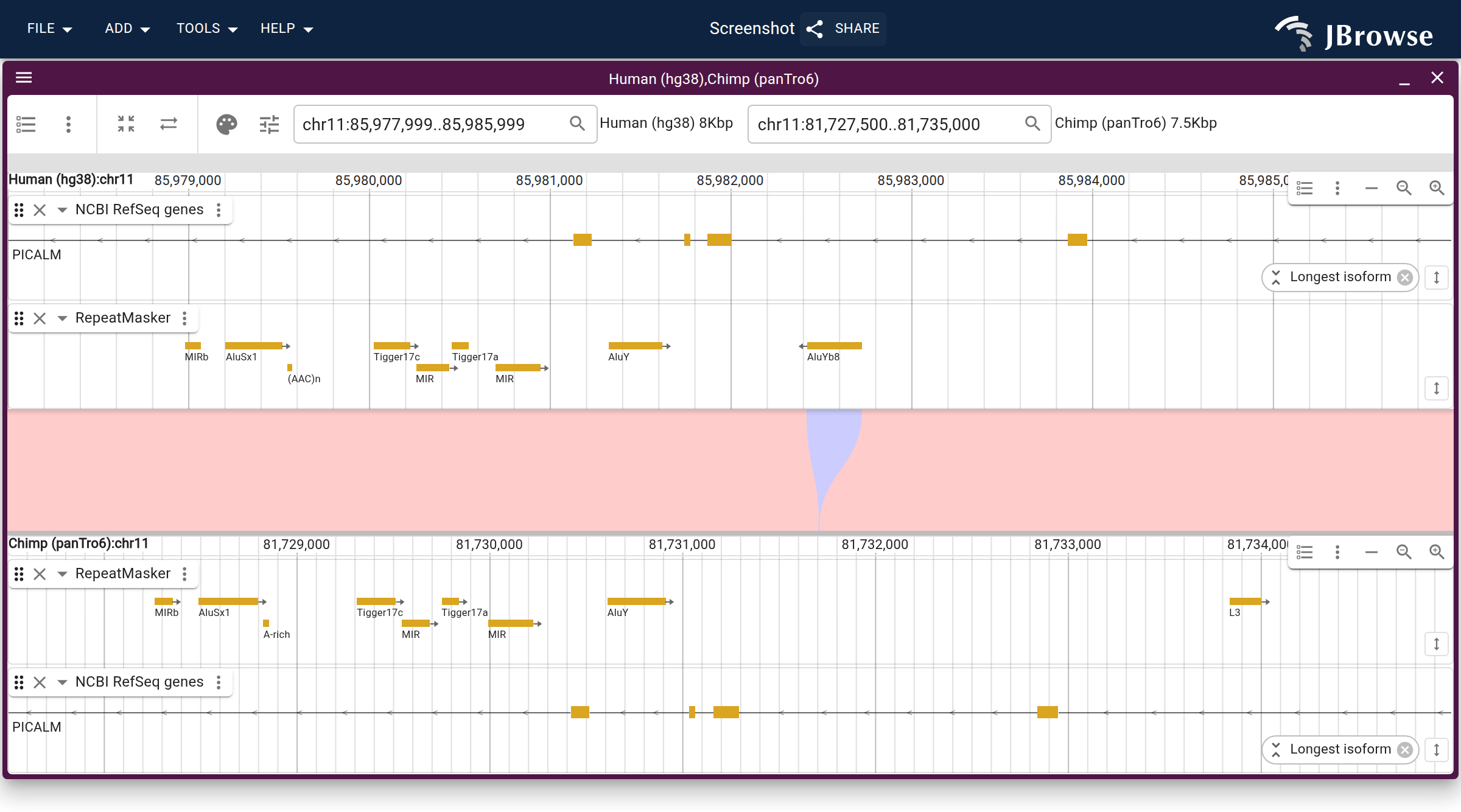

The same human/chimp synteny plus RepeatMasker resolves a lineage-specific insertion an order of magnitude smaller than the L1HS above, and it is still a gap in the alignment with the element named at the indel:
