Alignments tracks

Alignment Tracks (BAM and CRAM)

JBrowse has several track types that are designed for displaying alignment data, particularly from BAM and CRAM files. BAM and CRAM files used with JBrowse must be compressed and sorted by leftmost coordinate.

The JBrowse BAM parsing library makes extensive use of code from BioDalliance, while the CRAM support is based on the @gmod/cram npm module.

Alignments2

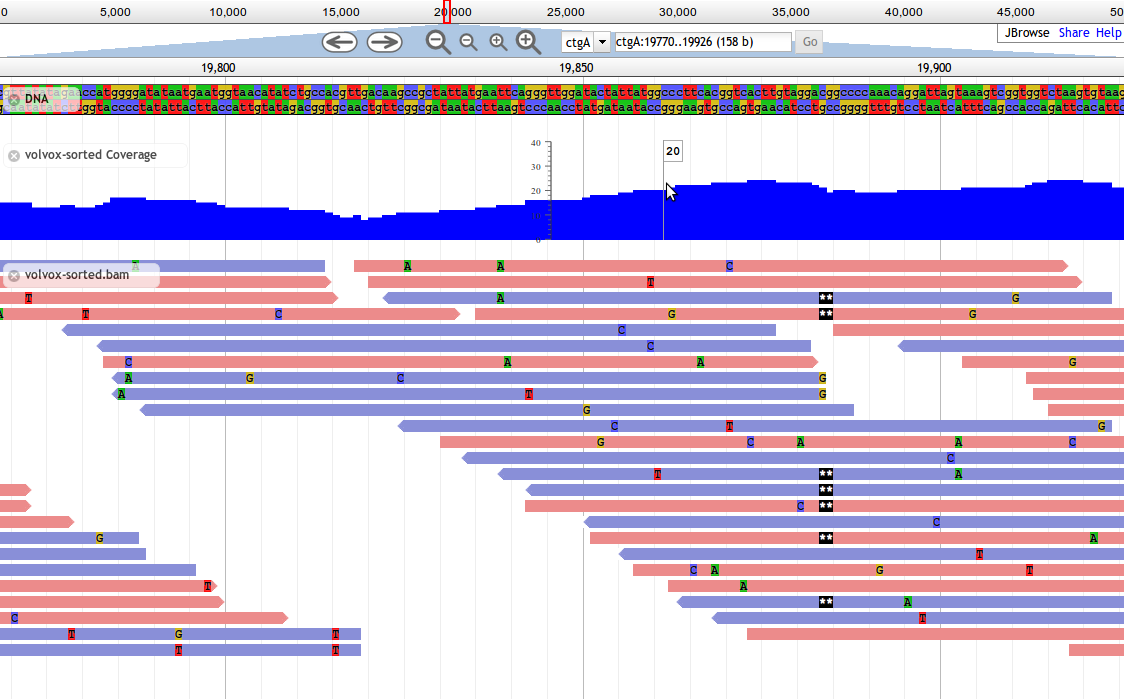

Introduced in JBrowse 1.8.0, Alignments2 tracks are designed to display alignment data, such as from BAM files. This track type shows basepair-level mismatches, insertions, deletions, and skipped regions between aligned reads and the reference, and highlights paired reads in red if their mates are missing.

Base mismatches are displayed based on the contents of the feature's MD field (containing a BAM MD mismatch string), and/or CIGAR field. If your BAM file does not contain MD tags, one common way to generate them is with the samtools calmd command.

Alignments2 is a faster implementation of the older Alignments track type that draws alignments using the HTML5 canvas. In the interest of speed, Alignments2 tracks do not display any text labels or descriptions alongside features, and do not draw arrowheads indicating strandedness, instead relying on color to denote the strand of alignments.

Alignments2 tracks support the same advanced clicking behavior as CanvasFeatures tracks, but does not support right-click menus.

The most basic Alignments2 track configuration in tracks.conf format is

[tracks.alignments] urlTemplate=FM.01.new.sorted.chr11.bam type=Alignments2

The above track template infers that the storeClass is a BAM store. Not all track and store types can do this inference but Alignments2 allows this

Paired read options

In JBrowse 1.16, paired read visualization was introduced

See paired read configuration also for more information

List of configuration options

General options

Option	Value
maxHeight	Available in JBrowse 1.9.0 and later. Maximum displayed height of the track in pixels. Defaults to 1000. Features that would cause the track to grow taller than the maxHeight are not shown. If a section of a track has features that are not drawn because of a maxHeight constraint, a notification is displayed at the bottom of that track section.
style→color	HTML-style color for drawn alignments. By default, this varies with the alignment's strandedness, and whether its mate pair is missing, using the style→color_fwd_strand, style→color_rev_strand, and style→color_missing_mate variables. To gain complete control over the displayed color, you could set this to be a function callback.
style→color_fwd_strand	HTML-style color for alignments on the forward strand. Default #EC8B8B, which is a light red.
style→color_rev_strand	HTML-style color for alignments on the reverse strand. Default #898FD8, which is a light blue.
style→color_missing_mate	HTML-style color for alignments with a missing mate. Default #D11919, which is a dark red.
style→height	Height in pixels of each alignment. Default 7.
style→marginBotton	Number of pixels of vertical spacing to put on the bottom of each alignment. Default 1.
style→showMismatches	If true, draw mismatches (SNPs, insertions, deletions, skips) on the alignent. Default true.
style→mismatchFont	CSS string describing the font to use for labeling mismatches. Default "bold 10px Courier New,monospace".

Histograms configuration

A pre-defined histogram e.g. from a bigwig can be defined on the Alignments2 track. Example

[tracks.bam]
urlTemplate=alignments.bam
histograms.storeClass=JBrowse/Store/SeqFeature/BigWig
histograms.urlTemplate=coverage.bw

Config options

Option	Value
histograms.storeClass	A store class for summary histograms used for the Alignments2 track. Usually JBrowse/Store/SeqFeature/BigWig. Can be used on any CanvasFeatures-type track but generally used in Alignments2 tracks
histograms.urlTemplate	Path to a histogram file (such as a BigWig) to be used for summary histograms used for the Alignments2 track. Can be used on any CanvasFeatures-type track but generally used in Alignments2 tracks
histograms.color	Color for the histograms e.g. "purple". Default is orange. Can be used on any CanvasFeatures-type track but generally used in Alignments2 tracks
histograms.binsPerBlock	"Granularity" of the bins in histogram. Default is 200 for Alignments2 tracks. Default is 25 on other CanvasFeatures type tracks.

Filtering options

Alignments can be filtered by various BAM flags

Option	Value
hideDuplicateReads	Hide duplicate reads to the same location. Default: true
hideQCFailingReads	Hide QC failing reads that did not pass some aligner quality. Default: true
hideSecondary	Hide secondary reads which mapped to multiple locations. Default: true
hideUnmapped	Hide unmapped reads. Default: true
hideMissingMatepairs	If a read is missing a mate pair or paired-end match, hide the read. Default: false
hideImproperPairs	If a read is missing a mate pair or paired-end match, hide the read. Default: false
hideForwardStrand	Hide all reads from the forward strand. Default: false
hideReverseStrand	Hide all reads from the reverse strand. Default: false

Note: hideImproperPairs was introduced in 1.16.0 to disambiguate from hideMissingMatepairs. The "read mapped in proper pair" flag can have a mate but it is simply classified as a bad alignment by the aligner, JBrowse displays these as lightly colored

Coloring options

Option	Value
useReverseTemplate	Use an algorithm for reversing the template of paired-end reads so that they appear on the same strand, RNA-seq specific. Default: false. Added in 1.11.6
useXS	Color reads when the XS or TS tag which infers strandedness of RNA-seq spliced alignments that cross a splice junction. Default: false. Added in 1.11.6, added upper case TS support in 1.16.9
useTS	Color reads using the lower case ts tag used by minimap2, indicates strandedness, RNA-seq specific. Default: false. Added in 1.16.0
colorByMAPQ	Color reads according to mapping quality, RNA-seq specific. Default: false. Added in 1.16.0
colorByOrientation	Colors reads according to paired end orientations. Default: false. Added in 1.16.0
colorBySize	Colors reads according to insert size. Default: false. Added in 1.16.0
colorByOrientationAndSize	Colors reads according to paired end orientations. Default: false. Added in 1.16.0

Note: colorBySize, colorByOrientationAndSize invoke insert size stats estimation, and only makes sense with paired read tracks. Many of these options are 1.16.0 and newer. See paired reads for more information.

Other options

Option	Value
cacheMismatches	Cache mismatch calculations so that long reads are faster to browser. Default: false. Added in 1.12.3
renderAlignment	Add a text display of the BAM alignment on a single line in the View details popup. Default: false
renderPrettyAlignment	Add a text display of the BAM alignment using prettier "BLAST style" to the View details popup. Default: false
orientationType	Set the orientation pattern. Default is 'fr' according to illumina adapters that face each other. Other options are 'rf' and 'ff'. See https://software.broadinstitute.org/software/igv/interpreting_pair_orientations for more info. Added in 1.16.0

Alignments2 coloring schemes

Since JBrowse 1.11.3, there is a new coloring scheme for BAM files that allows for new coloring of paired end reads, such as a different coloring for unpaired reads and aberrant pairing split across chromosomes.

The coloring styles that can be configured for the Alignments2 track are as follows

Option
style→color_fwd_strand	#EC8B8B (original red)
style→color_rev_strand	#8F8FD8 (original blue)
style→color_fwd_missing_mate	#D11919 (hard red)
style→color_rev_missing_mate	#1919D1 (hard blue)
style→color_fwd_strand_not_proper	#ECC8C8 (light red)
style→color_rev_strand_not_proper	#BEBED8 (light blue)
style→color_fwd_diff_chr	#000000 (black)
style→color_rev_diff_chr	#969696 (gray)
style→color_nostrand	#999999 (gray) Added in 1.11.6

If this scheme is undesirable, the style->color variable can be overridden entirely as well, with a callback for example. Also see See paired reads for additional flags relavant to paired end reads.

SNPCoverage

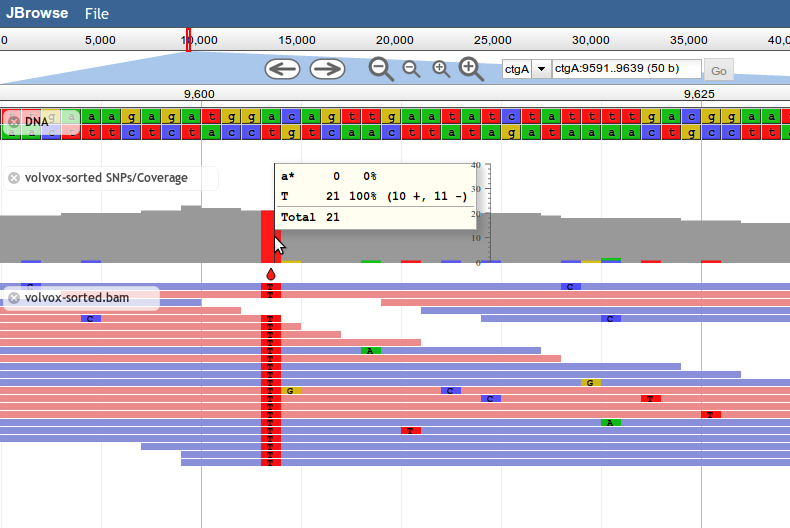

Introduced in JBrowse 1.8.0, SNPCoverage tracks draw the coverage of alignment features along the genome, along with a graphical representation of base-mismatch (possible SNP) distribution, and tables showing frequencies for each mismatching base.

Like the other alignment tracks, base mismatches are displayed based on the contents of the feature's MD field (containing a BAM MD mismatch string).

Note: Since the SNPCoverage track dynamically calculates coverage and putative SNPs directly from alignment data, it is not recommended for use with very dense feature data, such as deep-coverage BAM files. For these types of files, it's recommended to pre-generate a BigWig file of the coverage and a VCF file of putative SNPs, and display those instead.

Example SNPCoverage Configuration

In your data/tracks.conf file:

[tracks.my-bam-coverage-track]
storeClass = JBrowse/Store/SeqFeature/BAM
urlTemplate = volvox-sorted.bam
type = JBrowse/View/Track/SNPCoverage
metadata.Description = SNP/Coverage view of volvox-sorted.bam, simulated resequencing alignments.
key = BAM - volvox-sorted SNPs/Coverage

Note that urlTemplate will refer to a file relative to the "data" directory that you are using.

Alignments

Introduced in JBrowse 1.7.0, Alignments tracks are an HTML-based track type for alignment display. They display everything that Alignments2 do, and also can be configured with right-click menus and strand arrowheads.

They display everything that Alignments2 tracks do, plus they support the same configuration options as feature tracks, including advanced clicking behavior, feature modification callbacks, and so forth. The price of this additional capability is that Alignments tracks are significantly slower when used with dense data such as deep BAM alignments.

Alignments2 is recommended over Alignments for most users.

BAM Data Configuration Options

Option	Value
urlTemplate	URL for the BAM file to display.
baiUrlTemplate	URL for the corresponding BAM index (BAI) file. If not set, this is assumed to be the same URL as urlTemplate with .bai appended.
csiUrlTemplate	URL for the corresponding BAM index (CSI) file. Must be set manually in the case that it is being used.
chunkSizeLimit	Maximum size in bytes of BAM chunks that the browser will try to deal with. Default 5000000 (5 MiB). When this is exceeded, most tracks will display some kind of "Too much data" message. If you increase this, be careful. You could blow up your web browser.
fetchSizeLimit	Maximum size in bytes of a single BAM request that the browser will try to deal with. Default 100000000 (100 MiB). When this is exceeded, most tracks will display some kind of "Too much data" message. If you increase this, be careful. You could blow up your web browser.

Note: you can also increase maxFeatureScreenDensity if you get the "Too much data to show; zoom in to see detail".

Example BAM Alignments2 track configuration

      {
         "storeClass"  : "JBrowse/Store/SeqFeature/BAM",
         "urlTemplate" : "../../raw/volvox/volvox-sorted.bam",
         "label"       : "volvox-sorted.bam",
         "type"        : "JBrowse/View/Track/Alignments2"
      },

Apache Configuration Note

If you are using the Apache web server, please be aware that the module mime_magic can cause BAM files to be served incorrectly. Usually, the error in the web developer console will be something like "Not a BAM file". Some packaged versions of Apache, particularly on Red Hat or CentOS-based systems, are configured with this module turned on by default. We recommend you deactivate this Apache module for the server or directory used to serve JBrowse files. If you do not want to deactivate this module for the entire server, try adding this line to your HTTPD config or .htaccess file:

AddType application/octet-stream .bam .bami .bai

In some cases the problem can also manifest in VCF tabix for example, you may also need to use

AddType application/octet-stream .gz
AddType application/octet-stream .tbi
AddEncoding dummy .gz .tbi

Note that there may be some sideeffect related to downloading gz files from this, but it has been reported to fix jbrowse usage of tabix VCF. Let us know if you have other solutions
